SPECIFICATIONS

Application: AC / Motor

Brand Name: ASEMI

Choice: yes

High-concerned chemical: none

Origin: Mainland China

semi_Choice: yes

Please confirm the size before purchasing. The size of the capacitors we provide is applicable. Avoid situations where purchased capacitors are too large to be used.

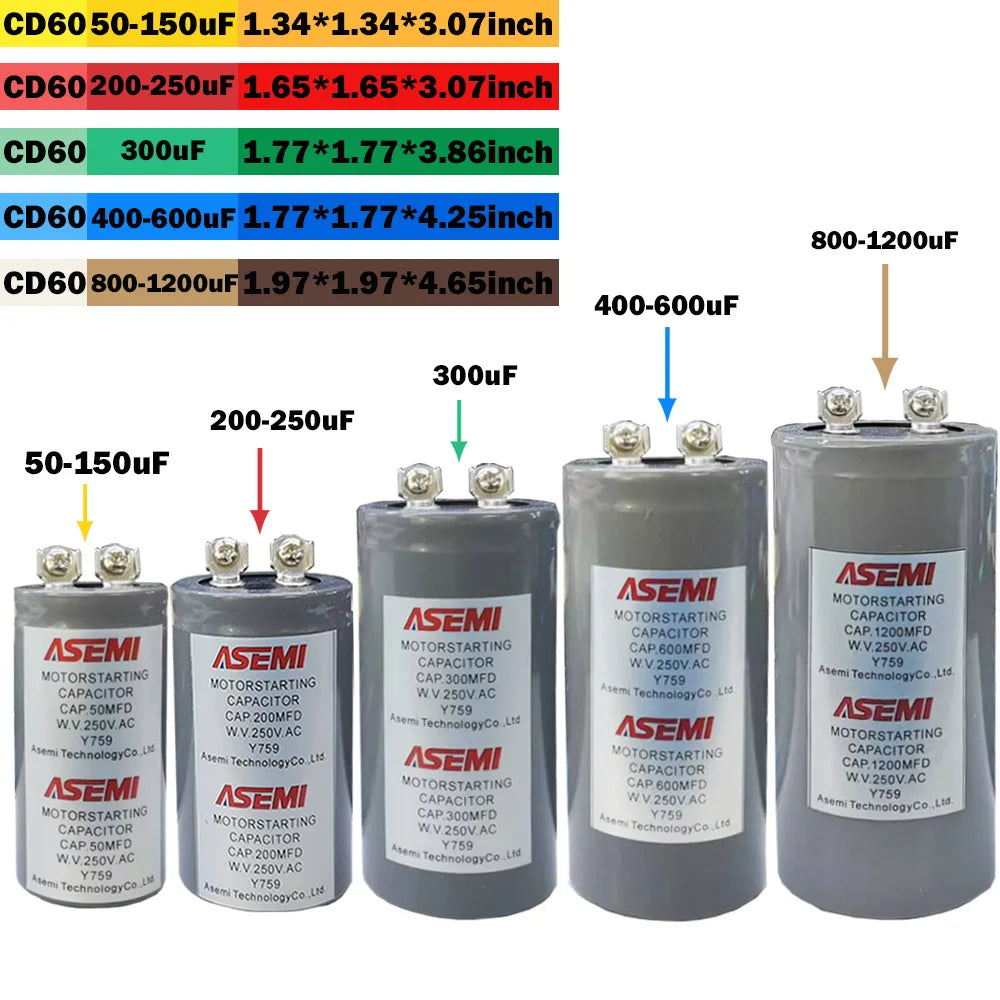

Size（Height excluding terminals）:

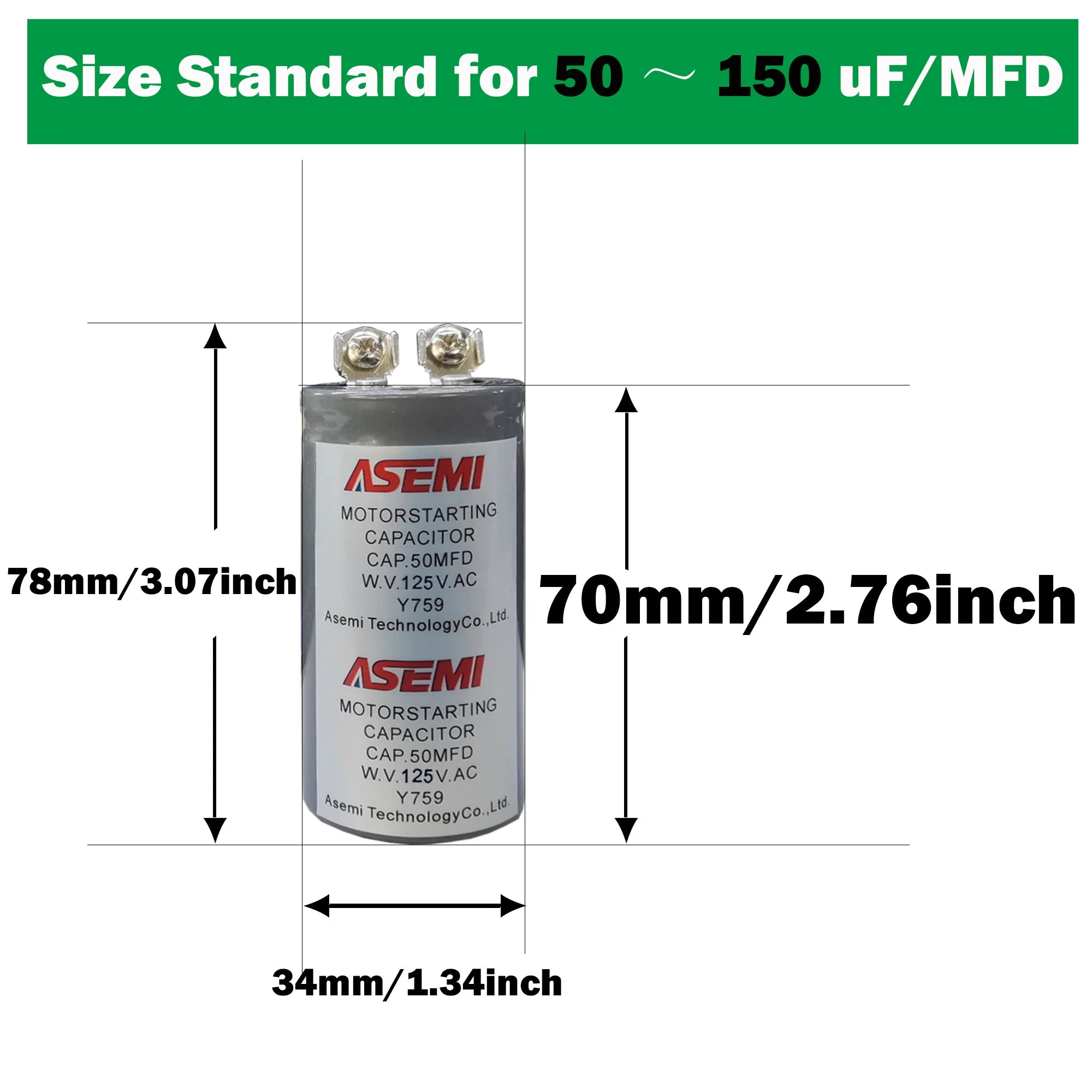

50UF:1.34*1.34*2.76inch/34*34*70mm

75UF:1.34*1.34*2.76inch/34*34*70mm

100UF:1.34*1.34*2.76inch/34*34*70mm

150UF:1.34*1.34*2.76inch/34*34*70mm

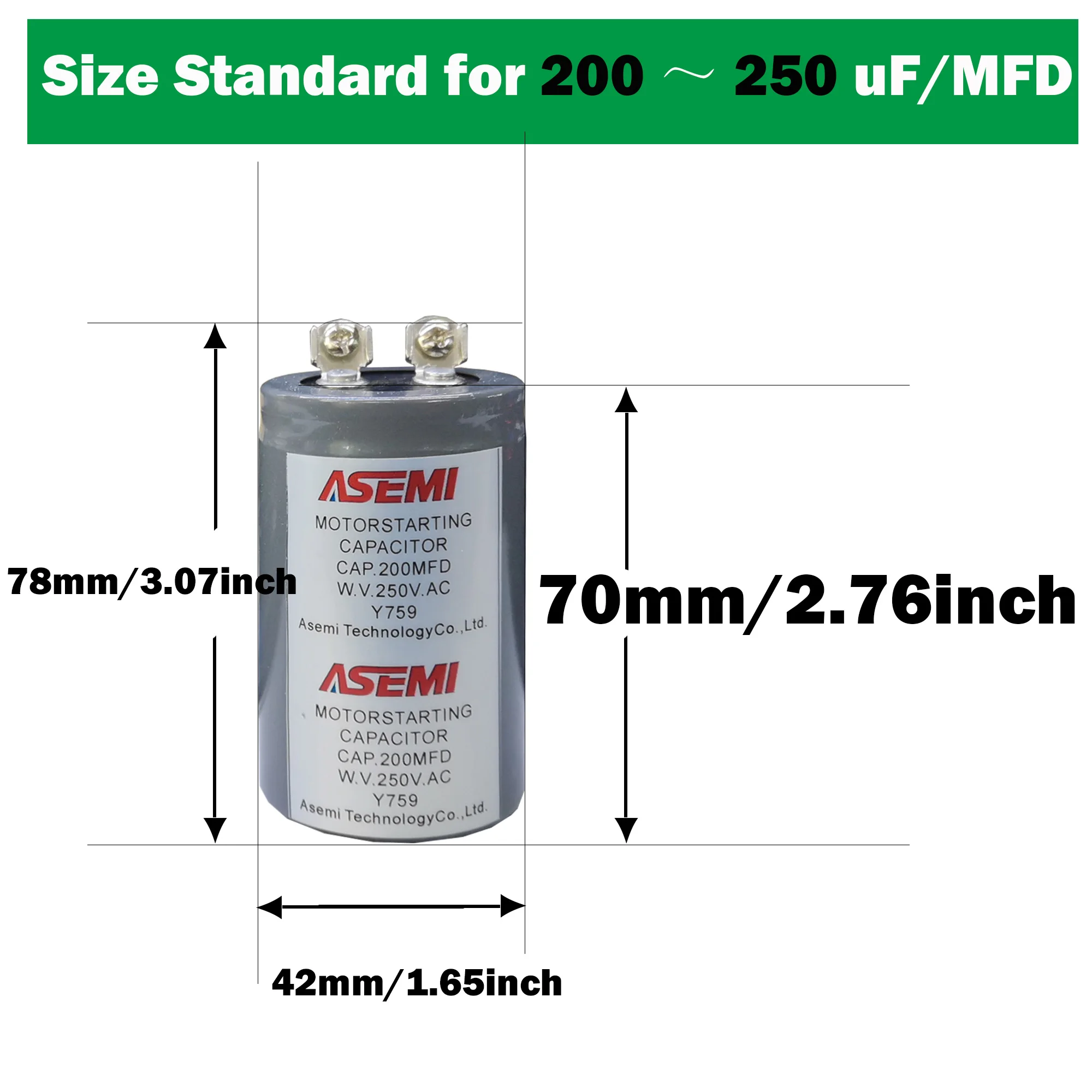

200UF:1.65*1.65*2.76inch/42*42*70mm

250UF:1.65*1.65*2.76inch/42*42*70mm

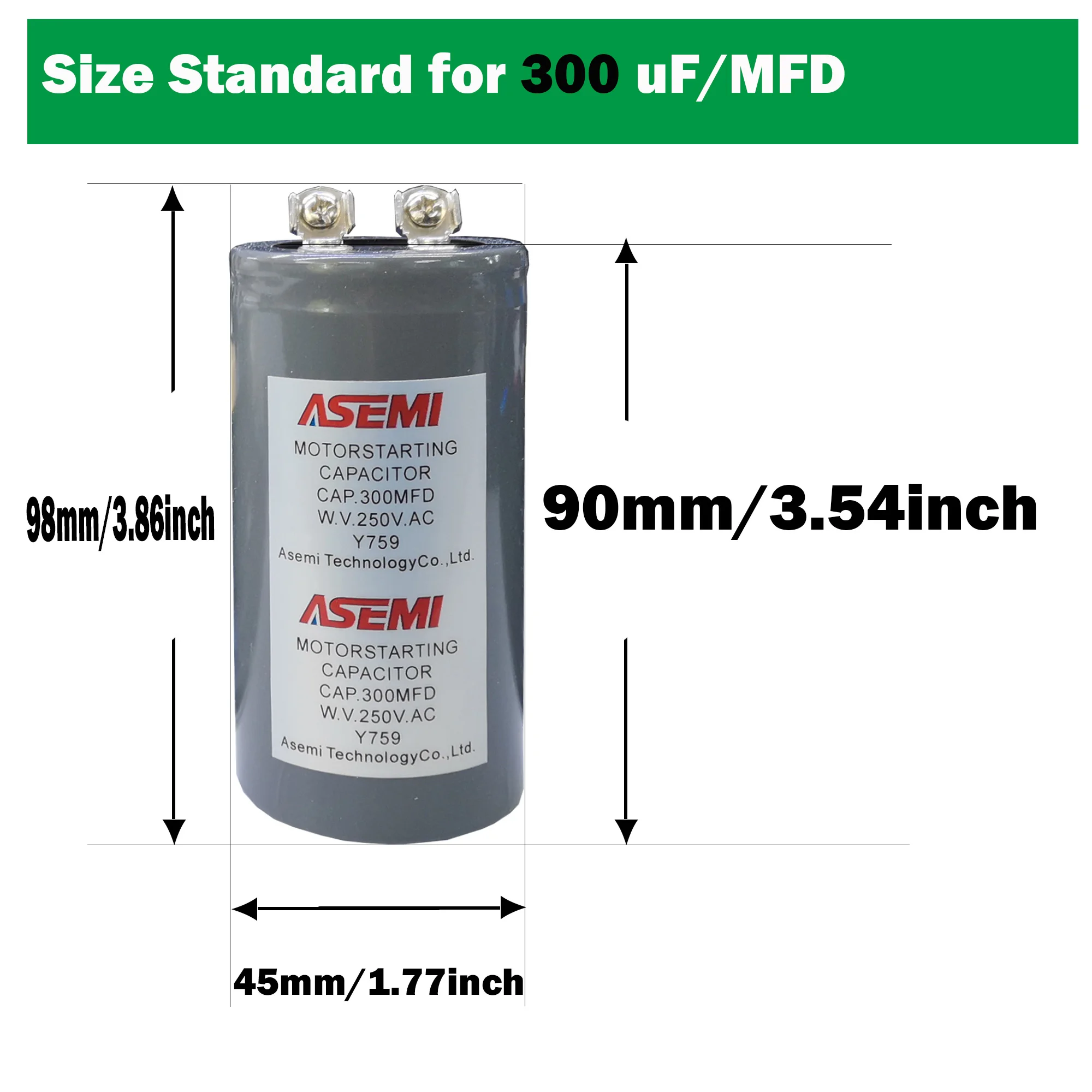

300UF:1.77*1.77*3.54inch/45*45*90mm

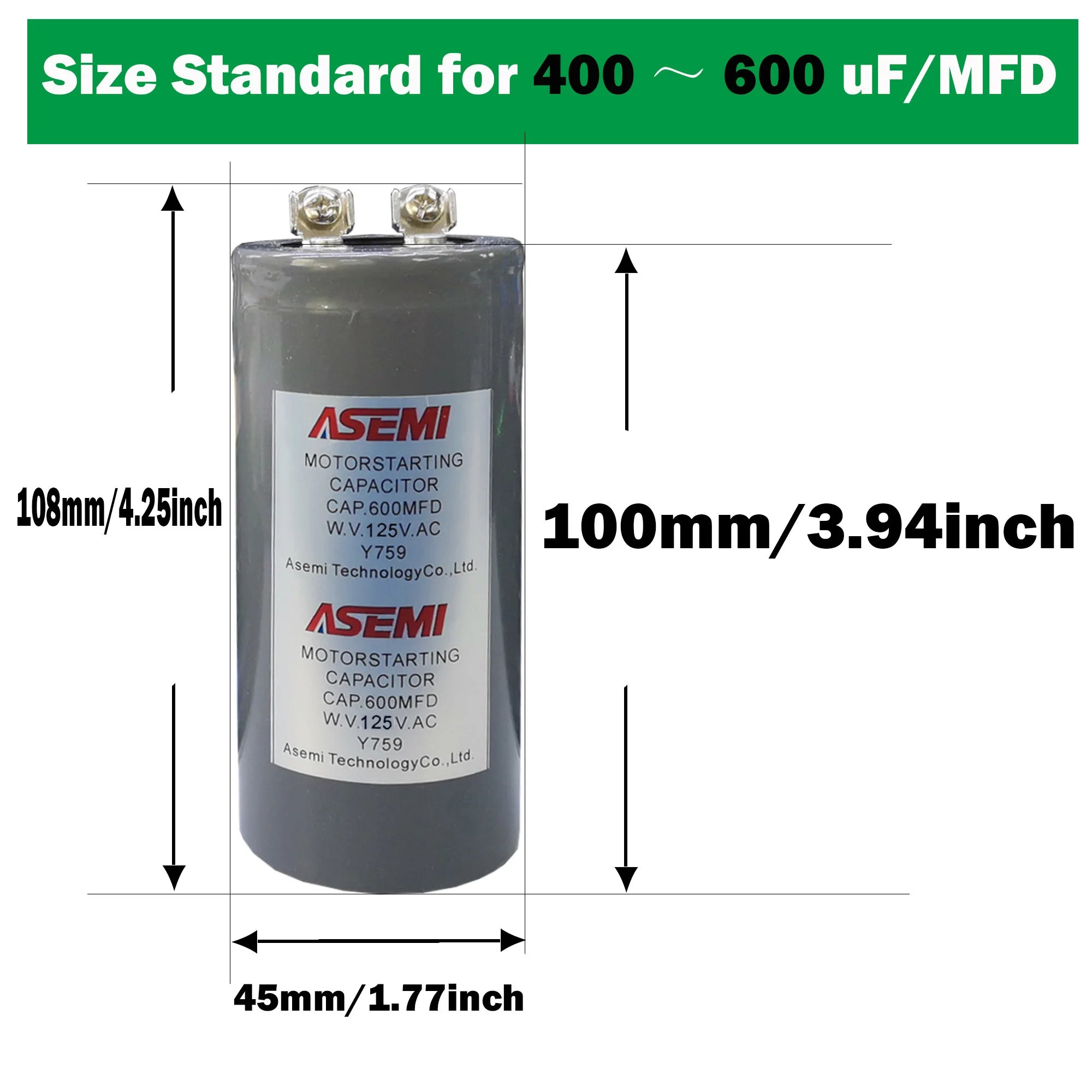

400UF:1.77*1.77*3.94inch/45*45*100mm

500UF:1.77*1.77*3.94inch/45*45*100mm

600UF:1.77*1.77*3.94inch/45*45*100mm

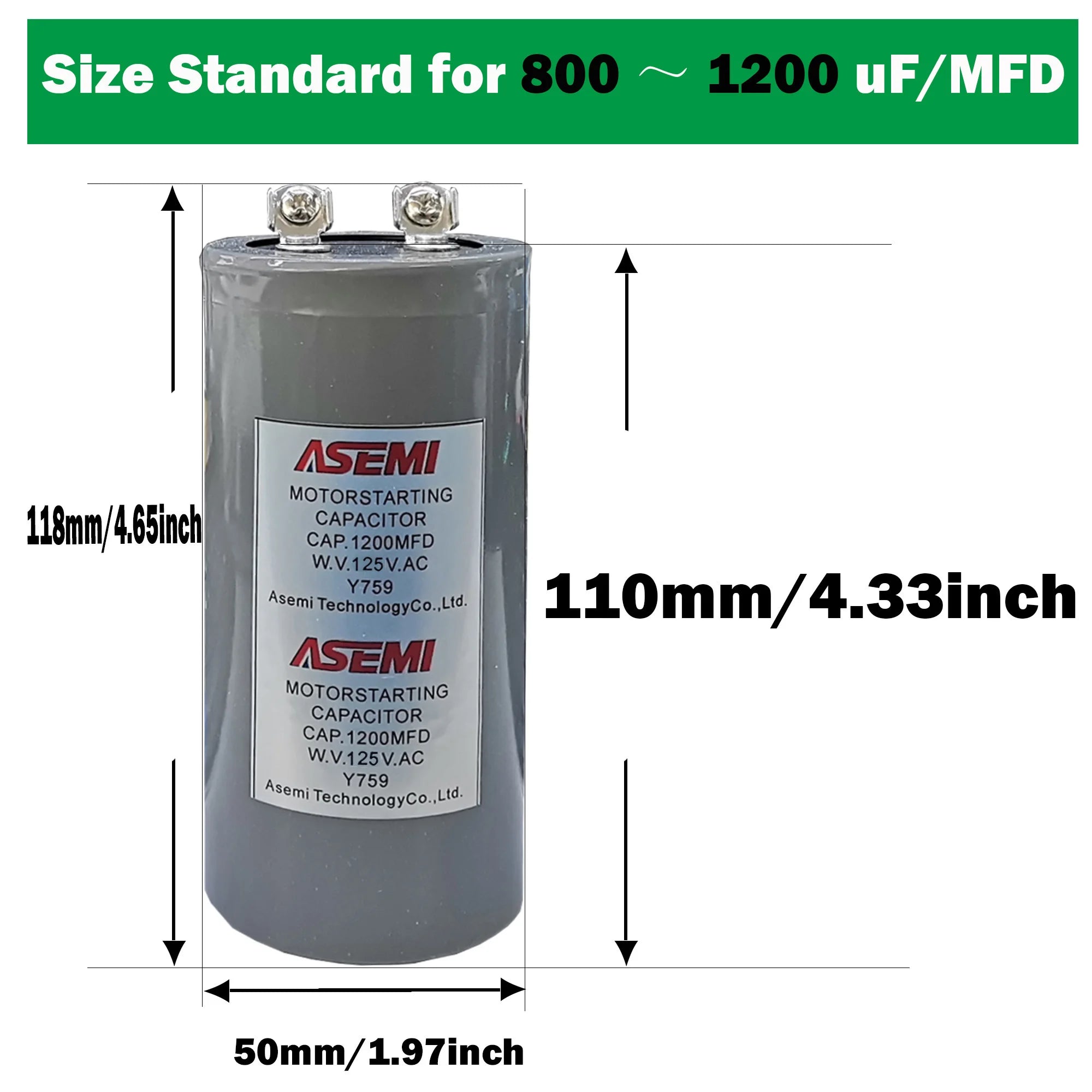

800UF:1.97*1.97*4.33inch/50*50*110mm

1000UF:1.97*1.97*4.33inch/50*50*110mm

1200UF:1.97*1.97*4.33inch/50*50*110mm

When is it necessary to replace the capacitor?

The motor cannot start or starts slowly: it may be due to capacitor capacity decay or poor terminal contact.

Capacitor bulging and leakage: It needs to be replaced immediately to avoid short circuits in the circuit.

Wiring Method

Usually connected in series with the starting winding of the motor, controlled on/off by centrifugal switches or relays.

The terminals need to be tightened to avoid overheating or sparks caused by poor contact.
