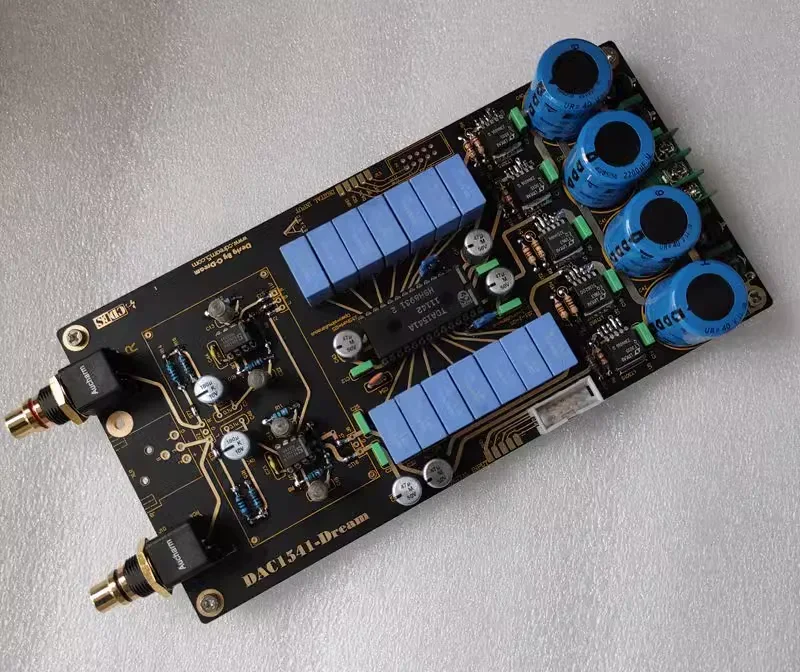

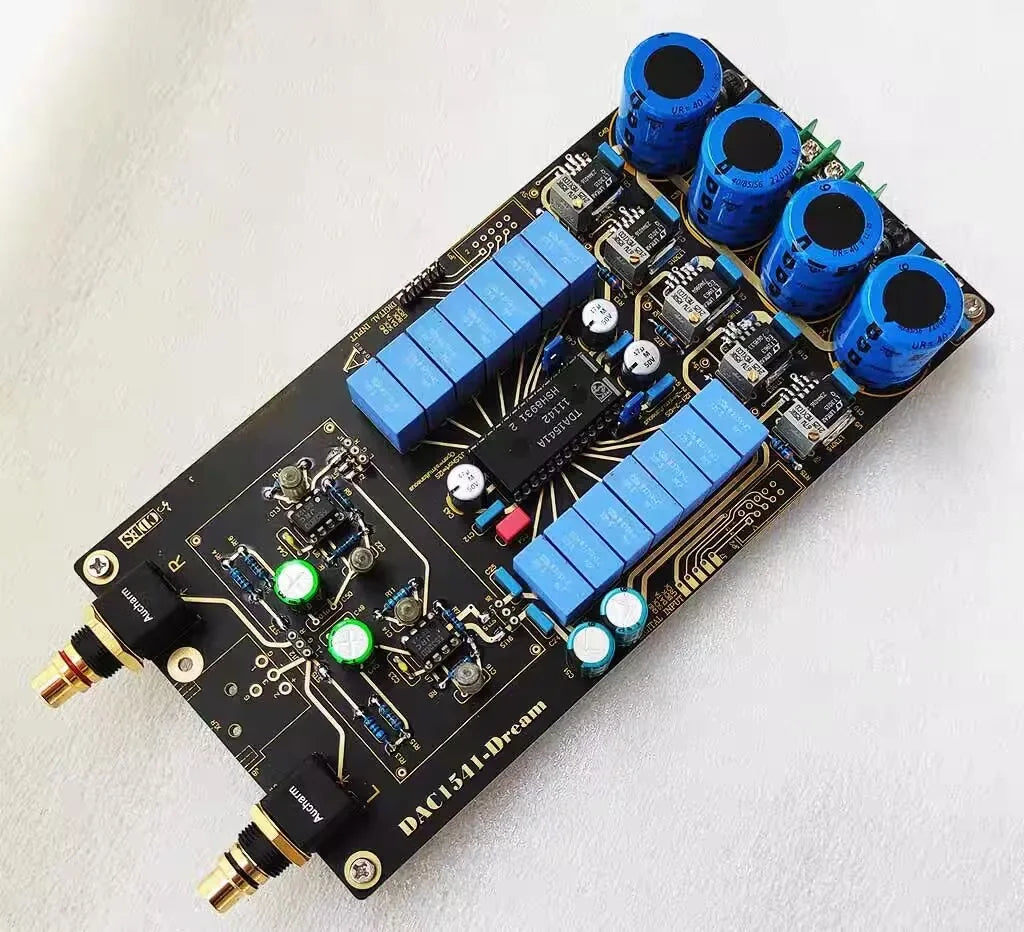

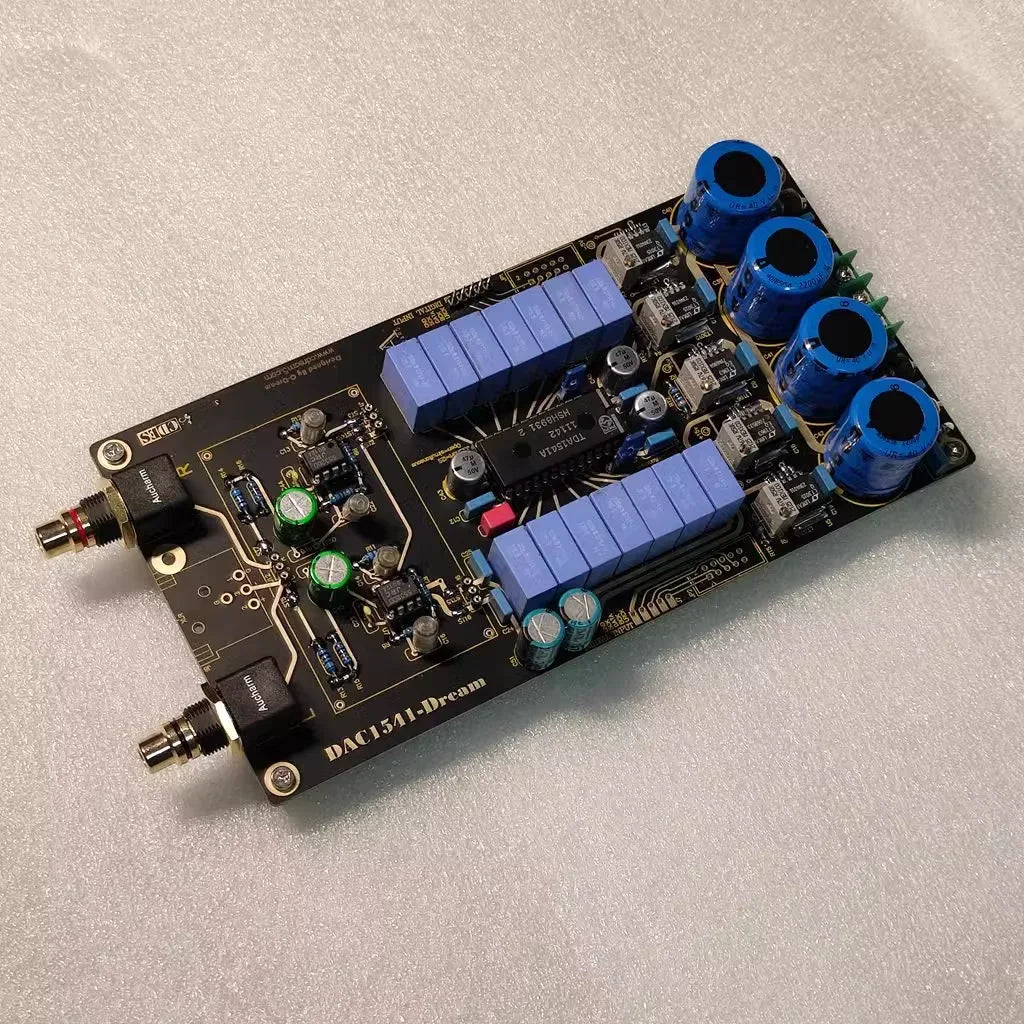

CDES TDA1541 DAC finished product customization (excluding TDA1541 chip)

CDES TDA1541 DAC finished product customization (excluding TDA1541 chip)

$870.80

$870.80 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Material: Metal

Origin: Mainland China

Type: Furniture non-hardware parts

For the convenience of more accurate voltage, this version replaces the voltage regulating resistor with an adjustable resistor method

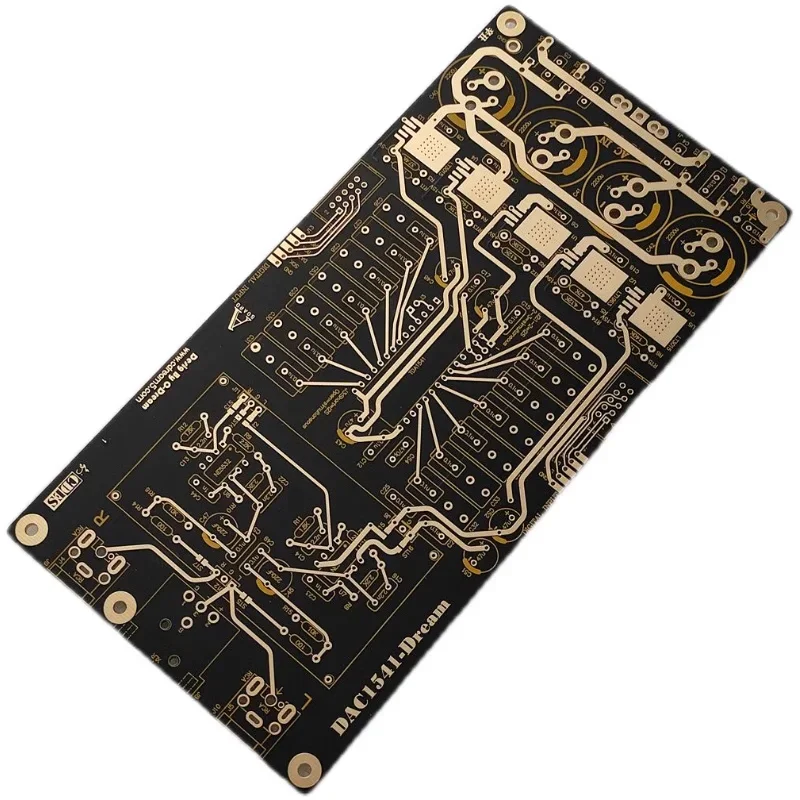

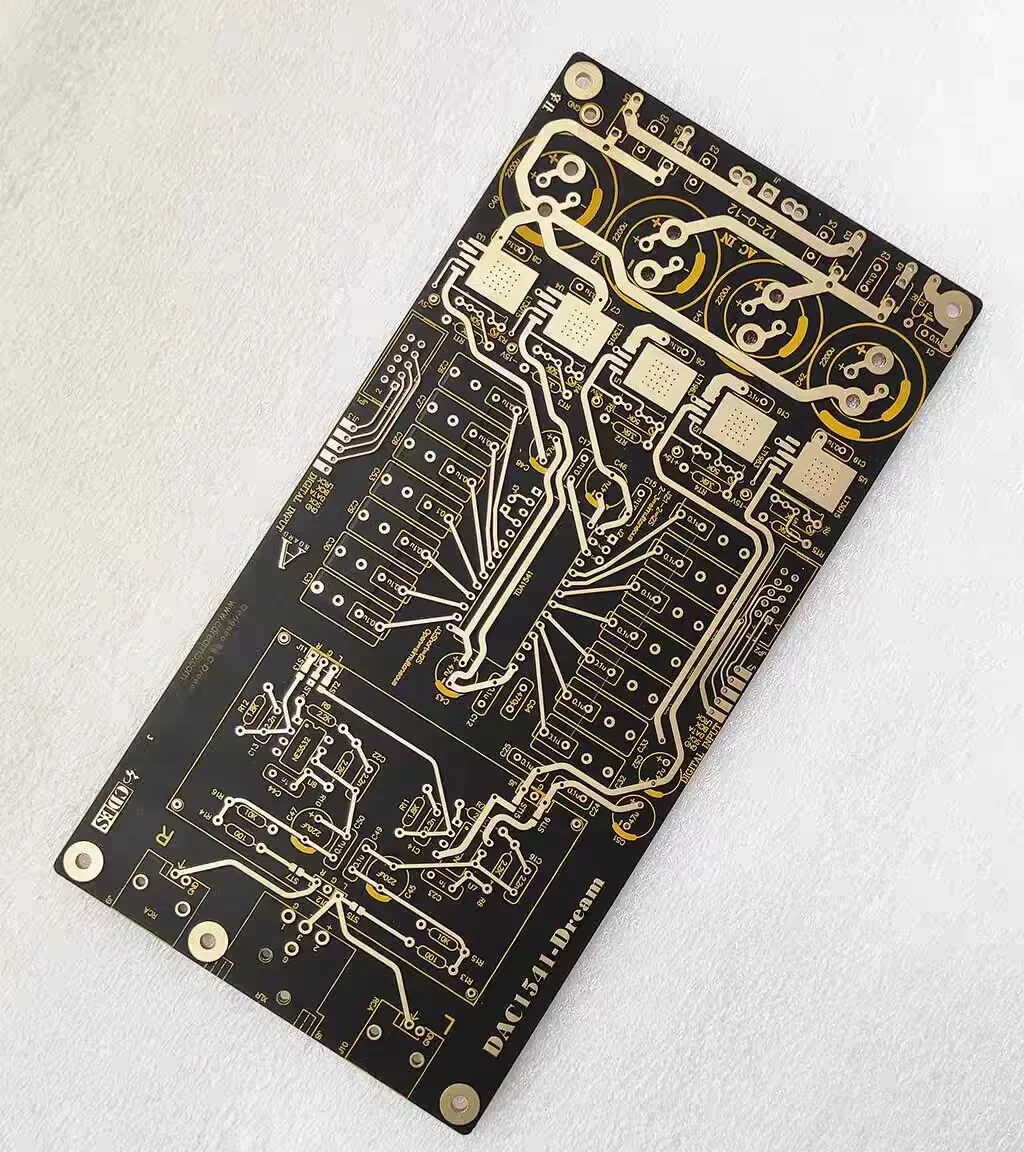

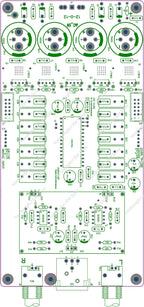

Yellow silk screen printing board
On sale PCB process
Plate thickness: 2mm
Copper foil thickness: 2oz
Gold plating thickness: 1um

The value of the voltage regulating resistor is as follows: the fixed resistance value range is between 2.2K-4.7K, and the adjustable resistor is selected as 3296 type 50K

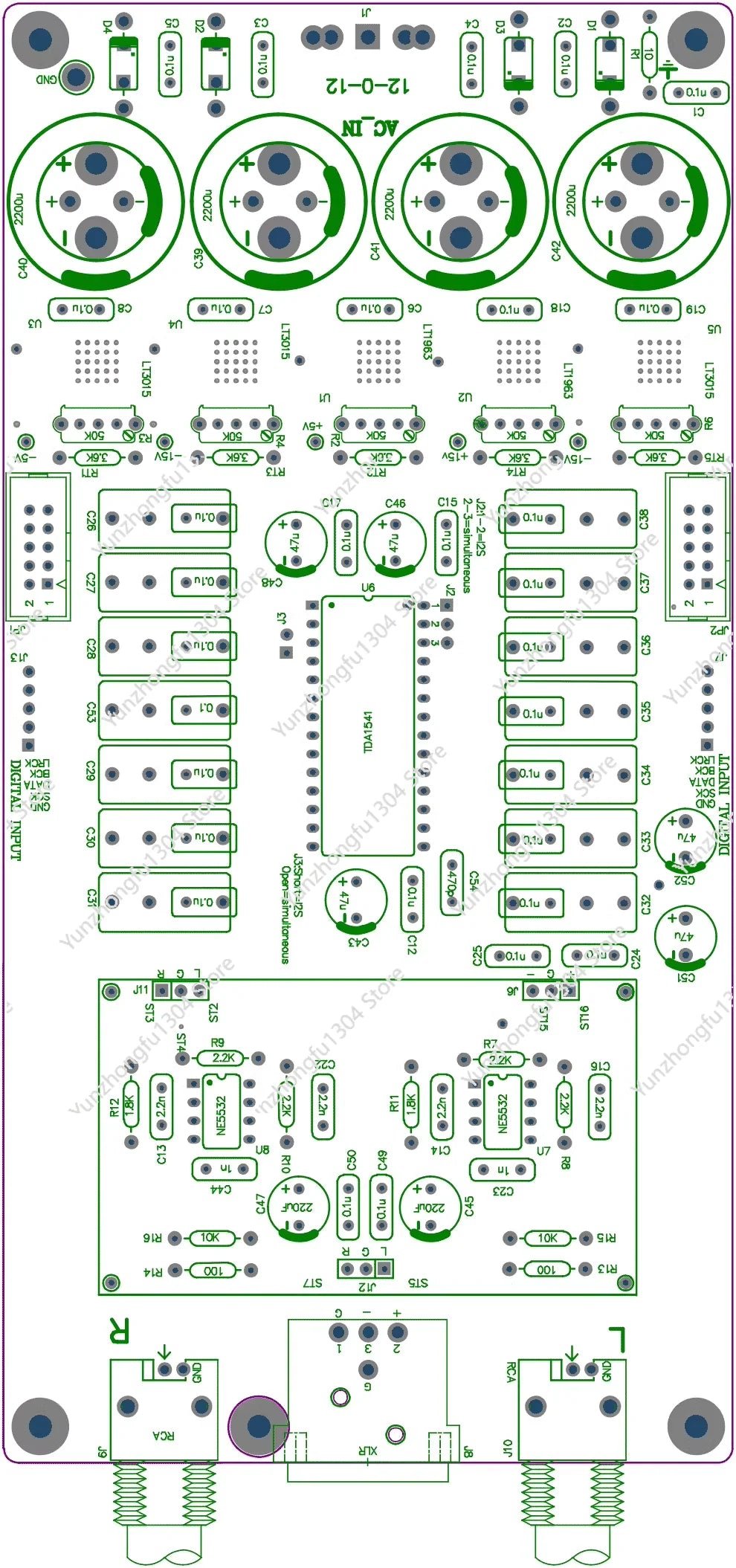

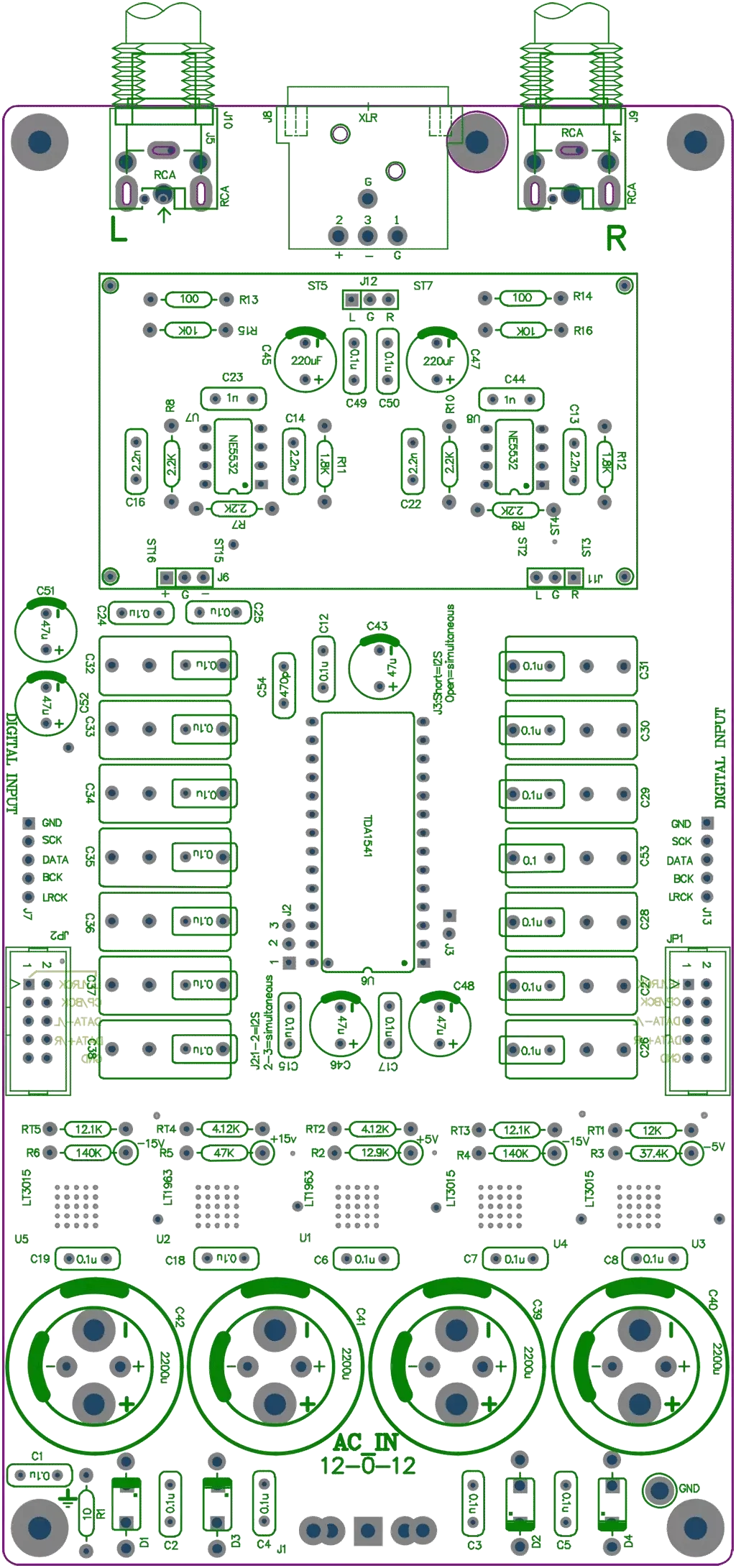

Of course, the resistance values from the previous version can also be used, please refer to the parameter diagram from the previous version for details

The following is the information material for the first version:

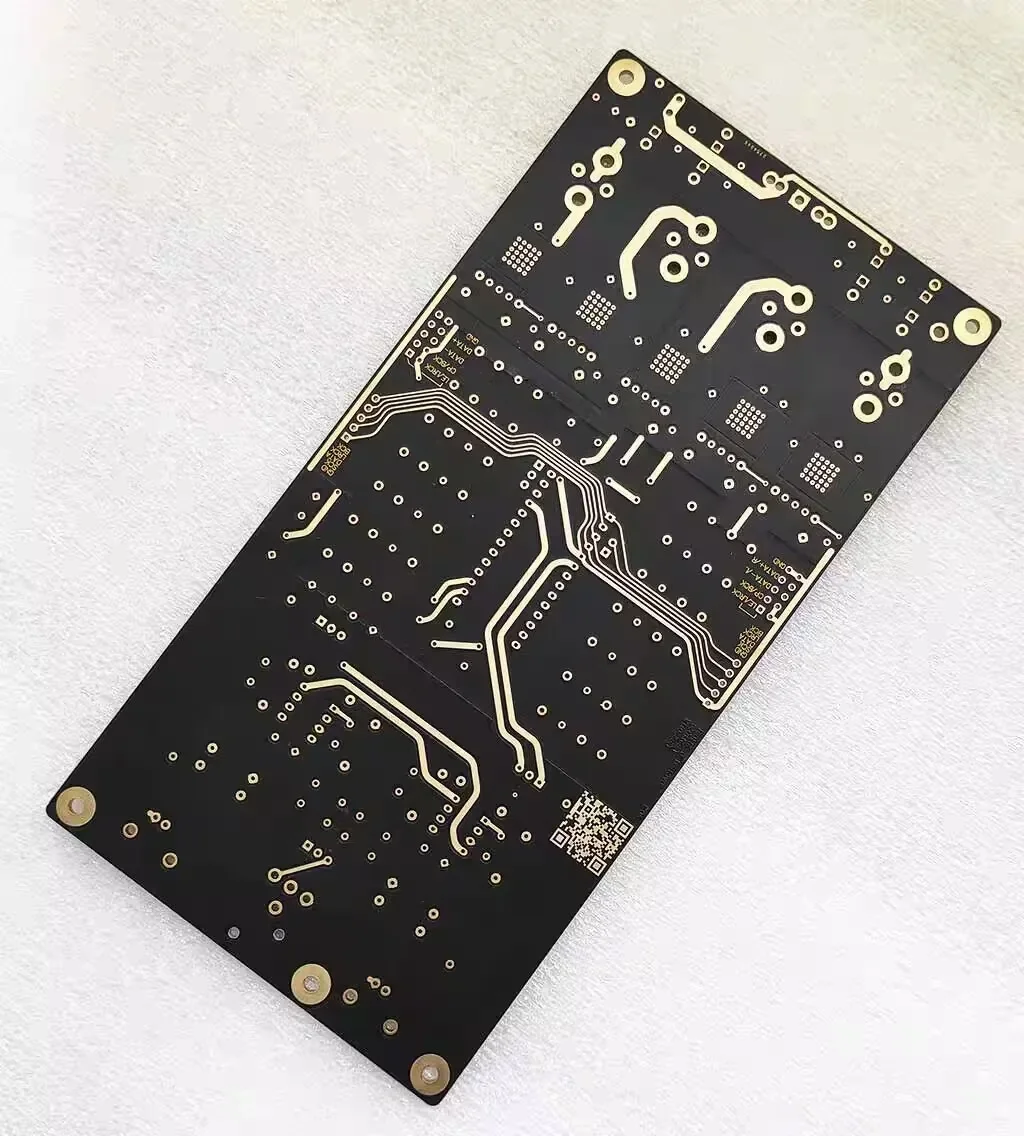

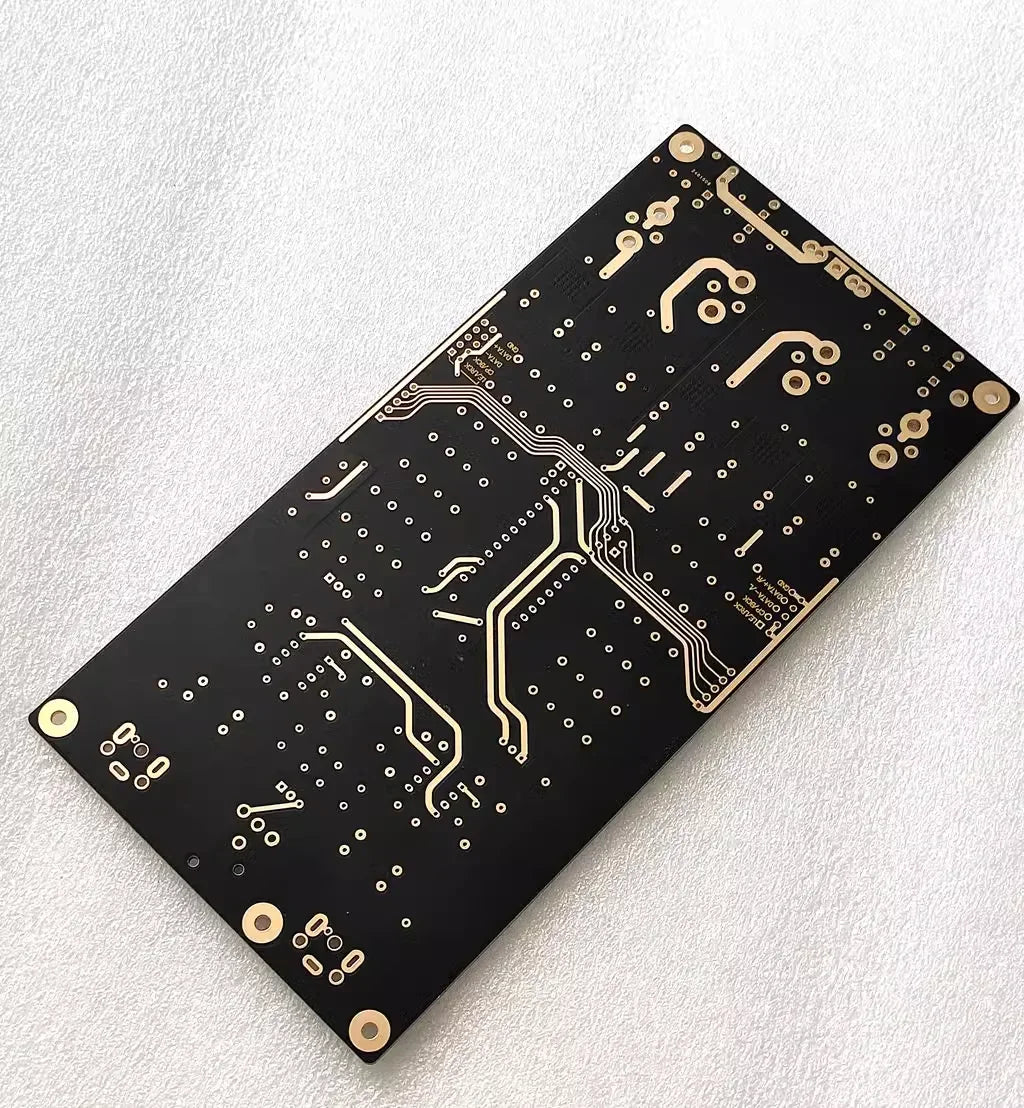

This is the optimized version of the HIHIDY forum TDA1541 384 project. The usage method is the same as the forum, with optimized routing and all routing treated with gold plating, truly utilizing the gold plating process
Plate thickness: 2mm
Copper foil thickness: 2oz
Size 10x20cm
DIY Data Kit:
Link: https://pan.baidu.com/s/191uHklgoBNwnTYEAErPSMg
Extraction code: 1541
