SPECIFICATIONS

Application scenario: Family, Farm, Factory, Office, Supermarket

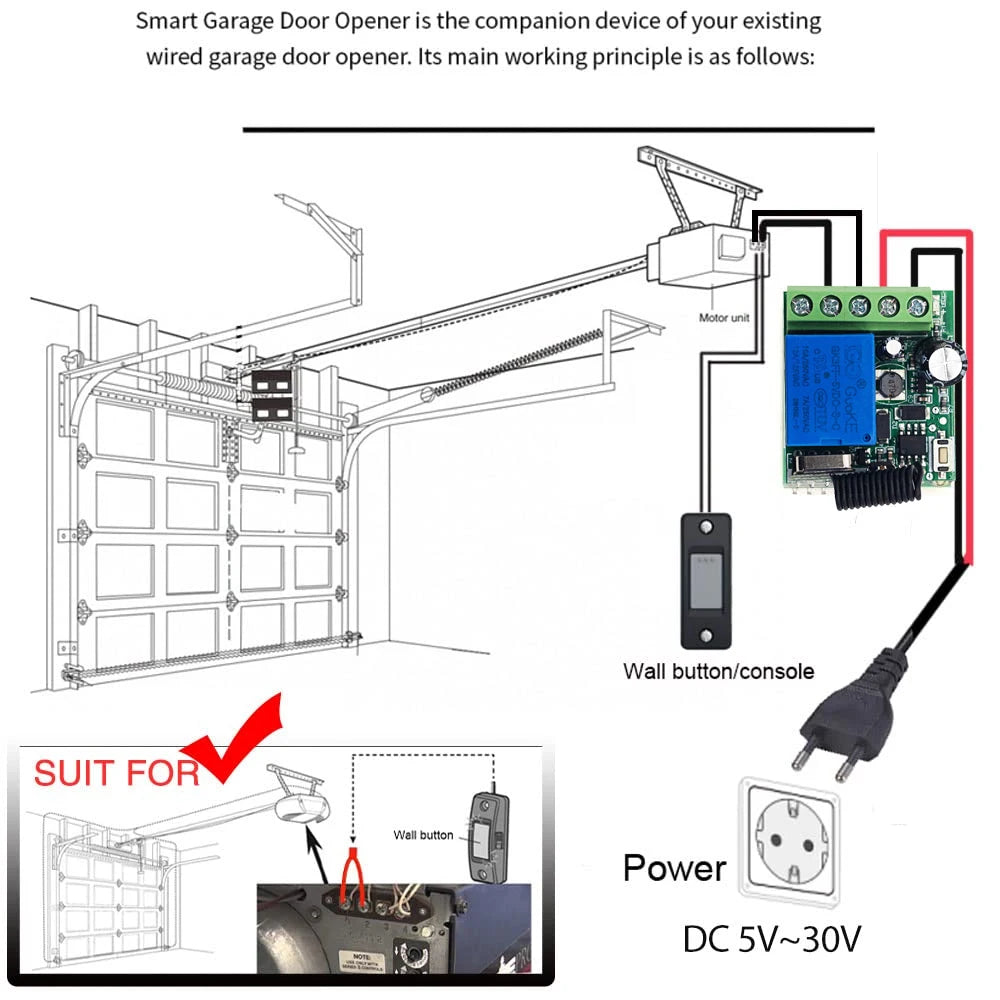

Application2: DC6-30V Garage,Motor, Light, Automated curtains, Fan, Door, Gate, LED, Lamps

Brand Name: CENFAYA

Certification: RoHS,CE,ce,ROHS

Choice: yes

Current: 10A

Features: remote control

Frequency: 433 HMZ

High-concerned chemical: none

Input/Output Voltage: DC 6V 12V 24V 30V

Is Smart Device: no

Item Type: SWITCHES

Material: Plastic

Model Number: DC6-30V

Origin: Mainland China

Receiving range: Open space is more than 50 meters

Remote operating mode: Momentary / Toggle/ Latched/ Delay Mode

Switch Type: Push Button Switch

Warranty: 2 YEARS

Wireless Communication: RF

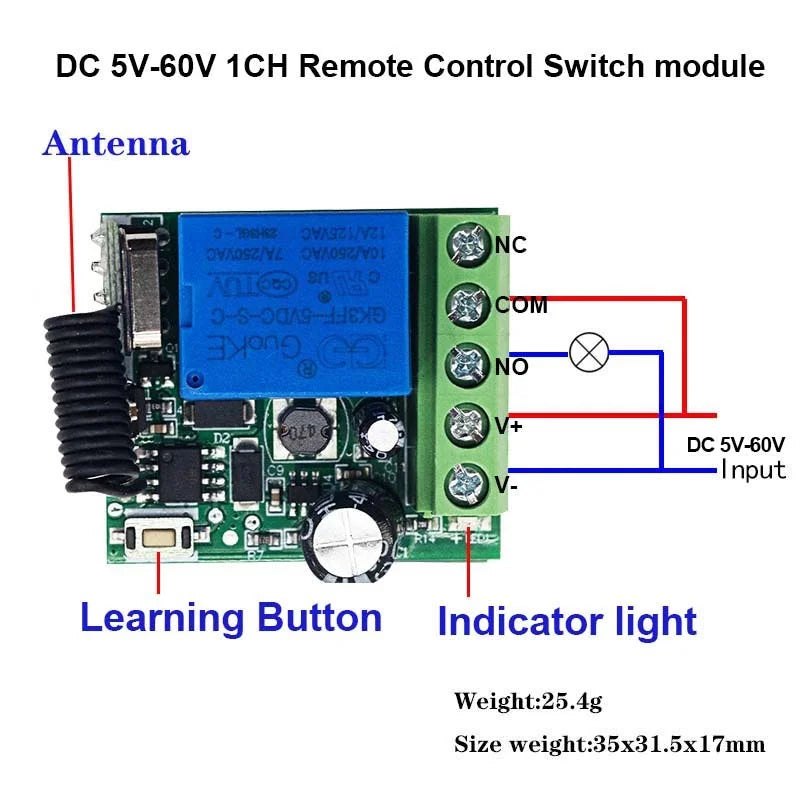

About Receiver:

1. Working voltage: DC6V-30V

2. Working temperature: -40 Degree +80 Degree

3. Receiver sensitivity: >97dBm

4. Working frequency: 433mhz

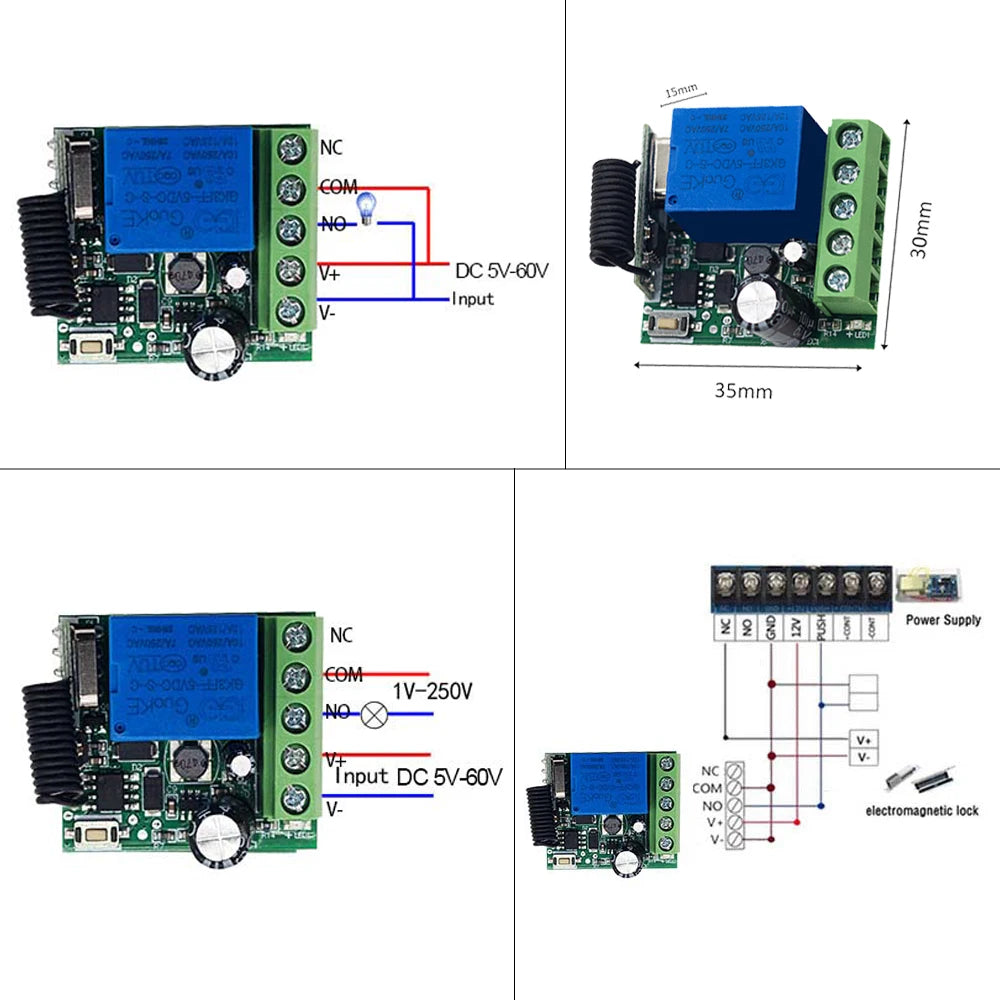

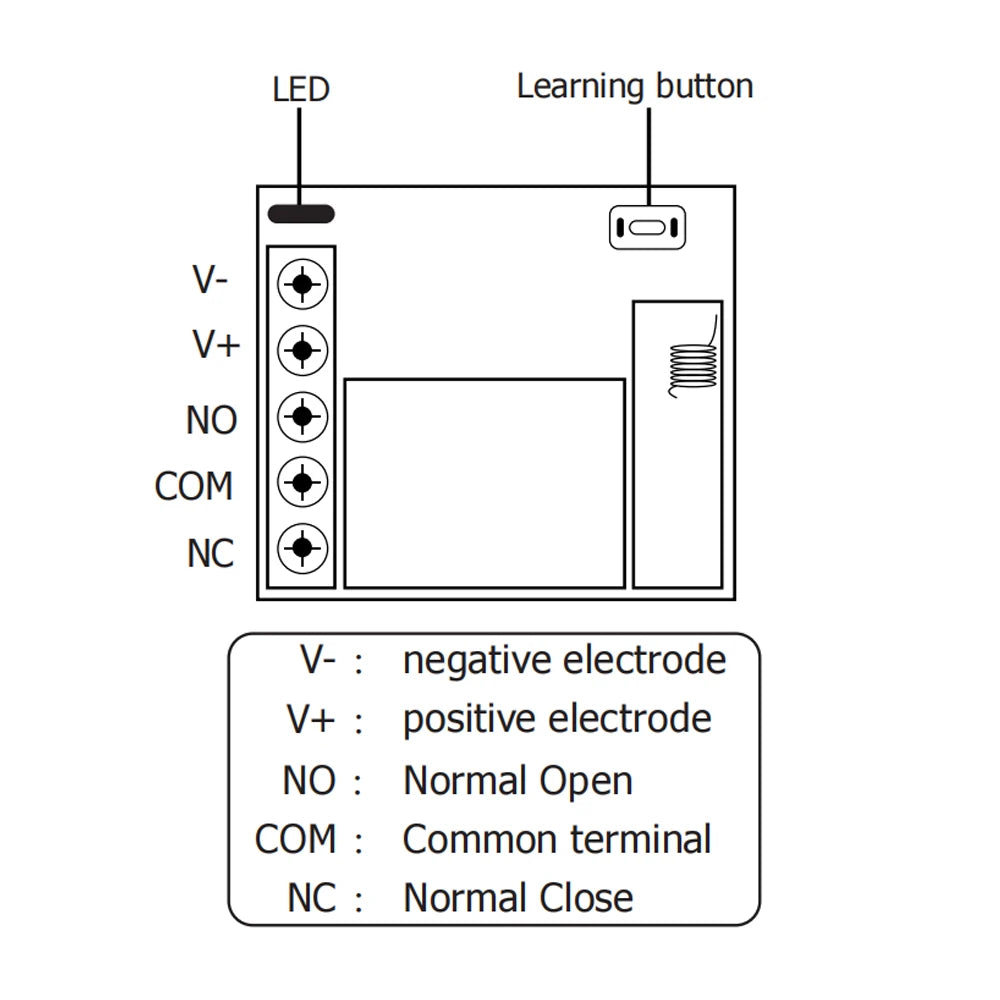

5. Output voltage: NO,NC,COM

6. Max load current: 10A

7. Size: 35X30X15mm

About working way:

1) Momentary; 2) Toggle; 3) Latching;4)Delay.

1) Momentary mode:

After successful pairing in this mode,press and hold the remote control button (such as A),the corresponding relay on the receiver is turned on; release the remote control button (such as A), and the corresponding relay on the receiver will turn off;

2)Toggle mode:

After successful paring in this mode,press and hold the remote control button (such as A),the corresponding relay on the receiver is turned on; release the remote control button (such as A), and the corresponding relay on the receiver will turn off;

3) Latching mode:

After successful pairing in this mode,press the remote control button (such as A),the receiver relay corresponding is turned on；press the
remote control button (such as B),the relay on the receiver corresponding is turned off.

4) Delay mode(timed):

After successfully pairing in this mode,press the button (such as A) on the remote control to turn on the corresponding relay on the receiver.Press the remote control button (such as A）again,the corresponding relay on the receiver will be delayed；（press the receiver button 4 times to pair,delay 5s to close the corresponding relay;press the receiver button 5 times to pair,delay 10S to close Corresponding relay;press the receiver button 6 times to pair,delay 15S to colose the corresponding relay;press the receiver button 7 times to pair,delay 20S to close the corresponding relay;

About Learning and clearing Method:

●Learning: Input 6V-30V for the Receiver , Press learning button , The receiver Led indicator ON. Press remote button A 1 time, Led indicator flash for 1 times , Then Press remote button B 1 time , Led indicator flash for 1 times again , it mean learning successfully

●Clearning: After pressing the receiver's learning button 8 times, the receiver clears all remote control data in its memory. When received After the receiver’s LED flashes, it indicates that the reset is complete.

Please refer to the product manual for details.

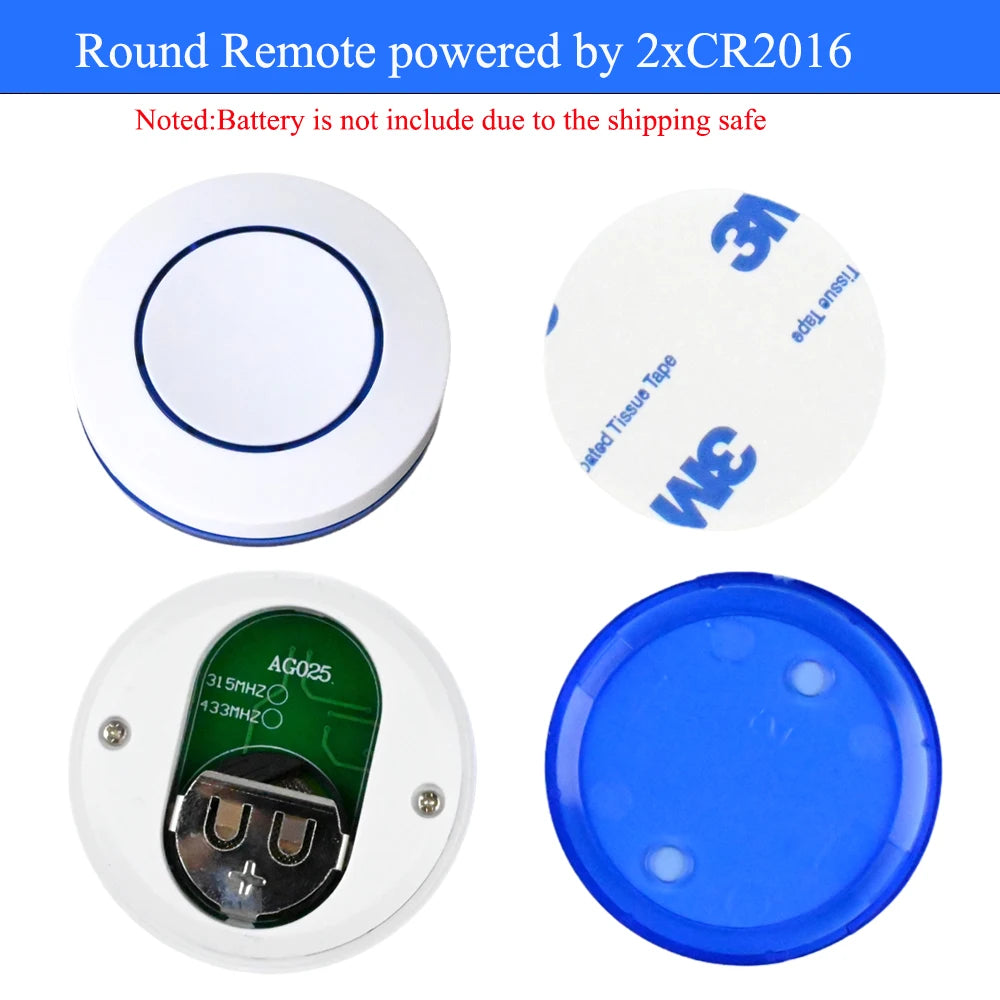

About Remote Controller:

1.Buttons: 1 Buttons

2.Working Voltage: (2PCS CR2016)not included

3.Operating frequency :433MHz

4.Remote Distance: 20-50M

5.Operating Current: 13 mAh

6.Encode: Fixed code / EV1527 code

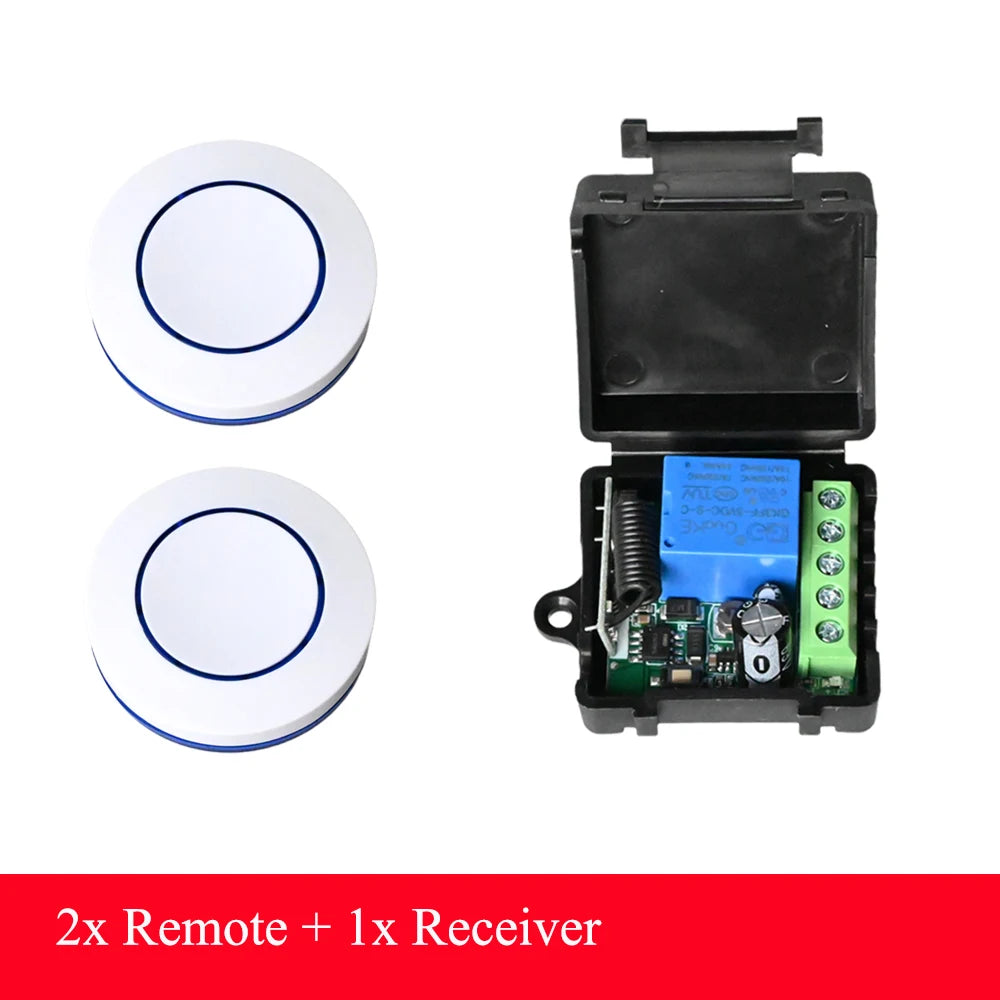

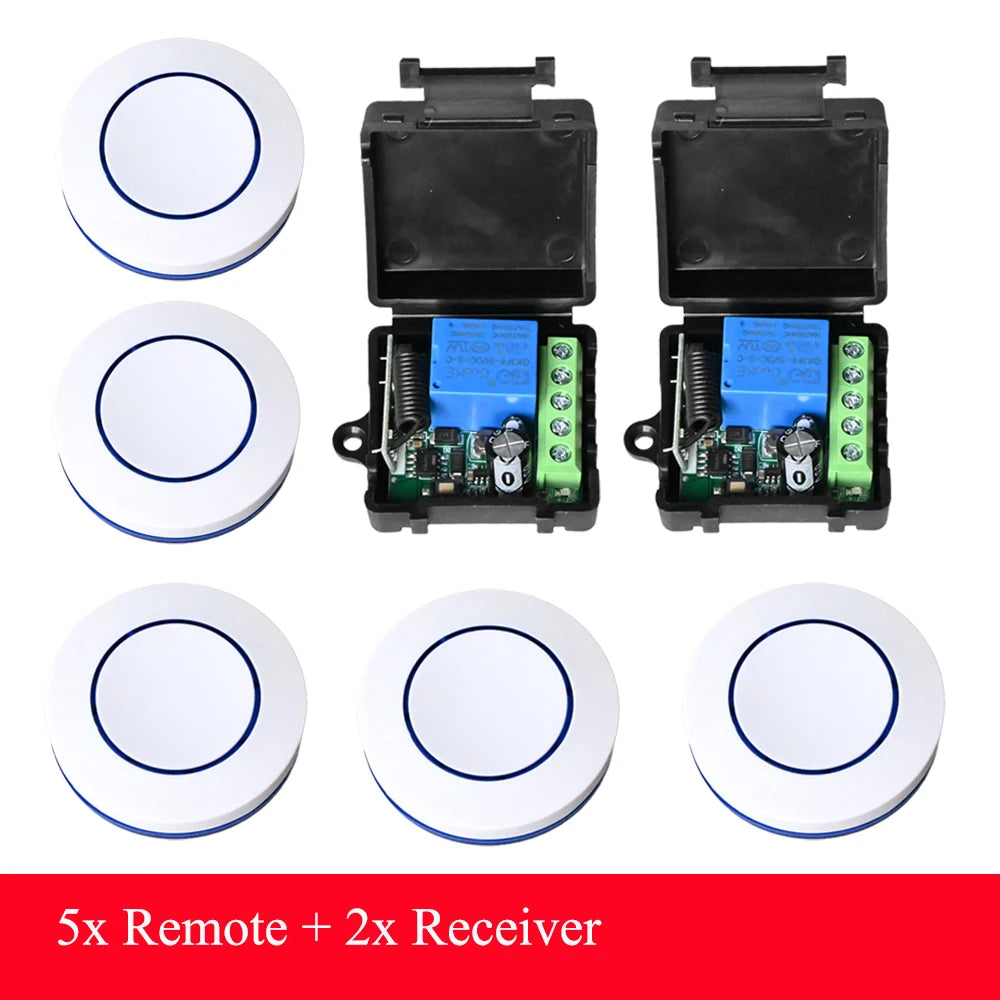

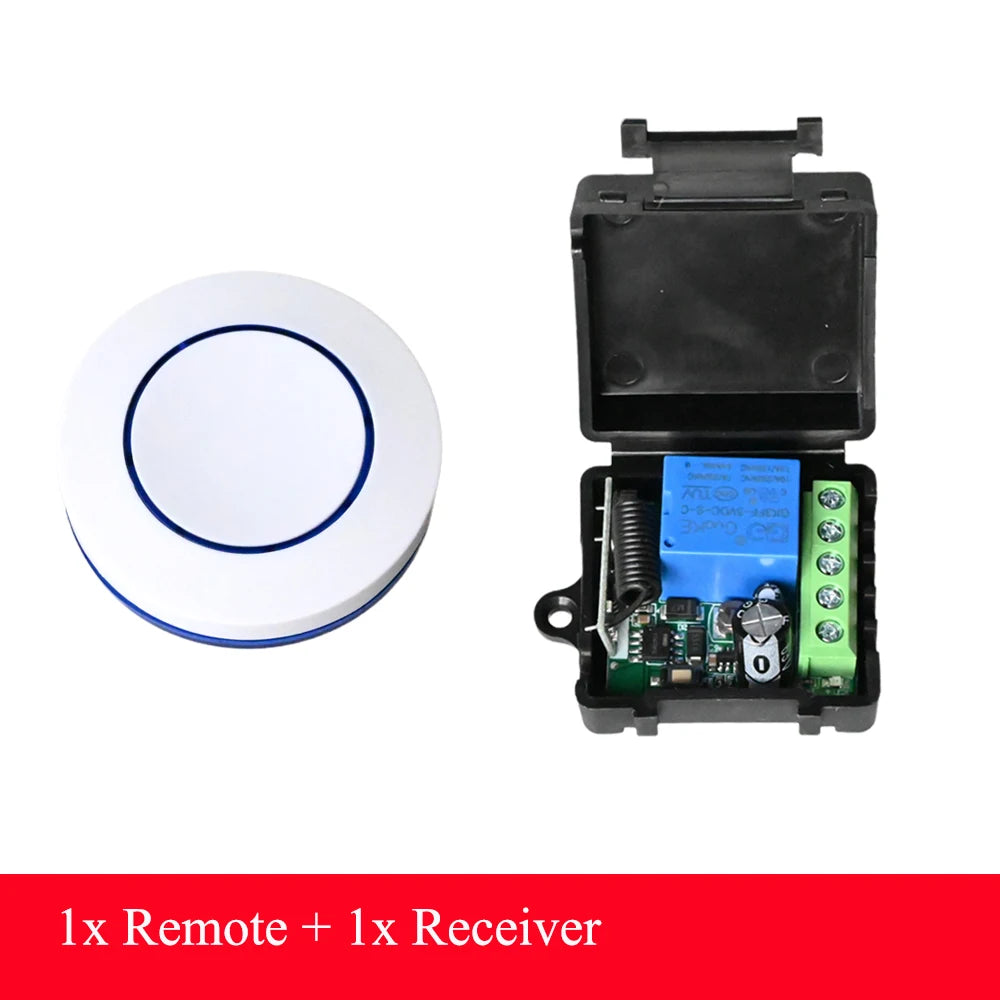

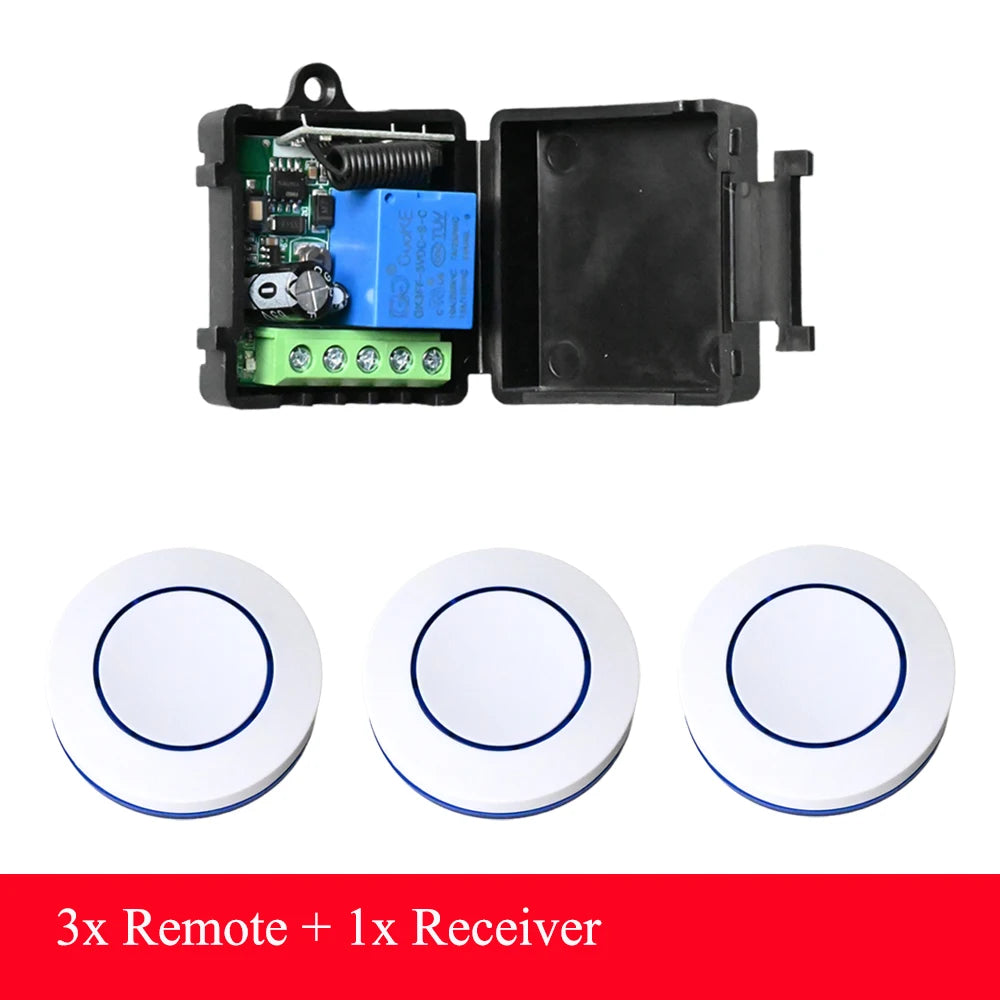

Packing List:

●Depends on which you selected.Plaese KIndly check th SKU picture.

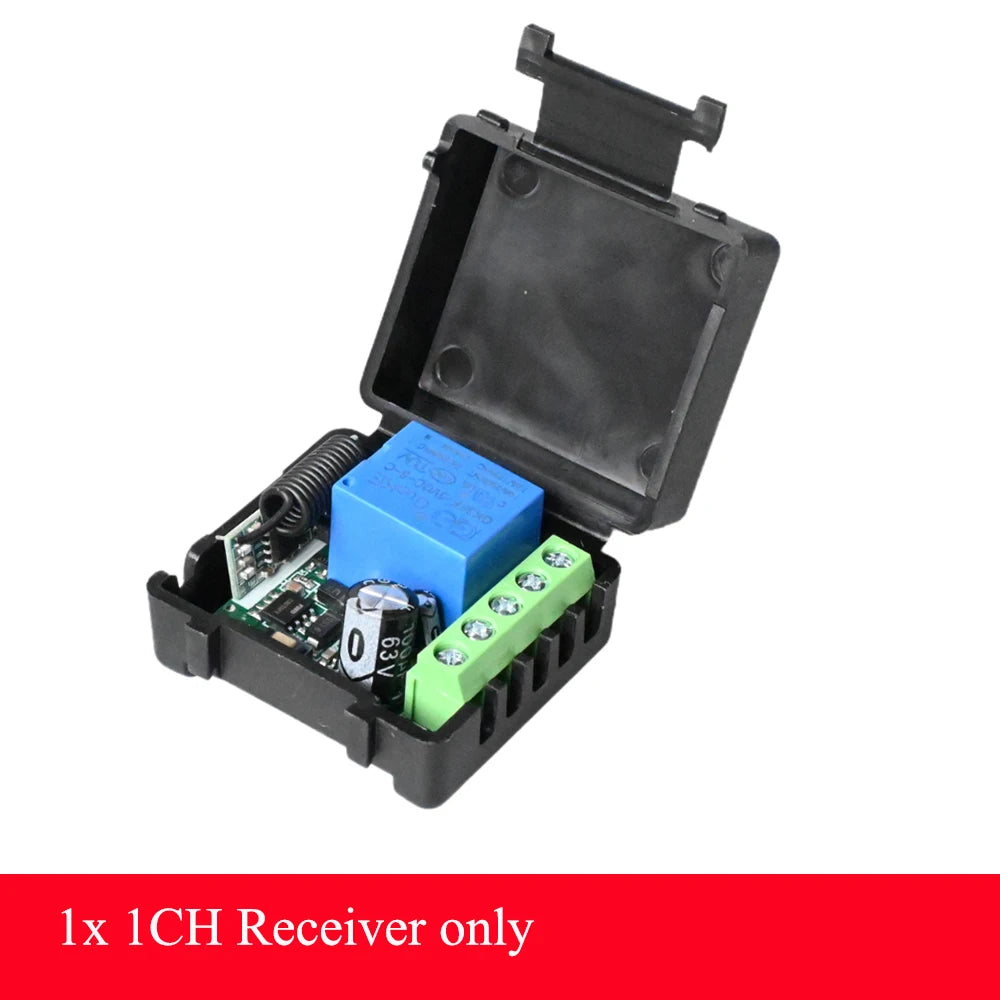

●1 pcs receiver only= 1 pcs receiver

●For shippment safety, please kindly understand there is no battery included.

ROHS certified:

Originated from mainland China and certified by ROHS, this remote control switch ensures high quality standards and safety compliance.

●Wide use:

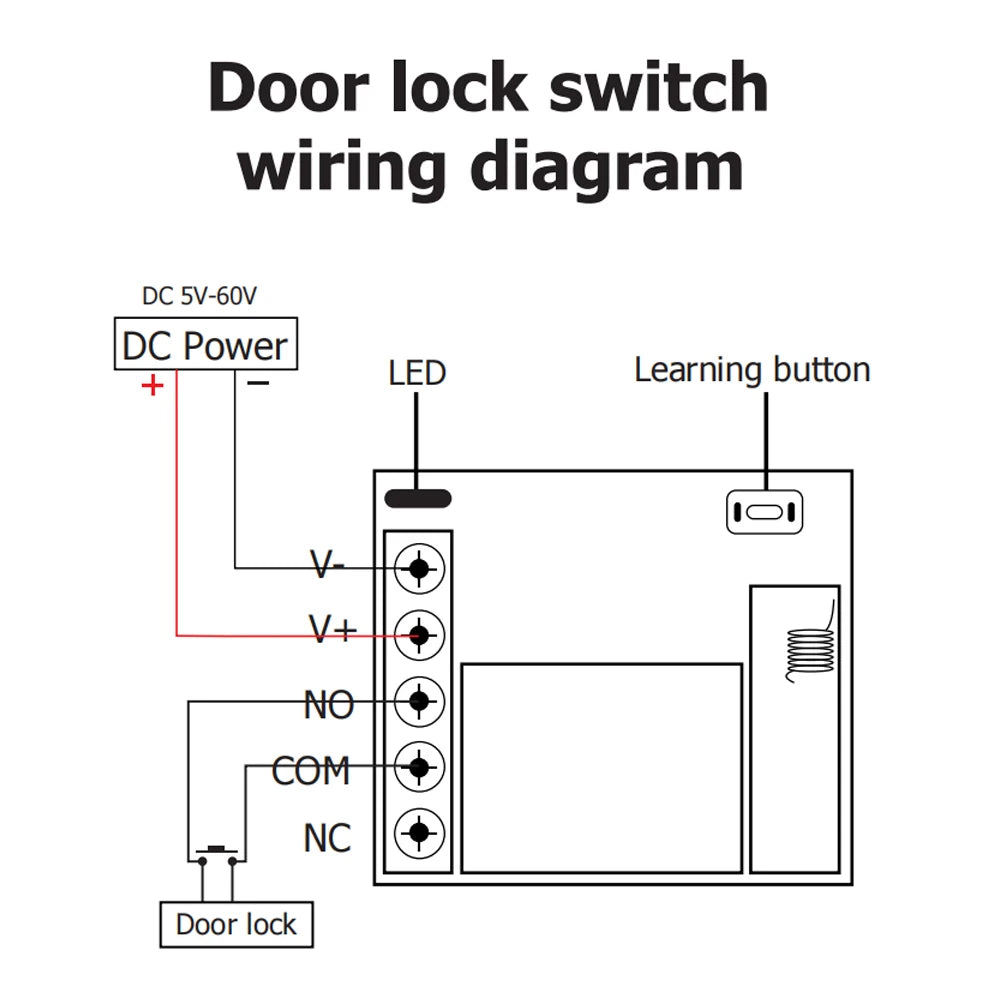

This receiver enhances the use of DC 12V voltage. It is not only suitable for access control, but also can be used to control LED lights, car trunks and other home appliances, with a wide range of uses.

●Long range signal:

With a strong long-range signal, this remote control ensures effective communication even in challenging environments.
