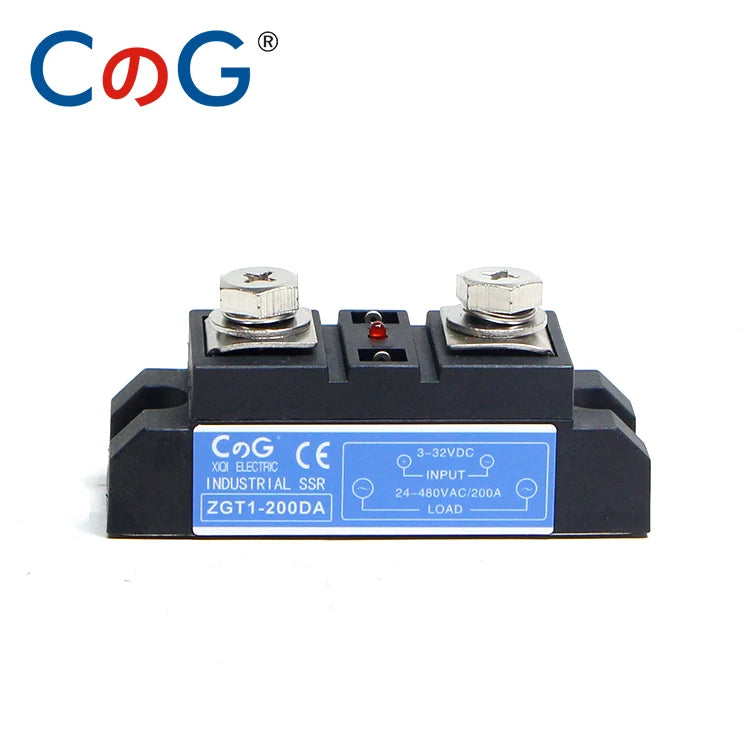

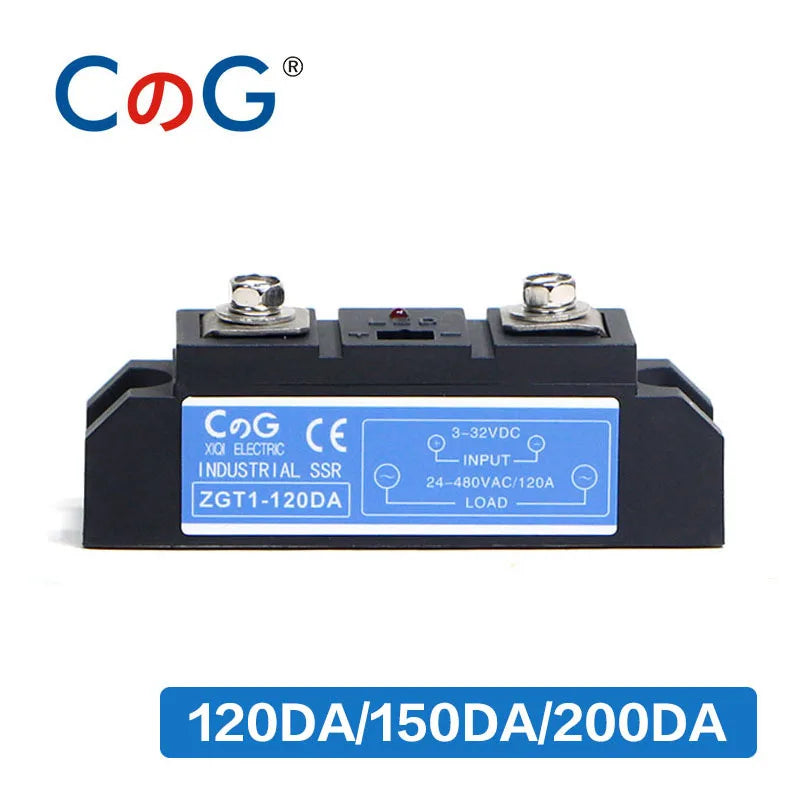

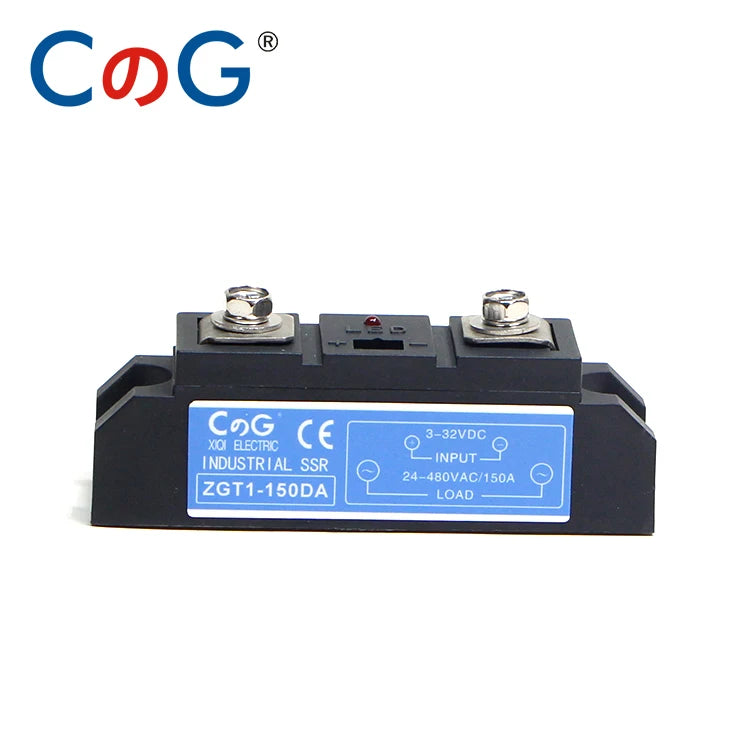

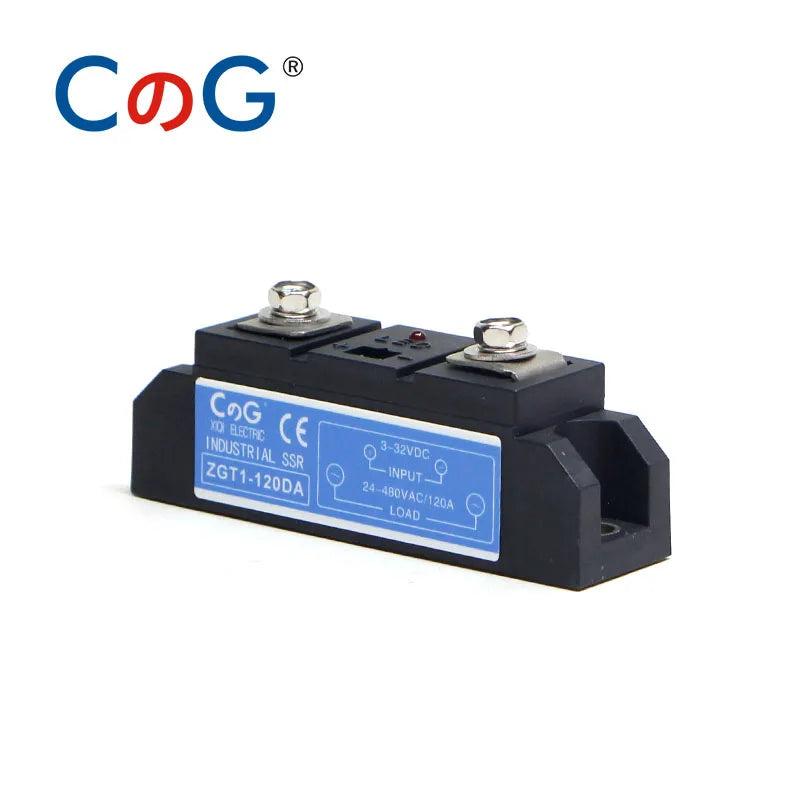

CG 120A 150A 200A DC to AC Industrial SSR High Current Power Heat Sink Aluminum Radiator Industrial Series DA Solid State Relay

CG 120A 150A 200A DC to AC Industrial SSR High Current Power Heat Sink Aluminum Radiator Industrial Series DA Solid State Relay

$109.71

$109.71 $0.00

Size 120DA 150DA Heat Sink 200DA

Description

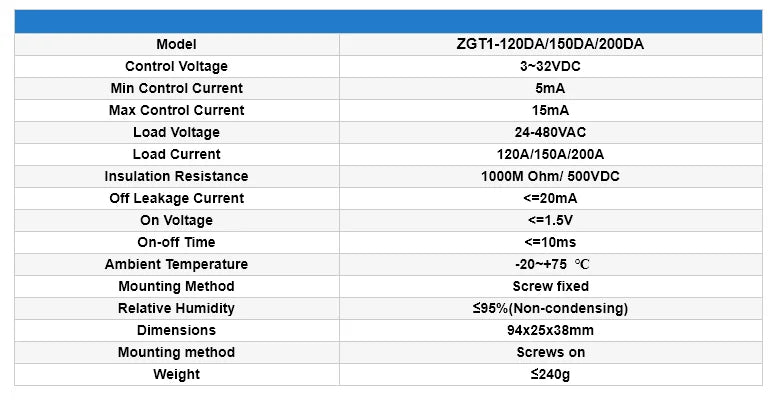

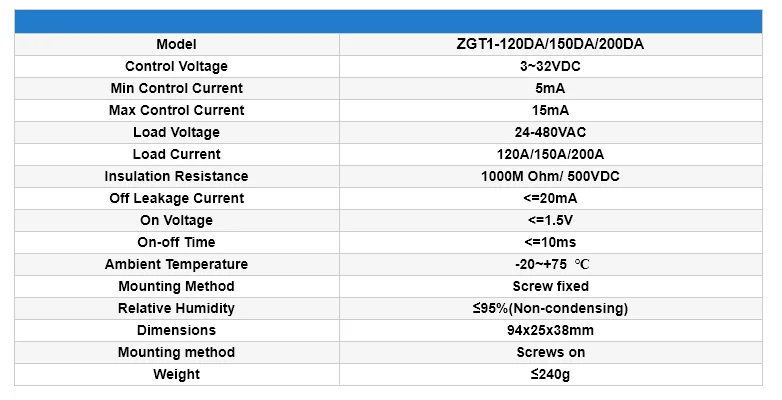

SPECIFICATIONS

Brand Name: CG

Certification: CE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

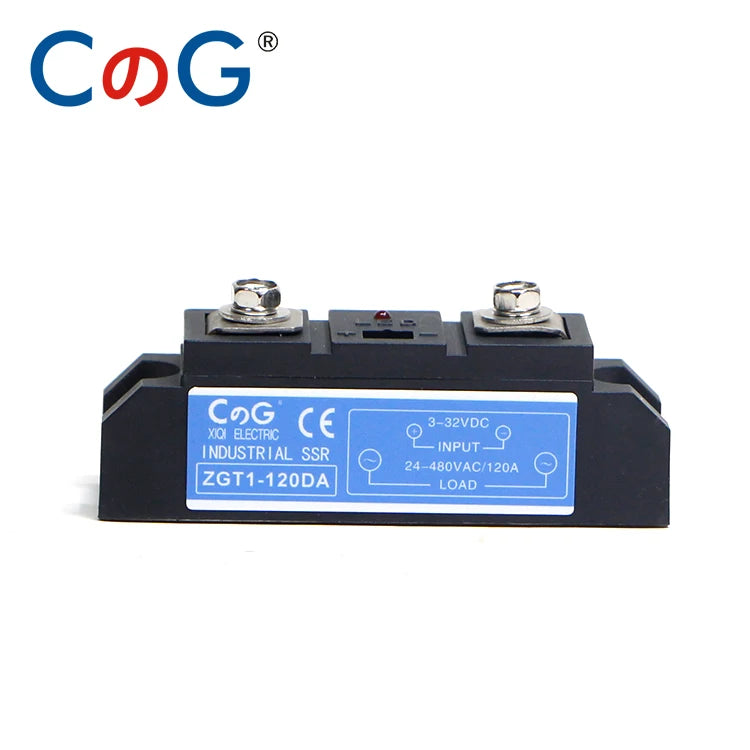

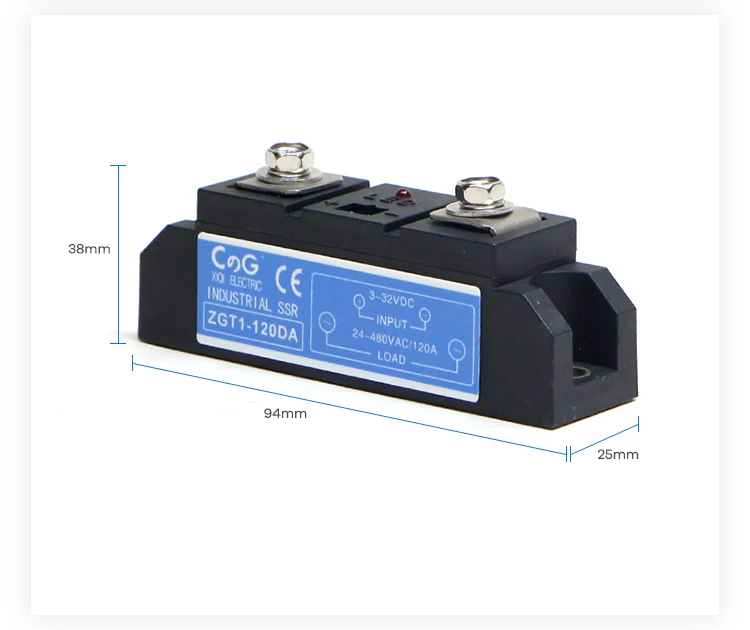

Model Number: ZGT1-120DA/150DA/200DA

Origin: Mainland China

Protect Feature: Sealed

Theory: Solid State Relay

Use: General Purpose

is_customized: Yes

semi_Choice: yes

STEP 1: Choose a correct control Mode

AA- AC Control AC

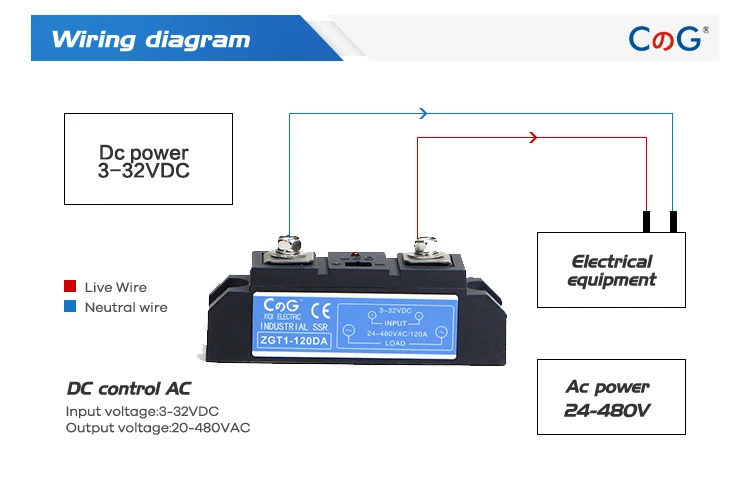

DA- DC Control AC
DD- DC Control DC
VA-Control and Adjust

STEP 2: Choose a correct type

Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :70%, Inductive load:20%,Capacitive load：10%.

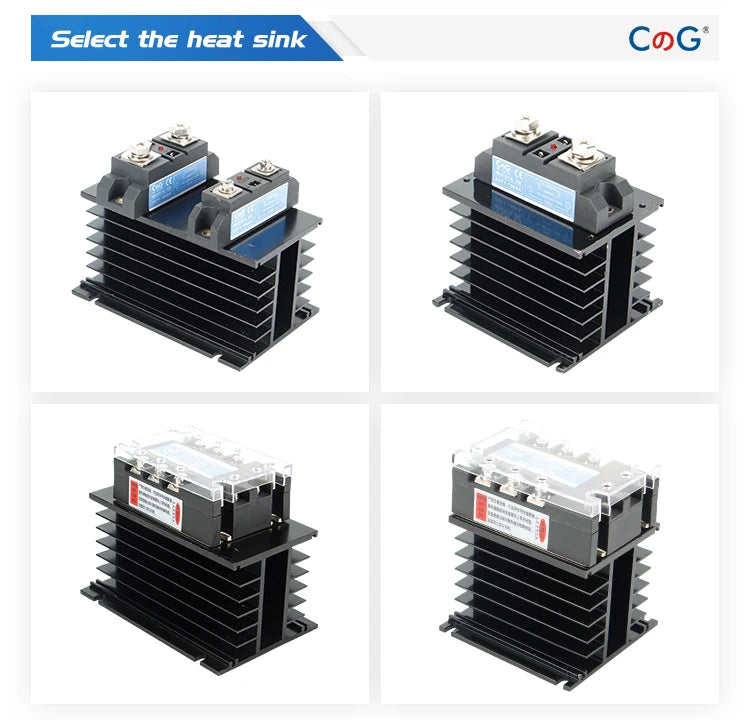

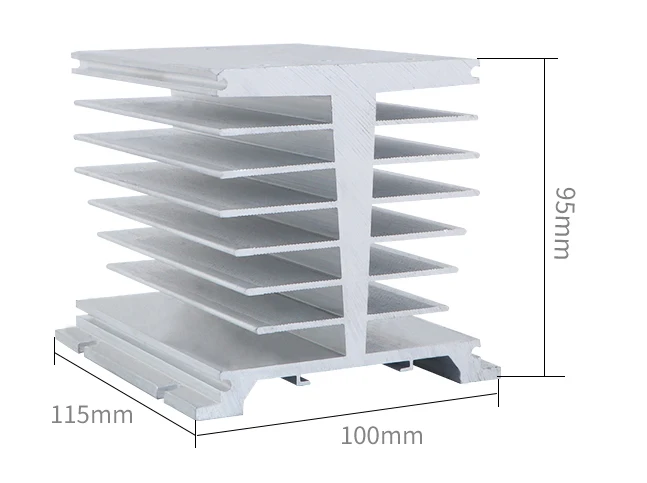

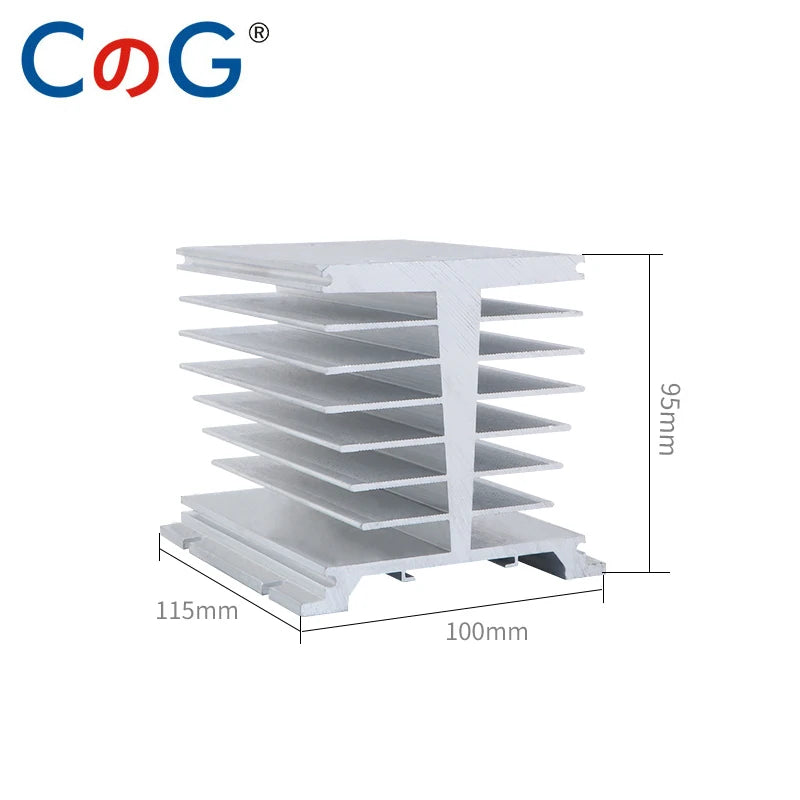

STEP 3: Choose a suitable heat sink.

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
PS: Our Heat Sink include 2 screws (for install heat sink)

NOTICE:

The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).

According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
