CG SSR-200DD 200A 220V 380V 600V Big Voltage Single Phase JGX DC Control DC Heat Sink 3-32VDC To 5-220VDC DD Solid State Relay

CG SSR-200DD 200A 220V 380V 600V Big Voltage Single Phase JGX DC Control DC Heat Sink 3-32VDC To 5-220VDC DD Solid State Relay

$44.46

$44.46 $0.00

Size 1-XL 200A 220V 1-L 200A 600V

Description

SPECIFICATIONS

Brand Name: CG

Certification: NONE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: SSR-200DD

Origin: Mainland China

Protect Feature: Sealed

Theory: Solid State Relay

Use: General Purpose

is_customized: Yes

semi_Choice: yes

Attention：Solar equipment is a mixed load, we do not recommend using solid state relays.If you want to try, you need to buy a solid state relay with 10 times the current.At the same time, if the solid state relay does not work normally on the solar equipment, we do not provide return service.

STEP 1: Choose a correct control Mode

AA- AC Control AC
DA- DC Control AC
DD- DC Control DC
VA-Control and Adjust

STEP 2: Choose a correct type

Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :70%, Inductive load:20%,Capacitive load：10%.

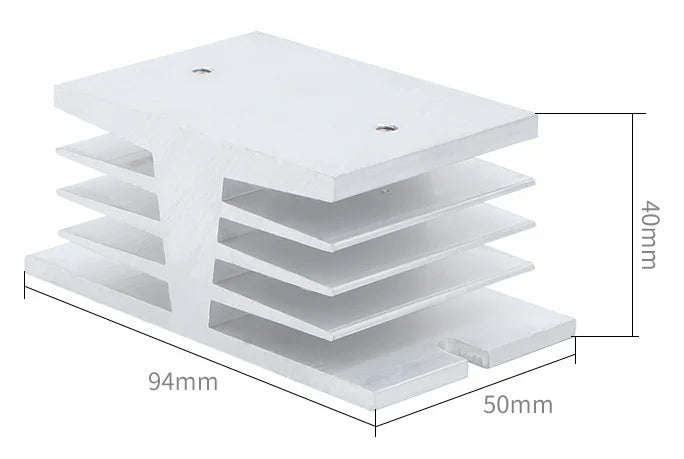

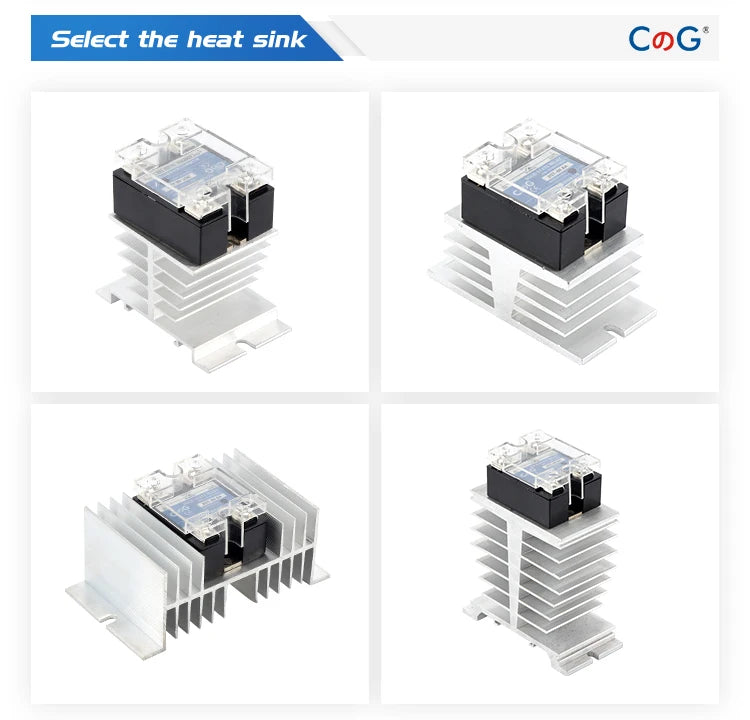

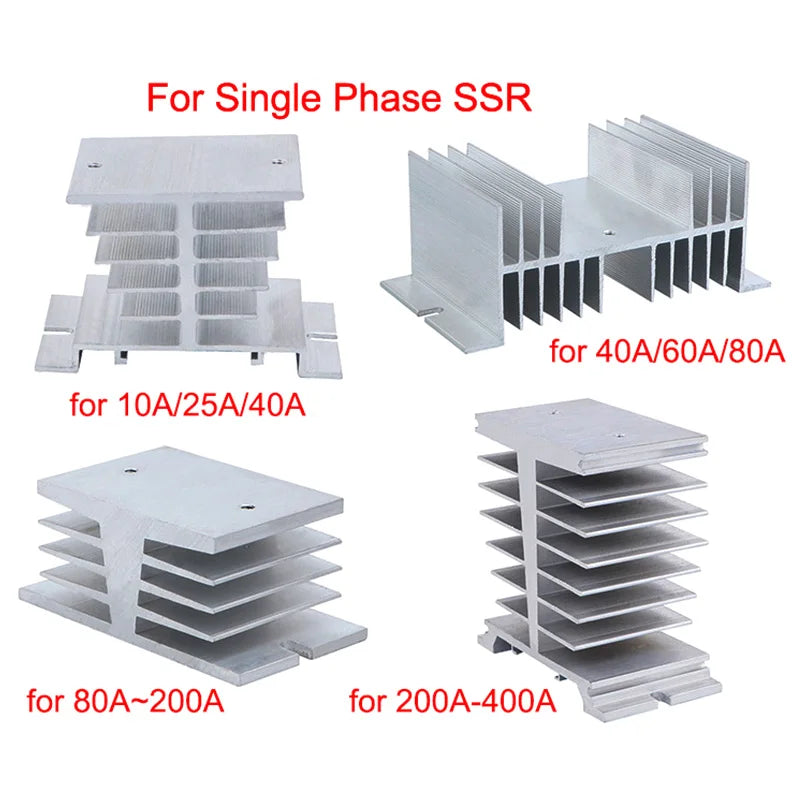

STEP 3: Choose a suitable heat sink.

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
PS: Our Heat Sink include 2 screws (for install heat sink)

NOTICE:

The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).

According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
