SPECIFICATIONS

Features

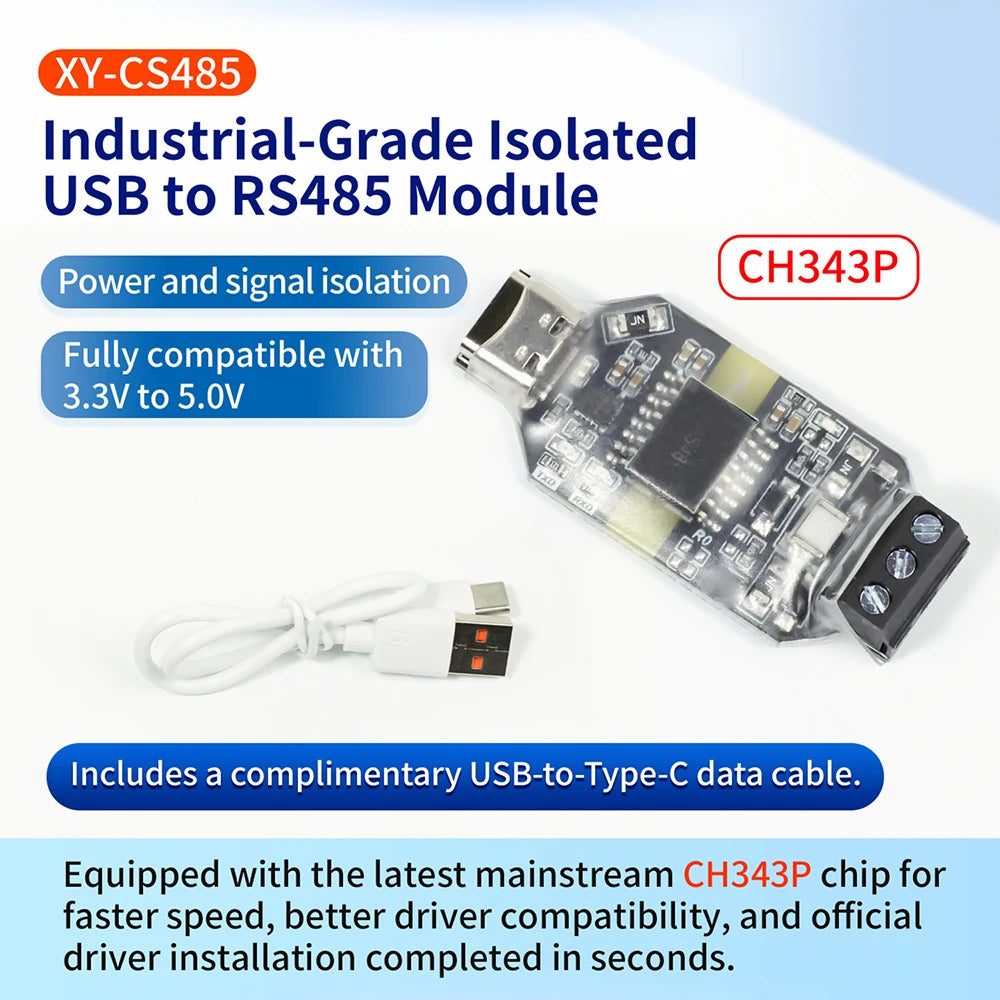

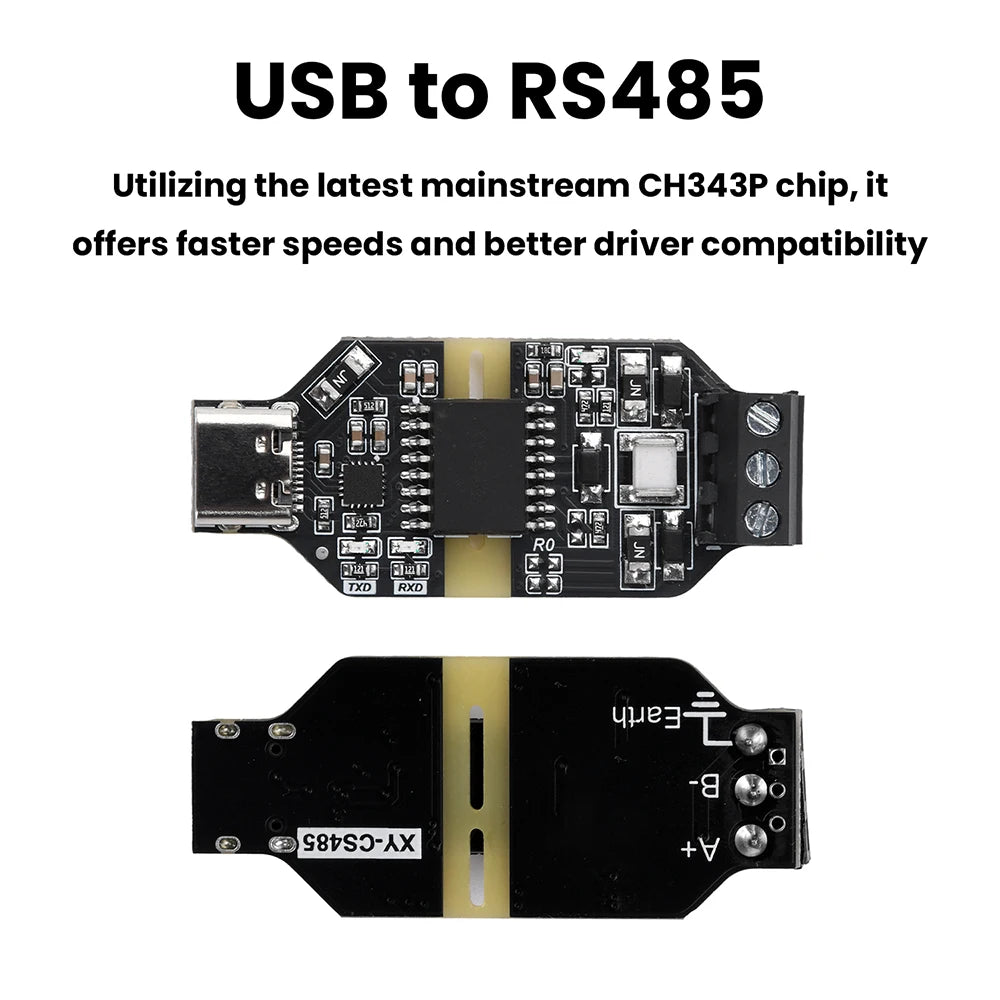

1. Utilizes the latest mainstream CH343P chip for faster speeds and better driver compatibility

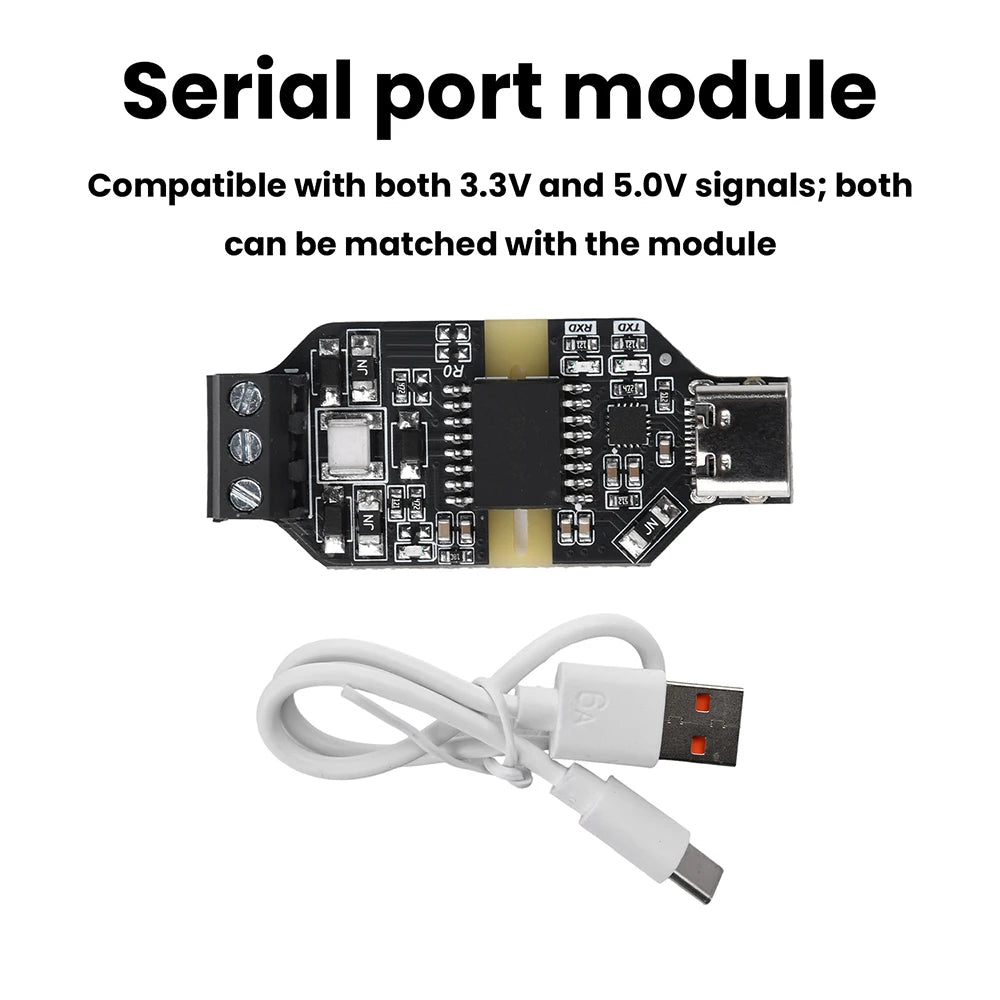

2. Compatible with both 3.3V and 5.0V signals

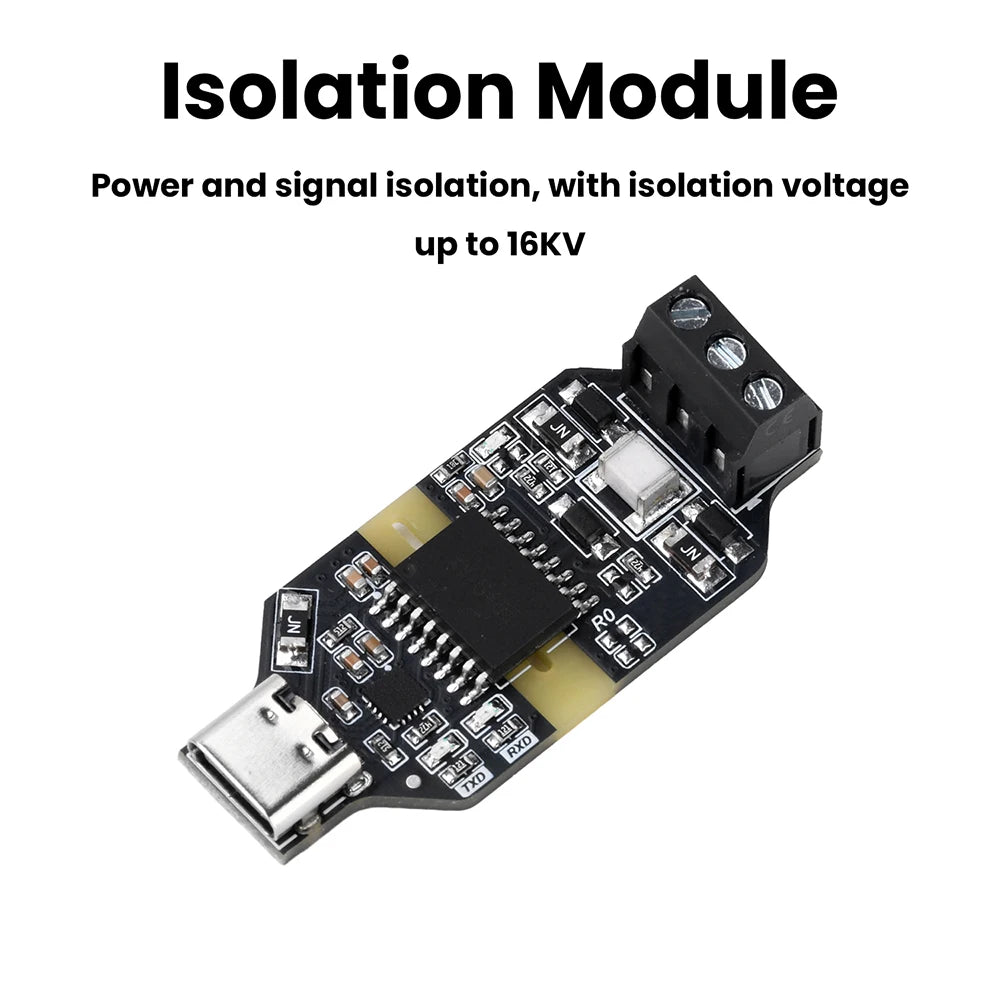

3. Power and signal isolation with up to 16KV isolation voltage

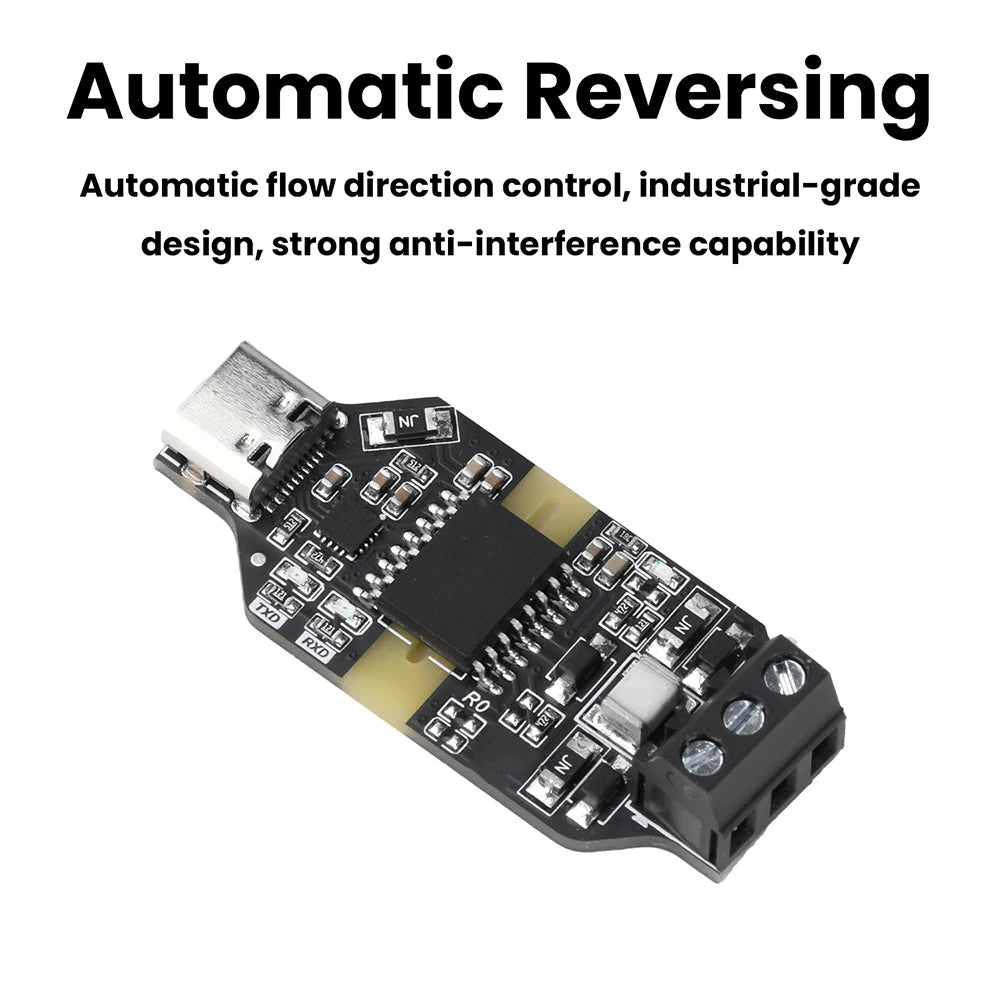

4. Automatic flow control, industrial-grade design with strong anti-interference capability

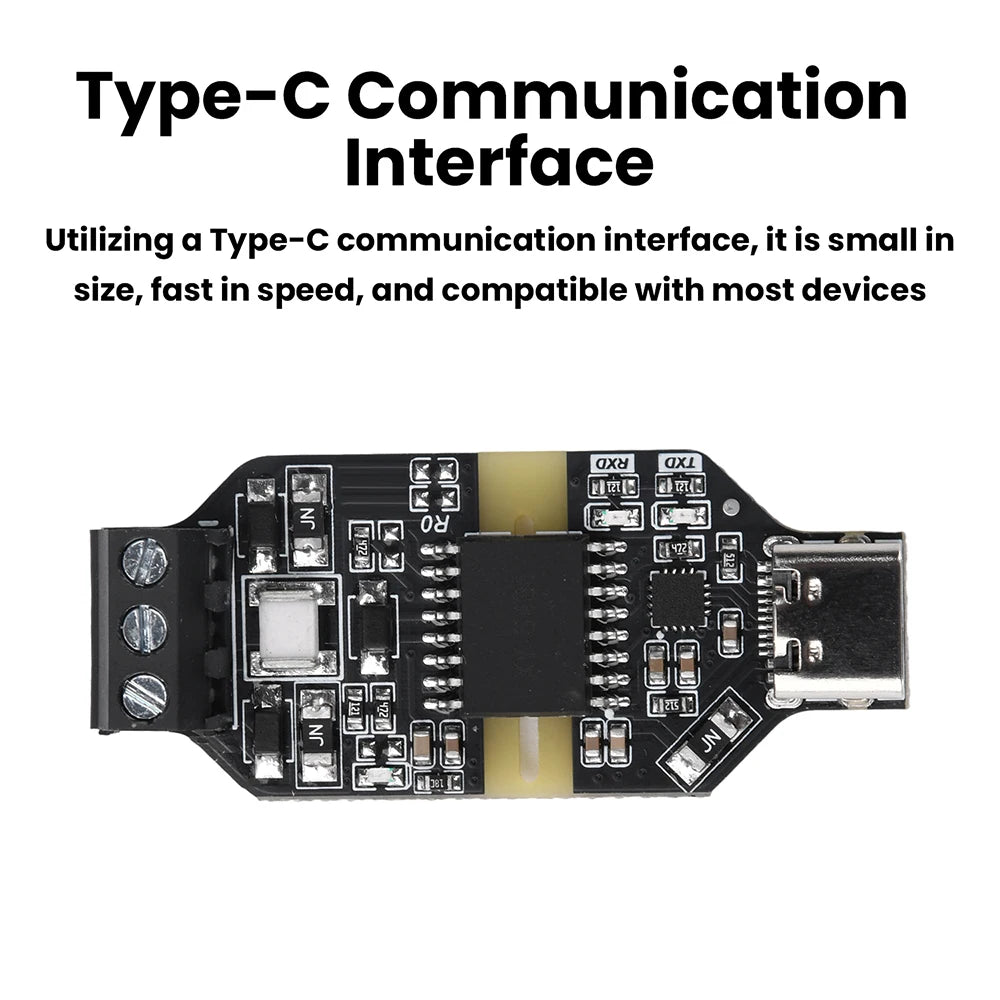

5. Type-C communication interface: compact size, high speed, compatible with most devices

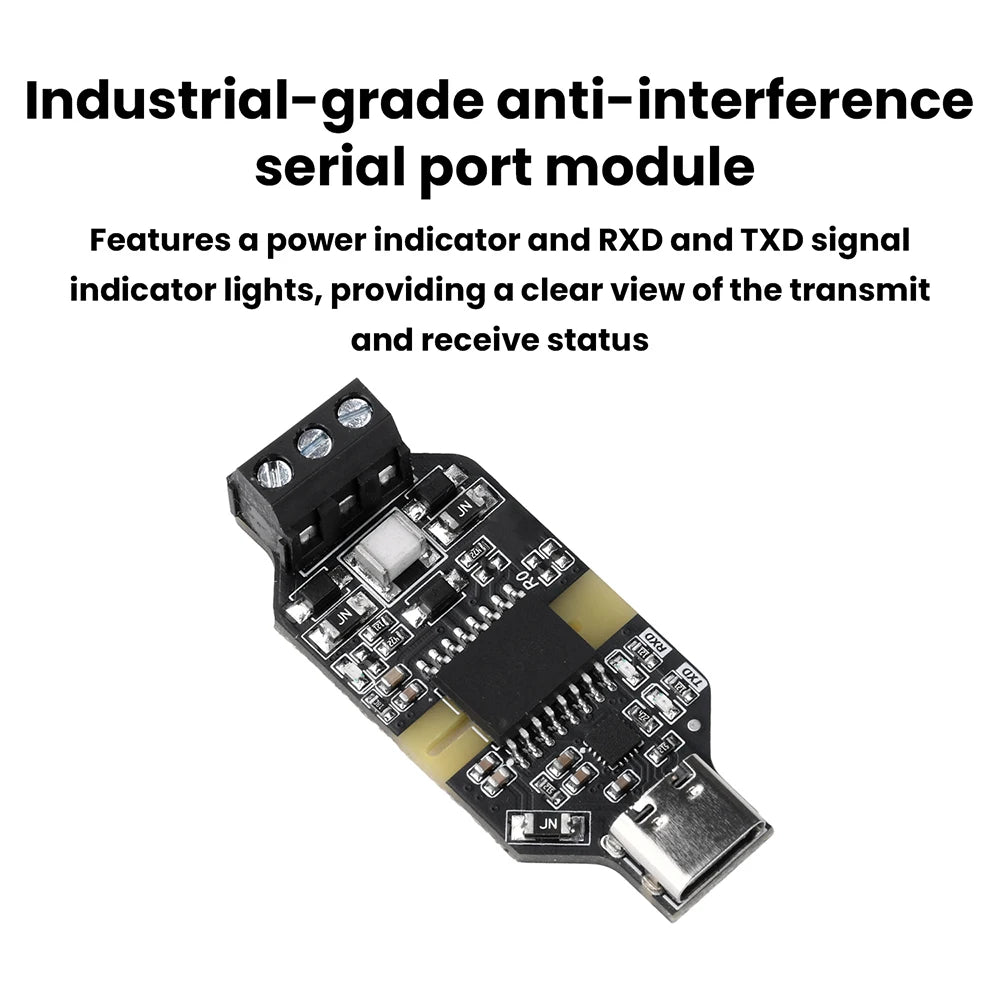

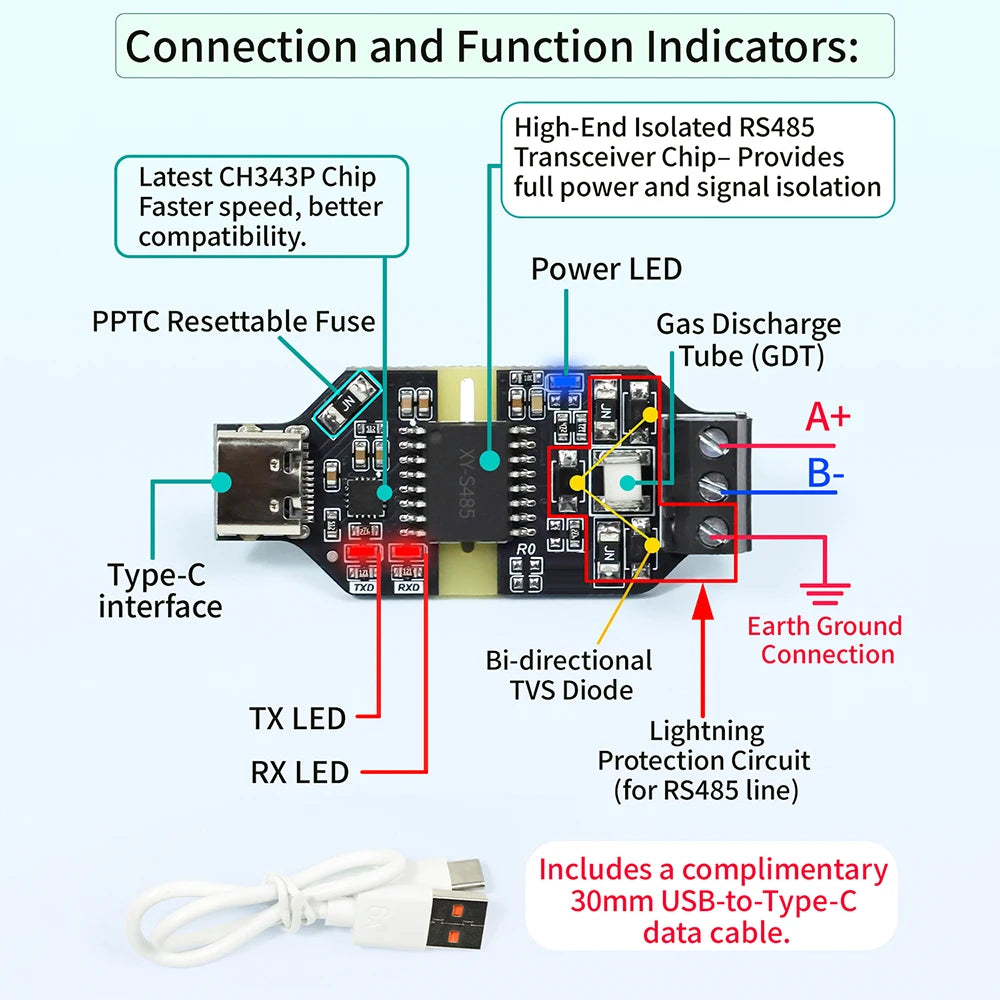

6. Power indicator and RXD/TXD signal indicators provide clear transmission status visibility
7. Transparent heat-shrink tubing ensures excellent insulation, dust/moisture protection, and clear indicator visibility

Product Description

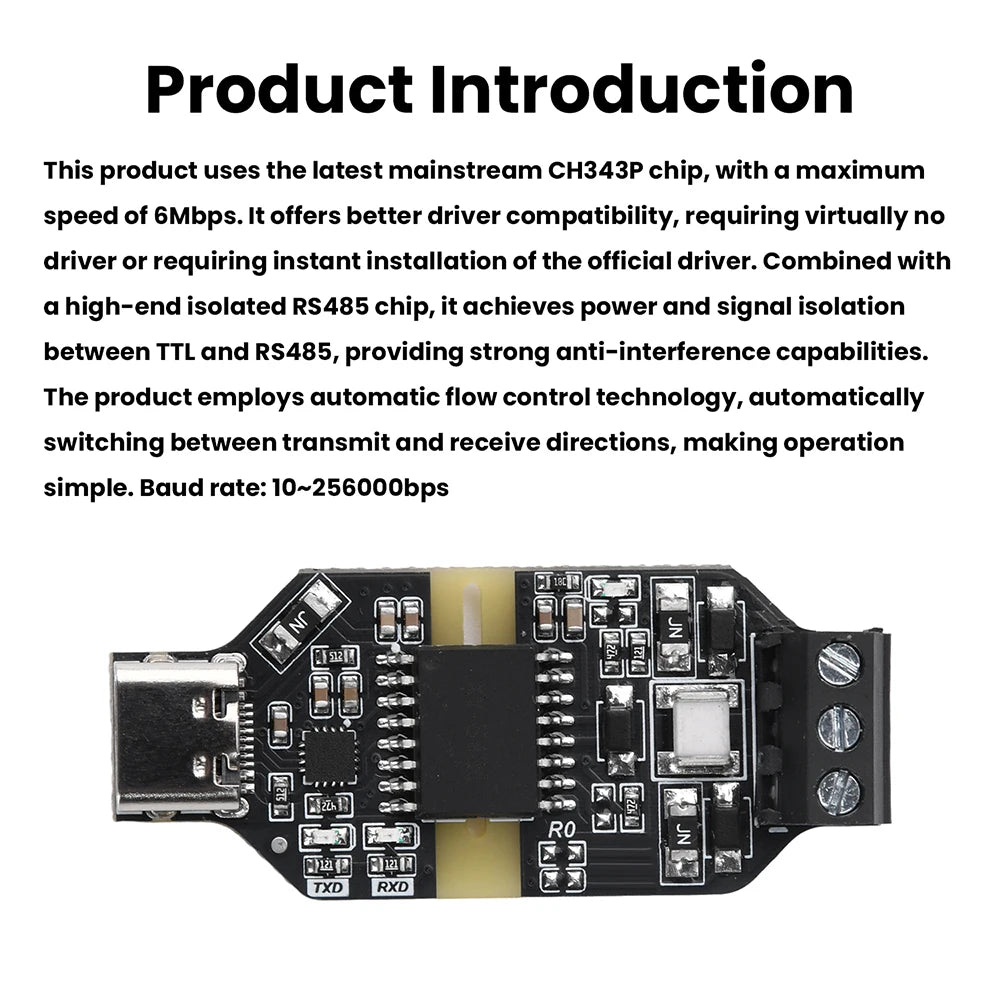

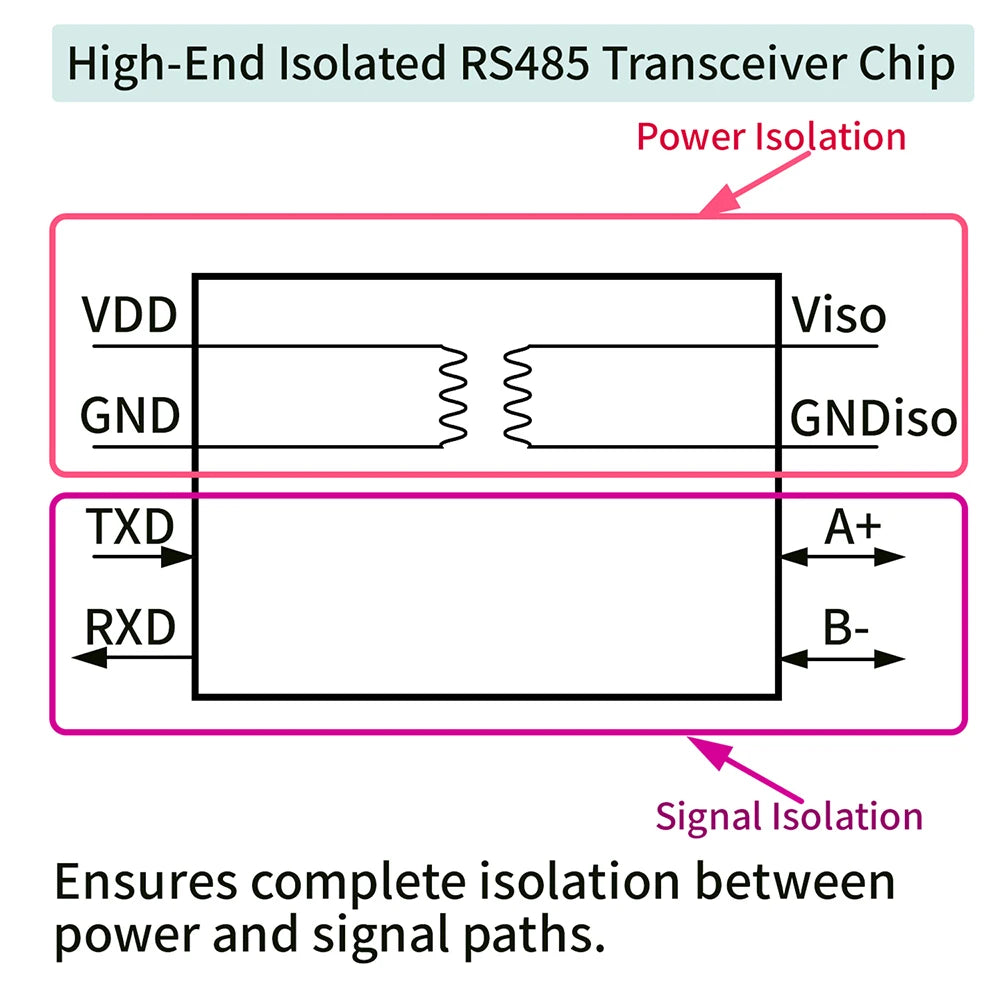

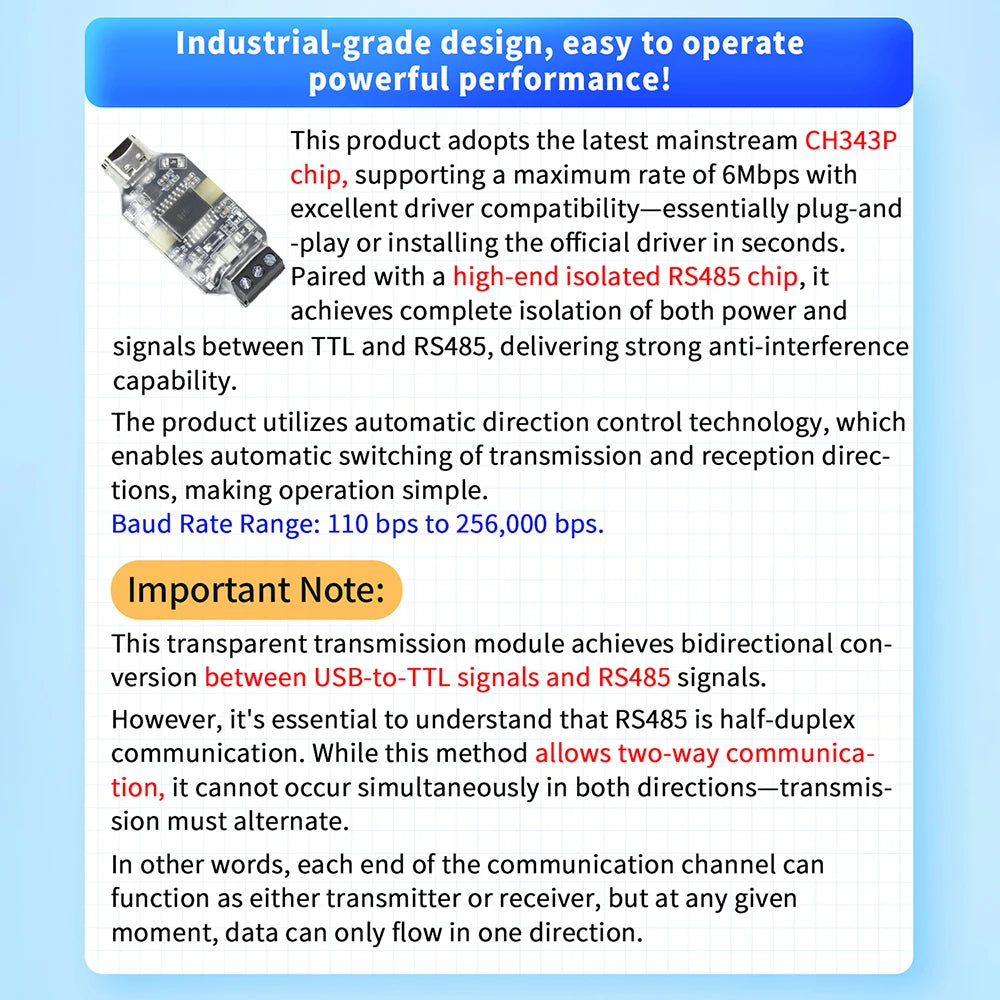

This product utilizes the latest mainstream CH343P chip with a maximum data rate of 6Mbps, offering superior driver compatibility. It requires minimal or no drivers, with official drivers installing instantly. Paired with a high-end isolated RS485 chip, it achieves power and signal isolation between TTL and RS485, delivering strong anti-interference capability. The device employs automatic flow control technology, automatically switching transmission and reception directions for simple operation. Baud rate: 10~256000bps

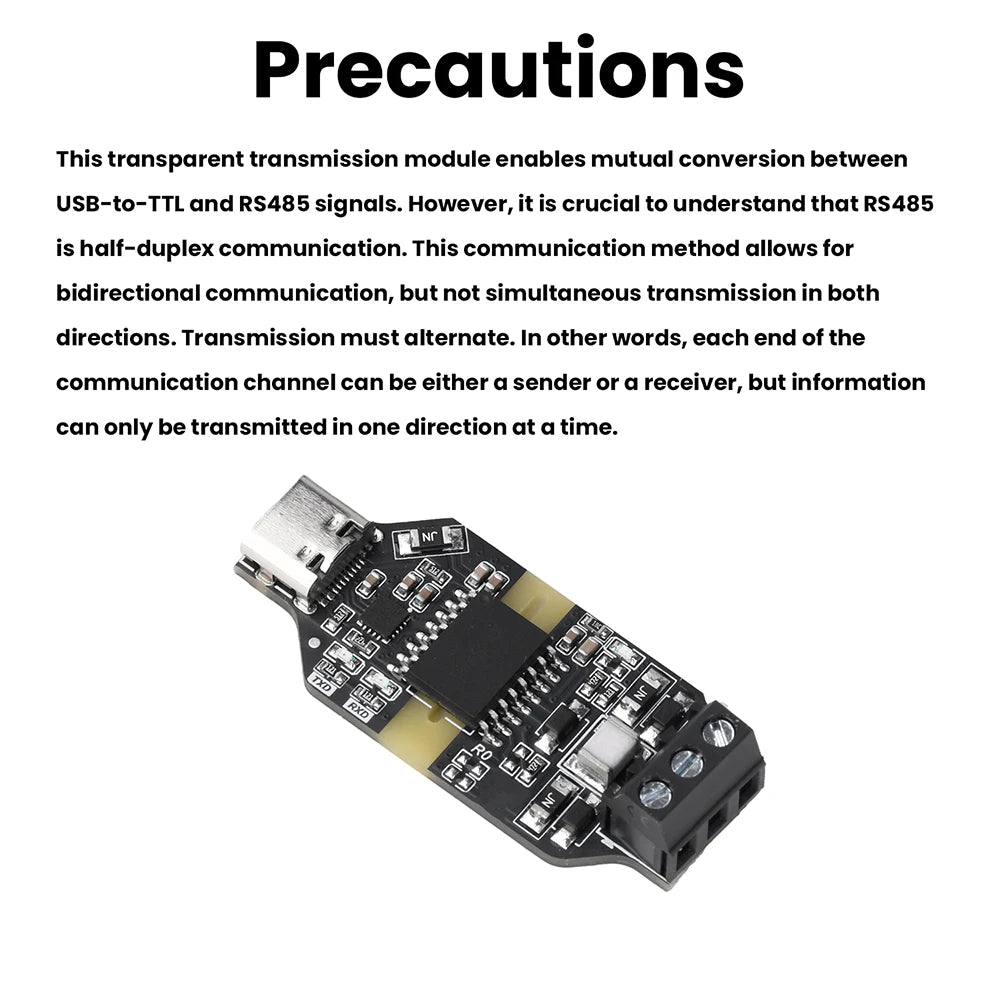

Important Notes

This transparent transmission module enables bidirectional conversion between USB-to-TTL signals and RS485 signals. However, it is crucial to understand that RS485 operates as half-duplex communication. This communication mode allows two-way data exchange but cannot transmit simultaneously in both directions; data flow must alternate sequentially. In other words, each end of the communication channel can function as either a transmitter or a receiver, but only one direction of data transmission is possible at any given moment.

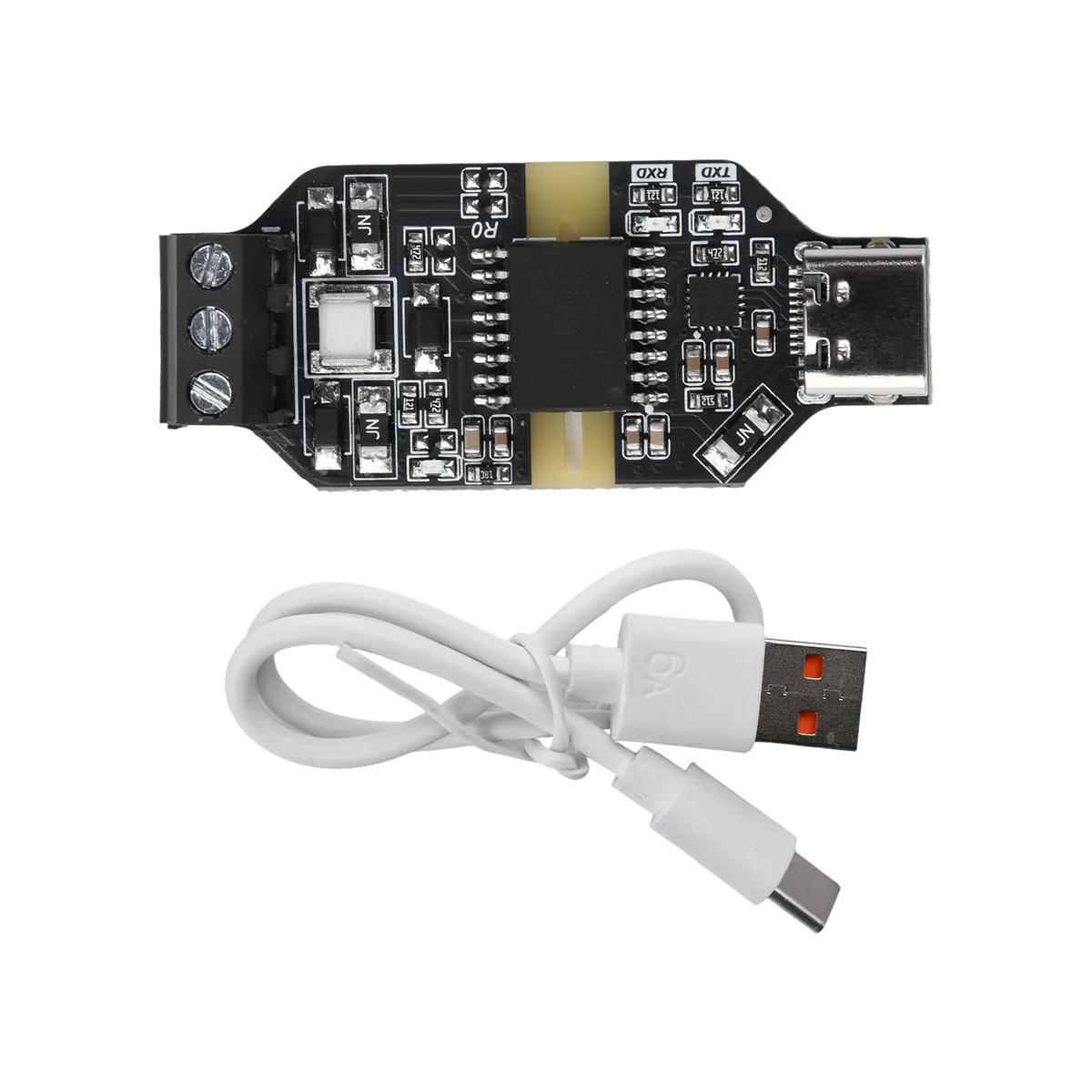

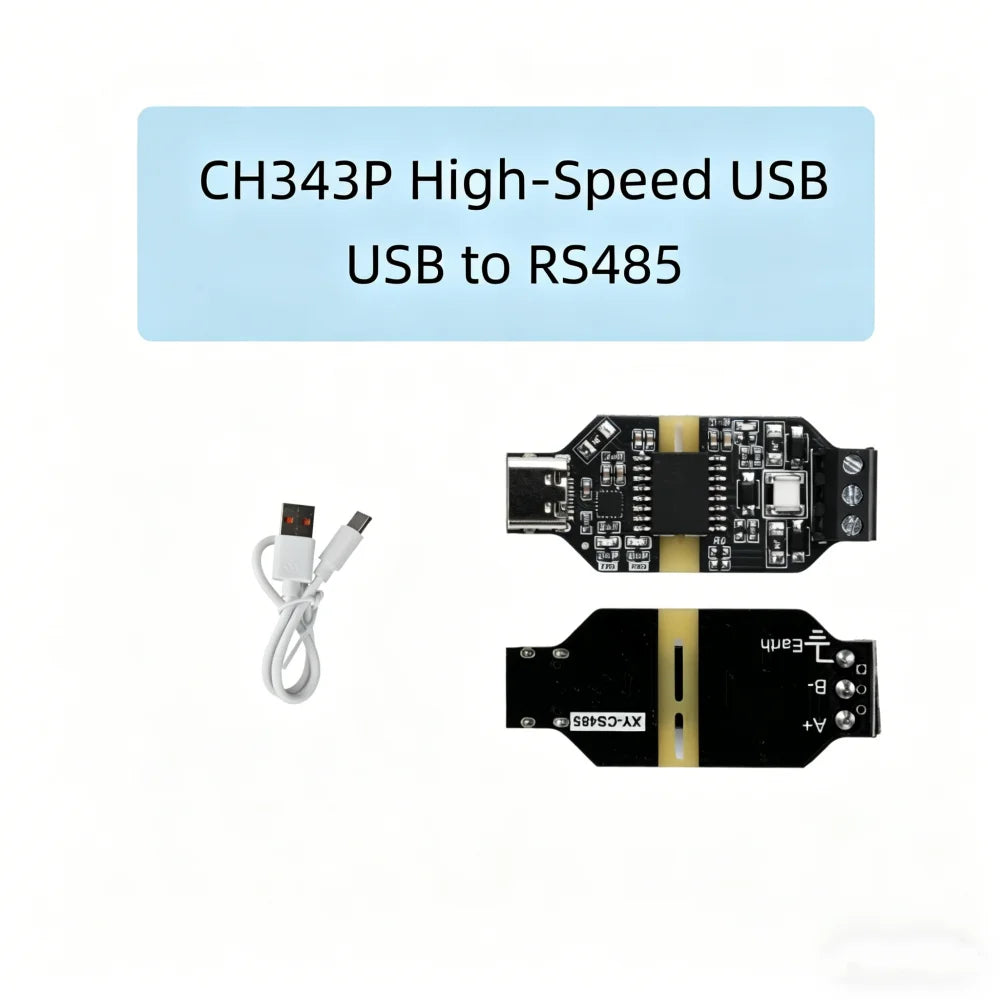

Package include

Transparent Module*1
Data Cable*1
