SPECIFICATIONS

Features:
1. Efficient kernel: Enhanced kernel with a maximum clock frequency of 24MHz and instruction speed faster than standard.
2. Rich peripheral interfaces: Built in multiple interfaces to meet various application needs.
3. Large capacity storage: Built in 16K ROM, supports DMA direct memory access, and improves data processing efficiency.
4. Multiple USB interface support: Provides Micro USB Type-C interface selection, strong compatibility.
5. Compact design size: Compact and portable, easy to integrate into various projects and devices.

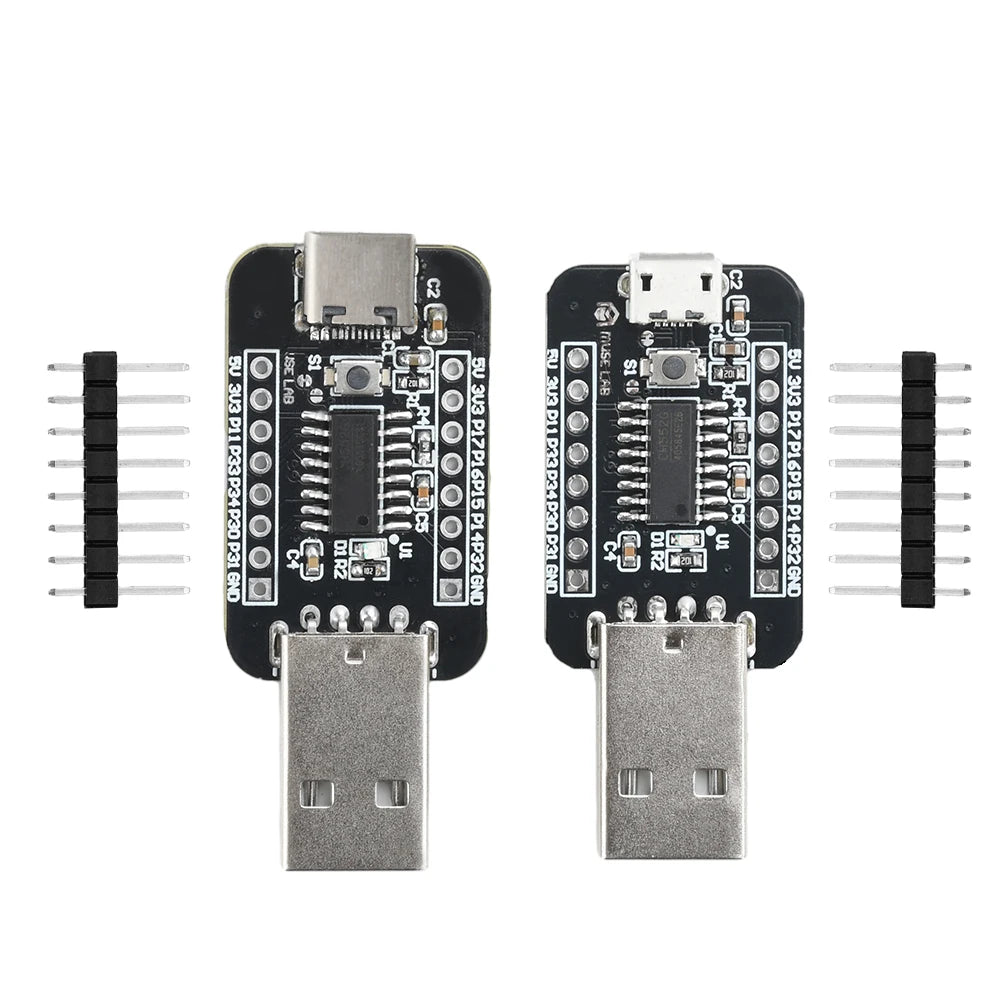

Product Introduction:

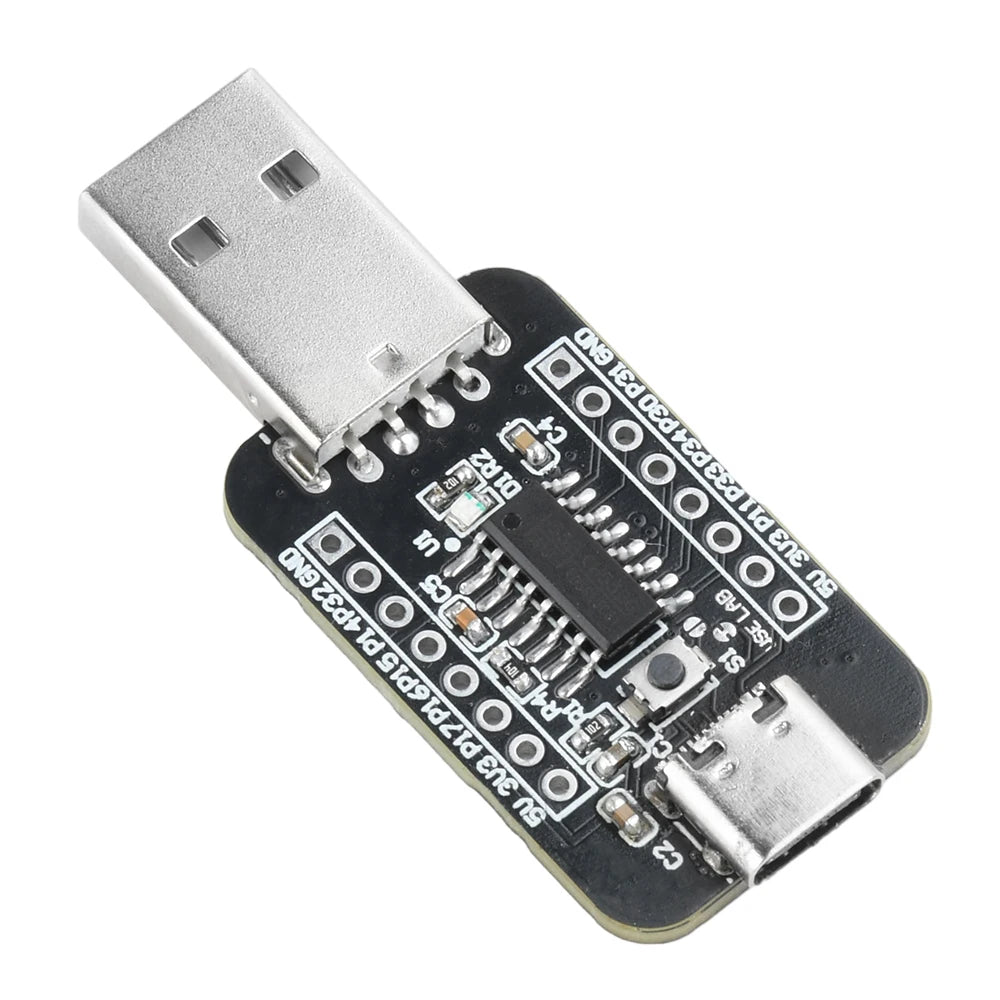

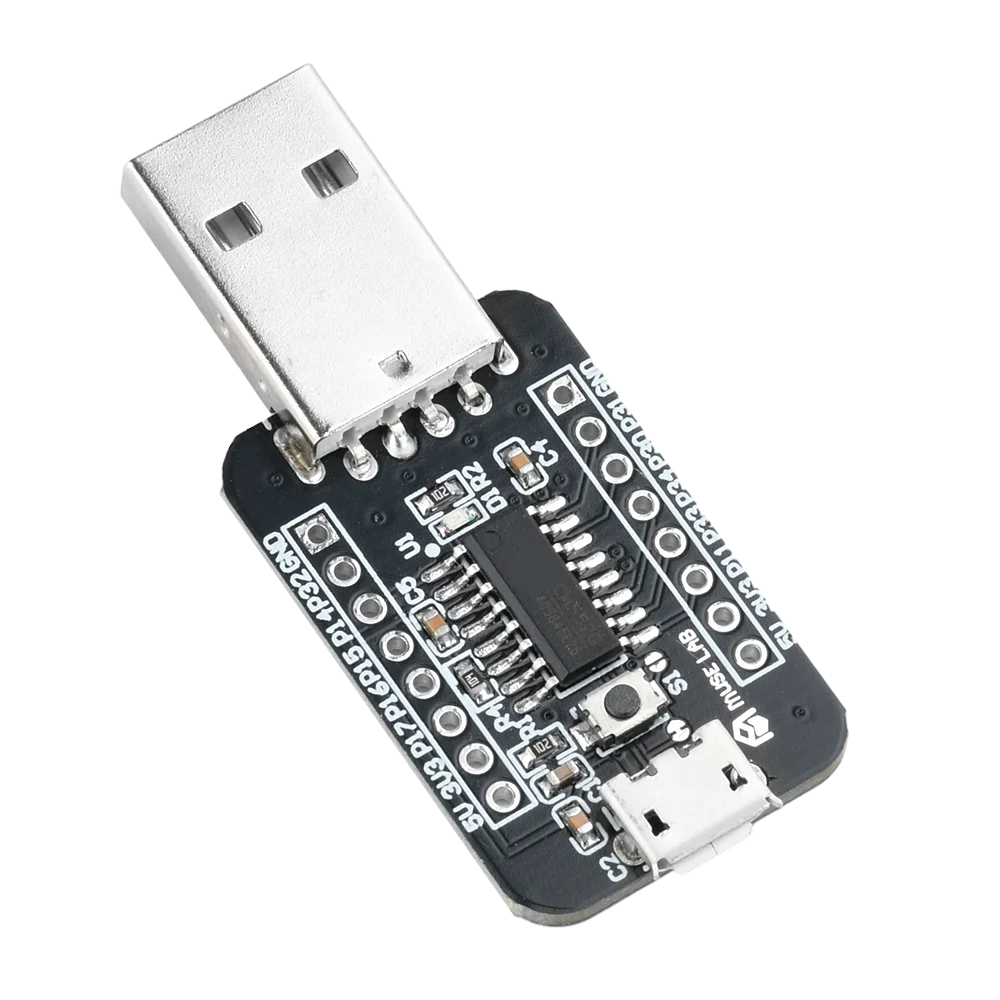

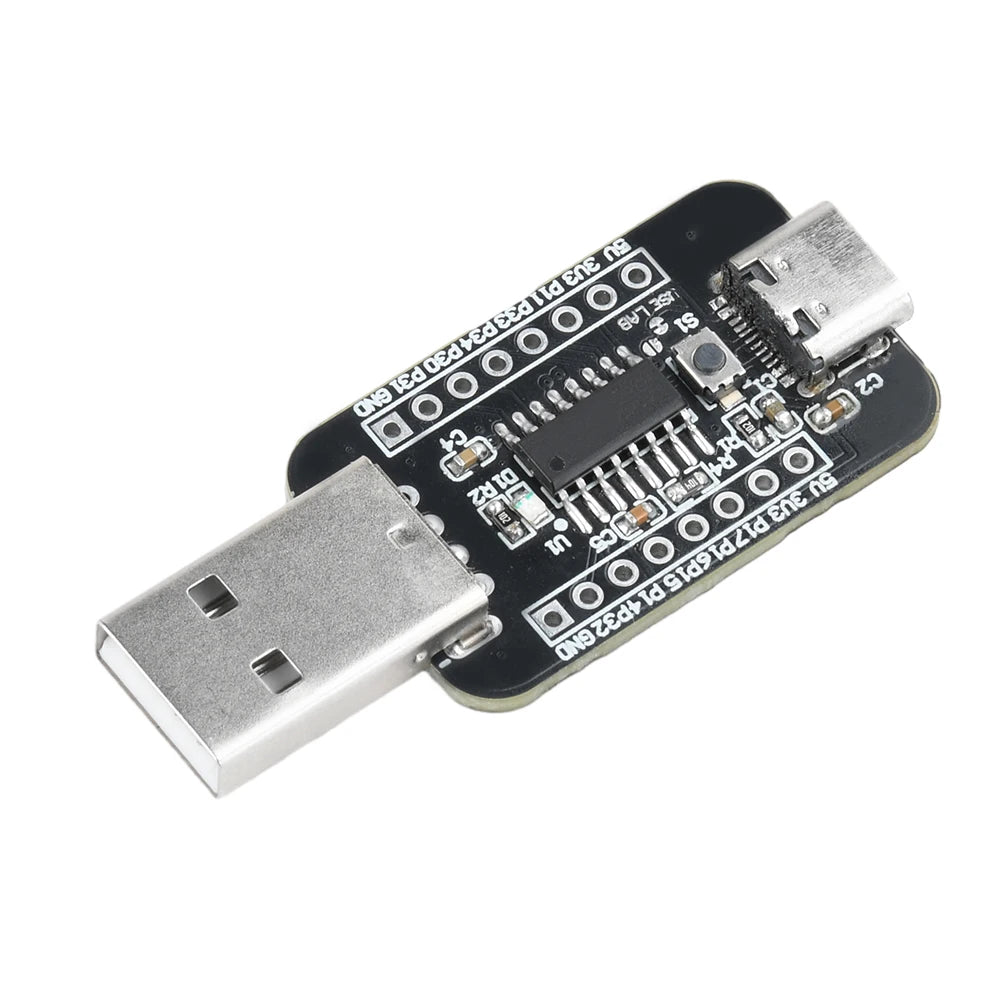

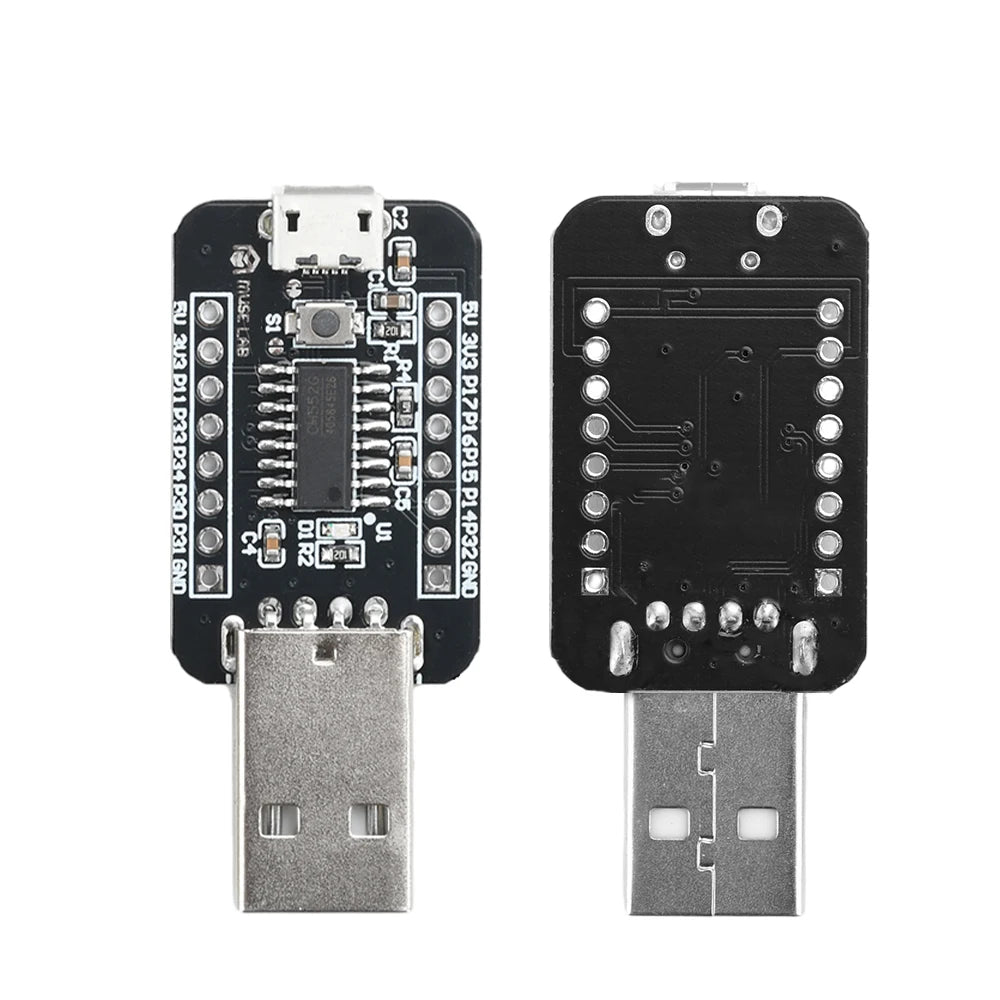

This development board is based on the CH552 chip and supports a maximum system frequency of 24MHz. It has a built-in 16K program memory ROM, 256Byte internal iRAM, and 1KB on-chip xRAM, which supports DMA direct memory access. CH552 has built-in ADC analog-to-digital conversion, touch button capacitance detection, 3 sets of timers and signal capture and PWM, dual asynchronous serial ports, SPI, USB device controller and full speed transceiver, type-C, USB and other functional modules.
Enhanced 8051 Core: An enhanced E8051 core microcontroller compatible with the MCS51 instruction set. 79% of the instructions are single byte single cycle instructions, with an average instruction speed 8-15 times faster than the standard MCS51. It features XRAM data fast copy instructions and supports a maximum system frequency of 24MHz.
Built in Flash/RAM: Equipped with 16K program memory ROM, 256 bytes of internal iRAM, and 1K bytes of on-chip XRAM, XRAM supports DMA direct memory access to a wide range of peripherals.
USB: Embedded USB controller and USB transceiver, supporting USB 2.0 full speed and low-speed host or device modes. Supports up to 64 byte data packets, built-in FIFO, and supports DMA.
UART: Two full duplex asynchronous serial ports, all supporting high baud rate communication, with UARTO being the standard MCS51 serial port.
Timer: 3 sets of timers/counters, supporting 2 signal captures and 2 PWM outputs.
SPI: 1 SPI communication interface, built-in FIFO, supports Master/Slave master-slave mode.
ADC: 4-channel 8-bit A/D analog-to-digital converter, supporting voltage comparison
Touch: 6-channel capacitor detection, supports up to 15 touch buttons, and supports independent timed interrupts.

Parameter:

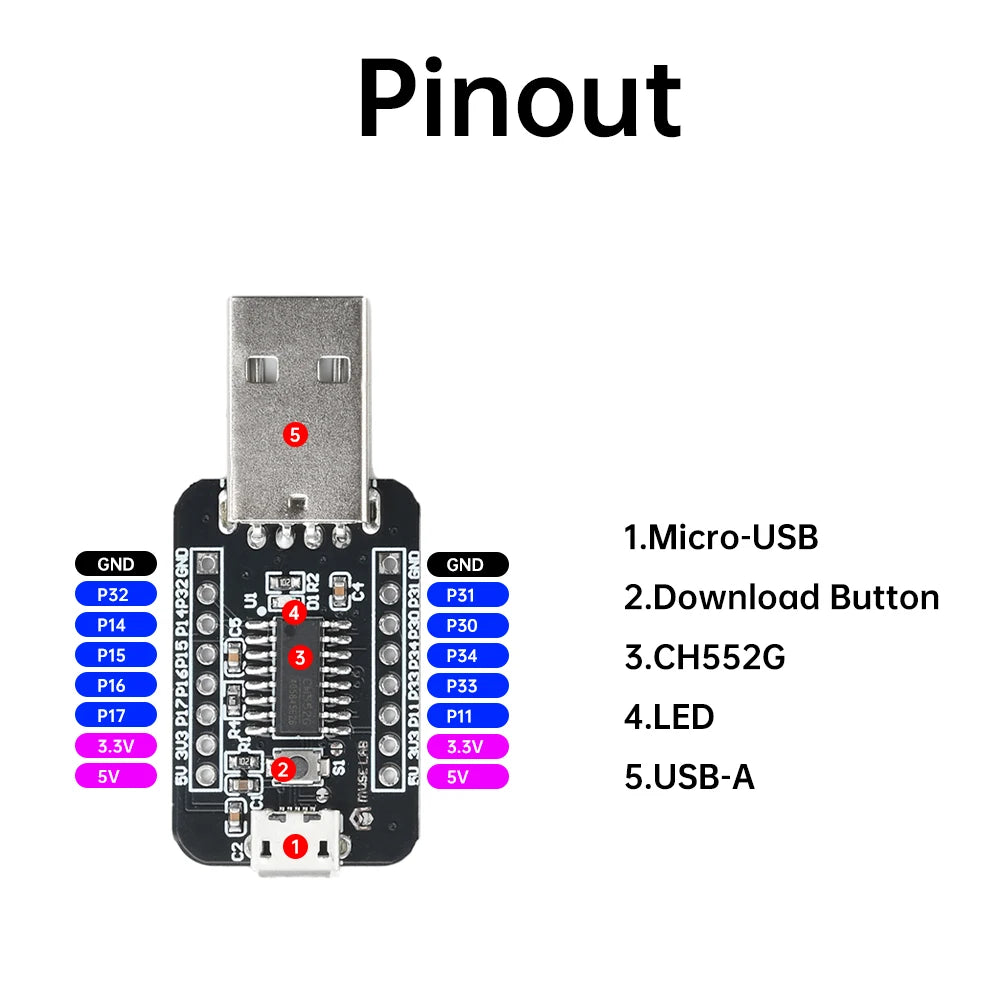

Product Name: CH552 Development Board
Main control chip: CH552G

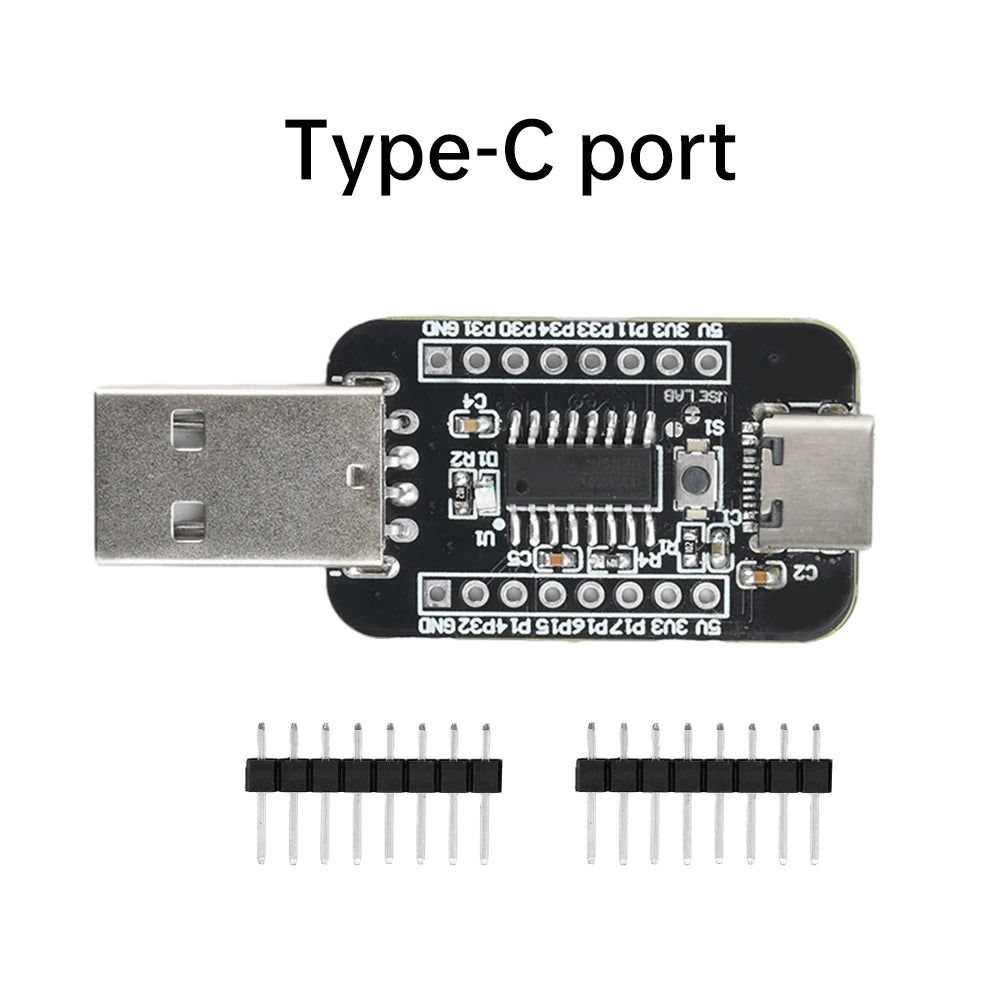

Download interface: Micro USB、Type-C、USB-A
Development environment: Keil/MDK、SDCC
Operating System: Windows、Linux

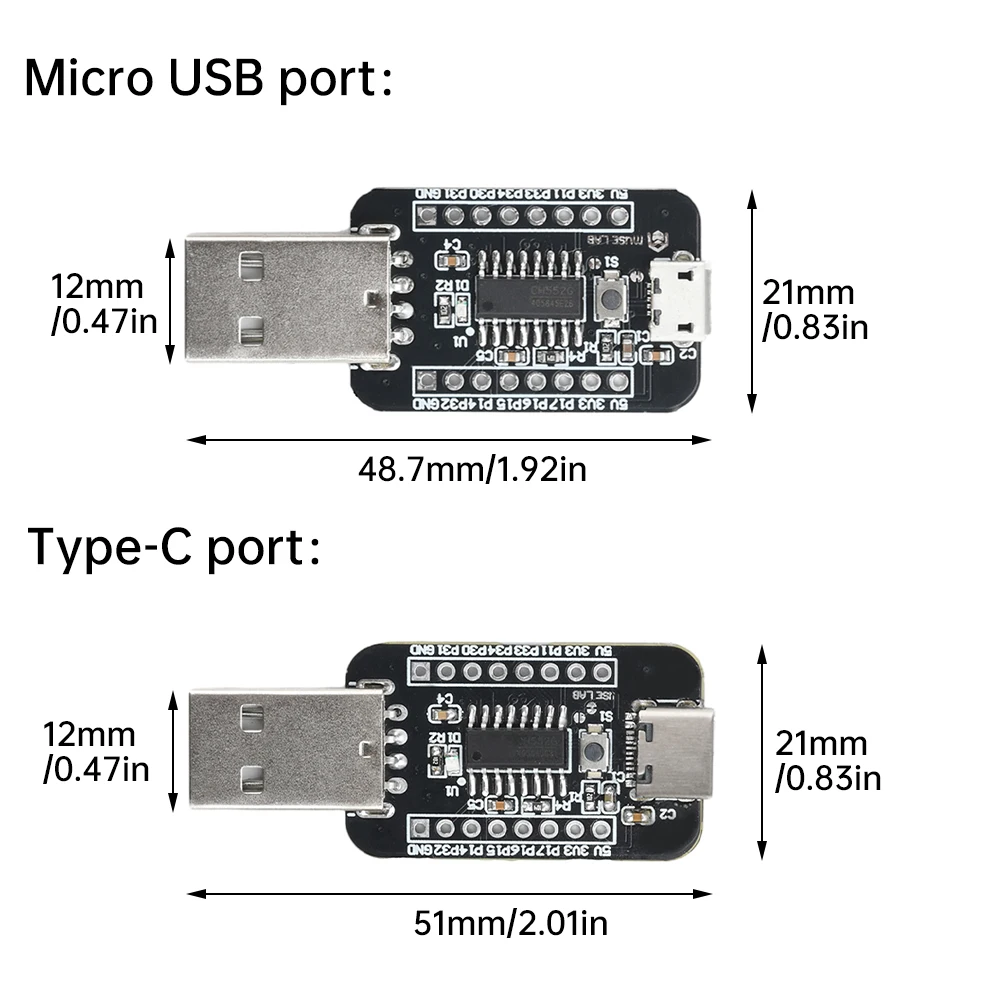

Product size: 48.5mm * 21mm

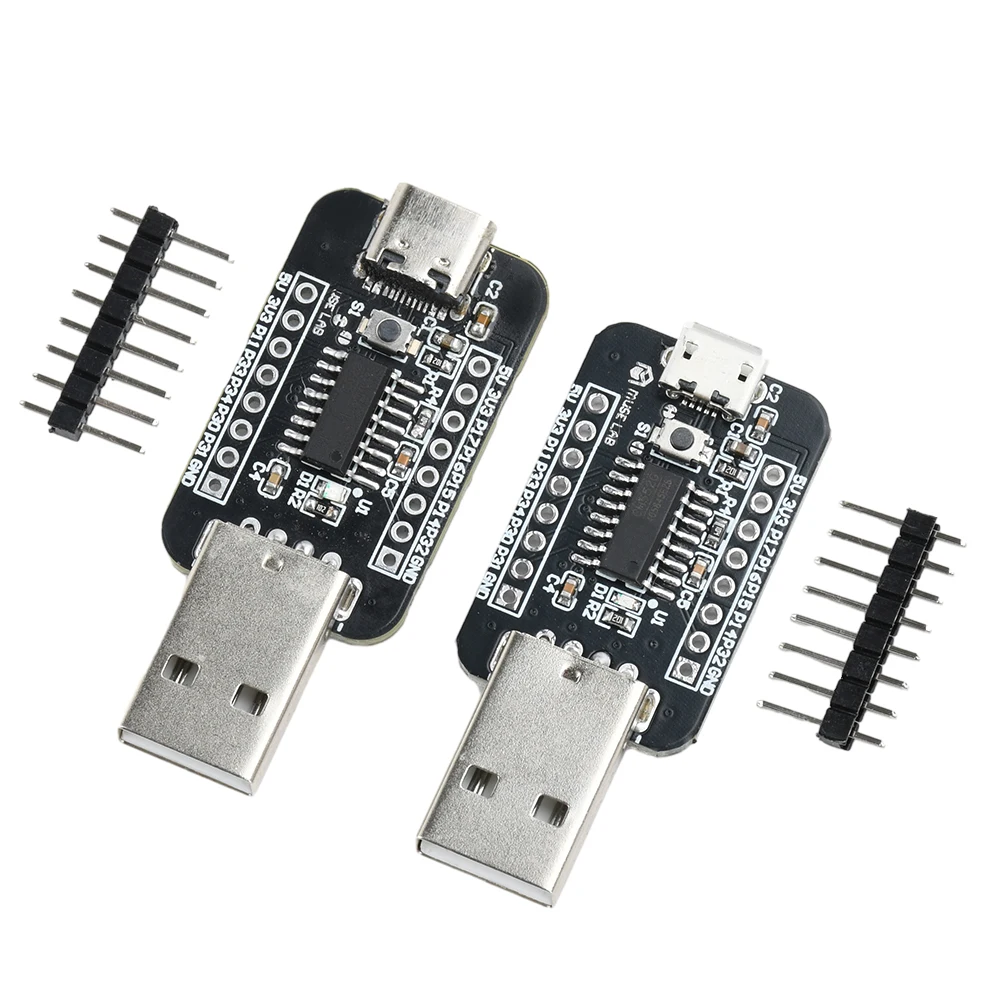

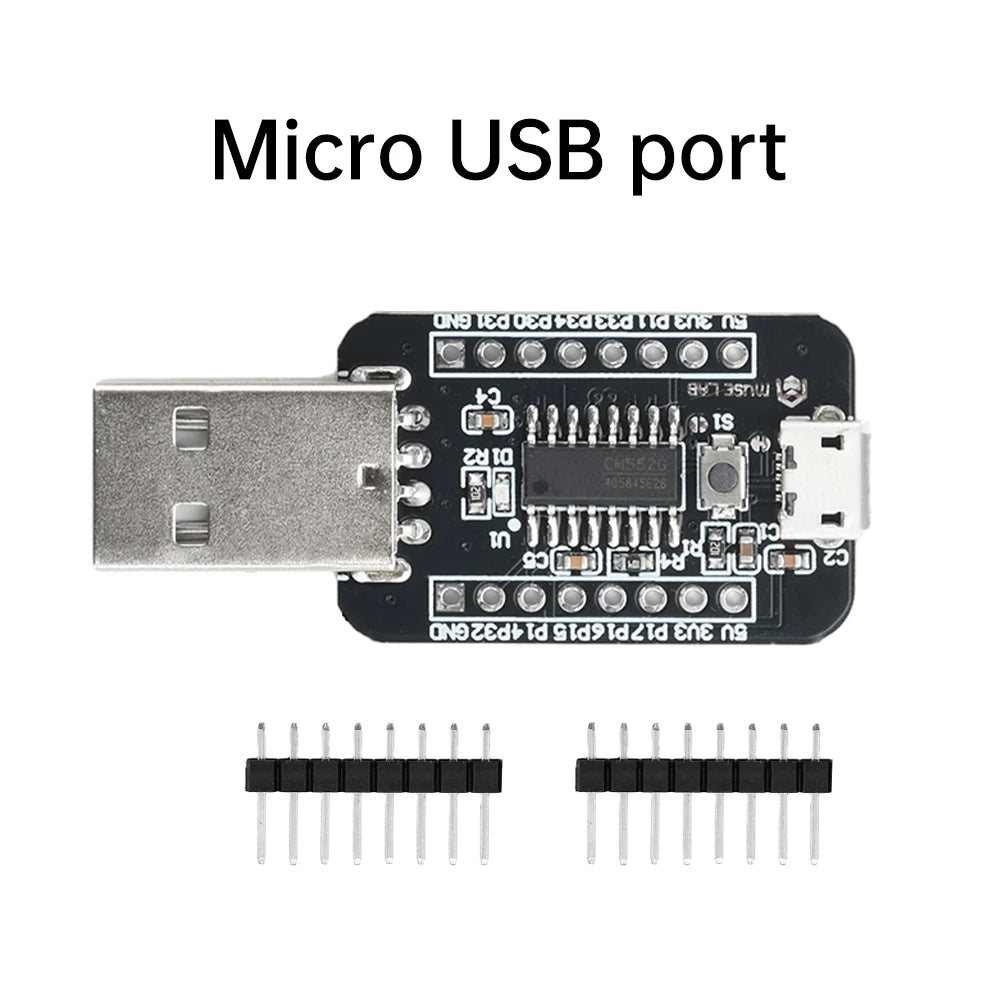

Product List:
1X development board
2X needle arrangement
