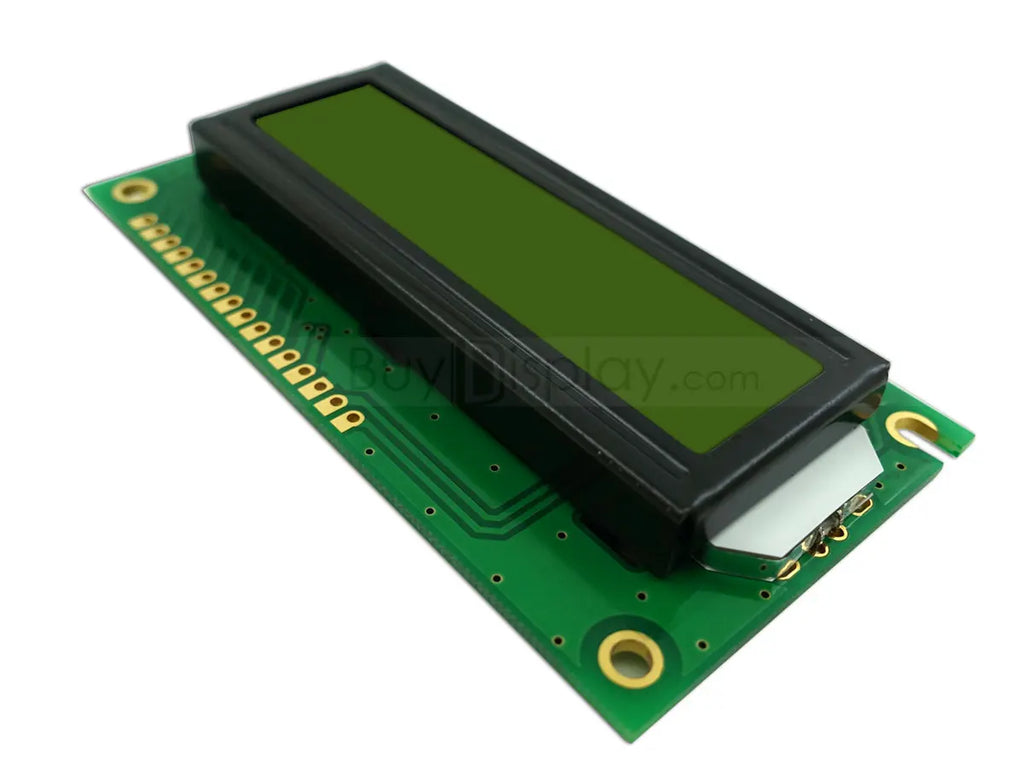

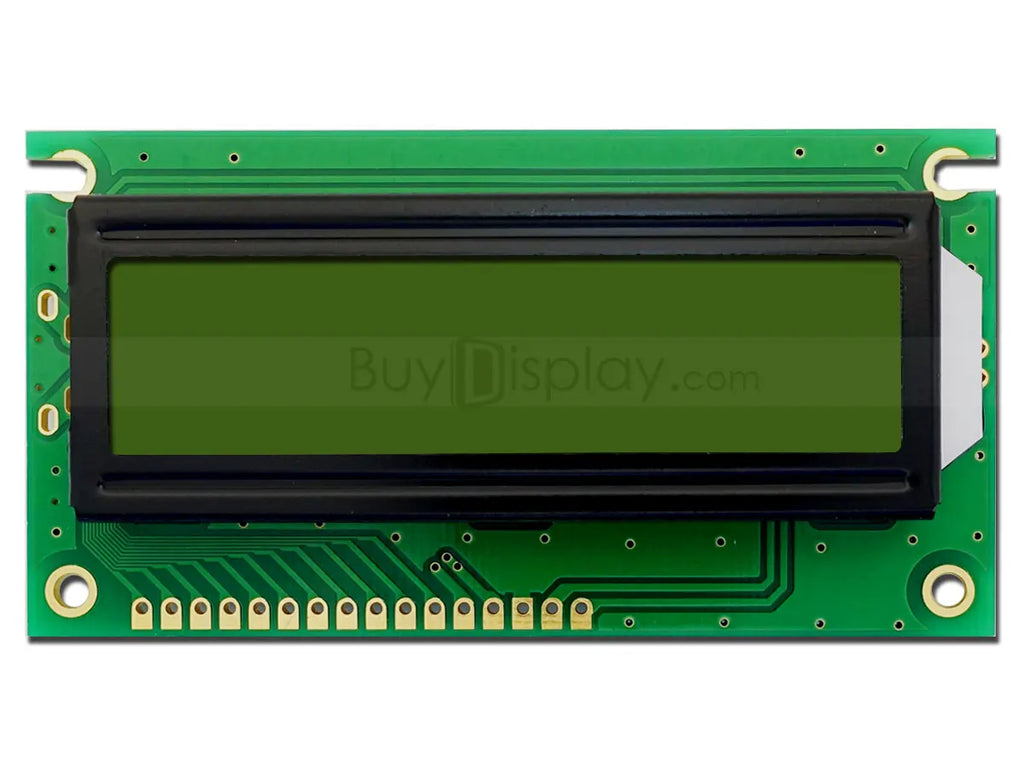

Character Display KS0066 16x2 LCD Module,Arduino,Black on YG
$18.00
Sale price
$18.00
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Display Mode: 400:1
High-concerned chemical: none
Model Number: ERM1602SYG-3
Origin: Mainland China
Resolution: 16*2
Type: Character
is_customized: Yes

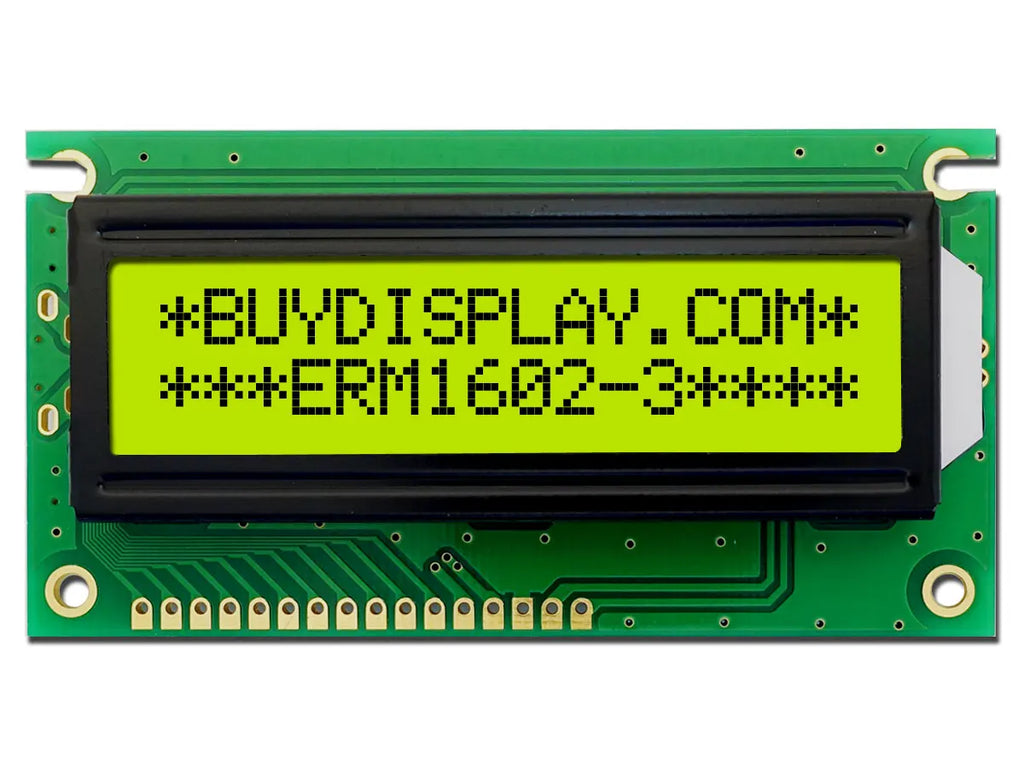

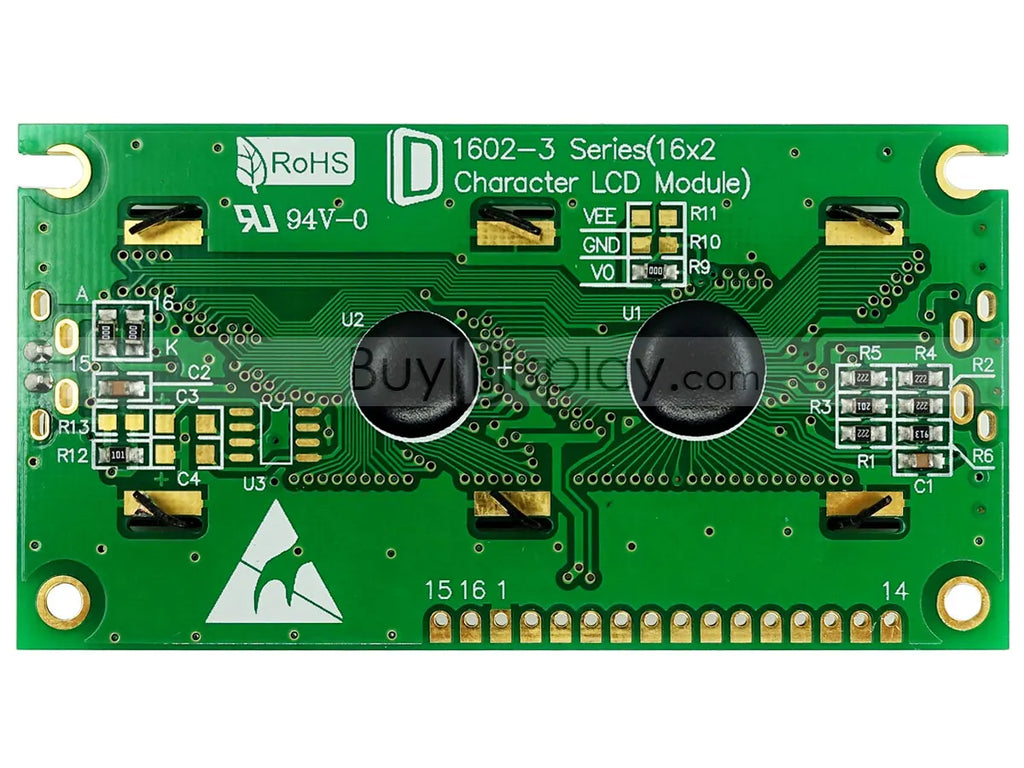

ERM1602SYG-3 is 16 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,stn-lcd positive,dark blue text on the yellow green color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It's optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Aliexpress does not permit external links. The technical documentation links below are inactive. To access this content, please contact Mr Sajay Peng, sales@buydisplay.com or visit: https://www.buydisplay.com/character-display-ks0066-16x2-lcd-module-arduino-black-on-yg
Datasheet for Character LCD Module,Controller IC,Adapter Board
Format |
Documents Name |
Version |
Language |
Update Date |
Size |
|
16x2 Character LCD Module Datasheet |
1.0 |
English |
Jul-12-2012 |
595K |
|
Controller IC SPLC780C Datasheet |
1.1 |
English |
Jul-09-2002 |
813K |
|
Single Row I2C Adapter Board Drawing |
1.0 |
English |
Jul-17-2019 |
203K |
Tutorial - Arduino
Format |
Documents Name |
Version |
Language |
Update Date |
Size |
|
Arduino Libraries and Examples for Character Display |
1.0 |
English |
Jul-23-2019 |
45K |
|
Interfacing I2C Adapter Board to Arduino |
1.0 |
English |
Aug-12-2019 |
97K |
Tutorial- 8051 Microcontroller
Format |
Documents Name |
Version |
Language |
Update Date |
Size |
|
6800 4-bit/8-bit Parallel Interface Demo Code |
1.0 |
English |
Jun-18-2009 |
5K |
|
ERM1602-3 Series Interfacing Document |
1.0 |
English |
Mar-30-2016 |
314K |
|
8051 Microcontroller Development Board&Kit for ERM1602-3 |
N/A |
N/A |
N/A |
N/A |
Specification
Gross Weight (kg) |
0.0500 |
Manufacturer |
EastRising |
Continuity Supply |
We promise the long term continuity supply for this product no less than 10 years since 2015. |
Part Number |
ERM1602SYG-3 |
Display Format |
16x2 Character |
Interface |
6800 4-bit Parallel , 6800 8-bit Parallel |
IC or Equivalent |
AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 |
Appearance |
Dark Blue on Yellow Green |
Diagonal Size |
1.9“ |
Connection |
Pin Header |

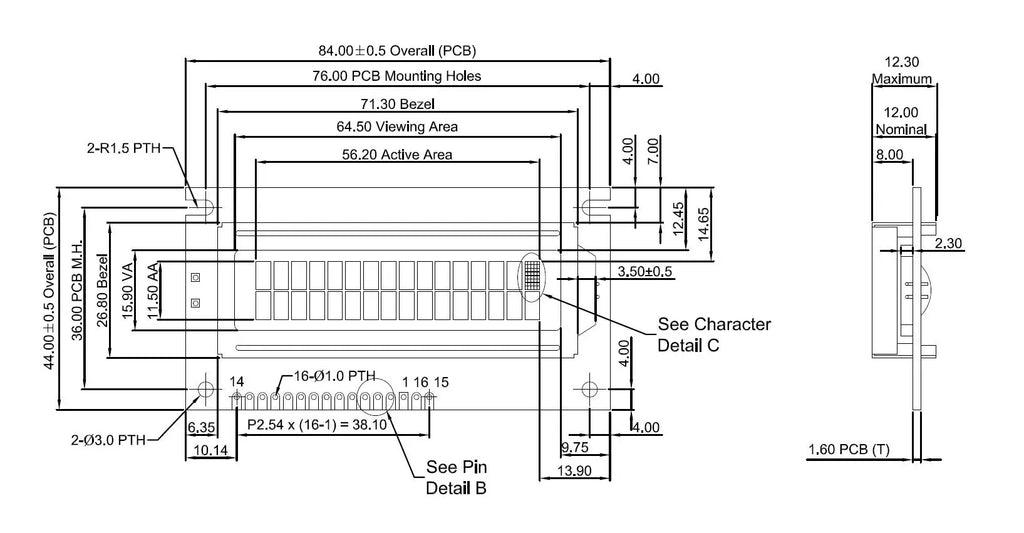

Outline Dimension |
84.0(W)x44.0(H)x12.3(T)mm |
Visual Area |
64.50x15.90mm |
Active Area |
56.20x11.50mm |
Dot (Pixel) Size |
0.55x0.65mm |
Dot (Pixel) Pitch |
0.60x0.70mm |
IC Package |
COB |
Display Type |
STN-LCD Yellow Green |
Touch Panel Optional |
No |
Sunlight Readable |
Yes |
Viewing Direction |
12:00 |
Backlight Color |
Yellow Green Color |
Backlight Current (Typ) |
15mA |
Power Supply(Typ) |
3.3V, 5V |
Supply Current for LCM(Max) |
1500uA |
Operating Temperature |
-20℃~70℃ |
Storage Temperature |
-30℃~80℃ |
