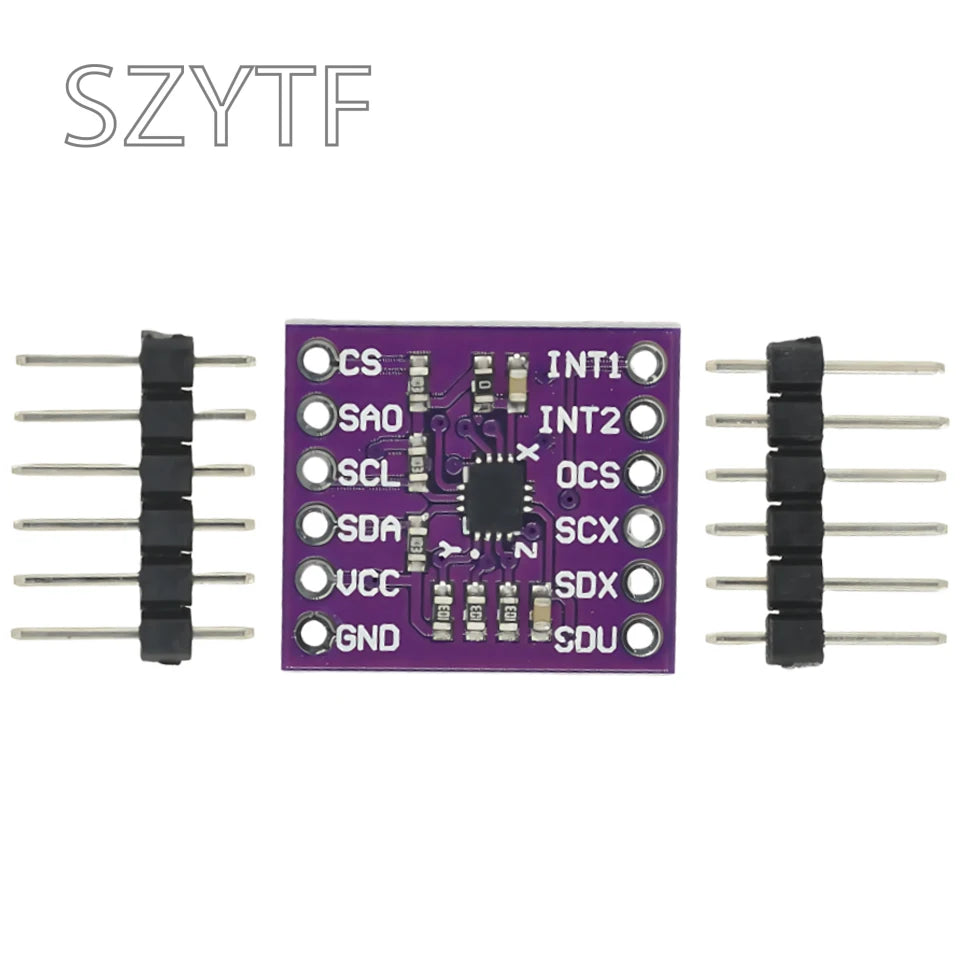

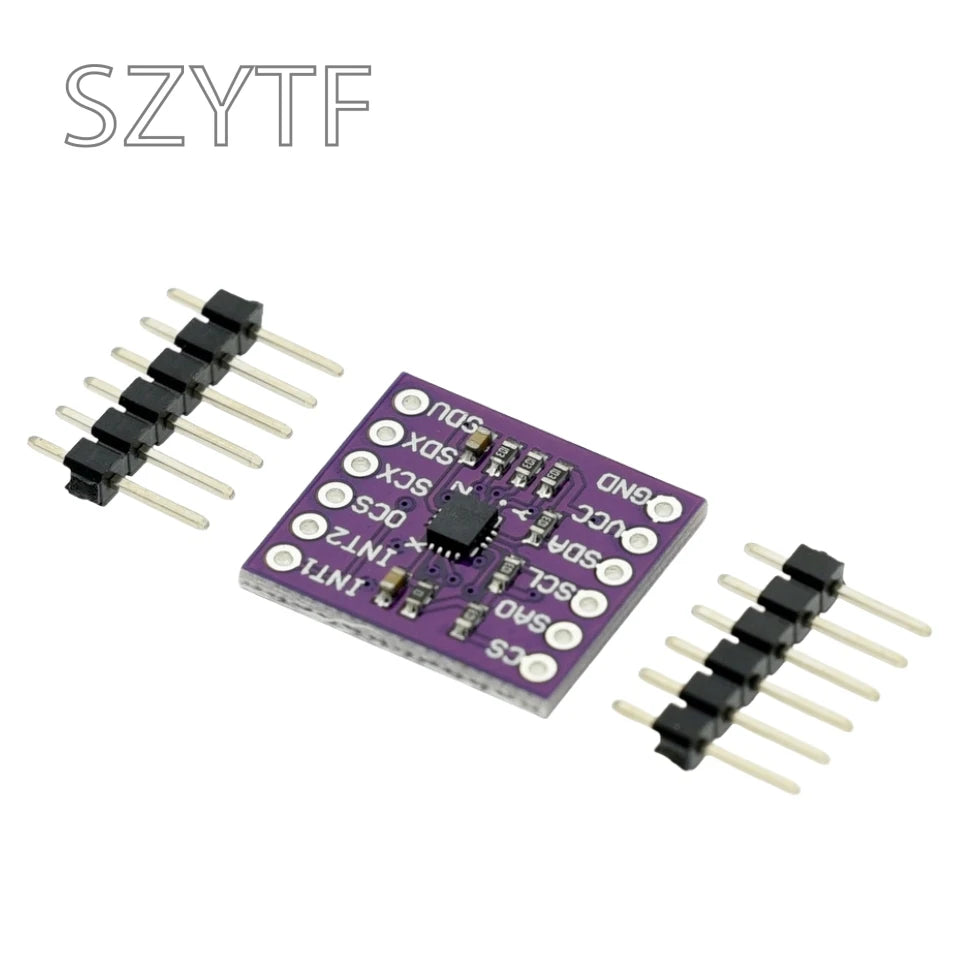

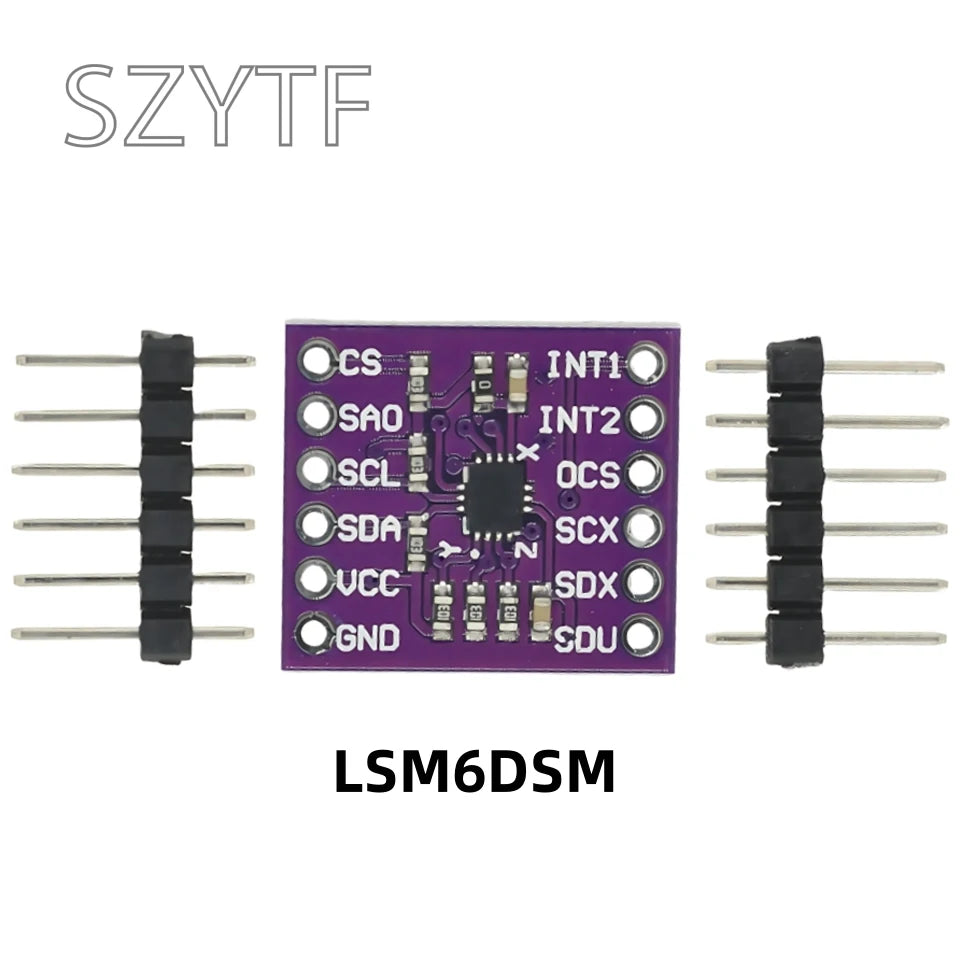

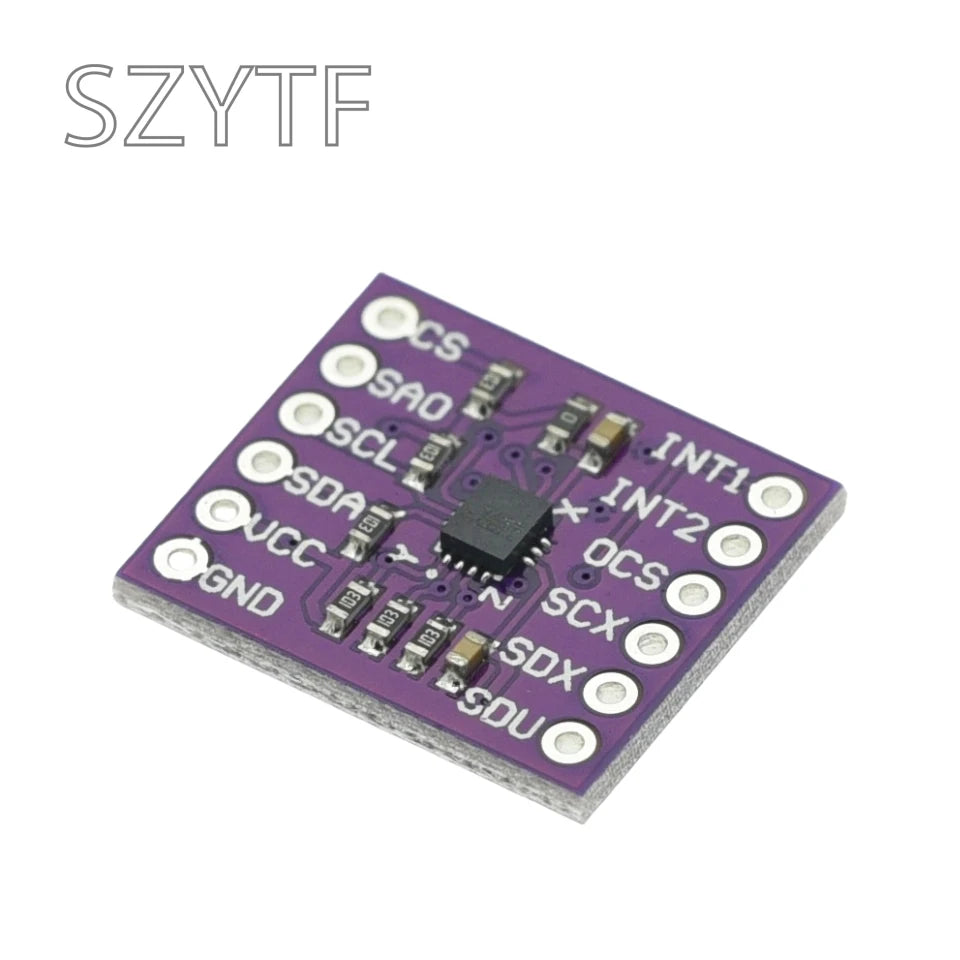

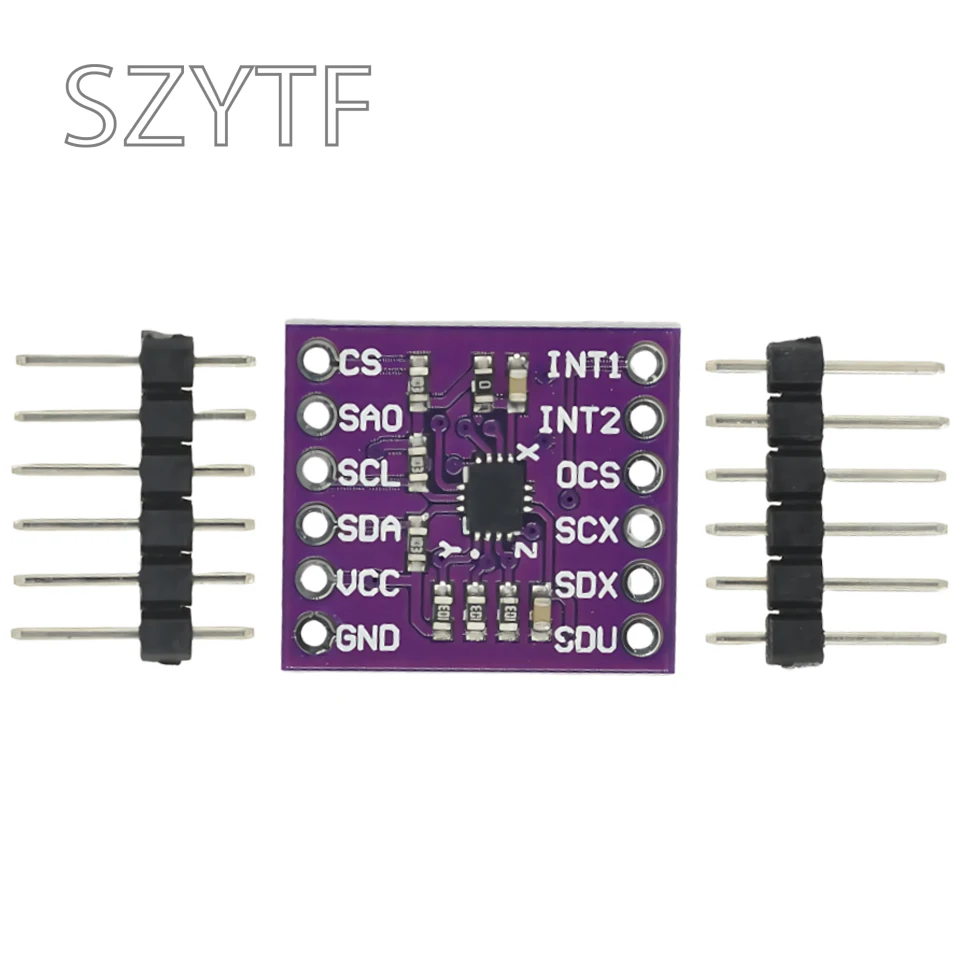

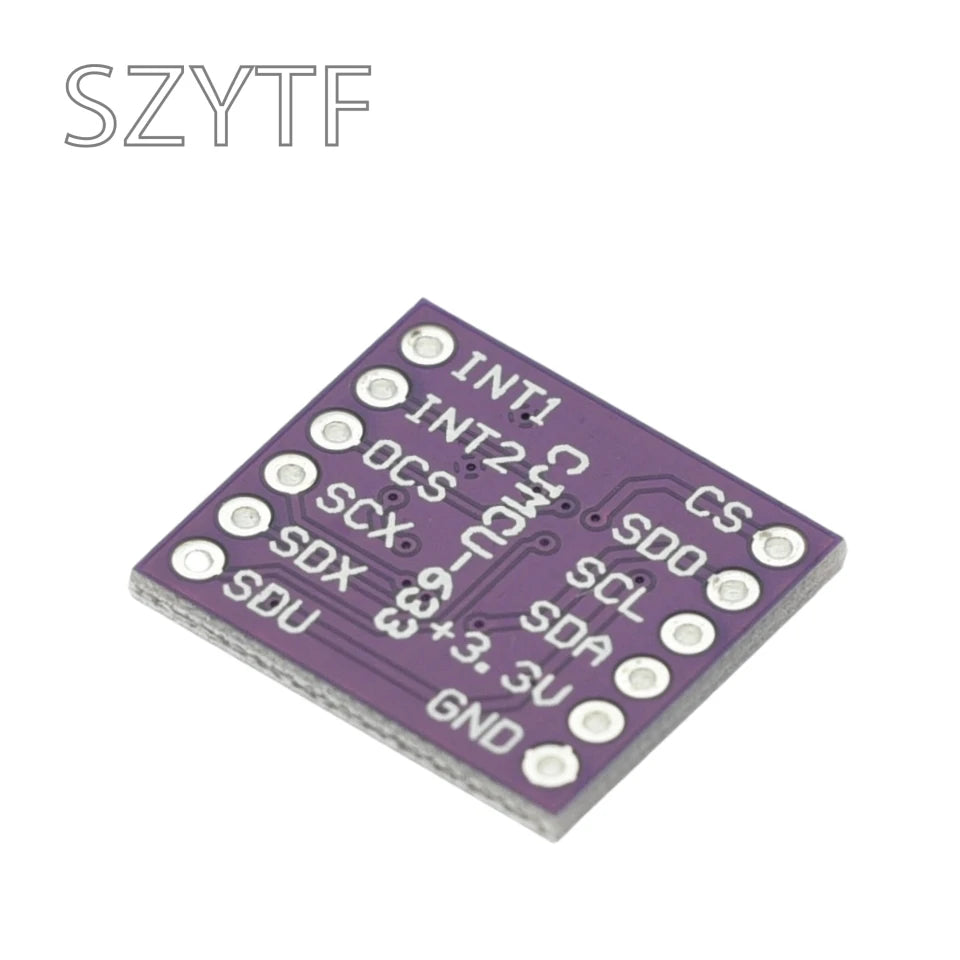

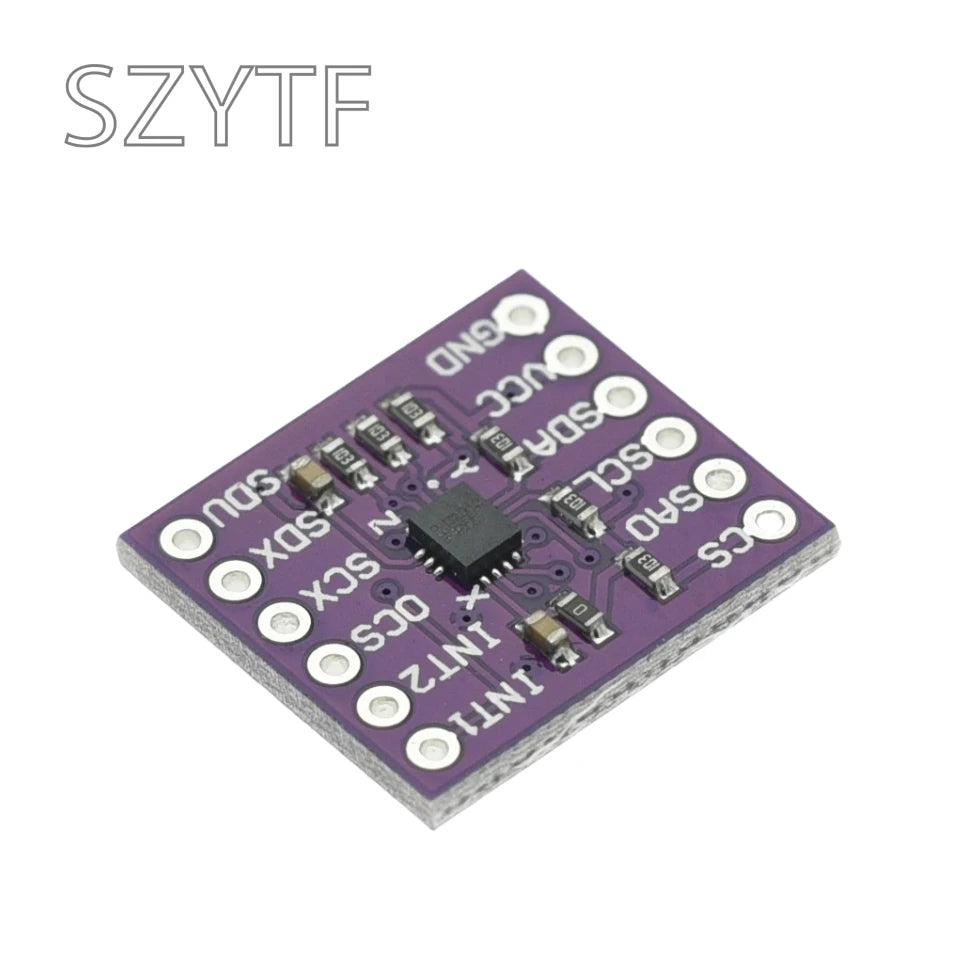

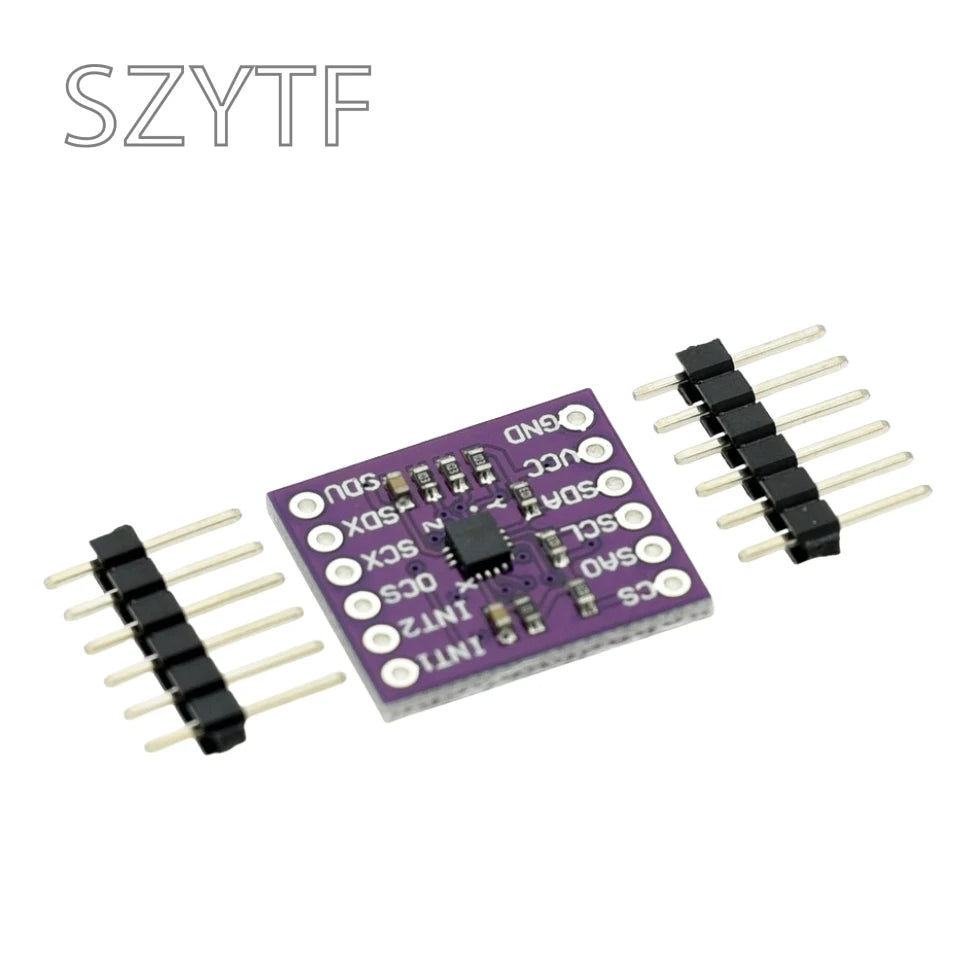

CJMCU-633 LSM6DSM/LSM6DSO 6DOF 3D Gyroscope Attitude Sensor Module 3D Accelerometer 3.3V SPI IIC I2C MIPI I3C SM Serial Interfac

CJMCU-633 LSM6DSM/LSM6DSO 6DOF 3D Gyroscope Attitude Sensor Module 3D Accelerometer 3.3V SPI IIC I2C MIPI I3C SM Serial Interfac

$54.86

$54.86 $0.00

Description

SPECIFICATIONS

Application: other

Brand Name: SZYTF

Condition: New

Dissipation Power: n/a

High-concerned chemical: none

Operating Temperature: n/a

Origin: Mainland China

Supply Voltage: n/a

Type: other

is_customized: Yes

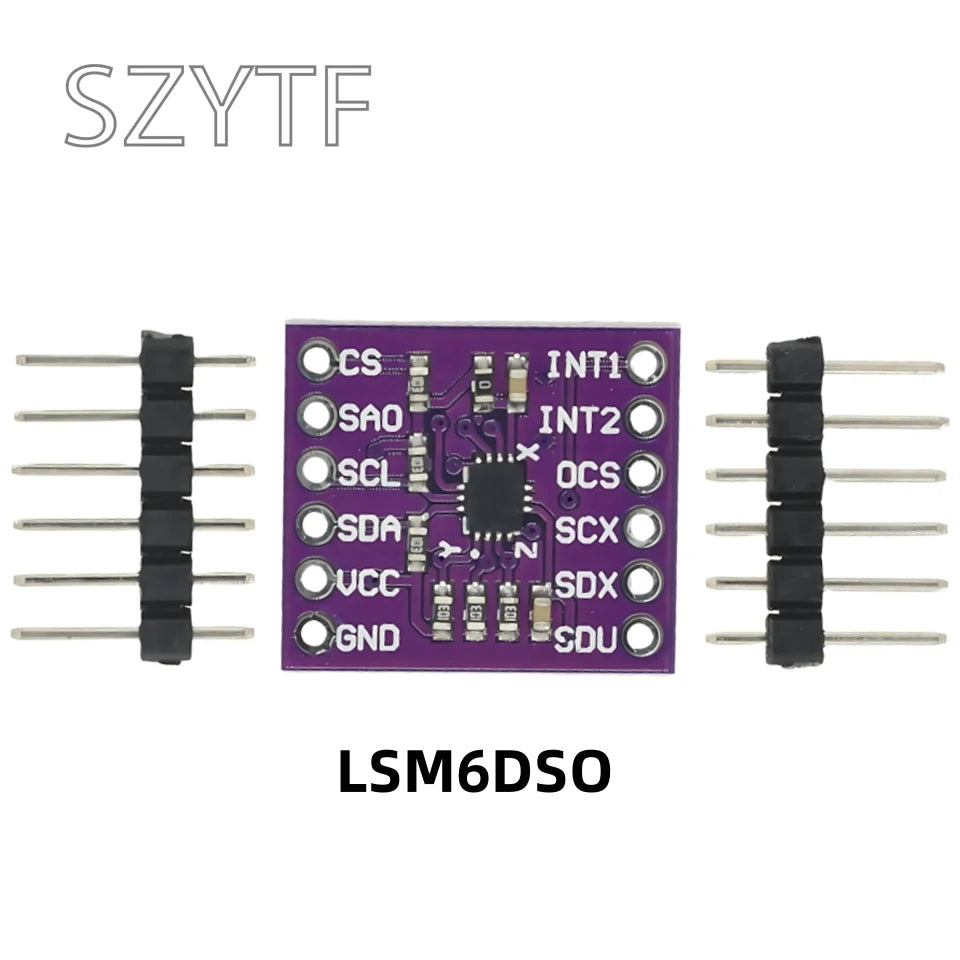

LSM6DSO is an attitude module with 3D digital accelerometer and 3D digital gyroscope. Improve performance at a speed of 0.55 mA in high-performance mode, and enable the always-on low-power function. LSM6DSO supports major OS requirements, provides real, virtual and batch processing of 9 KB sensors for dynamic data batch processing, compatible with Androido

Product parameters:

1. Linear acceleration measurement range: ± 2 / ± 4 / ± 8 / ± 16g full scale

2. Angular velocity measurement range: ± 125 / ± 250 / ± 500 / ± 1000 / ± 2000dps full scale

3. Working voltage: 3.3 V

4. Independent 10 power supply: 1.62 V

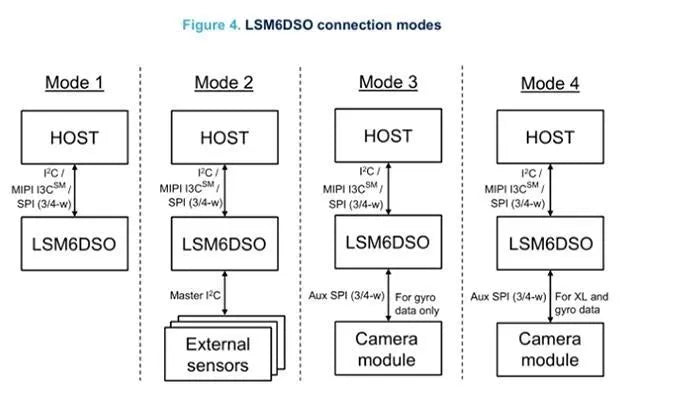

5. Data interface: SPI / I2C & MIPI I3C SM serial interface, with main processor data synchronization function

6. Auxiliary SPI: OIS data output for gyroscope and accelerometer

7. Pedometer: step detector and step counter

8. Detection: display motion detection, tilt detection

9. Standard interrupt: free fall, wake up, 6D / 4D direction, single click and double click 10. Programmable finite state machine: accelerometer, gyroscope and external sensor

11. Embedded temperature sensor

12.IIC clock rate: <400KHZ (fast mode)

13.SPI clock frequency: <10MHZ

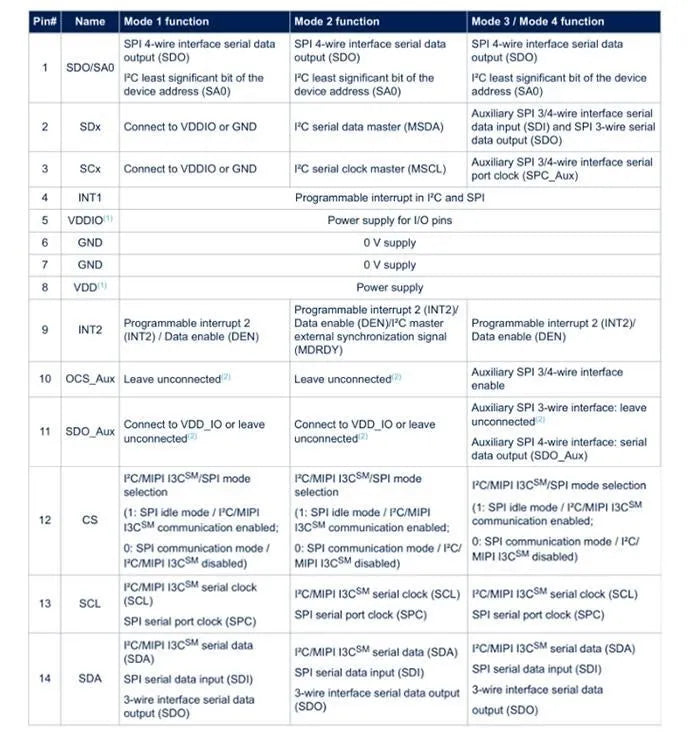

Instructions for use:

IIC operation:

If the SDO / SAO pin is connected to the supply voltage, the LSb is 1 '(address 1101011b); otherwise, if the SDO / SAO pin is grounded, the LSb value is' 0' (address 1101010b).
