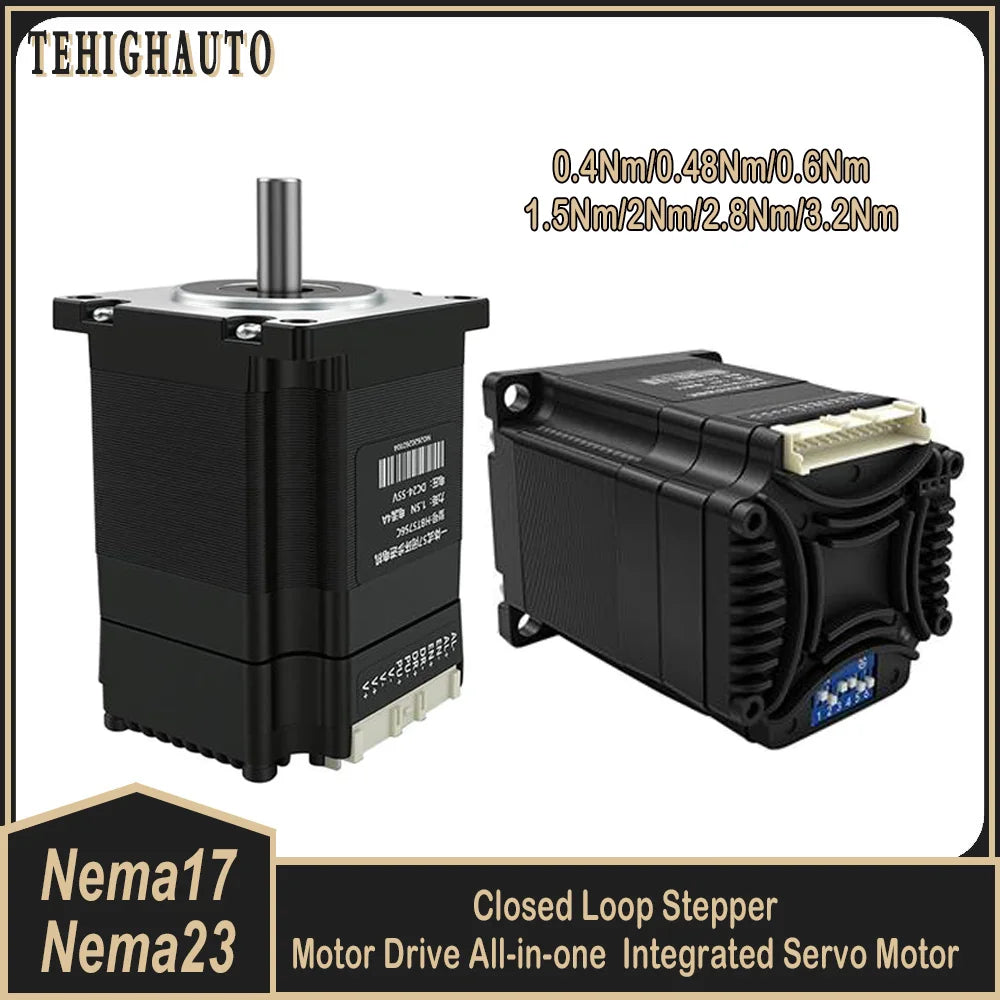

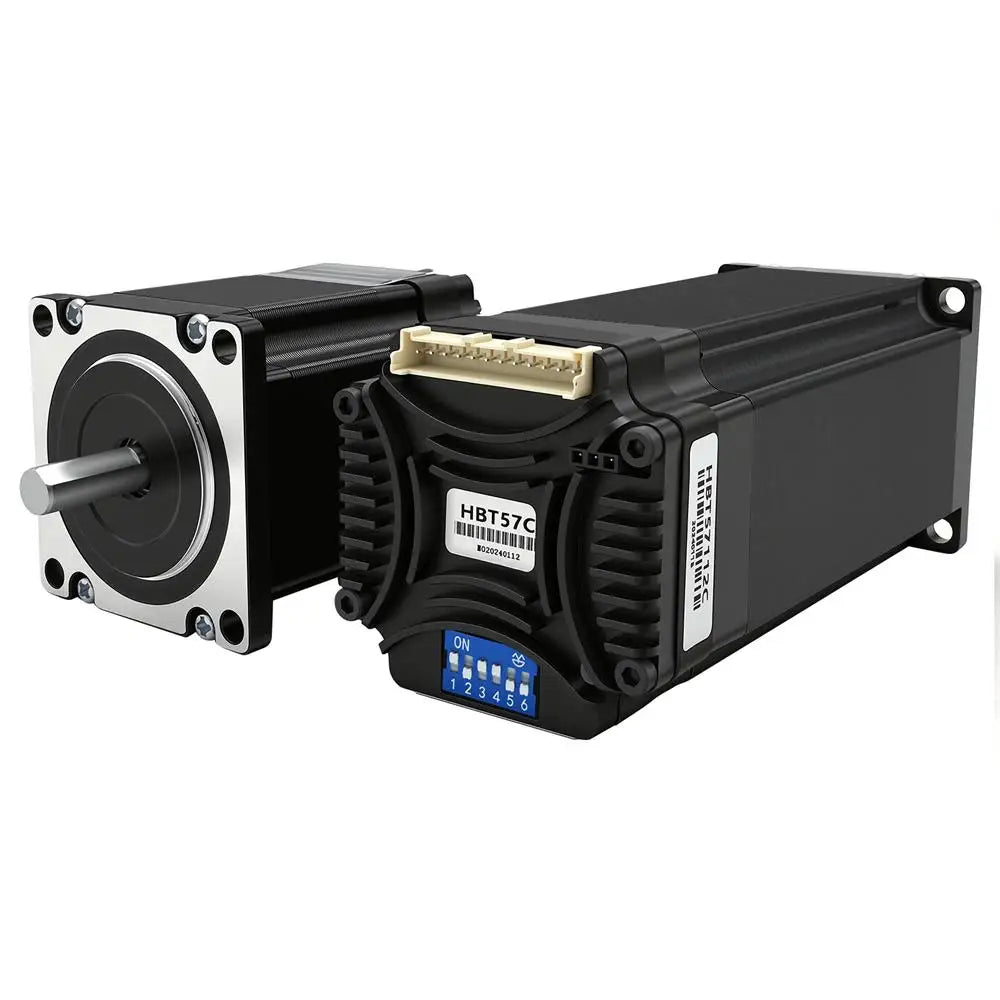

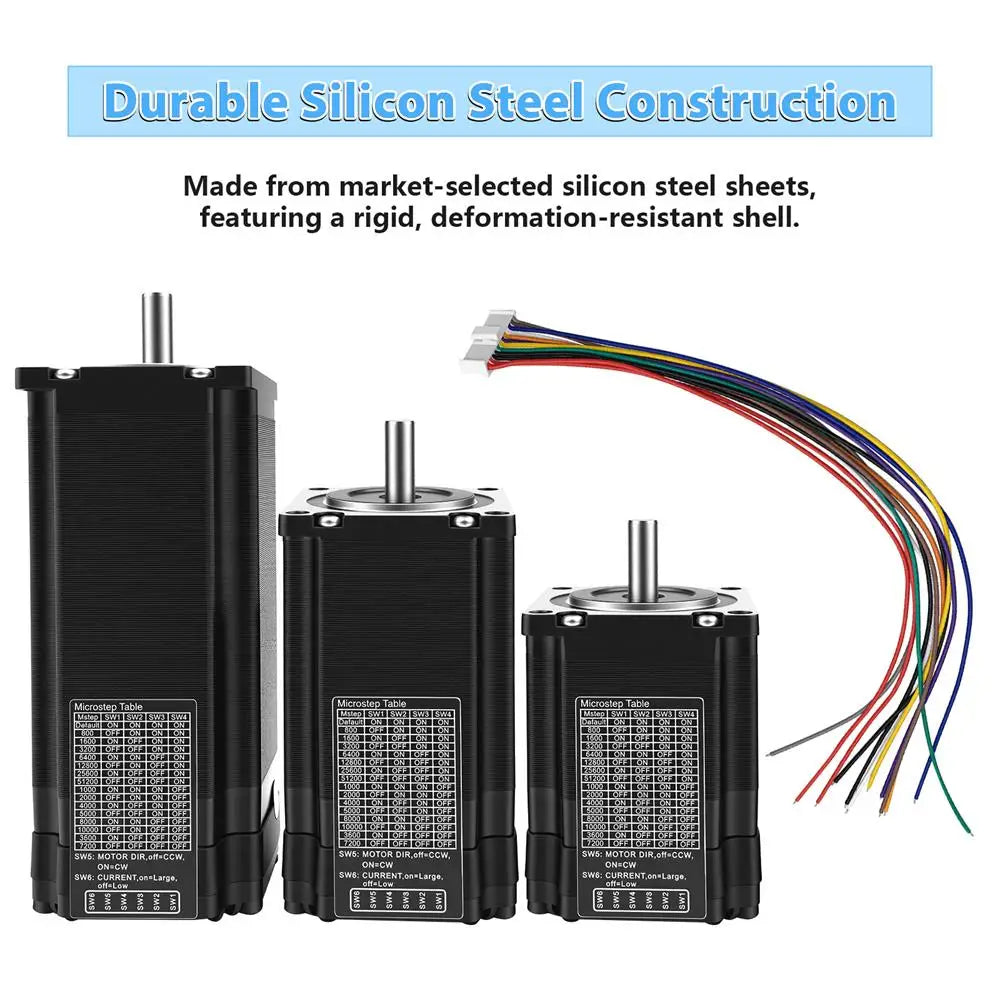

Closed Loop Integrated Stepper Motor Nema17 42mm/Nema23 57mm DC24V 2 Phase Stepper Motor Drive All-In-One Easy Servo Motor

Closed Loop Integrated Stepper Motor Nema17 42mm/Nema23 57mm DC24V 2 Phase Stepper Motor Drive All-In-One Easy Servo Motor

$203.20

$203.20 $0.00

Color 42-40mm 0.4Nm 5mm 42-48mm 0.48Nm 8mm 57-76mm 2Nm 57-100mm 2.8Nm 42-60mm 0.6Nm 8mm 57-56mm 1.5Nm 57-112mm 3.2Nm

Voltage/Plug TypeNo plug

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

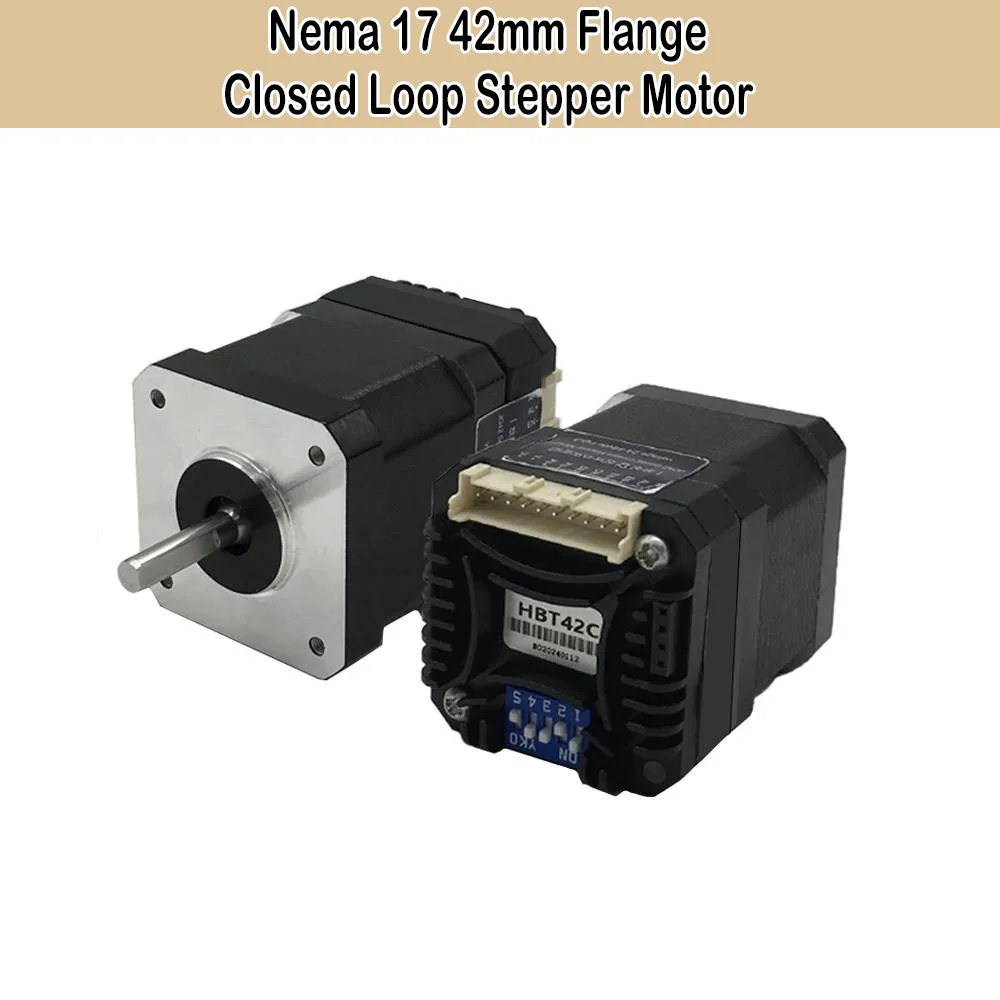

Function 1: Nema 17 Closed Loop Stepper Servo Motor

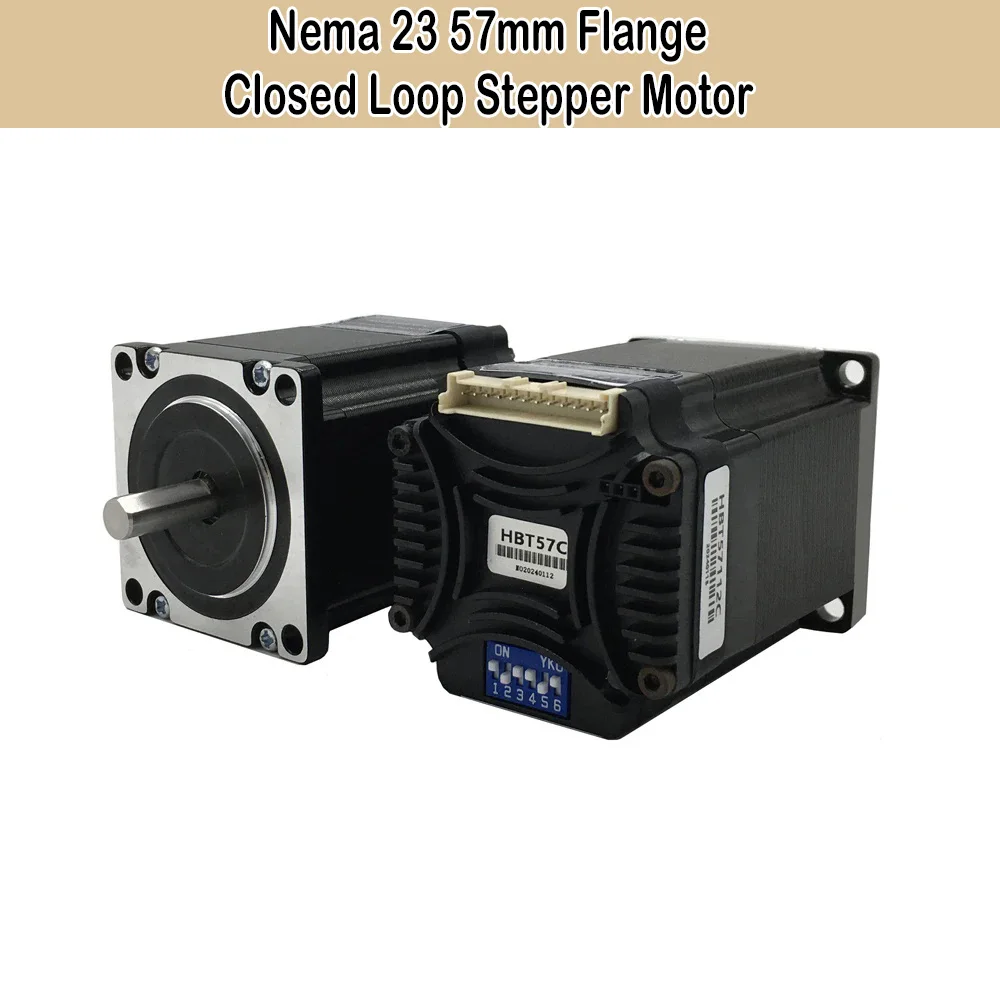

Function 2: Nema 23 Closed Loop Stepper Servo Motor

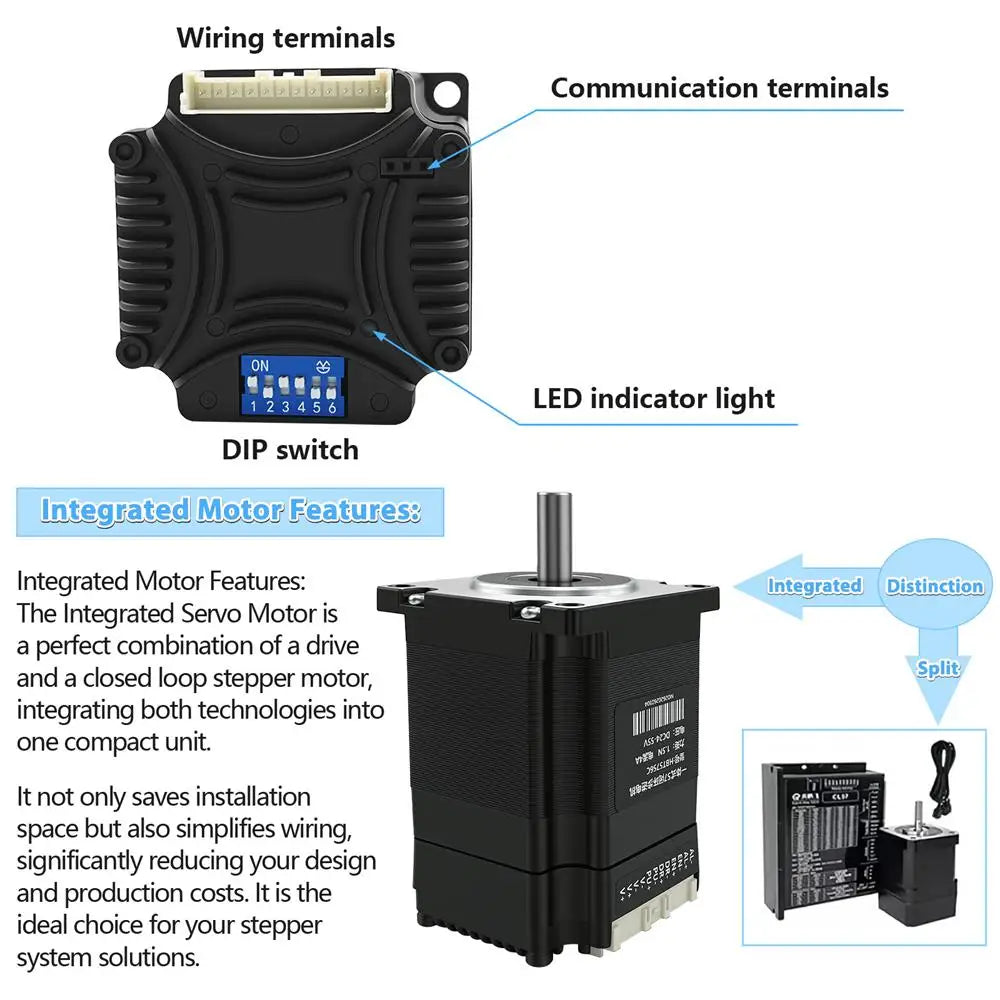

Function 3: Closed Loop Integrated Stepper Motor

Function 4: Easy Servo Motor

High-concerned chemical: none

Holding Torque1: 0.4Nm

Holding Torque2: 0.48Nm

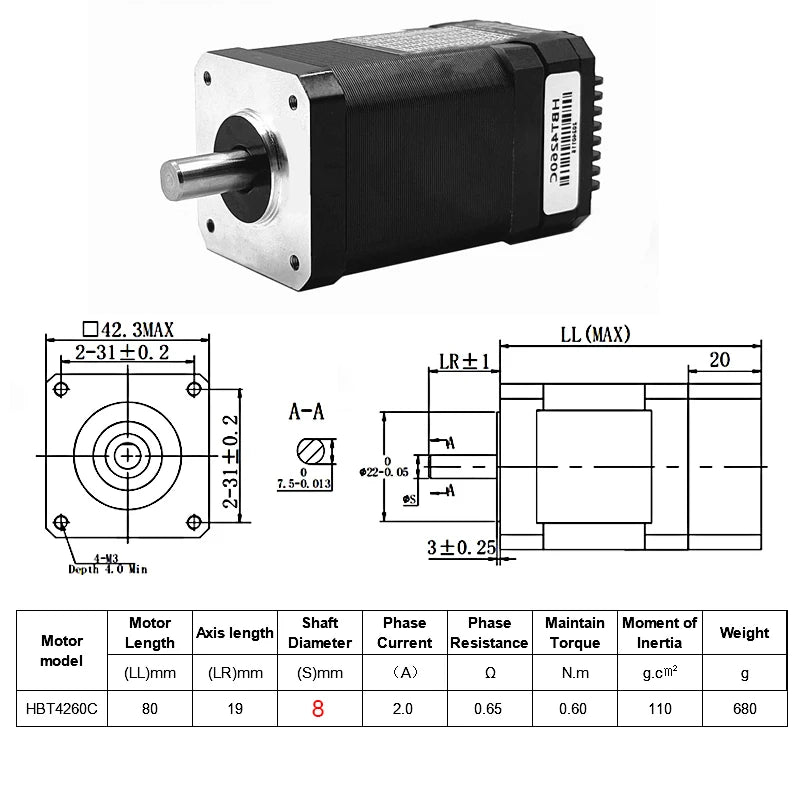

Holding Torque3: 0.6Nm

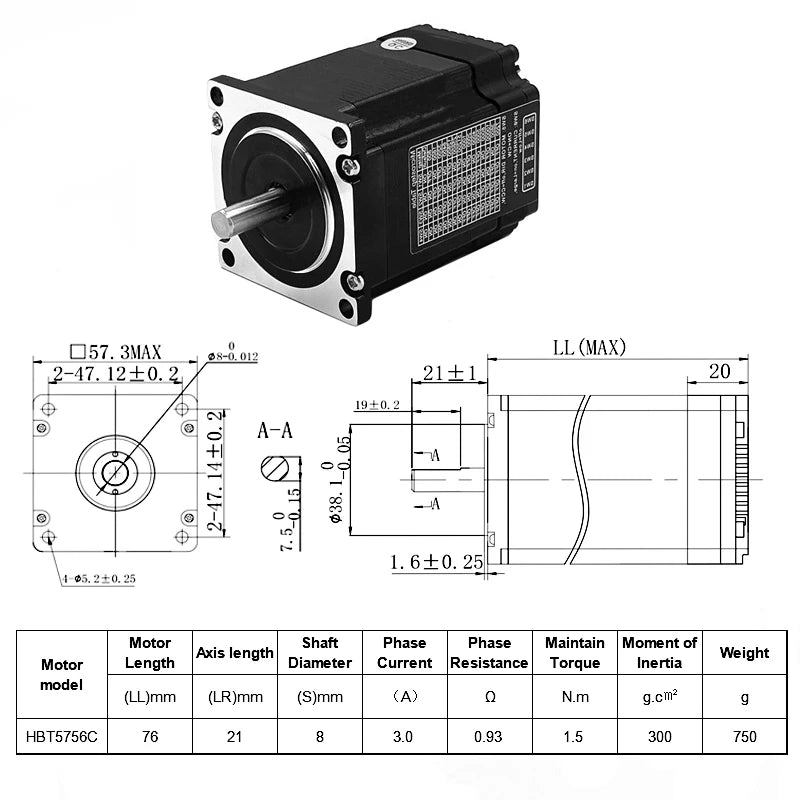

Holding Torque4: 1.5Nm

Holding Torque5: 2Nm

Holding Torque6: 2.8Nm

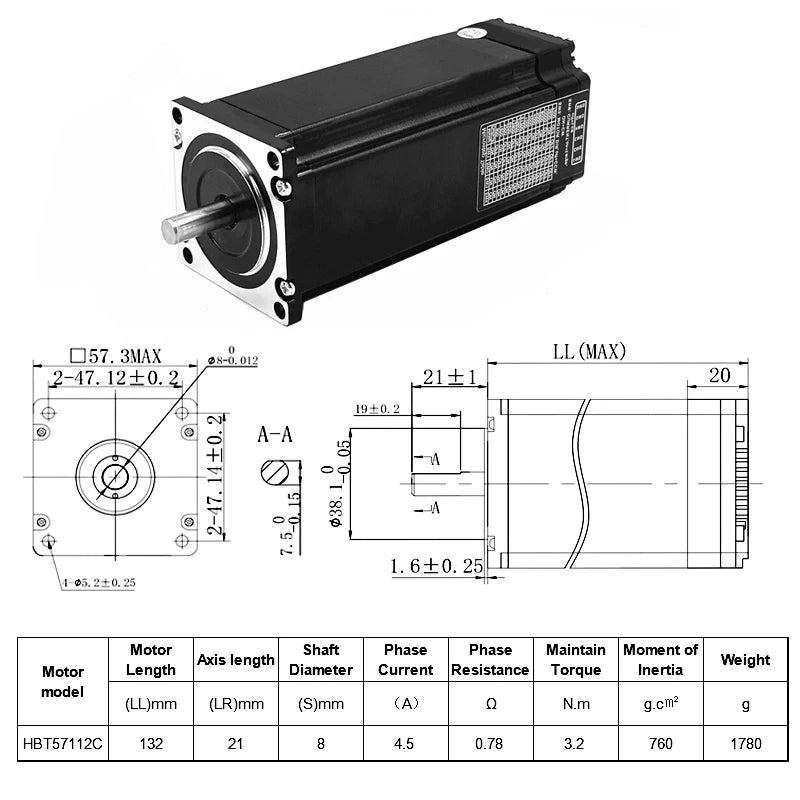

Holding Torque7: 3.2Nm

Material: others

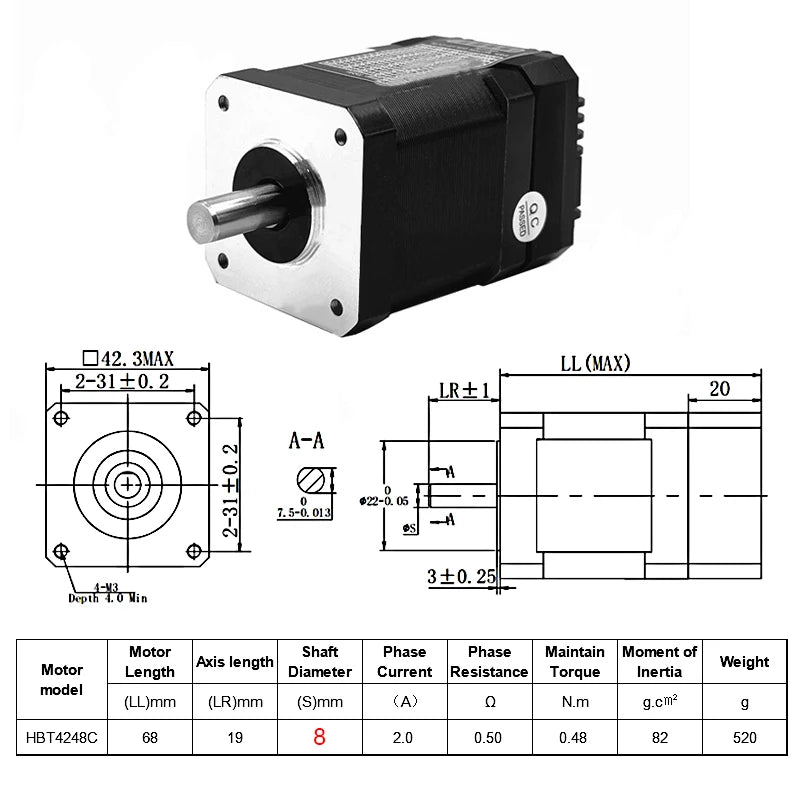

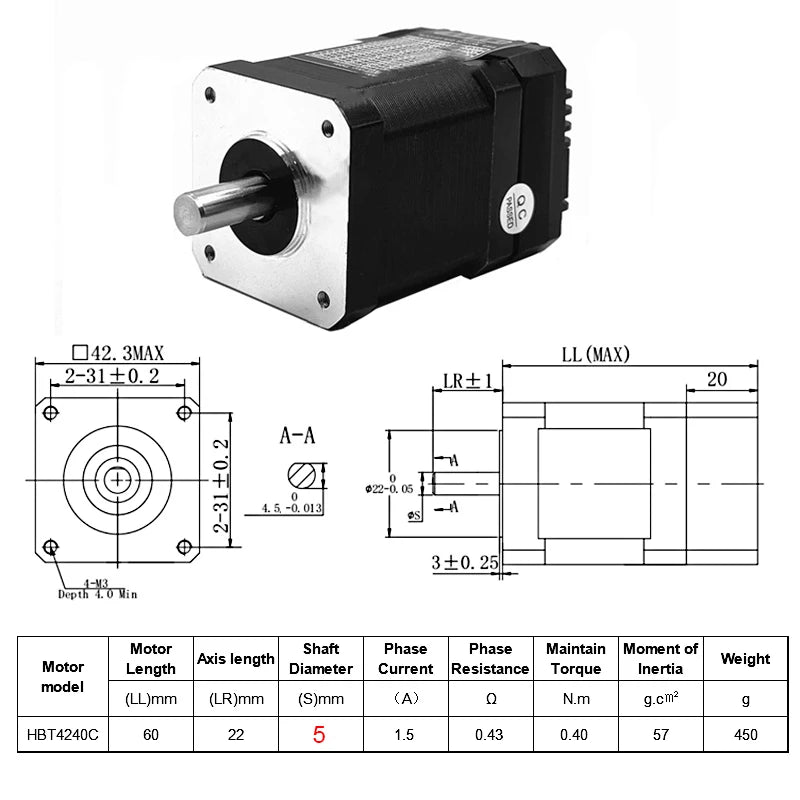

Model Number: HBT4240C

Origin: Mainland China

Package list:
1Pcs * Integrated Closed Loop Stepper Motor

Motor Characteristics
● Working voltage: DC input voltage 24VDC ~ 55VDC, recommended working voltage 36VDC
● Maximum continuous output current 4A, maximum peak current 5A(advanced hybrid servo overload capability)
● Can accept differential and single-ended pulse/direction instructions

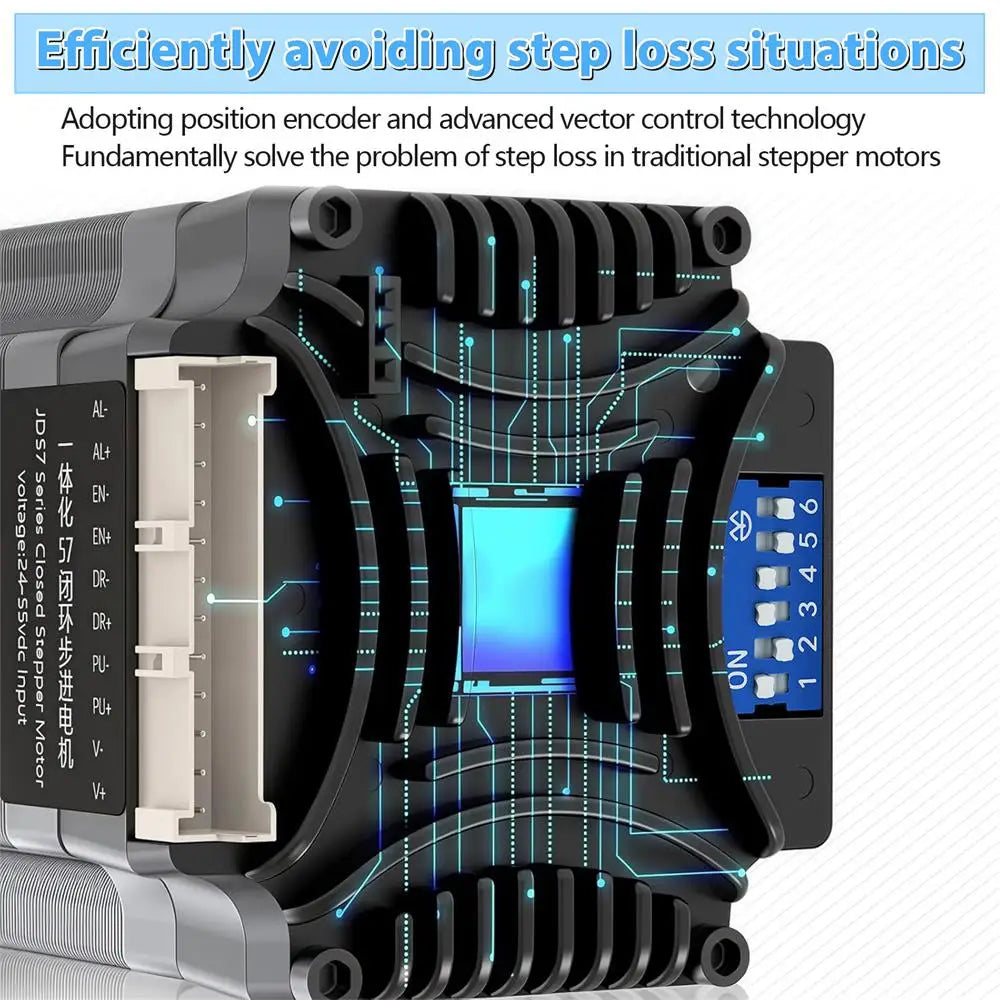

● Adopts FOC magnetic field positioning control technology and space vector Pulse width modulation (SVPWM) closed-loop control technology
● Advanced variable current technology and frequency conversion technology are adopted to effectively reduce the heat of the integrated motor
● The number of pulses per turn can be set by debugging software or code extraction (subdivision)

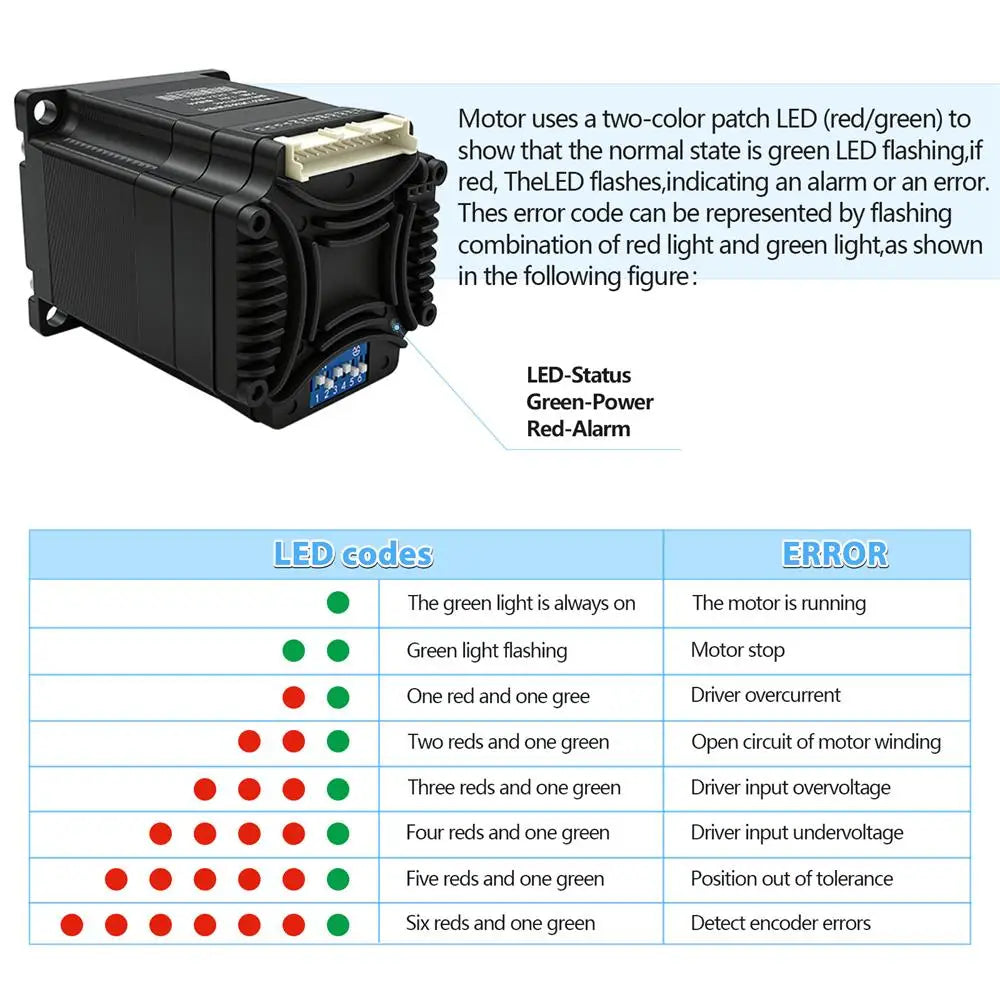

● With over-voltage, under-voltage, over-current and over-differential protection functions
● Single/double pulse mode, pulse effective edge optional (select by connecting the host computer through the serial port)
● Maximum pulse frequency of control instruction is 500KHz (factory default is 200KHz)
● Pulse, direction and enable signal input interface level is 5V-24V level, no series-connection current limiting is required under normal circumstances
resistance
● With serial debugging function, but need to use the company's special serial debugging cable (we generally do not provide debugging cable)
