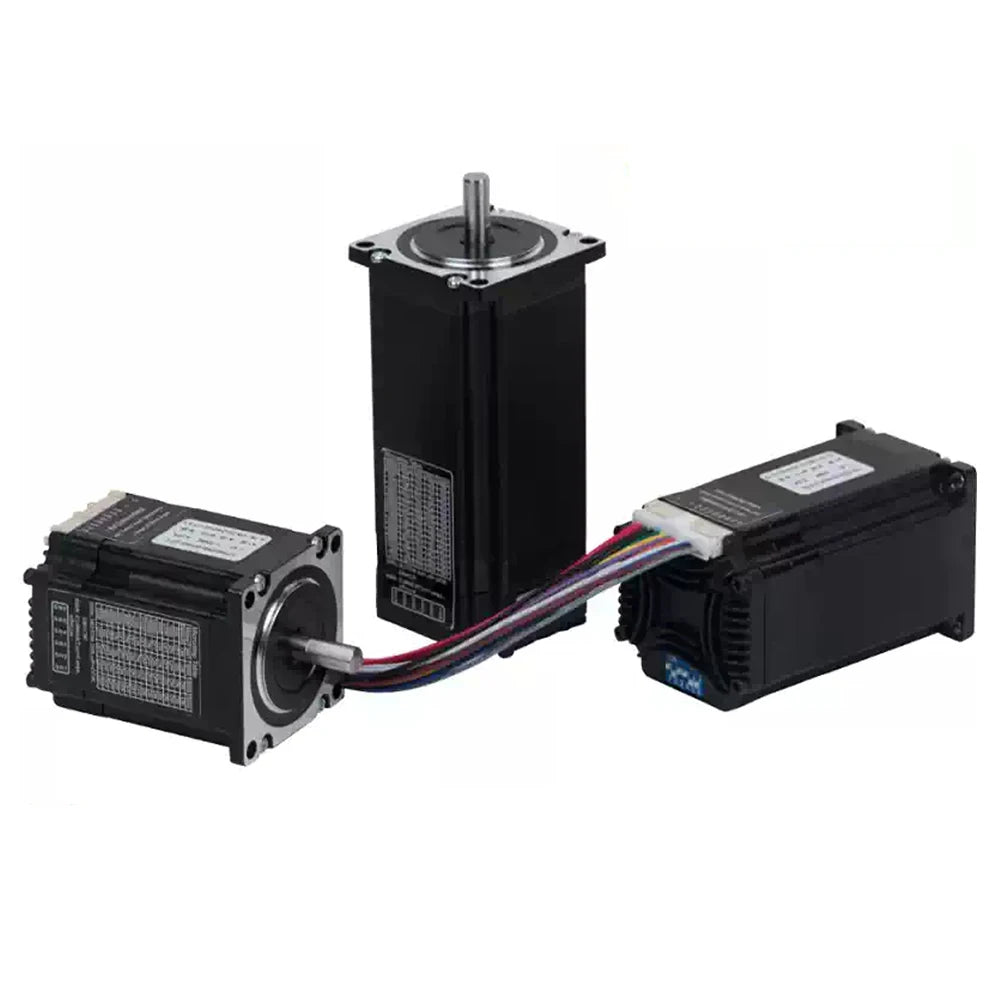

Closed Loop Integrated Stepper Motor With Driver Nema17 42mm Nema23 57mm Easy Servo Motor DC 2phase Step Motor Driver kits
2.2NM
$309.72
Sale price
$309.72
Regular price
$0.00
Skip to product information
Closed Loop Integrated Stepper Motor With Driver Nema17 42mm Nema23 57mm Easy Servo Motor DC 2phase Step Motor Driver kits
$309.72
Sale price
$309.72
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: ce,CE
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Function 1: Nema 23 Closed Loop Stepper Servo Motor
Function 2: Closed Loop Integrated Stepper Motor
Function 3: Easy Servo Motor
Function 4: Integrated Motor
Function 5: Nema 23 motor with encoder
High-concerned chemical: none
Model Number: Nema 23 Closed Loop Stepper Motor
Origin: Mainland China
Phase: 2
Step Angle(degrees): 1.8 degree
1Pcs * Nema 23 Integrated Closed Loop Stepper Motor
Motor Characteristics
● Working voltage: DC input voltage 24VDC ~ 55VDC, recommended working voltage 36VDC
● Maximum continuous output current 4A, maximum peak current 5A(advanced hybrid servo overload capability)
● Can accept differential and single-ended pulse/direction instructions
● Adopts FOC magnetic field positioning control technology and space vector Pulse width modulation (SVPWM) closed-loop control technology
● Advanced variable current technology and frequency conversion technology are adopted to effectively reduce the heat of the integrated motor
● The number of pulses per turn can be set by debugging software or code extraction (subdivision)
● With over-voltage, under-voltage, over-current and over-differential protection functions
● Single/double pulse mode, pulse effective edge optional (select by connecting the host computer through the serial port)
● Maximum pulse frequency of control instruction is 500KHz (factory default is 200KHz)
● Pulse, direction and enable signal input interface level is 5V-24V level, no series-connection current limiting is required under normal circumstances
resistance
● With serial debugging function, but need to use the company's special serial debugging cable (we generally do not provide debugging cable)
