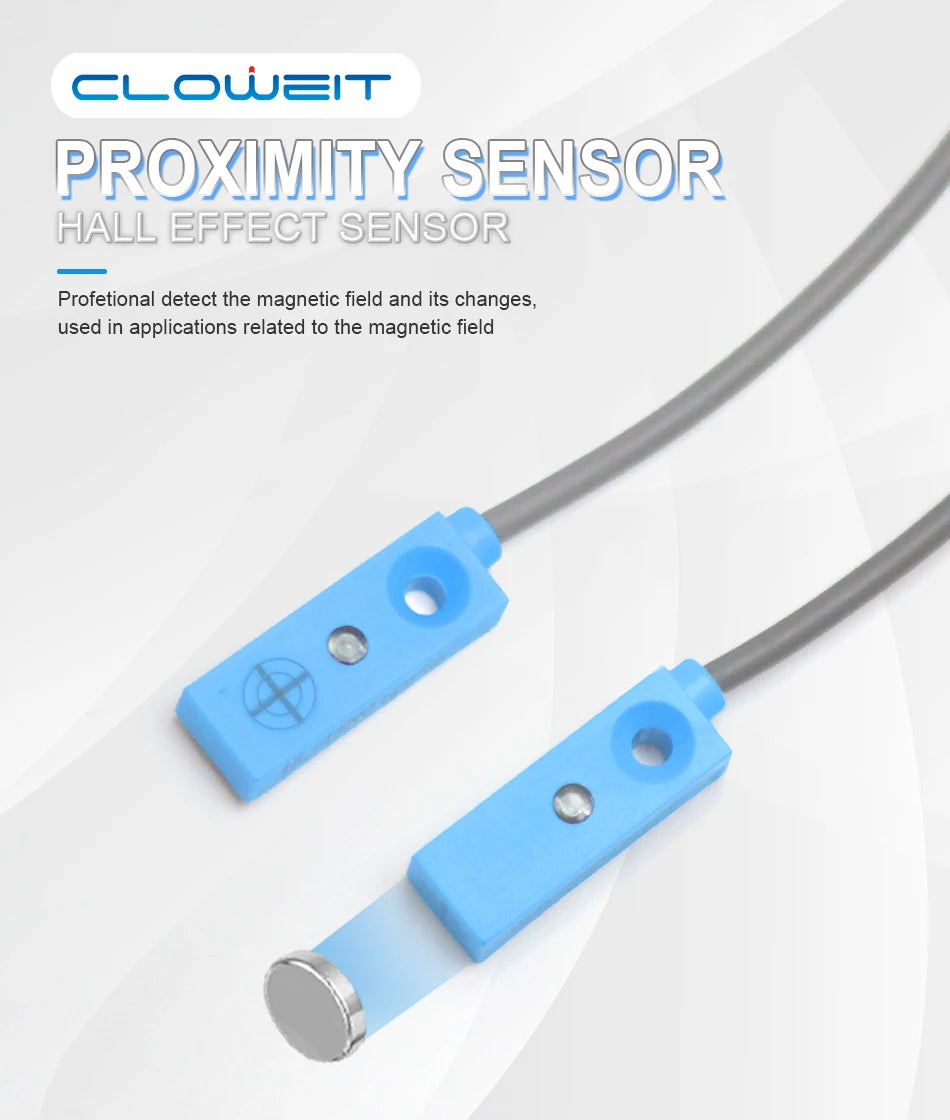

Cloweit 15mm 20mm Micro Hall Effect Sensor IP68 Proximity Magnetic Switch NPN PNP 3-wire NO/NC DC 12V 24V Remote Nonpolar
HLD-20 NPN PNP / NO (normally open)
$38.30
Sale price
$38.30
Regular price
$0.00
Skip to product information
Cloweit 15mm 20mm Micro Hall Effect Sensor IP68 Proximity Magnetic Switch NPN PNP 3-wire NO/NC DC 12V 24V Remote Nonpolar
$38.30
Sale price
$38.30
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: cloweit
Certification: ce
Choice: yes
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Features: hall effect
High-concerned chemical: none
Item Type: SWITCHES
Material: Plastic
Model Number: HL-20NP
Origin: Mainland China
Sensing object: magnet
Switch Type: Proximity Switch
semi_Choice: yes
Shipment for Hall Effect Sensor
Very important for you:
Shipment method |
|
Can ship with magnet |
Cainiao Heavy Parcel Line |
DHL |
|
UPS Express Saver |
|
Fedex IP |
|
Will NOT include magnet |
AliExpress Standard Shipping |
AliExpress Premium Shipping |
|
|
Not sure if can ship with magnet or not ( it have risk to reback ,not advice to choose) |
Cainiao Super Economy for Special Goods |
Cainiao Saver Shipping For Special Goods |
|
Cainiao Standard For Special Goods |
|
|
Contact us to reback 16usd if do not want Magnet (As no need Magnetic inspection fee) |
DHL |
UPS Express Saver |
|
Fedex IP |
\\\\\\\\\\\\\\\\\\\\\ Part Number ///////////////////////

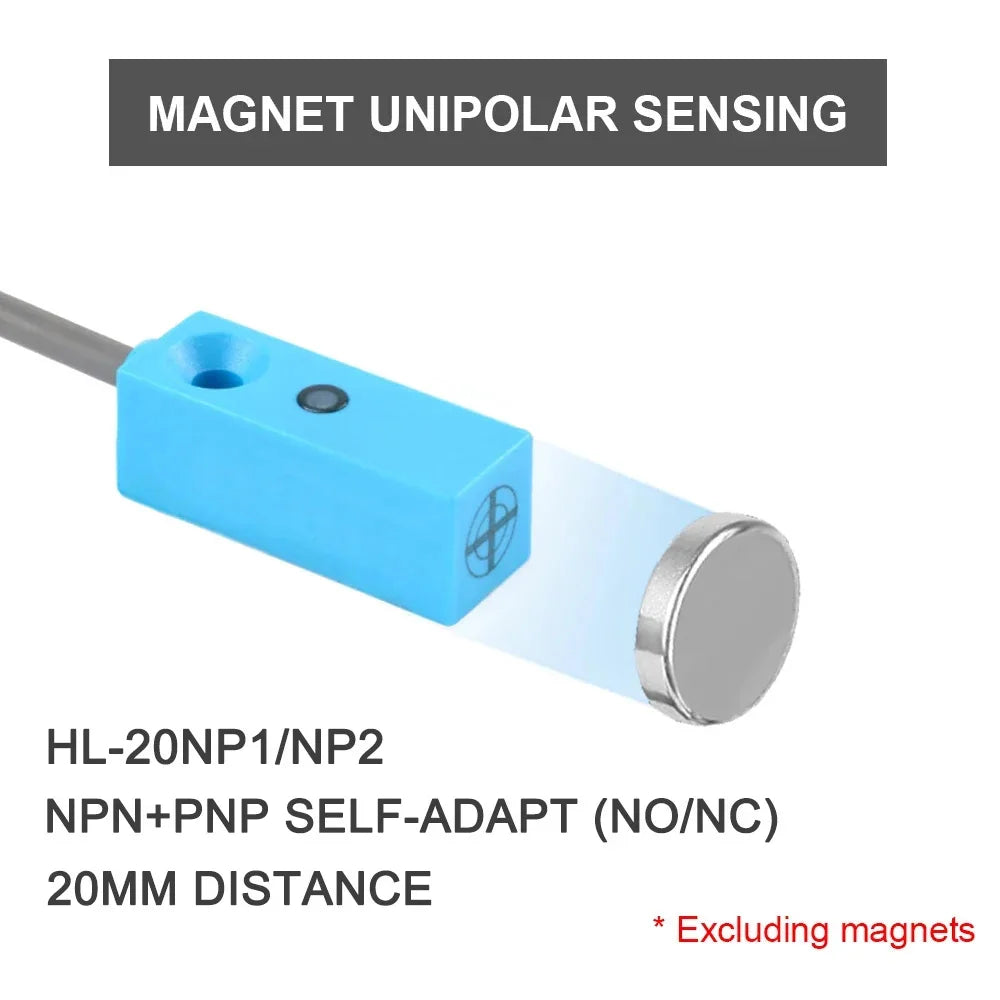

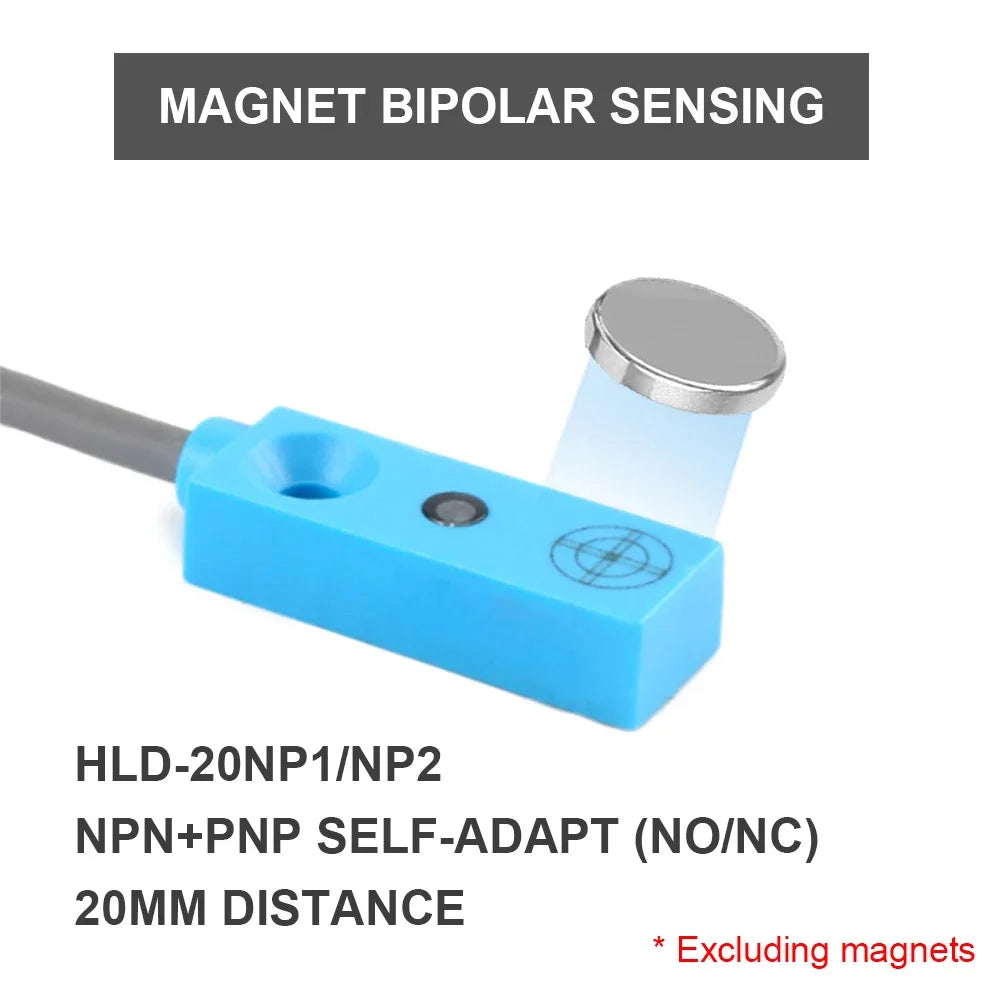

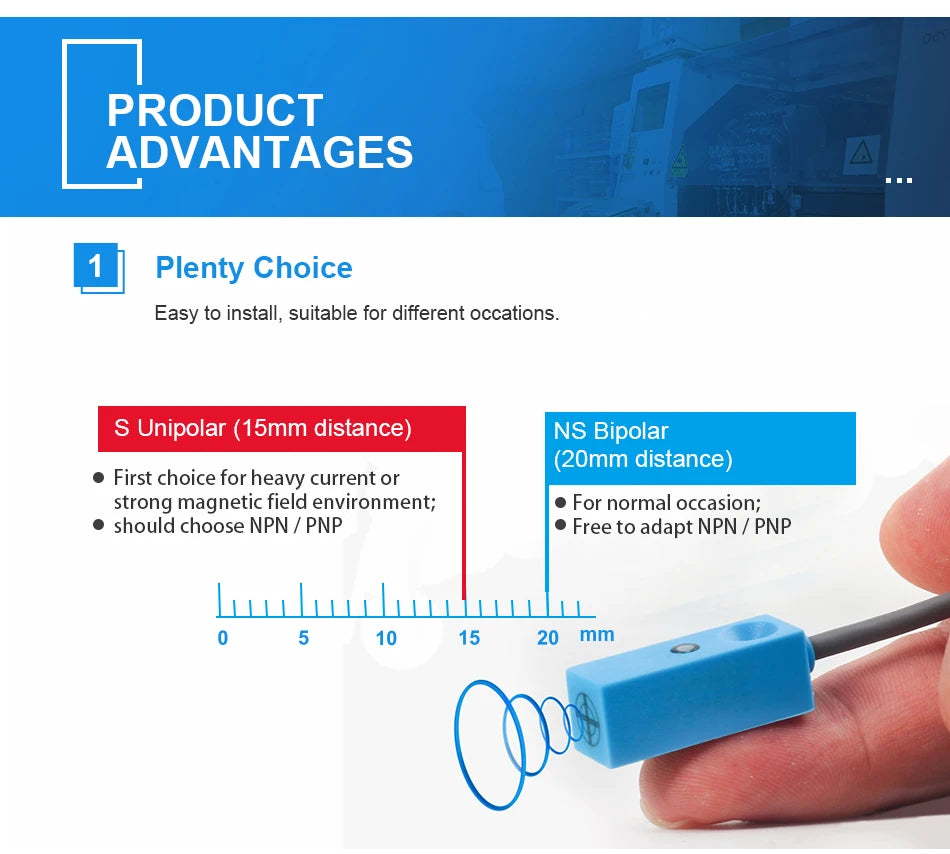

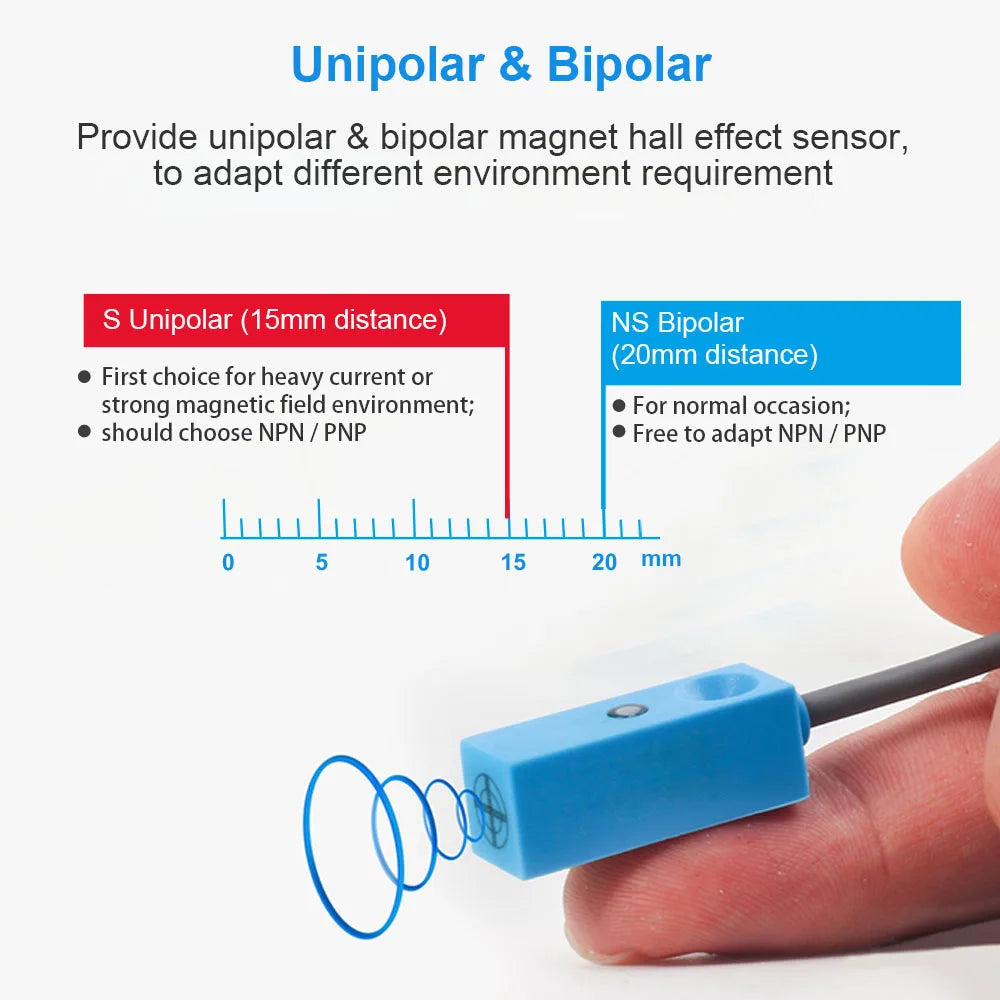

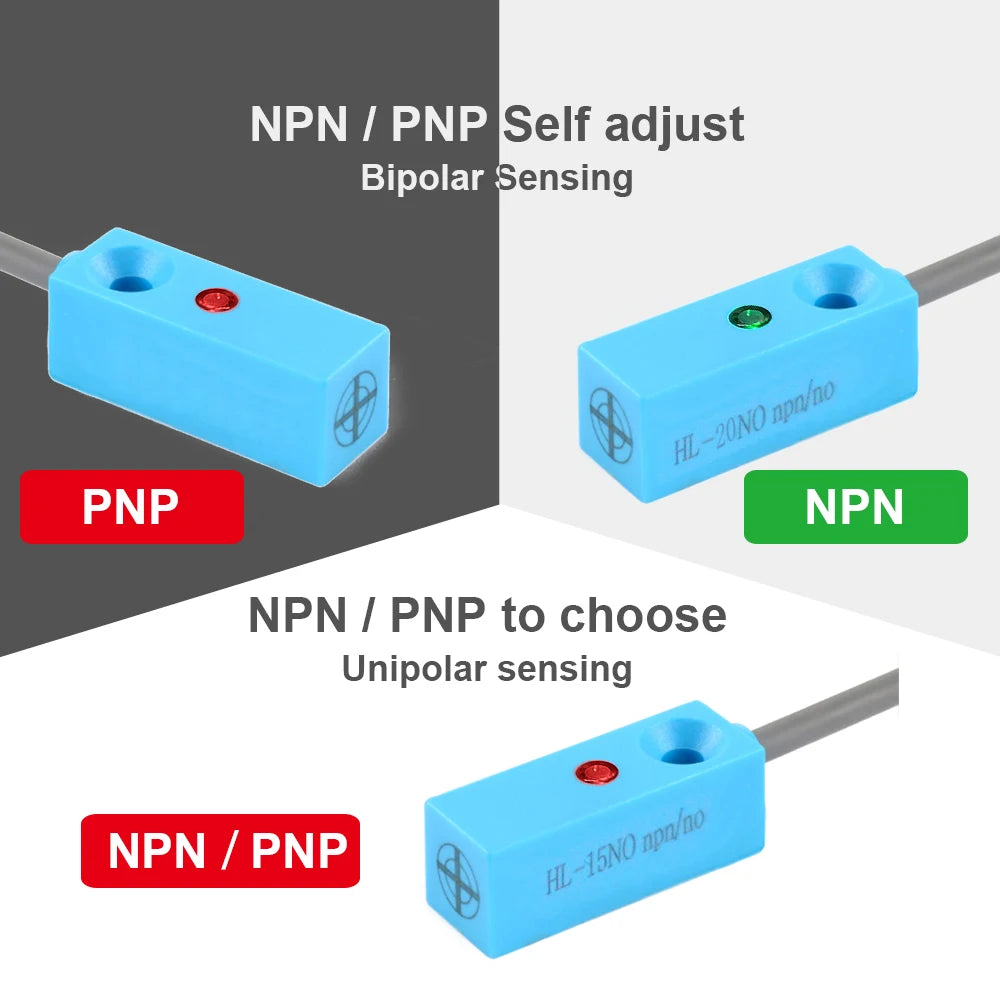

Bipolar type (20mm) |
Unipolar type (15mm) |
||
NPN/PNP self-adjust |
NPN |
PNP |
|

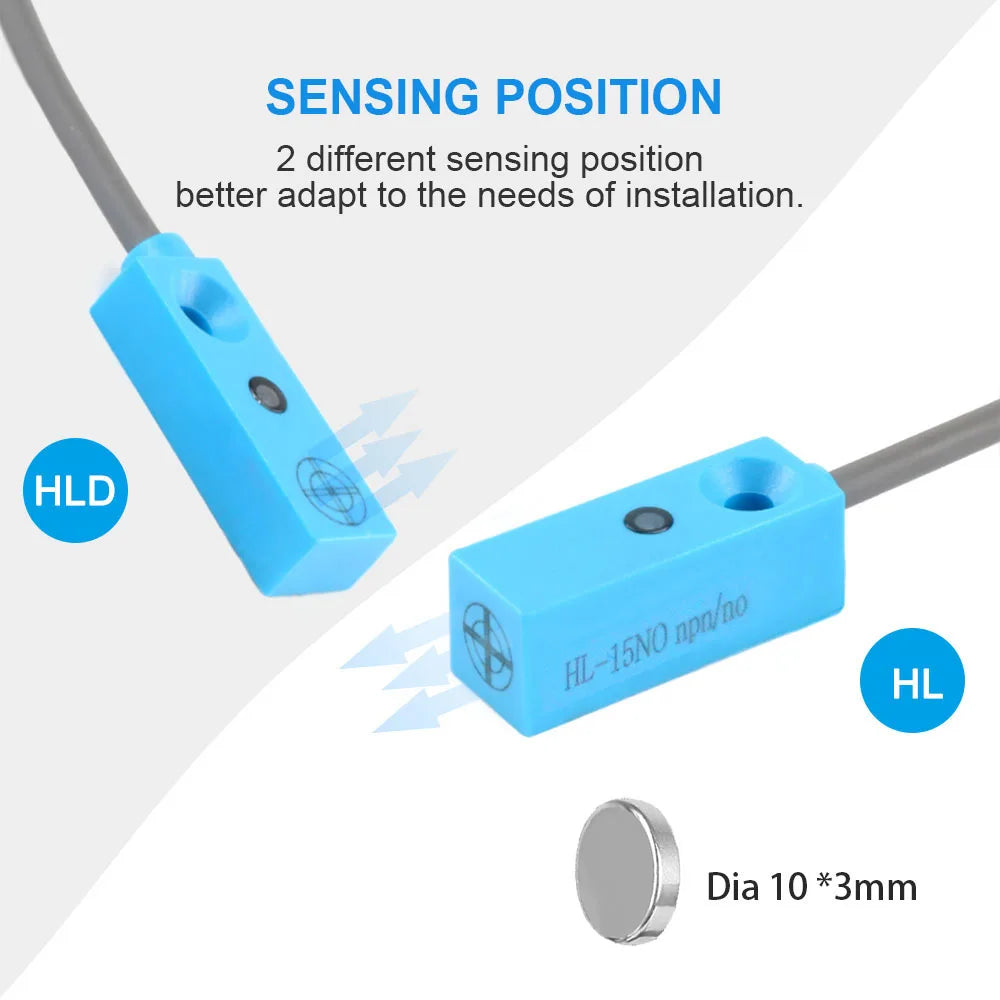

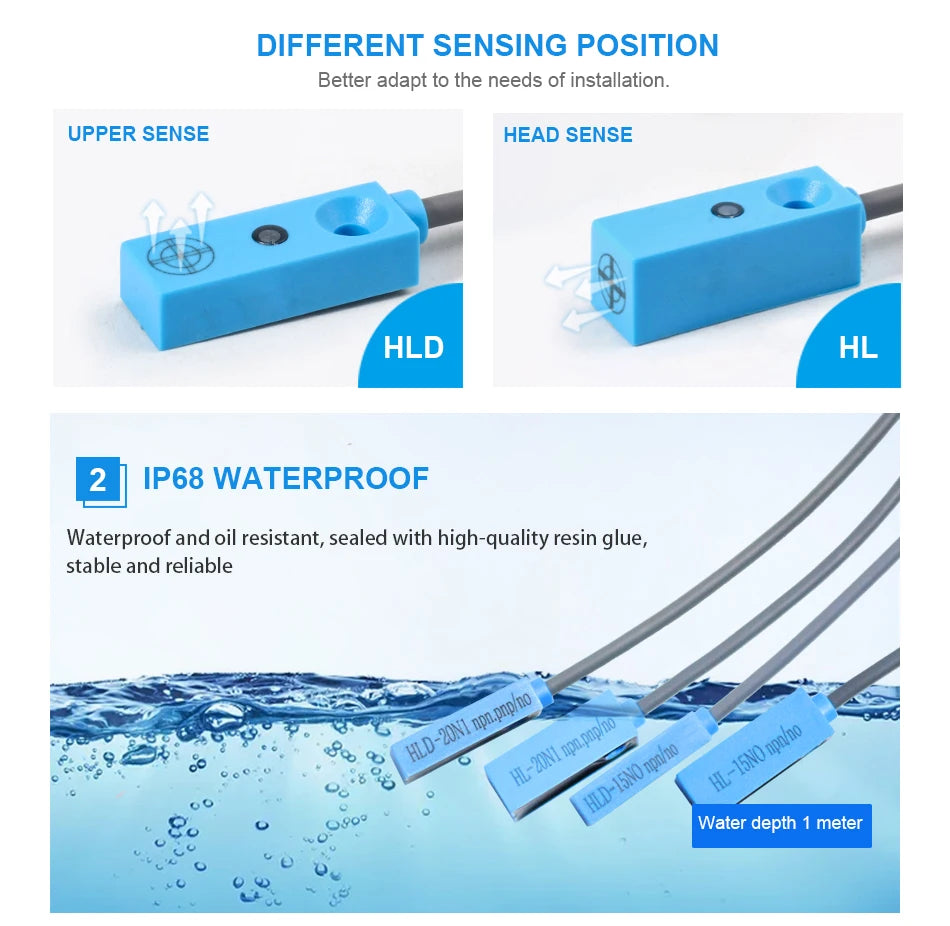

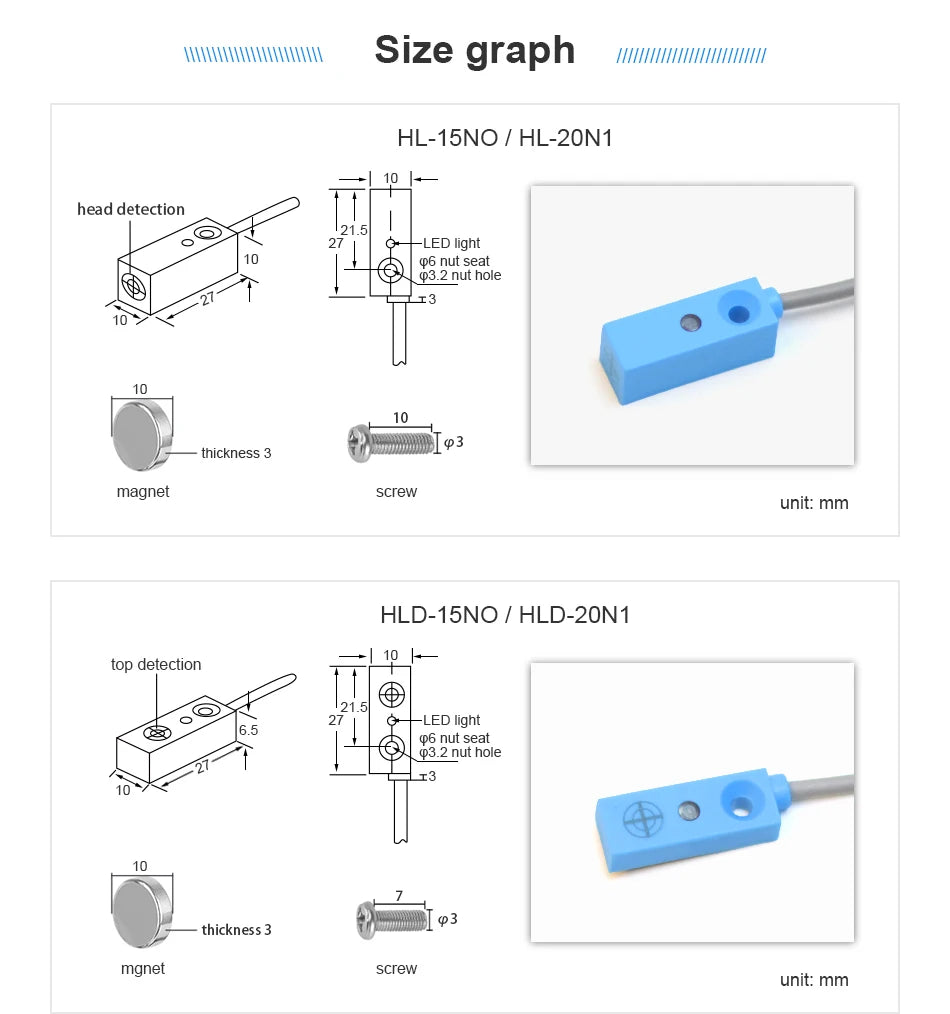

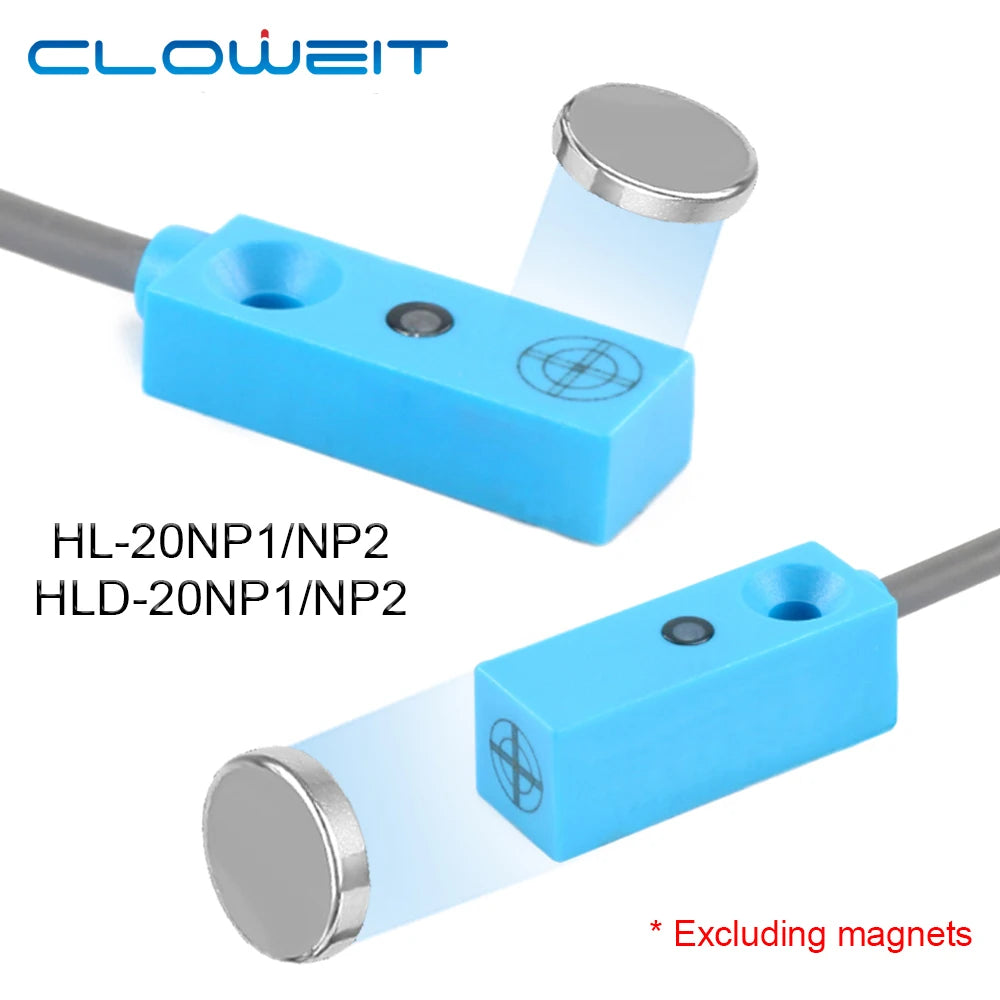

Upper sensor (6*10mm) |
HLD-20NP1 |
HLD-15NO |
HLD-15PO |
Head Sensor (10*10mm) |
HL-20NP1 |
HL-15NO |
HL-15PO |
\\\\\\\\\\\\\\\\\\\\\ Technical Specification ///////////////////////
Brand |
CLOWEIT |
Swithing Hysteresis |
＜15%(sr) |
Model |
HL series |
Repeat Accuracy |
＜1.0%(sr) |
Sensing Range |
15mm, 20mm |

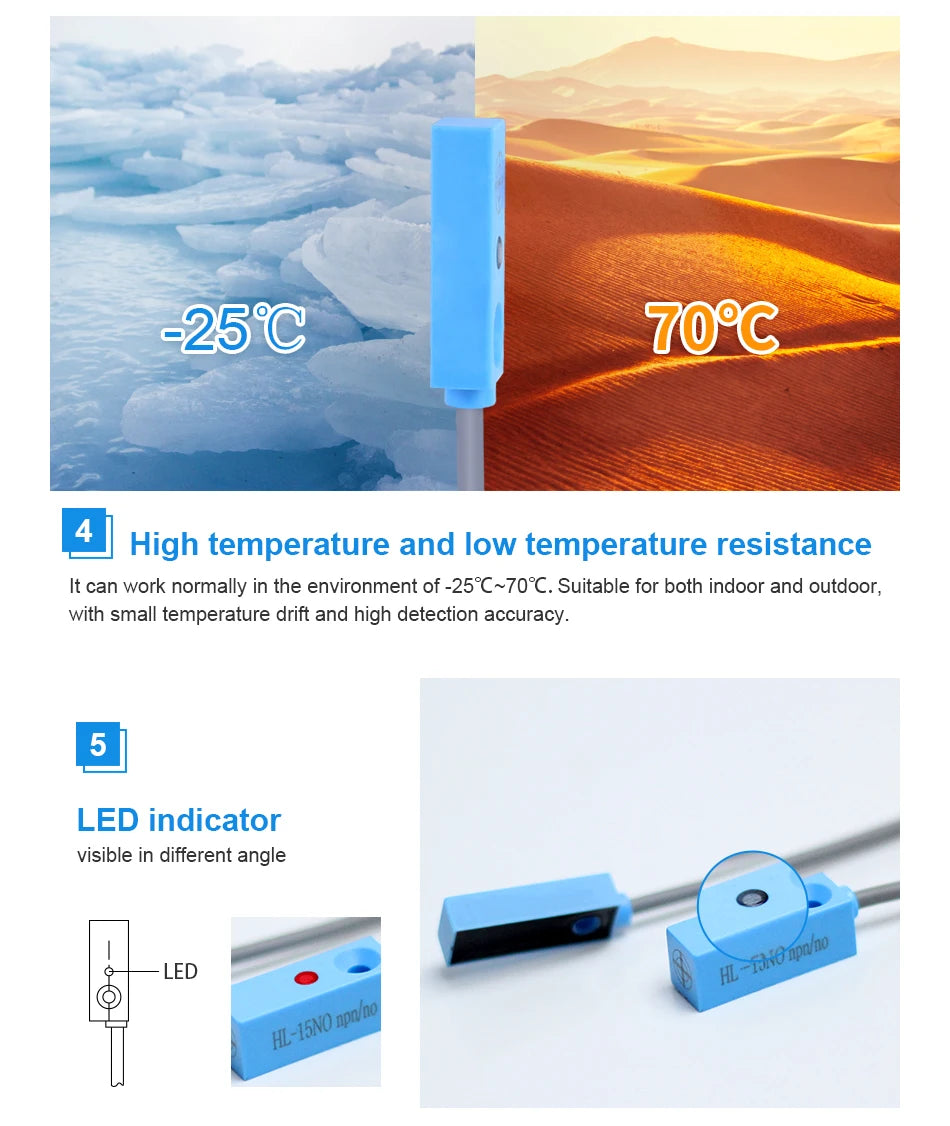

Operating Temp |
－25℃-70℃ |
DC 3-wire normally open |
NPN, PNP, NPN/PNP |
Protection Class |
Ip68 |

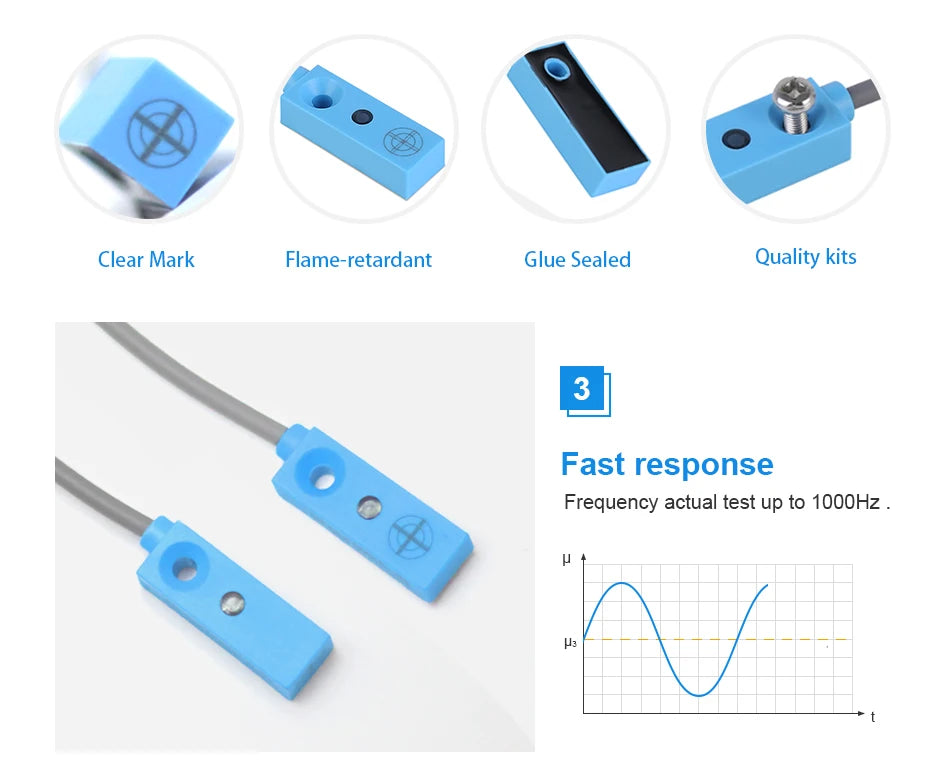

Swithing Frequency |
1500Hz |
Short Circuit Protection |
YES |
Standard sensing object |
magnet(N/S) |
Reverse Polarity Protectio |
YES |
Operating voltage(vdc) |
10-30VDC(3wire) |
Housing Material |
ABS |
Voltage Drop Vd |
＜0.6VDC(3,4wire) |
Material (Sensing Face) |
ABS |
Load Current |
100mA(3wire) |
Output Indicator |
red; green |
NO Load Current |
<10mA(24V) 3,4wire |

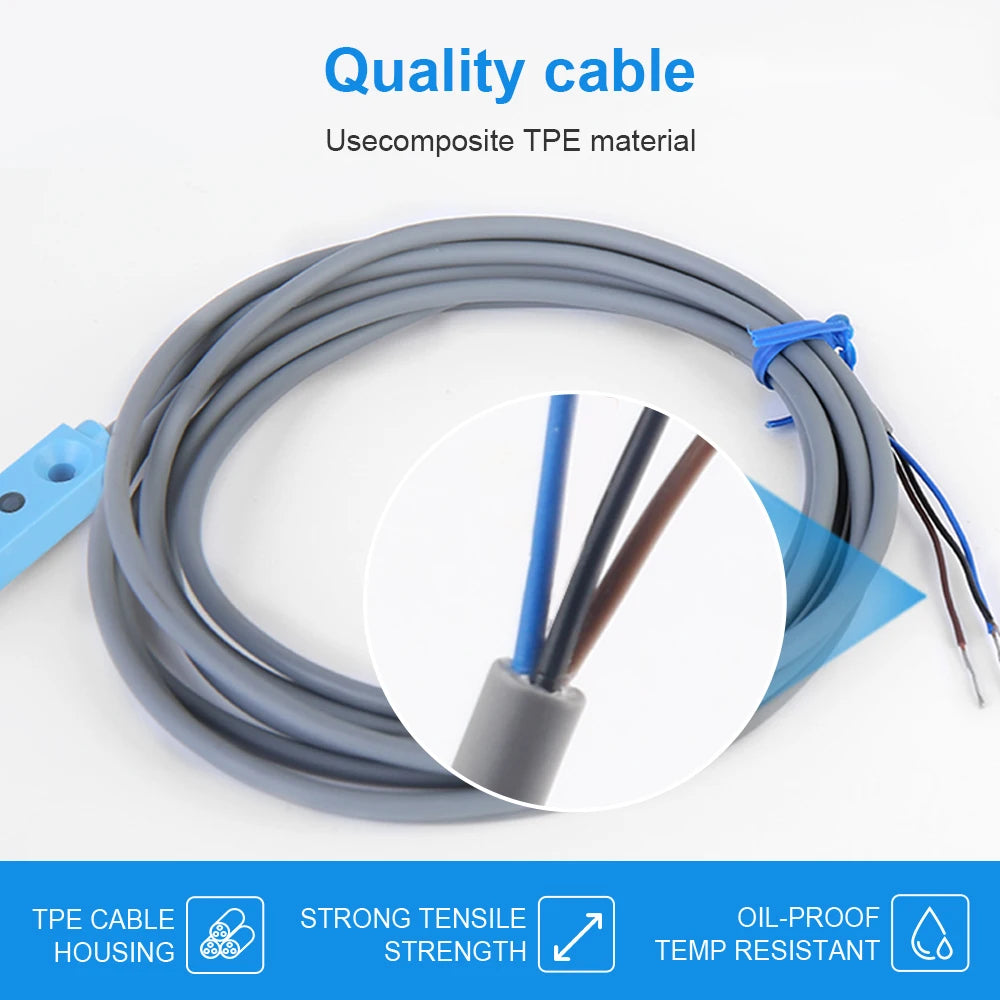

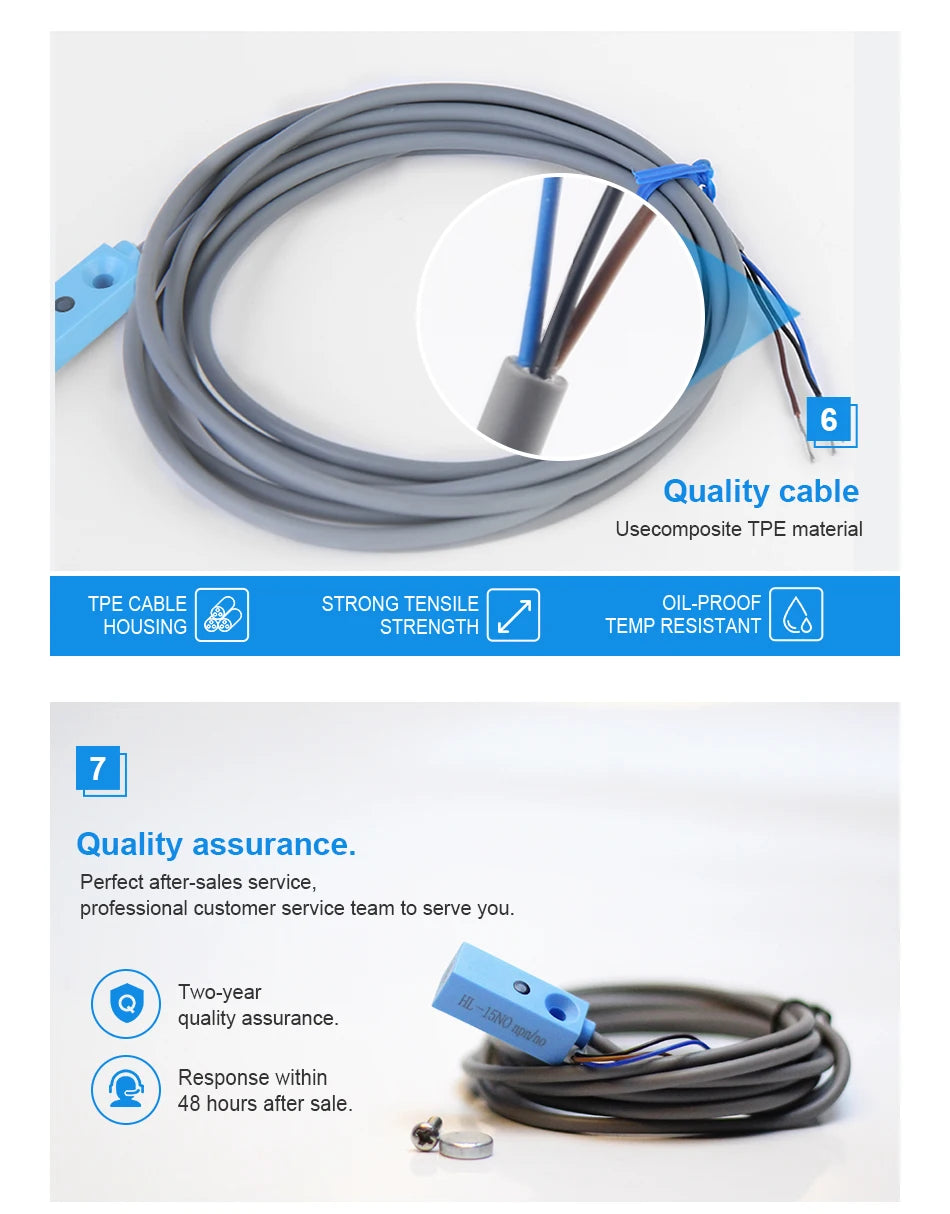

Cable length |
2m |

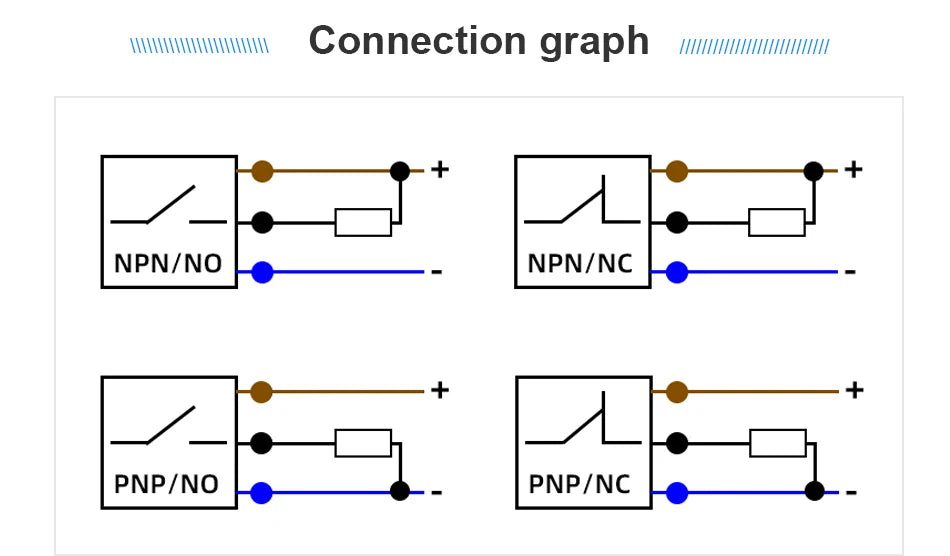

When sensor connected |
When sense object |
|
NPN NO |
Disconnect |
BK wire: output -V signal |
NPN NC |
BK wire: output -V signal |
Disconnect |
PNP NO |
Disconnect |
BK wire: output +V signal |
PNP NC |
BK wire: output +V signal |
Disconnect |
