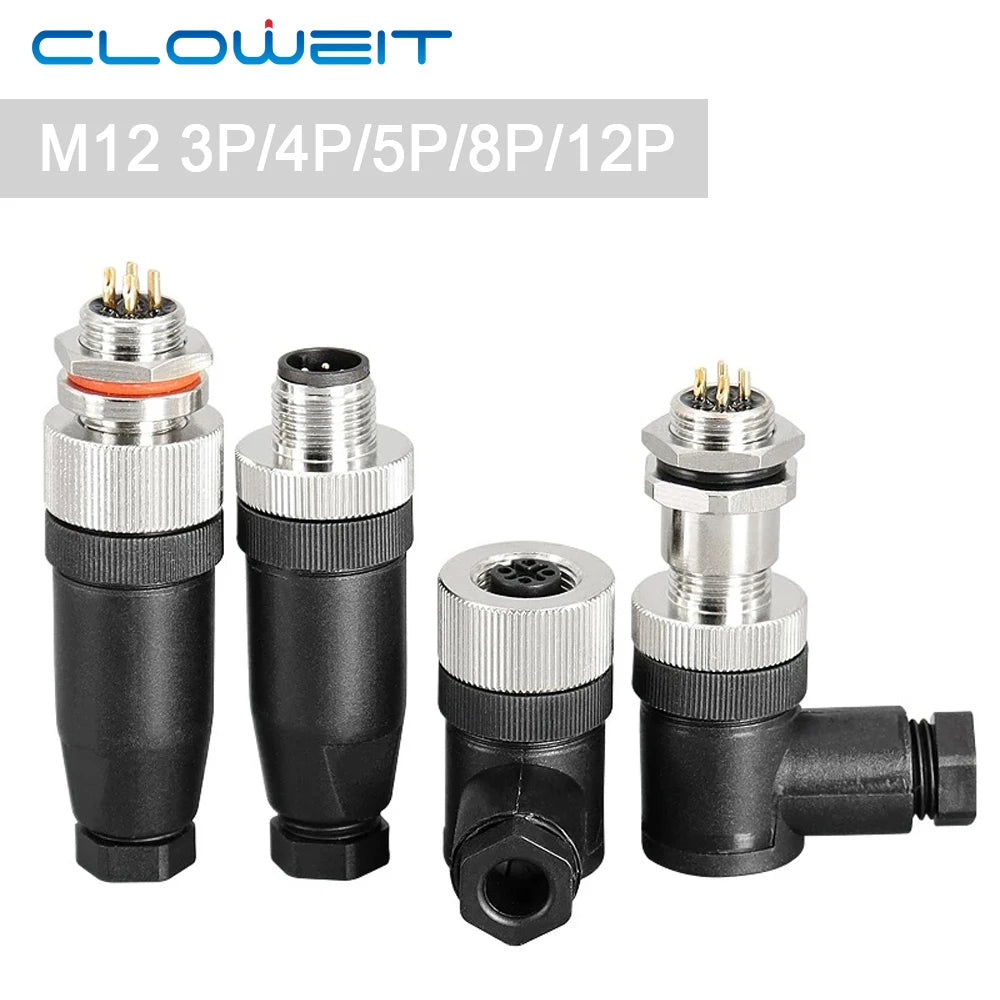

Cloweit IP67 M12 Sensor Connector Waterproof Male&Female Plug Screw Threaded Coupling 3 4 5 8 12 Pin A Type Angle Electrical

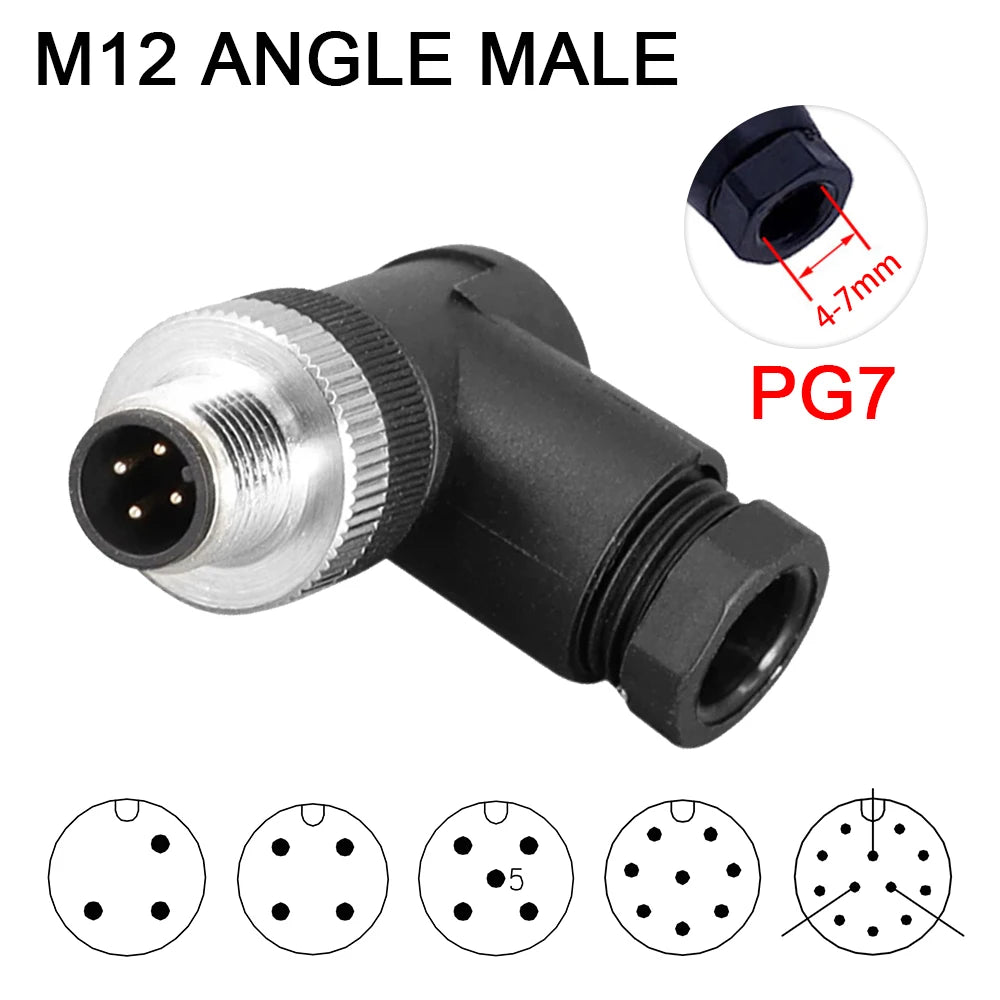

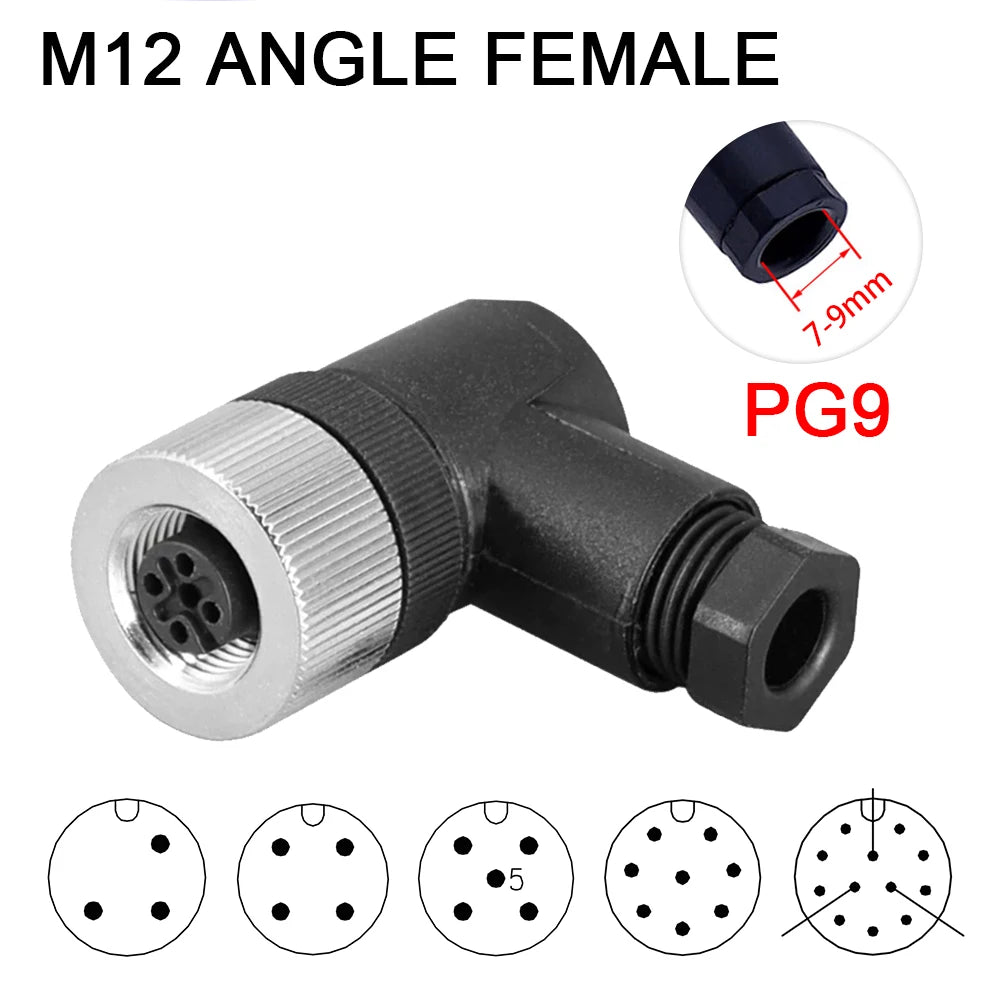

M12 angle male PG9 / 12P
$31.72
Sale price
$31.72
Regular price
$0.00
Skip to product information
Cloweit IP67 M12 Sensor Connector Waterproof Male&Female Plug Screw Threaded Coupling 3 4 5 8 12 Pin A Type Angle Electrical
$31.72
Sale price
$31.72
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: cloweit

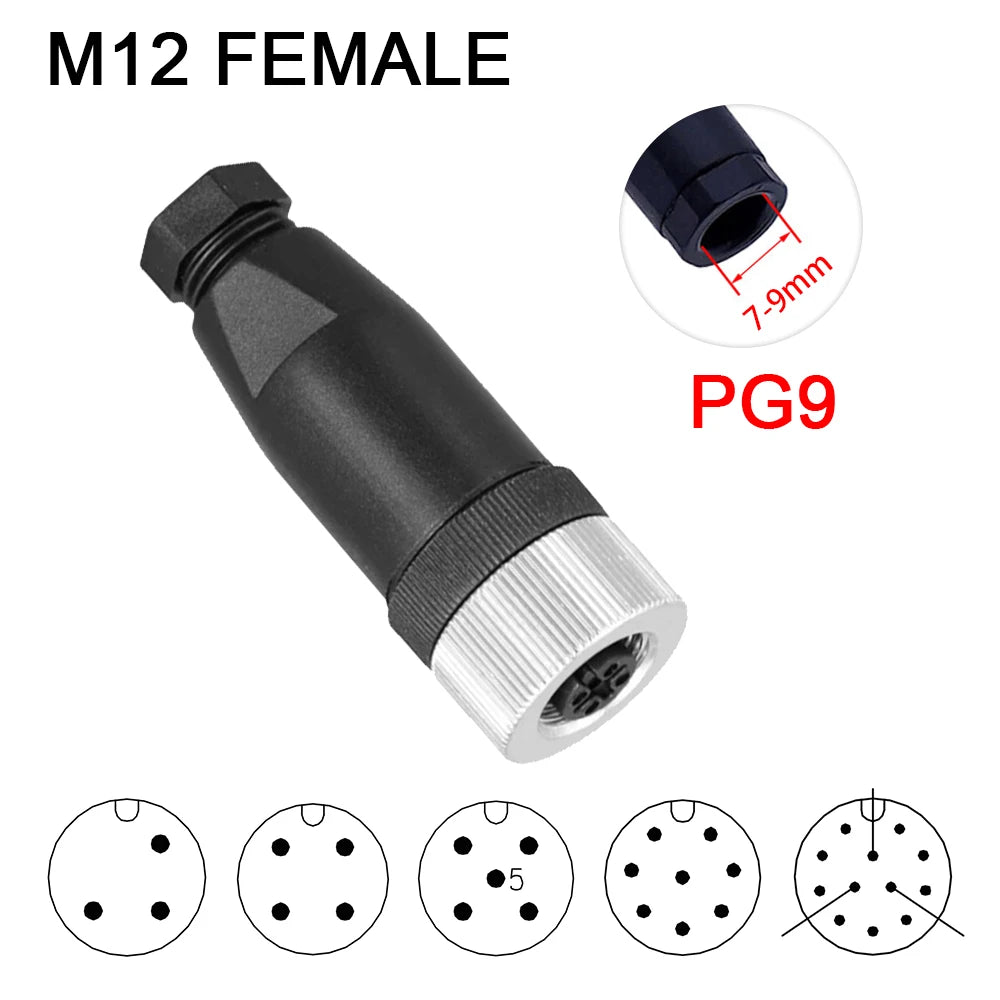

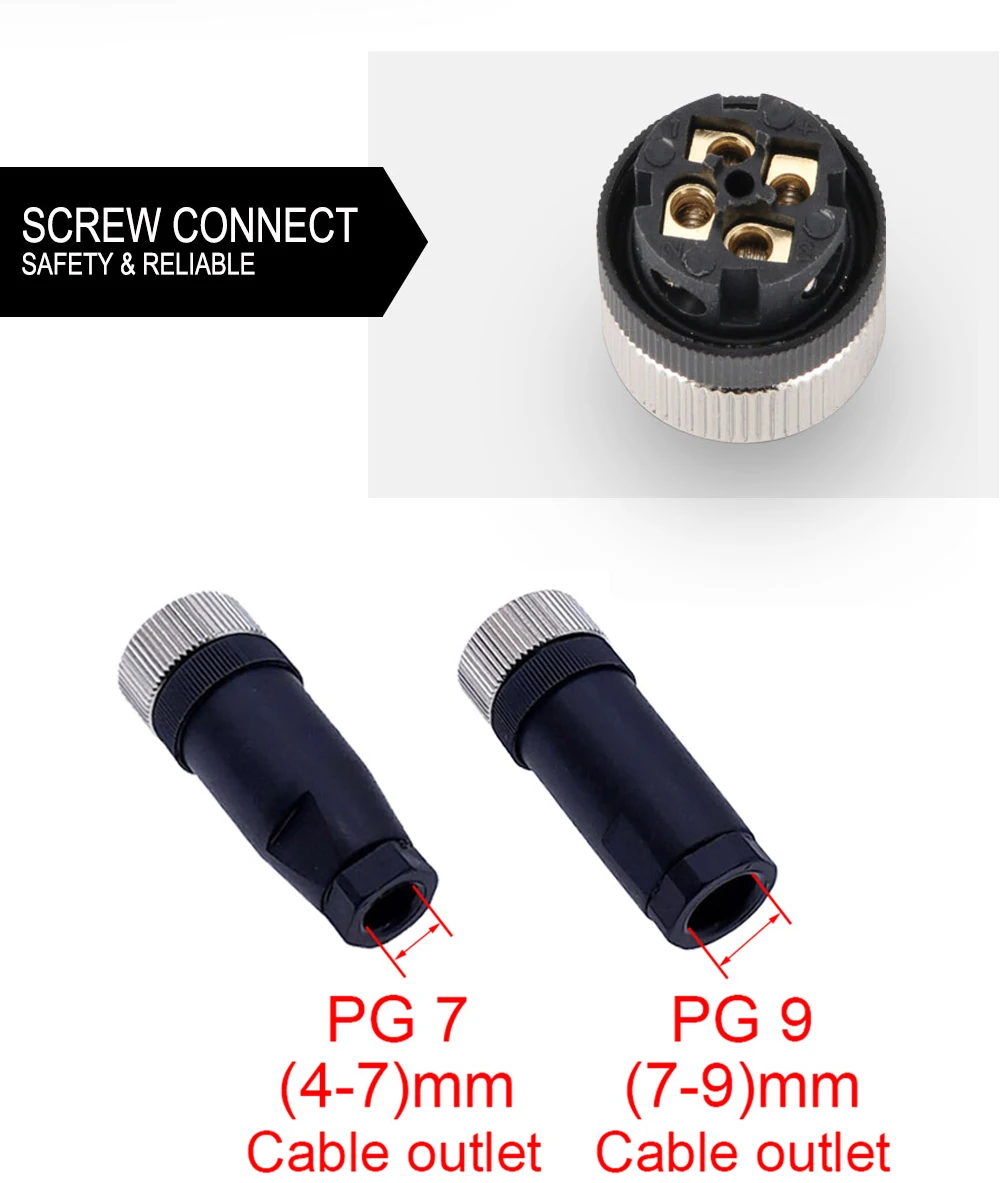

Cable outlet(mm): PG7:4-7MM / PG9:7-9MM
Certification: CE
Choice: yes
Contact plating: Au (Gold)
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none

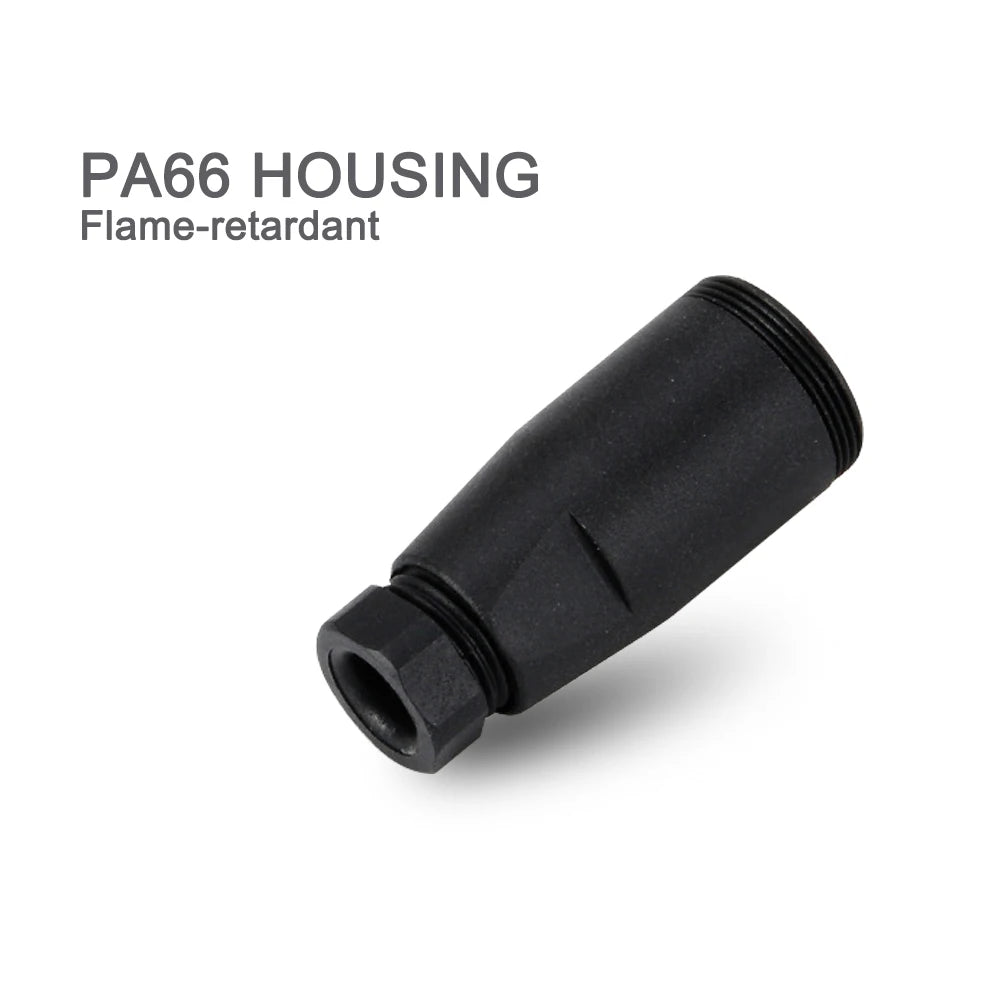

Housing canle connector: PA
Ingress protection: IP67
Locking s/stem: Screw M12*1
Male insert: PA (UL94HB)
Mating circle: >=100
Model Number: YG-M12
Origin: Mainland China
Pin contact: CuZn (massing / brass)
Temperature Range: -25°C~+85°C
Ttemination: Screw
Voltage: 220 V
Wire gauge mm2: Max. 0.75mm^2
semi_Choice: yes

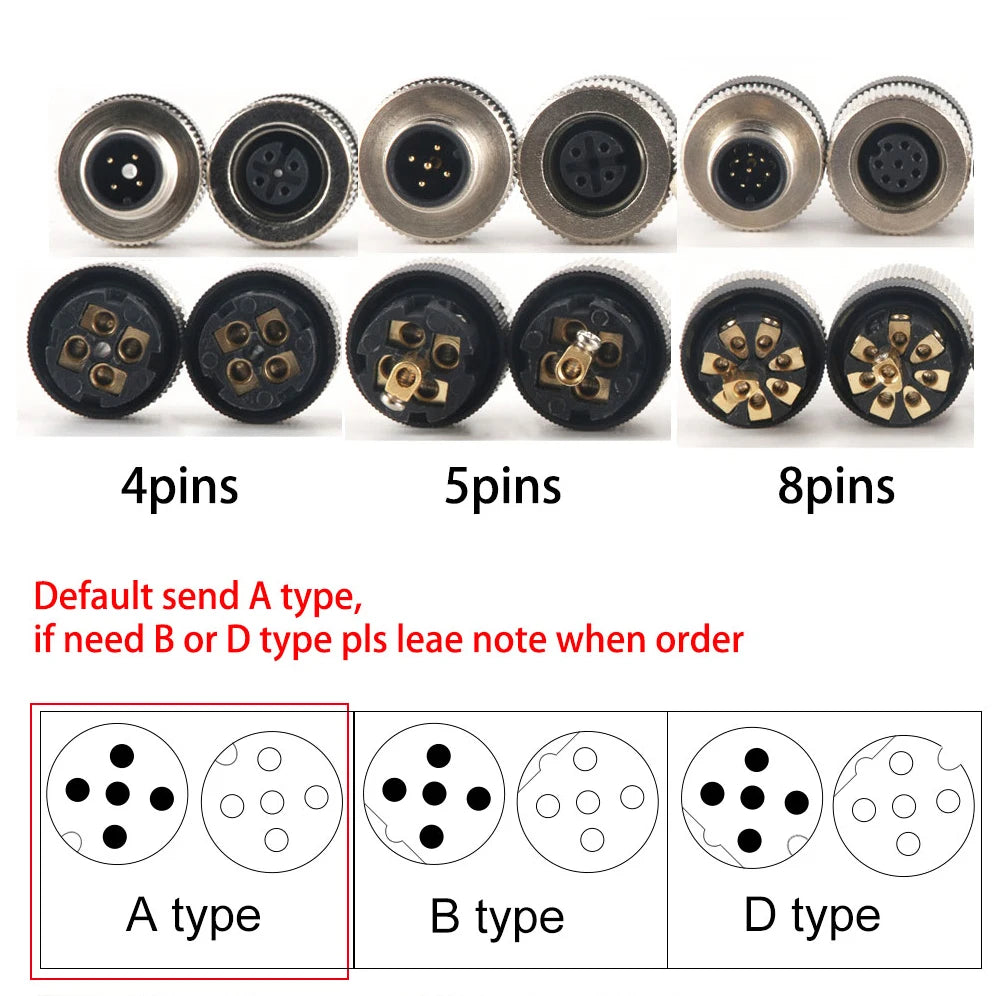

Number of contacts |
4 |
5 |
8 |
Locking s/stem |
Screw M12*1 |
||
Temination |
Screw |
||
Wire gauge mm2 |
Max. 0.75mm^2 |
||
Cable outlet(mm) |
PG7: 4-7MM / PG9: 7-9MM |
||
Ingress protection |
IP67 |
||
Mating circle |
>=100 |
||
Temperature Range |
-25℃~+85℃ |
||
Rated voltage |
250V |
60V |
30V |
Rated imoulse voitage |
2500V |
1500V |
800V |
Pollution degree |
3 |
||
Overvoltage categorie |
Ⅱ |
||
Material group |
Ⅲ |
||
Rated current(40℃) |
4A |
2A |
|
Contact resistance |
<=3Ω |
||
Pin contact |
CuZn (massing / brass) |
||
Contact plating |
Au (Gold) |
||
Male insert |
PA (UL94HB) |
||
Housing canle connector |
PA |
||
