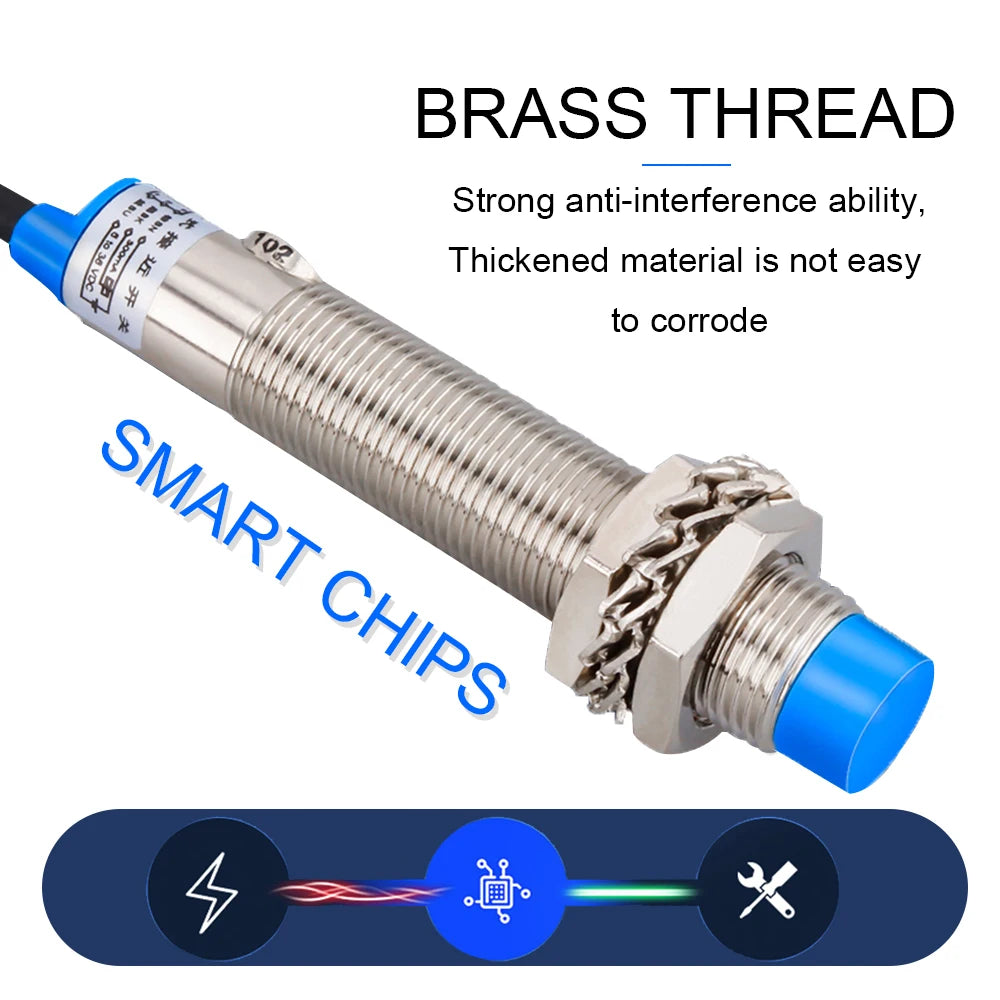

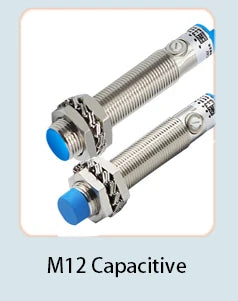

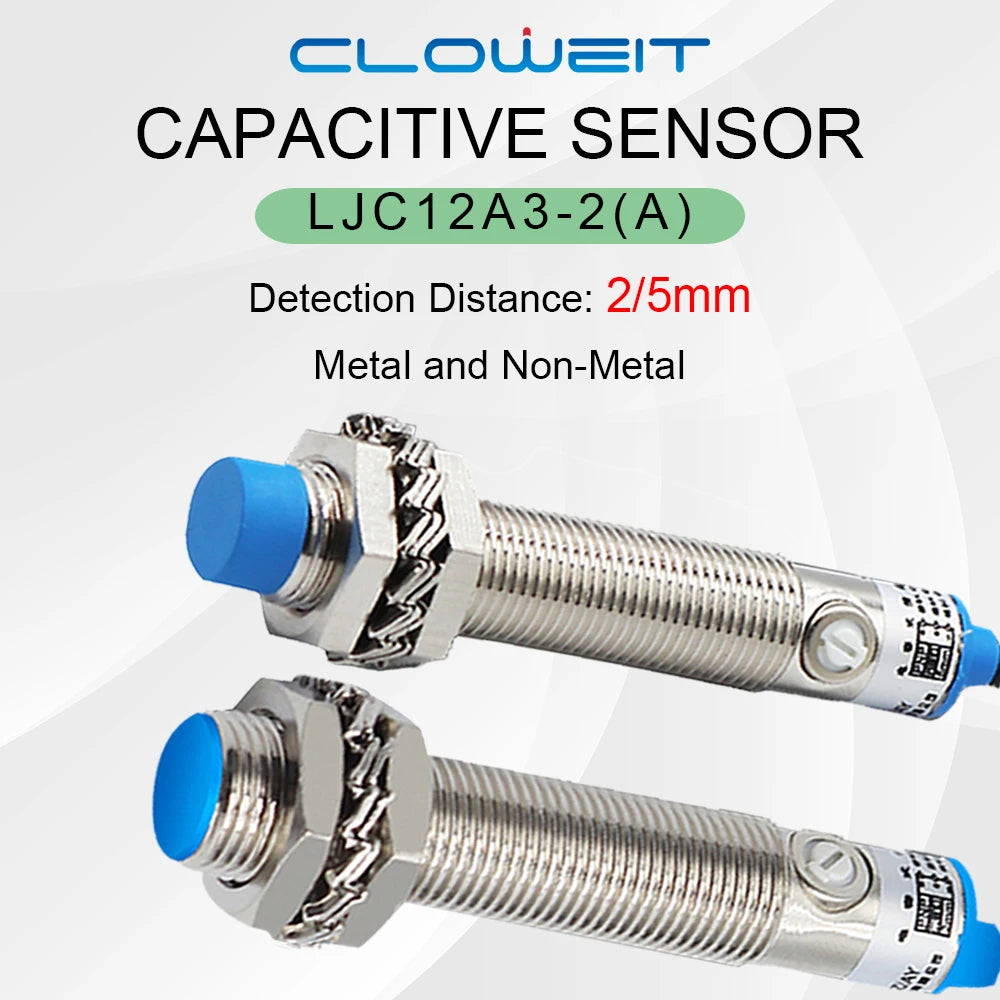

Cloweit M12 Capacitive Proximity Switch Level Sensor Detects Metal Liquid In Plastic Feed LJC12A3-A Series Shielded Unshielded
shield / NPN NO
$42.71
Sale price
$42.71
Regular price
$0.00
Skip to product information
Cloweit M12 Capacitive Proximity Switch Level Sensor Detects Metal Liquid In Plastic Feed LJC12A3-A Series Shielded Unshielded
$42.71
Sale price
$42.71
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: cloweit
Certification: CE,ce
Choice: yes

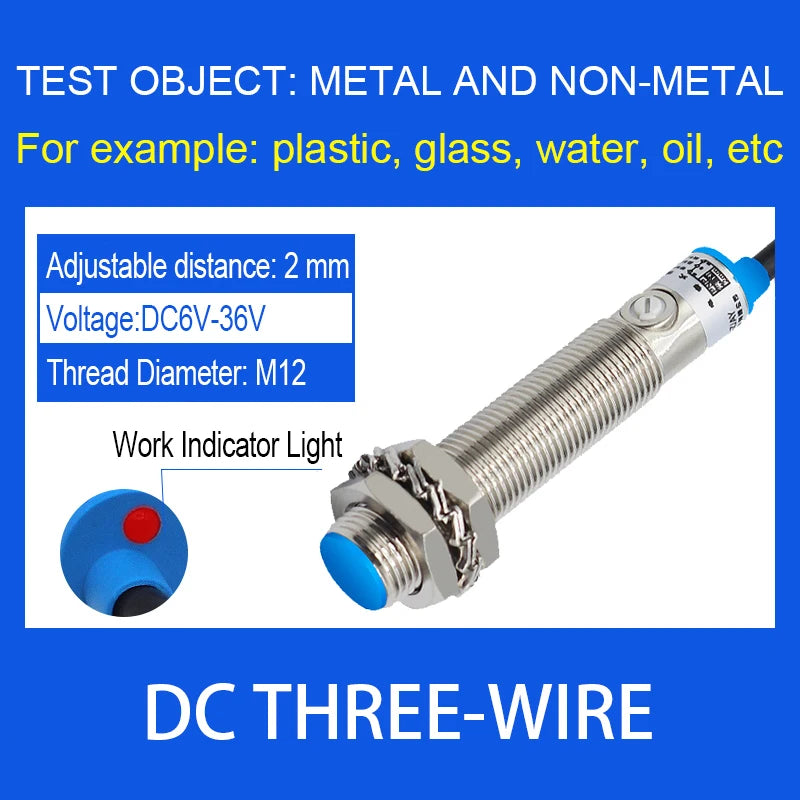

Detected Object: Any Aielectric Substance
Detection Distance: 0-5MM

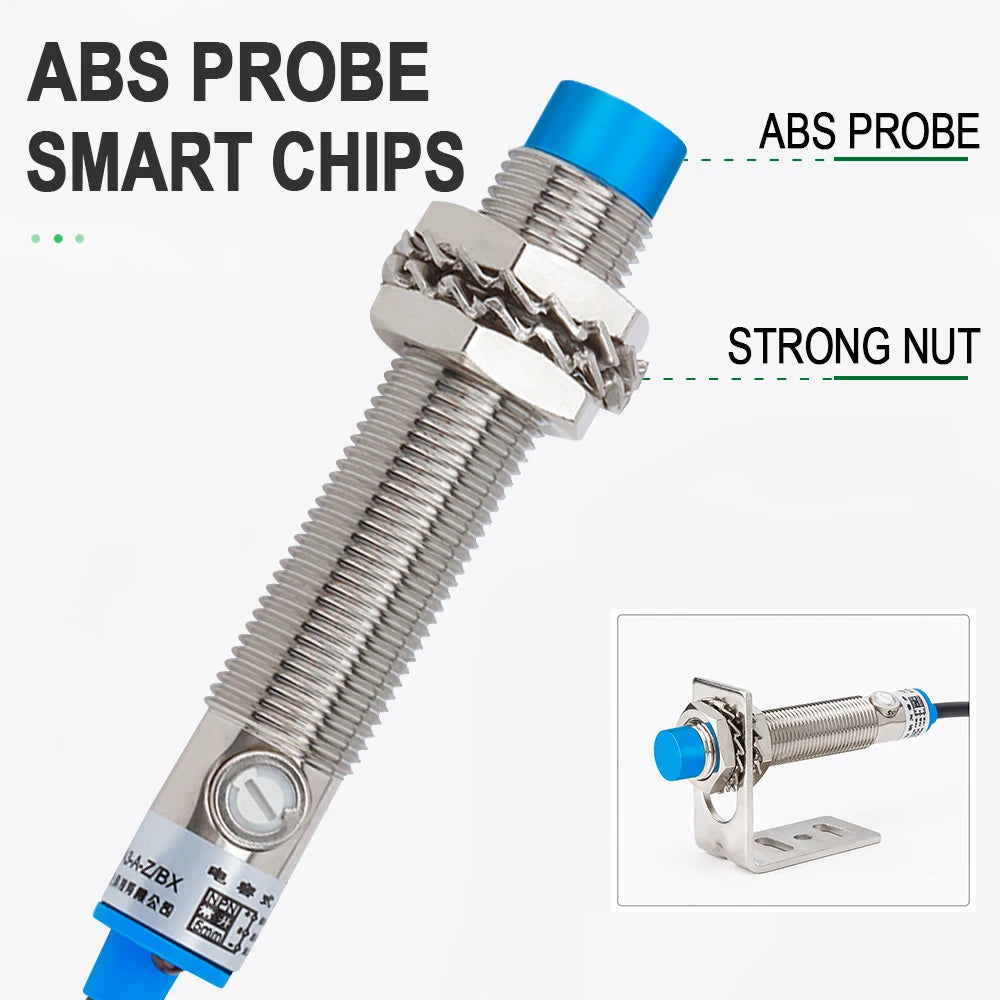

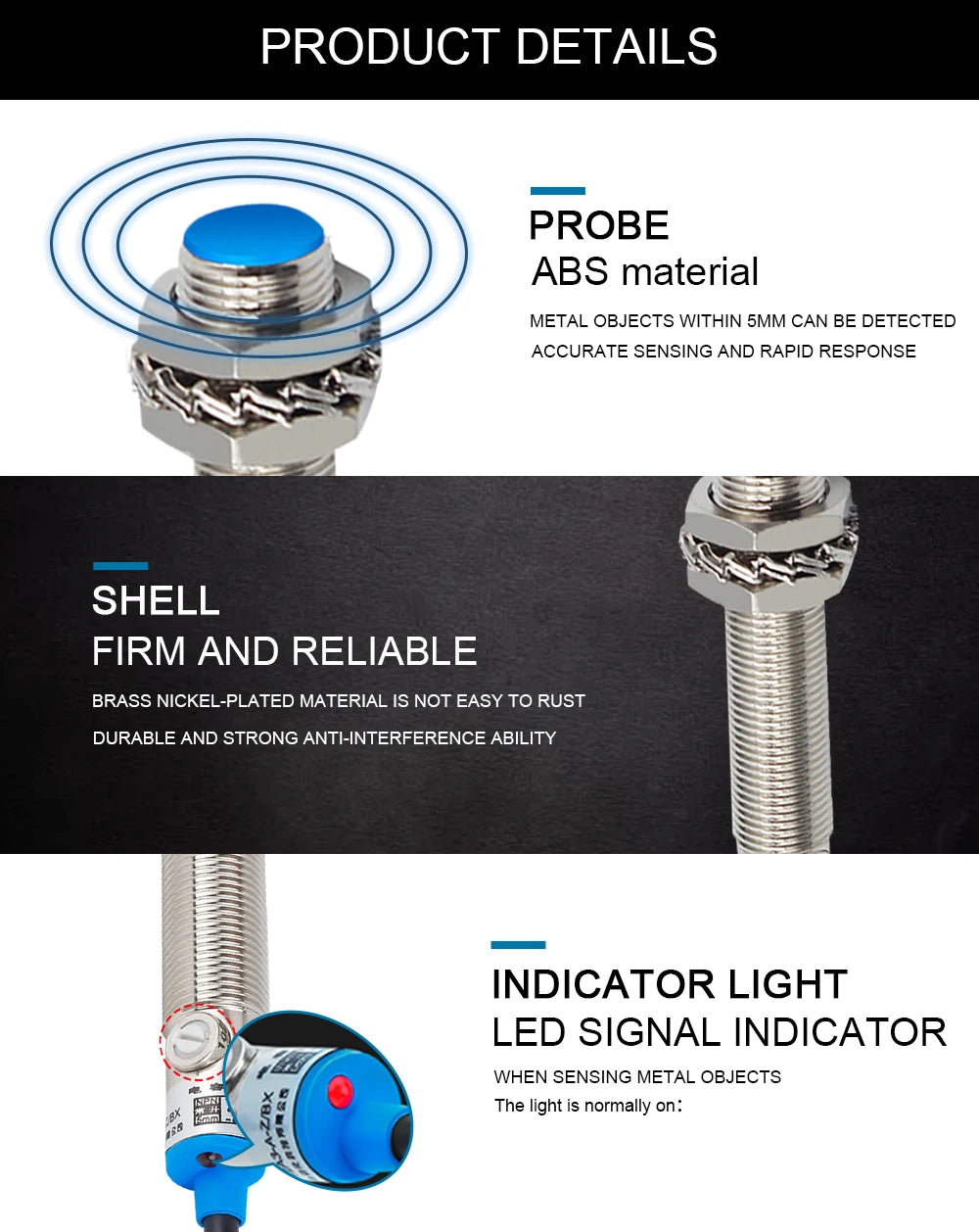

Detection surface: ABS
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Housing: Nickel Plated Brass
Is Smart Device: no
Item Type: SWITCHES
Lag distance: Detect objects below 10%
Material: Alloy

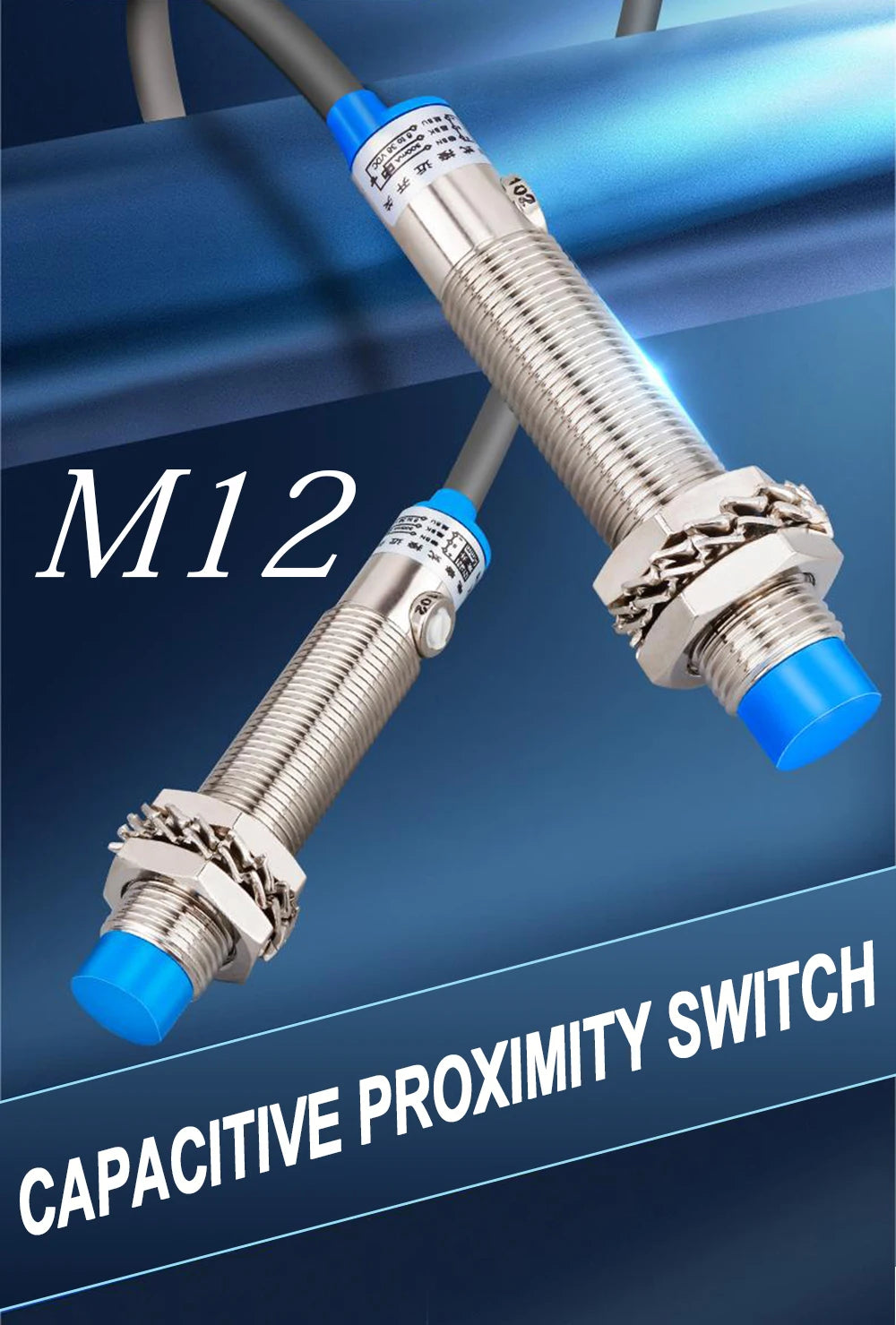

Model: M12 Capacitive Proximity Switch
Model Number: LJC12A3-A
Origin: Mainland China
Switch Type: Proximity Switch
Warranty: 1 year
semi_Choice: yes
|

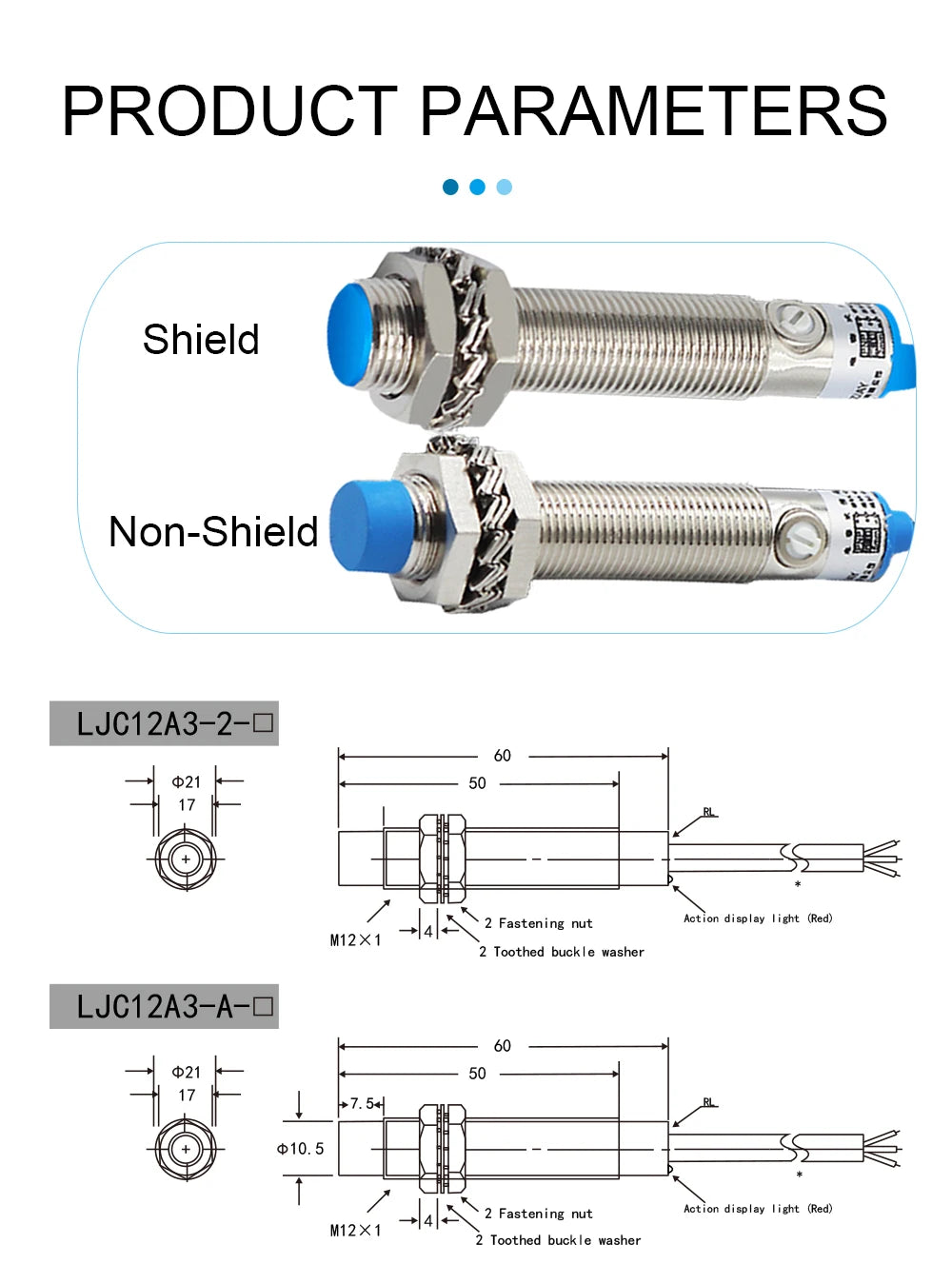

SPECIFICATION AND MODEL | |||||
TYPE |
DC TYPE |

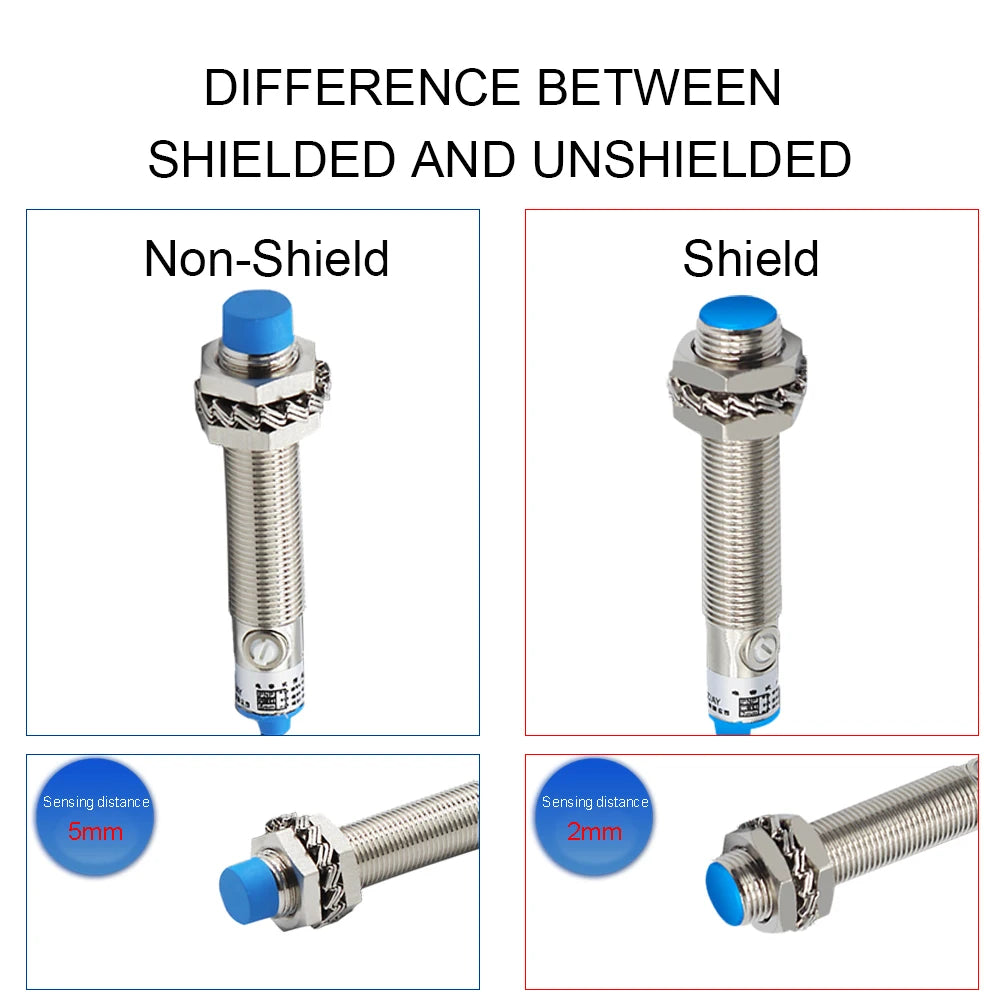

Installation Method |
Shielded |
non-Shielded |
|
NPN |
NO |
LJC12A3-2-Z/BX |
LJC12A3-A-Z/BX |
||
NC |
LJC12A3-2-Z/AX |
LJC12A3-A-Z/AX |
|||
NO+NC |
|||||
PNP |
NO |
LJC12A3-2-Z/BY |
LJC12A3-A-Z/BY |
||
NC |
LJC12A3-2-Z/AY |
LJC12A3-A-Z/AY |
|||
NO+NC |
|||||
Two-wire |
NO |
||||
NC |
|||||
AC TYPE |
Two-wire |
NO |
|||
NC |
|||||

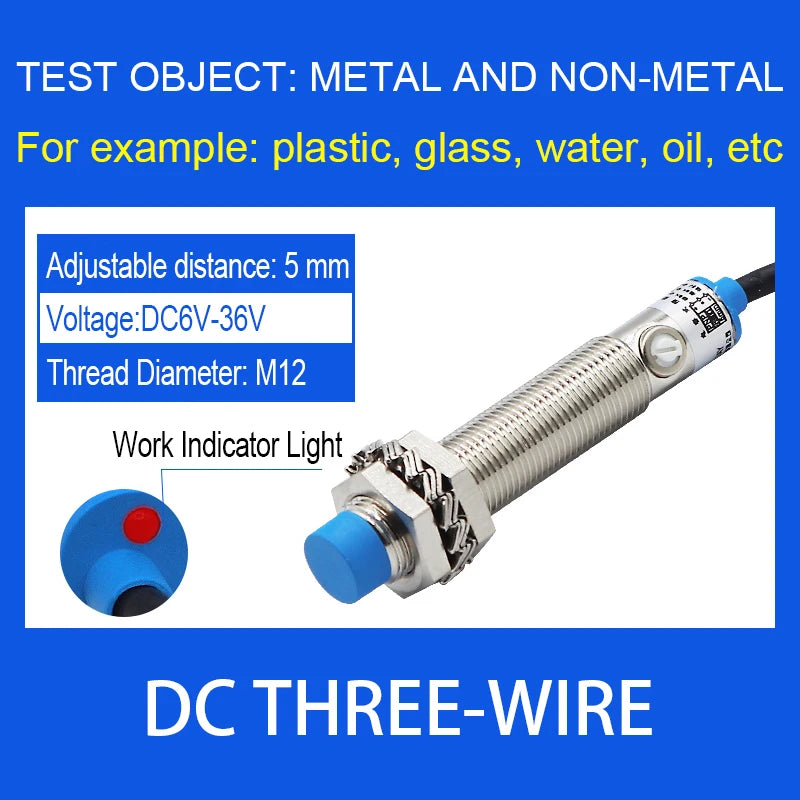

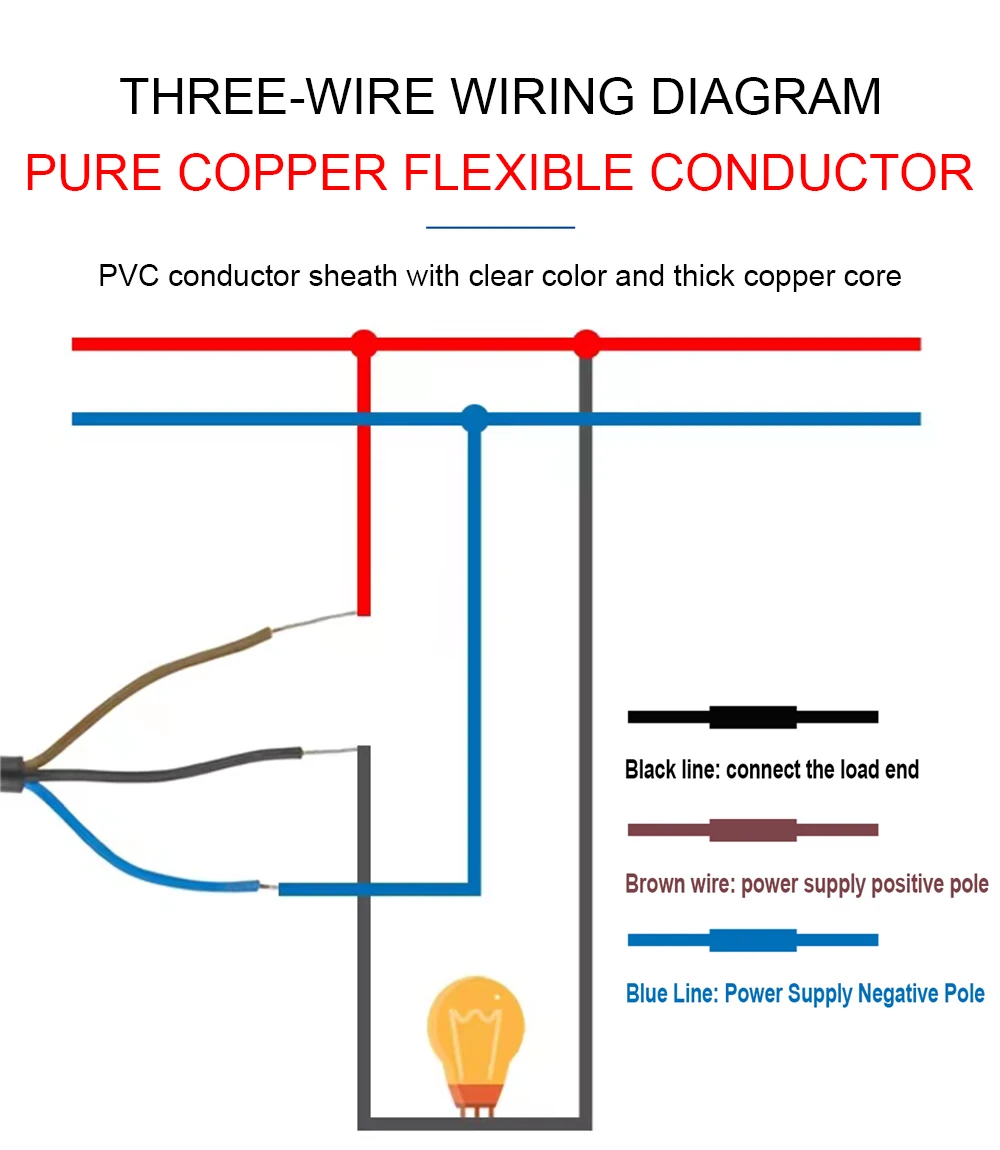

THREE-WIRE |
NO+NC |
||||
DETECTION DISTANCE |
2mm±10% |
5mm±10% |
|||
SET DISTANCE |
0~4mm |
0~8mm |
|||
RESPONSE FREQUENCY |
DC:0.5Hz AC:25Hz |
DC:0.5Hz AC:25Hz |
|||
