SPECIFICATIONS

Brand Name: cloweit

Cable outlet(mm): 3.5-5MM

Certification: CE

Choice: yes

Contact resistance: <=3Ω

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Ingress protection: IP67

Locking s/stem: Screw M8*1

Number of stitches: 3P 4P

Origin: Mainland China

Rated current(40℃): 4A

Temination: Screw/Dip solder

Temperature Range: -25℃~+85℃

Voltage: 220 V

Wire gauge mm2: Max. 0.25mm^2

semi_Choice: yes

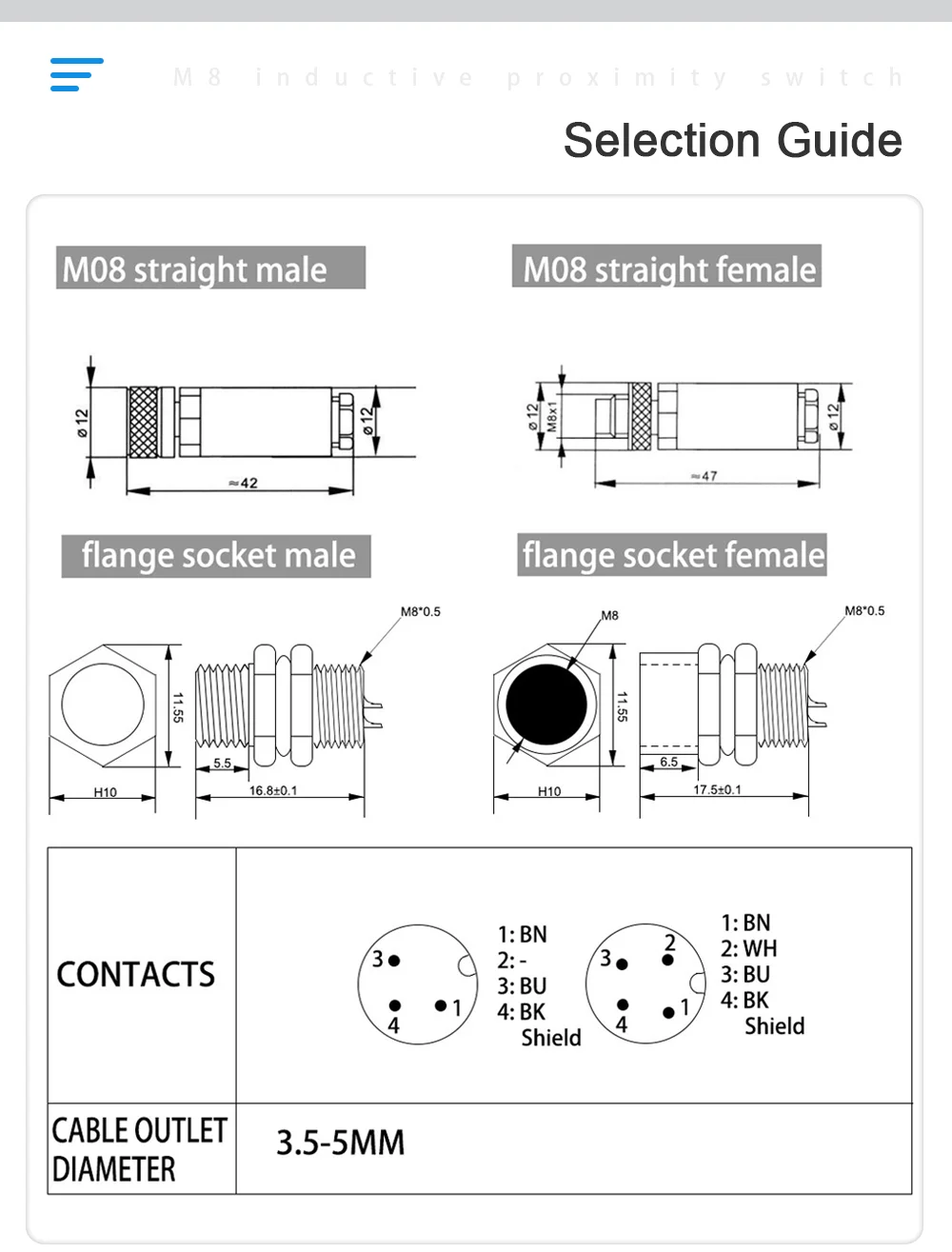

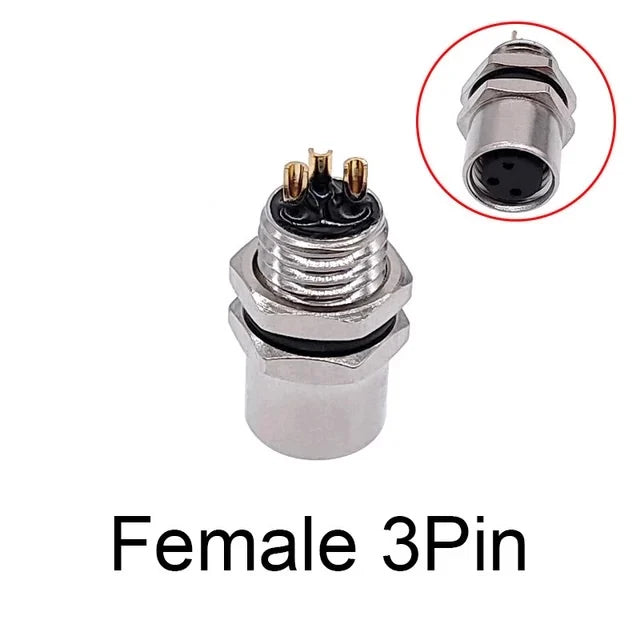

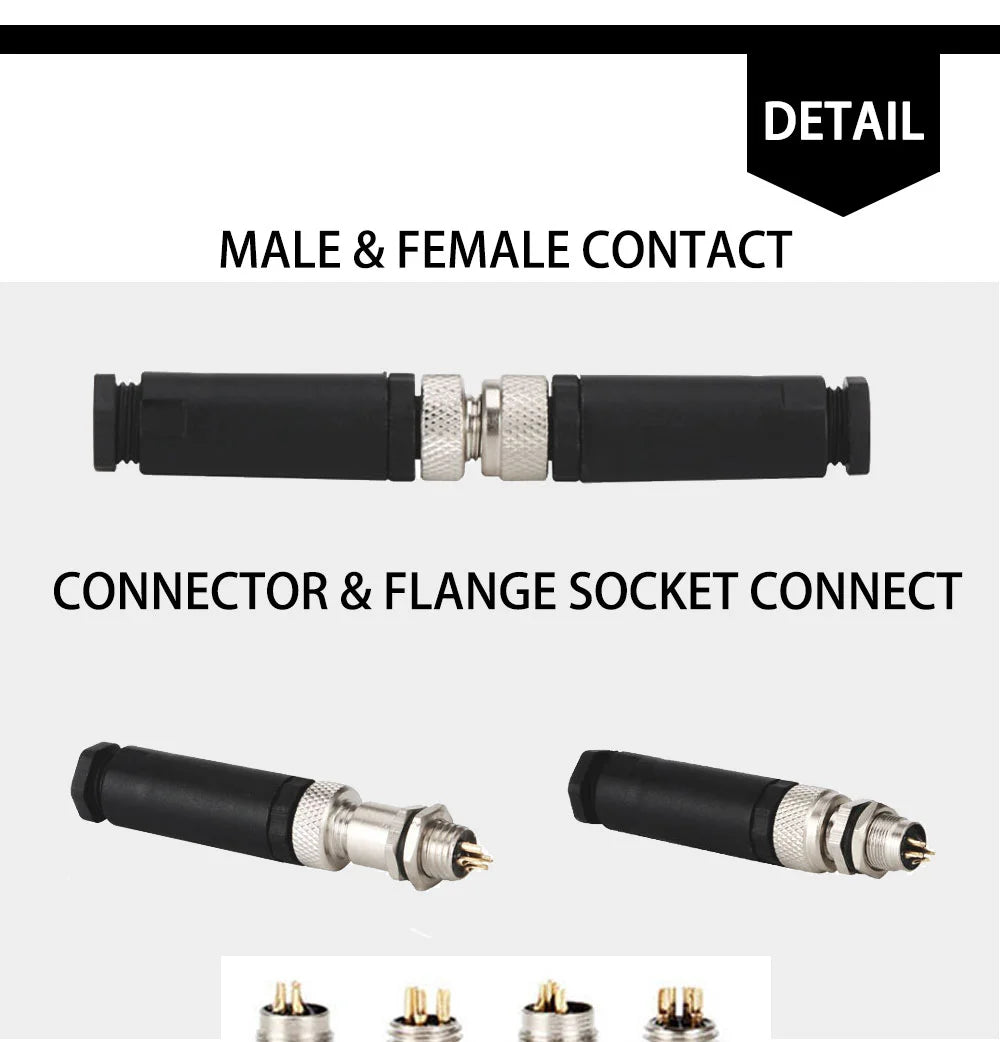

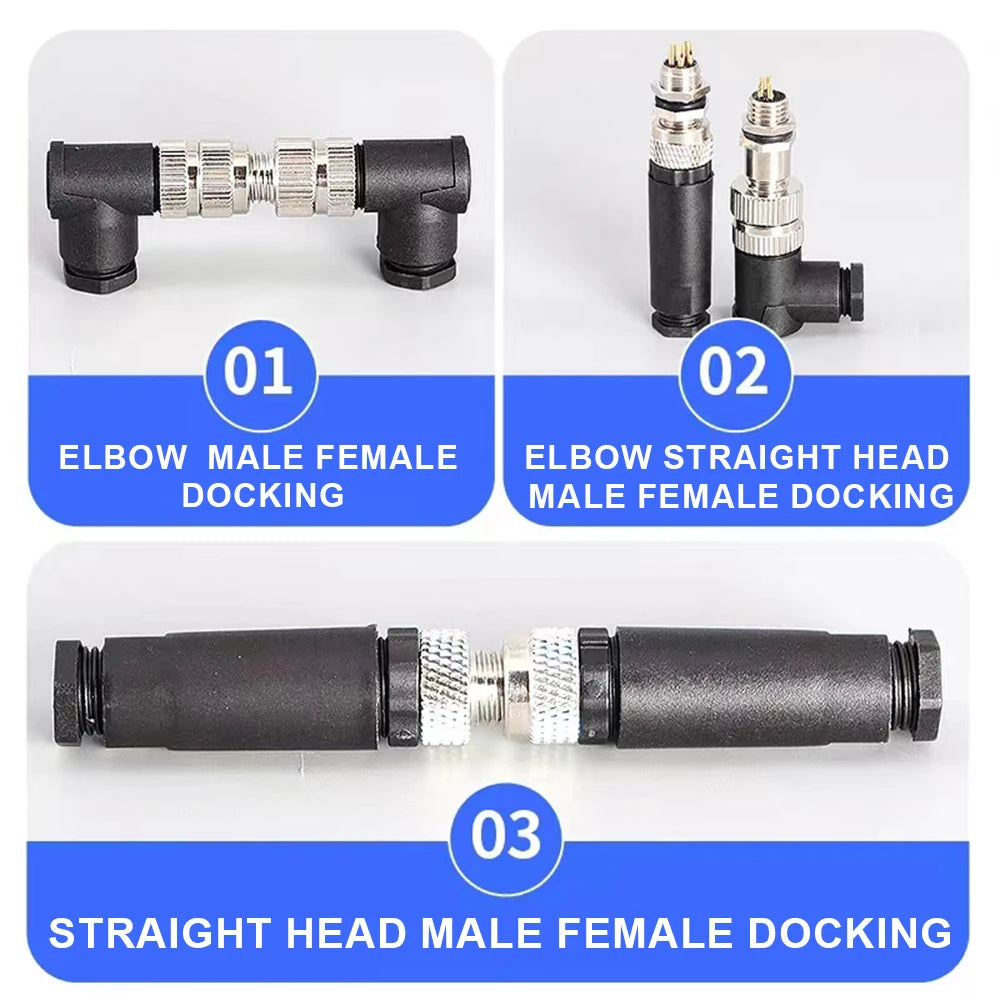

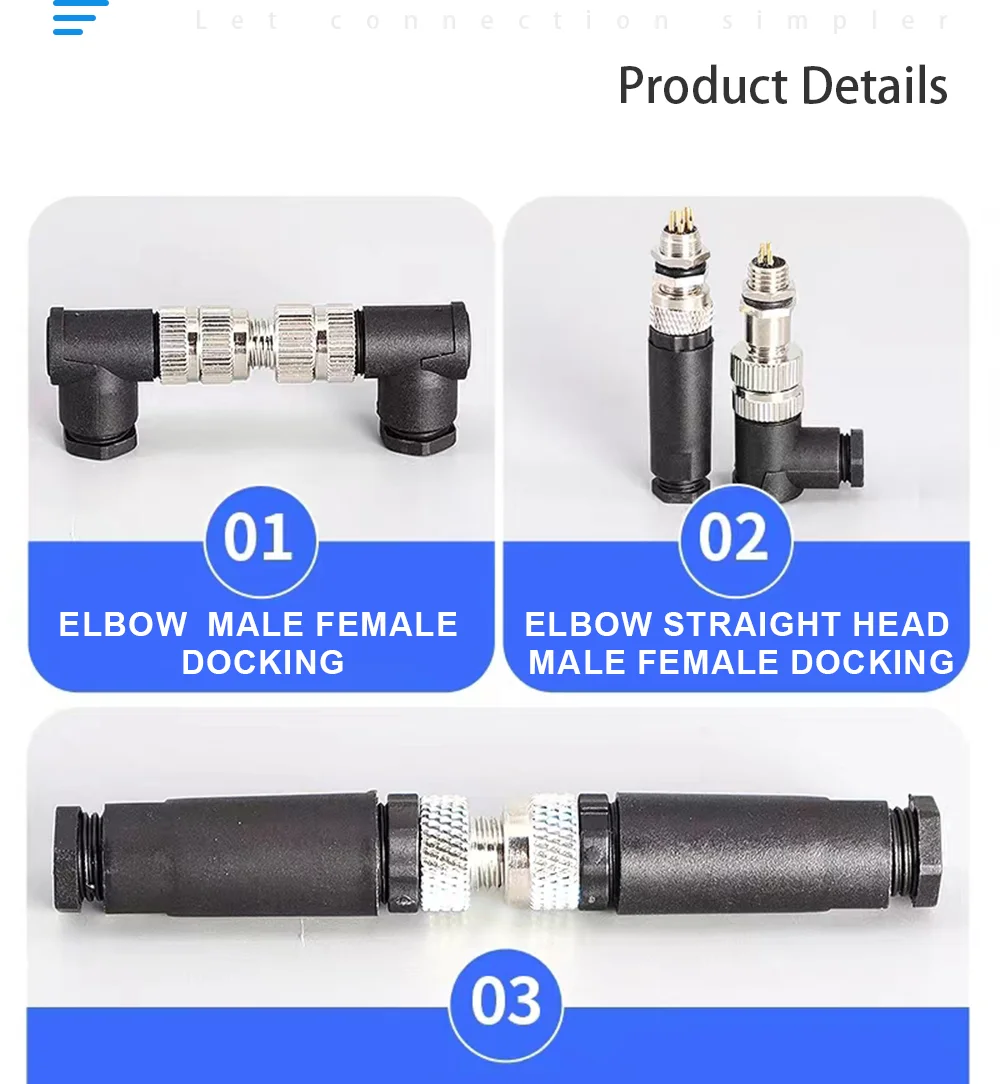

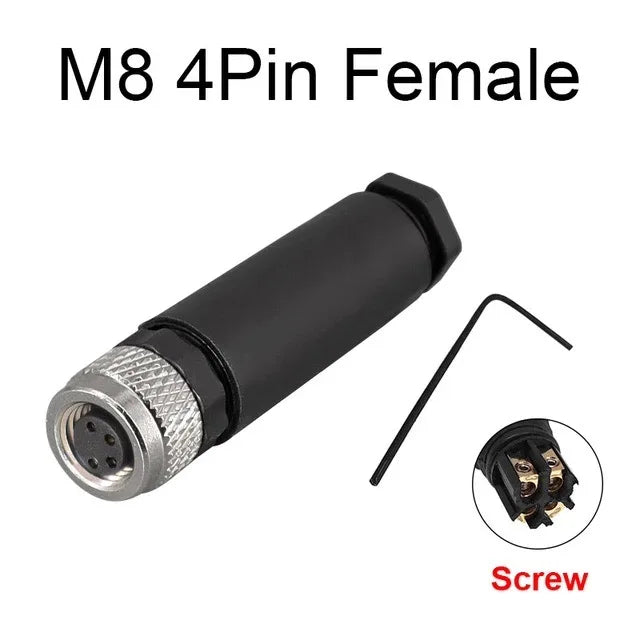

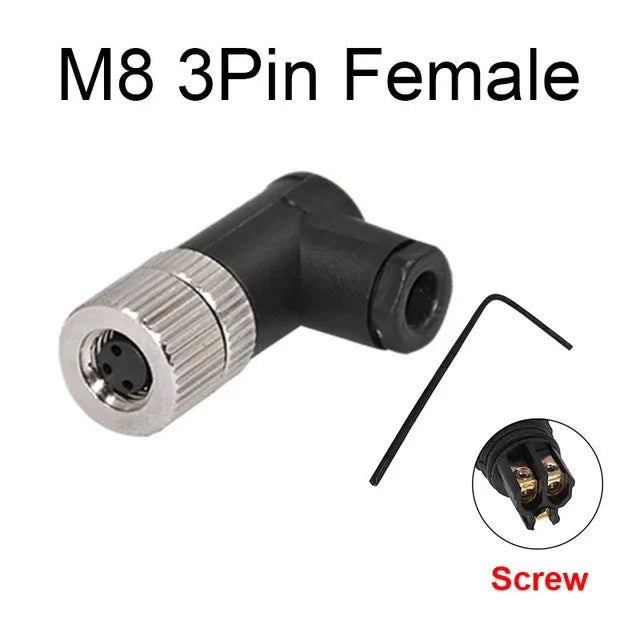

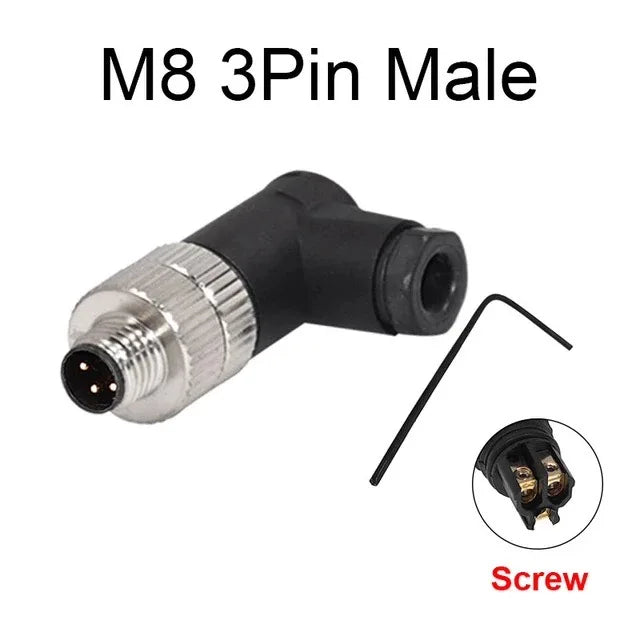

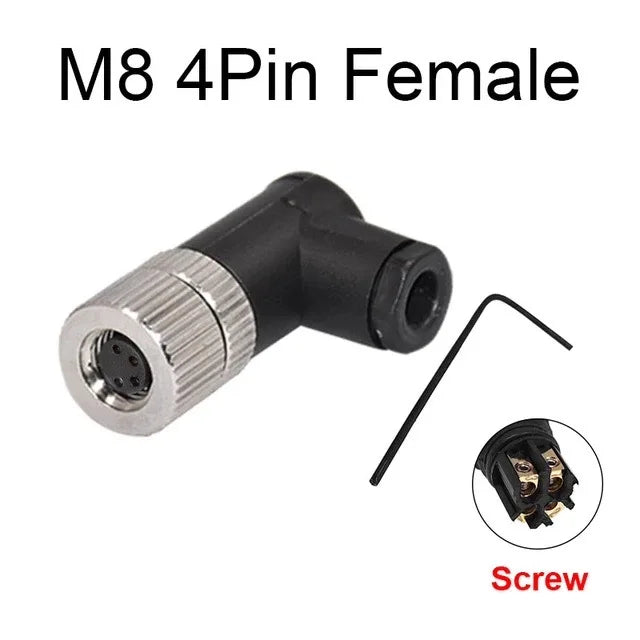

	Connector		Flange Socket

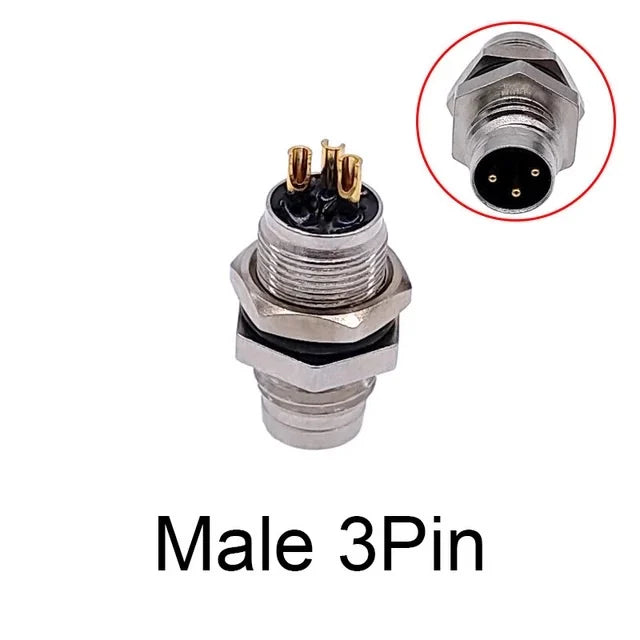

Number of contacts	3	4	3	4
Locking s/stem	Screw M8*1		Screw M8*1

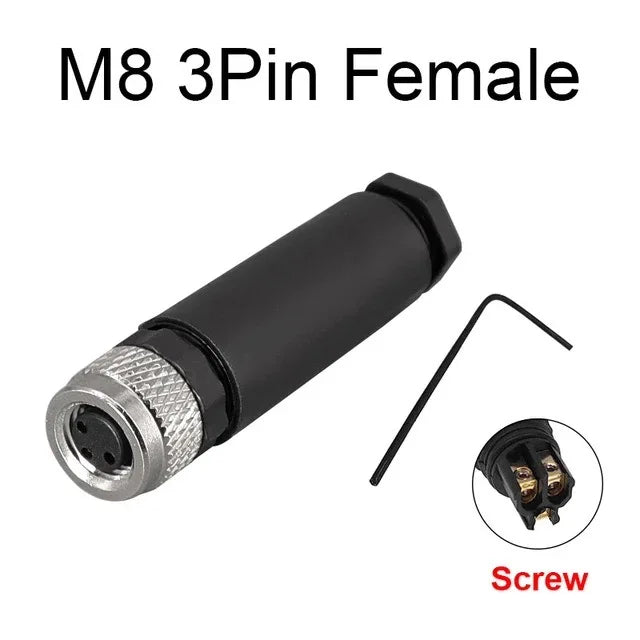

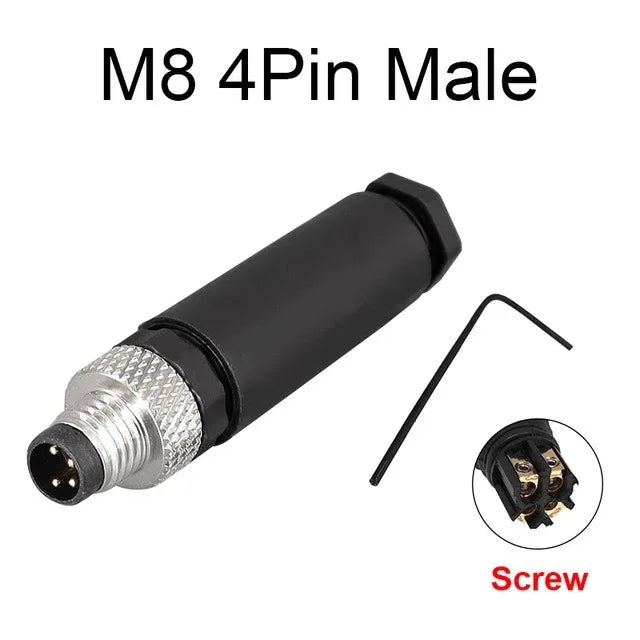

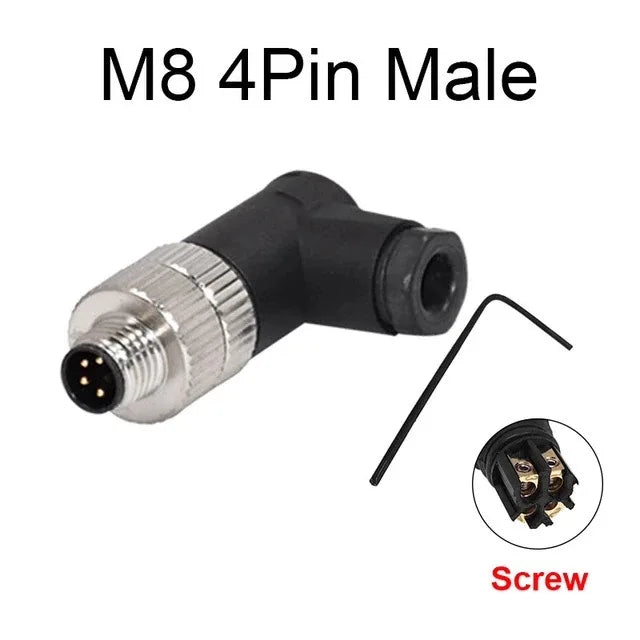

Temination	Screw		Dip solder
Wire gauge mm2	Max. 0.25mm^2		Max. 0.25mm^2
Cable outlet(mm)	3.5-5MM		3.5-5MM
Ingress protection	IP67		IP67
Mating circle	>=100		>=100
Temperature Range	-25℃~+85℃		-25℃~+85℃
Rated voltage	60V	30V	30V
Rated imoulse voitage	1500V	800V	800V
Pollution degree	3		3
Overvoltage categorie	Ⅱ		Ⅱ
Material group	Ⅲ		Ⅲ
Rated current(40℃)	4A		4A
Contact resistance	<=3Ω		<=3Ω

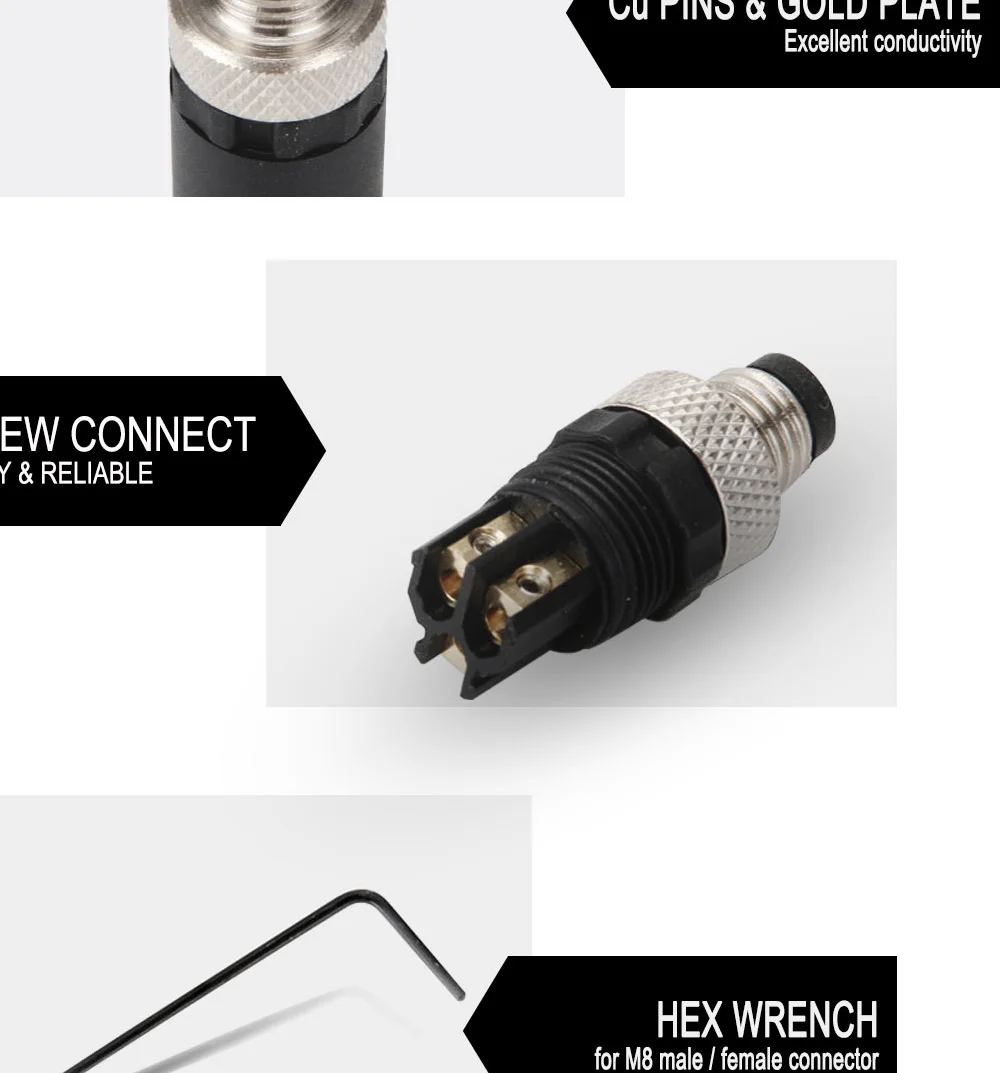

Pin contact	CuZn (massing / brass)		CuZn (massing / brass)
Contact plating	Au (Gold)		Au (Gold)

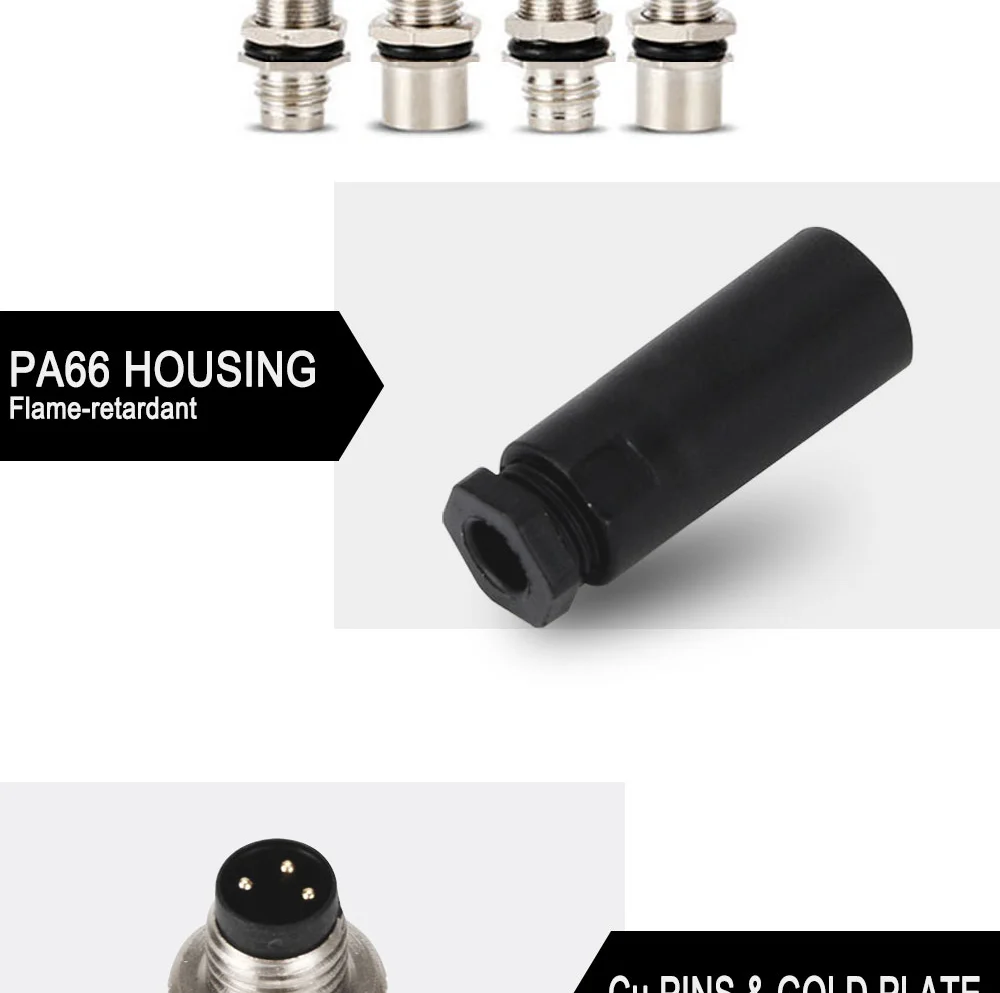

Male insert	PA (UL94HB)		PA (UL94HB)

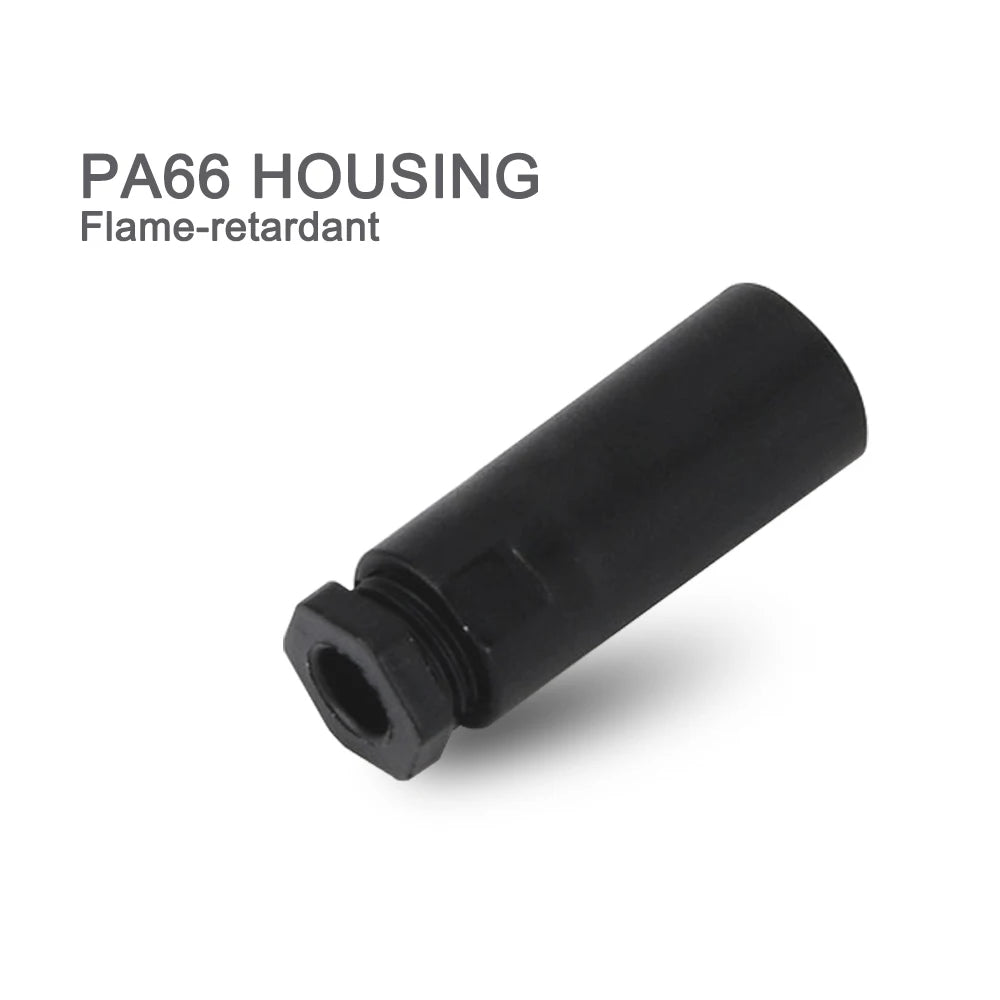

Housing canle connector	PA		PA

About Sensor

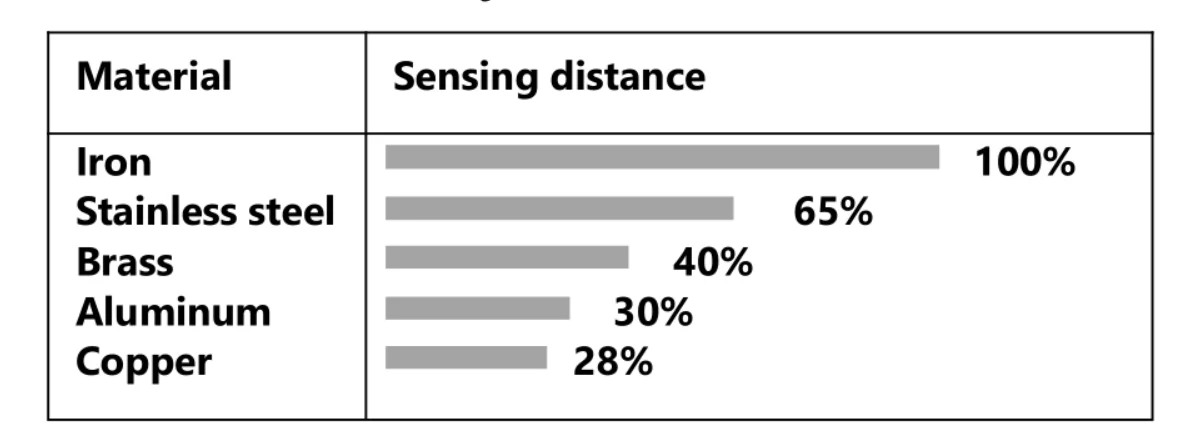

1. Inductive proximity sensor can detect kinds of metal object, but attenuation coefficient is different:

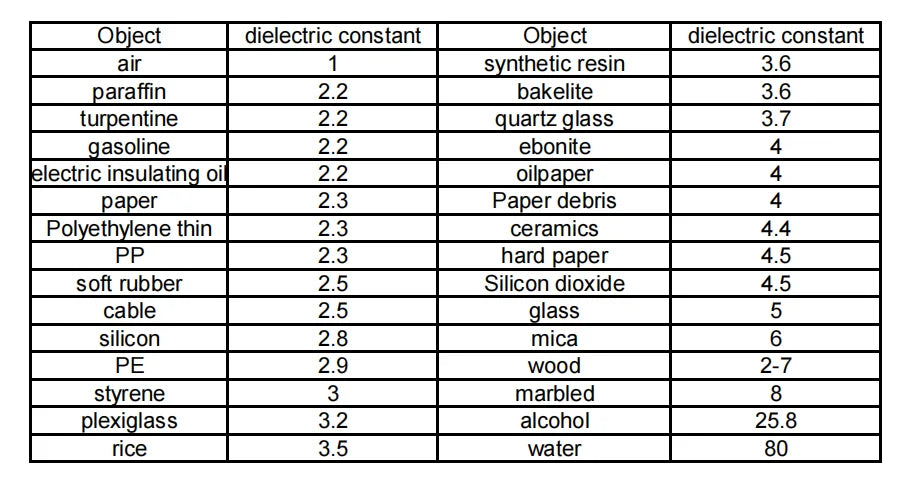

2. Capacitive proximity sensor can detect objects not limited to conductors, liquid or powders that can be insulated, etc.:

3. Hall effective sensor detect magnetic object.

4. Optical photo sensor detect when light blocked (object).
