CNC Shield V4 Engraving Machine 3D Printe 4pcs DRV8825 A4988 AT2100 Driver Expansion Board For Arduino +NANO V3.0 With USB Cable

CNC Shield V4 Engraving Machine 3D Printe 4pcs DRV8825 A4988 AT2100 Driver Expansion Board For Arduino +NANO V3.0 With USB Cable

$107.82

$107.82 $0.00

Color NANO AT2100 Kit NANO Green A4988 Kit NANO DRV8825 Kit NANO Red A4988 Kit

Description

SPECIFICATIONS

Brand Name: YDLZMSJIAH

Condition: New

Dissipation Power: Standard

High-concerned chemical: none

Operating Temperature: Standard

Origin: Mainland China

Supply Voltage: Standard

Type: Module

is_customized: Yes

V4 Description:

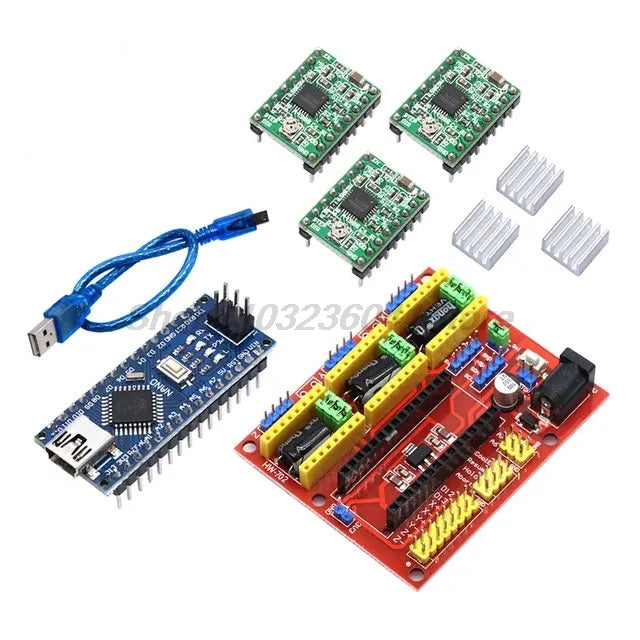

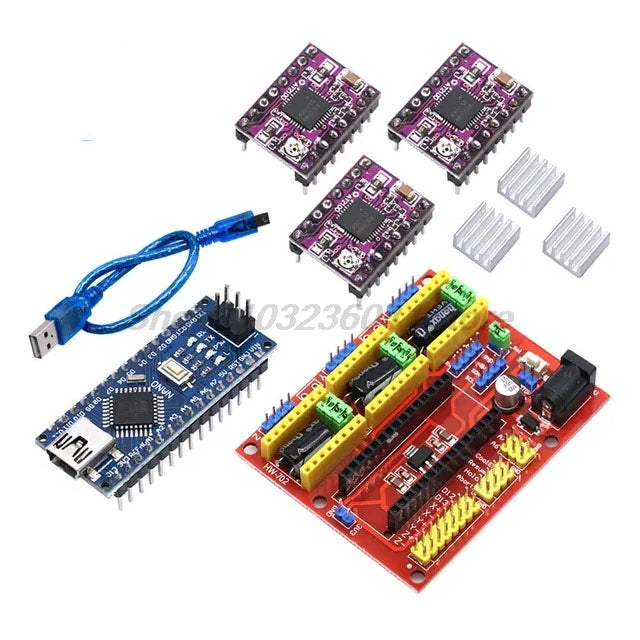

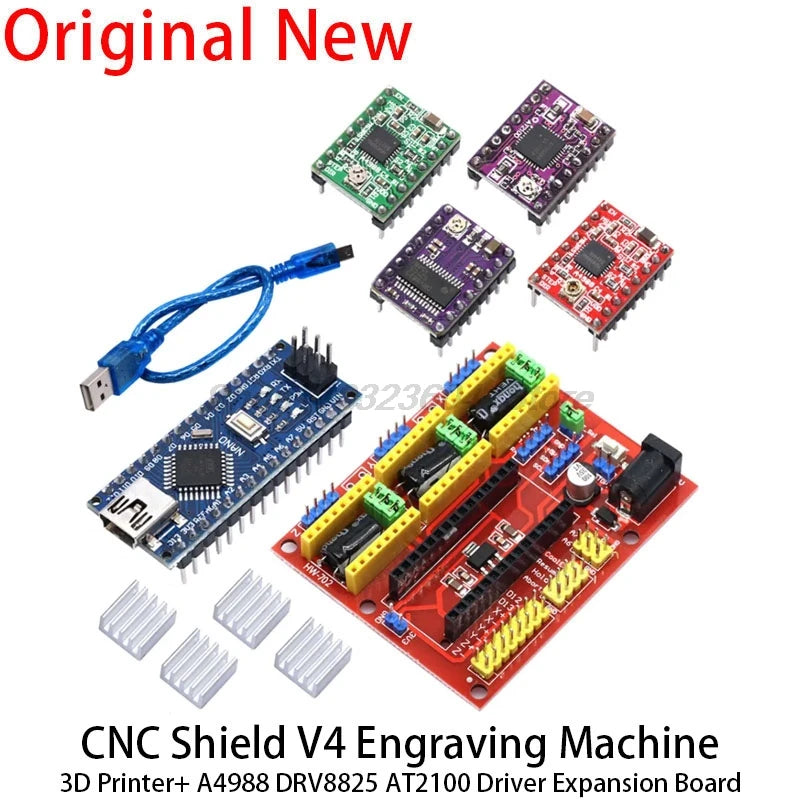

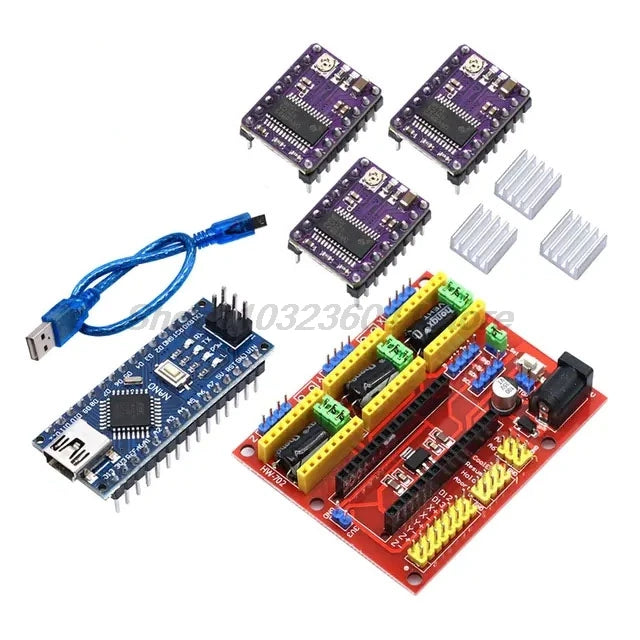

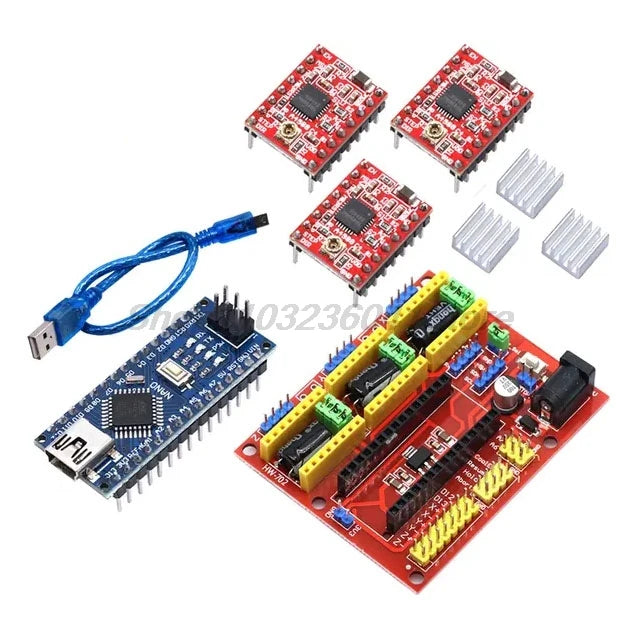

CNC shield V4 needs to work with Nano board. It can be used as driver expansion board for engraving machines and 3D printers. It has in total 3 channel slots for A4988 stepper motor driver modules (not included) for driving 3 channel of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports is sufficient to manage 3 stepper motors. This shield can make quick work for managing stepper motors in your project.

Specification:
1. 3 axis stepper motor driver
2. Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine,.
3. 2A can be controlled within the two-phase four-wire stepper motor.
4. Released the digital IO interface, easy to connect to other modules, such as ENDSTOP.
5. Released the I2C interface, you can connect to the LCD I2C or other I2C module.
6. Power DC5V interface, 7.5-12V voltage input.
7. GRBL compatible
8. For Worked with aduino nano.

Technical parameters

CH340G Replace FT232RL

8 analog inputs ports : A0-A7

14 Digital input/output ports:TX,RX.D2-D13

6 PWM ports: D3 ,D5,D6,D9 ,D10 , D11

1 pairs ofTTL level serial transceiver ports RX /TX

Using Atmega328p-au MCU

There is bootloader installed in it

Support USB download and Power
Support for external 5V- 12V DC power

supplySupport power supply by 9v battery

Support ISP download
