SPECIFICATIONS

Brand Name: CNC

Certification: CE

Choice: yes

Contact Load: High Power

Model Number: SUL181d

Origin: Mainland China

Power Source: Ac

Theory: Time Relay

Use: General Purpose

Voltage: 110V~230V

semi_Choice: yes

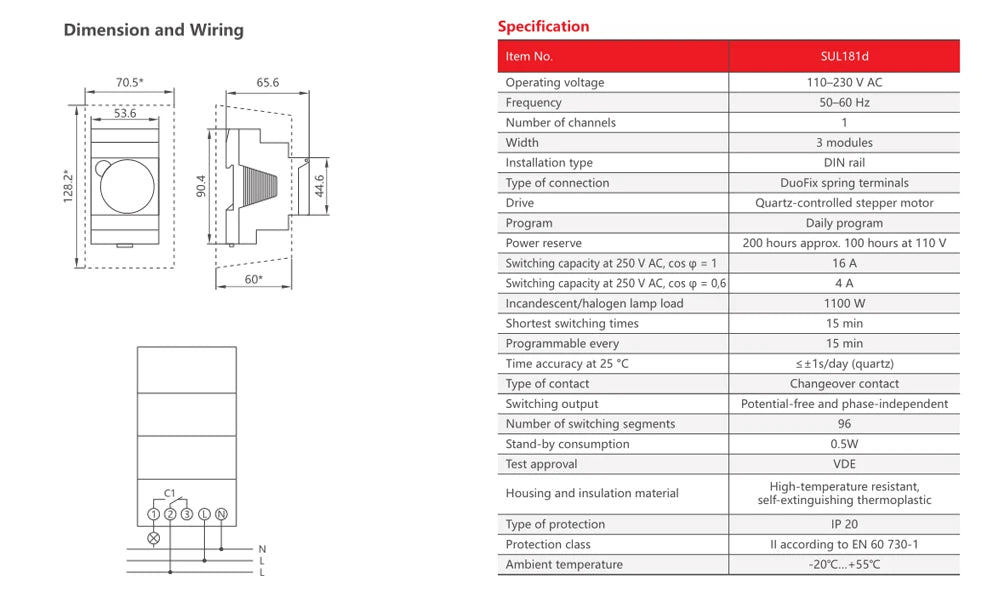

Description

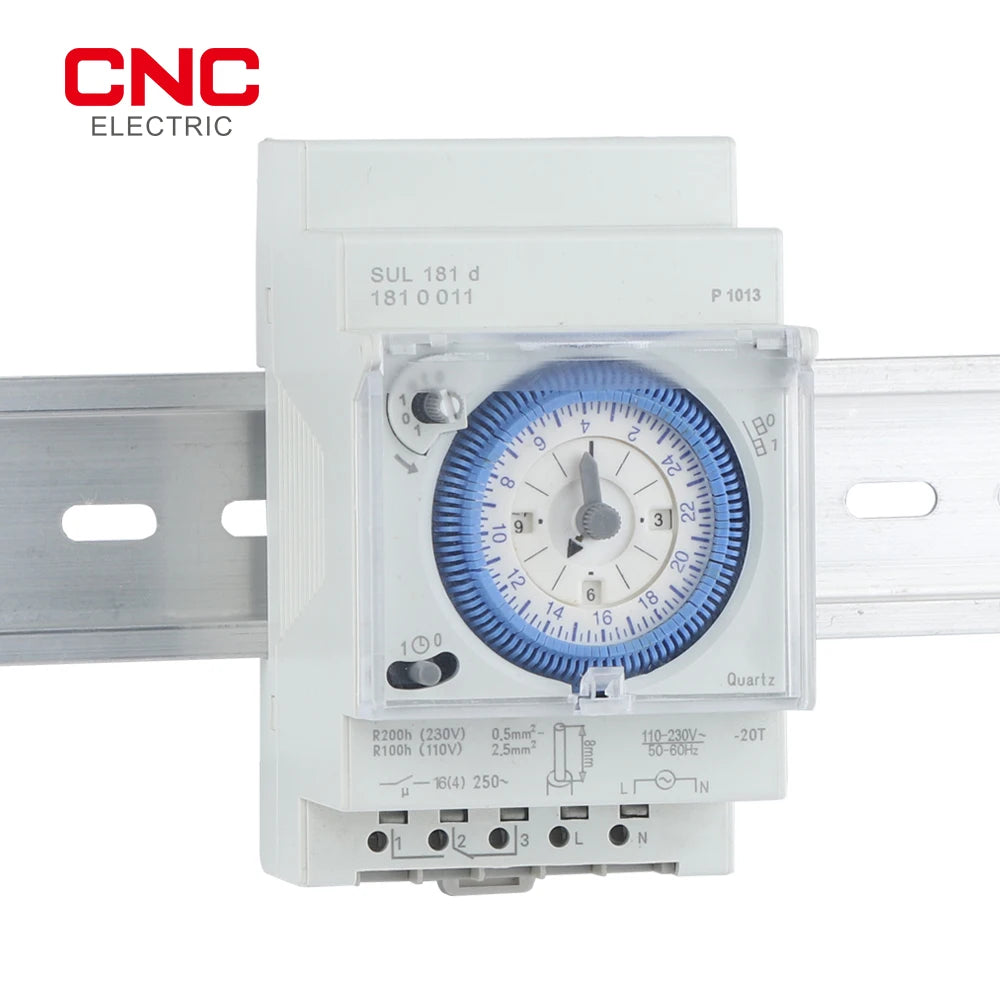

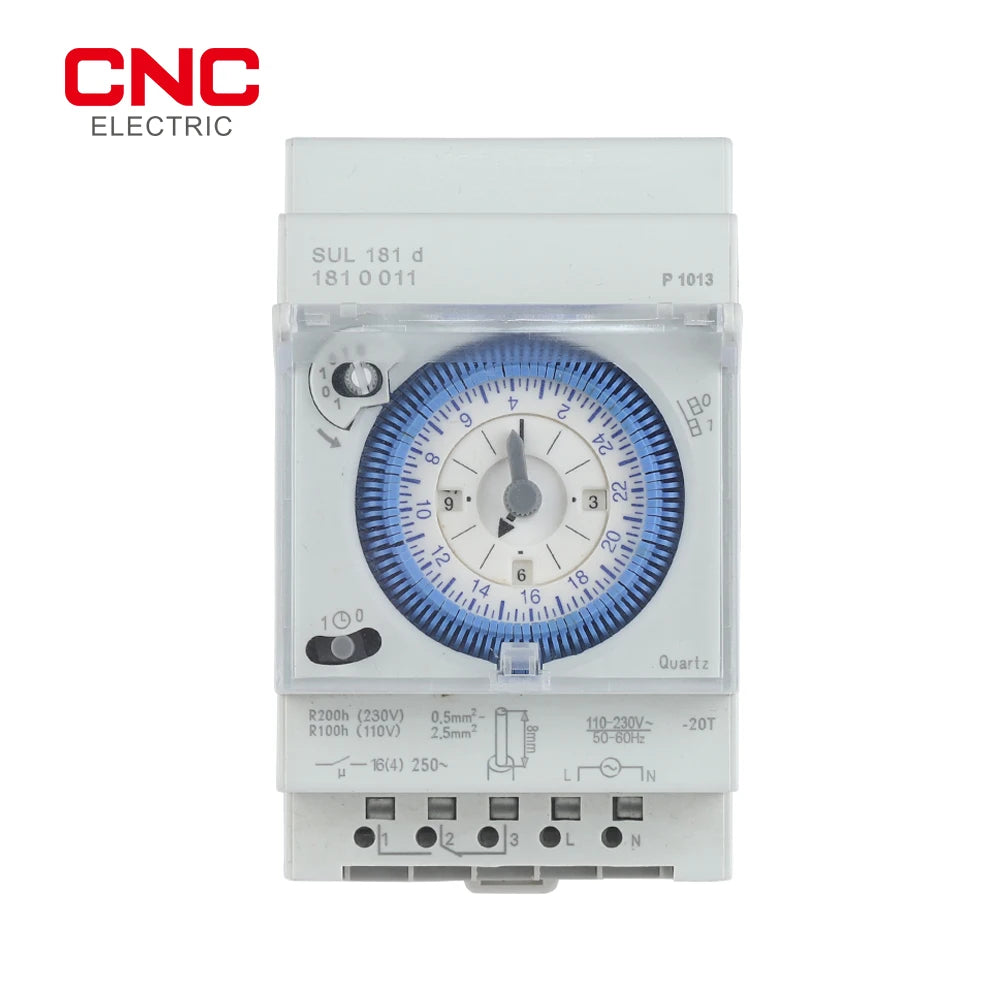

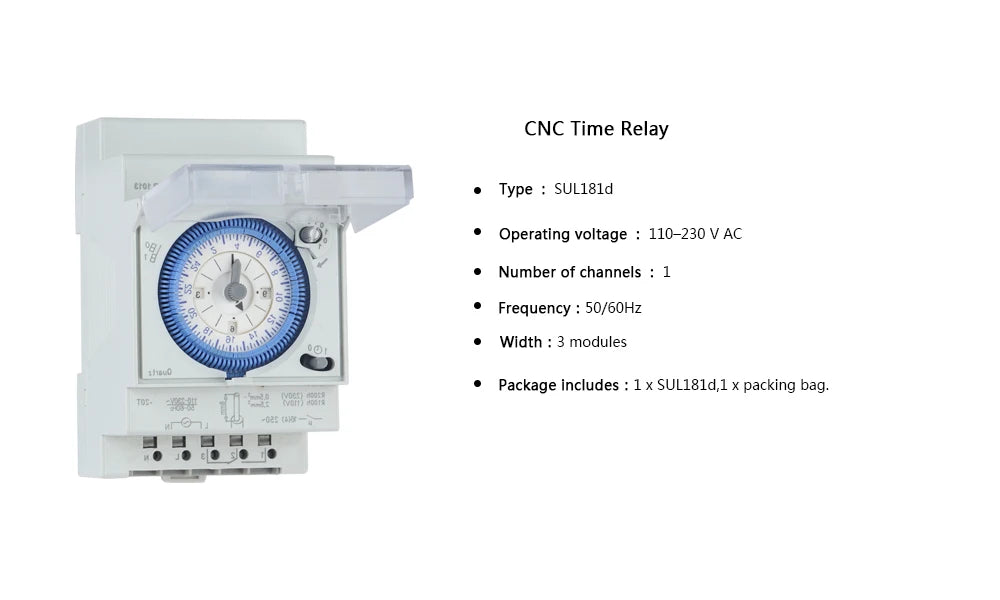

Product name：Mechanical time Switch
Product model：SUL181d
Prower consumption：≤1W
Timing error：≤2S/day
Rated voltage：110~230Vac

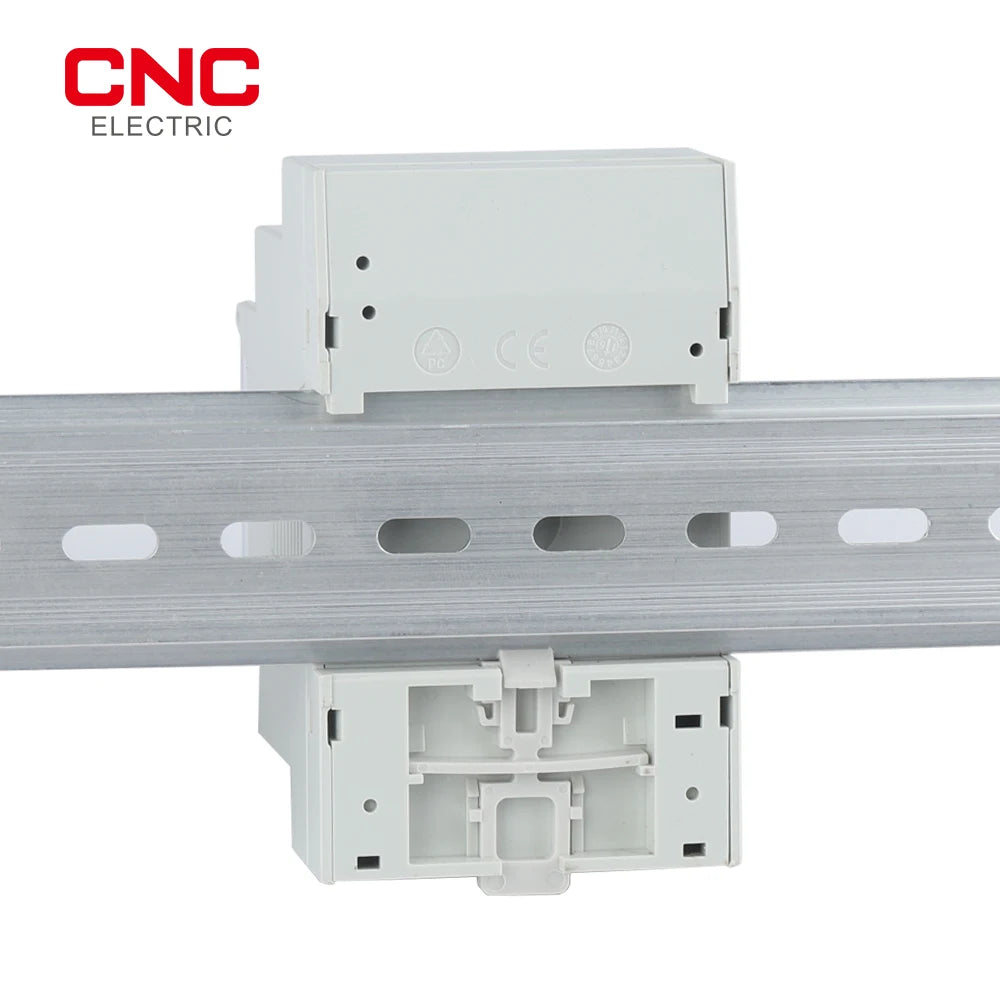

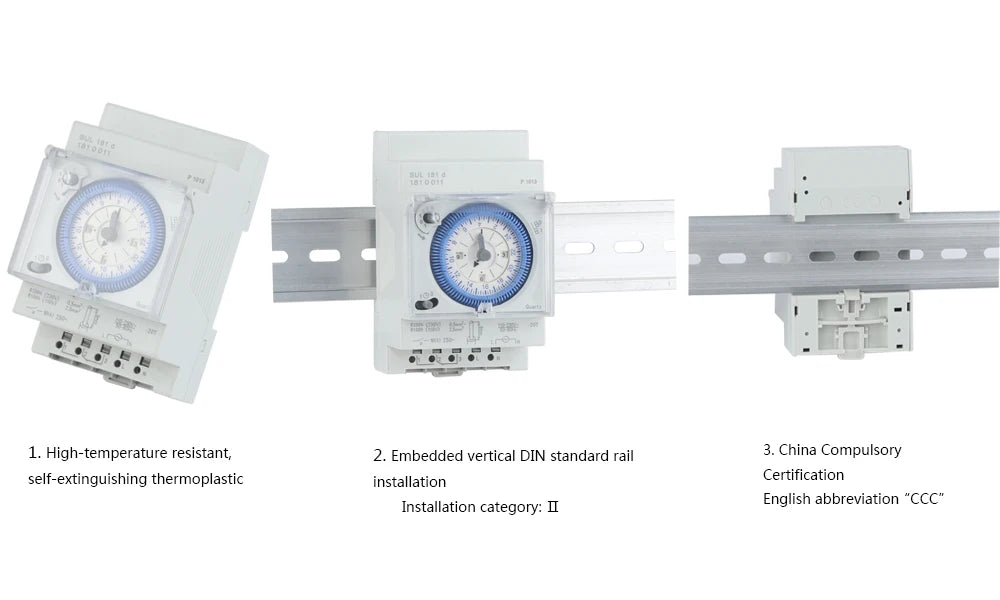

Installation：Rail installstion
Load capacity：16A
Control time：15min≤t≤24h

Feature

1.Analogue time switch.
2.1 channel.
3.Daily program.
4.With power reserve (NiMH rechargeable battery).
5.96 switching segments.
6.Quartz controlled.
7.Shortest switching time: 15 minutes.
8.Clock hands for time display and in addition 12/24 hour recognition.
9.Simple summer/winter time correction.
10.Time can be changed clockwise or anti-clockwise.
11.DuoFix spring terminals.
12.For 2 conductors each.
13.Wire or strand (with or without wire end sleeve).
14.Wire diameter: 0.5 - 2.5 mm².
15.Button for releasing plug-in connection.

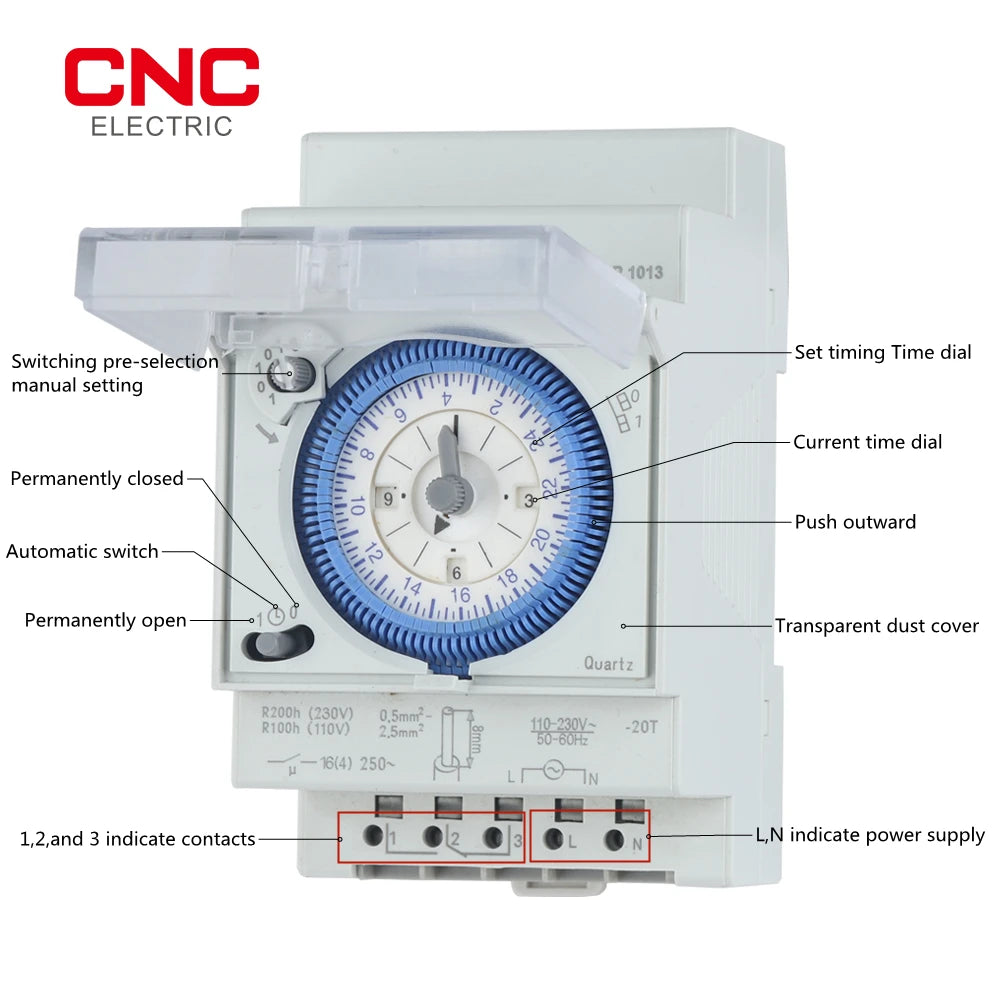

16.Switching preselection.
17.Manual switch with 3 positions: Continuous ON/AUTO/continuous OFF.
18.Switching status display.
