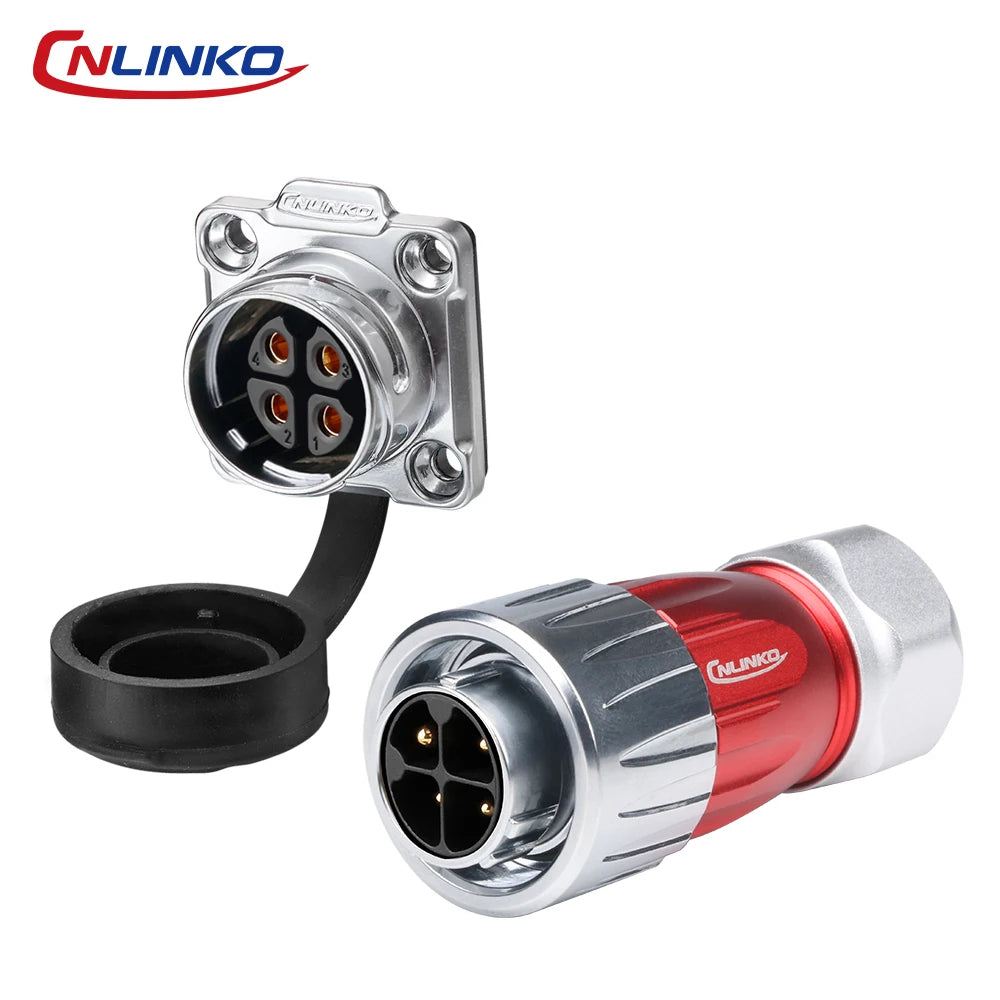

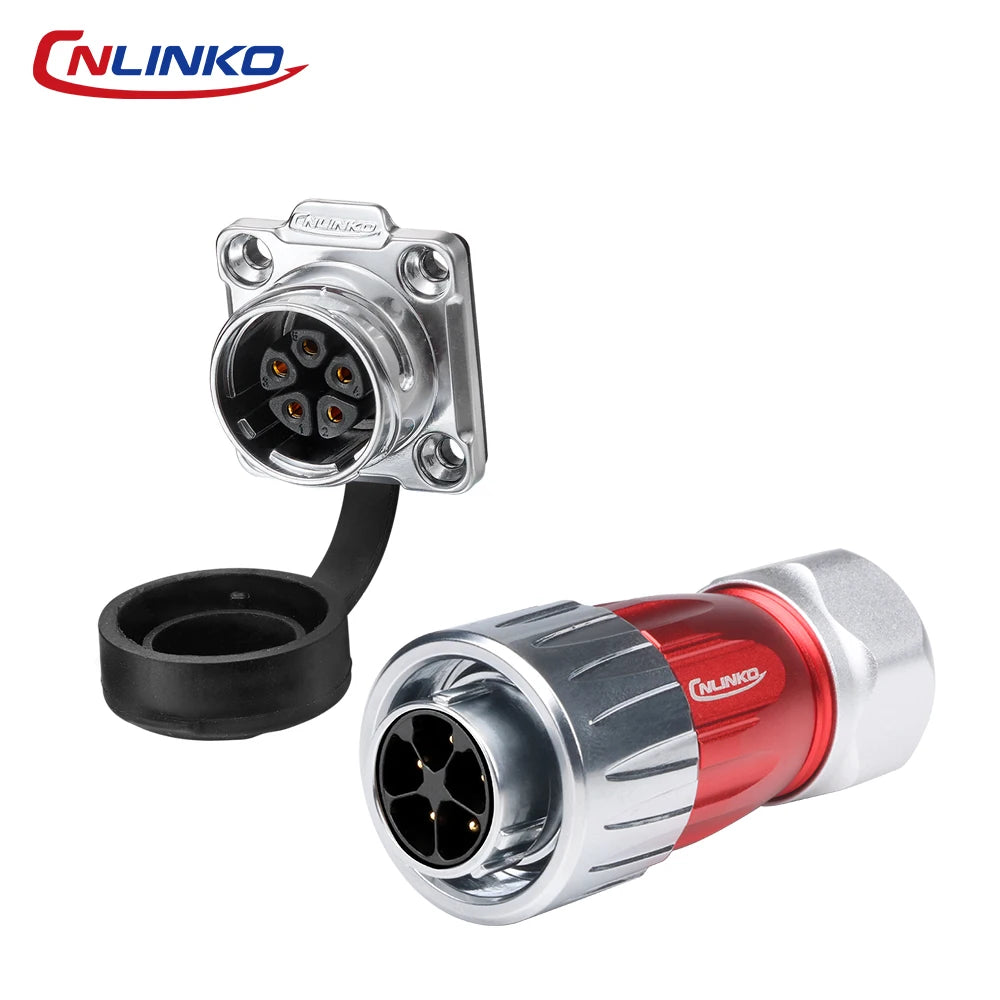

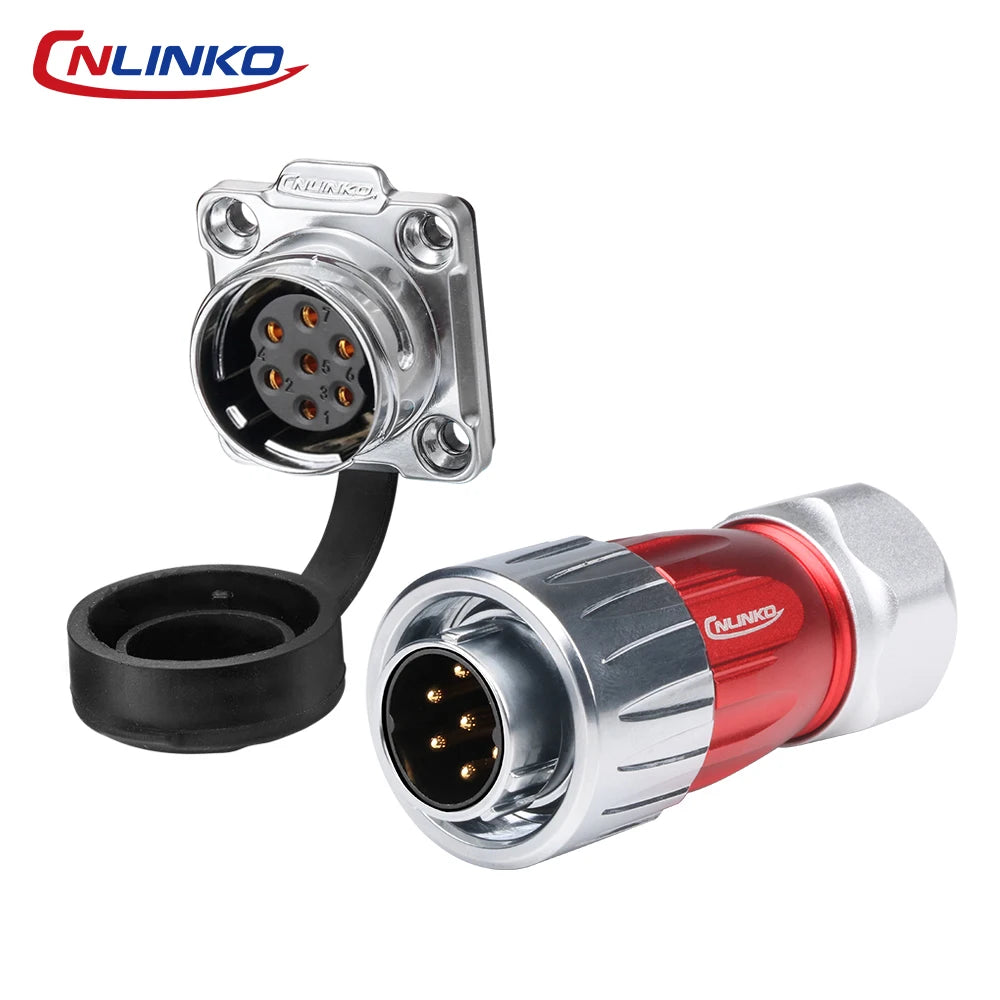

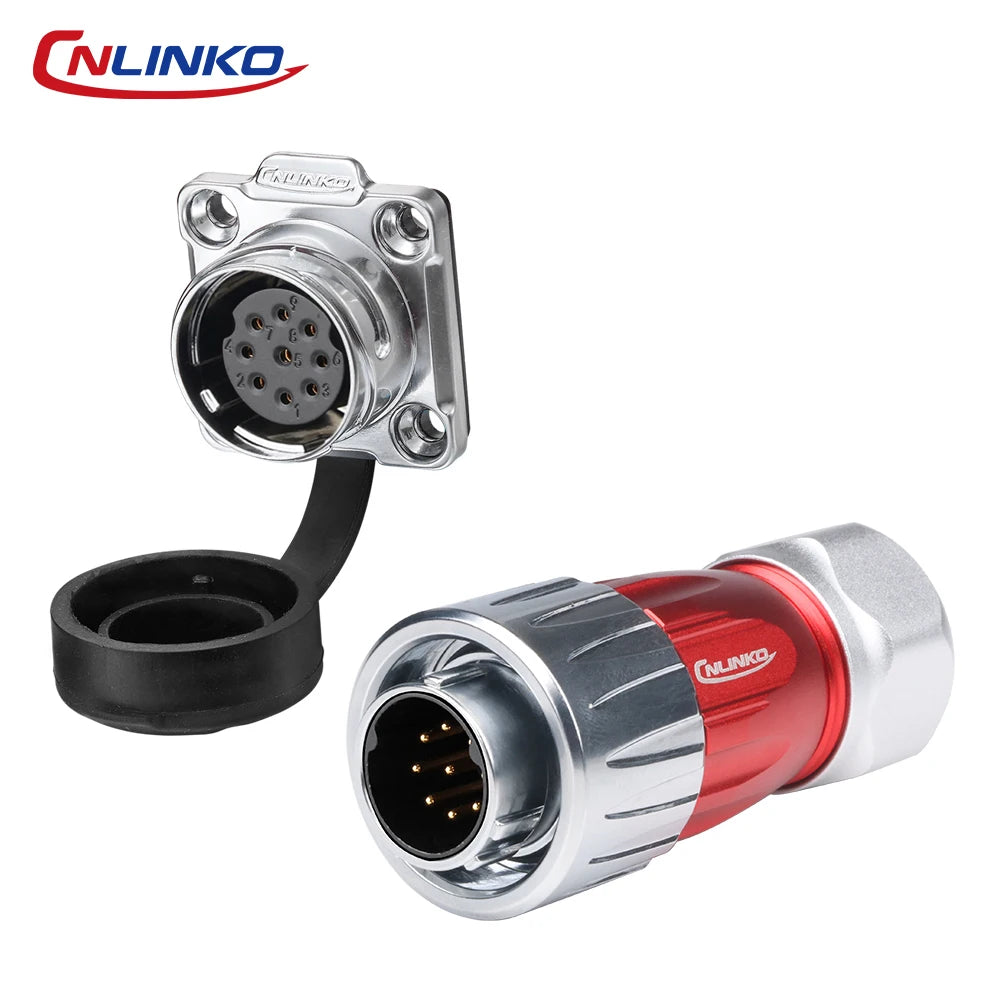

CNLINKO DH20 Electrical Connector Industrial Waterproof IP68 Soldering Wire Heavy Duty Metal Connector for Construction & Mining
12 Pin / Panel Connector
$85.80
Sale price
$85.80
Regular price
$0.00
Skip to product information
CNLINKO DH20 Electrical Connector Industrial Waterproof IP68 Soldering Wire Heavy Duty Metal Connector for Construction & Mining
$85.80
Sale price
$85.80
Regular price
$0.00
Description

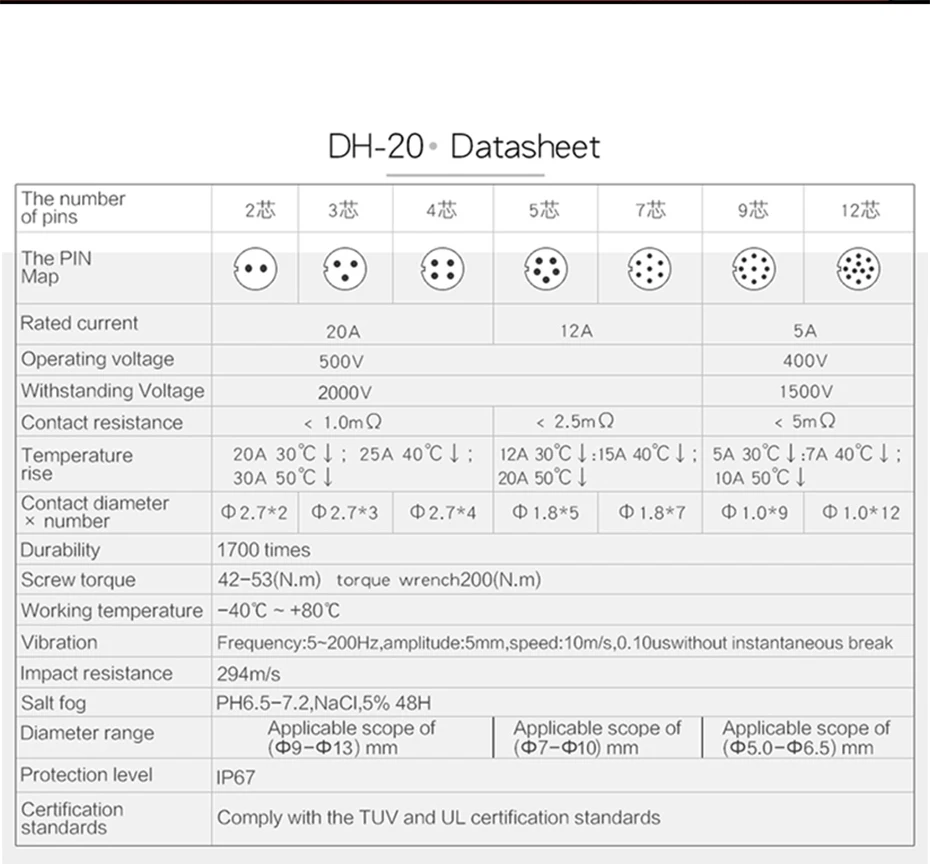

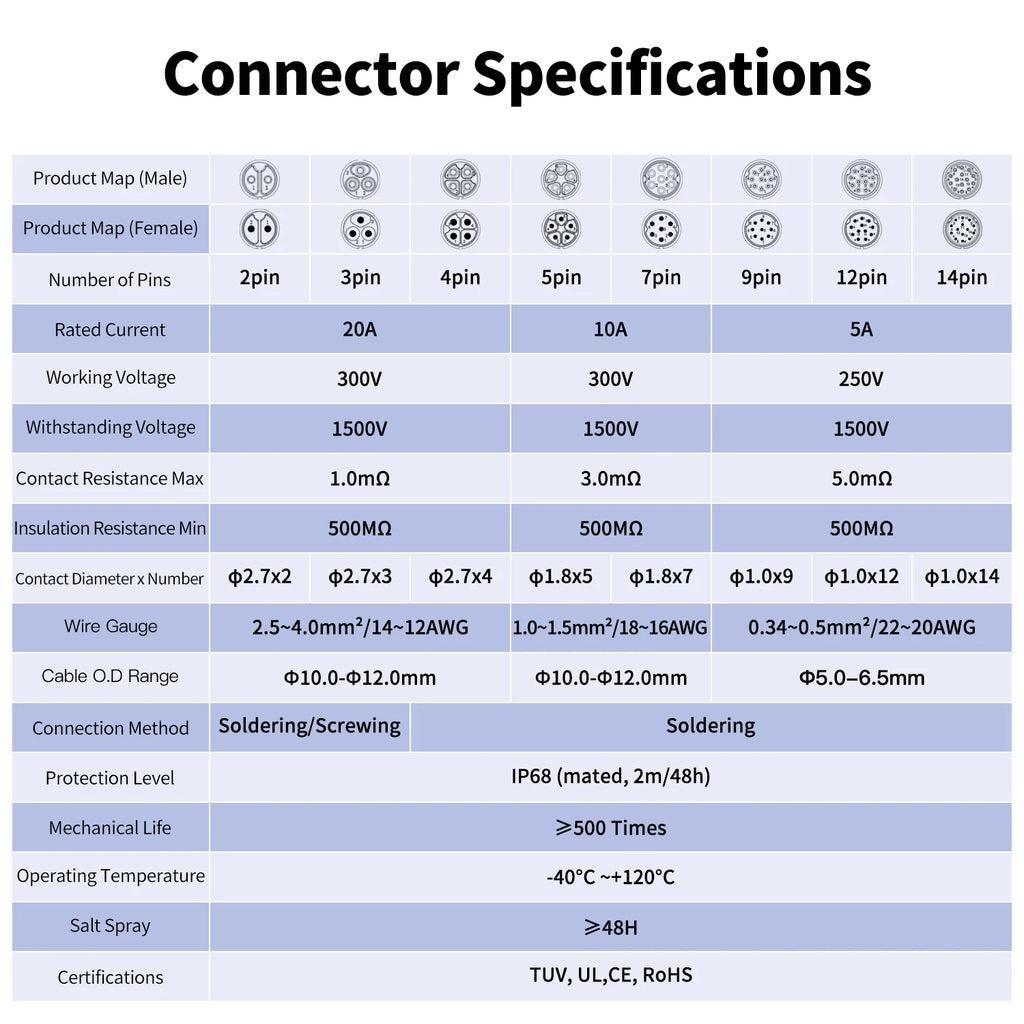

SPECIFICATIONS
Assembly Cable: Soldering
Brand Name: cnlinko
Cable diameter(2~7pin): O.D 10.0-12.0mm
Cable diameter(9~12pin): O.D 5.0-6.5mm
Certification: CE,RoHS,UL,weee
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Insulation resistance Min.: 500MΩ
Machanical life Min.: 500 cycles
Model Number: DH-20-C04PE-03-001A+DH-20-J04SX-03-401A
Operating temperature: -40℃~+120℃
Origin: Mainland China
Protection level: IP68(2m/48h)

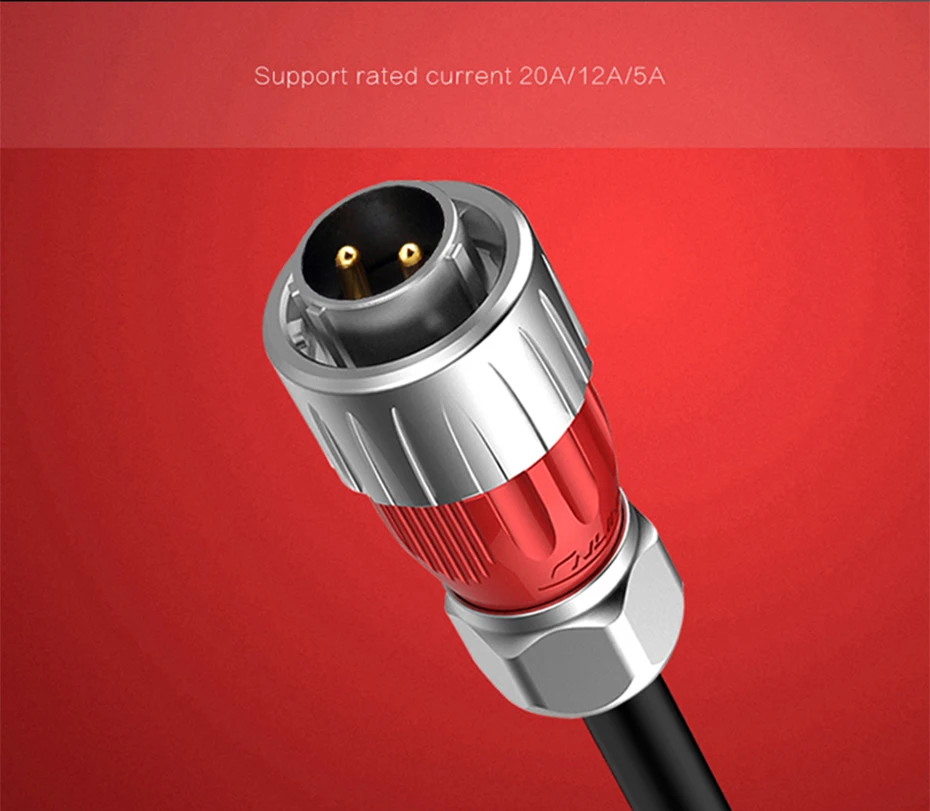

Rated current(2~4Pin): 20A
Rated current(5~7Pin): 10A
Rated current(9~12Pin): 5A
Rated voltage(2~7pin): 300V AC
Rated voltage(9~12pin): 250V AC
Salt spray Min.: 48H
Voltage: 自定义编辑
Wire guage(2~4pin): 2.5~4.0mm²/14-12AWG
Wire guage(5~7pin): 1.0~1.5mm²/18-16AWG
Wire guage(9~12pin): 0.34~0.5mm²/22-20AWG
Withstand voltage: 1500V AC
Features:
High Voltage Resistance
Designed for high voltage applications, this connector withstands Above 50Vac or 75Vdc, ensuring safety and reliability in construction and mining environments.
Industrial Grade Soldering Wire
Featuring industrial grade soldering wire, this connector ensures secure and reliable connections, enhancing overall system performance.

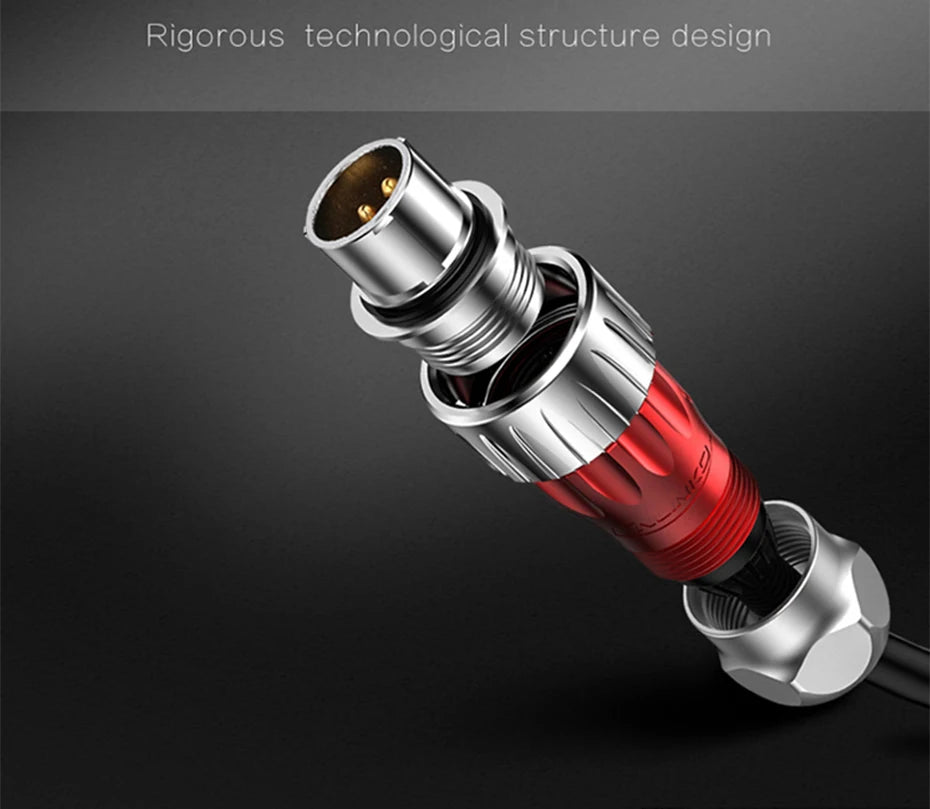

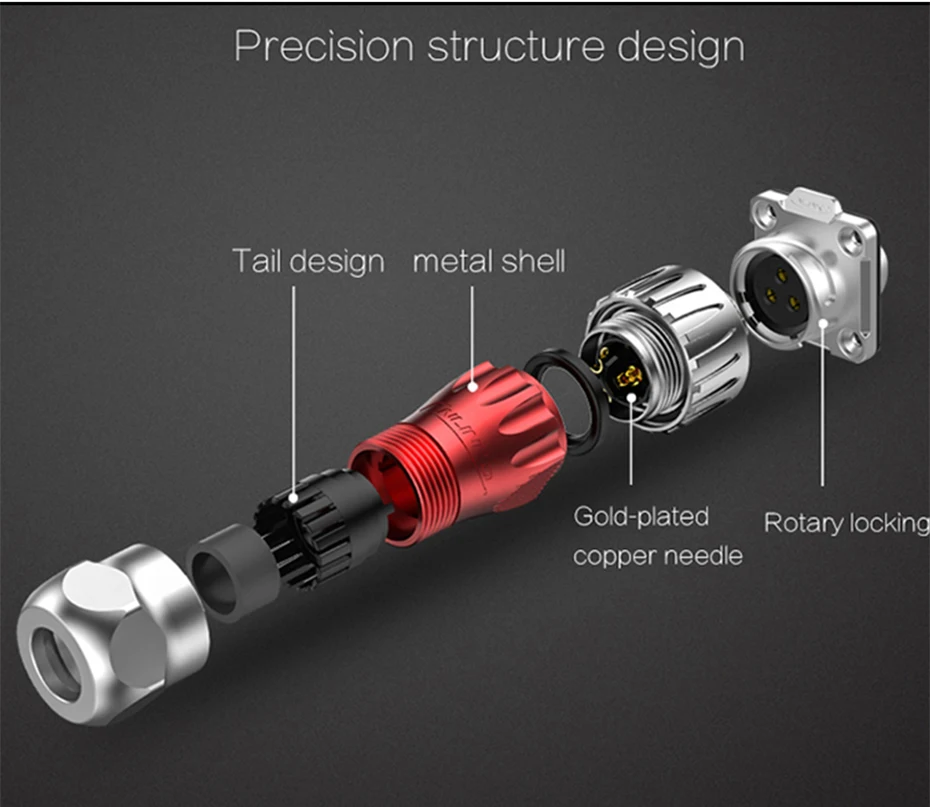

Heavy Duty Metal Construction

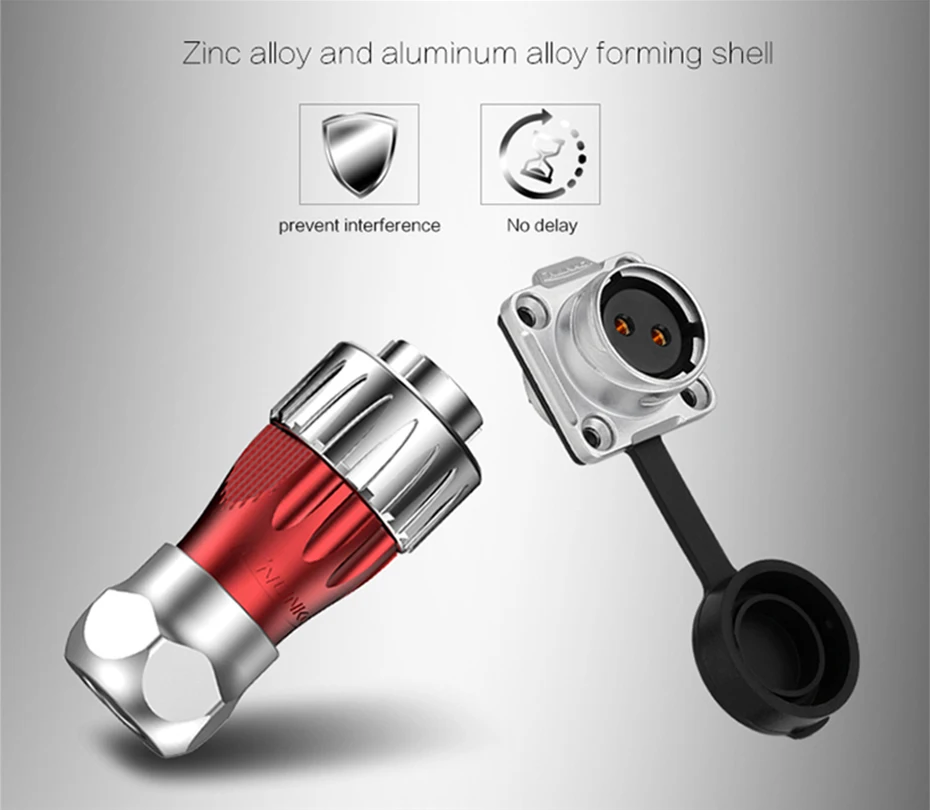

Constructed from heavy-duty metal, this connector offers superior durability and longevity, perfect for demanding industrial use.

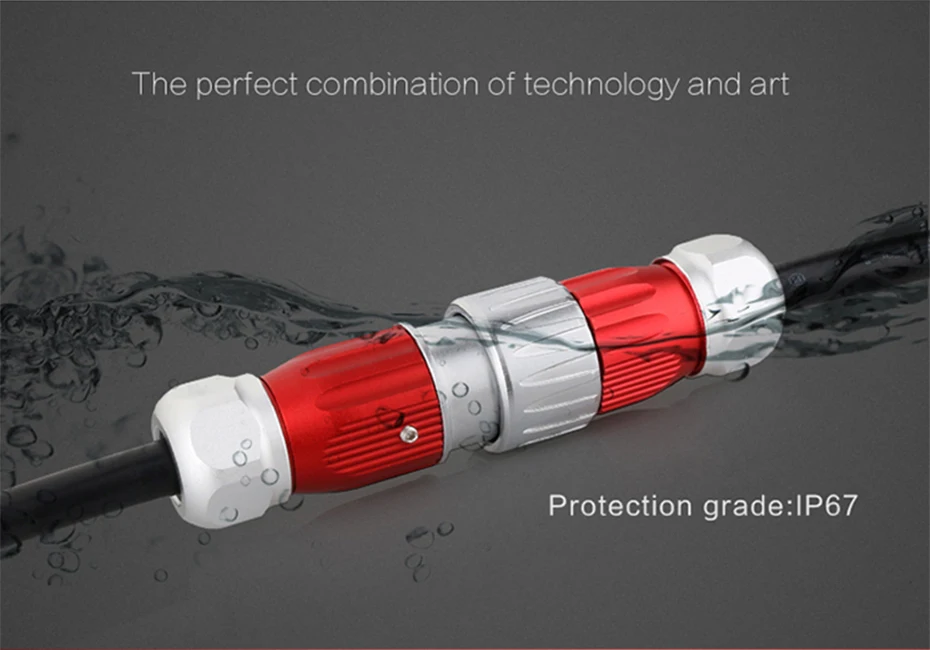

Waterproof IP68 Rating

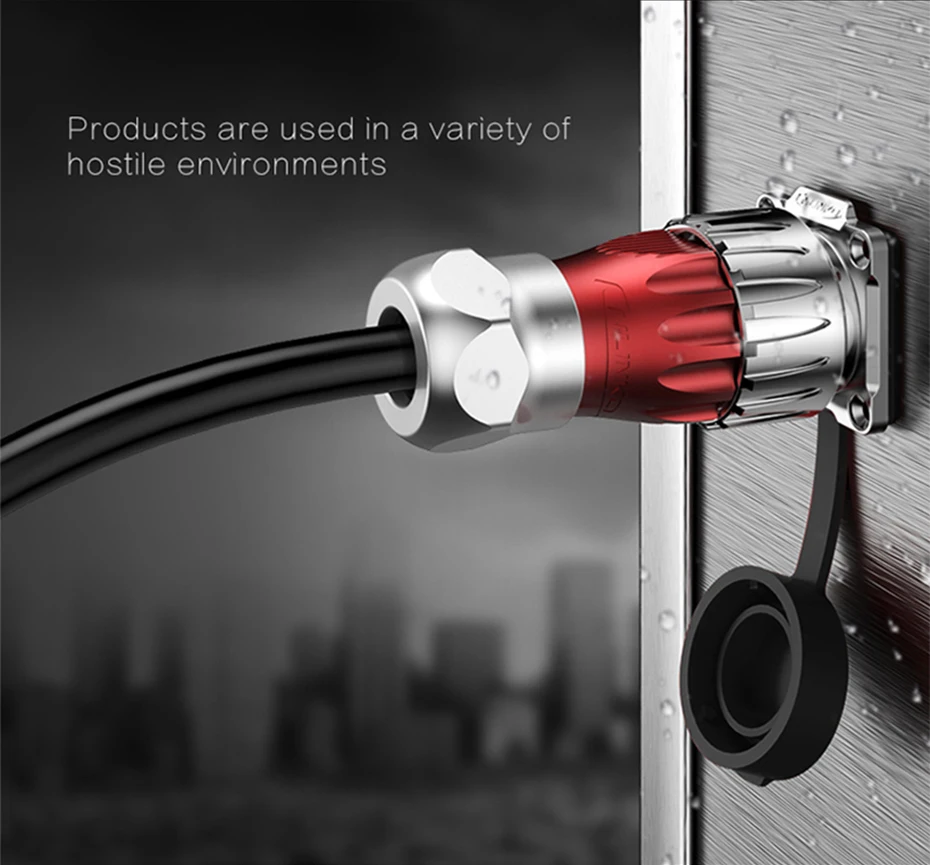

With an IP68 waterproof rating, this connector is sealed against dust and water, making it ideal for harsh industrial conditions.
CE Certified
This connector is CE certified, guaranteeing compliance with European safety standards and ensuring user safety.
