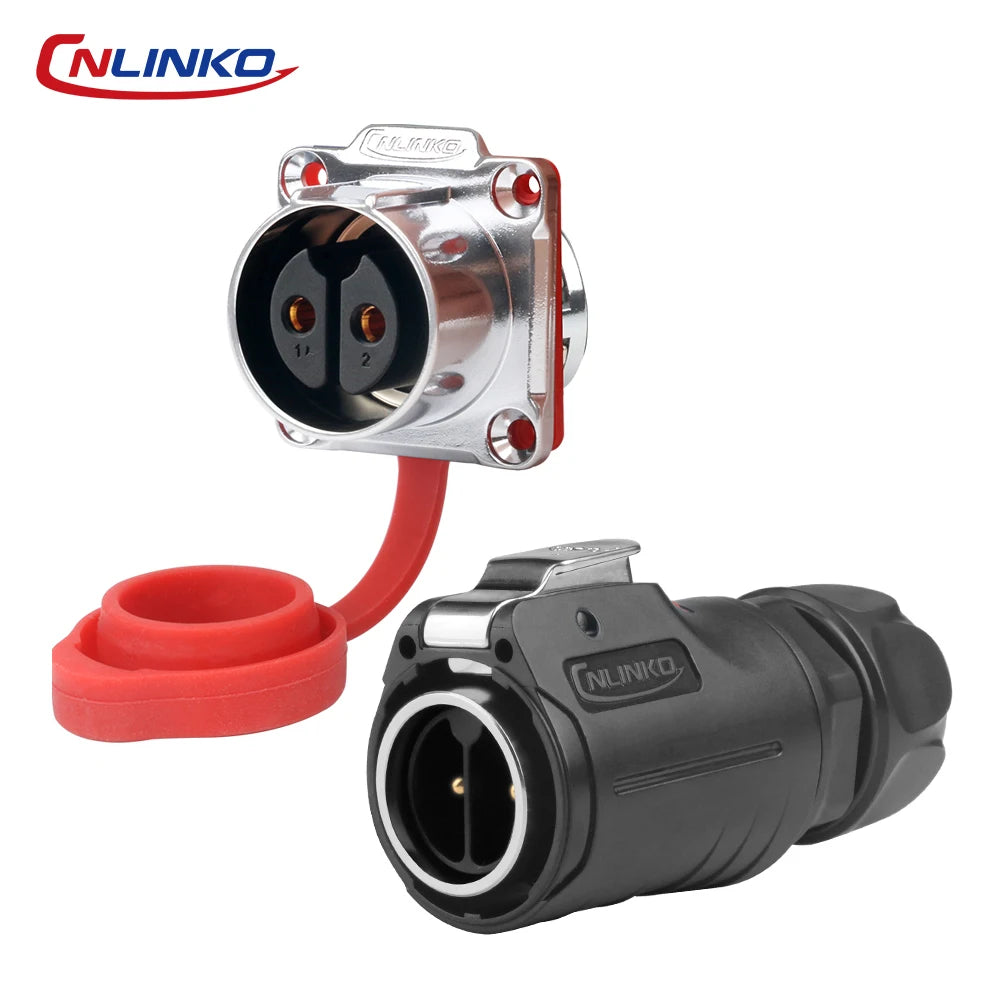

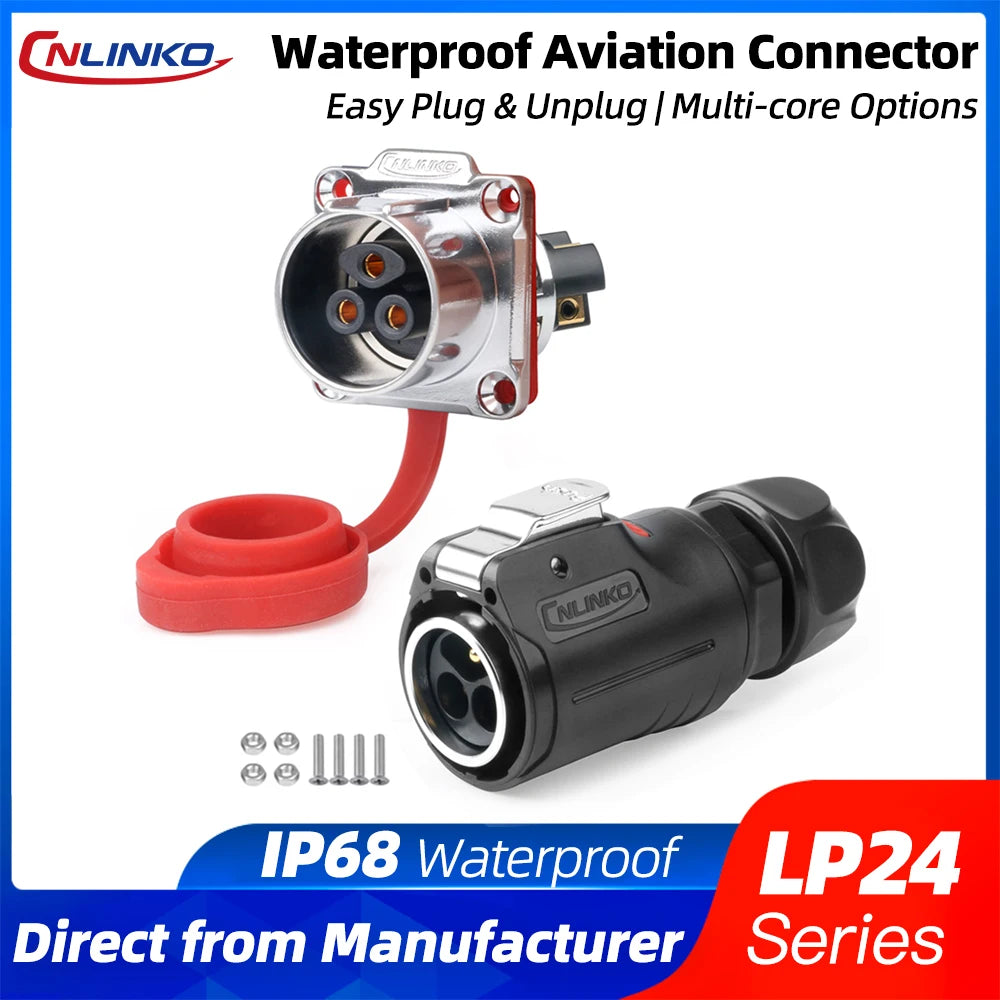

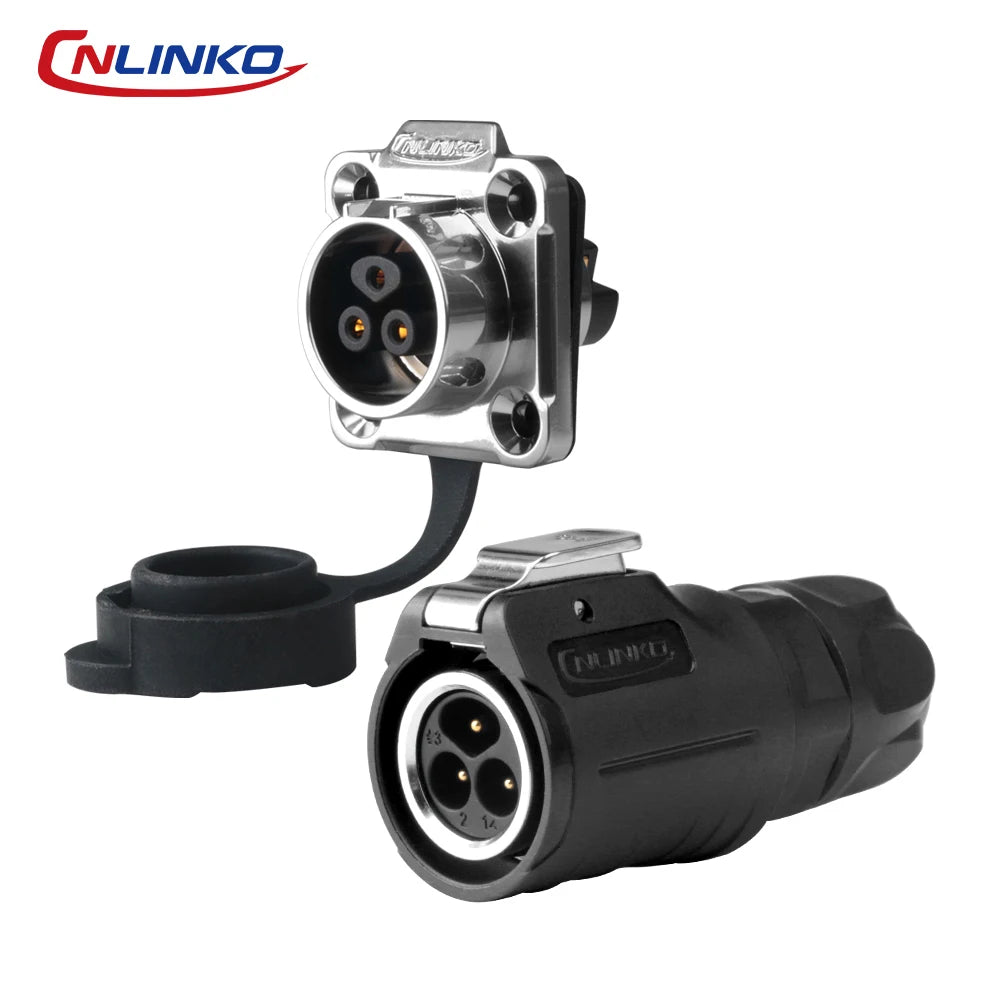

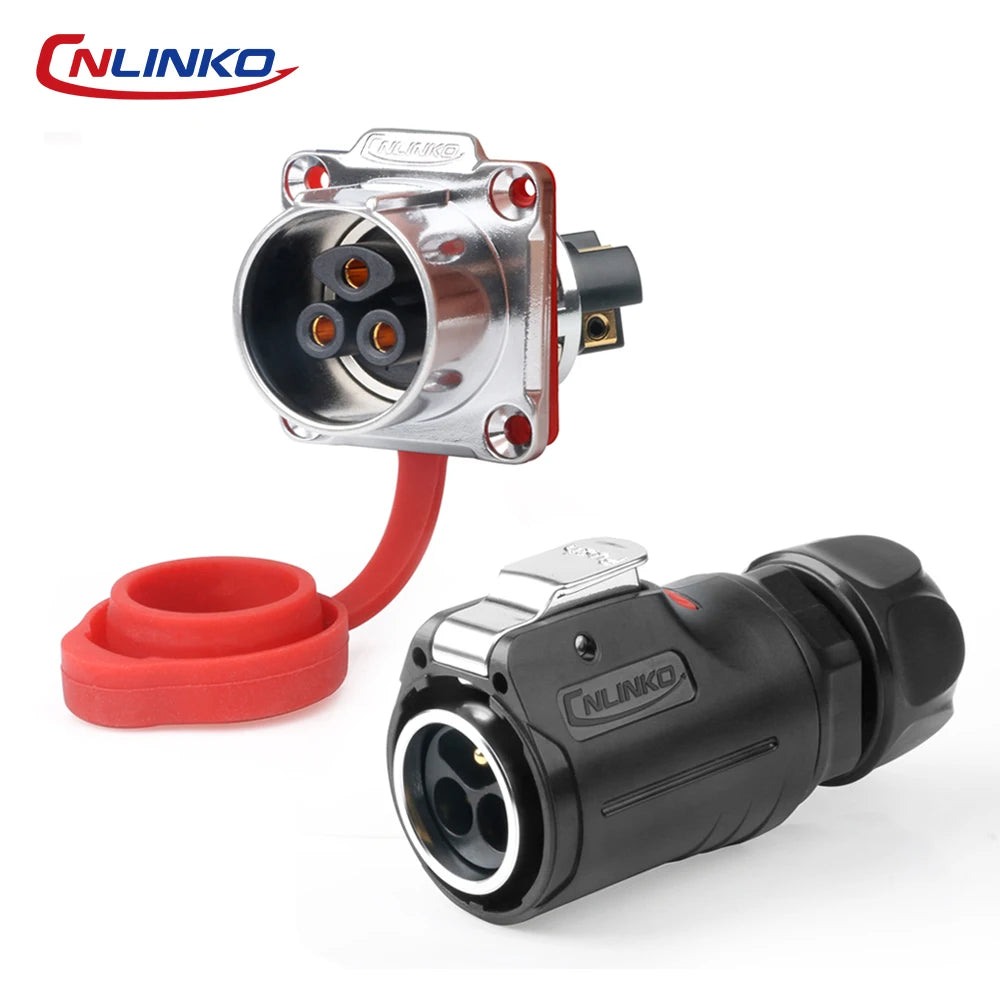

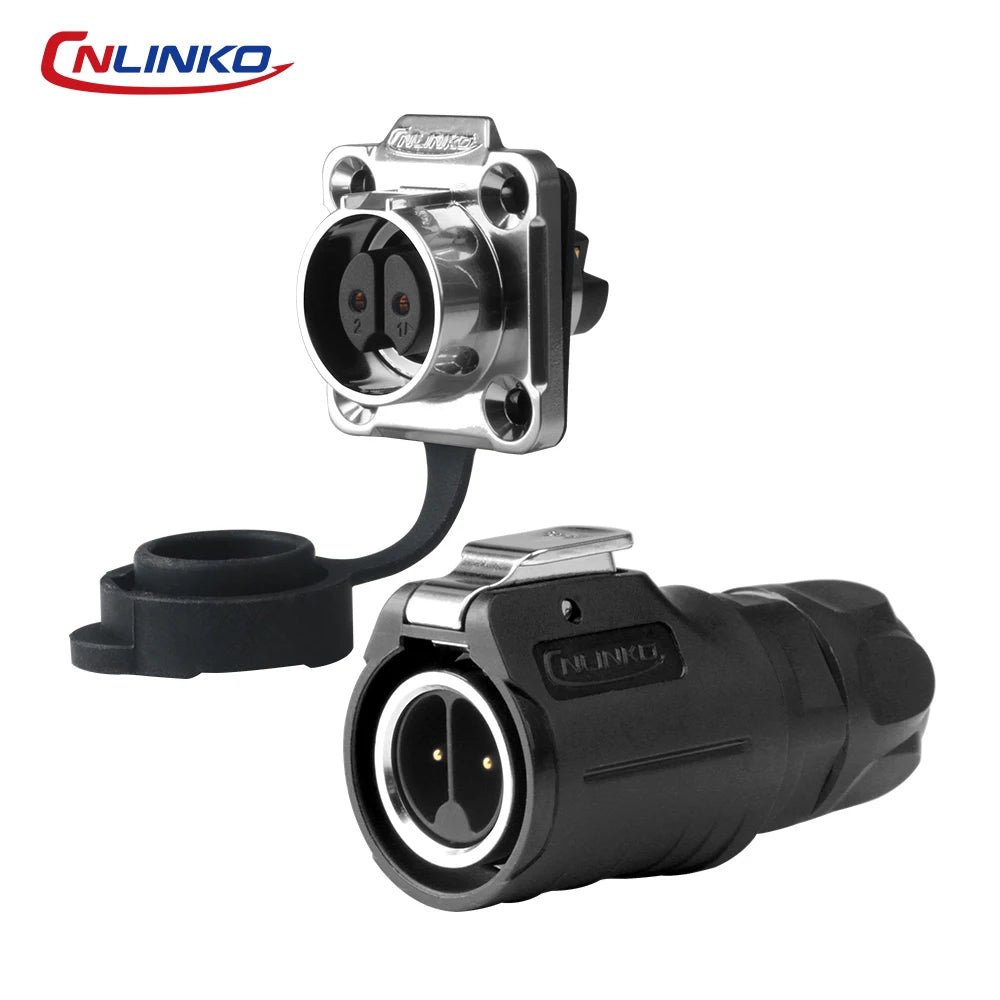

CNLINKO LP Series M12 M16 M20 M24 Waterproof Industrial Connector Screw-in Terminal Fast Plug Solderless Power Cable Connectors
LP20 3 Pin
$64.44
Sale price
$64.44
Regular price
$0.00
Skip to product information
CNLINKO LP Series M12 M16 M20 M24 Waterproof Industrial Connector Screw-in Terminal Fast Plug Solderless Power Cable Connectors
$64.44
Sale price
$64.44
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: cnlinko
Cable diameter(LP12): O.D 5.0-6.0mm
Cable diameter(LP16): O.D 7.0-9.0mm
Cable diameter(LP20): O.D 10.0-12.0mm
Cable diameter(LP24): O.D 10.5-14.0mm
Certification: CE,RoHS,UL,weee

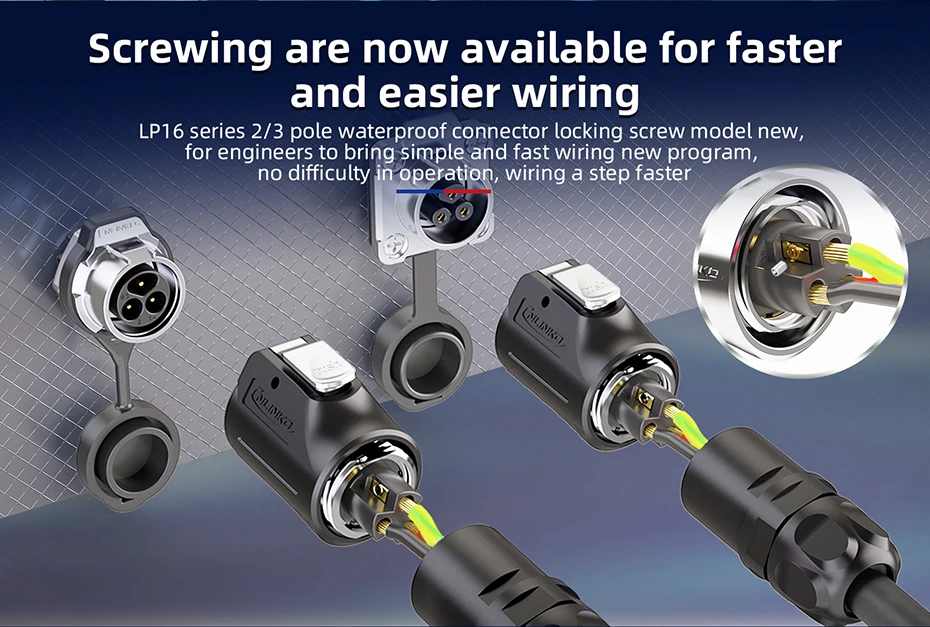

Connection method: Screwing
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Insulation resistance Min.: 500MΩ
Machanical life Min.: 500 cycles
Model Number: LP Series Screw-in
Operating temperature: -25℃~+85℃
Origin: Mainland China
Protection level: IP68(2m/48h)
Rated current: 5A~25A
Rated voltage: 125V~500V AC
Salt spray Min.: 48H
Voltage: 自定义编辑
Wire guage(LP12): 0.34~0.5mm²/22-20AWG
Wire guage(LP16): 1.0~1.5mm²/18-16AWG
Wire guage(LP20/LP24): 2.5~4.0mm²/14-12AWG
Withstand voltage: 1500V/2000V AC

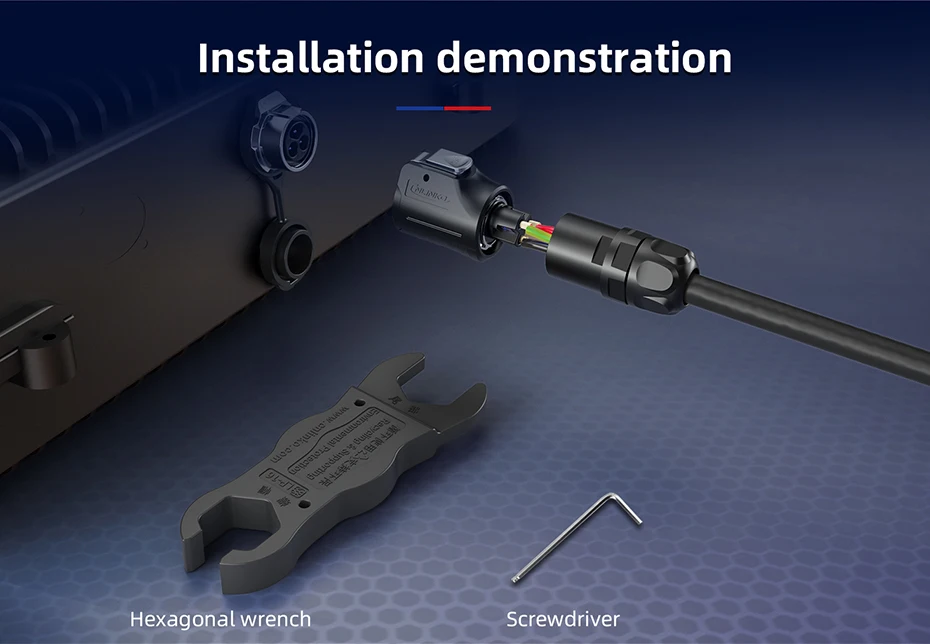

Note:To prevent losing the screws for the product, we have pre-inserted them into the screw holes. Just gently unscrew them and they're ready to use
