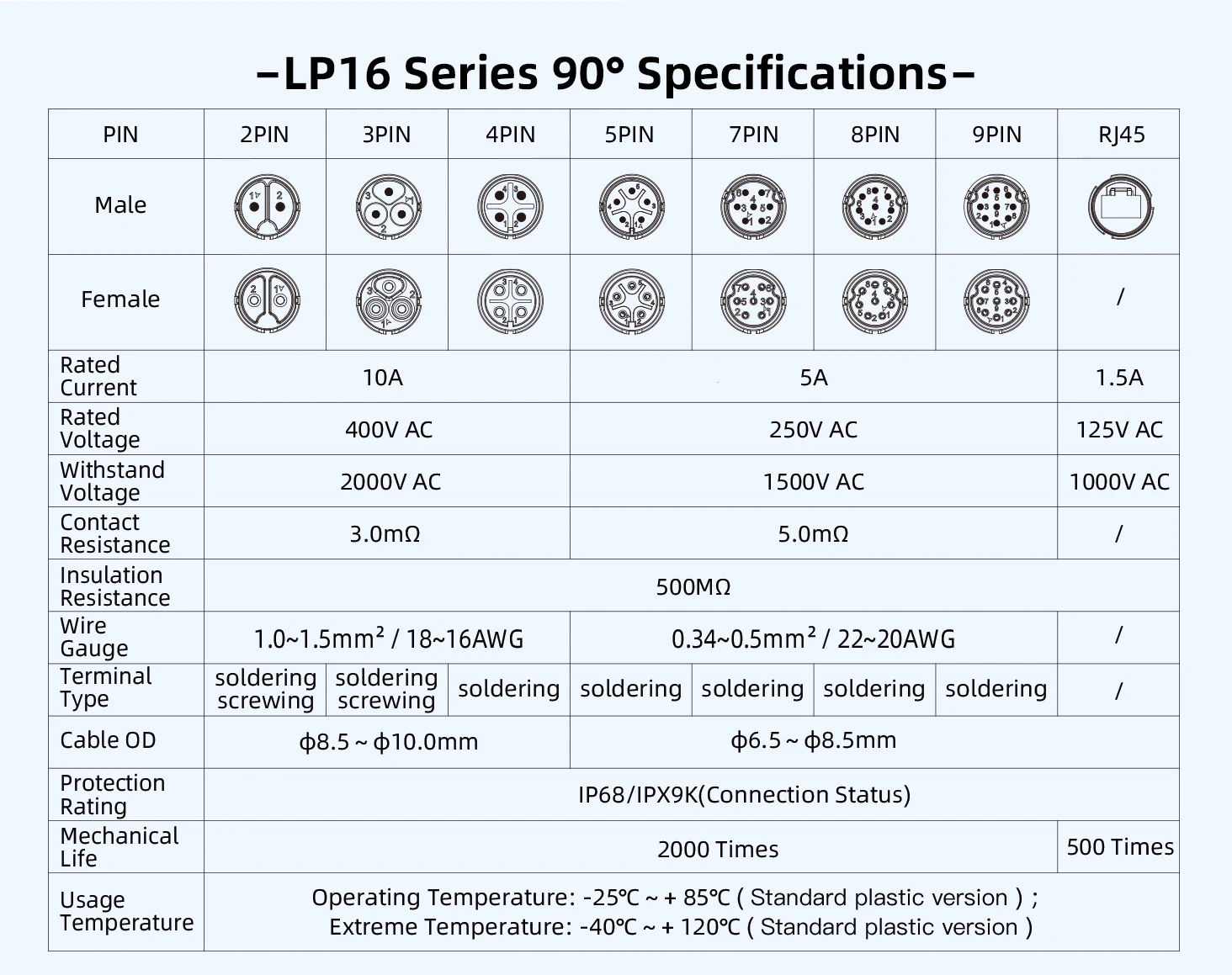

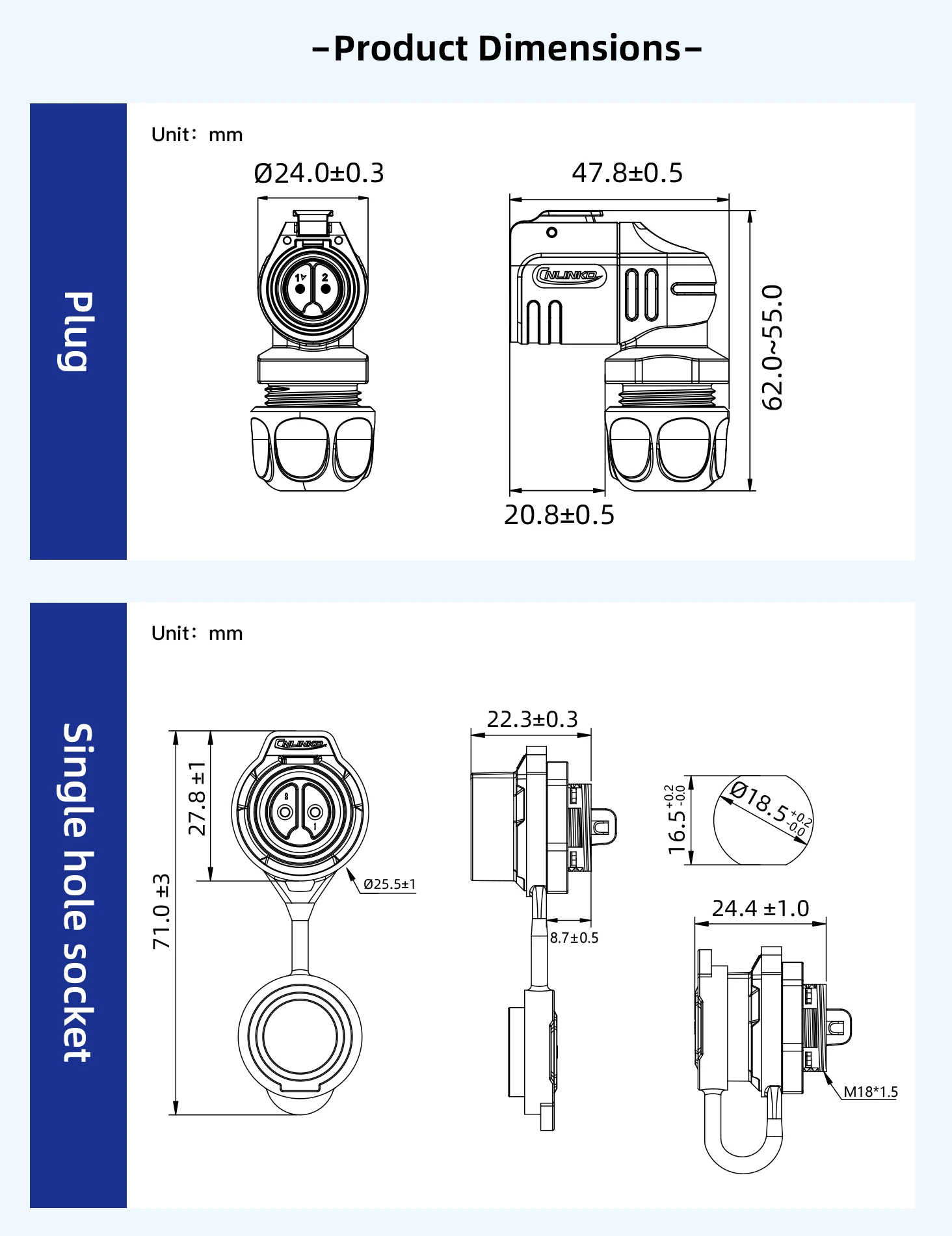

SPECIFICATIONS

Assembly Cable: Soldering

Brand Name: cnlinko

Cable O.D Range(2~4Pin): 8.5-10.0mm

Cable O.D Range(5~9Pin): 6.5-8.5mm

Category: Connectors

Certification: CE,RoHS,UL,weee

Contact Material: Copper Alloy(Gold Plated)

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Gender: Male+Female

Hardware Metal: Zinc Alloy

High-concerned chemical: none

Item Type: Male Plug+Female Four-hole Socket,Male Plug,Female Four-hole Socket

Mechanical Life Min.: 2000 Times

Model Number: LP-16 Semi-metal Right Angled Four-hole Socket Conenctor

Operating Temperature: -40℃~+120℃

Origin: Mainland China

Prptection Level: IP68(2m/48h)

Rated Current(2~4Pin): 10A

Rated Current(5~9Pin): 5A

Salt Spray: 48H

Shell & Insulated Parts: PBT Plastic

Size: M16

Voltage: 自定义编辑

Wire Guage(2~4Pin): 1.0~1.5mm²/ 18-16AWG

Wire Guage(5~9Pin): 0.34~0.5mm²/22-20AWG

Withstanding Voltage(2~4Pin): 2000V AC

Withstanding Voltage(5~9Pin): 1500V AC

Working Voltage(2~4Pin): 400V AC

Working Voltage(5~9Pin): 250V AC

电压: 1V 2V 4V 5V 12V 12V 等 或自定义

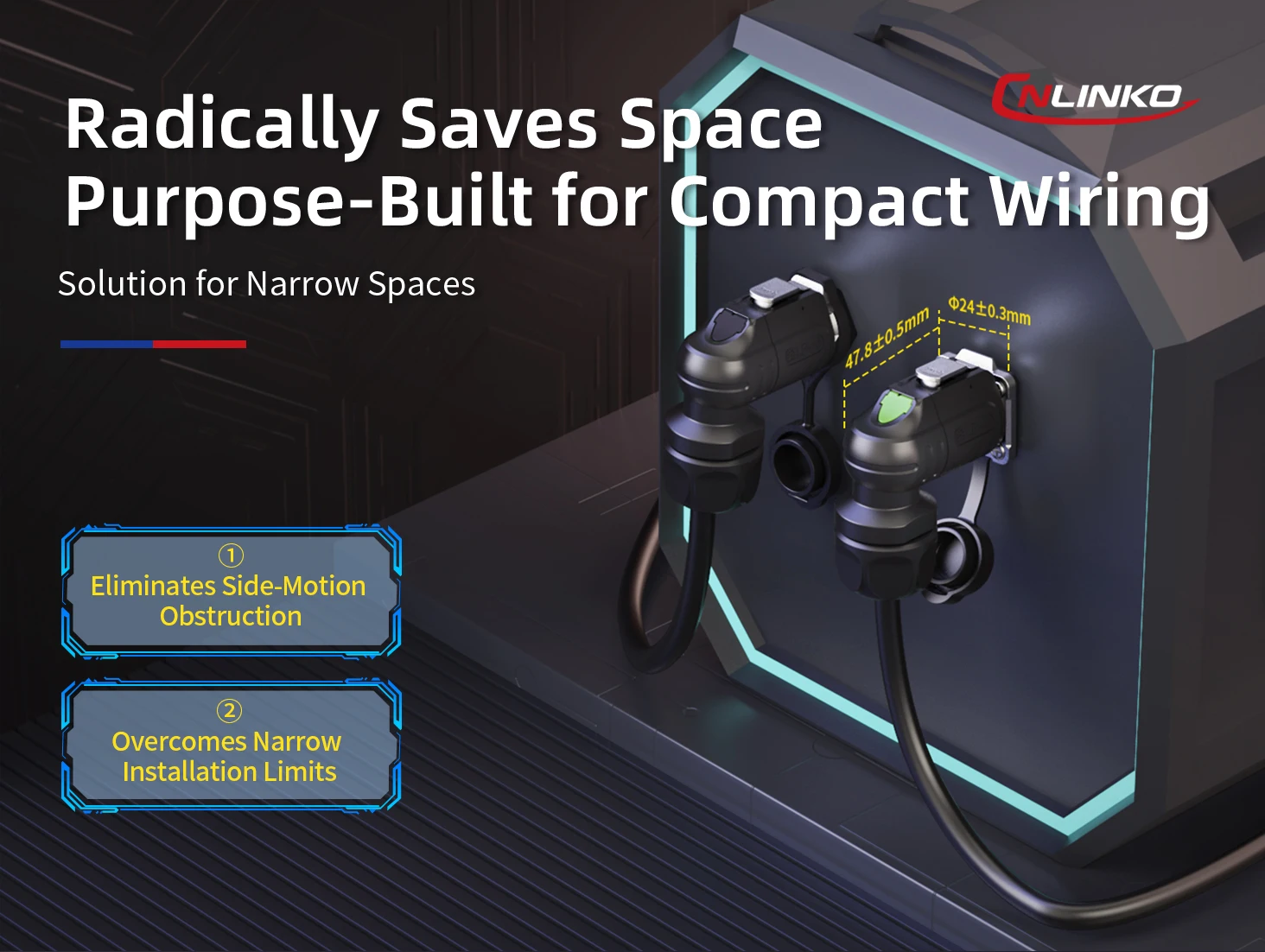

1. Space‑Saving 90° Right‑Angle Design – The 90° side‑exit structure allows cables to run parallel to the mounting surface, dramatically reducing installation depth. Ideal for tight spaces, robotic arms, and compact equipment where straight connectors cannot fit-.

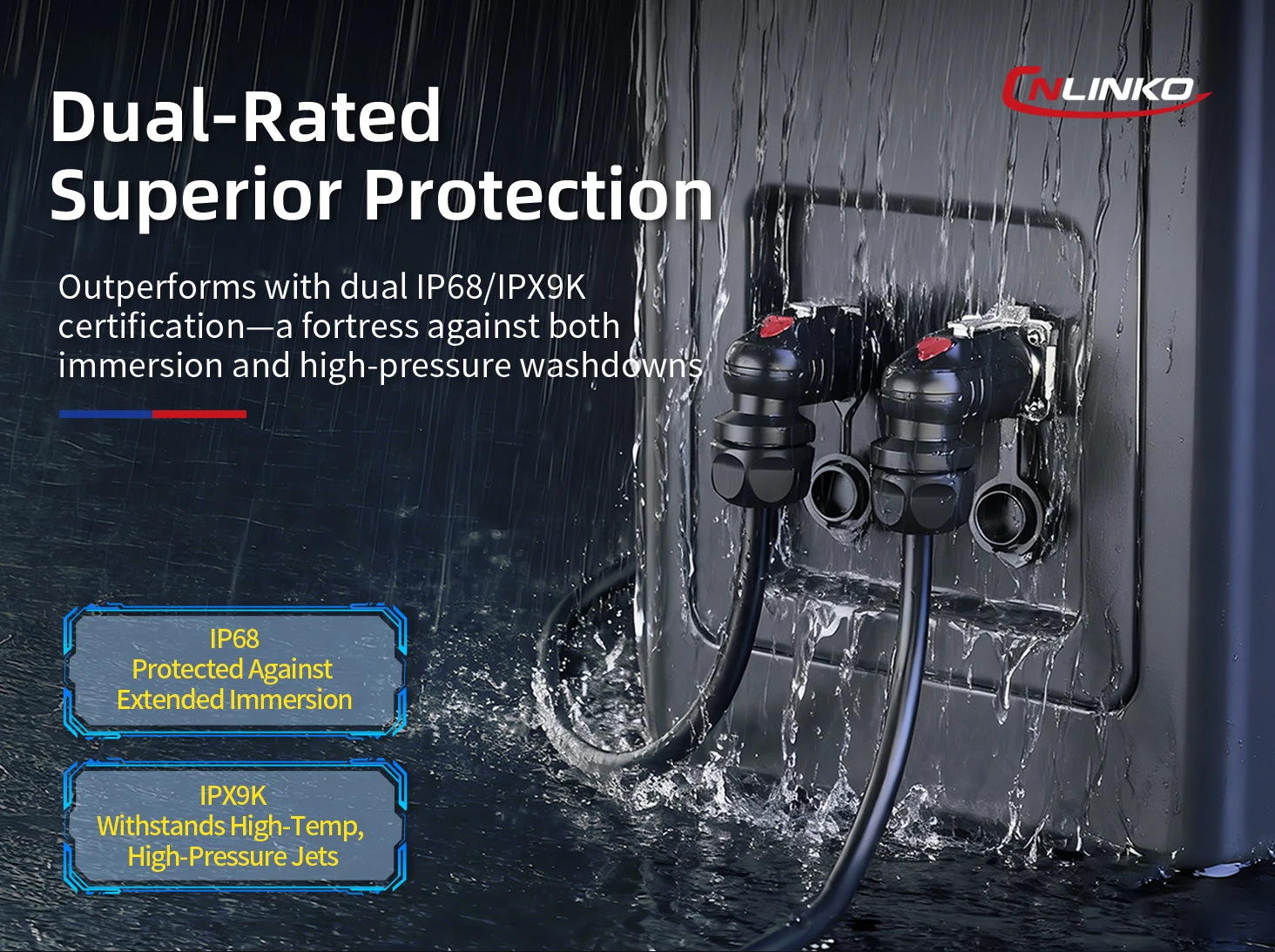

2. Robust IP68 Waterproof & Dustproof Protection – Rated IP68 when mated, this connector is completely dust‑tight and withstands continuous water immersion. It also passes IPX9K for high‑pressure, high‑temperature water jets. The dual sealing design ensures reliable performance in outdoor, marine, and harsh industrial environments.

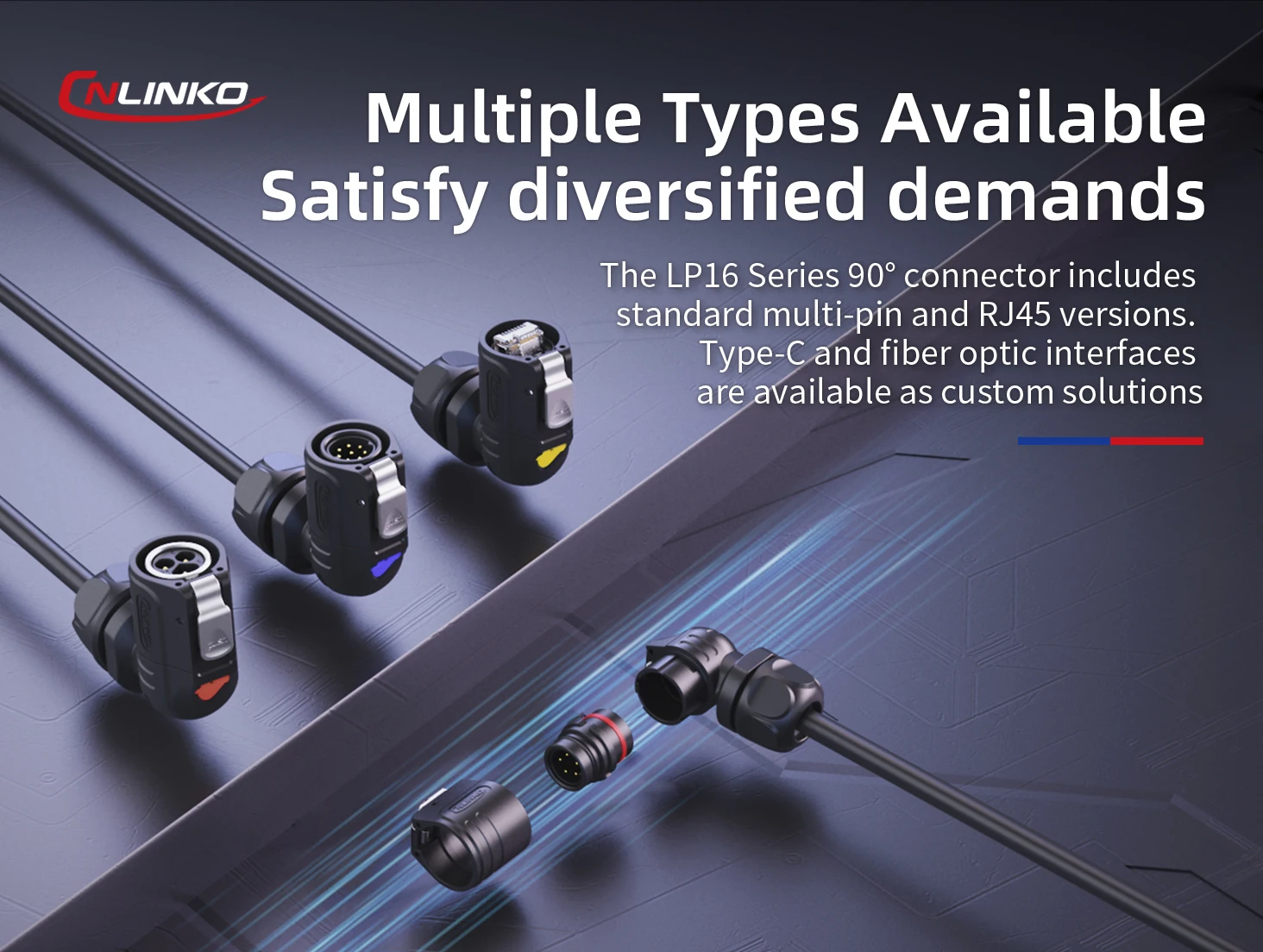

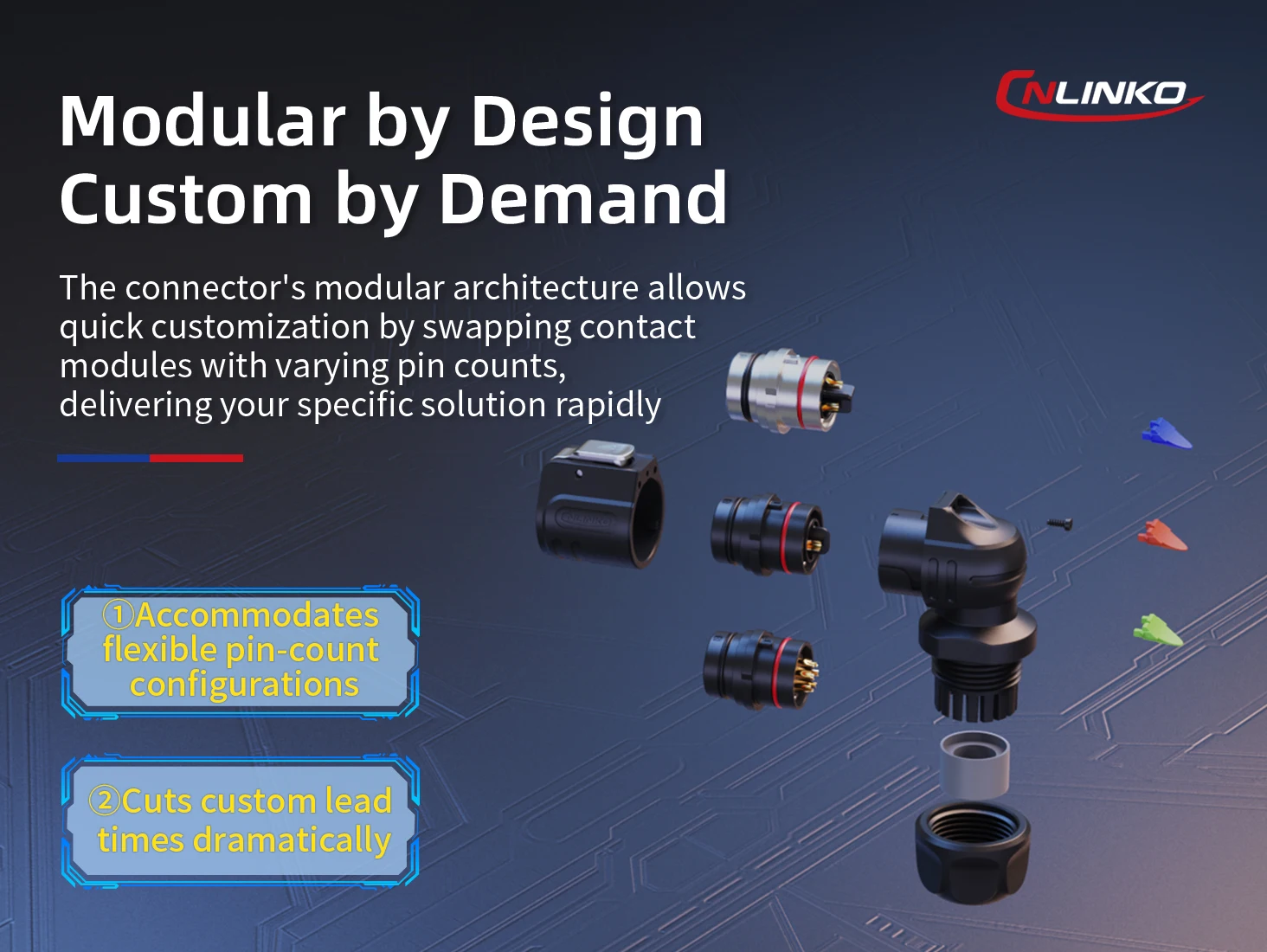

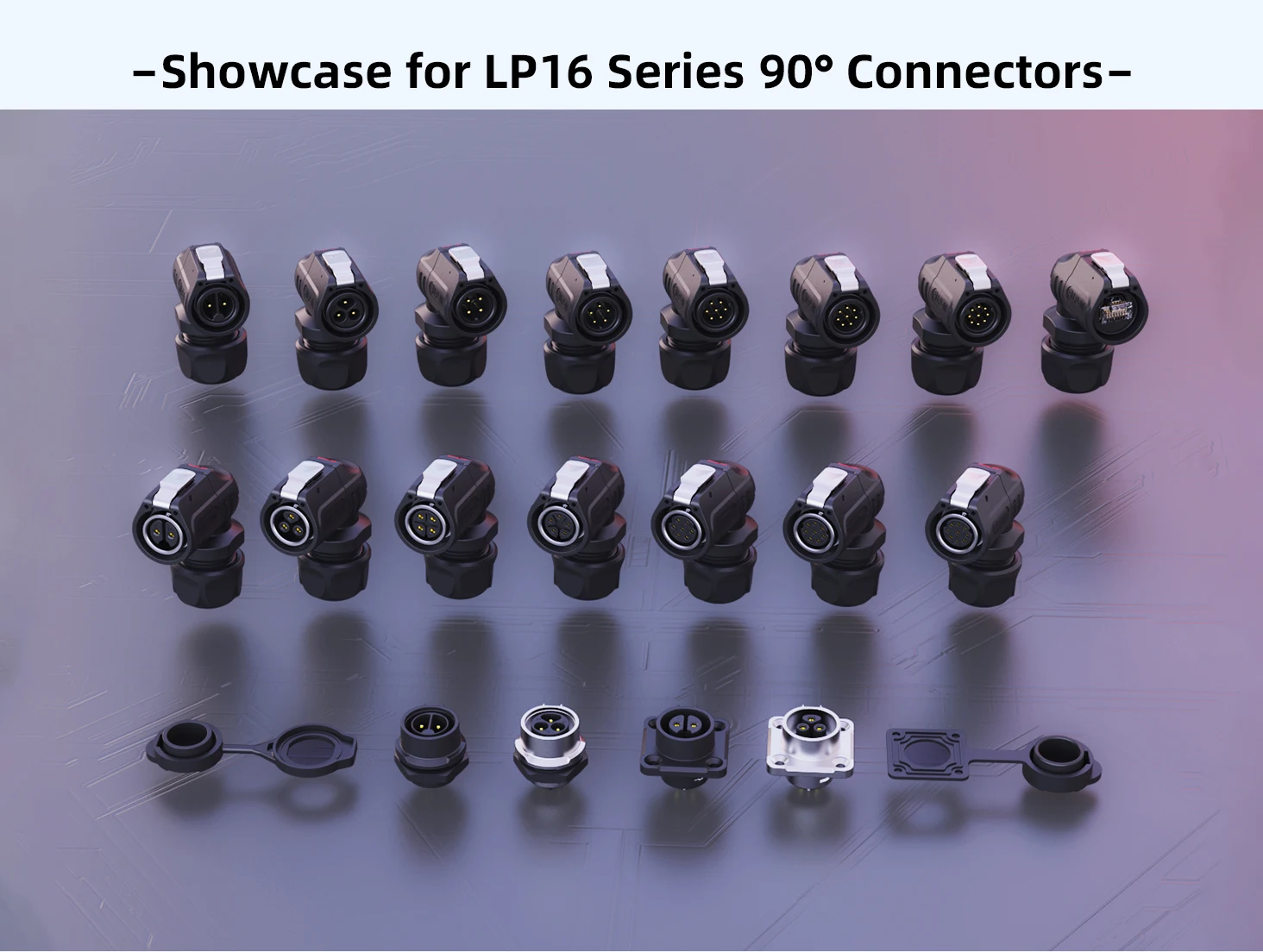

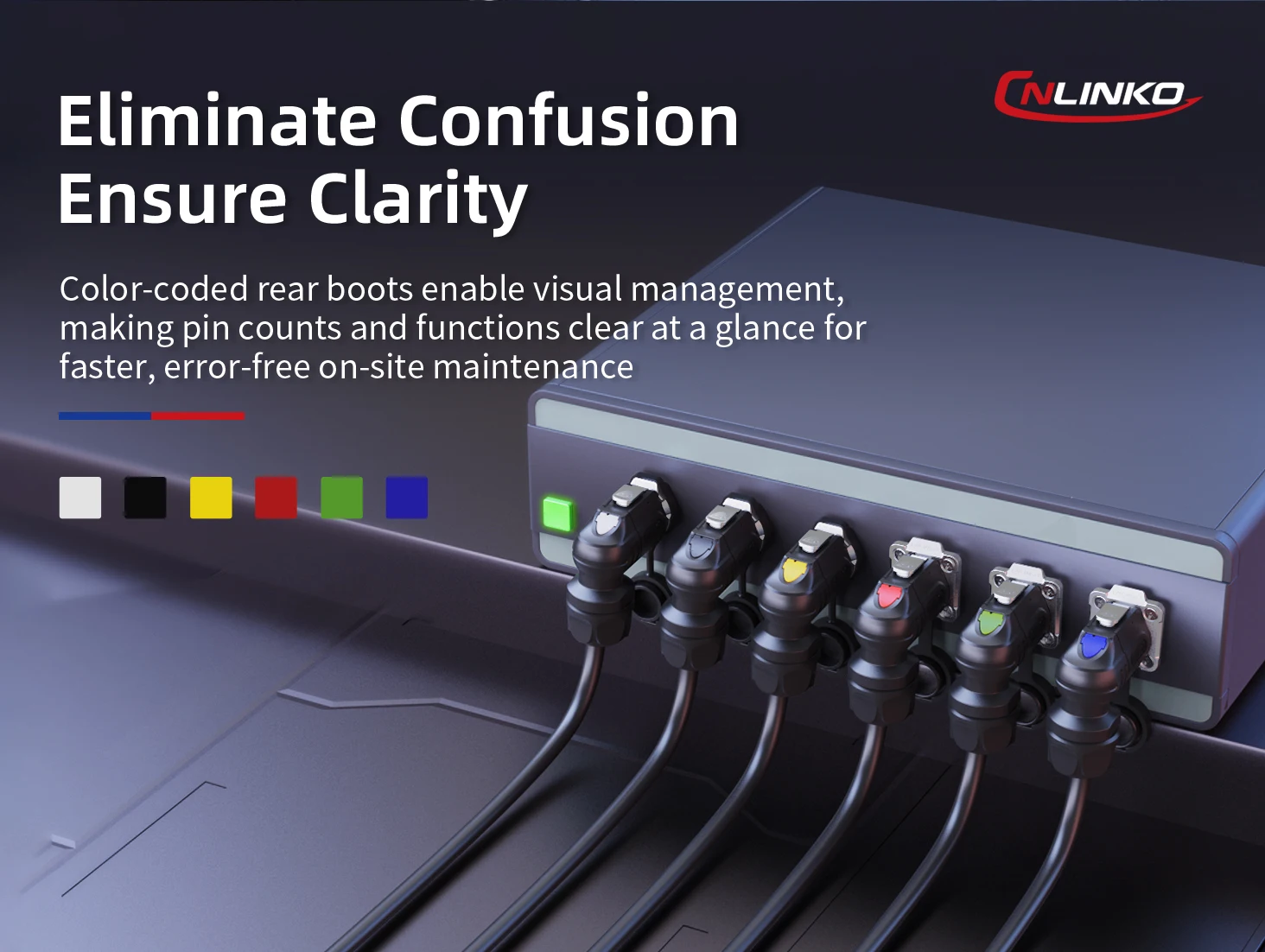

3. Flexible 2‑9 Pin Configurations for Power & Signal – Available in 2 to 9 pin options to suit diverse power and signal needs. 2‑4 pins handle up to 10A/400V for power applications, while 5‑9 pins are rated 5A/250V for multi‑signal transmission. One versatile connector covers it all.

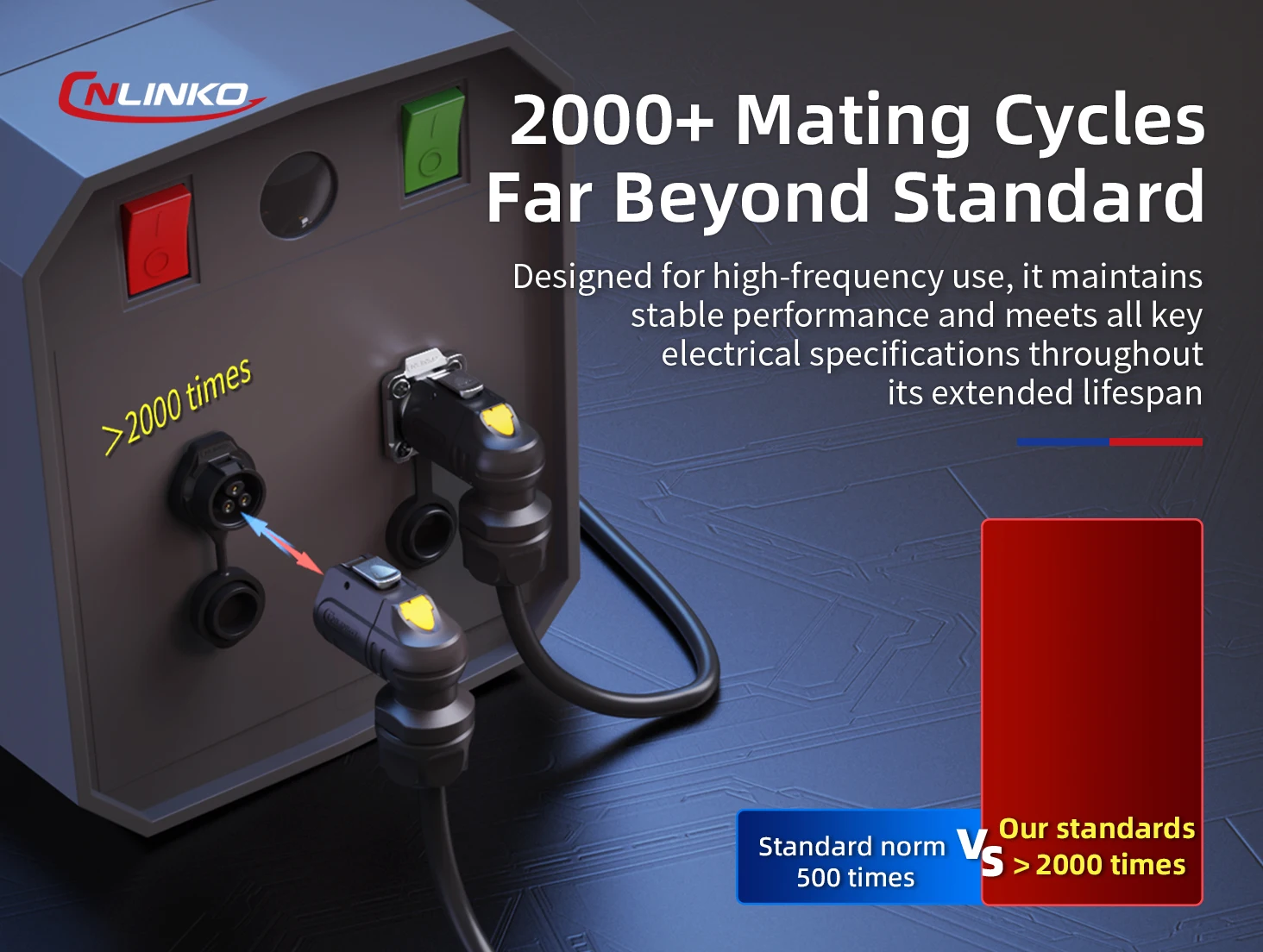

4. Durable Semi‑Metal Hybrid Construction – Features a high‑performance PBT plastic shell (UL94 V‑0 flame retardant, F1 grade anti‑UV) combined with metal components. Gold‑plated copper alloy contacts provide superior conductivity and corrosion resistance. Supports ≥2,000 mating cycles from -40°C to +120°C.

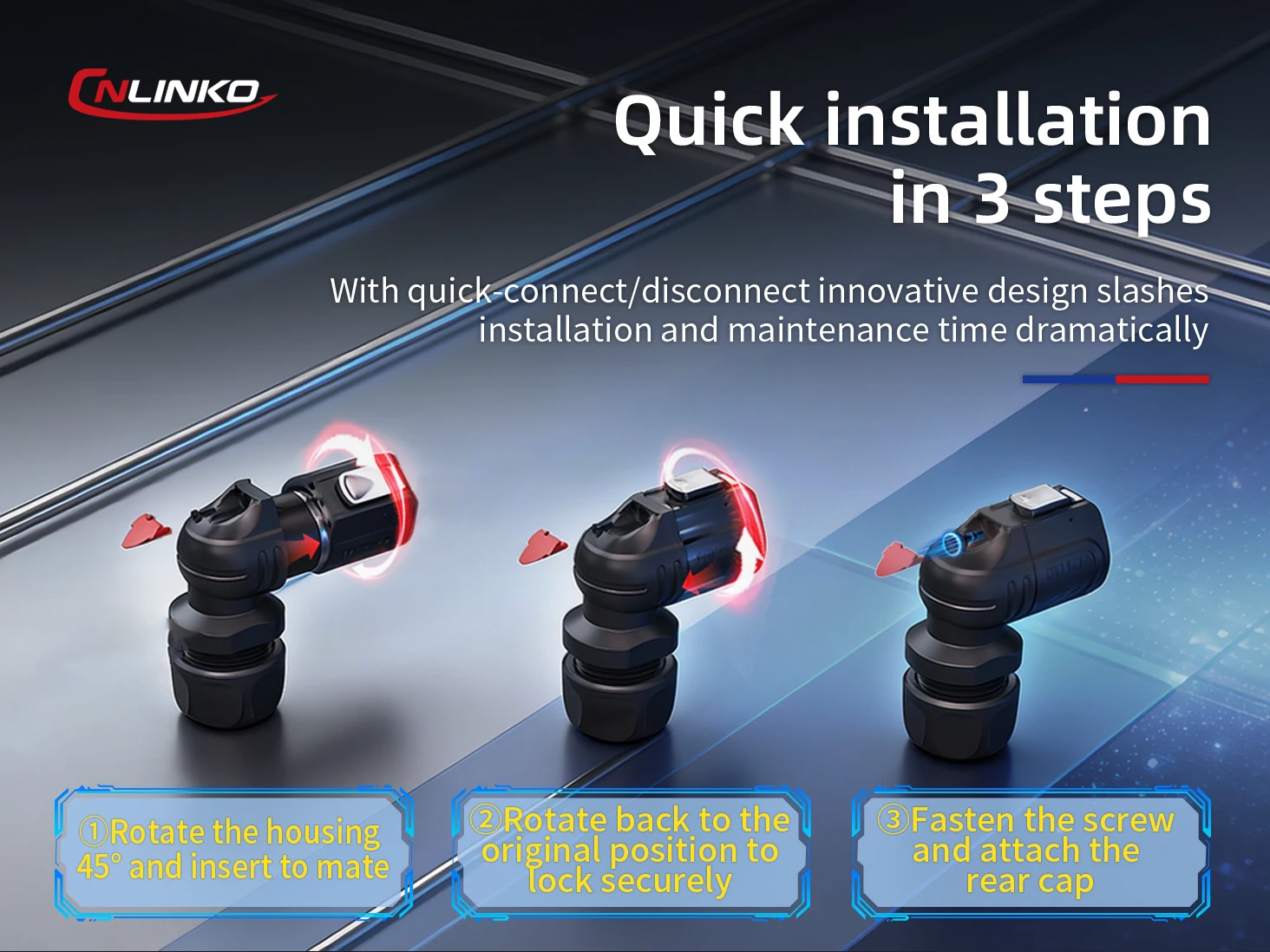

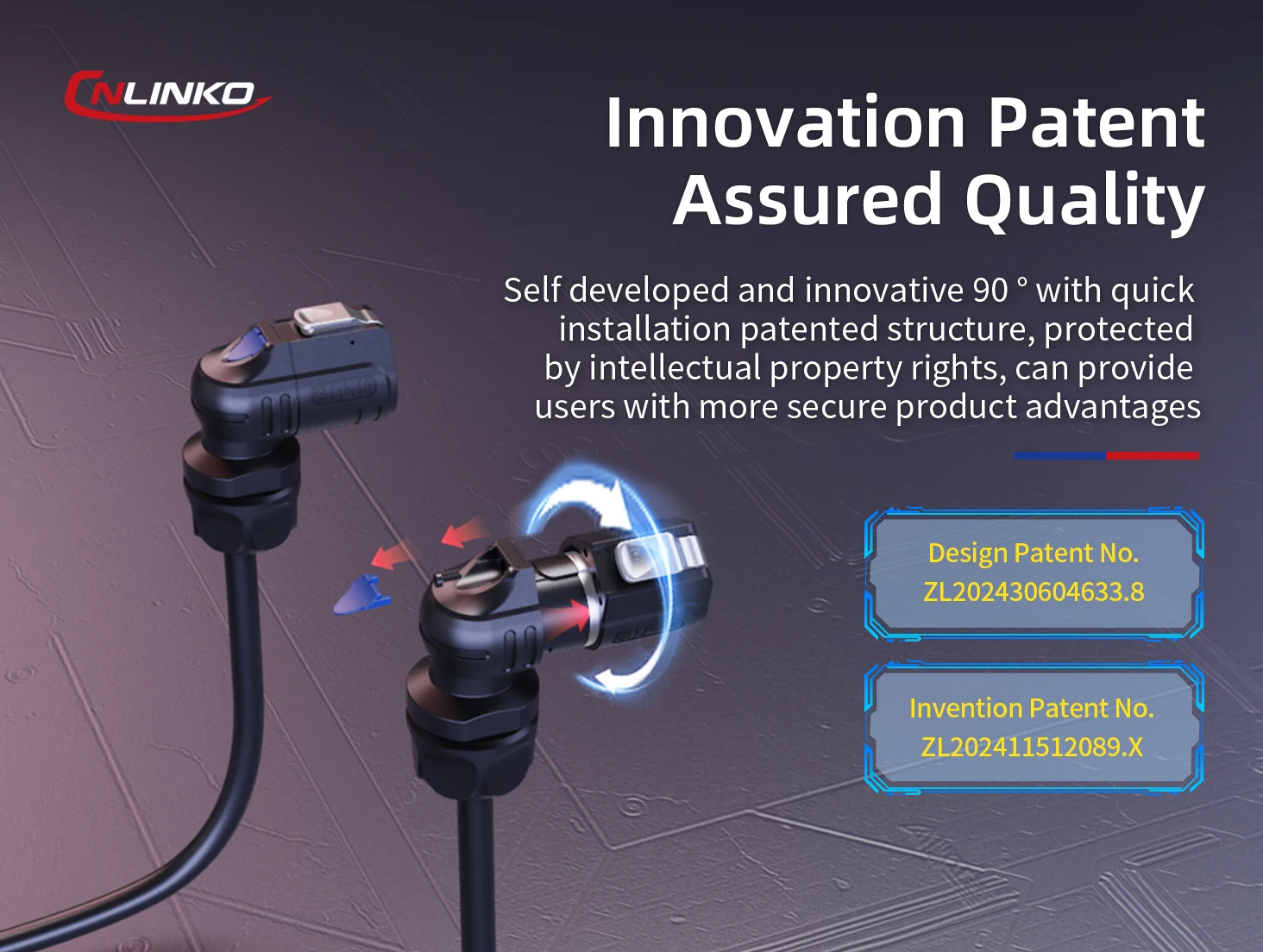

5. Solder‑Type Termination & Flange Mount Design – Solder‑type terminals ensure permanent, vibration‑resistant connections. The four‑hole flange socket provides secure panel mounting-. Features a 3‑step quick‑connect design for fast, tool‑free mating. Ideal for industrial automation, LED lighting, marine, and outdoor equipment.
