SPECIFICATIONS

Assembly Cable: Soldering

Brand Name: cnlinko

Cable O.D Range(2~7pin): 10.0-12.0mm

Cable O.D Range(9~12pin): 5.0-6.5mm

Certification: CE,RoHS,UL,weee

Contact Material: Gold-plated Copper Alloy

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Gender: Male+Female

High-concerned chemical: none

Insulation Resistance Min.: 500MΩ

Item Type: Female Plug and Male Socket

Machanical Life Min.: 500 cycles

Material: PBT Plastic

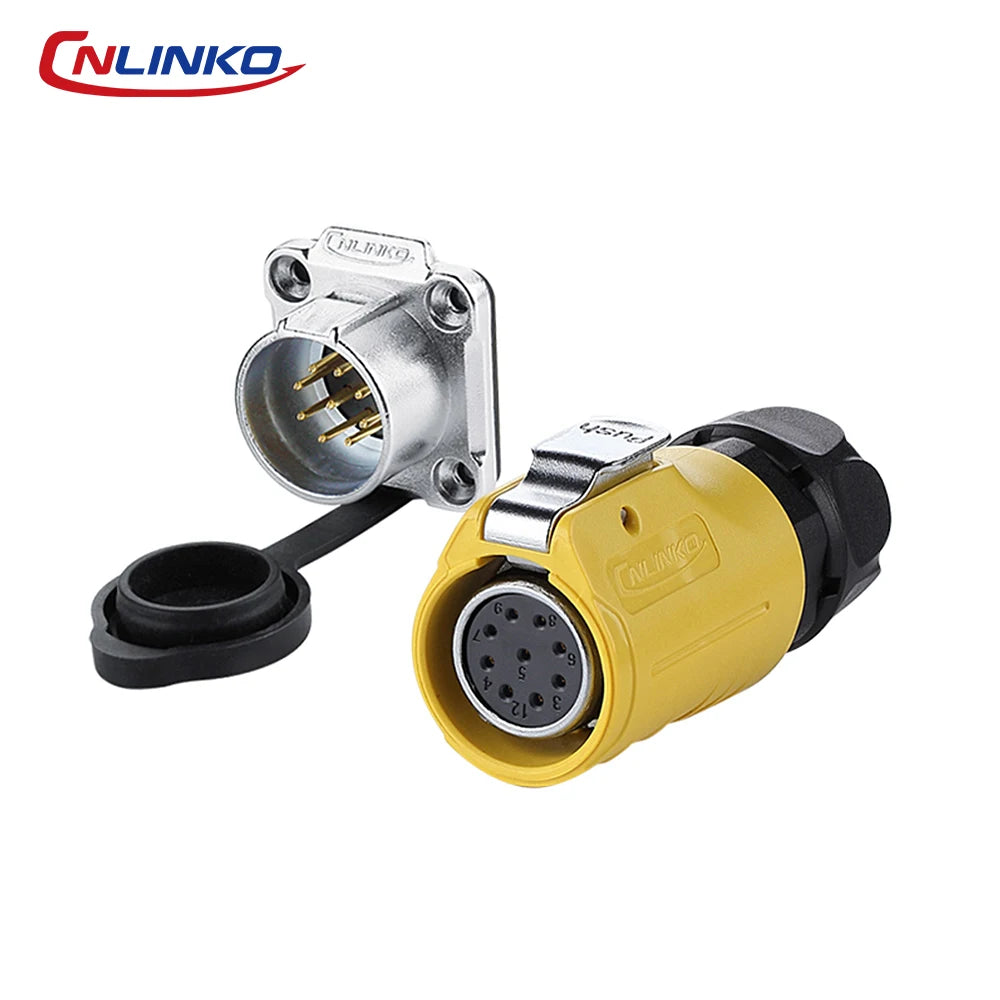

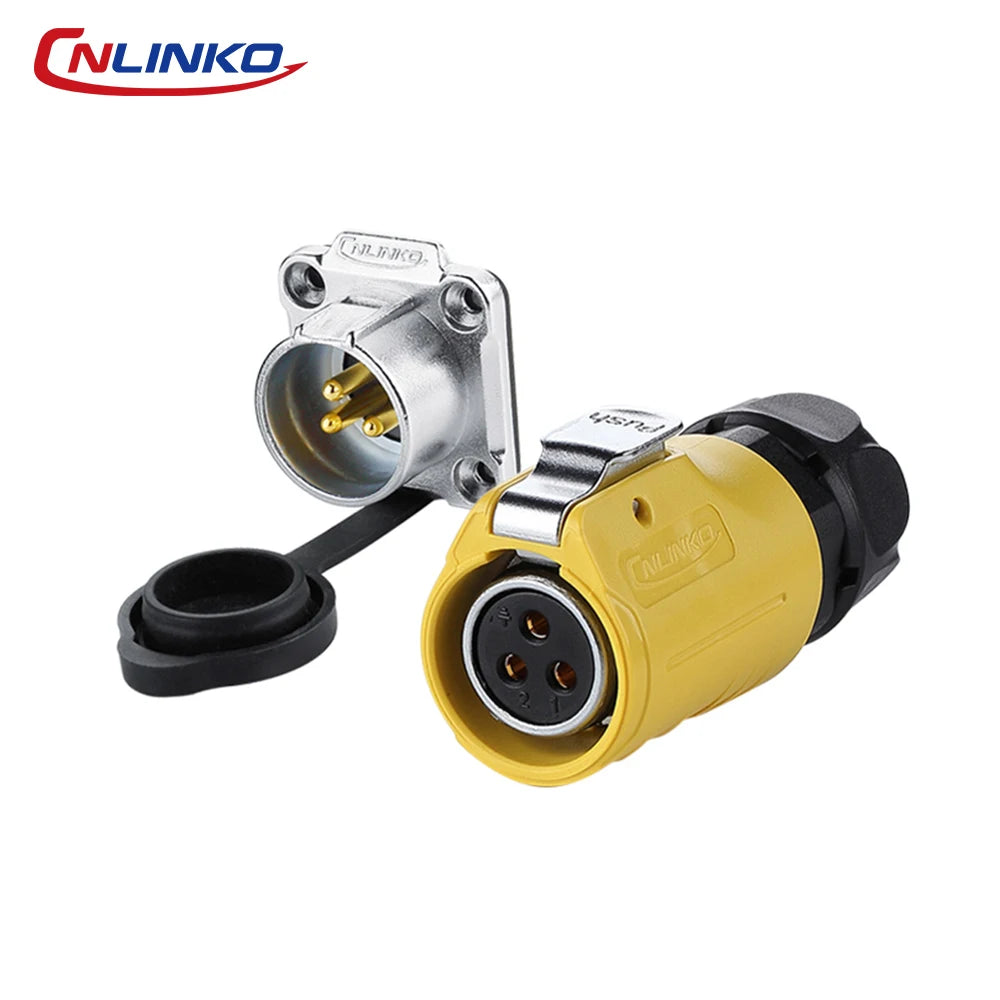

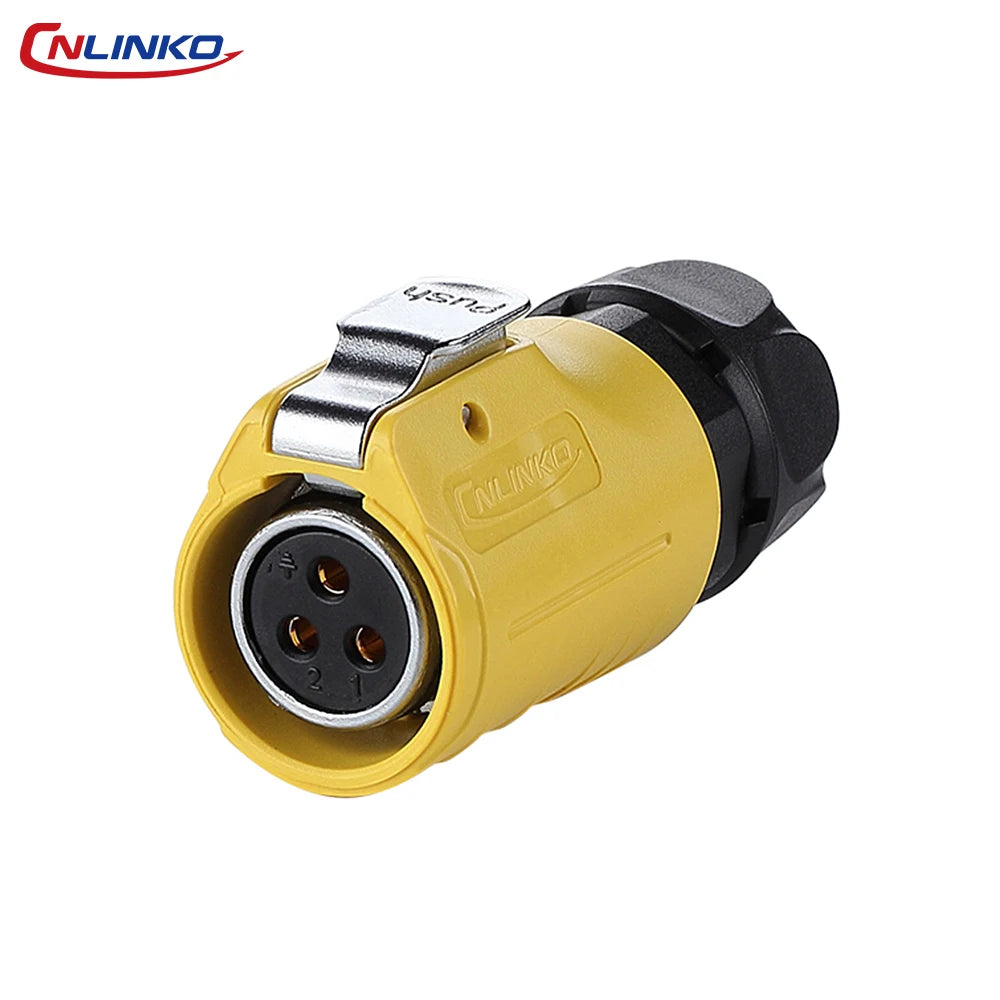

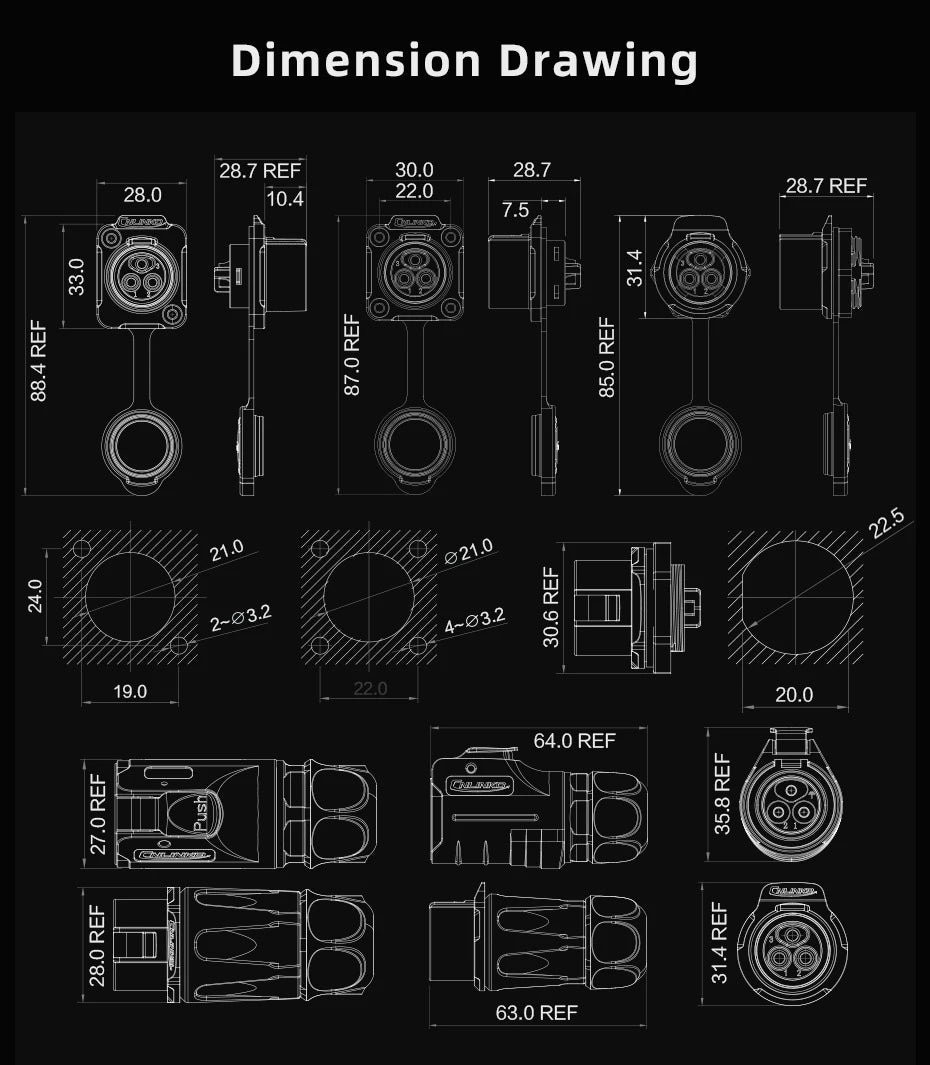

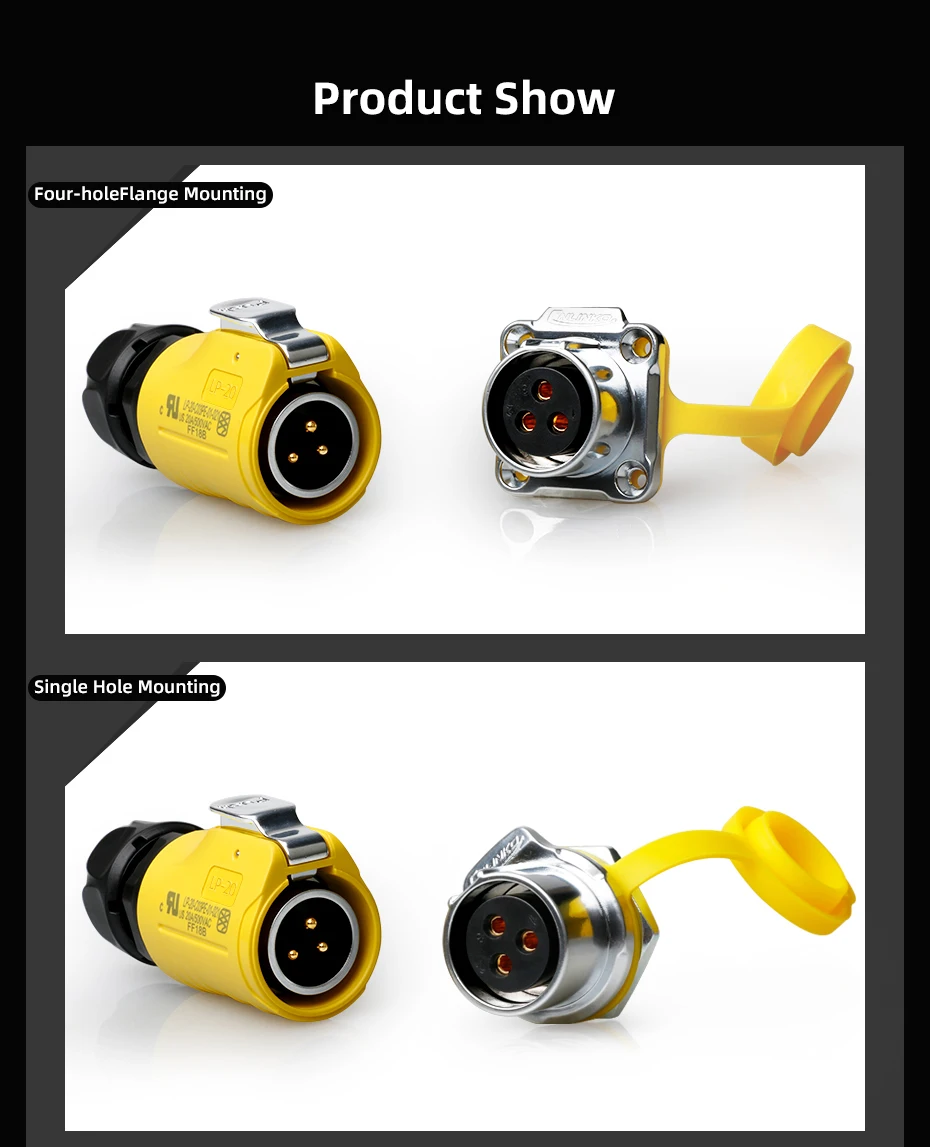

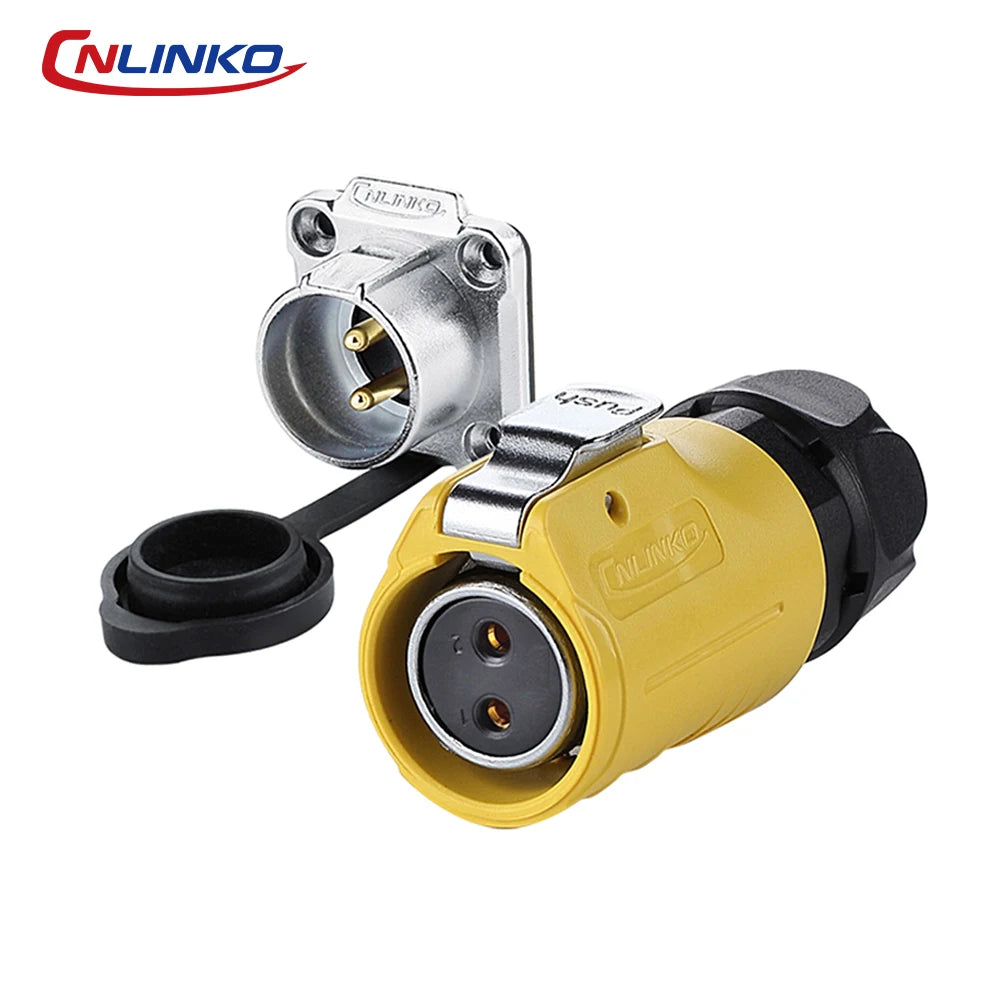

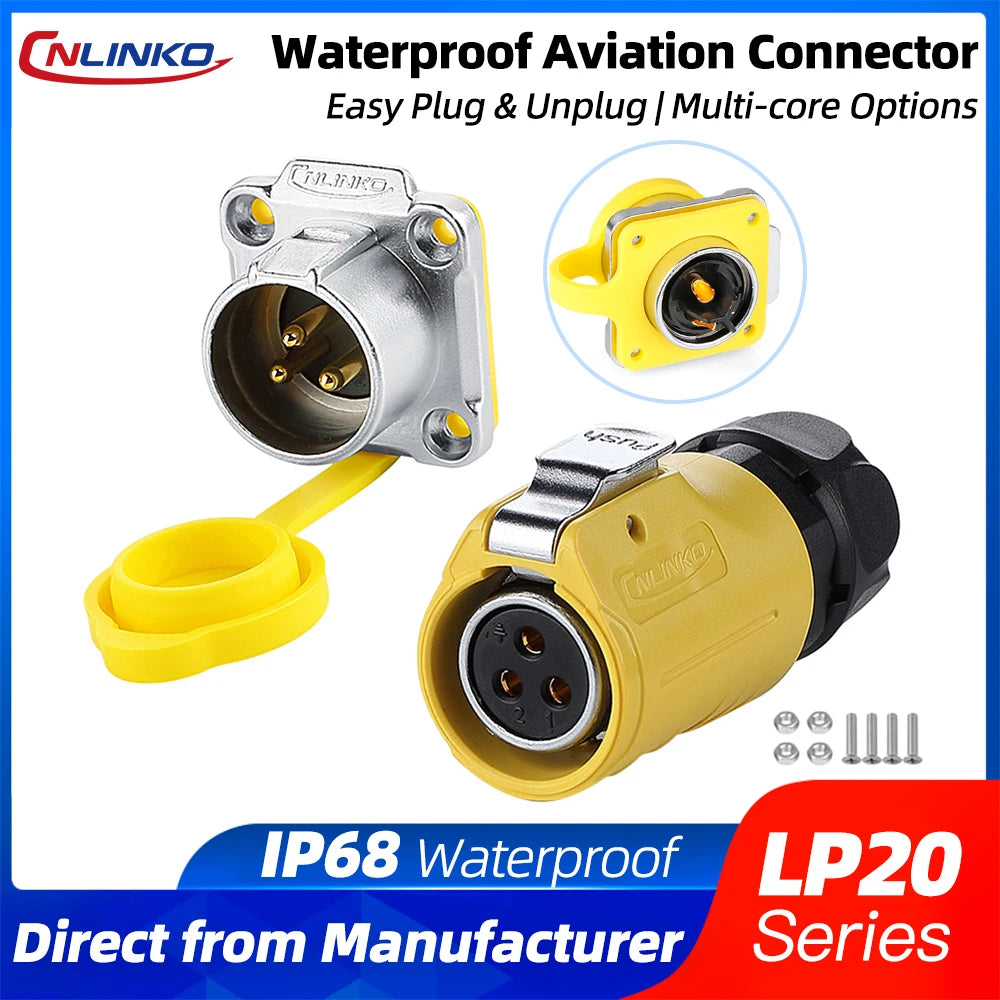

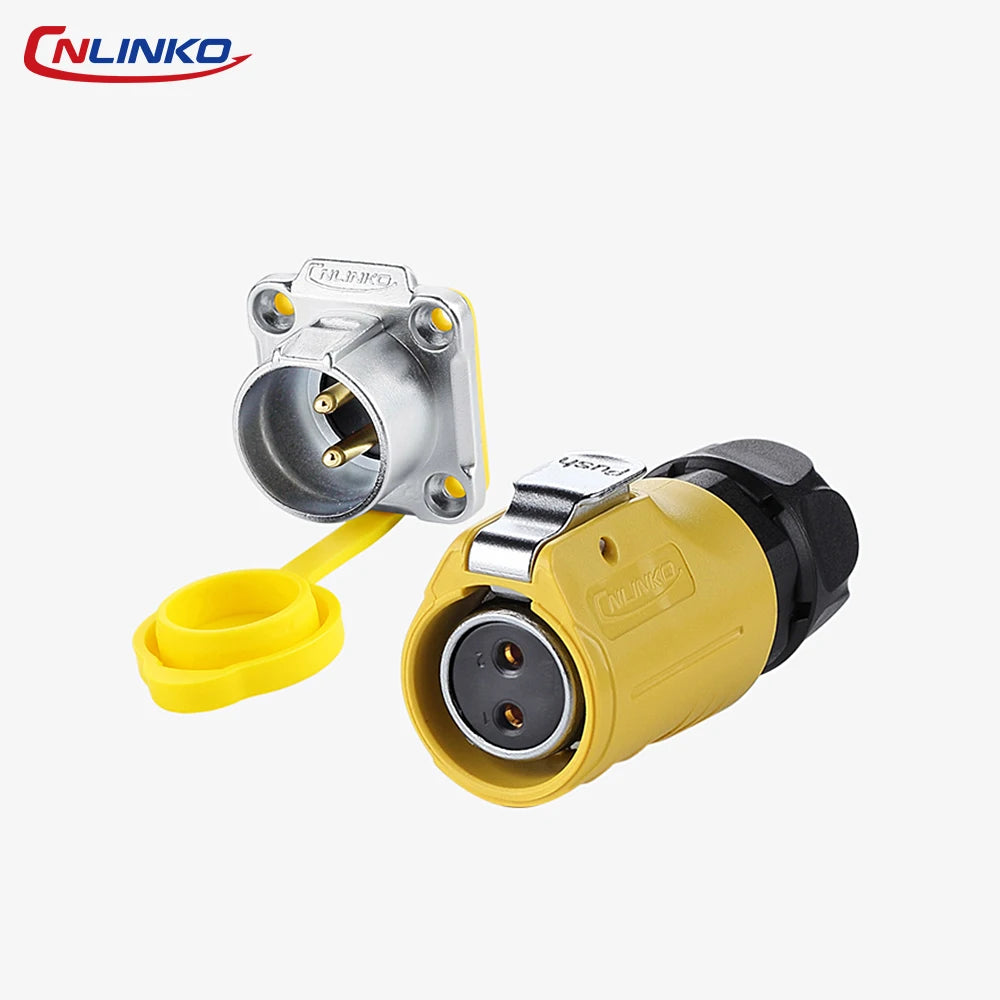

Model Number: LP-20 Reverse Panel Mount Connector

Operating Temperature: -25℃~+85℃

Origin: Mainland China

Protection Level: IP68(2m/48h)

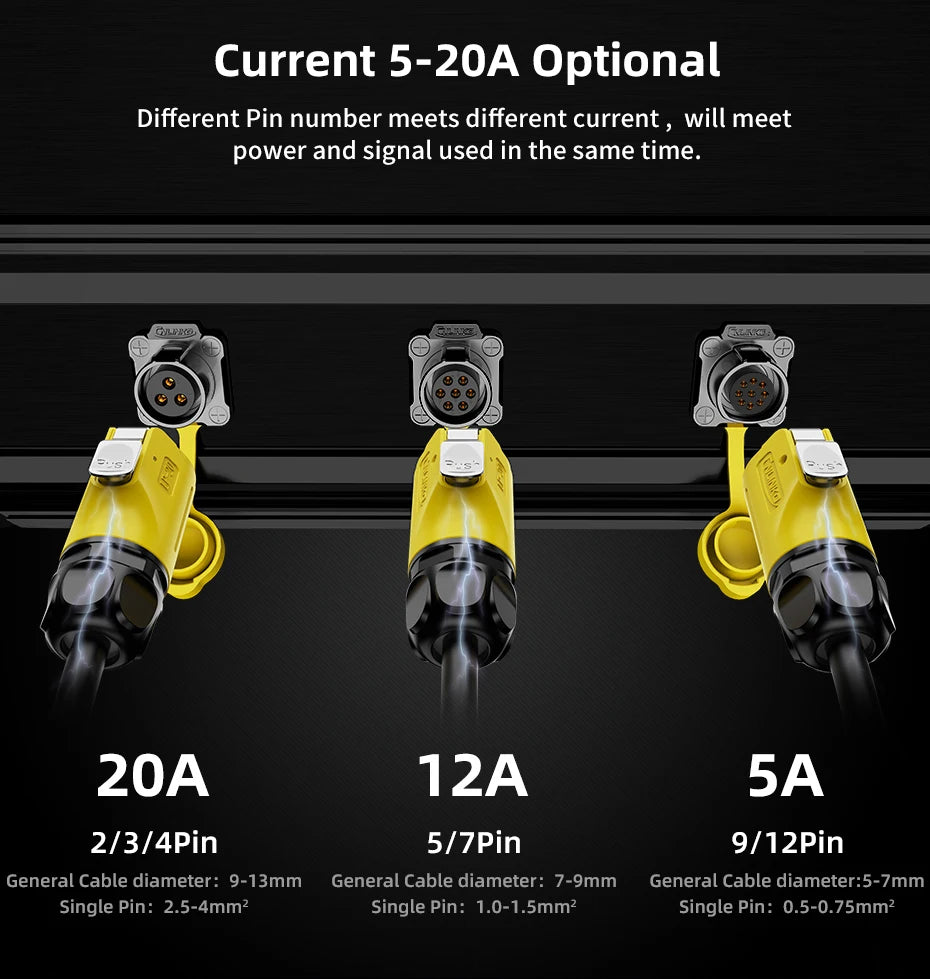

Rated Current(2~4pin): 20A

Rated Current(5~7pin): 10A

Rated Current(9~12pin): 5A

Rated Voltage(2~7pin): 500V AC

Rated Voltage(9~12pin): 250V AC

Salt Spray Min.: 48H

Voltage: 自定义编辑

Wire Guage(2~4pin): 2.5~4.0mm²/14-12AWG

Wire Guage(5~7pin): 1.0~1.5mm²/18-16AWG

Wire Guage(9~12pin): 0.34~0.5mm²/22-20AWG

Withstanding Voltage(2~7pin): 2000V AC

Withstanding Voltage(9~12pin): 1500V AC

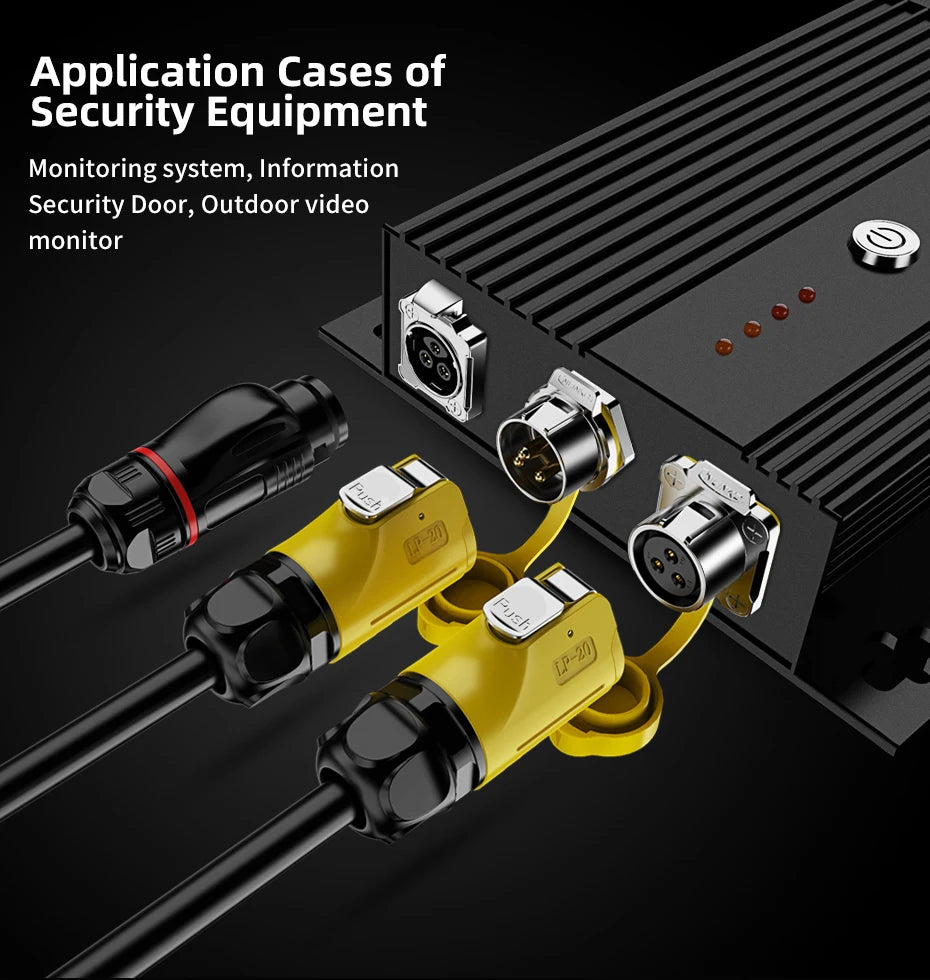

1. Superior IP68 Waterproof & Dustproof Protection – Rated IP68 when mated, this connector is completely dust‑tight and withstands continuous water immersion. The robust silicone seal and rugged housing ensure reliable performance in outdoor LED lighting, industrial power systems, and harsh environments where moisture is a constant threat.

2. Flexible 2‑12 Pin Configurations for Diverse Needs – Available in 2 to 12 pin options, this connector offers versatile solutions for both power and signal transmission. Lower pin counts handle high current, while higher pins suit multi‑signal applications, providing adaptable connectivity for various industrial and lighting requirements.

3. High‑Power Electrical Performance – Rated for up to 20A current and 500V AC voltage, with a withstand voltage of 2000V. Contact resistance below 1.0mΩ and insulation resistance above 500MΩ ensure stable, low‑loss power delivery, making it ideal for demanding industrial equipment and outdoor lighting systems.

4. Durable Construction for Long‑Term Reliability – Built with high‑performance engineering plastic and metal components, this connector offers excellent corrosion resistance, impact protection, and thermal stability. It supports over 500 mating cycles and operates reliably from -25°C to +85°C in challenging outdoor conditions.

5. Quick & Secure Locking for Easy Installation – Features a user‑friendly quick‑lock mechanism for tool‑free, one‑handed mating. An audible click confirms secure engagement, preventing accidental disconnection due to vibration. This saves installation time and ensures stable connections in outdoor and industrial environments.
