Description

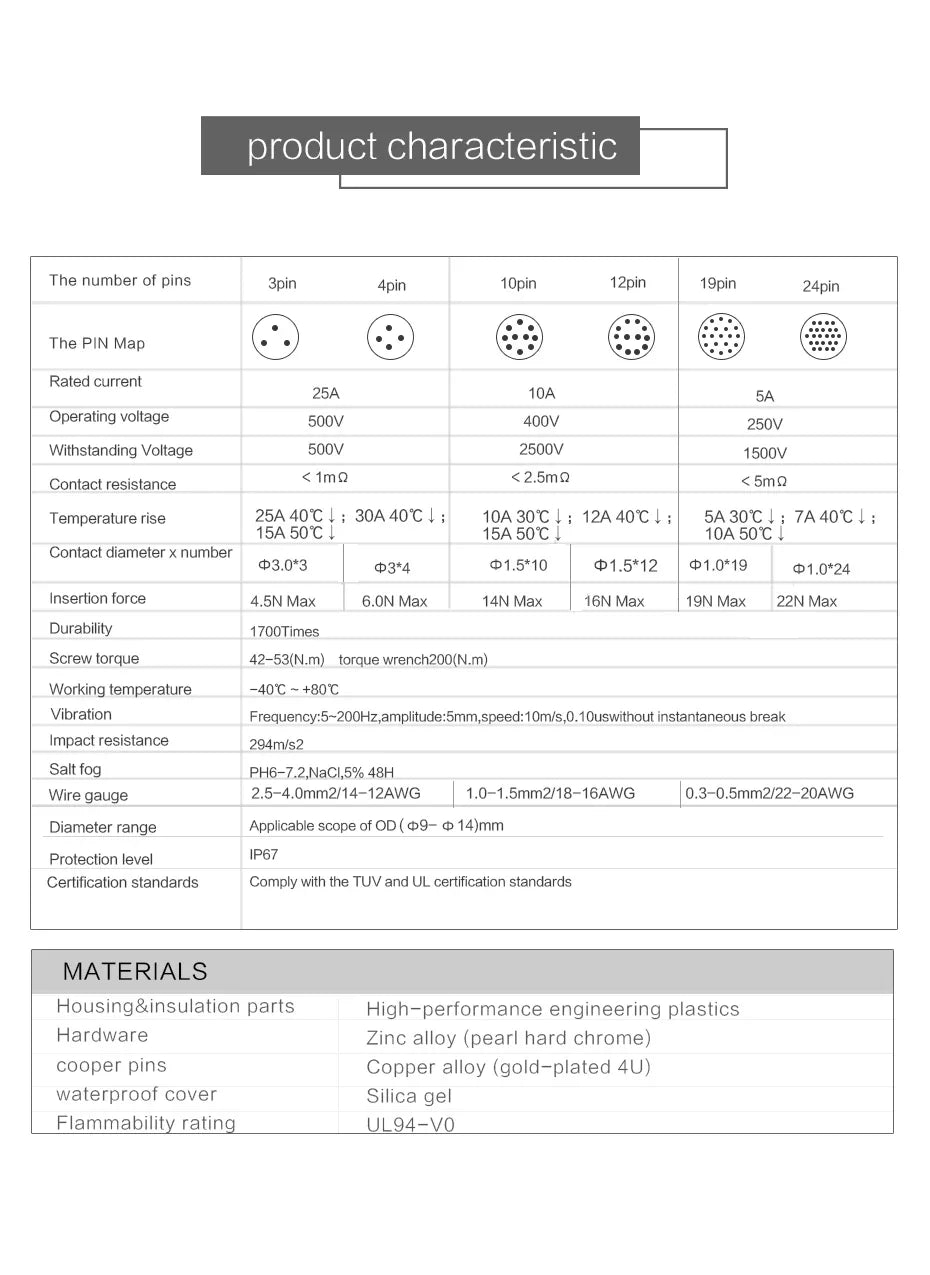

SPECIFICATIONS

Application: Audio /Video/Lighting/Power/Signal/Medical/Industrial

Brand Name: cnlinko

Cable outer diameter: 9.0~14.0mm

Certification: CE,RoHS,UL

Contact Resistance: <1m Omega

Does it include a Battery?: No

Does it include wireless functionality?: No

Durability: ≥500 times

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

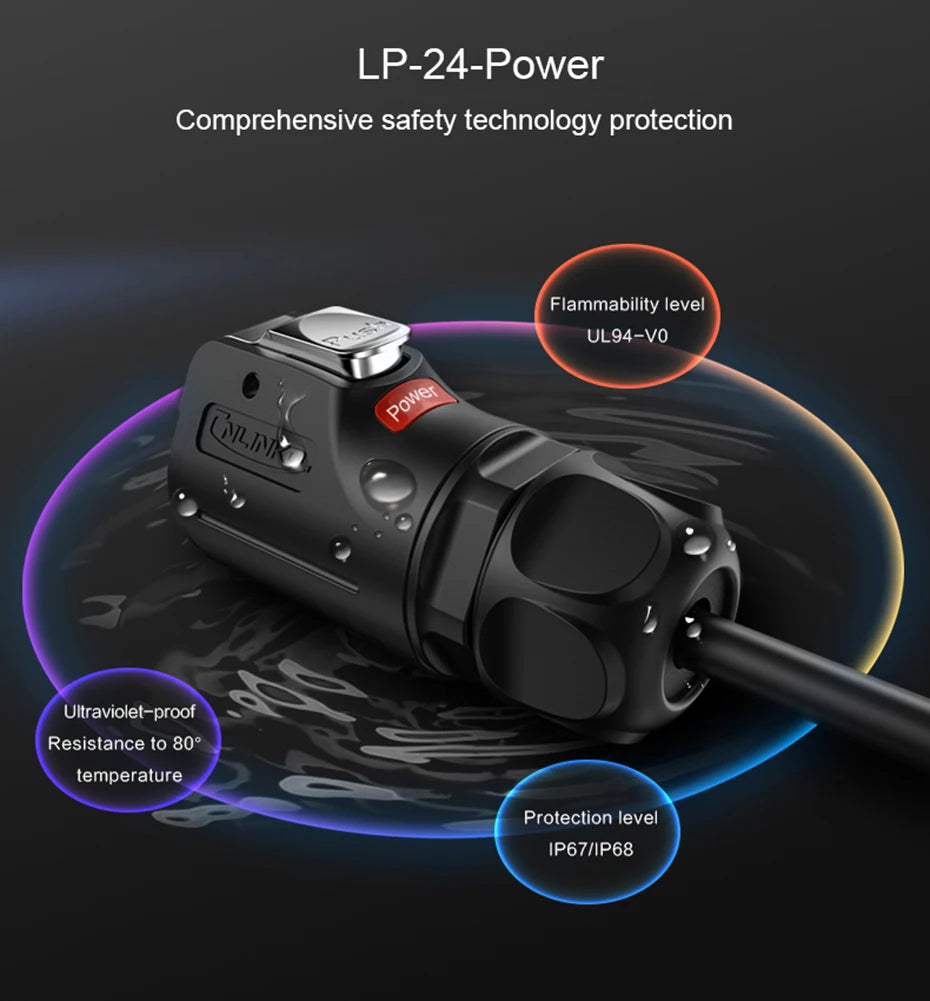

Flammability rating: UL94-V0

High-concerned chemical: none

IP rating: IP67

Insulation Resistance: >500M Omega

Model Number: LP-24-J03SX-03-401

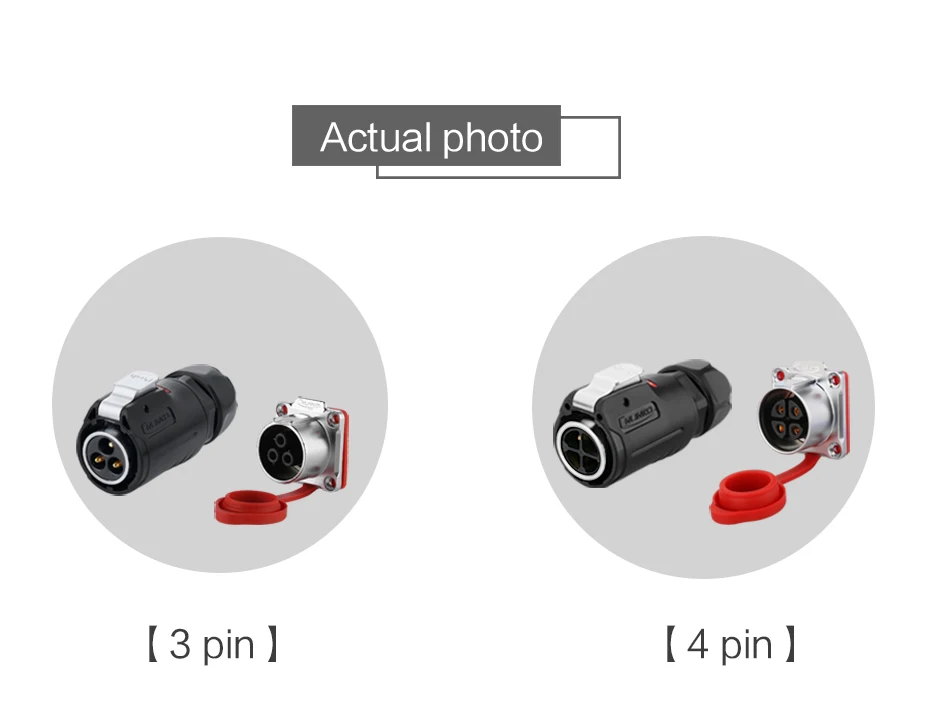

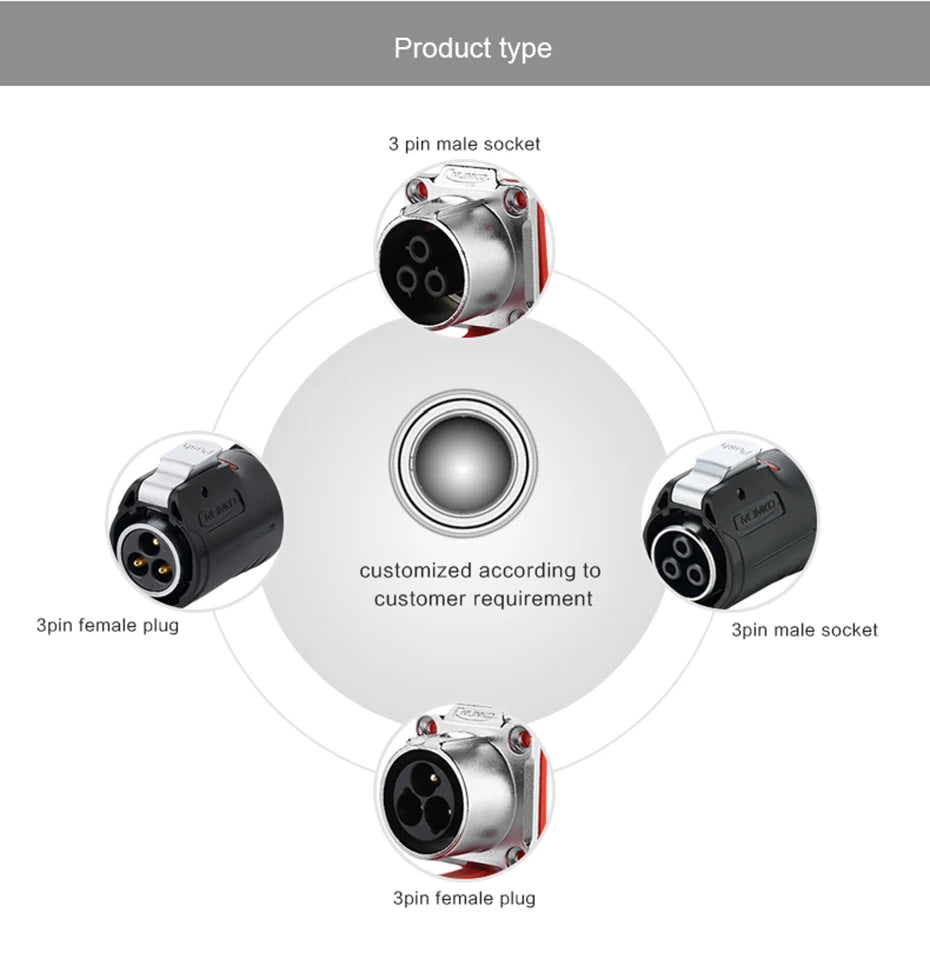

Number of contacts: 3 4Pin

Origin: Mainland China

Rated Current: 25A

Rated Voltage (AC.V.rms): 500V

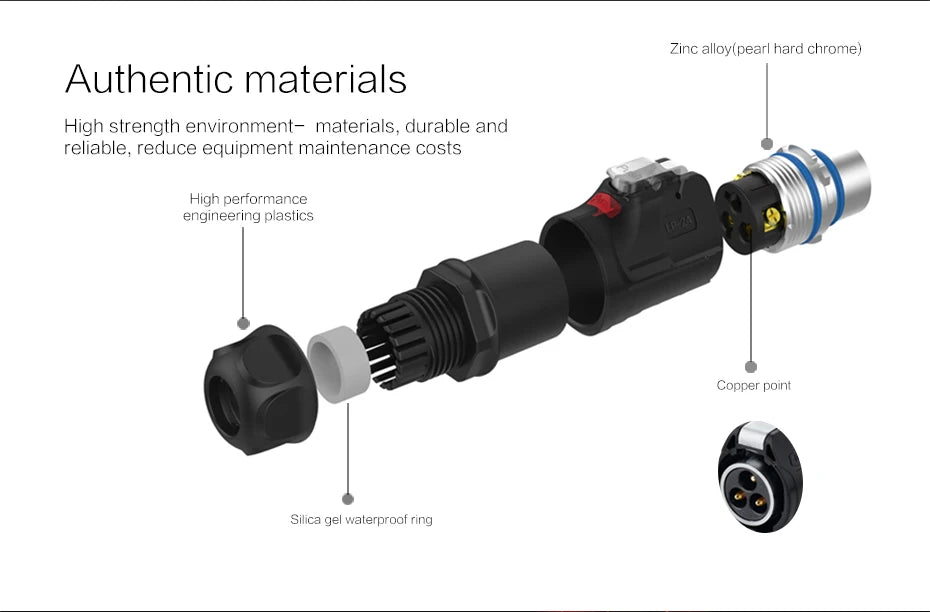

Shell material: PBT Plastic & Metal

Temperature range: -40℃~80℃

Termination: Solder

Voltage: 自定义编辑

Wire size(mm²/AWG): 2.5~4.0mm²/14-12AWG

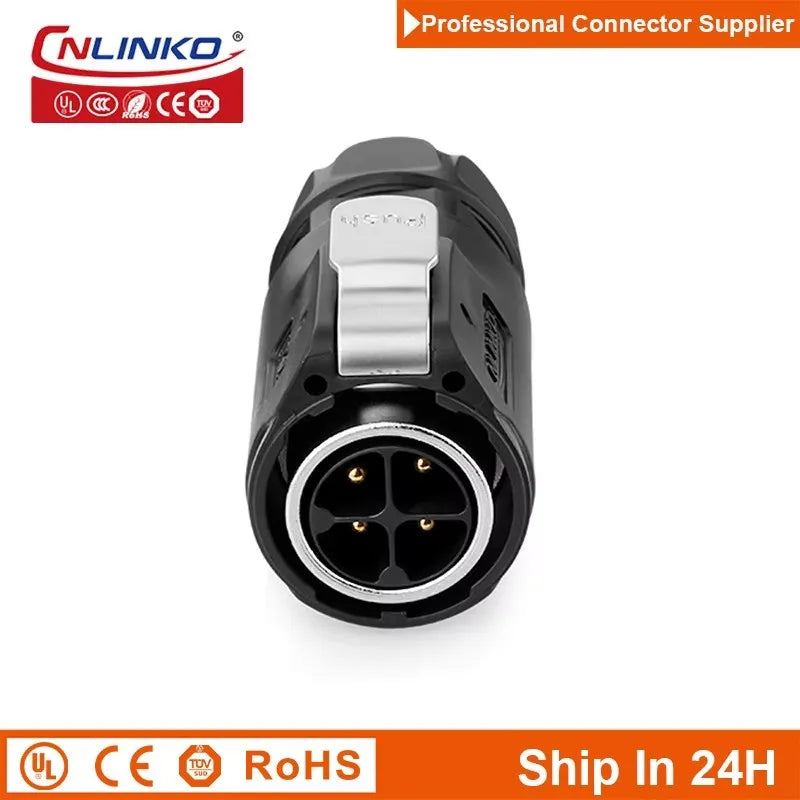

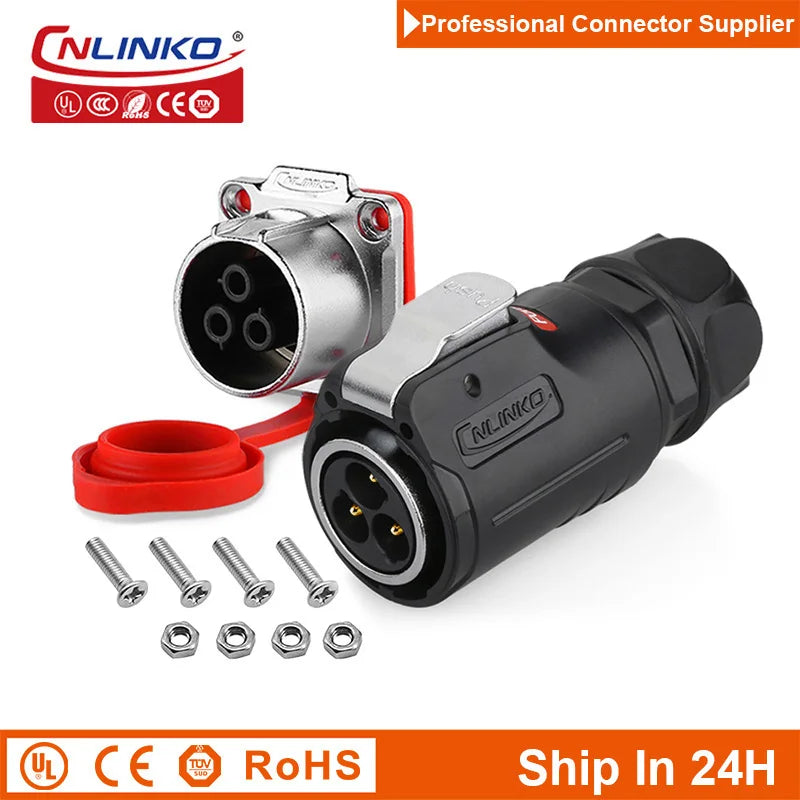

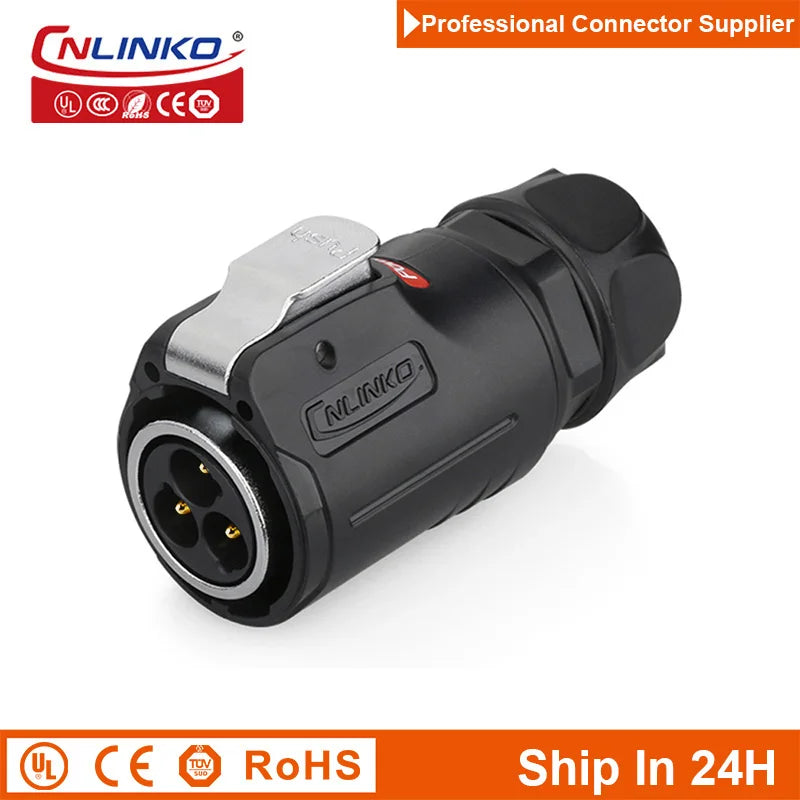

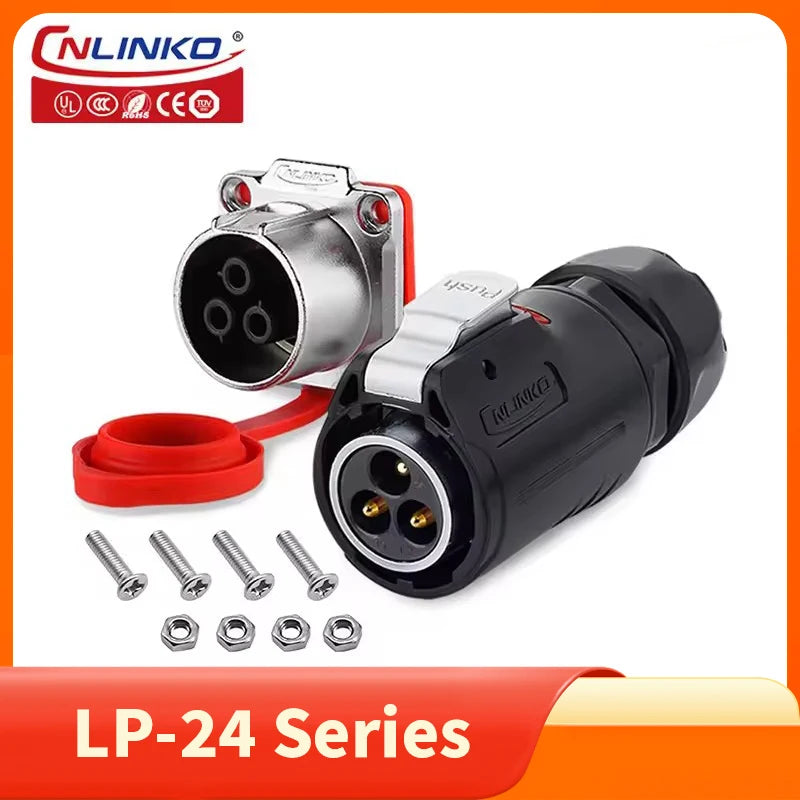

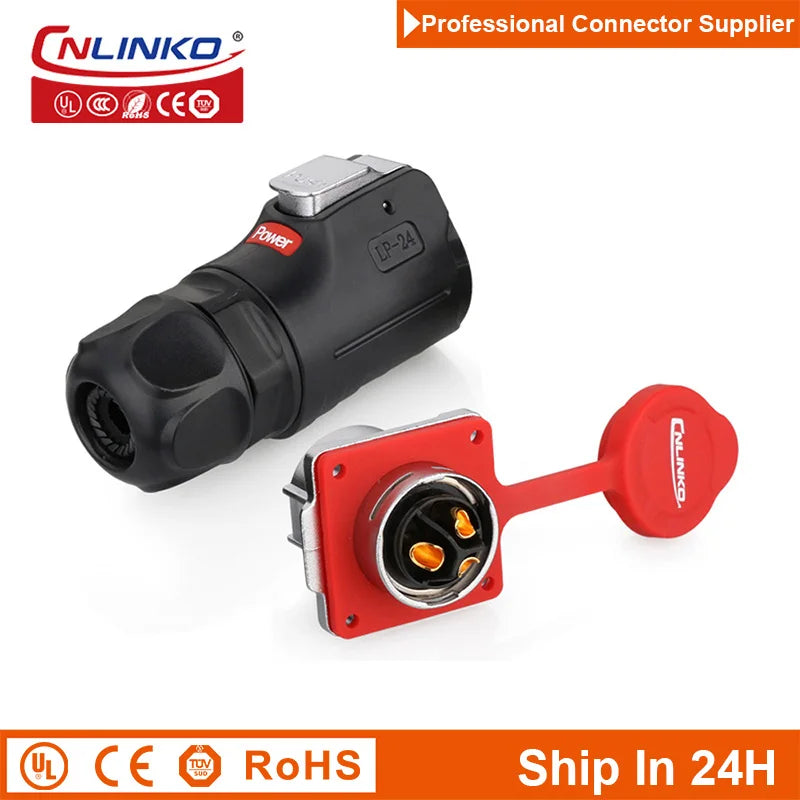

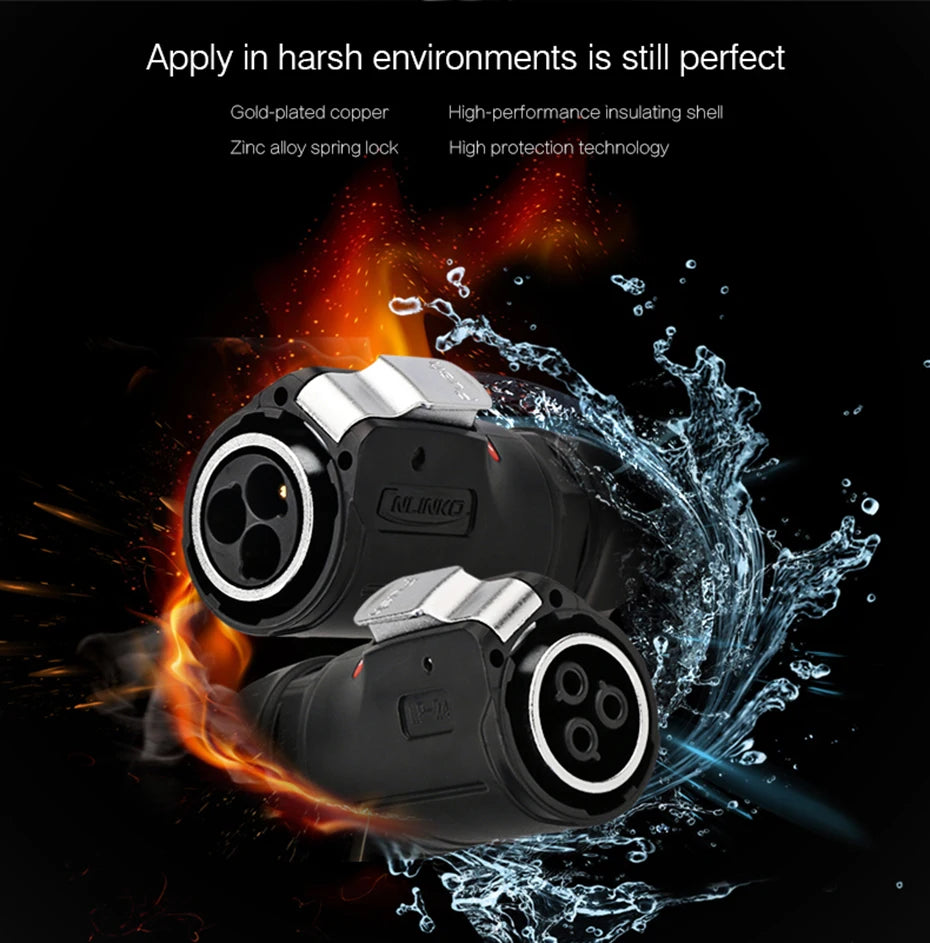

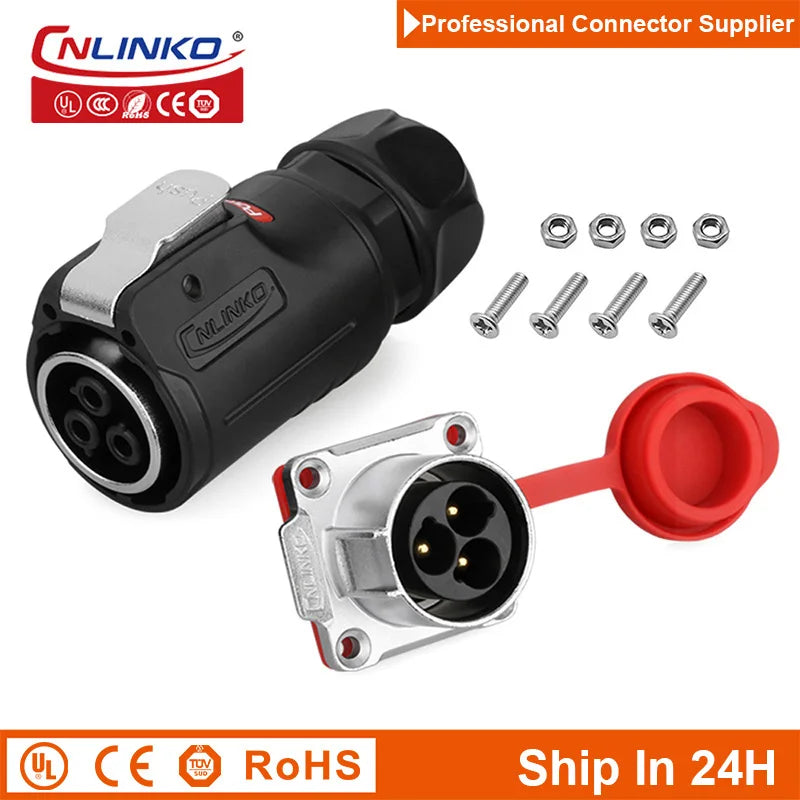

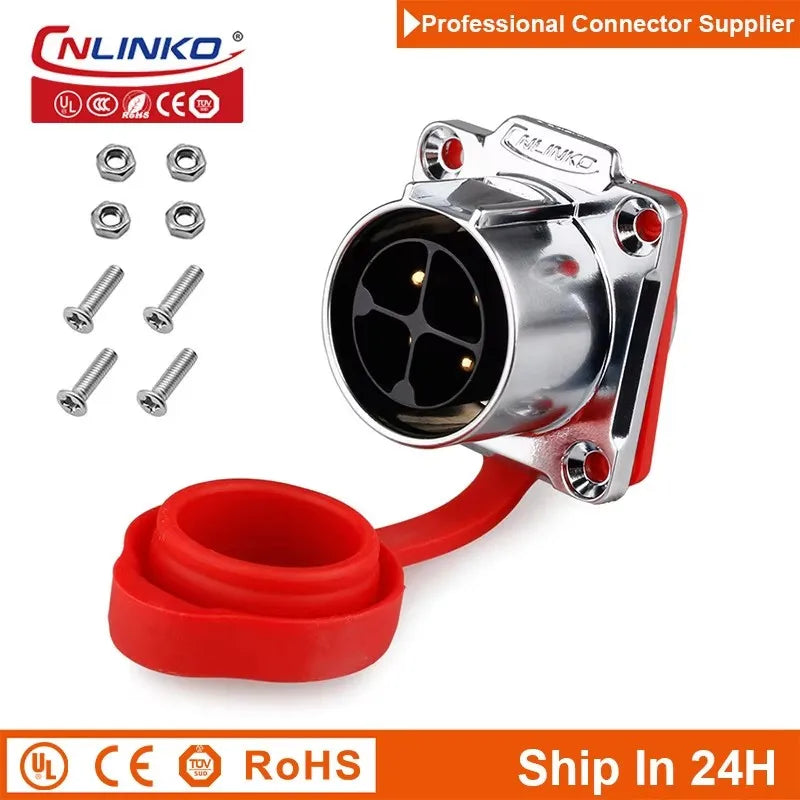

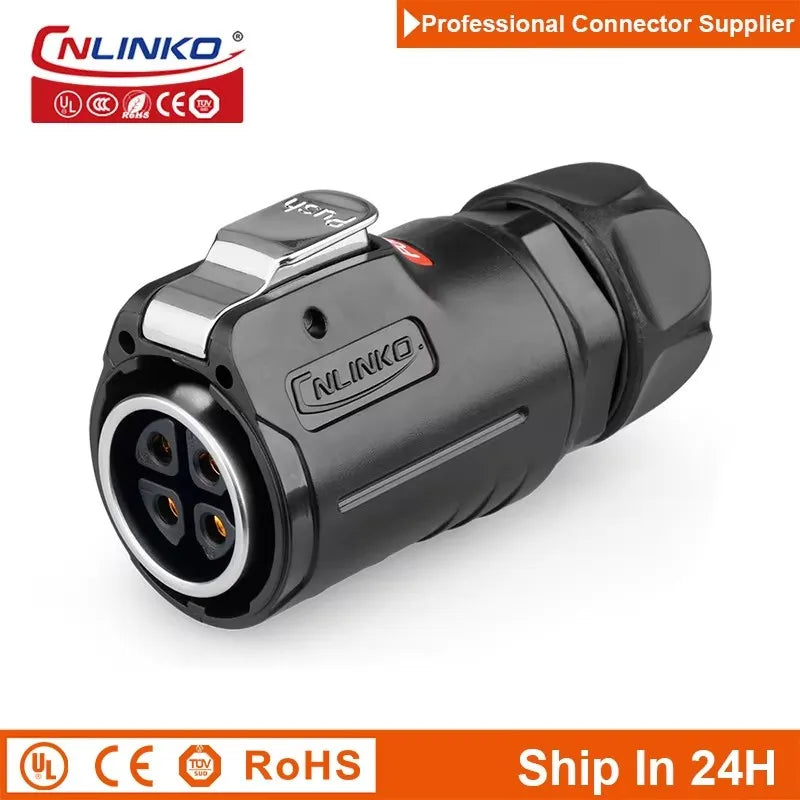

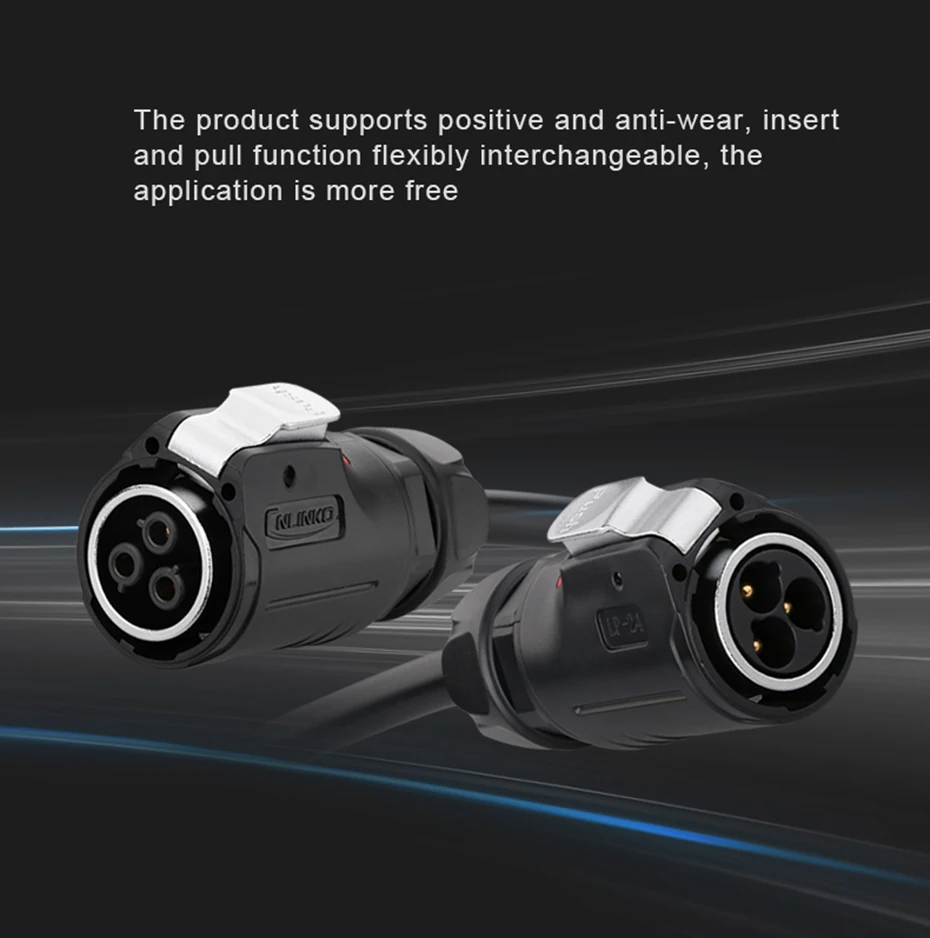

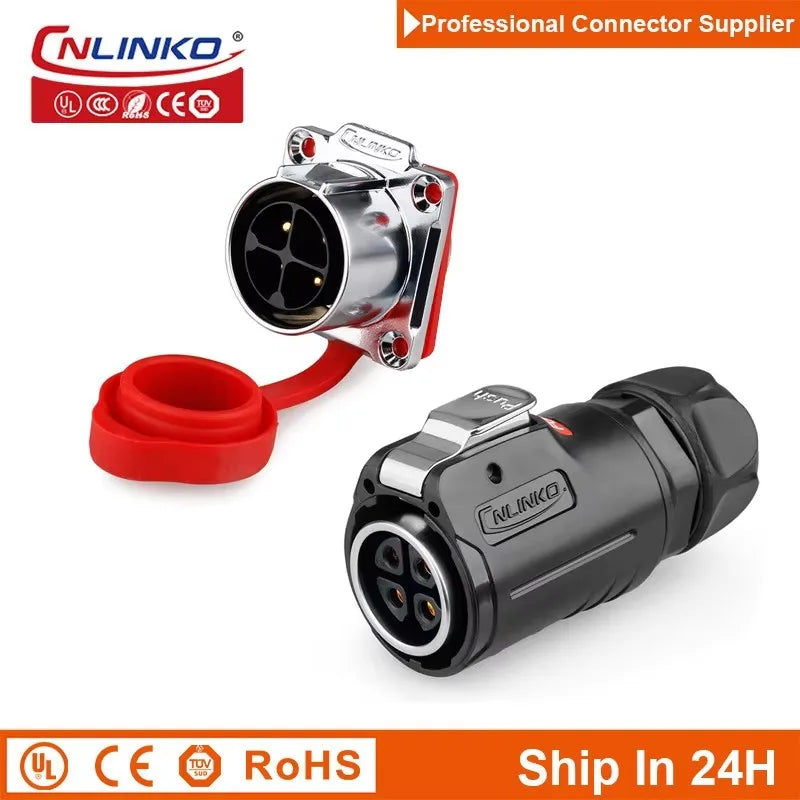

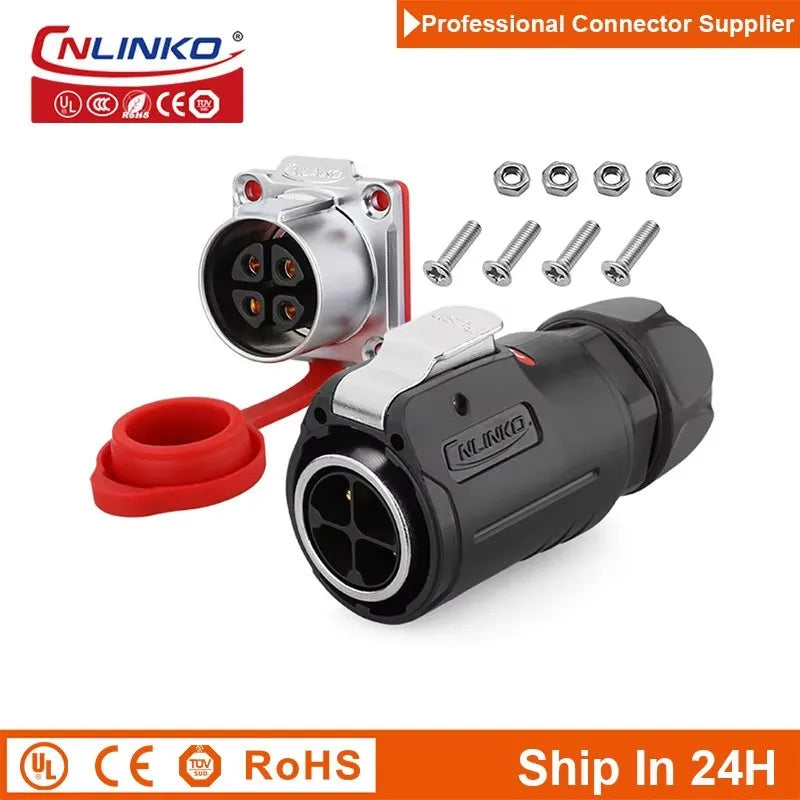

Cnlinko LP24 M24 3Pin Aviation Waterproof Power Connectors Plug & Socket for Signal Radio Audio Visual Medical Industrial LED UAV

Feature：

1、LP Series connectors have been widely used in many mechanical equipments like medical, robot industry, UAV, audio visual, radio and television industry, testing and measuring equipment.

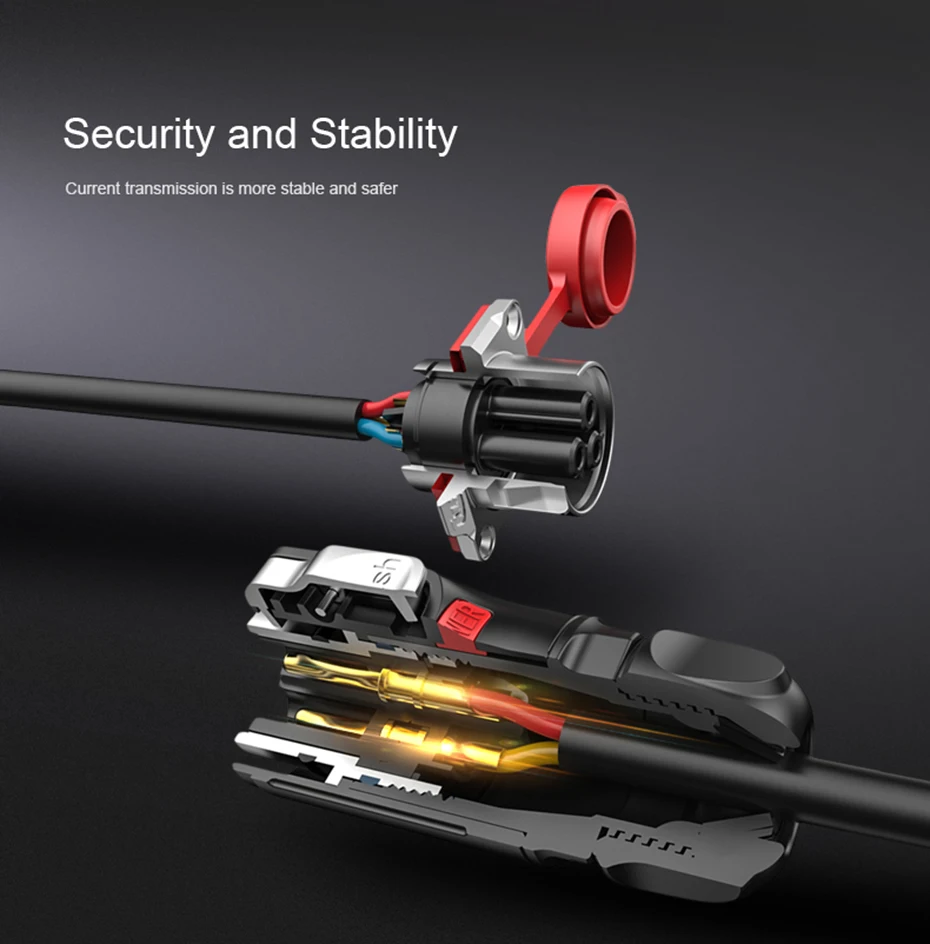

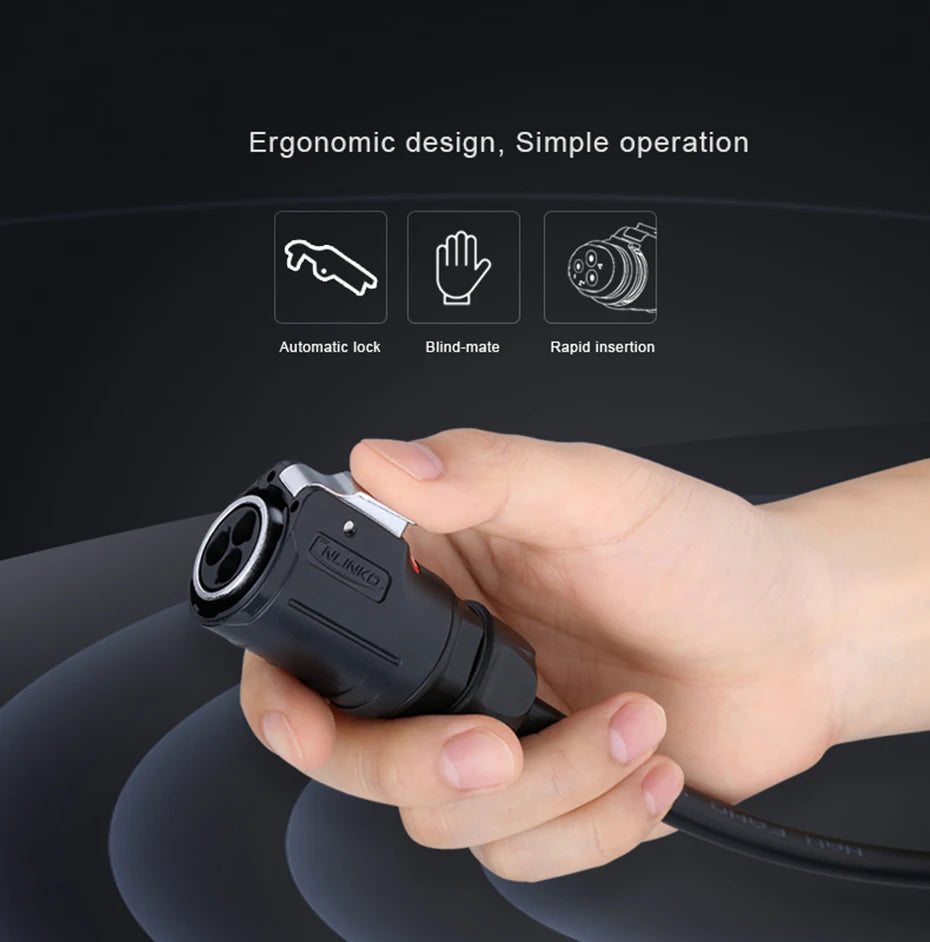

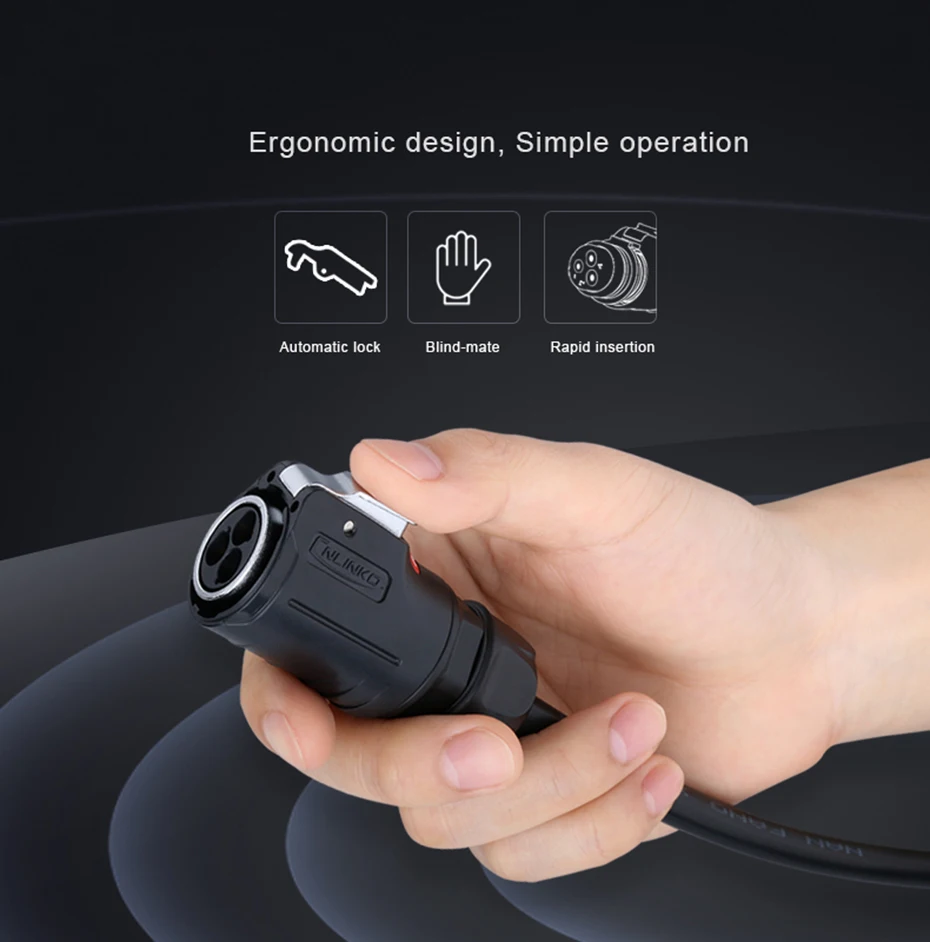

2、Unique spring locking connection designed for secure and stable connection transmission performance, which ensure the stability of electrical performance of the equipment during use.

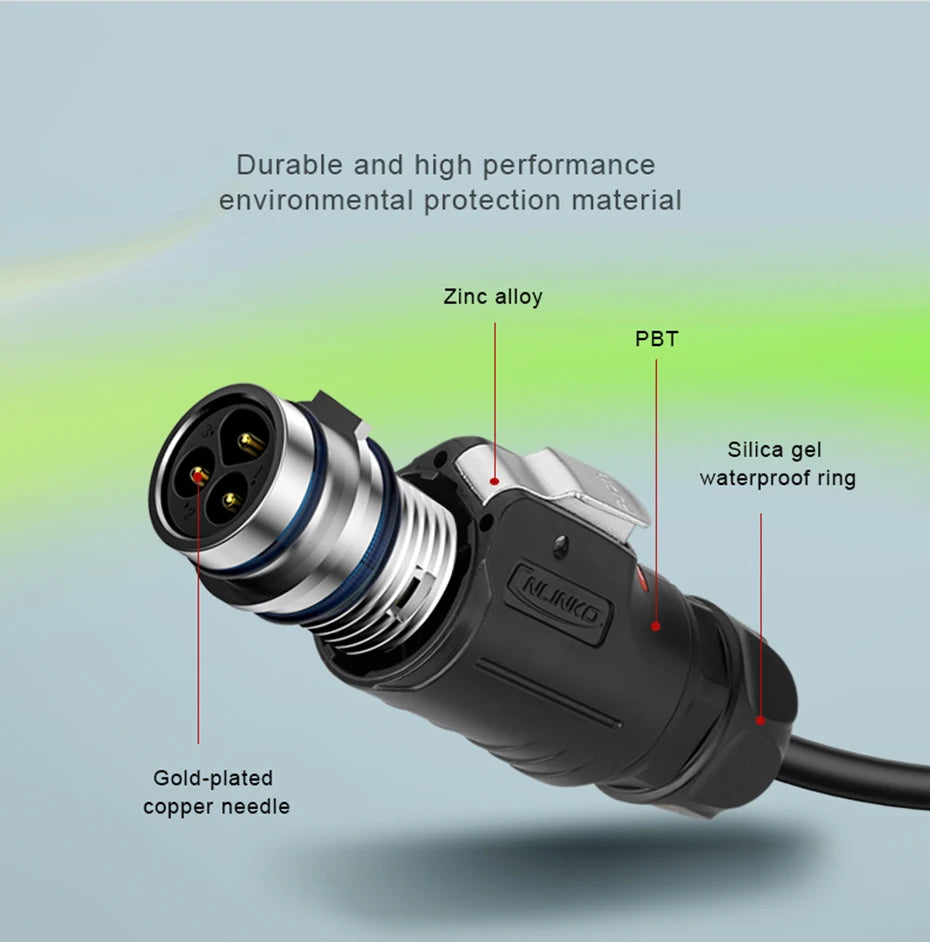

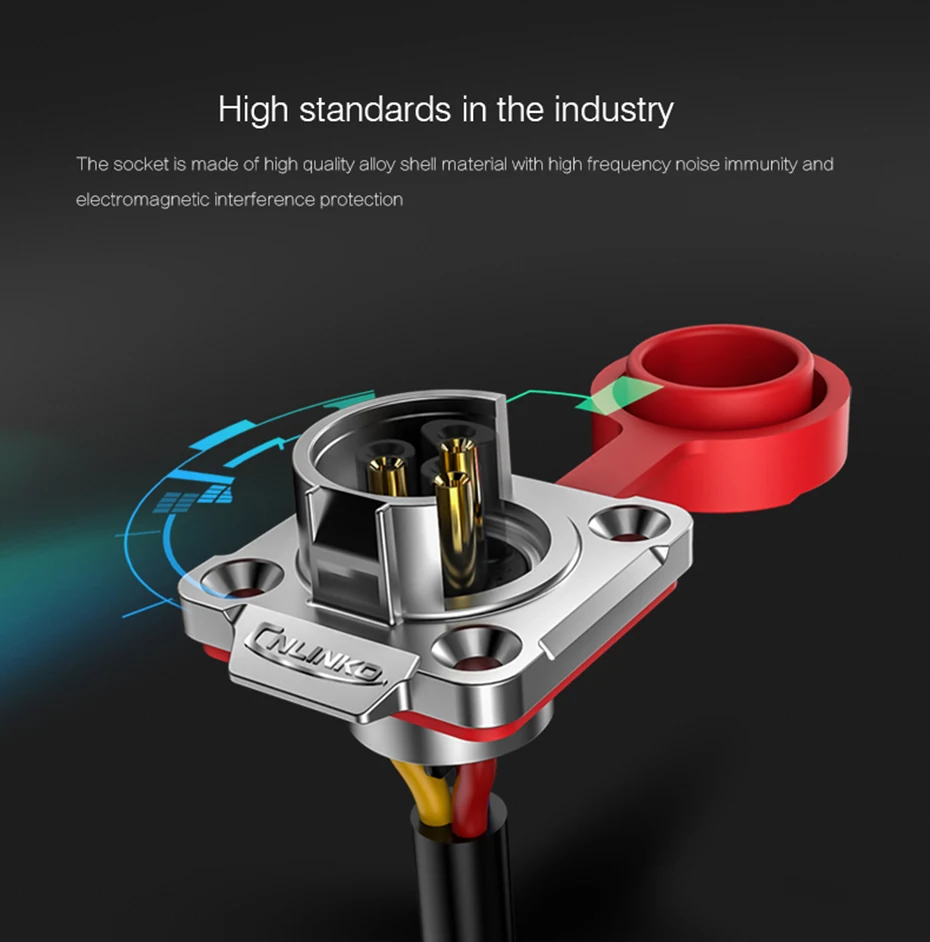

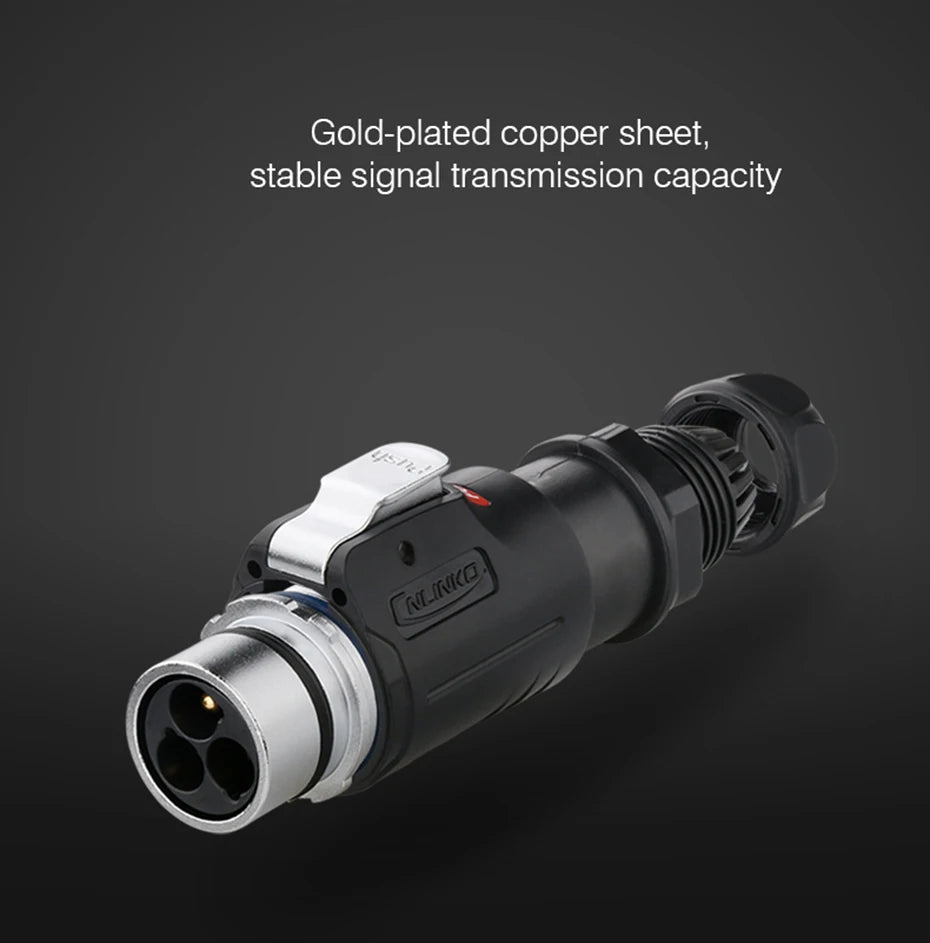

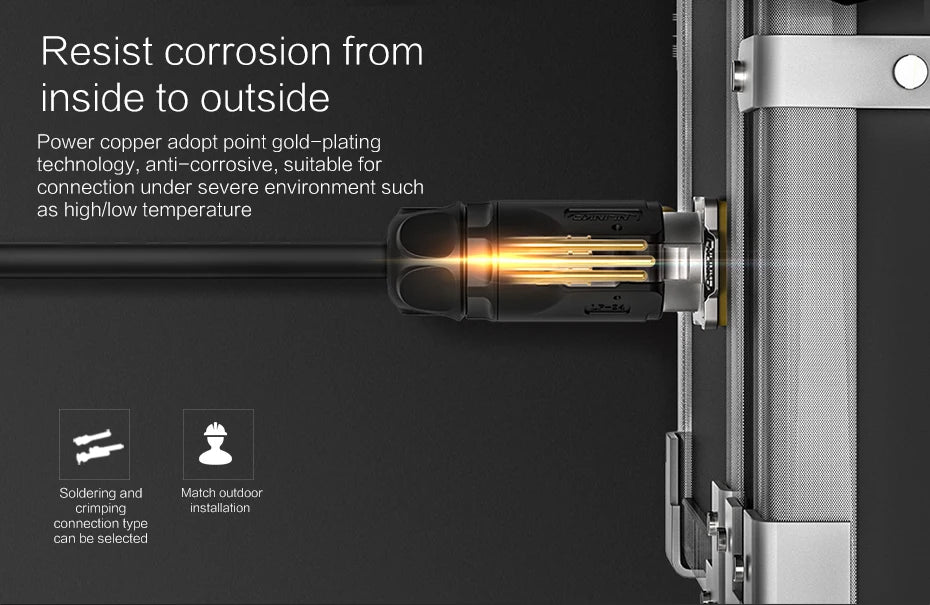

3、Gold plated contact for excellent ability of corrosion resistance, electric conduction, which can effectively settle the problem of temperature rise changing caused by current.

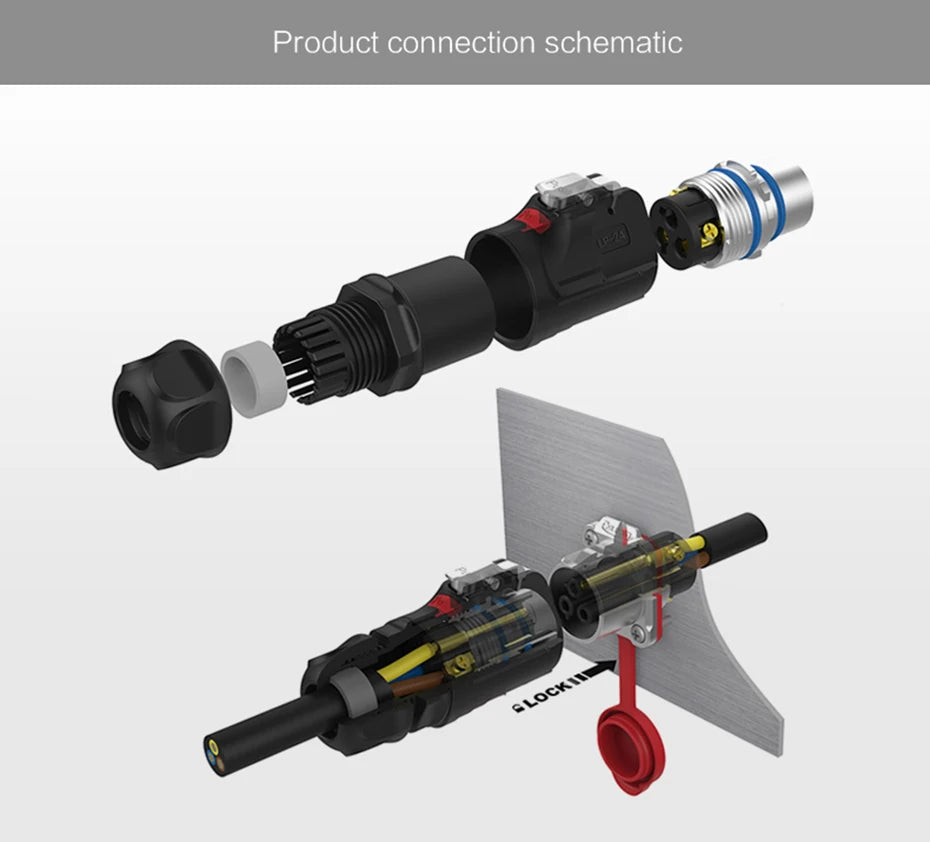

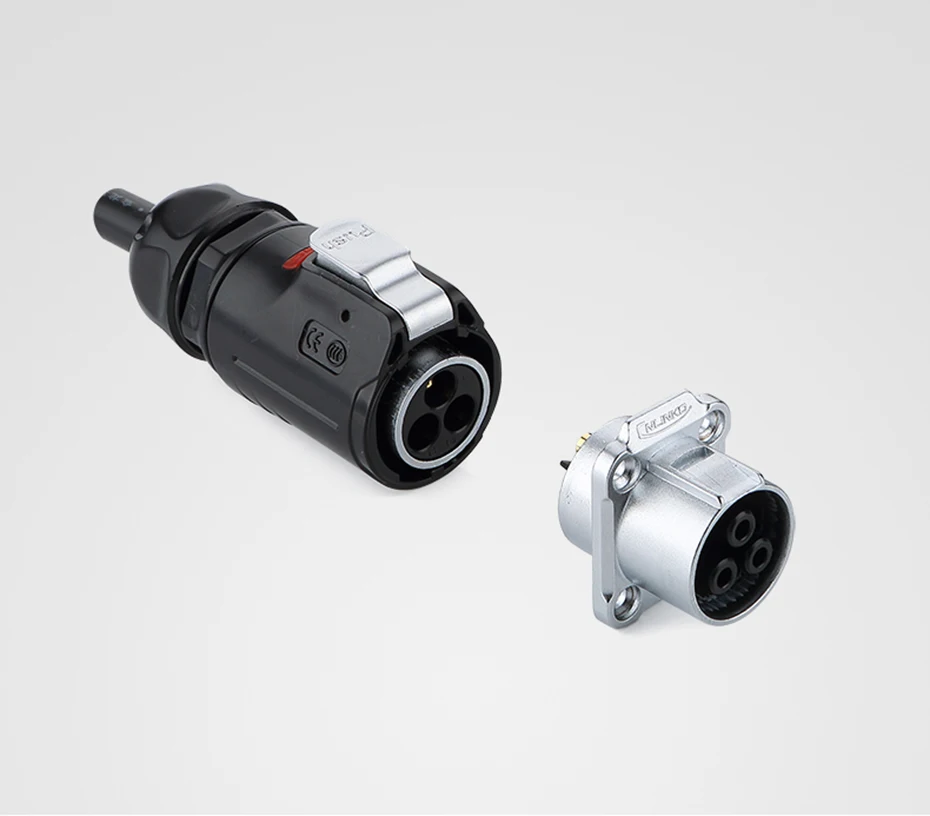

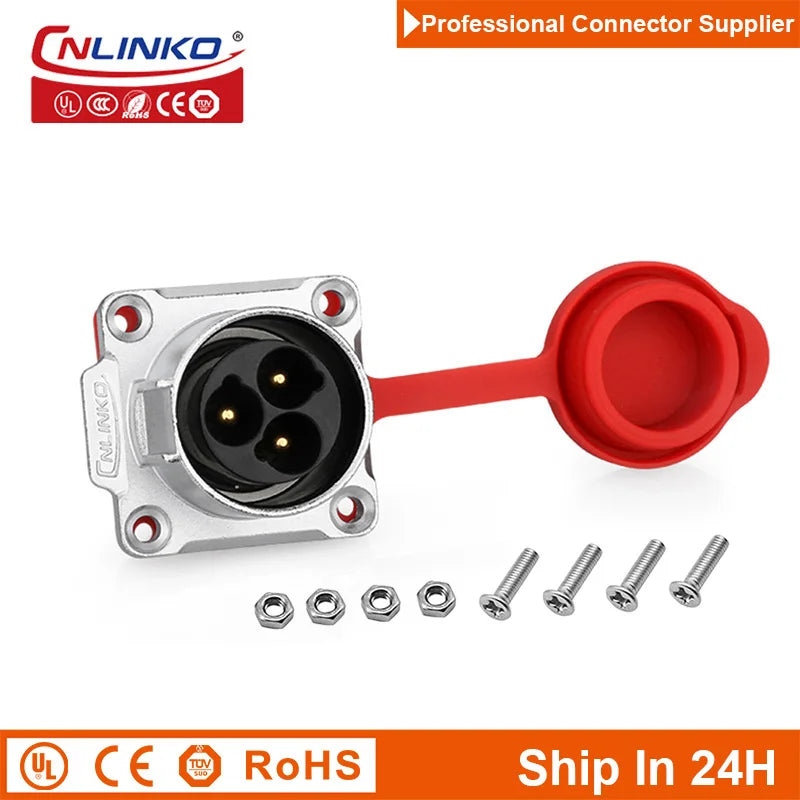

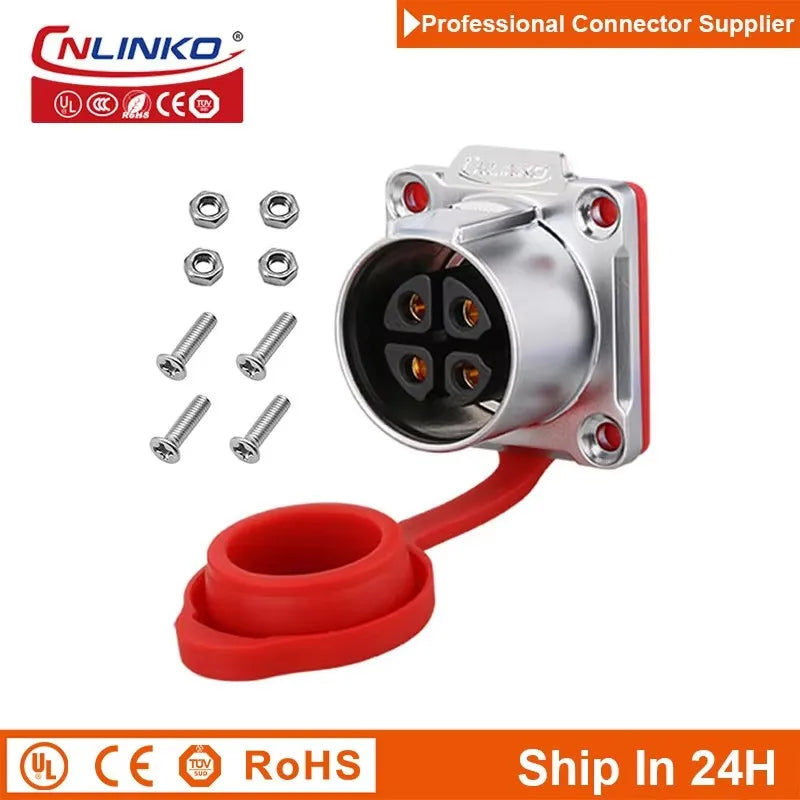

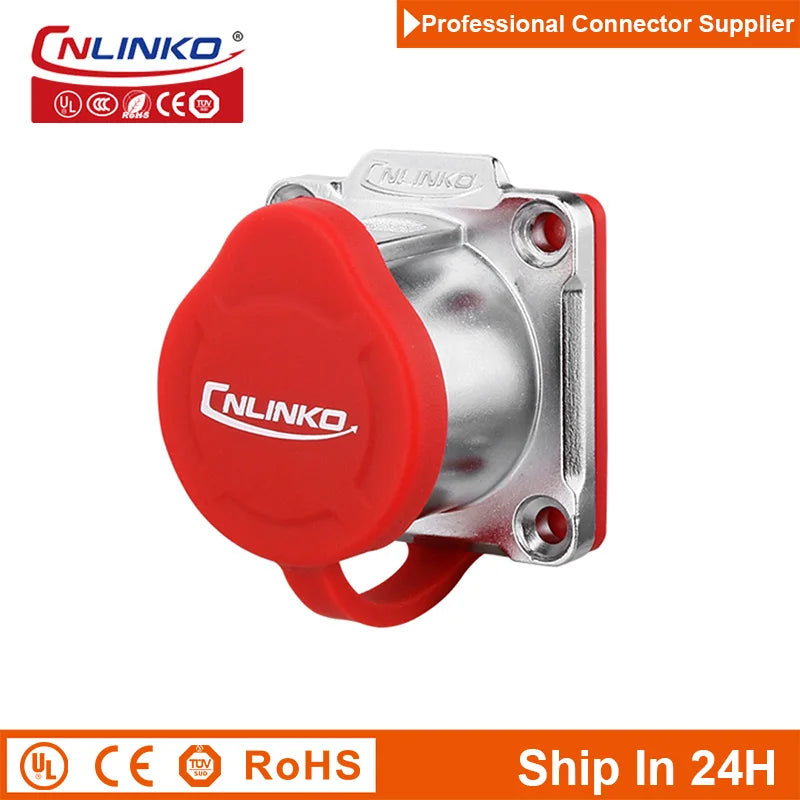

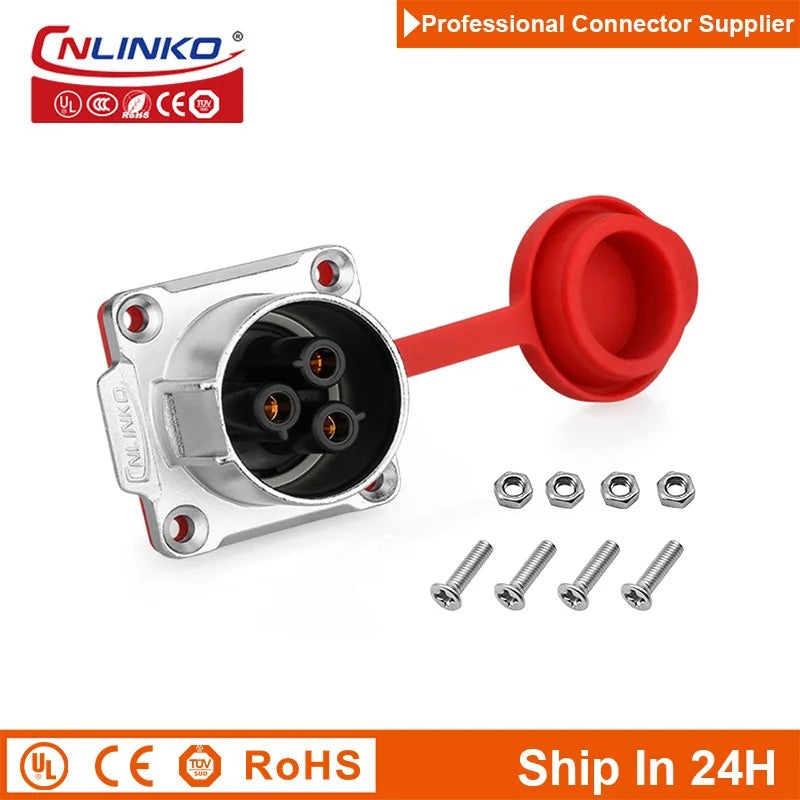

4、Panel mounting designed, which not only suitable for front or rear plate installation, but also suitable for system docking outside the equipment.

5、Solid and precise structure, it requires abilities of fire resistance, compression resistance, explosion resistance and deformation resistance. And the item complies with IP67 protection level when connected.
