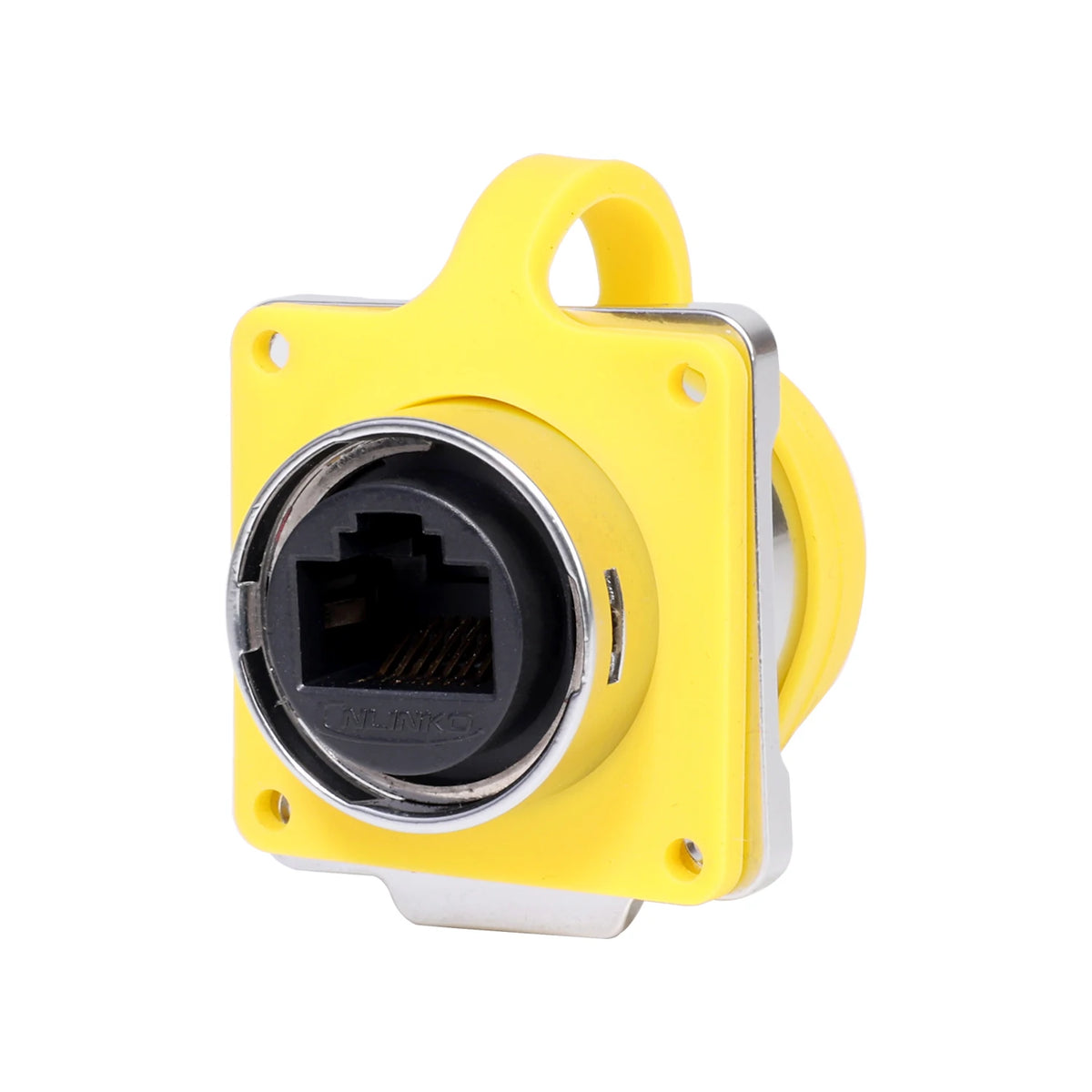

CNLINKO LP24 PBT IP68 Waterproof Circular RJ45 Connector CAT6 Plug & Socket Kit 8P8C Panel Mount for Industrial Ethernet Network

CNLINKO LP24 PBT IP68 Waterproof Circular RJ45 Connector CAT6 Plug & Socket Kit 8P8C Panel Mount for Industrial Ethernet Network

$57.56

$57.56 $0.00

Description

SPECIFICATIONS

Brand Name: cnlinko

Cable O.D Range: 5.0-7.0mm

Certification: CE,RoHS,UL,weee

Contact Material: Gold-plated Copper Alloy

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

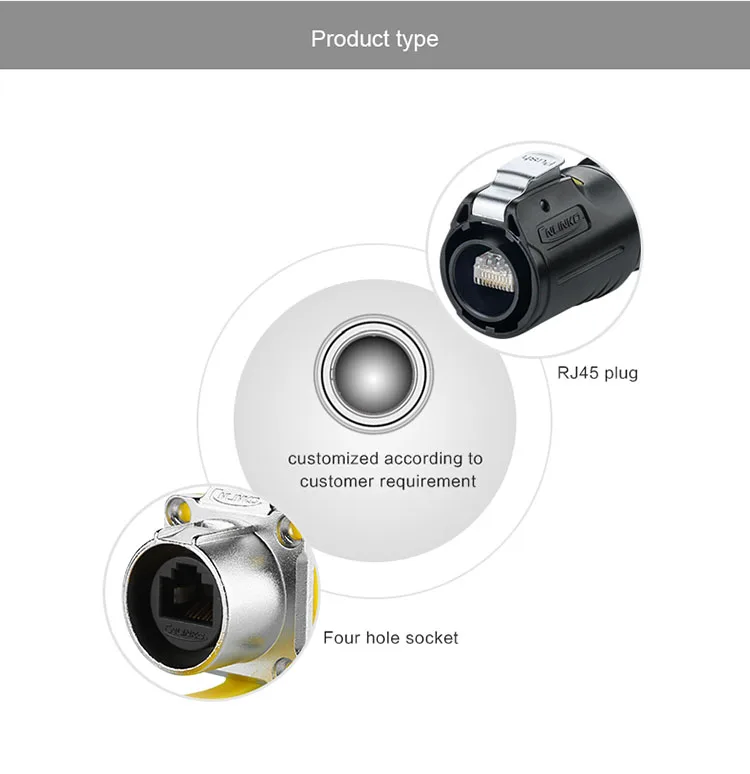

Gender: Male+Female

High-concerned chemical: none

Insulation Resistance Min.: 500MΩ

Machanical Life Min.: 500 cycles

Model Number: LP24 RJ45 Connector

Operating Temperature: -25℃~+85℃

Origin: Mainland China

Protection Level: IP68(2m/48h)

Rated Current: 1.5A

Rated Voltage: 125V AC

Salt Spray Min.: 48H

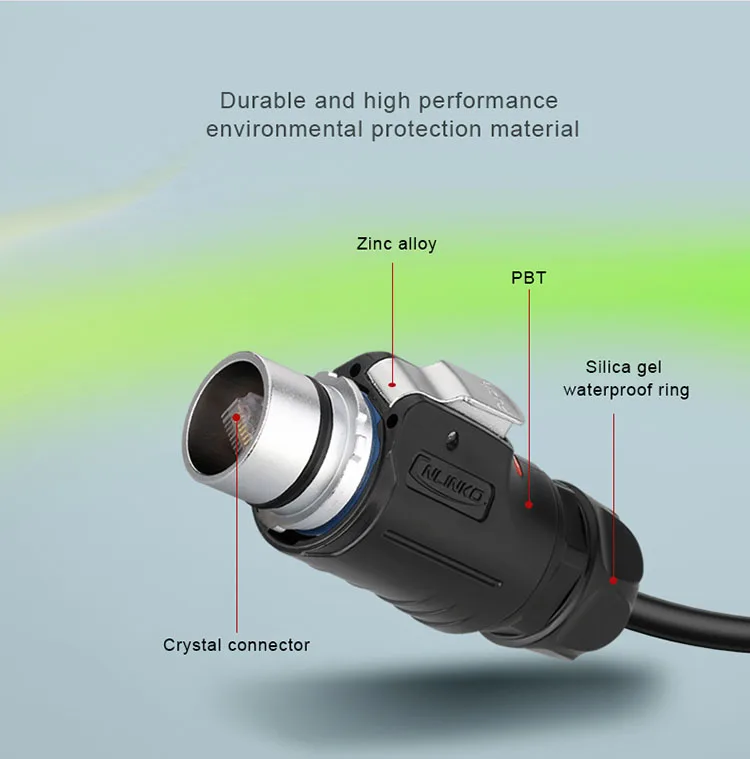

Shell Material: PBT Plastic

Transimission Rate: CAT3,CAT6

Voltage: 自定义编辑

Features:

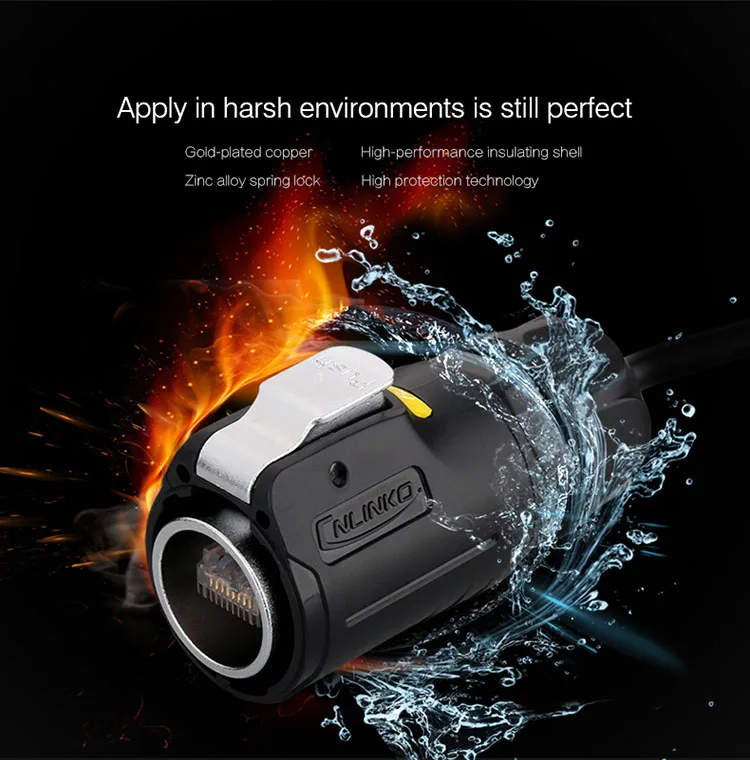

1. Superior IP68 Waterproof & Dustproof Protection – Rated IP68 when mated, this connector is completely dust-tight and withstands continuous water immersion. The robust silicone seal ensures reliable Ethernet connectivity in outdoor industrial networks, marine environments, and harsh conditions where moisture is a constant threat.

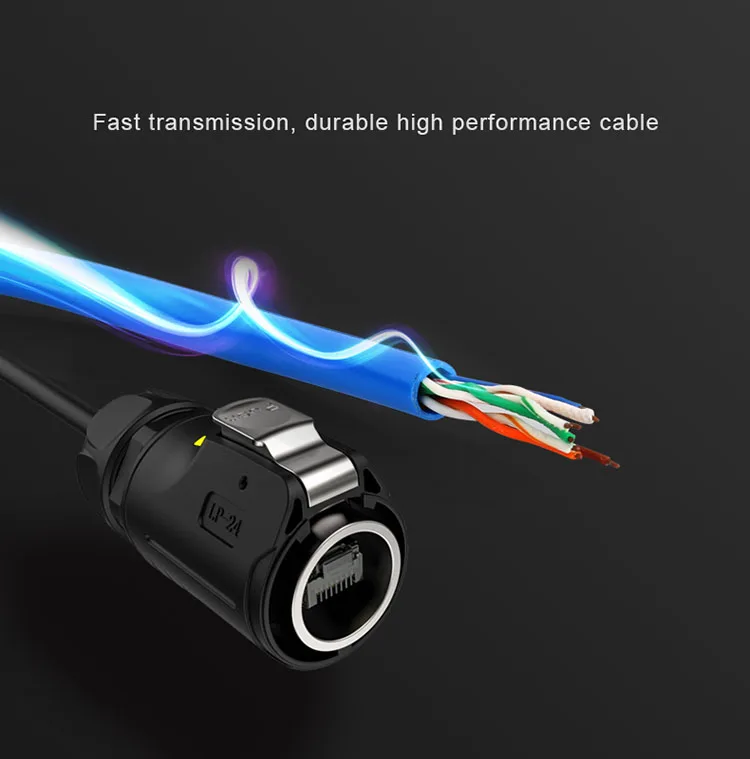

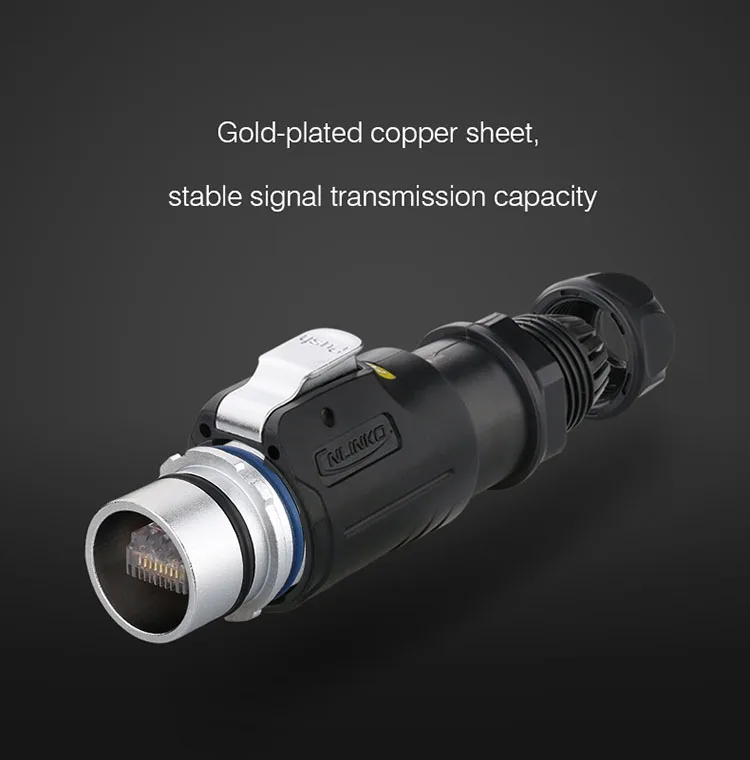

2. High-Speed CAT6 Data Transmission – Compliant with CAT6 standards, supporting data transfer rates up to 1 Gbps (1000 Mbps). Gold-plated 8P8C copper alloy contacts ensure low contact resistance (<30mΩ) and stable signal integrity for industrial automation, surveillance, and high-bandwidth networking applications.

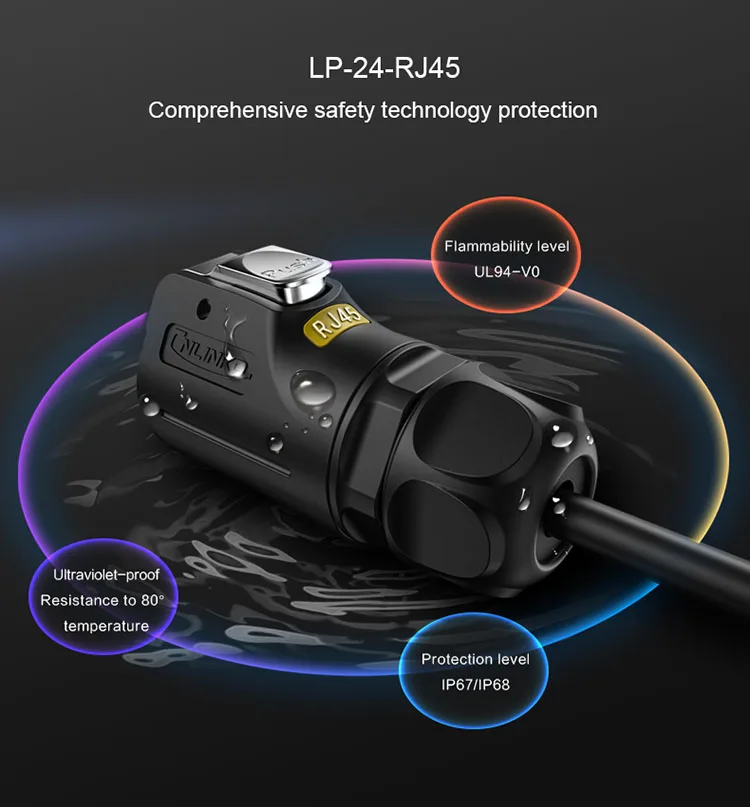

3. Durable PBT Housing with Long Service Life – Constructed with high-performance PBT engineering plastic (UL94 V‑0 flame retardant), offering excellent corrosion resistance, chemical stability, and impact protection. Lightweight yet robust, ensuring long-term durability in demanding outdoor and industrial environments.

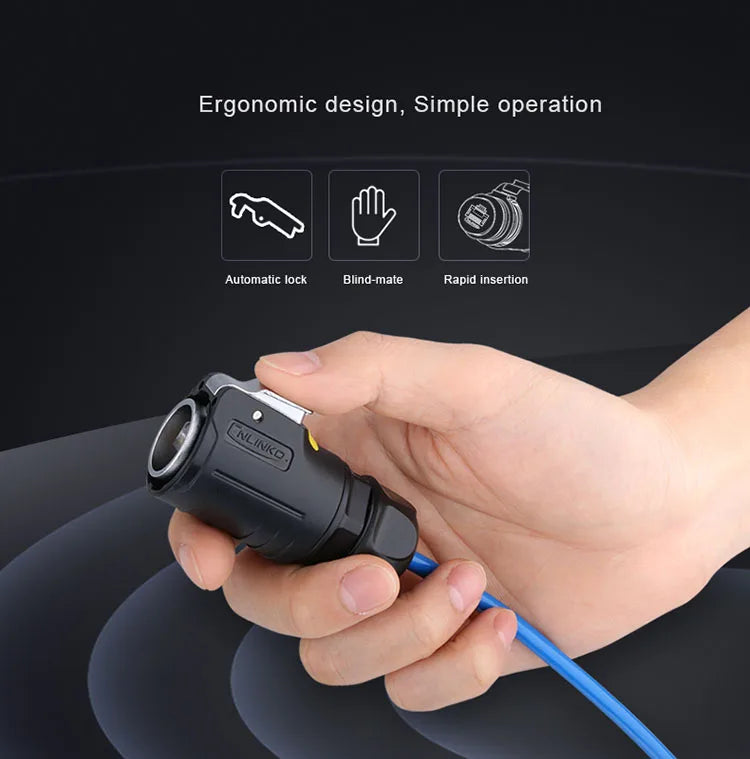

4. Quick Lock Connection & Easy Installation – Features an intuitive bayonet or snap-lock mechanism for fast, tool-free mating. The audible click confirms secure engagement, preventing accidental disconnection due to vibration. One-handed plug-and-play operation saves installation time and simplifies maintenance.

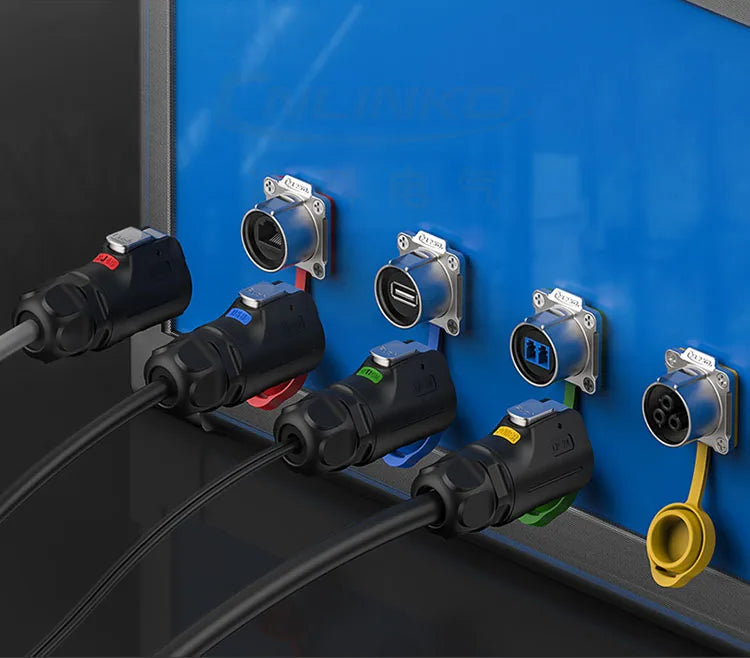

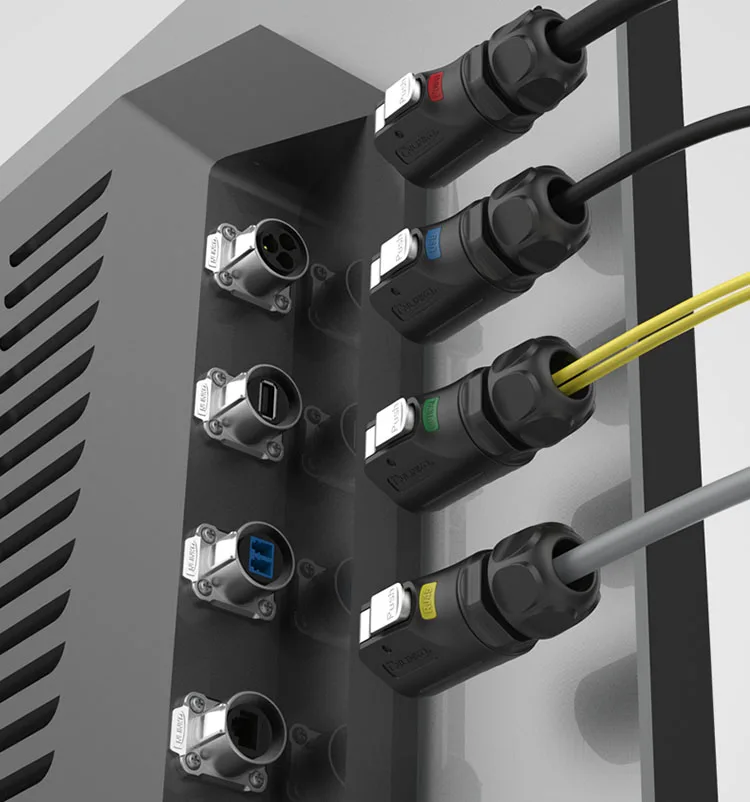

5. Wide Temperature Range & Versatile Applications – Operates reliably from -25°C to +85°C and supports ≥500 mating cycles. Ideal for industrial automation, outdoor LED displays, solar equipment, marine systems, and communication devices. The panel-mount design ensures secure installation across diverse environments.
