Description

SPECIFICATIONS

Application: Audio & Video,Lighting,Power

Assembly Cable: Soldering

Brand Name: cnlinko

Cable O.D Range: 4.5mm~5.5mm

Certification: CE,RoHS,UL,weee

Contact Material: Copper AlloyGold-plated)

Contact Resistance: ≤5.0mΩ

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Housing & Insulation Parts: High-Performance Engineering Plastics

Insulation Resistance: ≥500MΩ

Item Type: Male Plug+Female Mating Socket,Male Plug,Female Mating Socket

Mechanical Life: ≥2000 Cycles

Model Number: LP-12 PBT Inline Connector

Operating Temperature: -25~+85℃

Origin: Mainland China

Protection Level: IP68/IPX9K(When Mated)

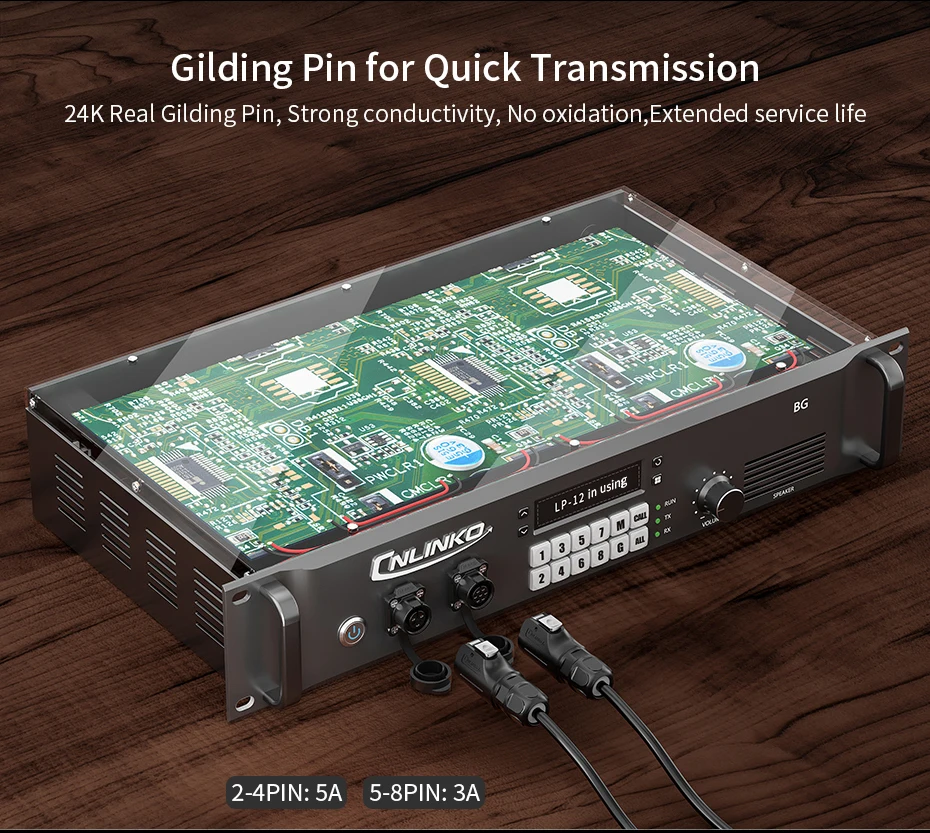

Rated Current(2~6pin): 5A

Rated Current(7~8pin): 3A

Rated Voltage(2~6pin): 125V AC

Rated Voltage(7~8pin): 100V AC

Salt Spray: ≥72H

Voltage: 自定义编辑

Wire Guage(7~8pin): 0.25~0.34mm²/24~22AWG

Wire Guange(2~6pin): 0.34~0.5mm²/22-20AWG

Withstanding Voltage(2~6pin): 1500V AC

Withstanding Voltage(7~8pin): 1000V AC

电压: 1V 2V 4V 5V 12V 12V 等或自定义

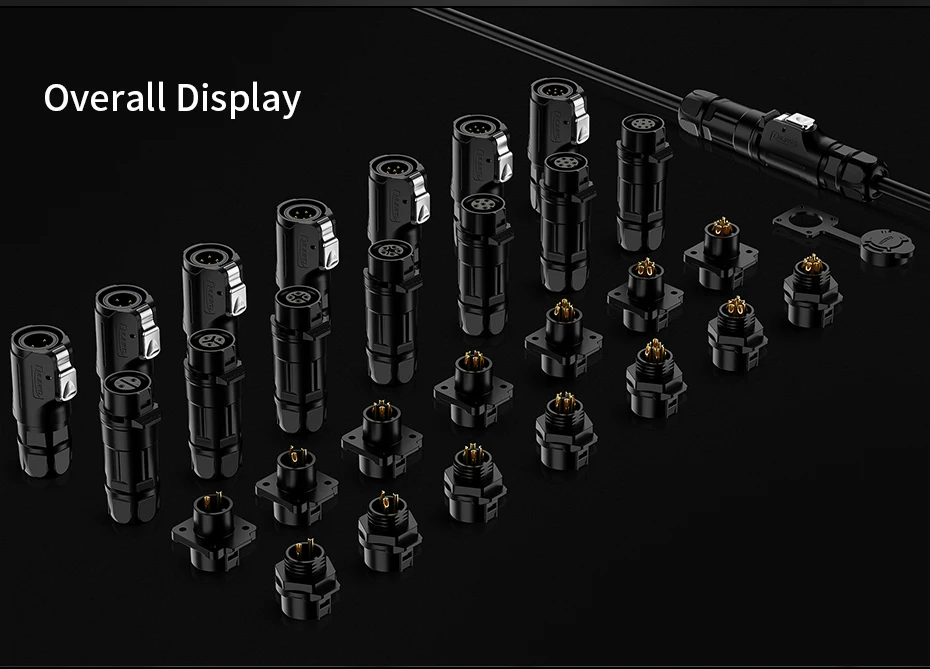

CNLINKO M12 Waterproof Industrial Connector LP12 Male Plug Mating Plug 2 3 4 5 6 7 8 Pin Mini Electrical Connector Factory Retail

Features:

Complete Pin Count Options – Choose from 2, 3, 4, 5, 6, 7, or 8 pins to fit any sensor, power, or signal application.
IP68 Waterproof Rating – Fully dust-tight and submersible (1.5m+), ideal for outdoor, marine, and harsh industrial environments.

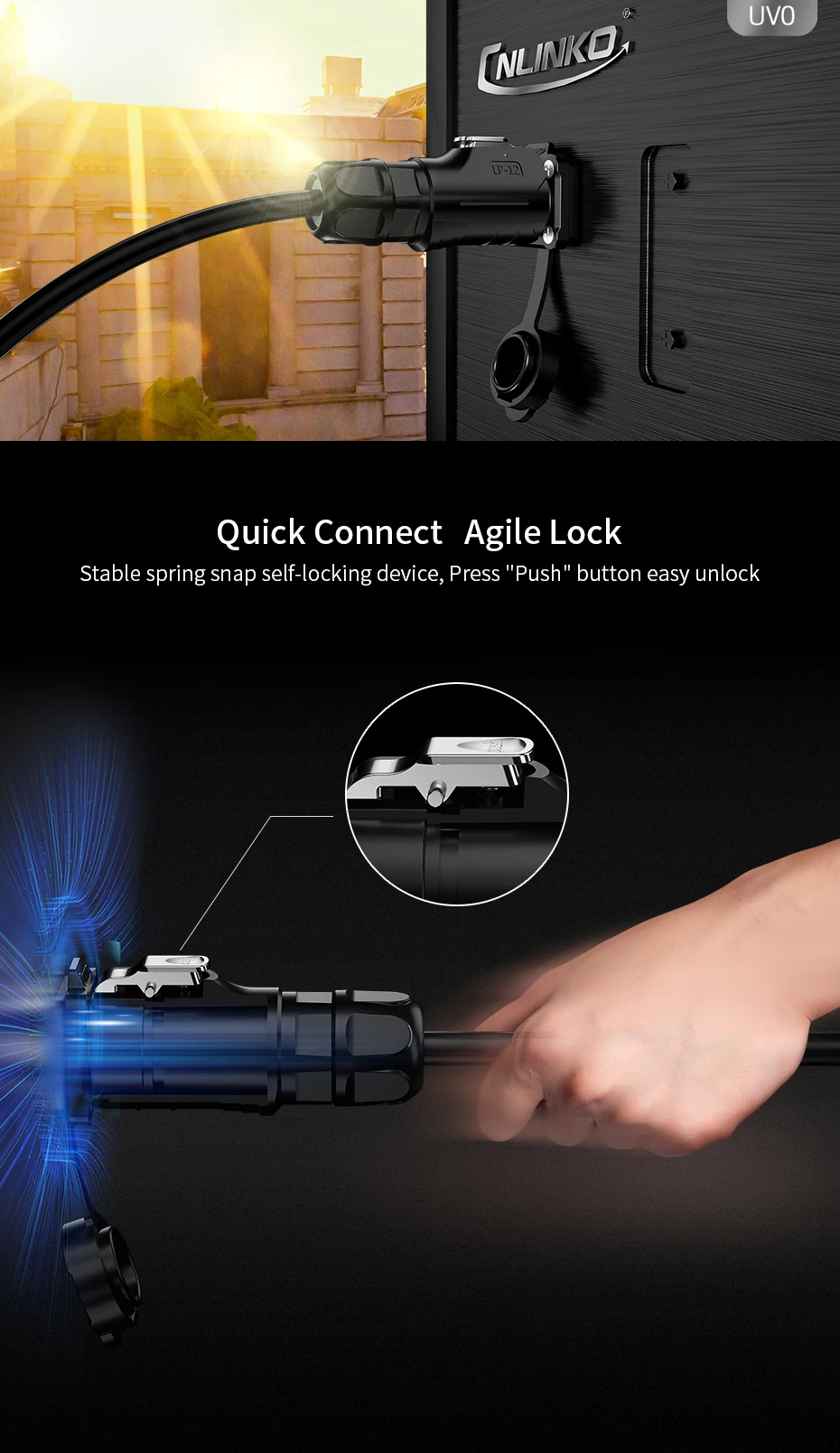

Push-Pull Quick Locking (LP12 Series) – One-handed, tool-free mating and unmating saves installation time and ensures reliable connection.
Male Plug + Mating Plug Set – Ready-to-use male plug with corresponding mating plug, perfect for cable-to-cable connections.
Industrial Automation Grade – Designed for sensors, actuators, LED lighting, small machines, and factory automation systems.

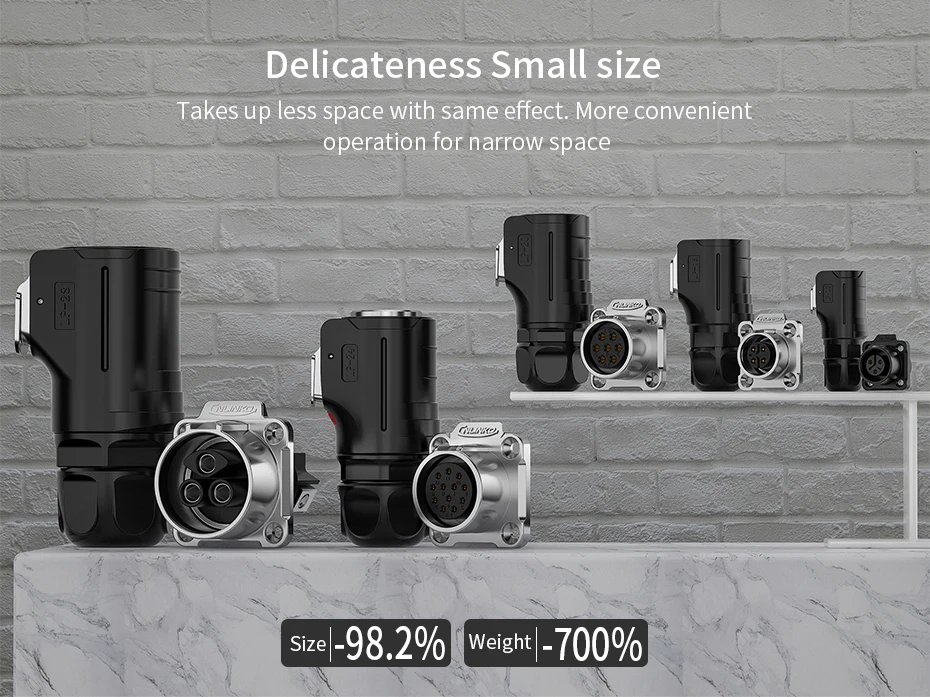

Miniature & Space-Saving – Compact LP12 body fits tight spaces without compromising durability or performance.

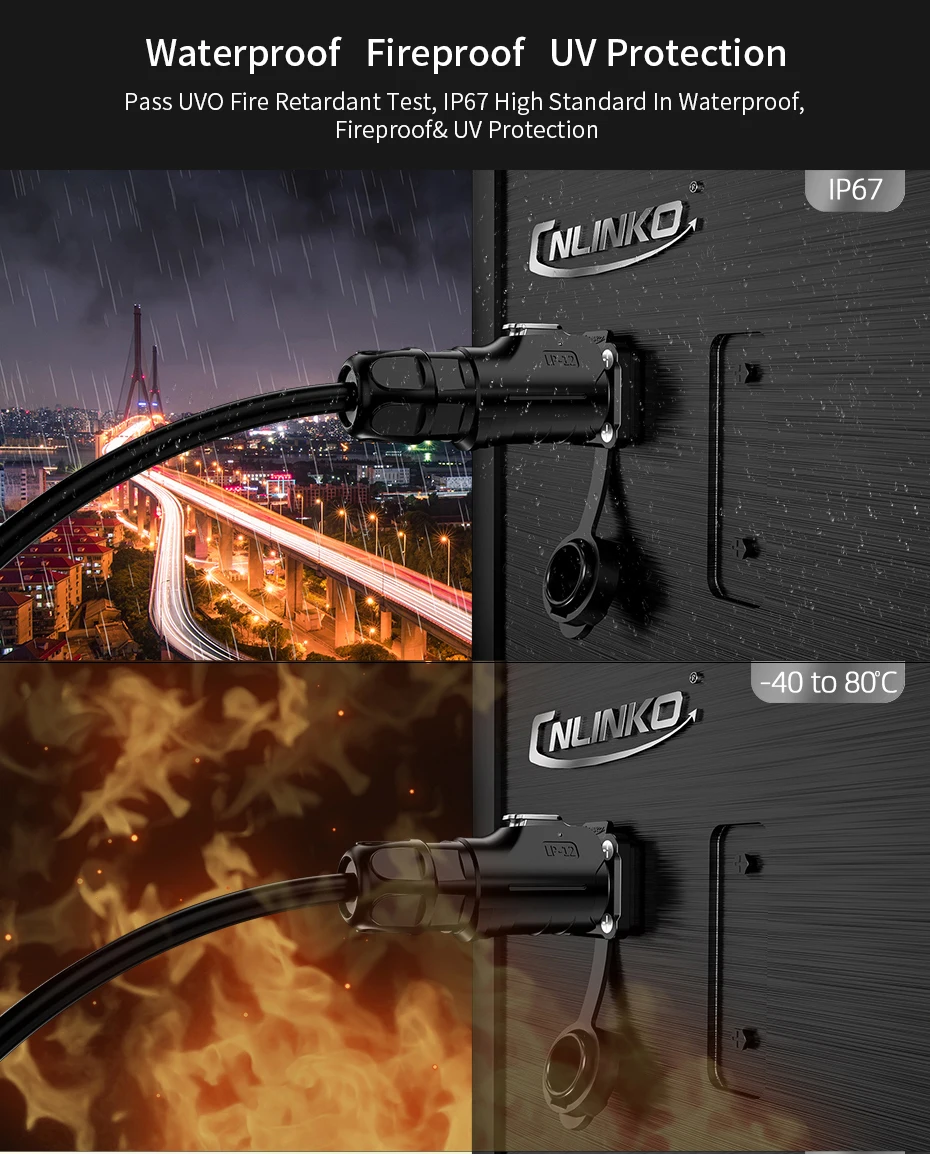

Anti-Corrosion & UV Resistant – Withstands moisture, salt spray, oil, and sunlight for long-term reliability.
Solder or Screw Terminal Options – Easy field assembly or pre-wired versions available (please check listing).
Factory Direct from CNLINKO – Competitive pricing, consistent quality, and retail-ready packaging.
