Description

SPECIFICATIONS

Assembly Cable: Soldering

Brand Name: cnlinko

Cable O.D Range: 4.5-5.5mm

Certification: CE,RoHS,UL,weee

Contact Material: Copper AlloyGold-plated)

Contact Resistance: ≤5.0mΩ

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Insulation Resistance: ≥500MΩ

Item Type: Male Plug+Female Four-hole Socket, Male Plug,Female Four-hole Socket

Mechanical Life: ≥2000 Cycles

Model Number: LP-12 PBT Four-hole Socket Connector

Operating Temperature: -25℃~+85℃

Origin: Mainland China

Protaction Level: IP68/IPX9K(When Mated)

Rated Current(2~6pin): 5A

Rated Current(7~8pin): 3A

Rated Voltage(2~6pin): 125 AC

Rated Voltage(7~8pin): 100V AC

Salt Sprty: ≥72H

Shell Material: PBT Plastic

Voltage: 自定义编辑

Wire Guage(2~6pin): 0.34~0.5mm²/22~20AWG

Wire Guage(7~8pin): 0.25~0.34mm²/24~22AWG

Withstanding Voltage(2~6pin): 1500V AC

Withstanding Voltage(7~9pin): 1000V AC

电压: 1V 2V 4V 5V 12V 12V 等或自定义

CNLINKO M12 2pin 3pin 4pin 5pin 6pin 7pin 8pin Waterproof Electrical Connector Welding Cable Panel Mount IP68 Connectors for Industrial Automation Outdoor LED Lighting

Features:

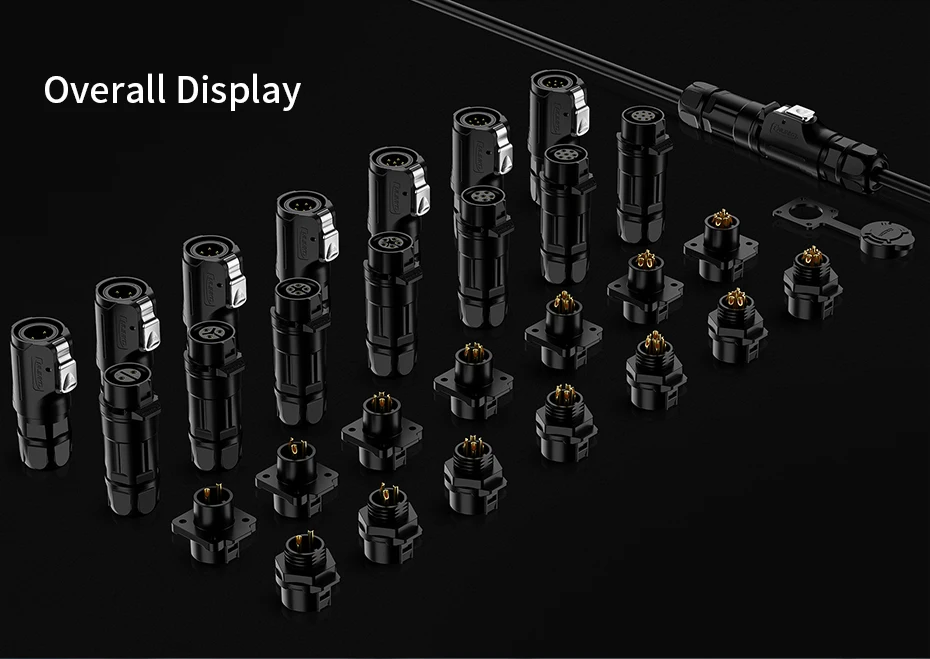

Wide Pin Count Options – Available in 2, 3, 4, 5, 6, 7, and 8 pins to meet diverse signal and power needs.
IP68 Waterproof Rating – Fully dust-tight and withstands long-term immersion up to 1.5 meters, perfect for harsh environments.
Rugged Industrial Design – Built for factory automation, sensors, actuators, and outdoor equipment with excellent vibration and impact resistance.
Welding Cable Compatible – Designed for secure soldered connections, ensuring stable signal transmission and easy field assembly.
Panel Mount Ready – Offers reliable bulkhead mounting for equipment panels, junction boxes, and control cabinets.
Corrosion-Resistant Materials – Resists moisture, salt spray, oil, and UV exposure for long-lasting outdoor or workshop use.
Plug & Play or DIY – Choose pre-wired cables or field-wireable versions for maximum flexibility.
