CNLINKO M16 Waterproof Electrical Connector 2/3/4/5/7/8/9 Pin Soldering Wire Aviation Connectors Panel Mounting Plastic+Metal
5 Pin Set
$38.16
Sale price
$38.16
Regular price
$0.00
Skip to product information
CNLINKO M16 Waterproof Electrical Connector 2/3/4/5/7/8/9 Pin Soldering Wire Aviation Connectors Panel Mounting Plastic+Metal
$38.16
Sale price
$38.16
Regular price
$0.00
Description

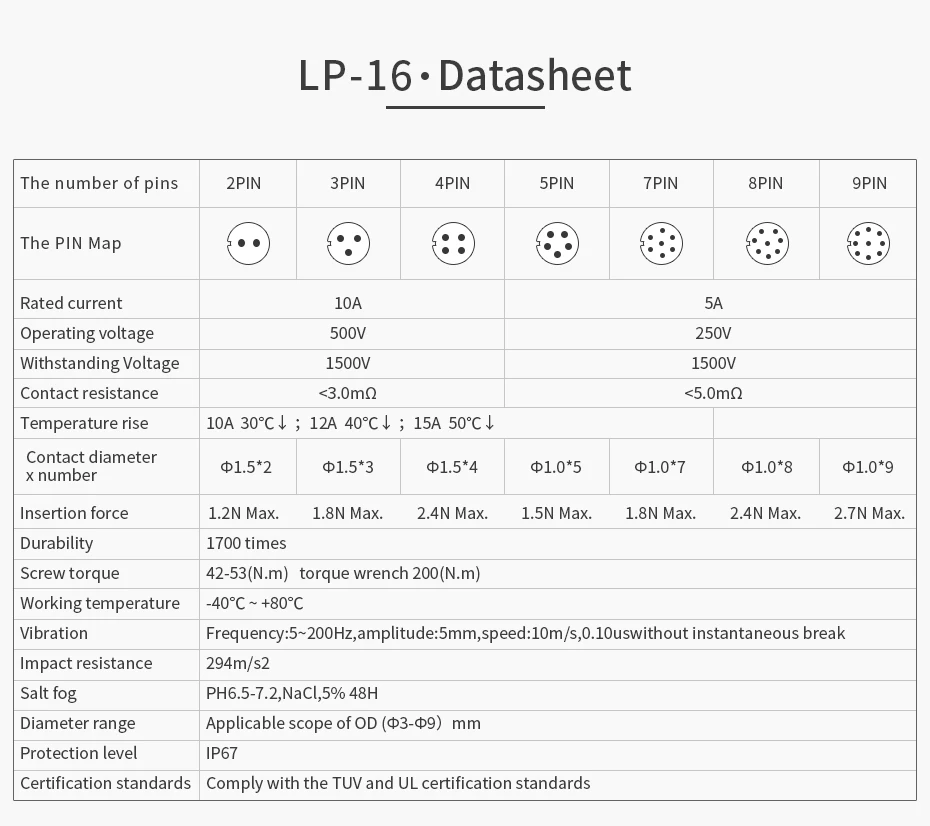

SPECIFICATIONS
Assembly style: Soldering
Brand Name: cnlinko
Cable specification(2~4pin): 1.0~1.5mm²/18 ~16AWG
Cable specification(5~9pin): 0.34~0.5mm²/22~20AWG
Certification: CE,RoHS,UL,weee
Contact pin: Brass with gold-plated
Contact resistance(Max.): 1~5 m omega

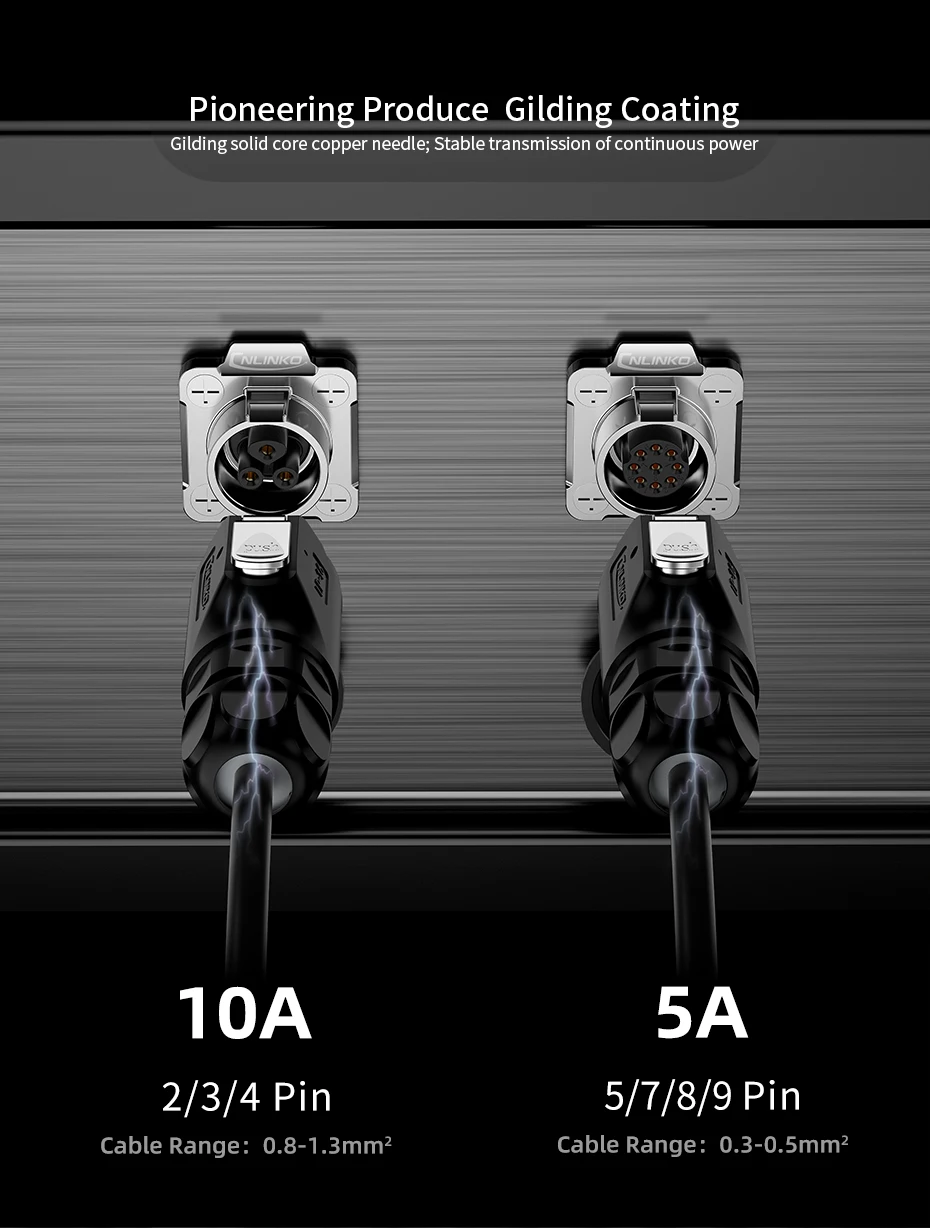

Current rating(2~4pin): 10A
Current rating(5~9pin): 5A
Diameter range(2~4pin): Tolerance 7mm~9mm
Diameter range(5~9pin): Tolerance 5-7mm
Does it include a Battery?: No
Does it include wireless functionality?: No
Durability(Min.): 500 times
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Hardware metal: Zinc alloy
High-concerned chemical: none
Insulation resistance(Min.): 500 m omega
Model Number: LP-16 Series
Operating voltage (AC.V.rms): 400V
Origin: Mainland China
Pin number: 2 3 4 5 7 8 9 Pin
Protection Class: IP68
Shell&insulated parts: PBT plastic
Voltage: 自定义编辑

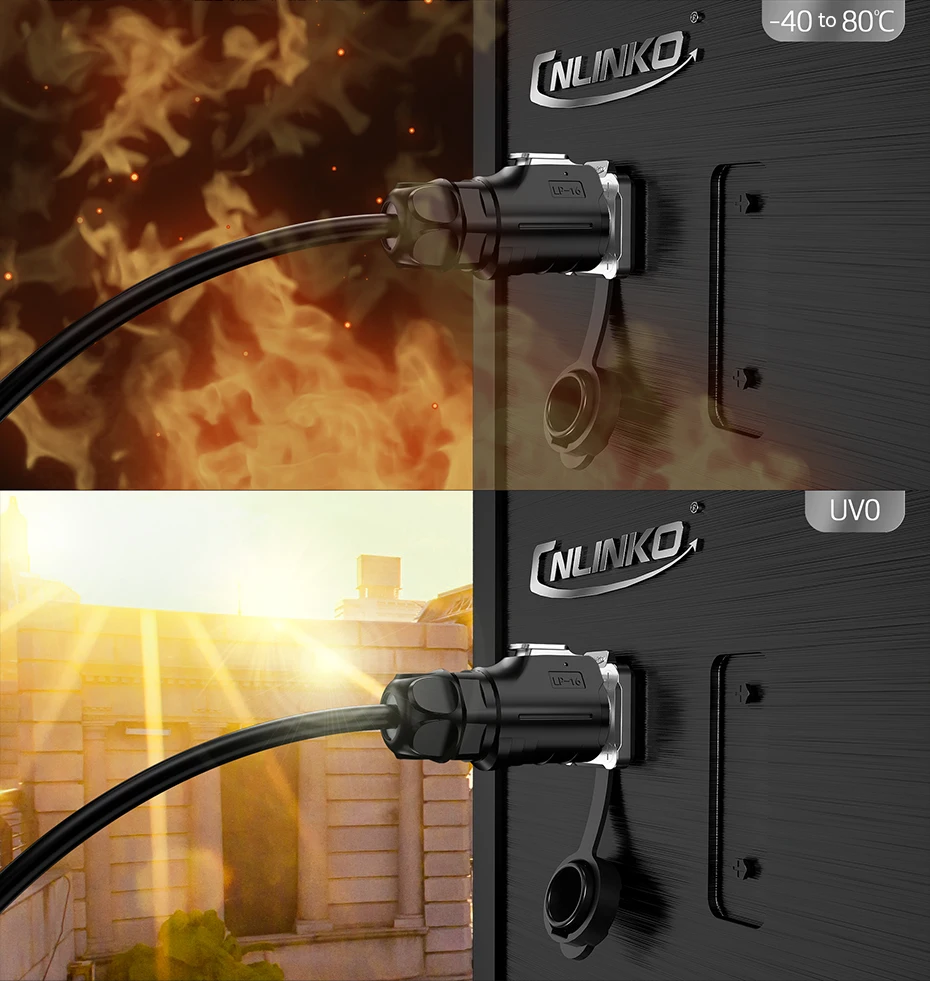

Working temperature: -25 degrees Celsius~+85 degrees Celsius
CNLINKO LP16 Waterproof Electrical Connector 2/3/4/5/7/8/9 Pin M16 Soldering Wire Aviation Connectors Panel Mounting Plastic+Metal
Features:

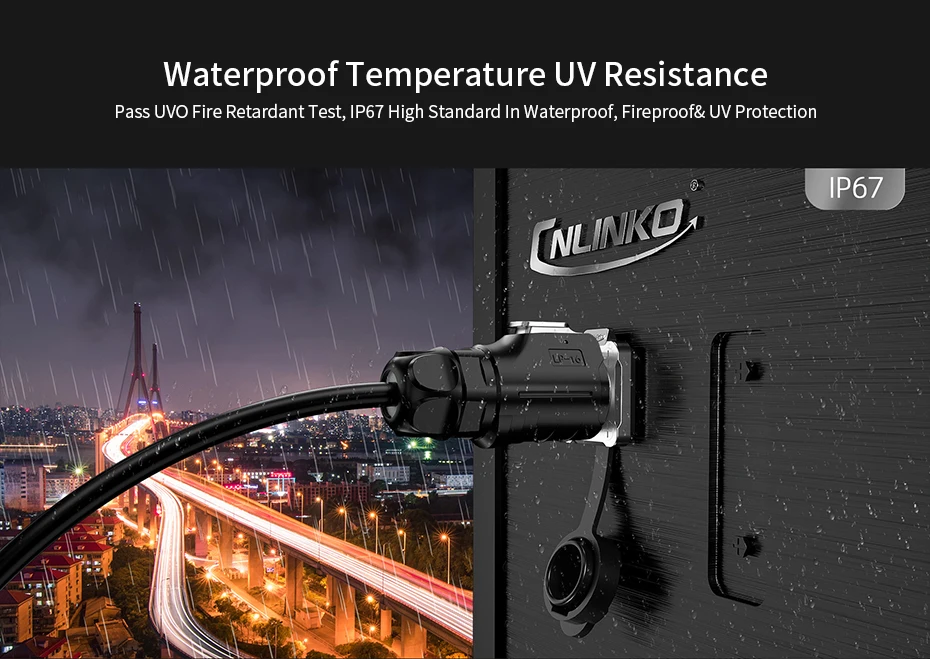

Waterproof Design
The CNLINKO M16 Waterproof Electrical Connector ensures reliable performance in wet environments, thanks to its robust waterproof design.

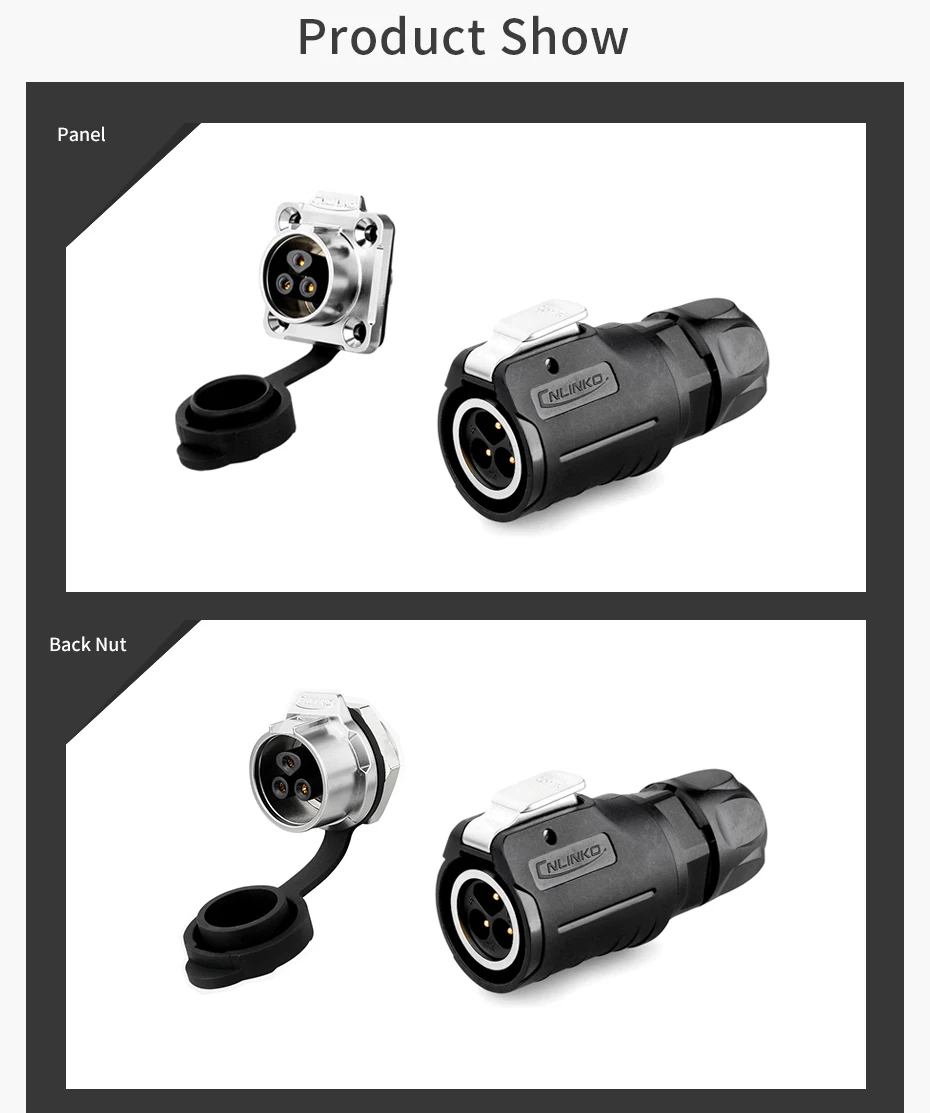

Panel Mounting Capability
Designed for easy panel mounting, this connector provides a secure and convenient solution for wiring installations.
Durable Material
Constructed with high-quality plastic and metal, this connector guarantees durability and longevity in use.

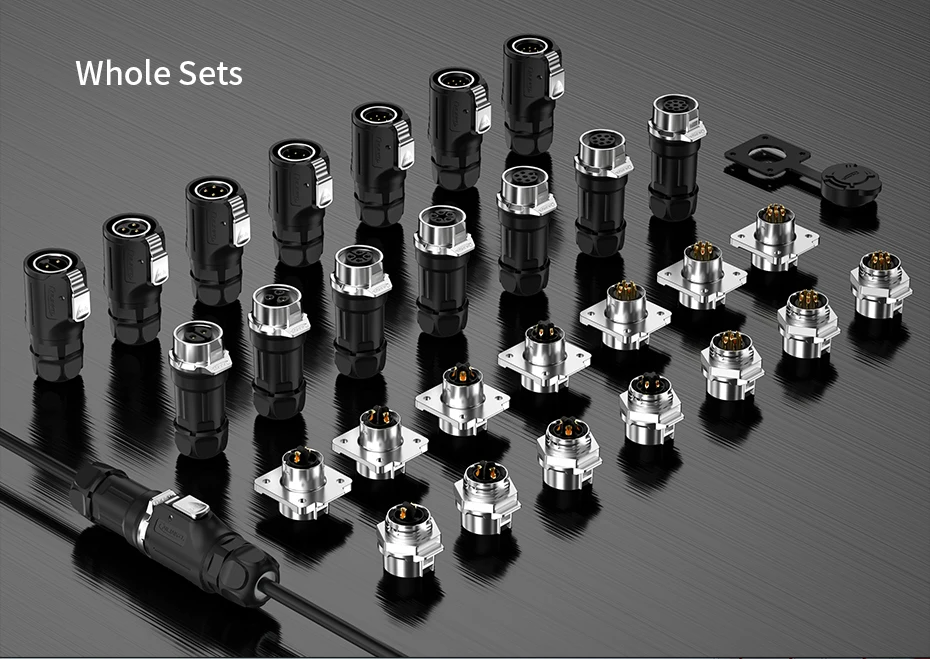

Versatile Pin Options
With pin options ranging from 2 to 9, this connector offers flexibility for various electrical needs and applications.

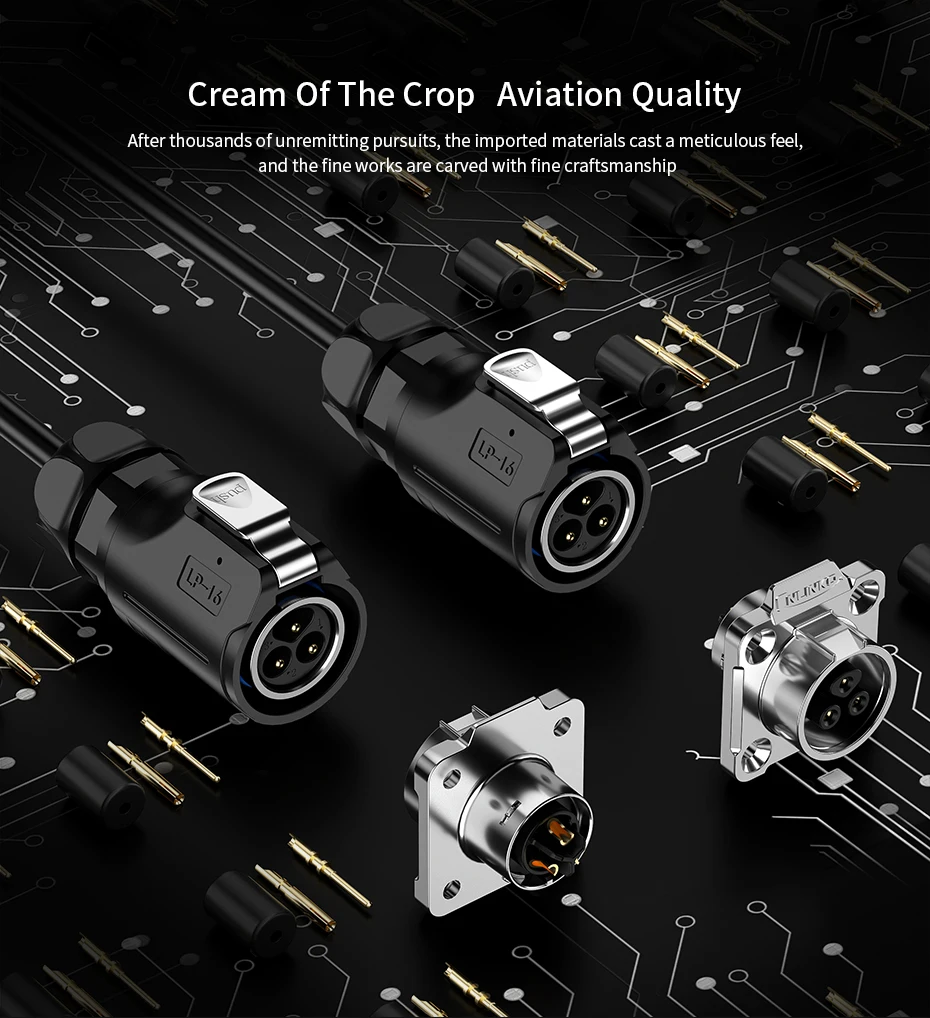

Aviation Grade
As an aviation-grade connector, it meets stringent standards for reliability and performance in demanding conditions.
