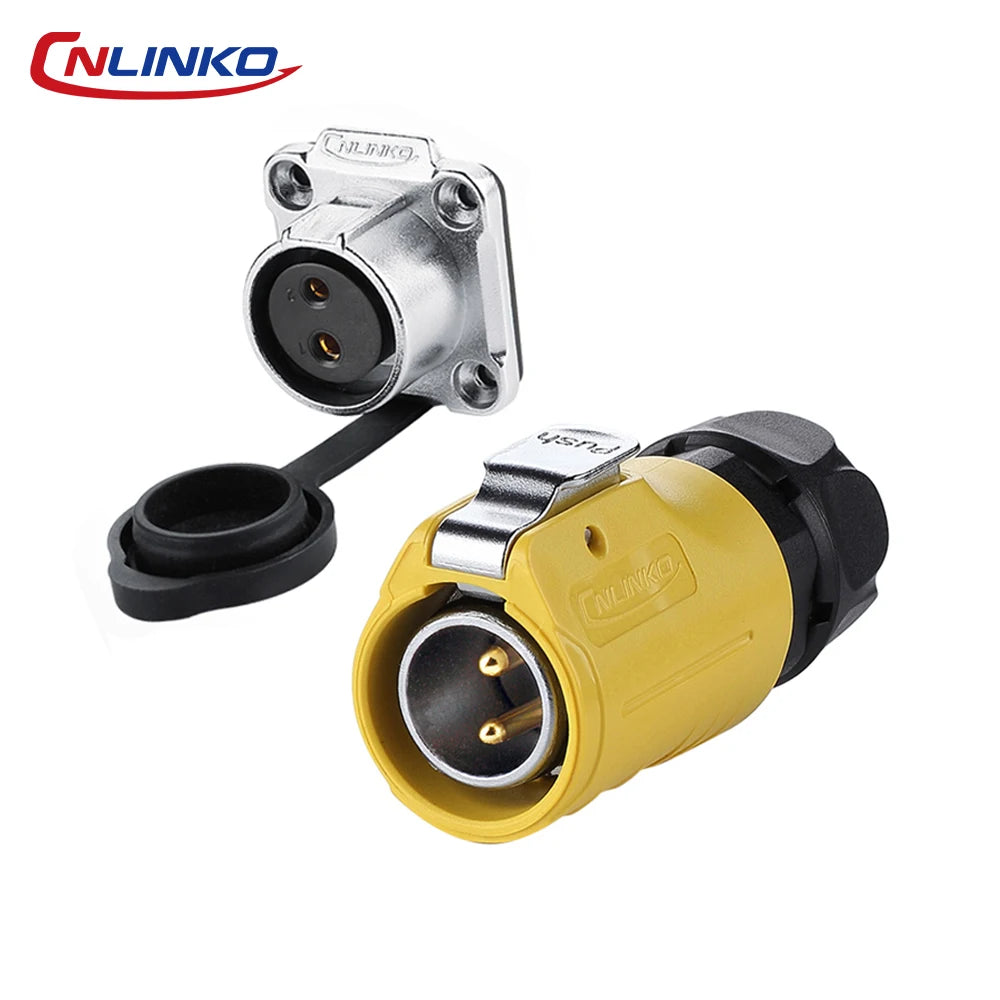

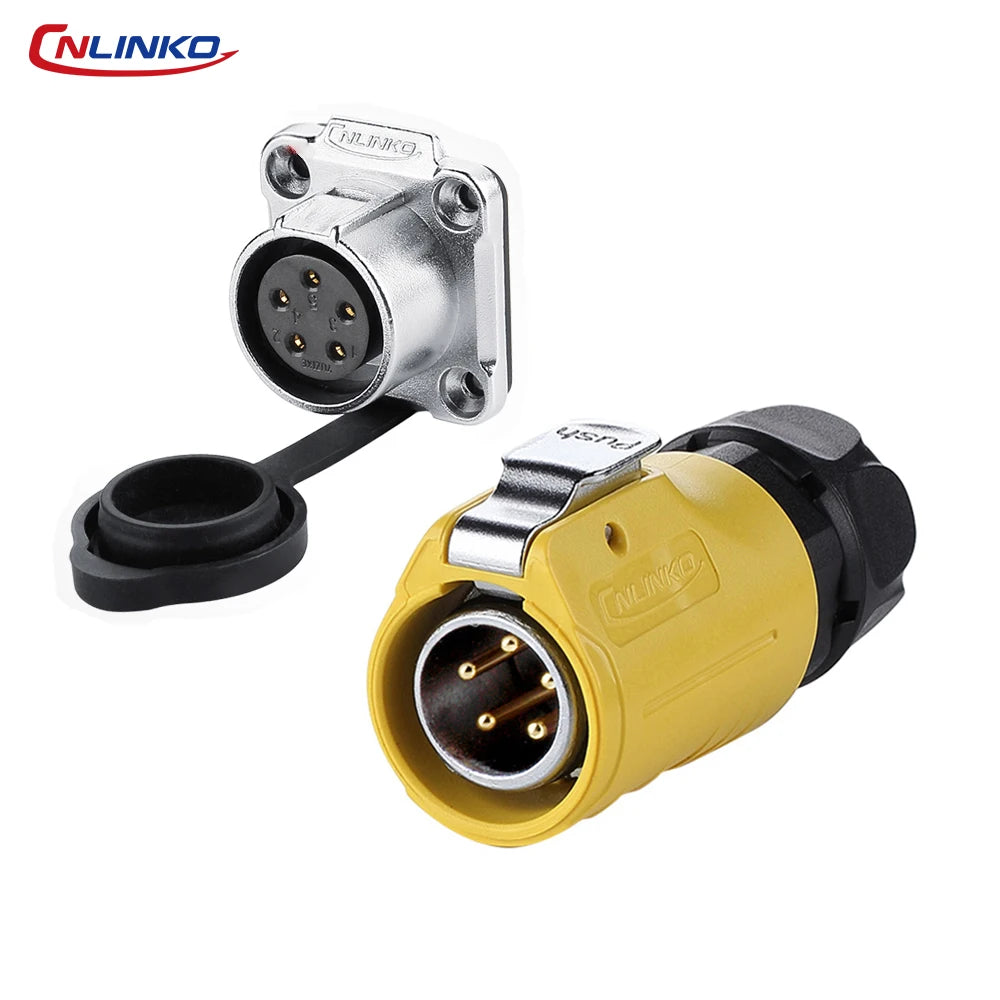

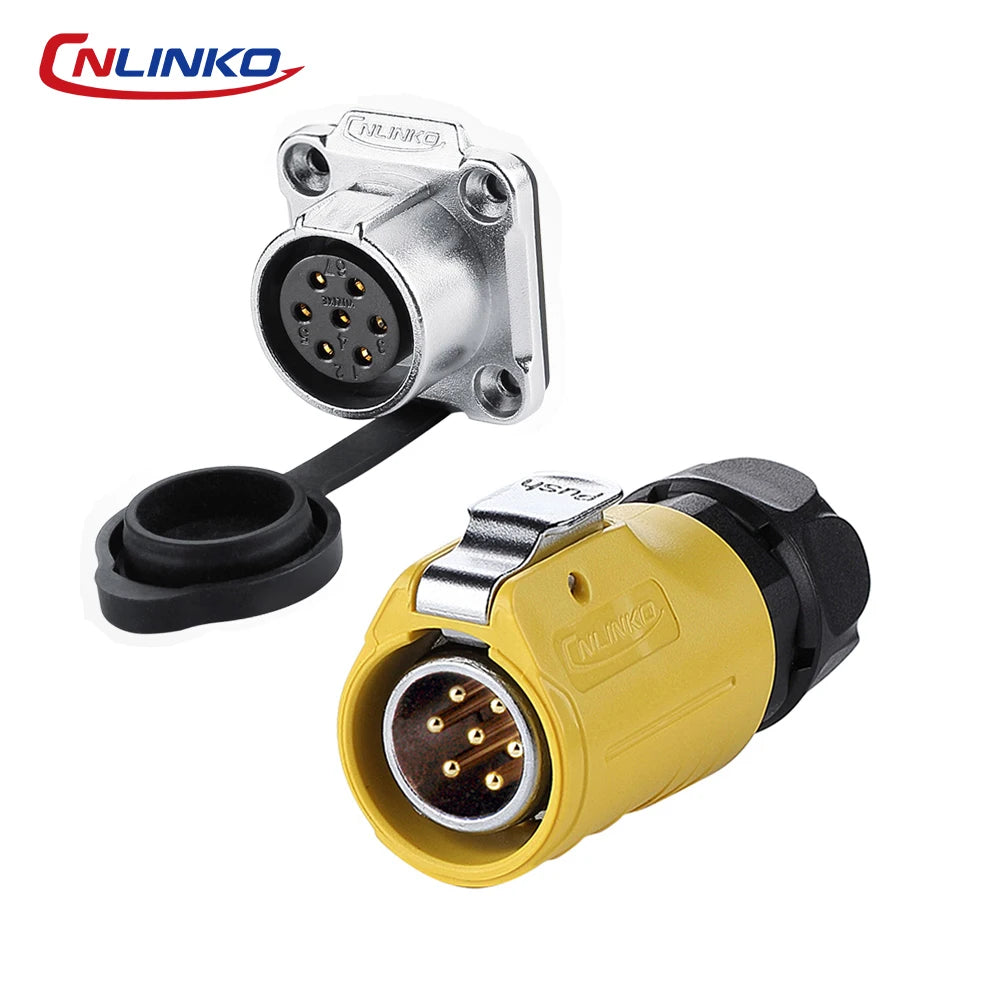

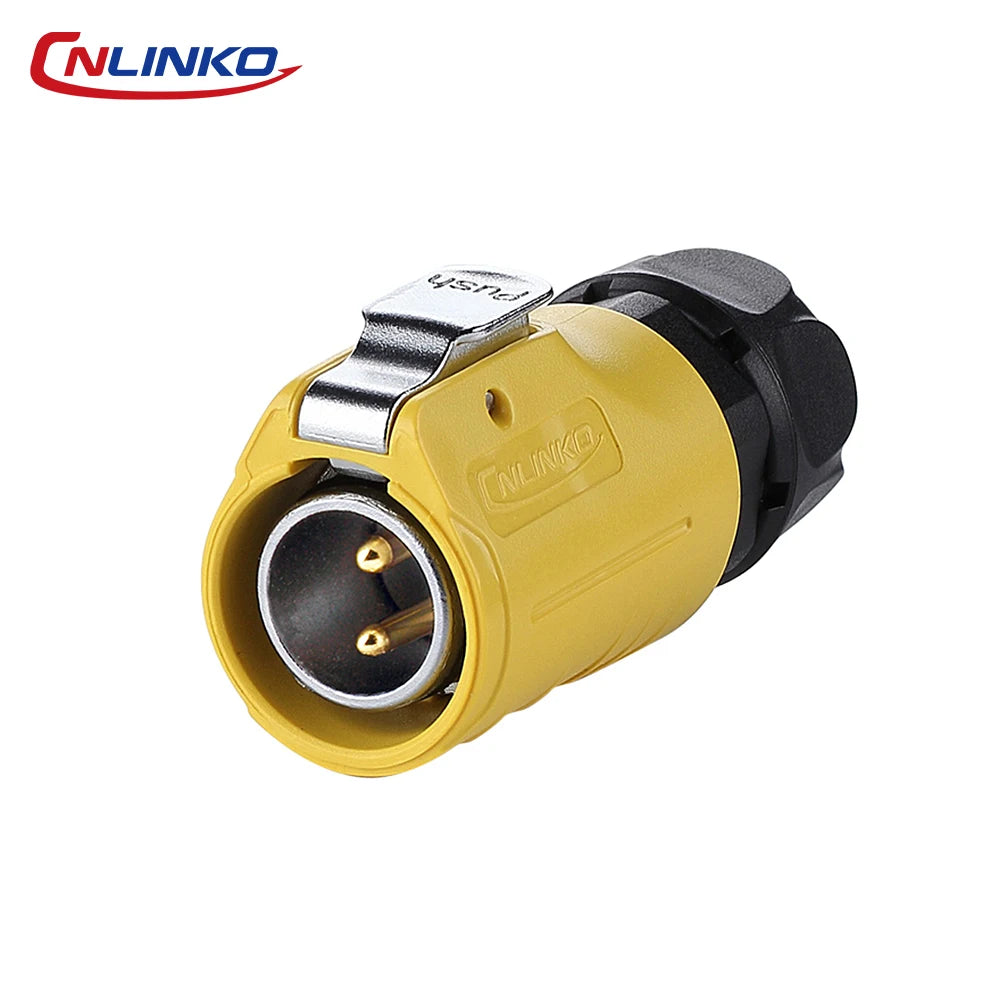

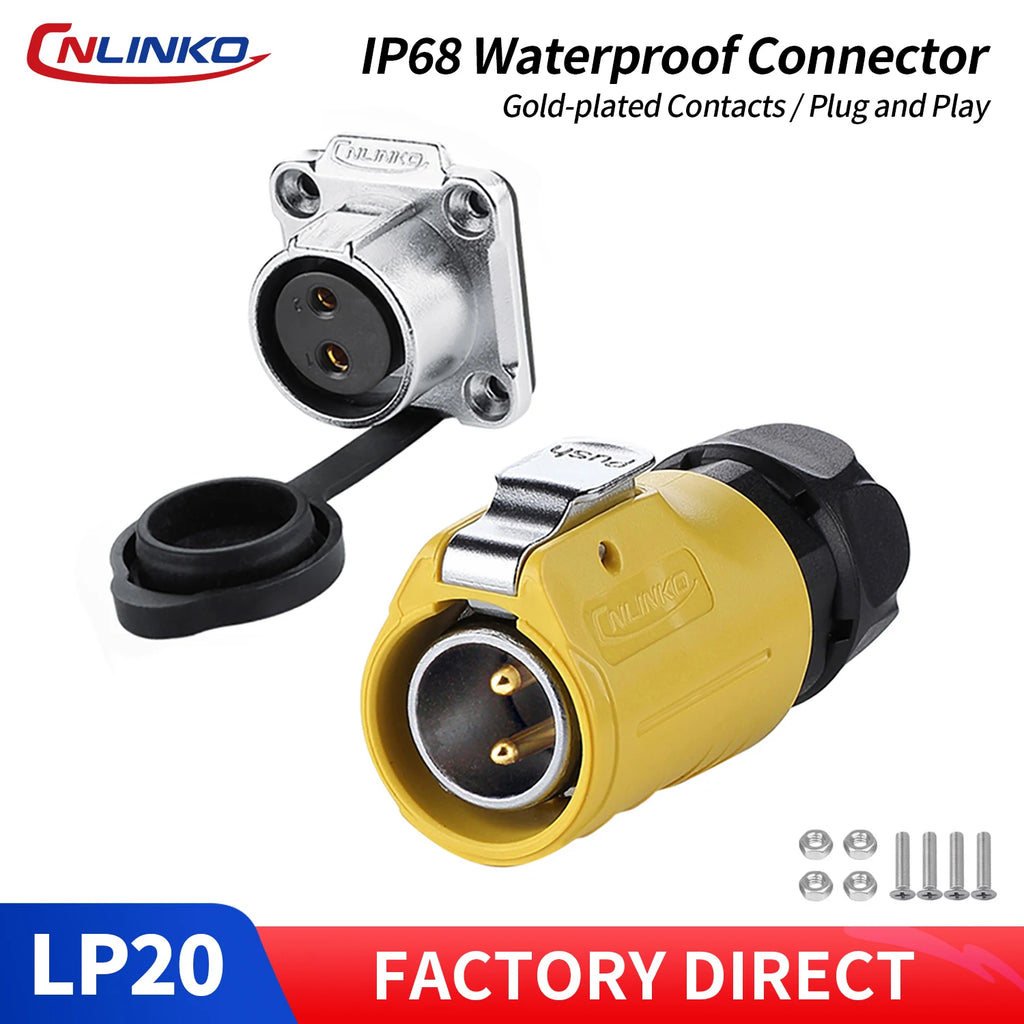

CNLINKO M20 IP68 Circular 2-5Pin 500V Connector Male/Female Solder Type, Heavy Duty Panel Mount for Industrial Equipment Marine

CNLINKO M20 IP68 Circular 2-5Pin 500V Connector Male/Female Solder Type, Heavy Duty Panel Mount for Industrial Equipment Marine

$57.08

$57.08 $0.00

Color 3 Pin Set 4 Pin Set 2 Pin Set 7 Pin Set 9 Pin Set 5 Pin Set 12 Pin Set

Description

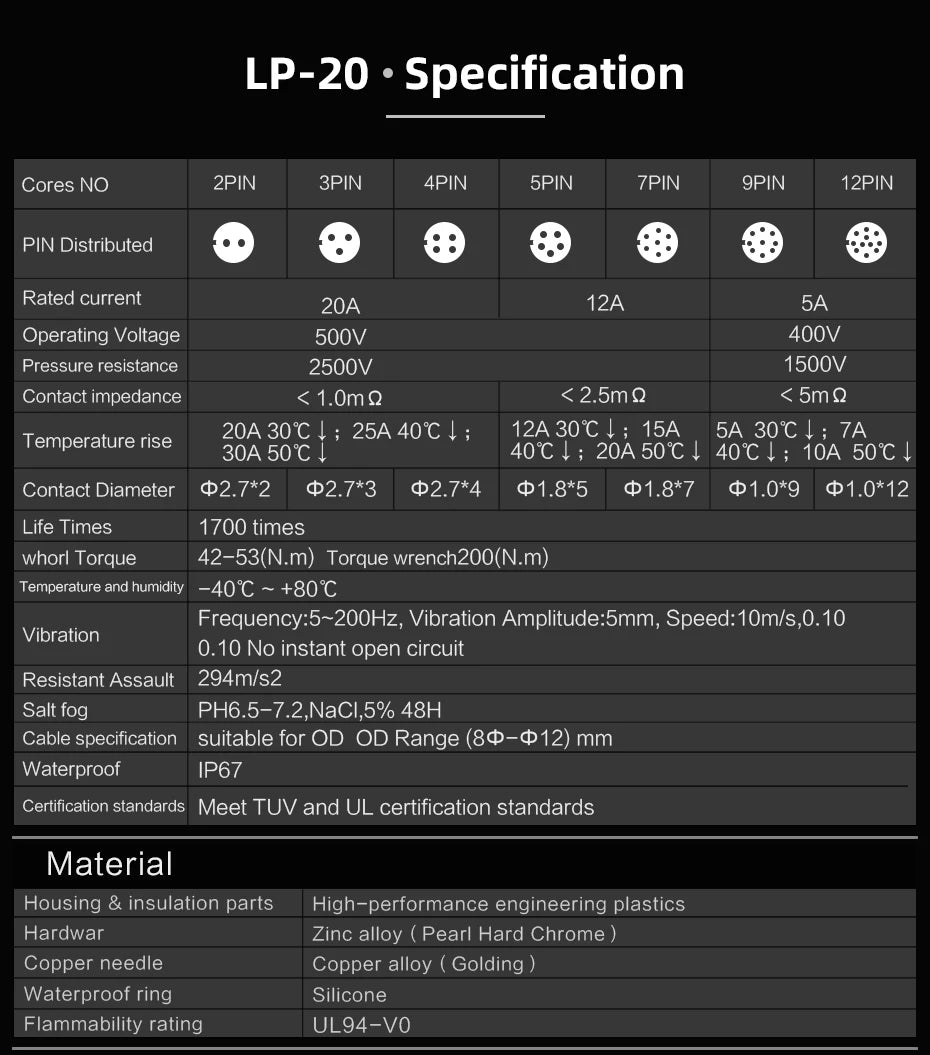

SPECIFICATIONS

Assembly Cable: Soldering

Brand Name: cnlinko

Cable O.D Range: 10.0-12.0mm

Category: Connectors

Certification: CE,RoHS,UL,weee

Contact Material: Copper Alloy

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Flammability rating: UL94-V0

Gender: Male+Female

High-concerned chemical: none

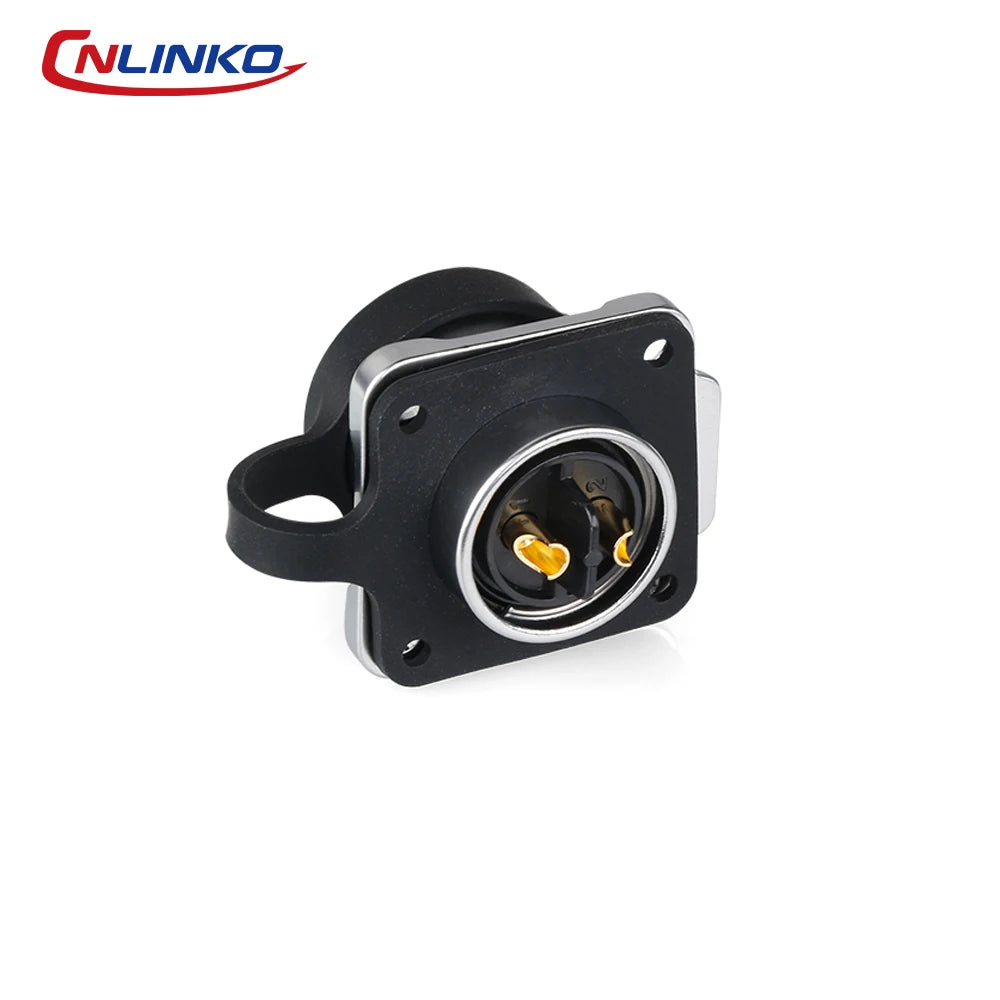

Item Type: Panel Connector

Mechanical Life(Min.): 2000 Cycles

Model Number: LP-20 Four-hole Connector

Operating Temperature: -40℃~+120℃

Operating Voltage: 500V AC

Origin: Mainland China

Protection Level: IP68(2m/48h)

Rated Current(2-4pin): 20A

Rated Current(5pin): 10A

Salt Spray(Min.): 48H

Shell Material: PBT Plastic

Voltage: 自定义编辑

Wire Guage(2-4pin): 2.5~4.0mm²/14-12AWG

Wire Guage(5pin): 1.0~1.5mm²/ 18-16AWG

Withstanding Voltage: 2000V AC

电压: 1V 2V 4V 5V 12V 12V 等或自定义

Features:

1. Superior IP68 Waterproof & Dustproof Protection – Rated IP68 when mated, this connector is completely dust-tight and withstands continuous water immersion. Ideal for marine equipment, outdoor industrial machinery, and harsh environments where moisture is a constant threat

2. High-Power 20A/500V Electrical Performance – Rated for 20A current and 500V operating voltage, with dielectric strength of 2000V for 1 minute. Contact resistance below 1.0mΩ and insulation resistance above 500MΩ ensure stable, low-loss power transmission for demanding industrial applications

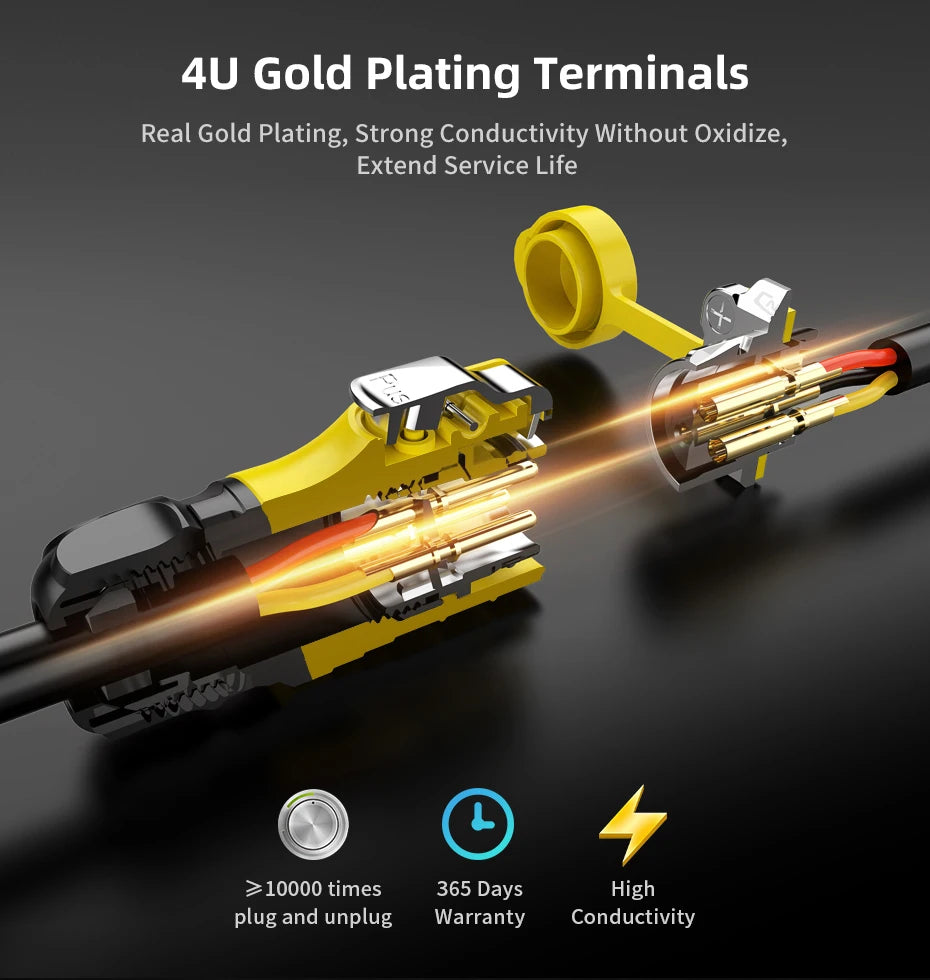

3. Durable PBT Housing with Zinc Alloy Components – Constructed with high-performance PBT plastic (UL94 V-0 flame retardant) and zinc alloy metal parts (pearl hard chromium plating). Gold-plated copper alloy contacts resist corrosion. Supports over 500 mating cycles at -25°C to +85°C, with some variants up to 2000 cycles.

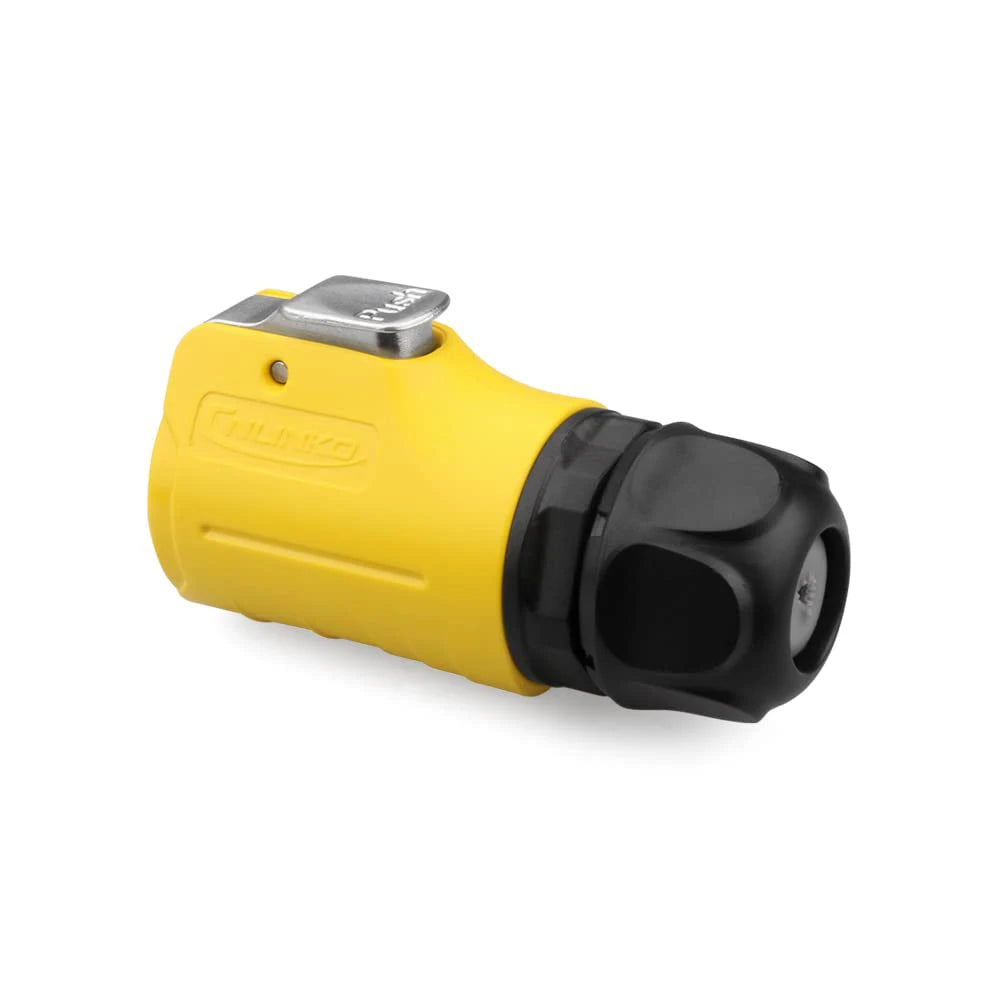

4. Reliable Solder-Type Connection & Quick Plug Design – Features solder terminals for permanent, vibration-resistant wire termination that eliminates loosening risks. The quick plug design enables one-handed insertion and removal, simplifying installation and maintenance. Supports 1.0-4.0mm² / 18-12 AWG cables with diameter ≤Φ12mm.

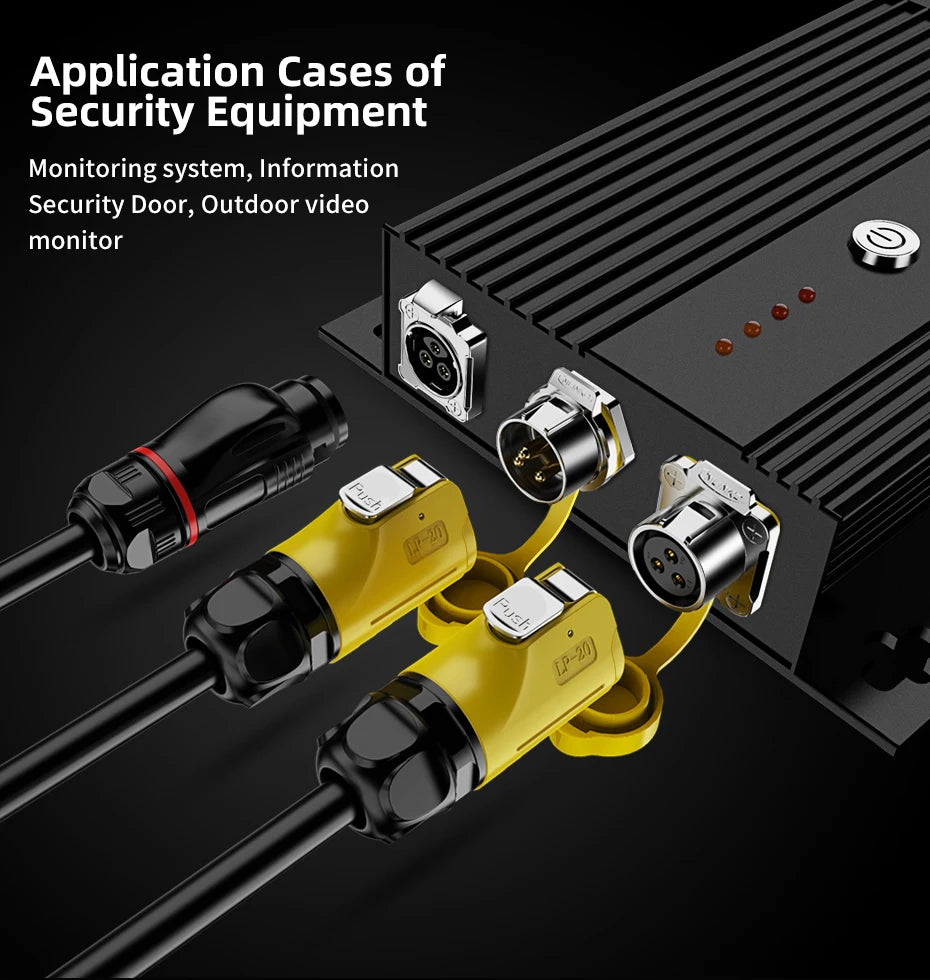

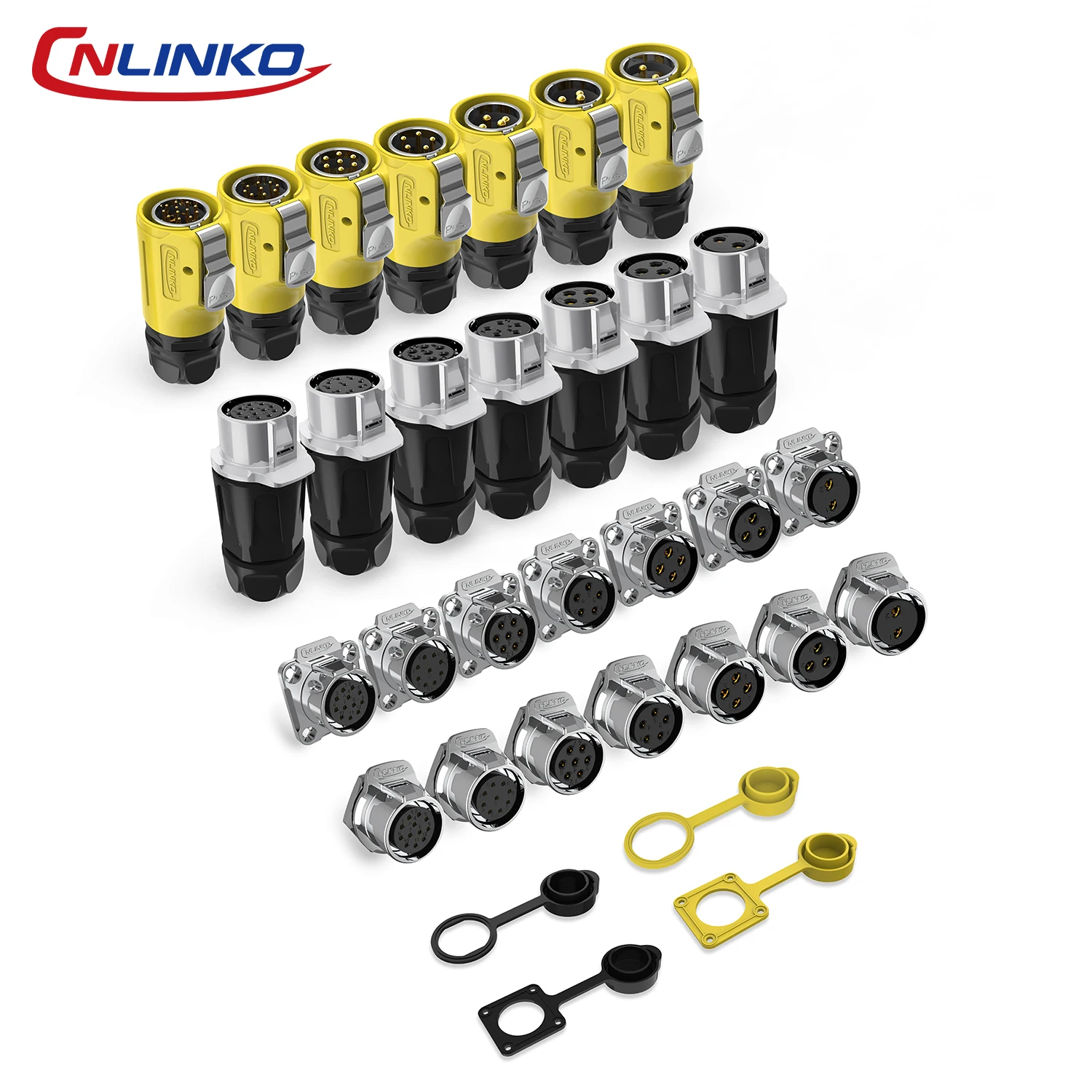

5. Versatile 2-5 Pin Configurations for Wide Applications – Available in 2, 3, 4, or 5 pin options to suit diverse power and signal needs-. Widely used in industrial equipment, marine systems, outdoor sensors, communication devices, solar energy systems, and heavy machinery. Provides reliable connectivity in the harshest environments.
