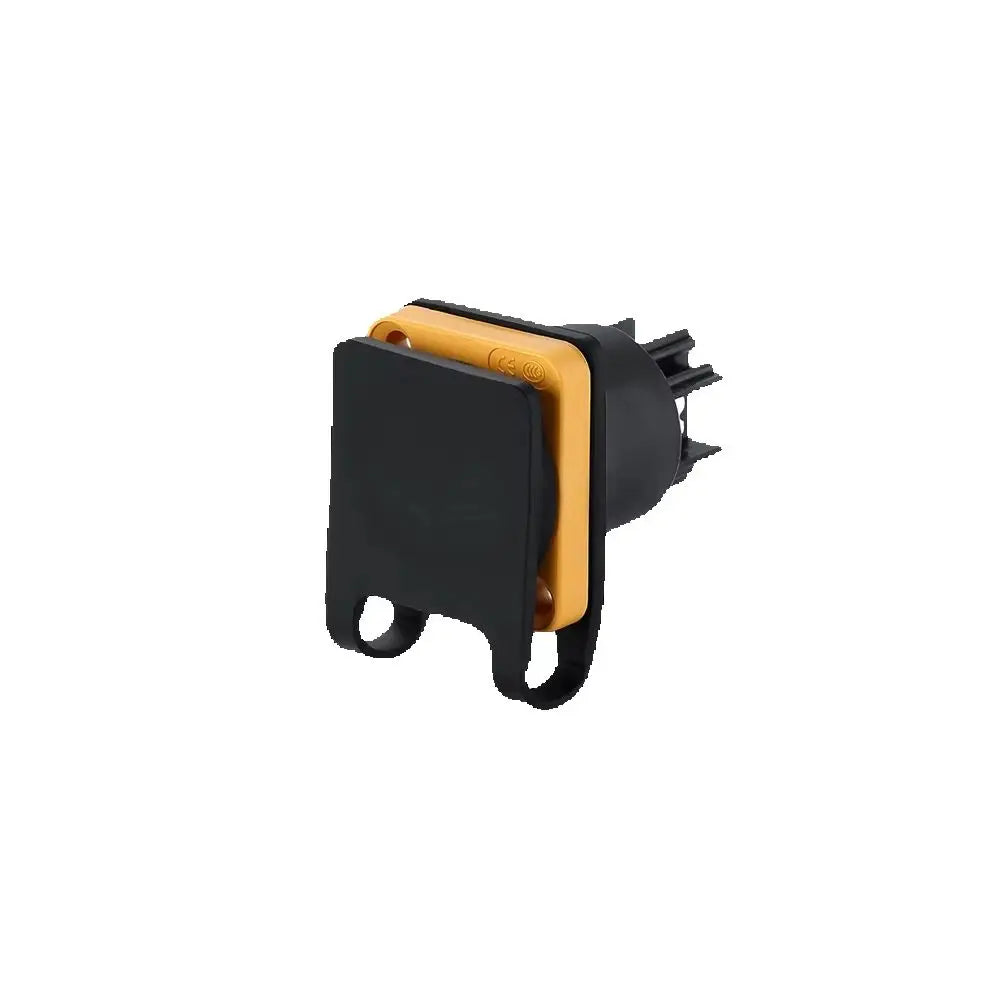

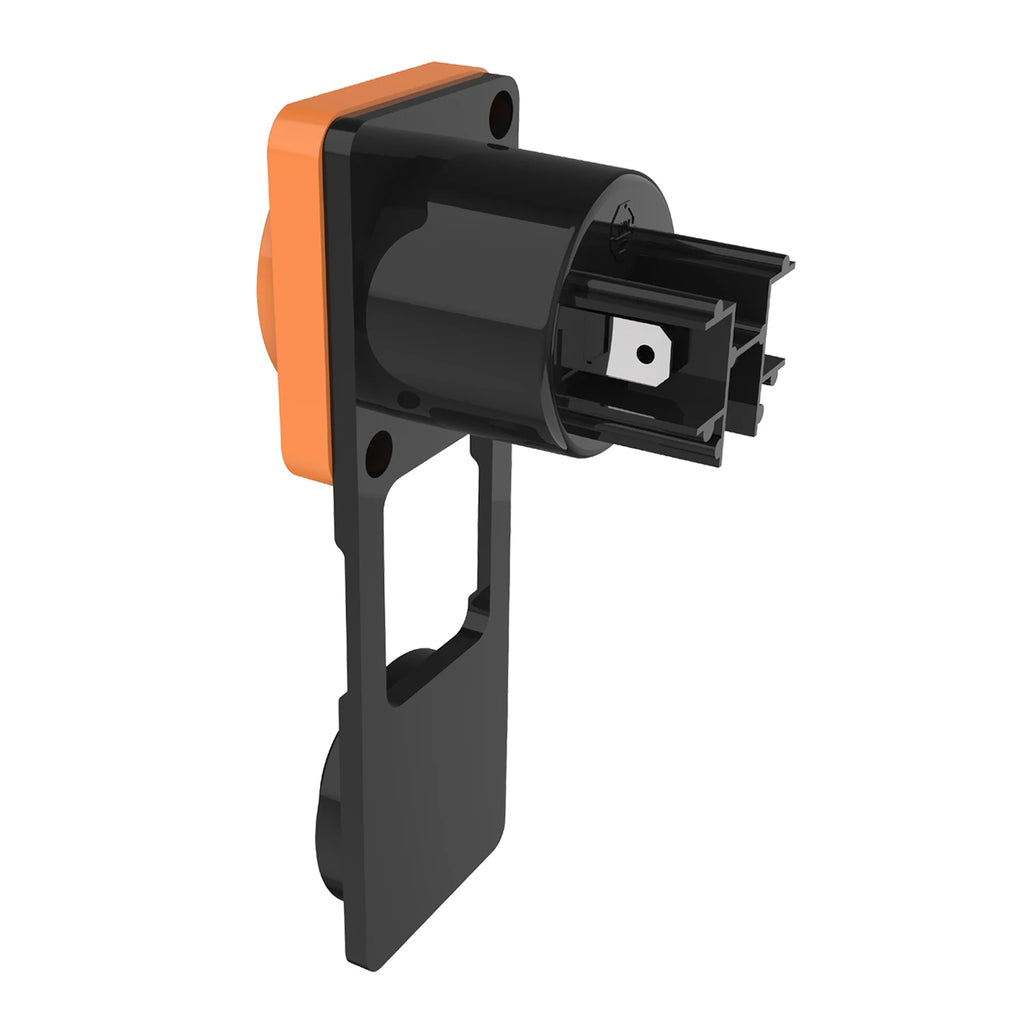

CNLINKO M24 Industrial Power Connector PBT 3 Pin 20A 500V Waterproof Snap-Latch Locking for LED Display Stage Lighting & Theater

CNLINKO M24 Industrial Power Connector PBT 3 Pin 20A 500V Waterproof Snap-Latch Locking for LED Display Stage Lighting & Theater

$37.12

$37.12 $0.00

Description

SPECIFICATIONS

Assembly Cable: Screwing

Brand Name: cnlinko

Certification: CE,RoHS,UL,weee

Contact Diameter *Number: Tolerance 2.0*3

Contact Resistance(Max.): 3 m omega

Diameter Range: Tolerance 8mm~12mm

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Insulation Resistance(Min.): 500 m omega

Mechanical Life(Min.): 500 times

Model Number: YF-24

Operating Temperature: -25℃~+85℃

Origin: Mainland China

Protection Level: IP65

Rated Current: 20A

Rated Voltage: 500V AC

Voltage: 自定义编辑

Wire Guage: 2.5mm²~4mm²/14~12AWG

CNLINKO M24 Industrial Power Connector PBT 3 Pin 20A 500V Waterproof Snap-Latch Locking for LED Display Stage Lighting & Theater

Features:

1. High-Power Transmission with 20A/500V Rating – Rated for 20A current and 500V operating voltage, with a withstand voltage of 2000V. Contact resistance below 1mΩ ensures stable, low-loss power delivery. Ideal for LED displays, stage lighting, and high-power industrial equipment requiring reliable and efficient energy transmission.

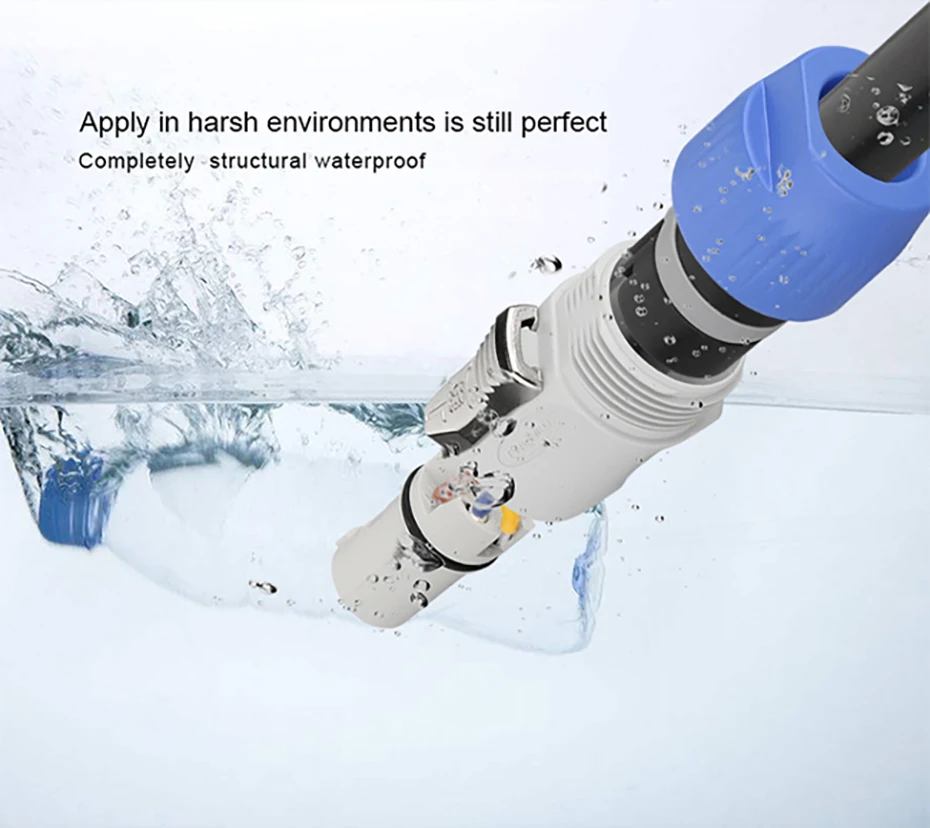

2. IP65 Waterproof & Dustproof Protection – Rated IP65 when mated, this connector is dust-tight and protected against low-pressure water jets from any direction. Fully sealed against dust and splashing water, making it perfect for indoor and outdoor stage lighting, LED displays, and theater applications where moisture protection is essential without requiring full submersion.

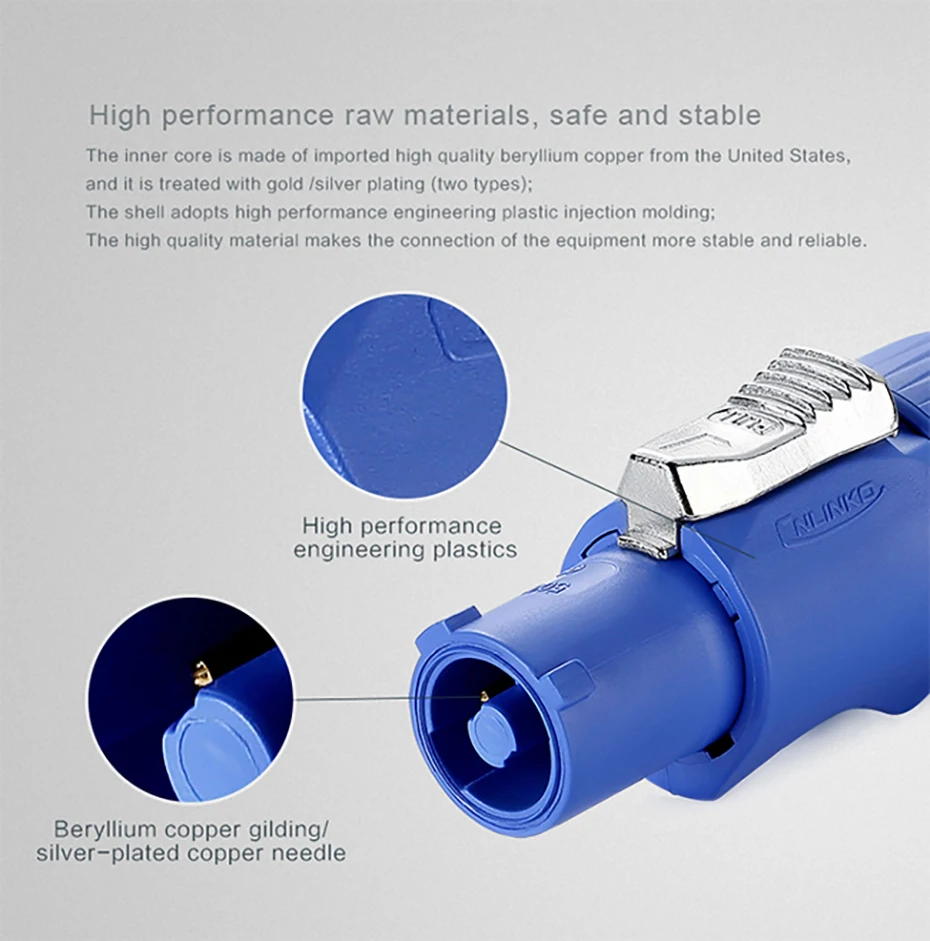

3. Durable PBT Engineering Plastic Housing – Constructed with high-performance PBT (polybutylene terephthalate) material. Offers excellent fire resistance (UL94 V-0), compression resistance, explosion resistance, and deformation resistance. Lightweight yet robust, ensuring long-term reliability in demanding stage and industrial applications.

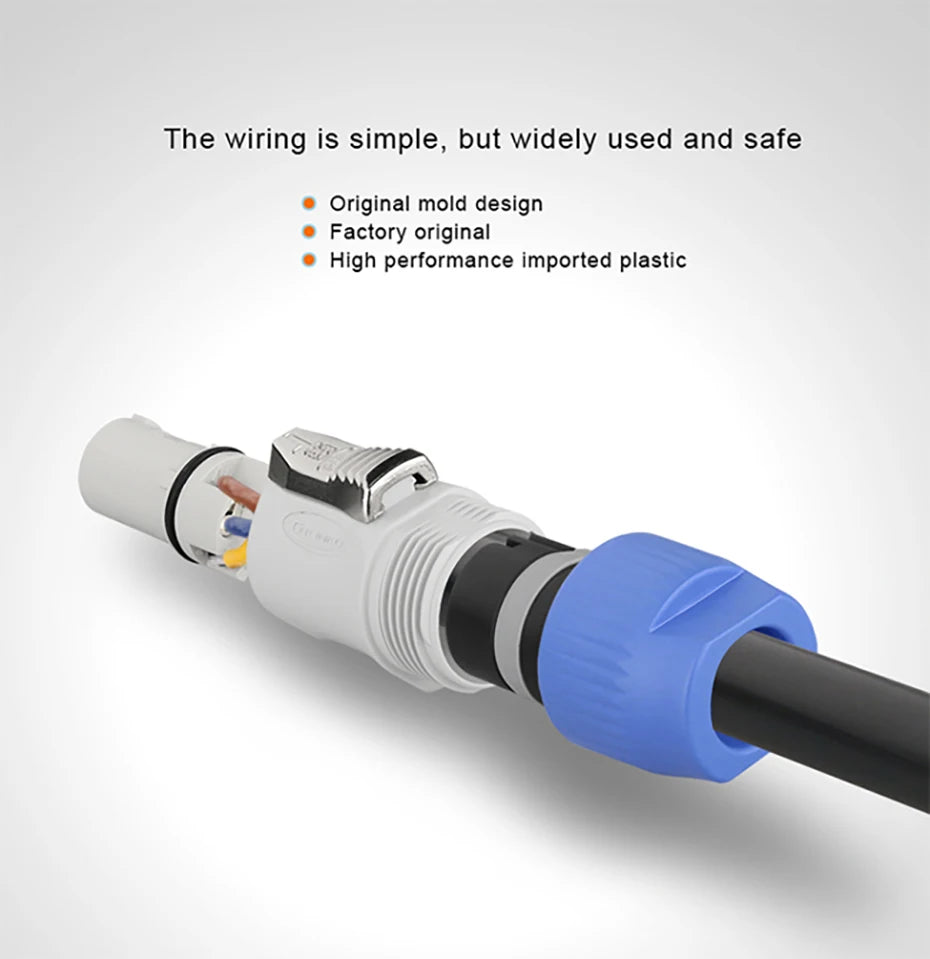

4. Easy Screw Terminal Connection – Features built-in screw terminals for secure, tool-friendly wire termination without soldering.Simply loosen the screws, insert the stripped wire, and tighten.This design ensures reliable, vibration-resistant connections, simplifies field installation, and accommodates users of all skill levels for quick, hassle-free setup.

5. Industrial-Grade Durability & Wide Application – Supports over 500 mating cycles and operates reliably from -25°C to +85°C. Gold-plated copper alloy contacts resist corrosion and handle temperature rise effectively. Widely used in LED lighting, solar systems, robots, medical equipment, drones, and external docking systems
