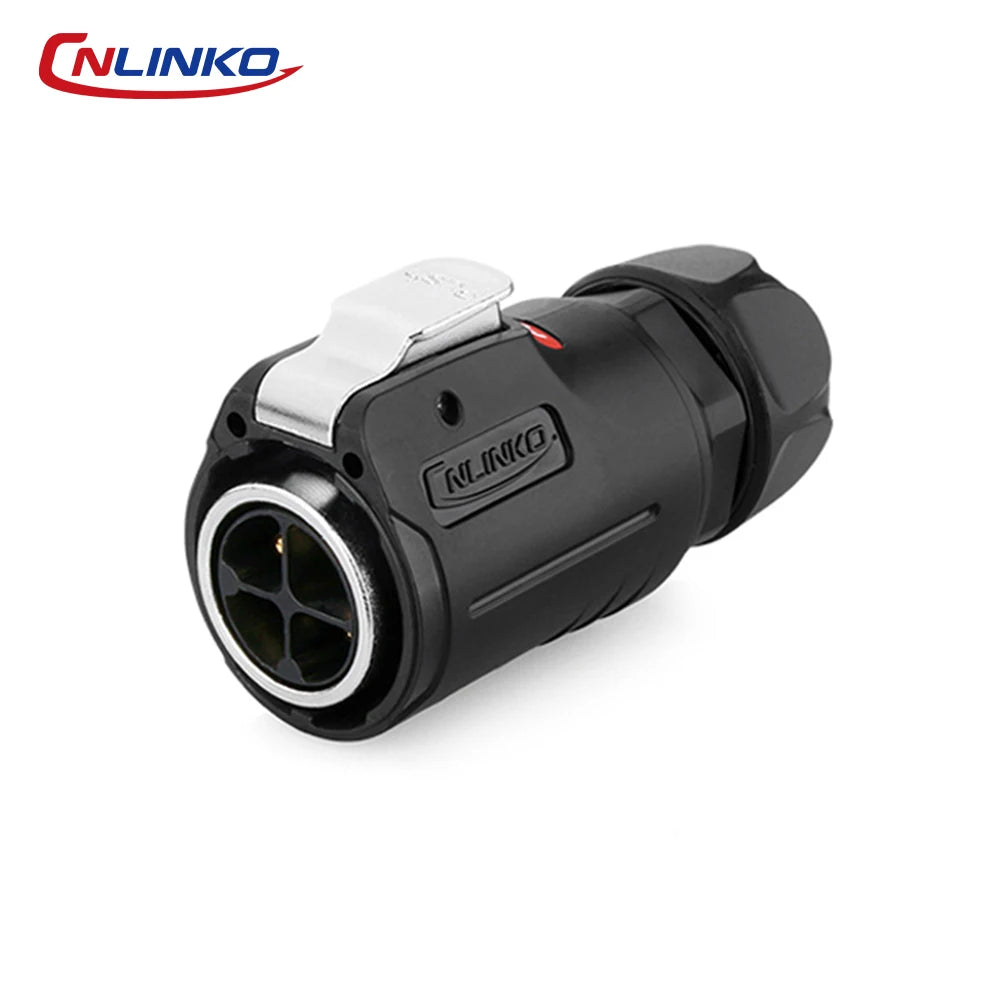

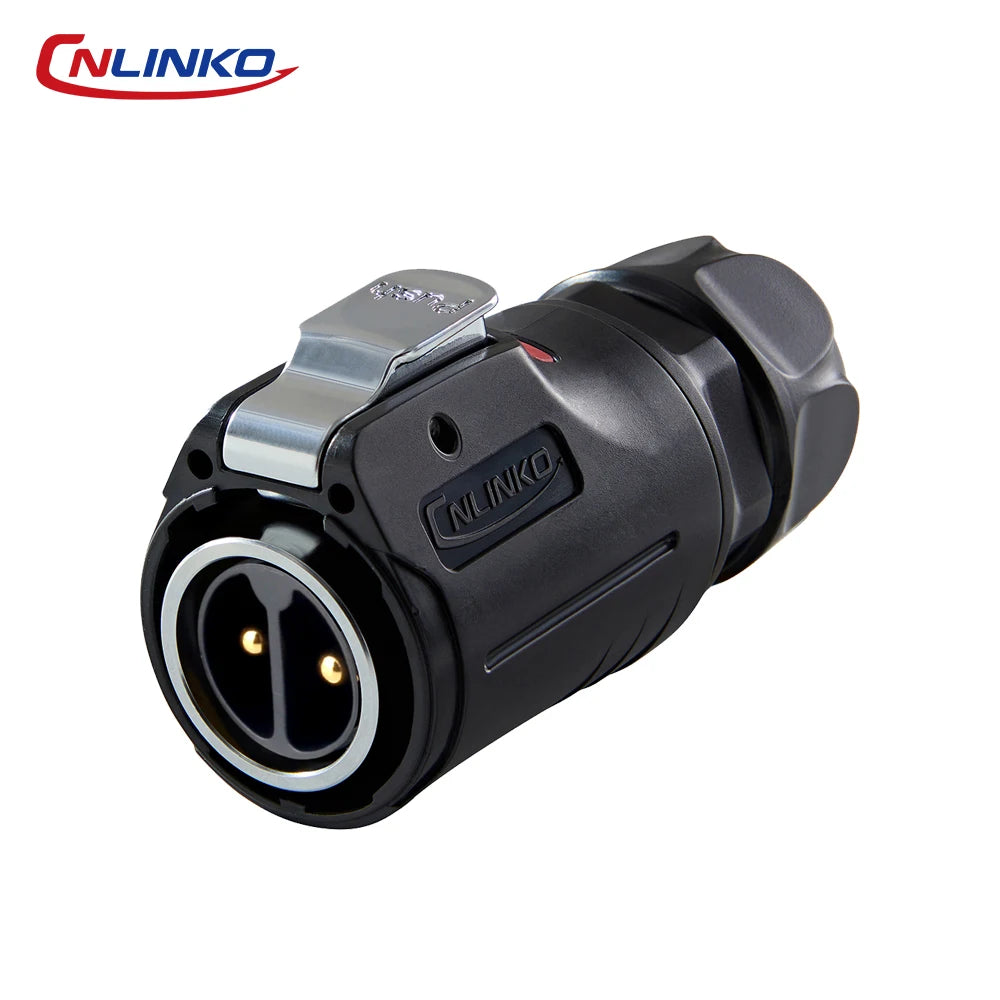

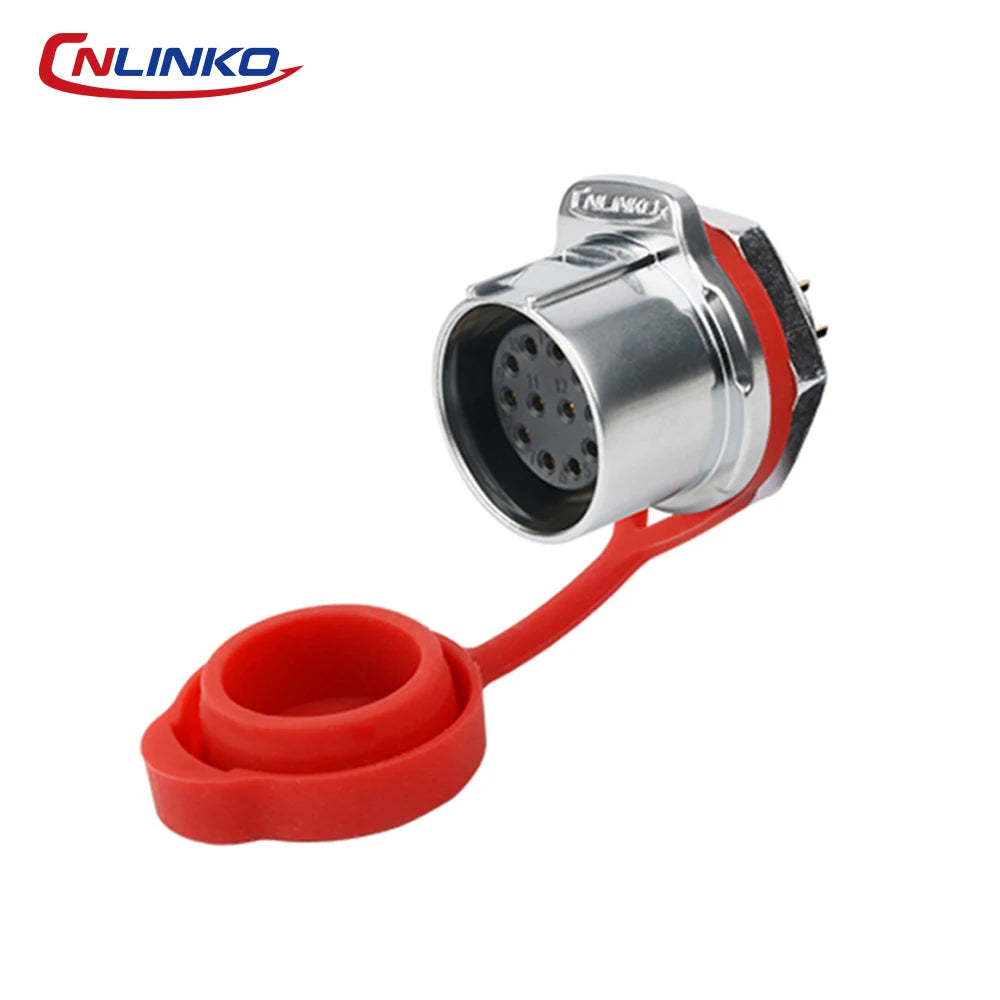

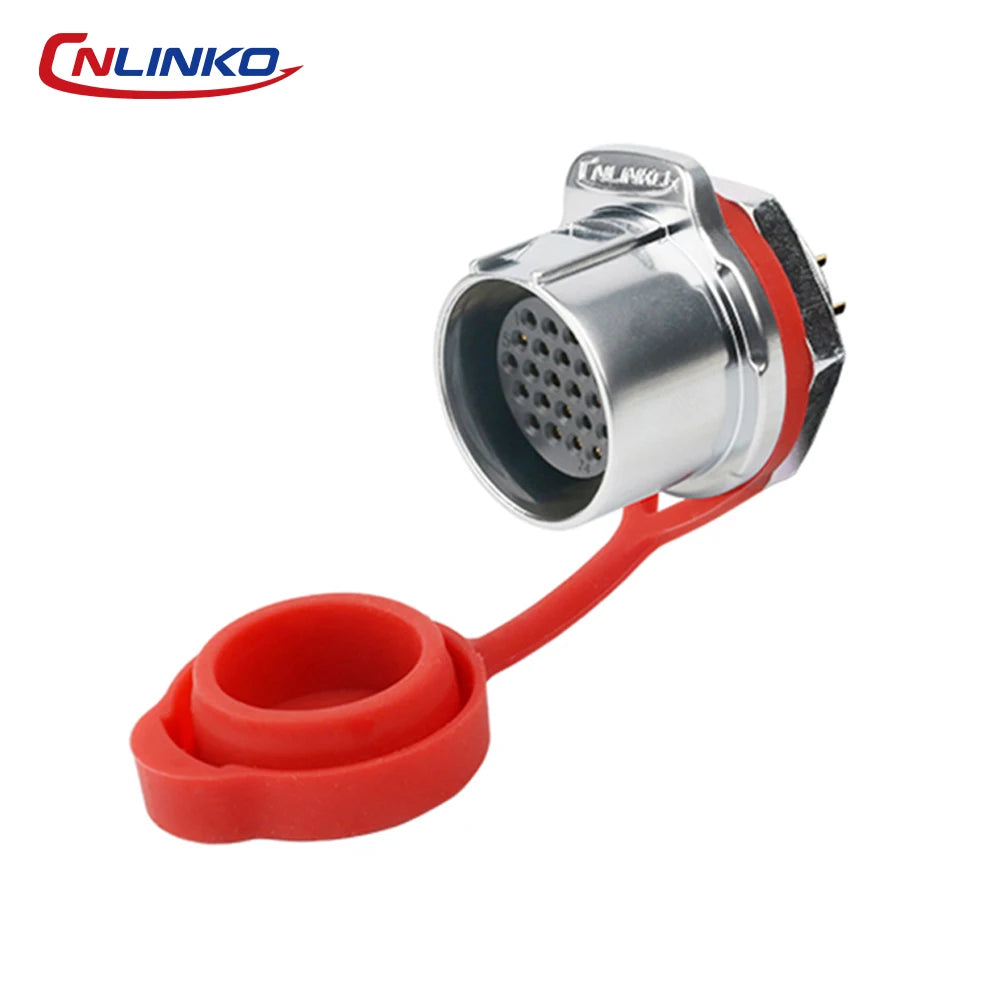

CNLINKO M24 Industrial Power & Signal Connector 2-24 Pin 25A 500V Waterproof IP68 Semi-Metal Solder Type Single-Hole Mount
12Pin Socket / Panel Connector / Male Insert
$63.36
Sale price
$63.36
Regular price
$0.00
Skip to product information
CNLINKO M24 Industrial Power & Signal Connector 2-24 Pin 25A 500V Waterproof IP68 Semi-Metal Solder Type Single-Hole Mount
$63.36
Sale price
$63.36
Regular price
$0.00
Description

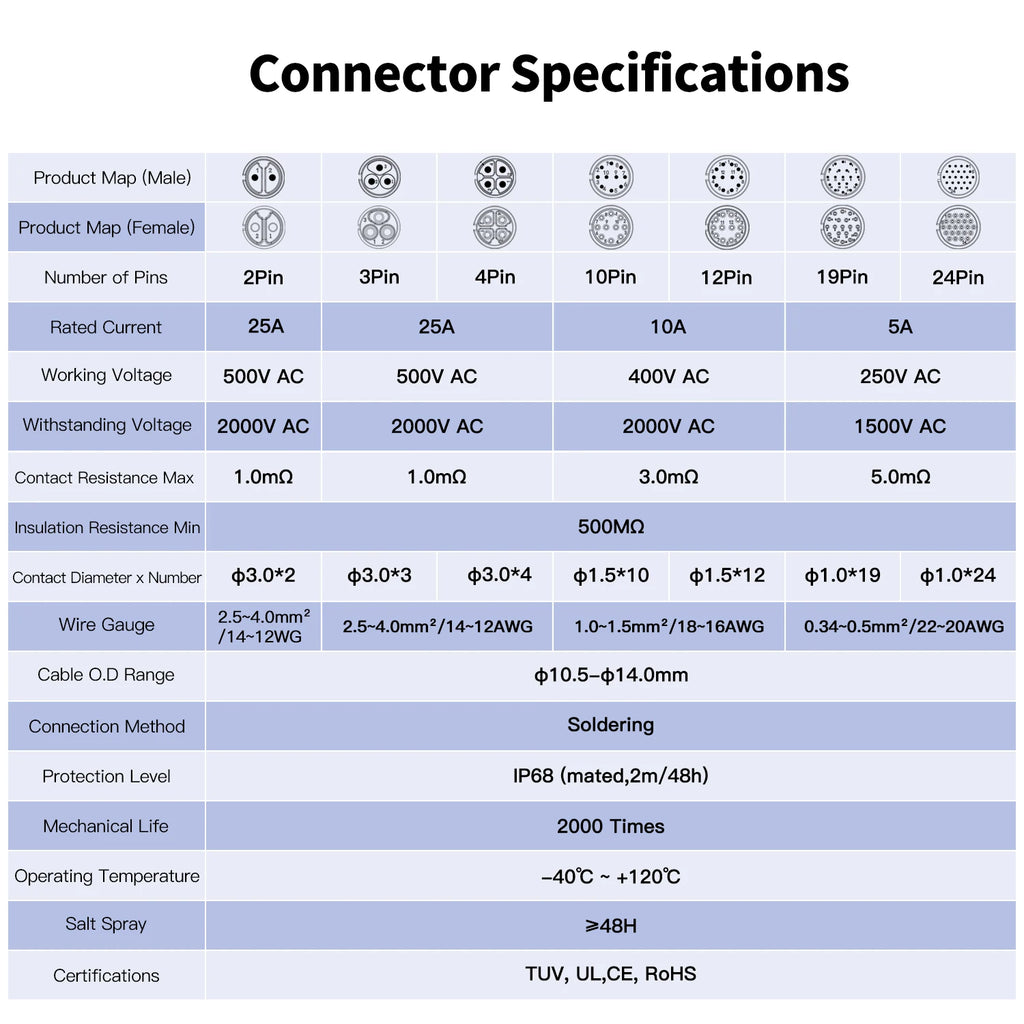

SPECIFICATIONS
Assembly Cable: Soldering
Brand Name: cnlinko
Cable O.D Range: 10.5mm~14mm
Category: Connectors
Certification: CE,RoHS,UL,weee
Contact Material: Copper Alloy(Gold-plated)
Contact Resistance((10~12pin)): 3.0m omega
Contact Resistance((19~24pin)): 5.0m omega
Contact Resistance((2~4pin)): 1.0m omega
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Gender: Male+Female
High-concerned chemical: none
Insulation Resistance(Min.): 500m omega

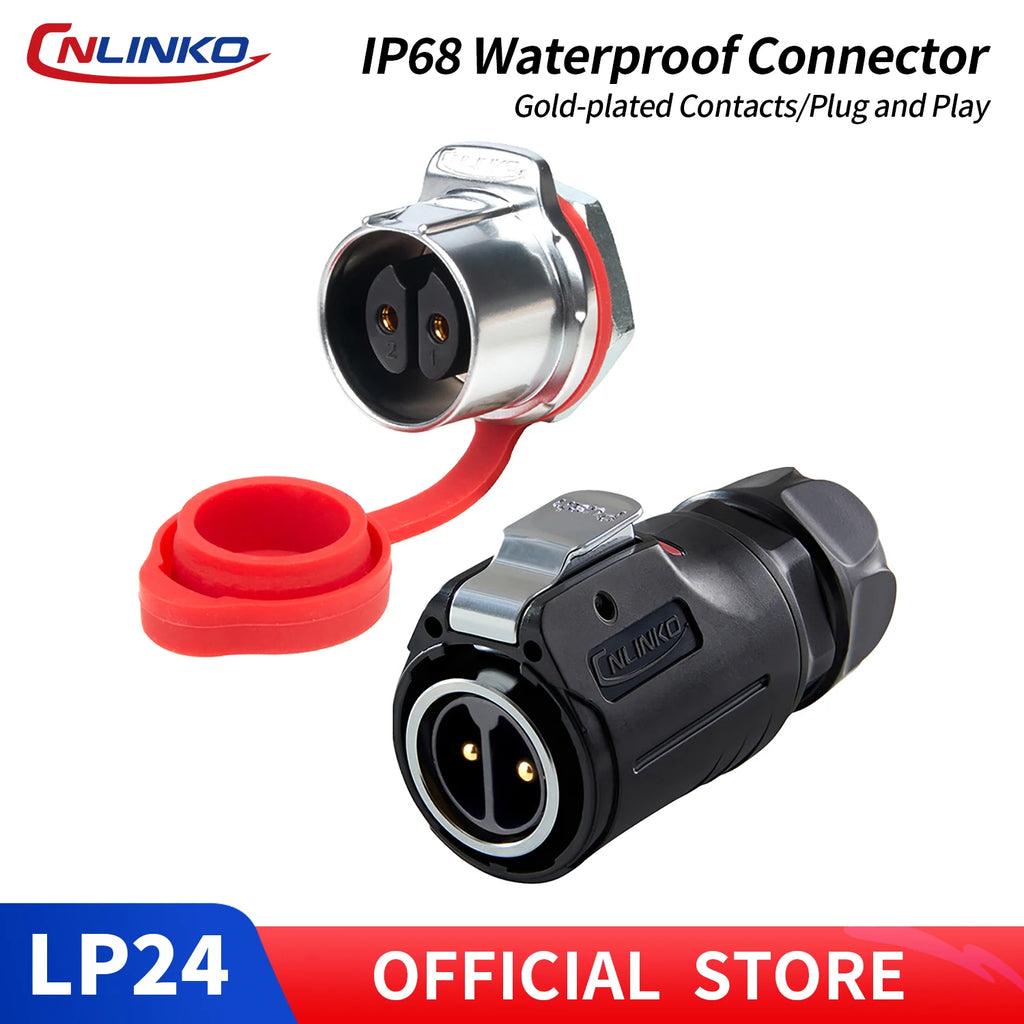

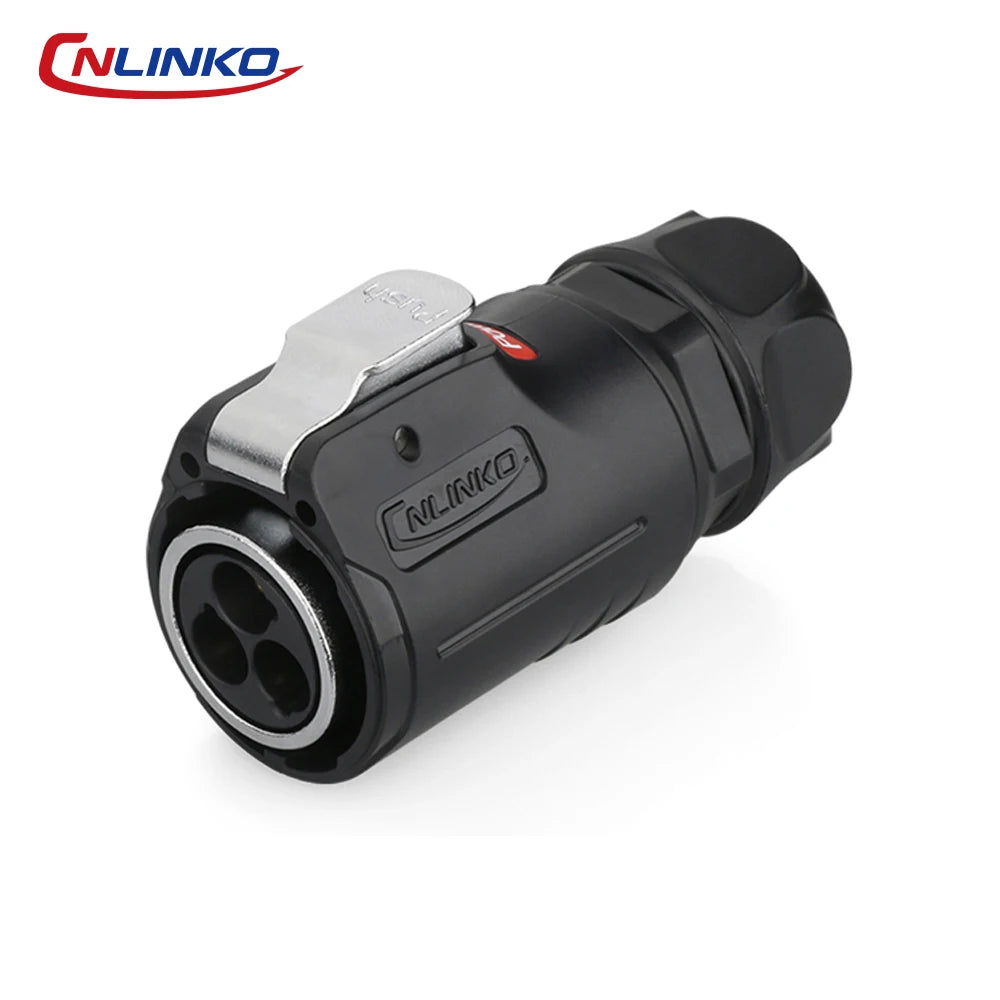

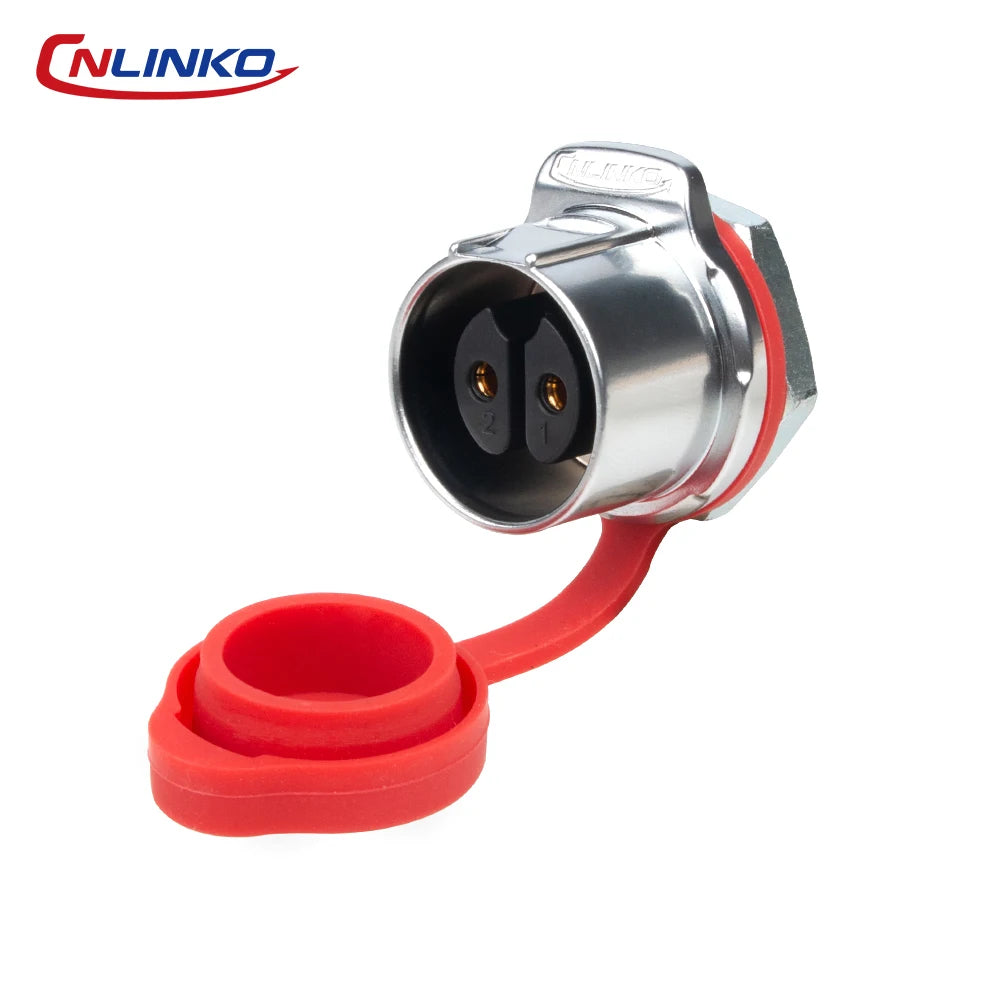

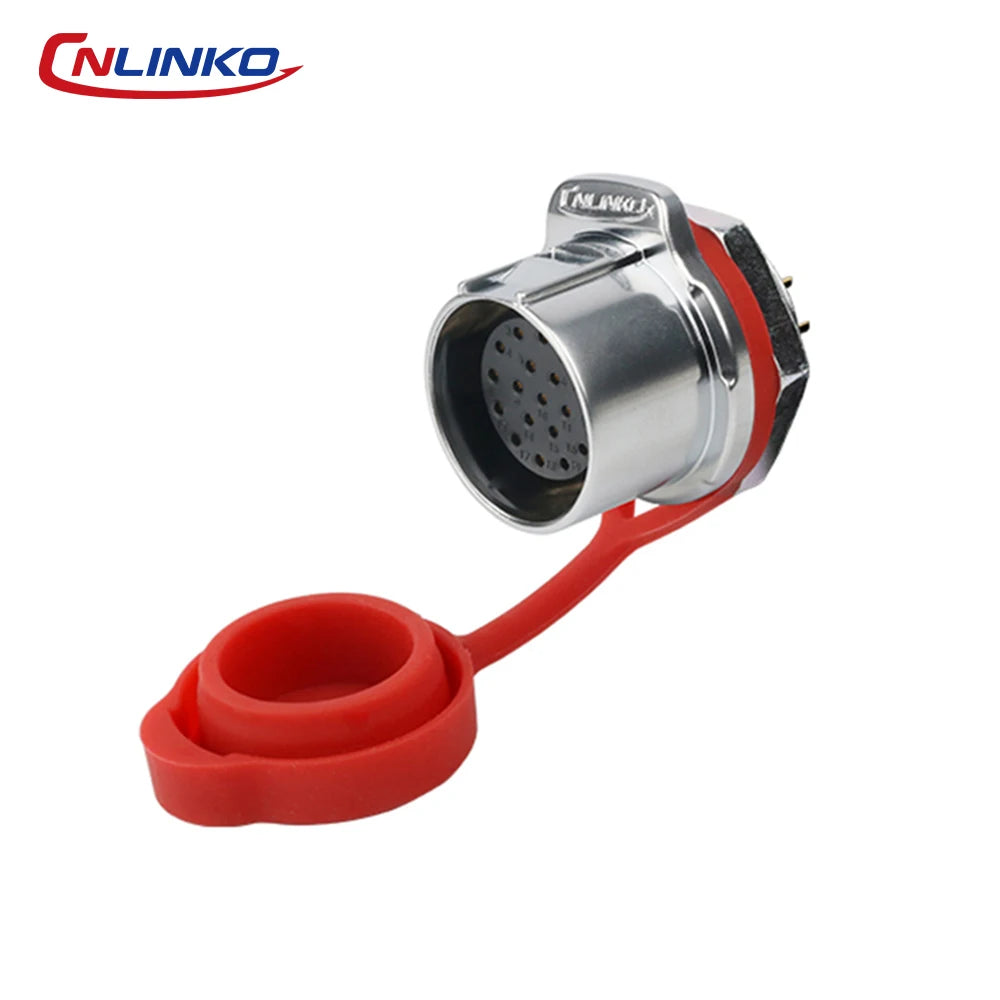

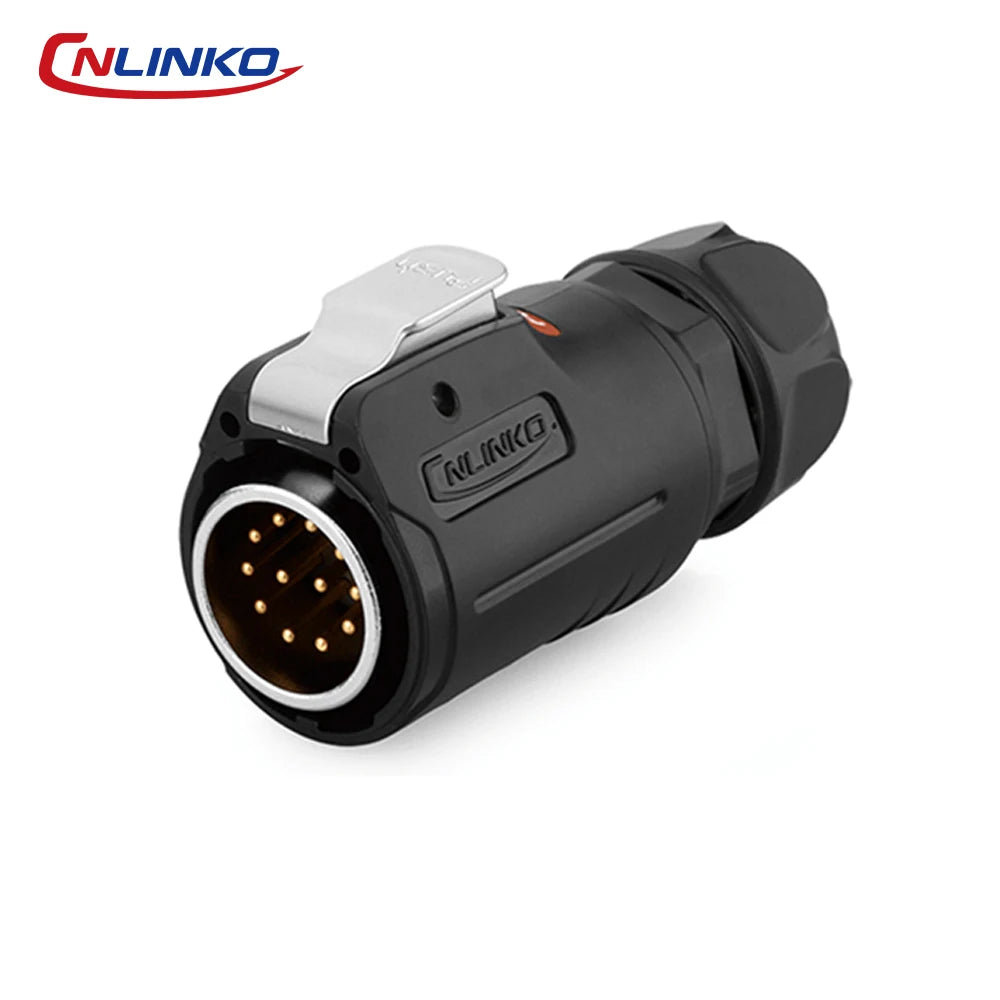

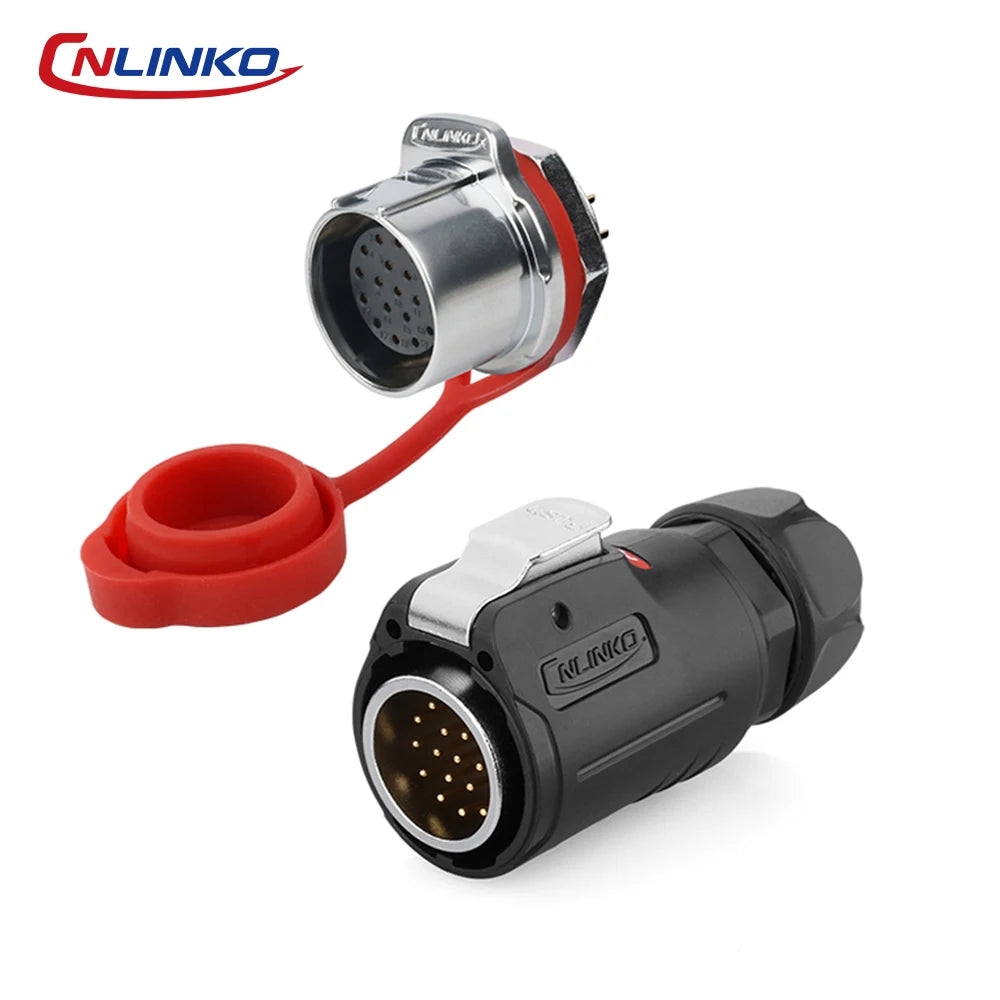

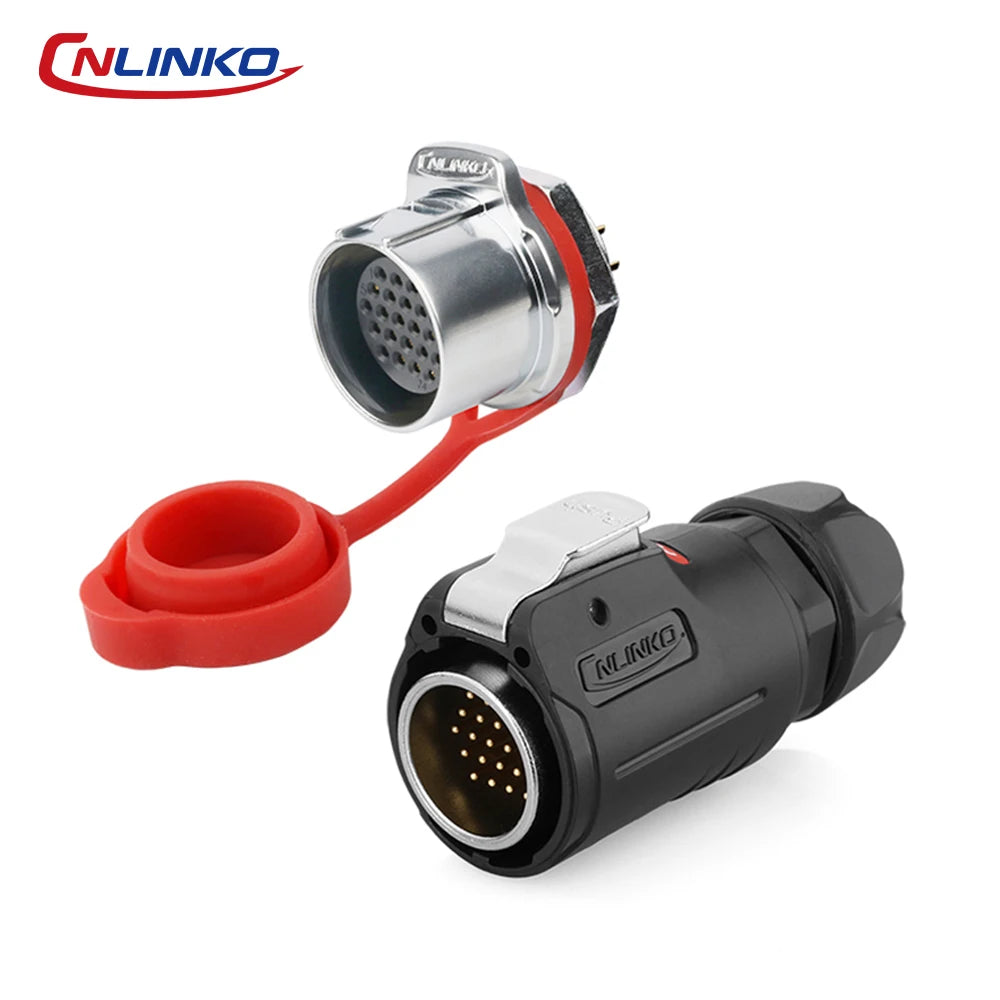

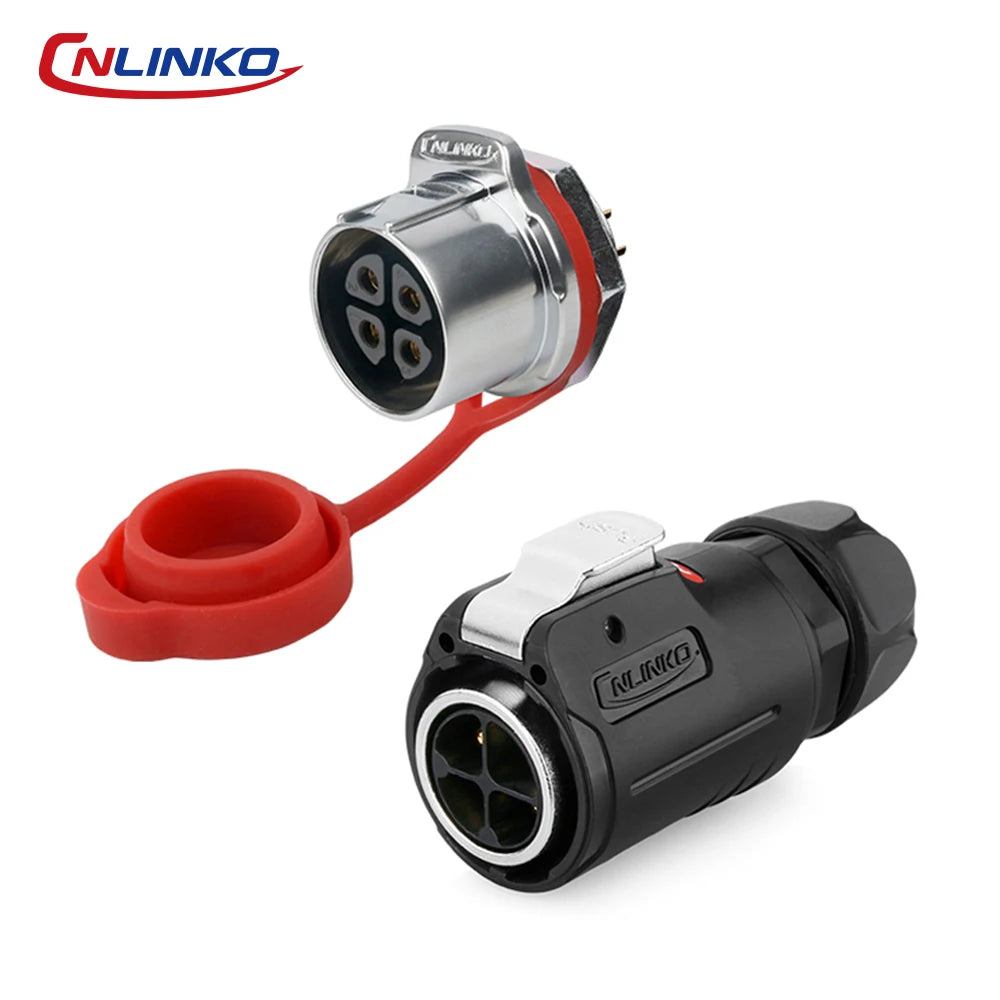

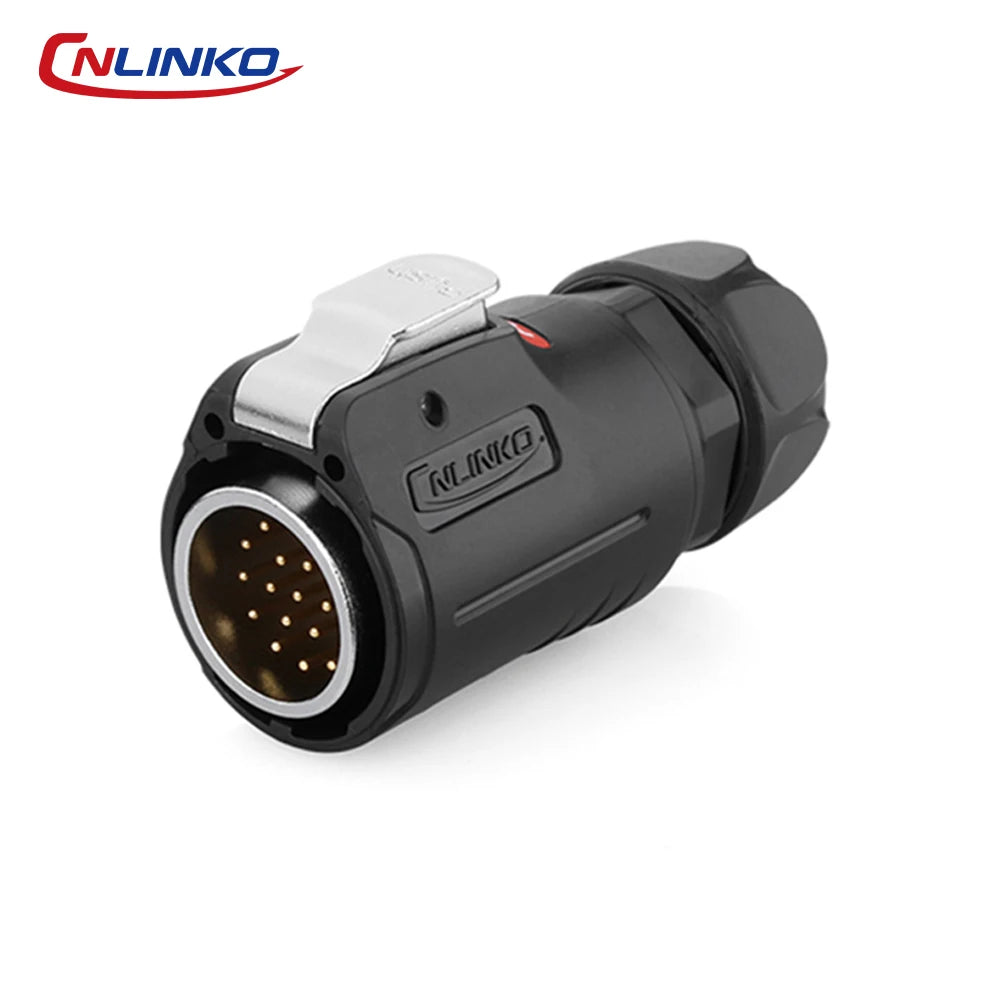

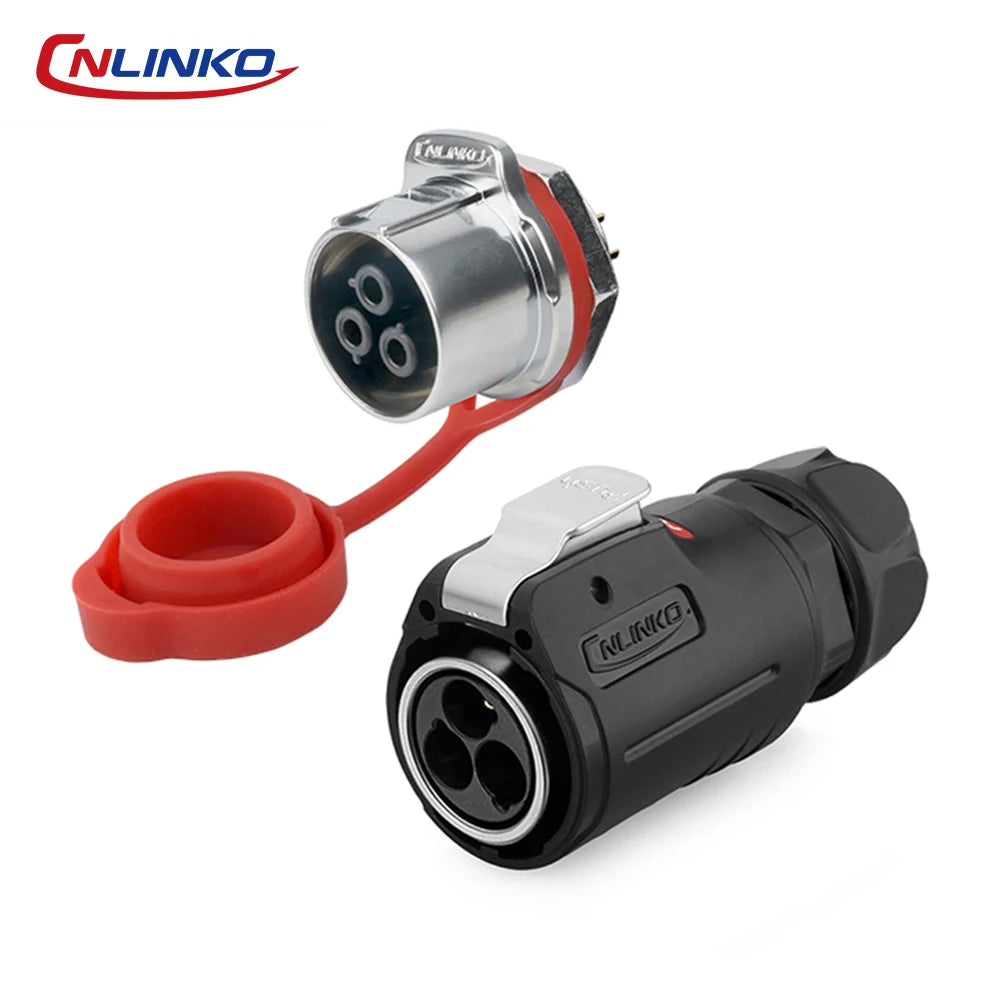

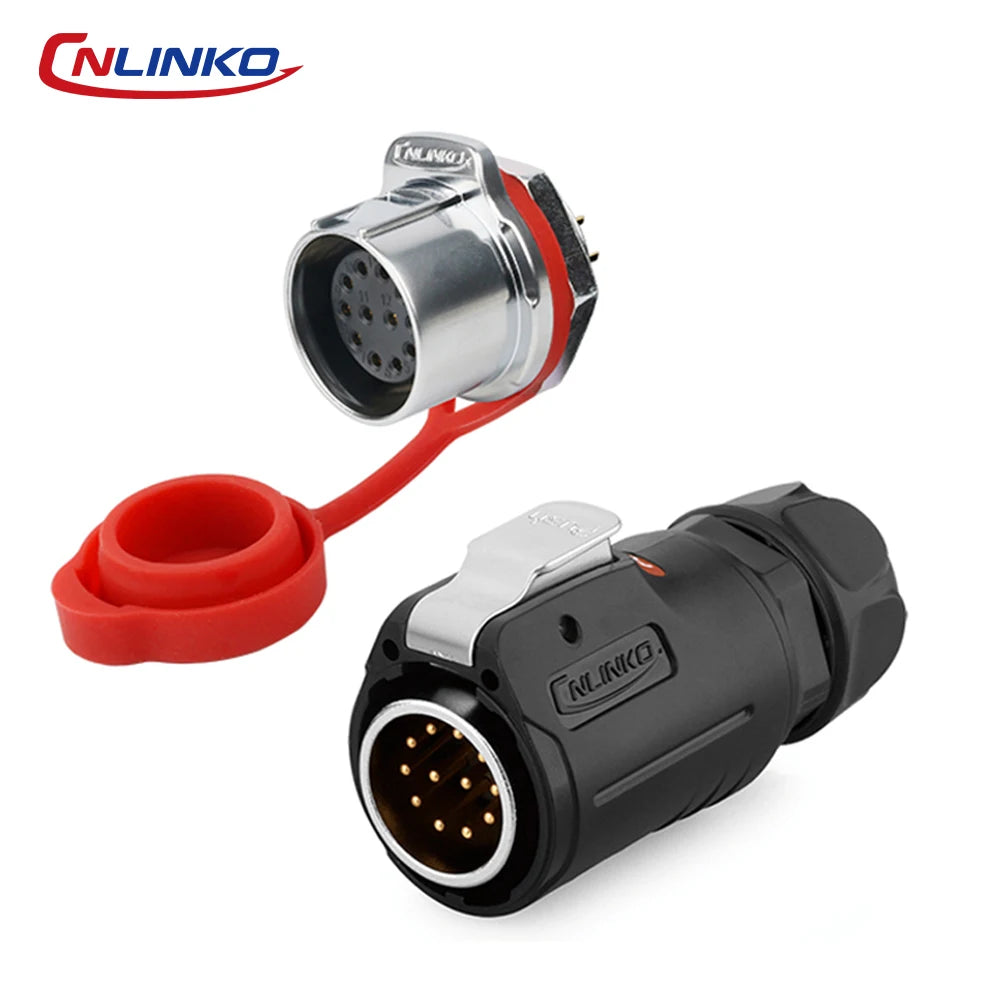

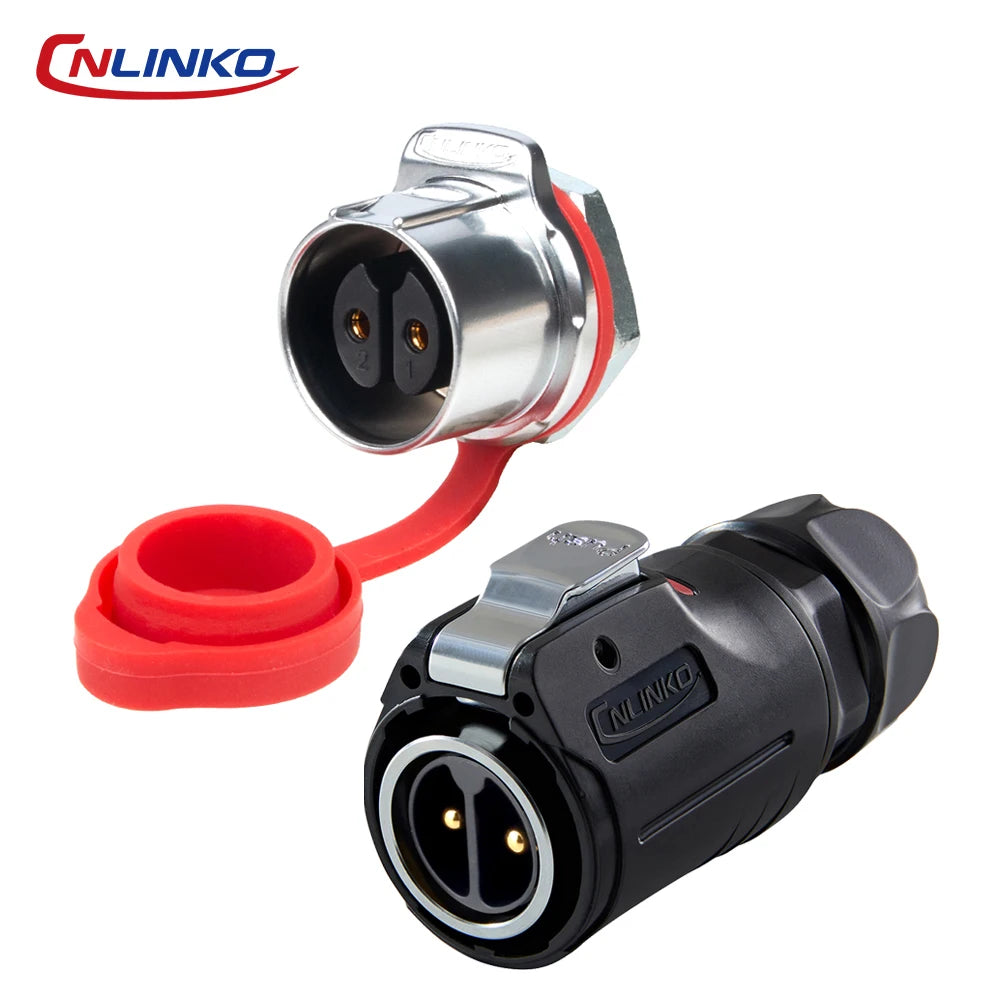

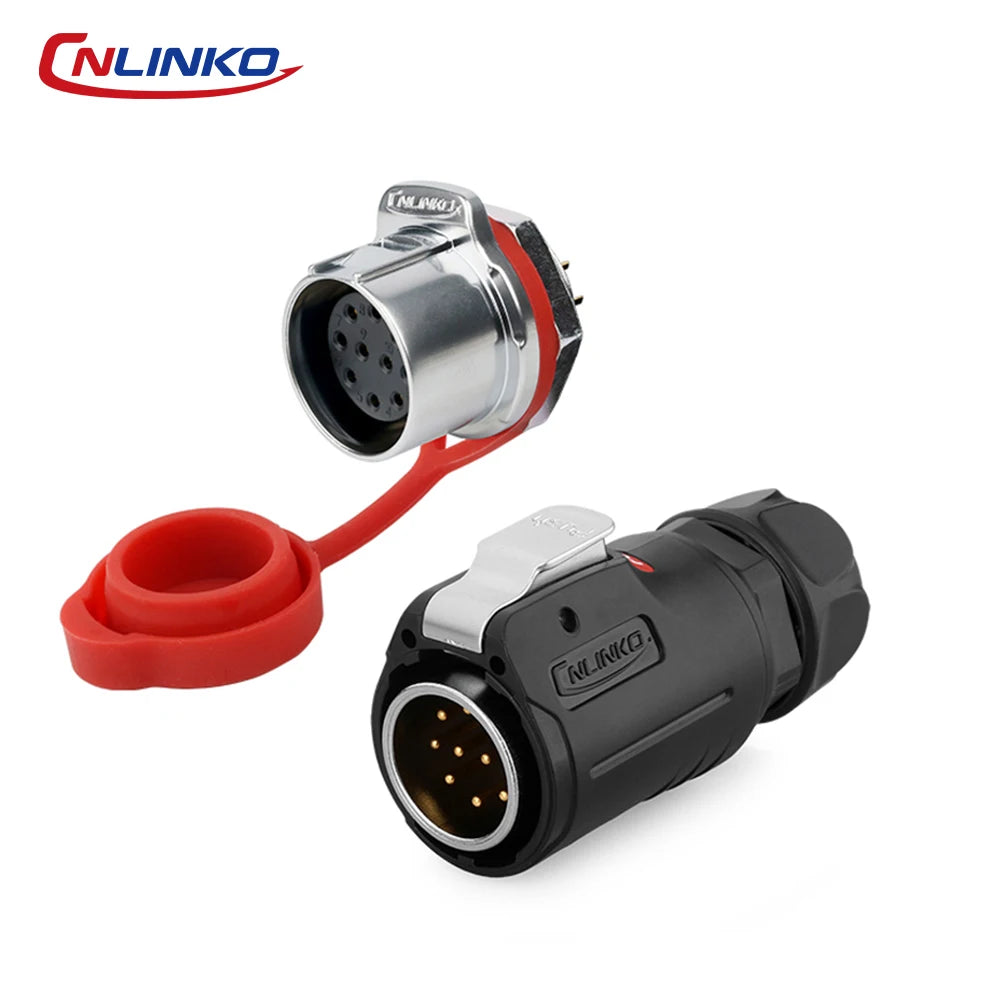

Item Type: Male Plug+Female Single-hole Socket,Male Plug,Female Single-hole Socket
Mechanical Life(Min.): 2000 Cycles

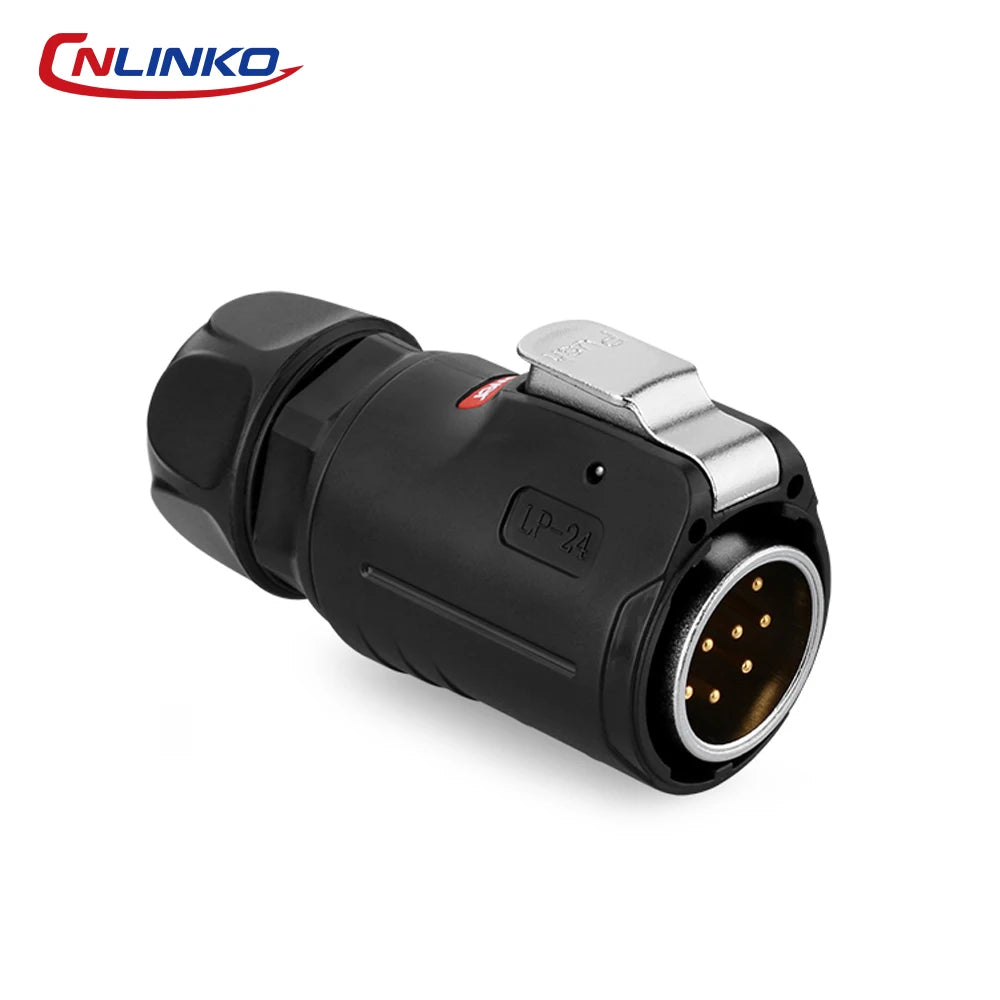

Model Number: LP-24 Semi-metal Single-hole Socket Connector
Operating Temperature: -40℃~+120℃
Origin: Mainland China
Protection Level: IP68(2m/48h)
Rated Currect(10~12pin): 10A
Rated Currect(19~24pin): 5A
Rated Currect(2~4pin): 25A
Salt Spray(Min.): 48H
Shell Material: PBT Plastic
Size: M24
Voltage: 自定义编辑
Wire Guage(10-12pin): 1.0~1.5mm²/18~16AWG
Wire Guage(19-24pin): 0.34~0.5mm²/22~20AWG
Wire Guage(2~4pin): 2.5~4.0mm²/14~12AWG
Withstanding Voltage(19~24pin): 1500V AC
Withstanding Voltage(2~12pin): 2000V AC
Working Voltage(10~12pin): 400V AC
Working Voltage(19~24pin): 250V AC
Working Voltage(2~4pin): 500V AC
电压: 1V 2V 4V 5V 12V 12V 等 或自定义
Features:

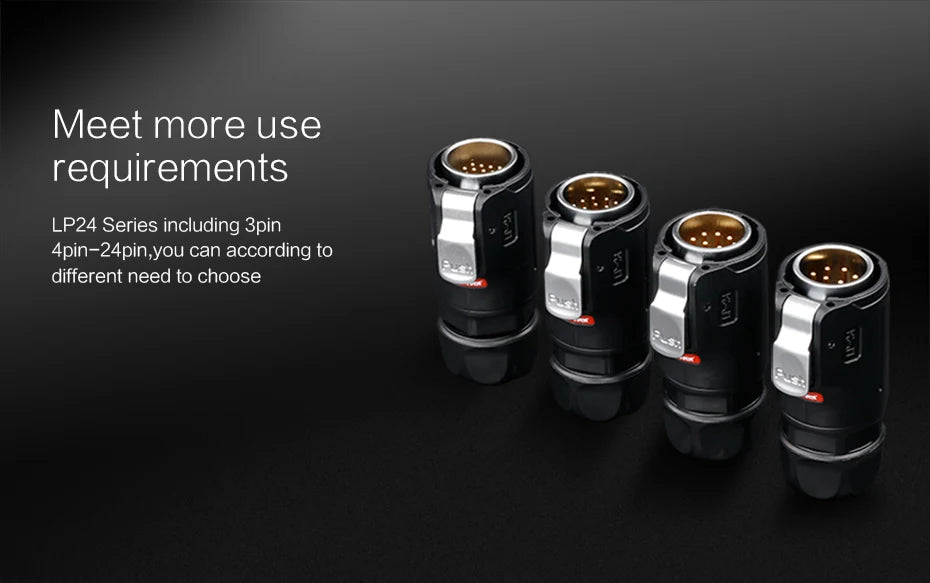

1. Flexible 2-24 Pin Configurations for Power & Signal – Available in 2 to 24 pin options to suit diverse power and signal needs. 2‑4 pin versions handle up to 25A/500V for high‑power applications-, while higher pin counts are optimized for multi‑signal transmission.-
2. High-Power 25A/500V with Low-Loss Transmission – Rated for 25A continuous current and 500V AC voltage, with a withstand voltage of 2000V. Contact resistance ≤1.0mΩ and insulation resistance >500MΩ ensure stable, low‑loss power delivery for demanding industrial equipment.
3. Robust IP68 Waterproof & Dustproof Protection – Rated IP68 when mated, this connector is completely dust‑tight and withstands continuous water immersion. The robust sealing ensures reliable performance in harsh industrial, marine, and outdoor environments where moisture is a constant threat.-

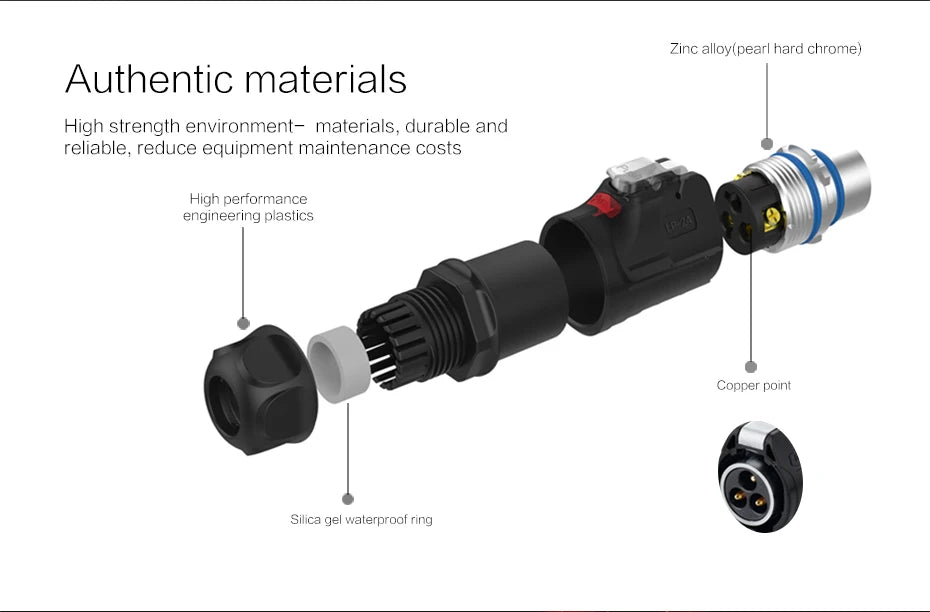

4. Durable Semi-Metal Hybrid Construction – Features a PBT plastic shell combined with zinc alloy metal components for optimal strength and corrosion resistance. Gold‑plated copper alloy contacts provide superior conductivity and oxidation resistance.Supports ≥2,000 mating cycles from -40°C to +120°C.

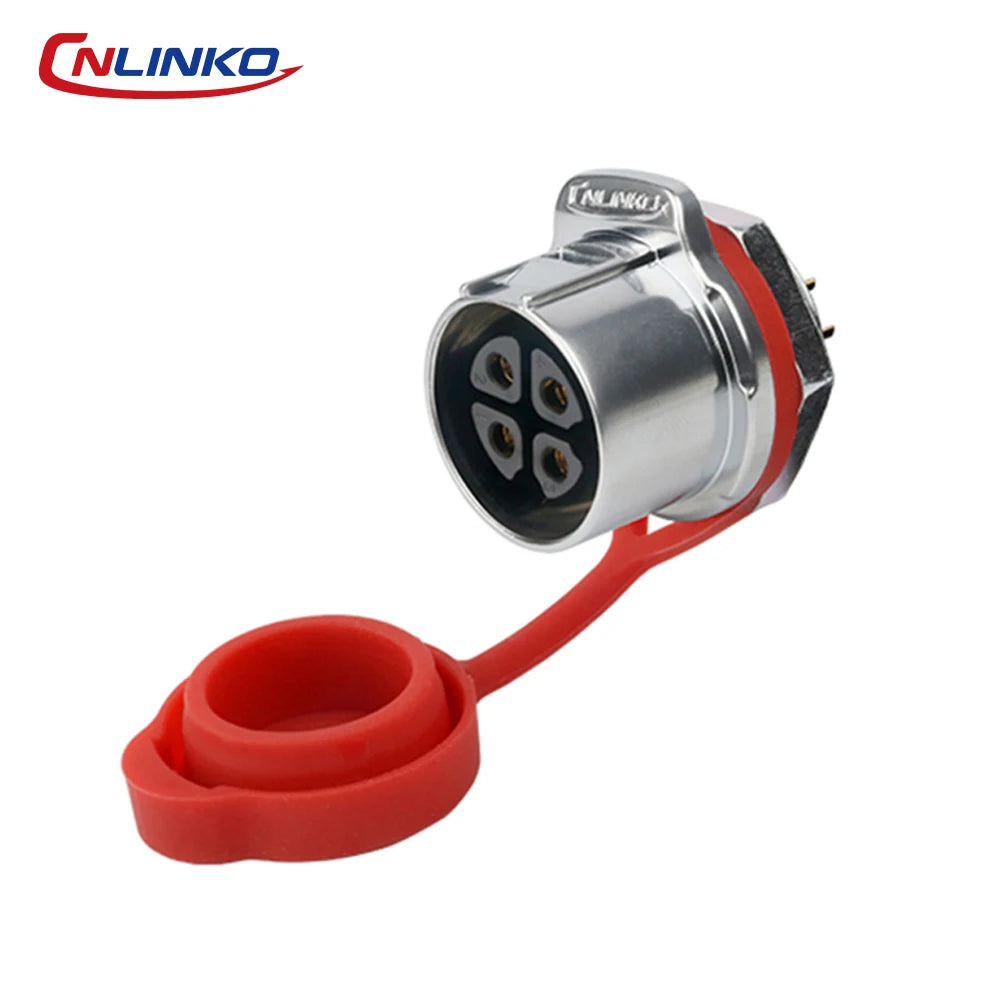

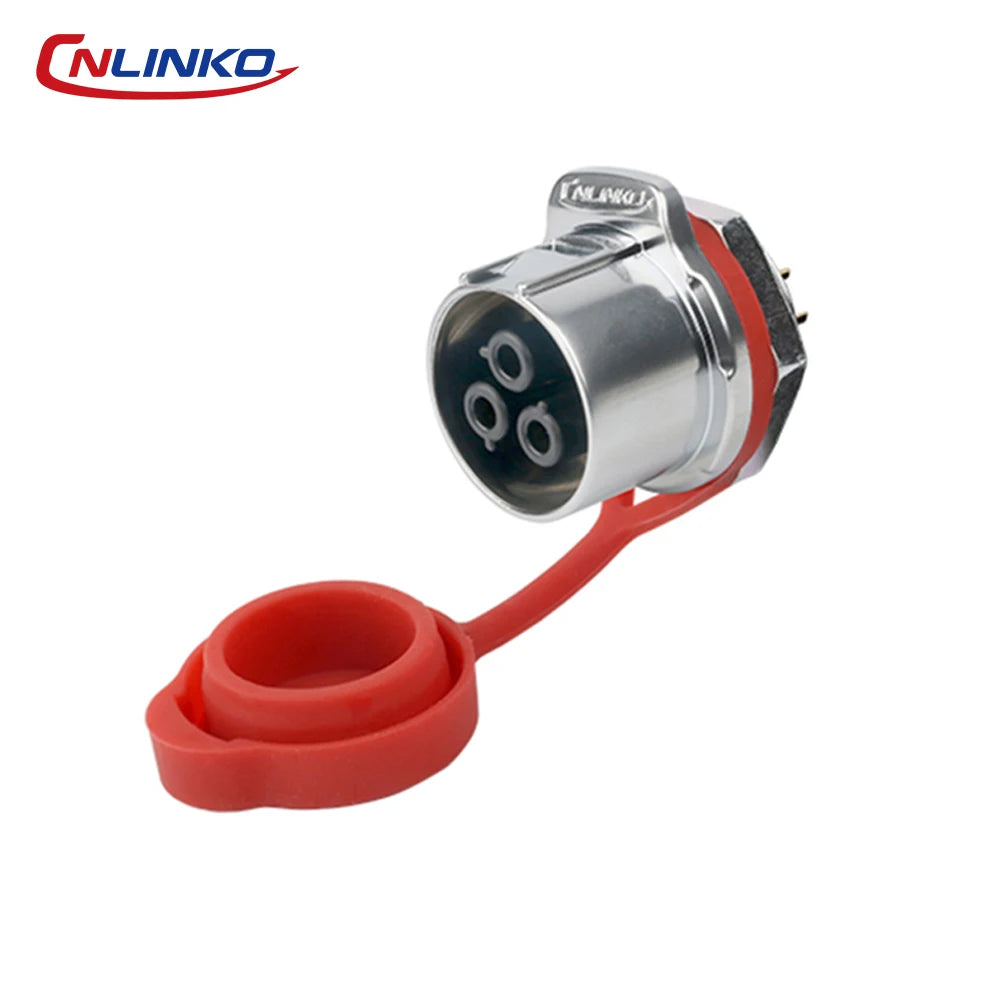

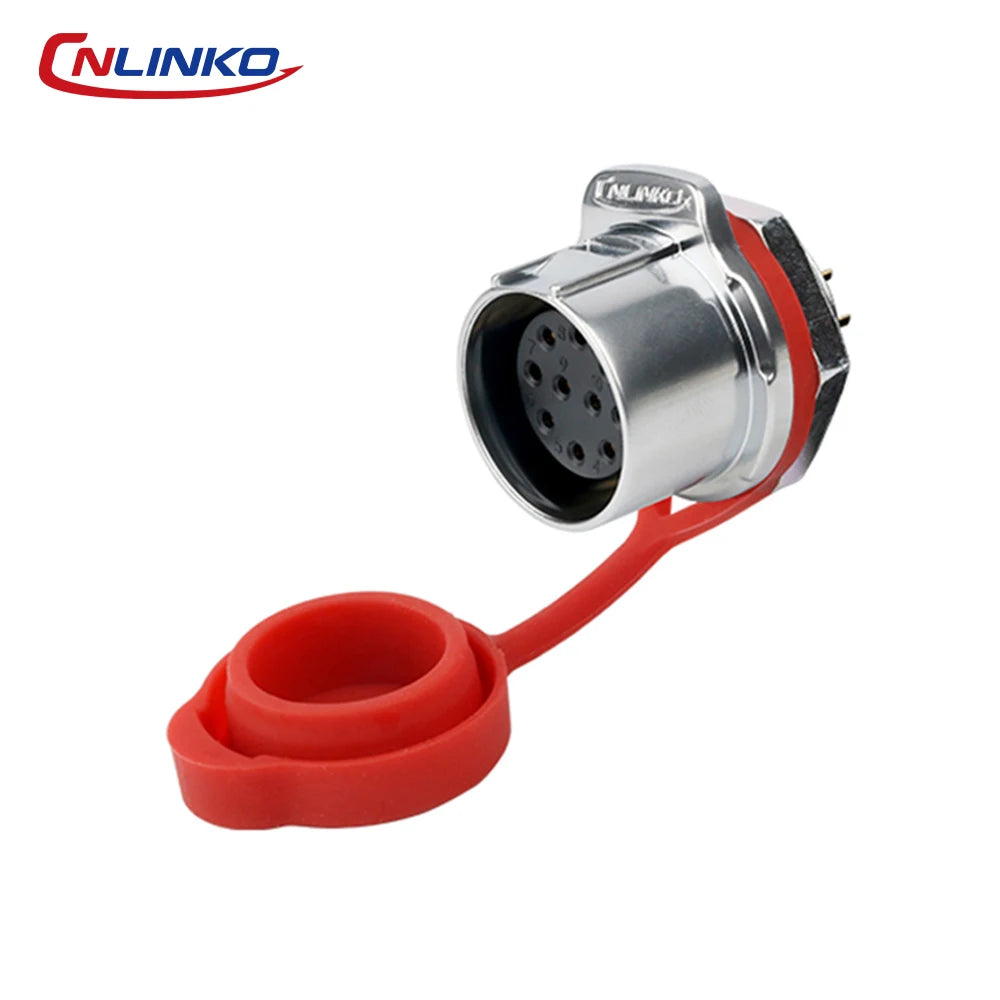

5. Solder-Type Termination & Single-Hole Panel Mount – Solder‑type terminals ensure permanent, vibration‑resistant wire connections compatible with 14‑12 AWG cables. The single‑hole panel mount design offers space‑saving installation. Ideal for industrial automation, solar equipment, marine systems, medical devices, and heavy machinery.
