Description

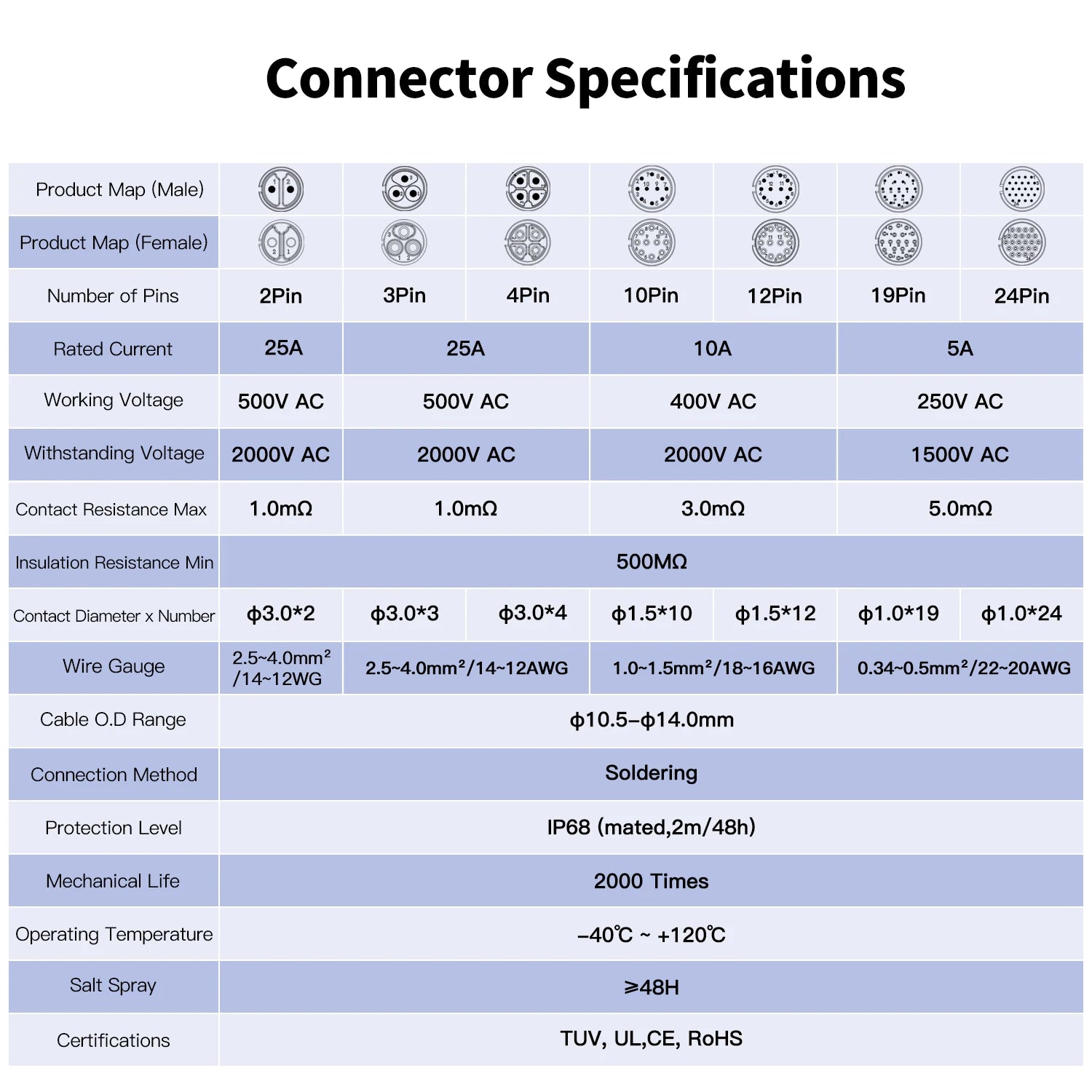

SPECIFICATIONS

Assembly Cable: Soldering

Brand Name: cnlinko

Cable O.D Range: 10.5mm~14mm

Category: Connectors

Certification: CE,RoHS,UL,weee

Contact Material: Copper Alloy(Gold-plated)

Contact Resistance((10~12pin)): 3.0m omega

Contact Resistance((19~24pin)): 5.0m omega

Contact Resistance((2~4pin)): 1.0m omega

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Gender: Male+Female

High-concerned chemical: none

Insulation Resistance(Min.): 500m omega

Item Type: Female Plug+Male Mating Socket,Female Plug,Male Mating Socket

Mechanical Life(Min.): 2000 Cycles

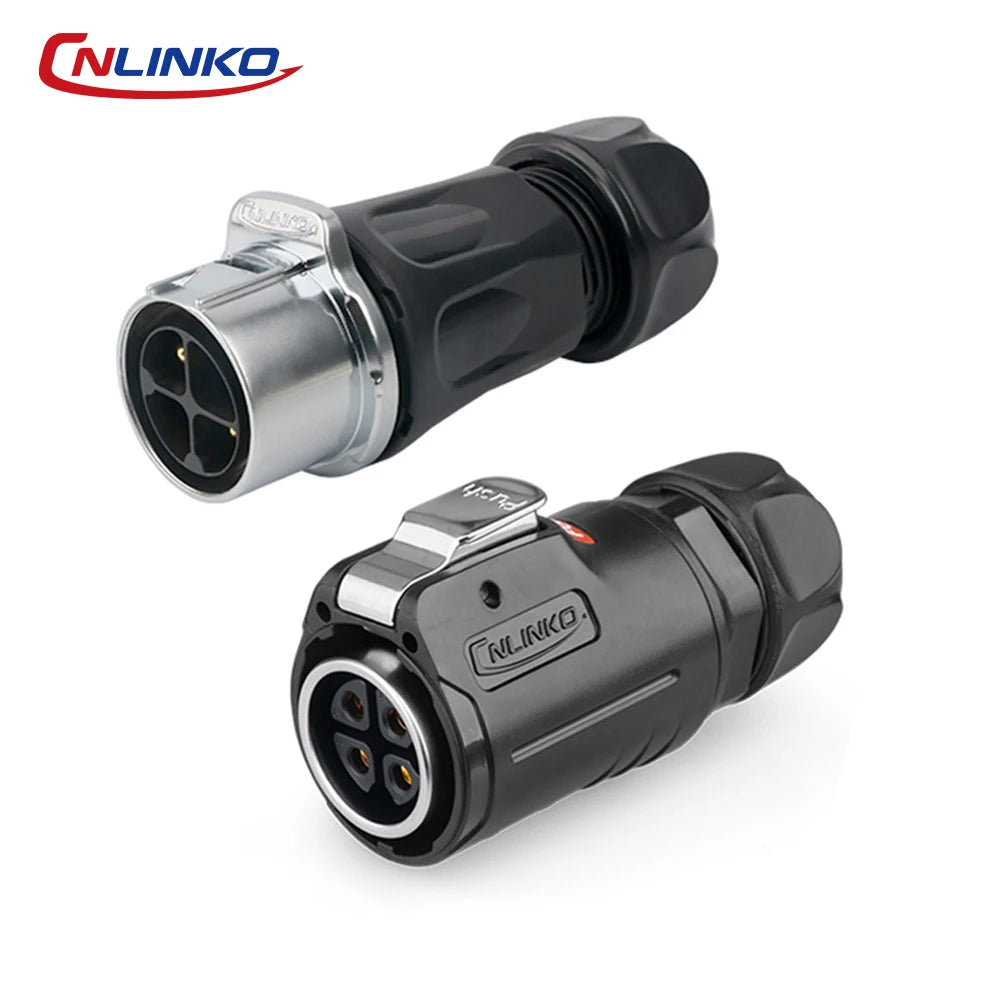

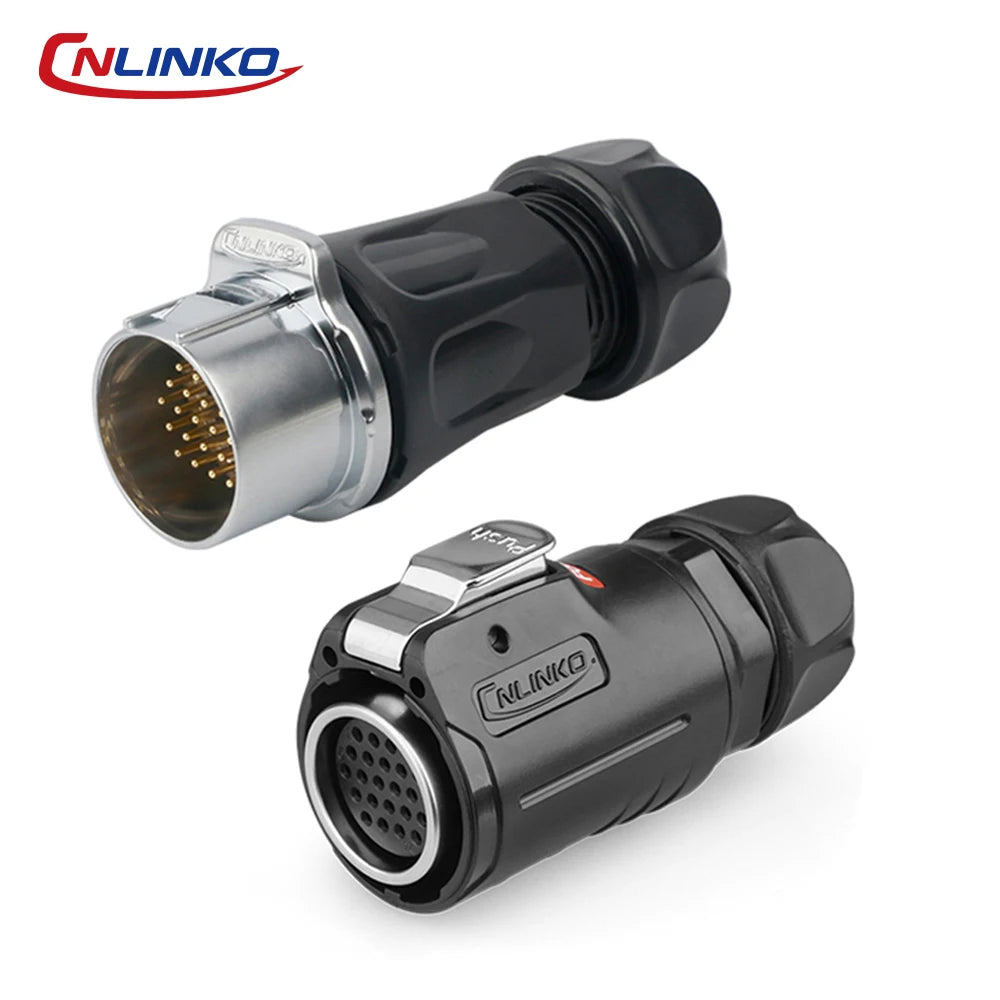

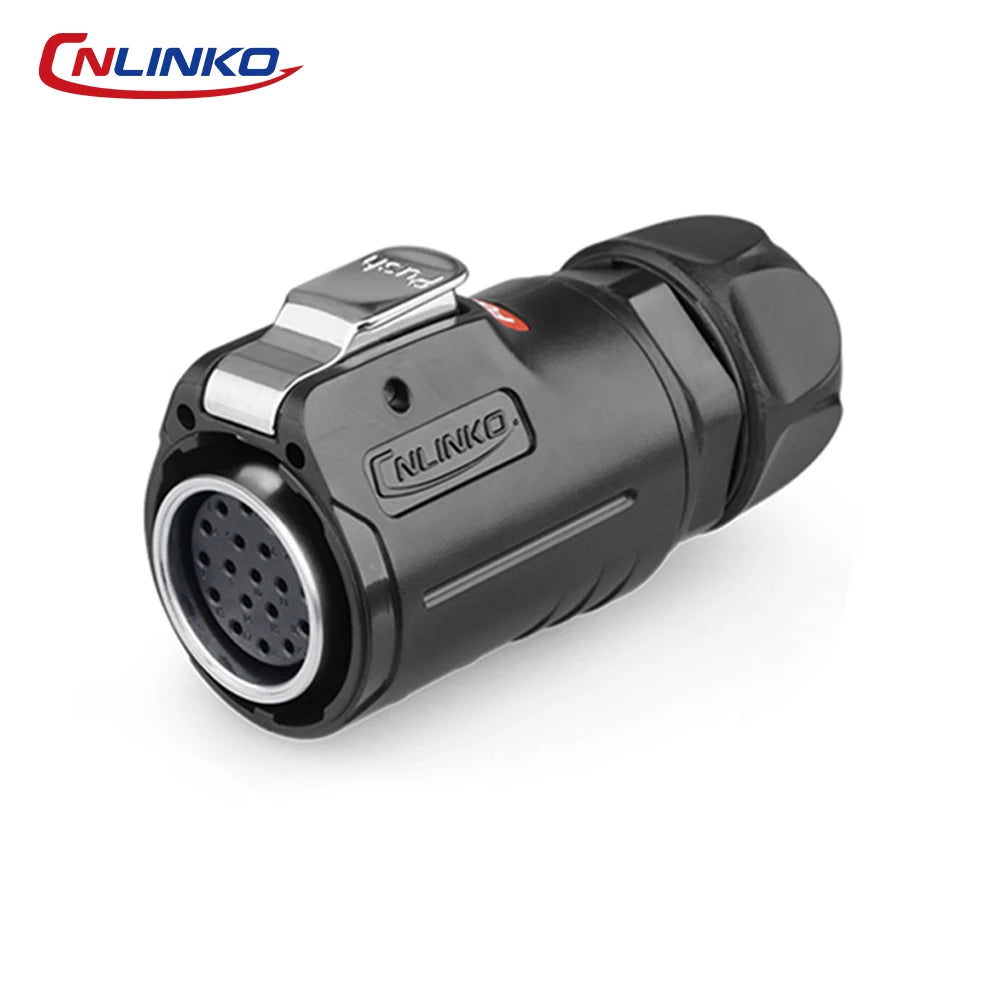

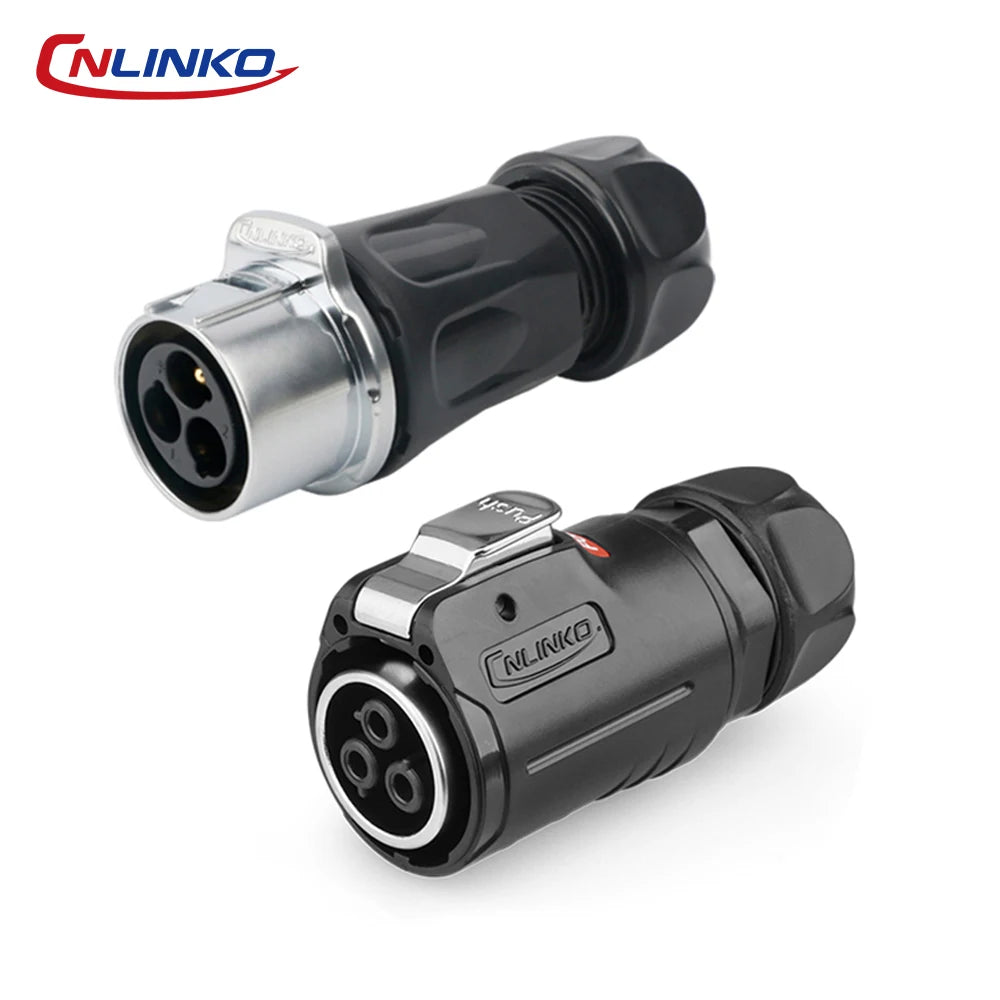

Model Number: LP24 Semi-metal Reverse Inline Connector

Operating Temperature: -40℃~+120℃

Origin: Mainland China

Protection Level: IP68(2m/48h)

Rated Currect(10~12pin): 10A

Rated Currect(19~24pin): 5A

Rated Currect(2~4pin): 25A

Salt Spray(Min.): 48H

Shell Material: PBT Plastic

Voltage: 自定义编辑

Wire Guage(10-12pin): 1.0~1.5mm²/18~16AWG

Wire Guage(19-24pin): 0.34~0.5mm²/22~20AWG

Wire Guage(2~4pin): 2.5~4.0mm²/14~12AWG

Withstanding Voltage(19~24pin): 1500V AC

Withstanding Voltage(2~12pin): 2000V AC

Working Voltage(10~12pin): 400V AC

Working Voltage(19~24pin): 250V AC

Working Voltage(2~4pin): 500V AC

电压: 1V 2V 4V 5V 12V 12V 等或自定义

Features:

1. Robust IP68 Waterproof & Dustproof Protection – Rated IP68 when mated, this inline connector is completely dust-tight and withstands continuous water immersion. The silicone seal ensures reliable signal and power transmission in outdoor, marine, and harsh industrial environments.

2. Push-Pull Lock for Quick, Tool-Free Mating – Features an intuitive push-pull (push-lock) mechanism for fast, one-handed plug-and-play operation. The audible click confirms secure engagement, preventing accidental disconnection due to vibration.

3. Reliable Electrical Performance for Signal & Power – Available in multiple pin configurations to suit both power and signal needs. Supports up to 25A/500V (2-pin) or 5A/250V (24-pin), with contact resistance <1.0mΩ and insulation resistance >500MΩ for stable transmission.

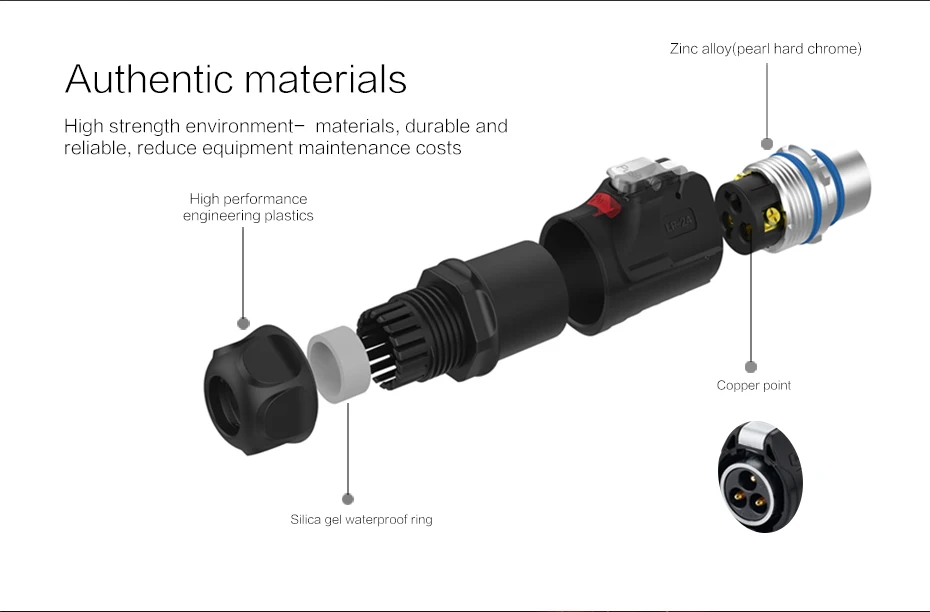

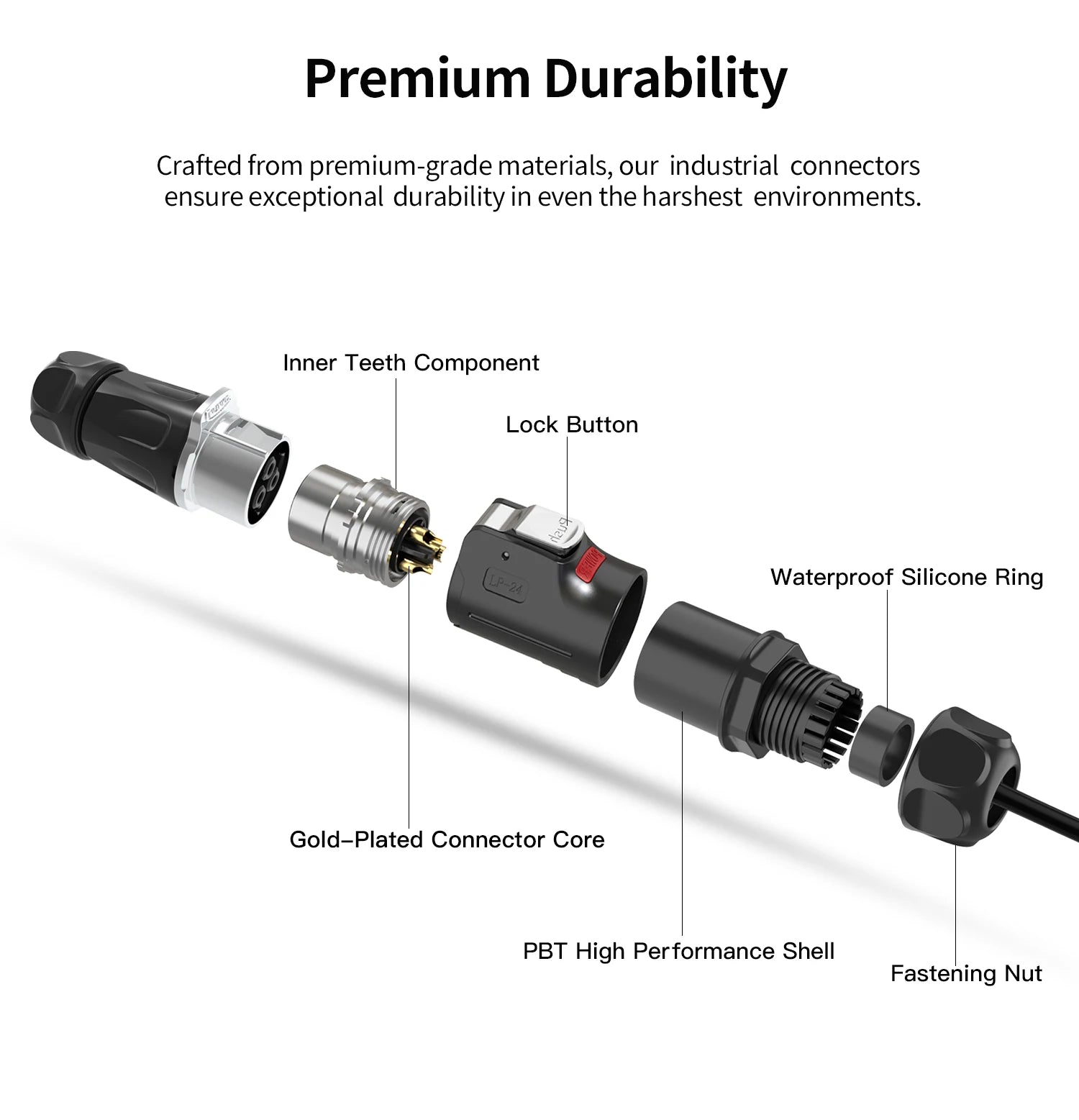

4. Durable PBT + Zinc Alloy Hybrid Construction – Built with high-performance PBT plastic (UL94 V-0) and zinc alloy components. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance. Supports ≥2000 mating cycles from -40°C to +120°C.

5. Versatile Inline Applications & Solder Termination – Designed for cable-to-cable inline connections. Solder-type terminals ensure permanent, vibration-resistant connections. Widely used in industrial automation, LED displays, solar systems, marine, and heavy machinery.
