SPECIFICATIONS

Brand Name: cnlinko

Cable O.D Range: 5.0-7.0mm

Certification: CE,RoHS,UL,weee

Contact resistance(Max.): 30m omega

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Flammability Rating: UL94-V0

High-concerned chemical: none

Mechanical Life(Min.): 2000 times

Model Number: YM-24

Operating Temperature: -25℃~85℃

Origin: Mainland China

Protection Level: IP68(2m/48h)

Rated Current: 1.8A

Rated Voltage: 5V AC

Shell: PBT

Voltage: 自定义编辑

Waterproof Cover: Silica gel

Features：

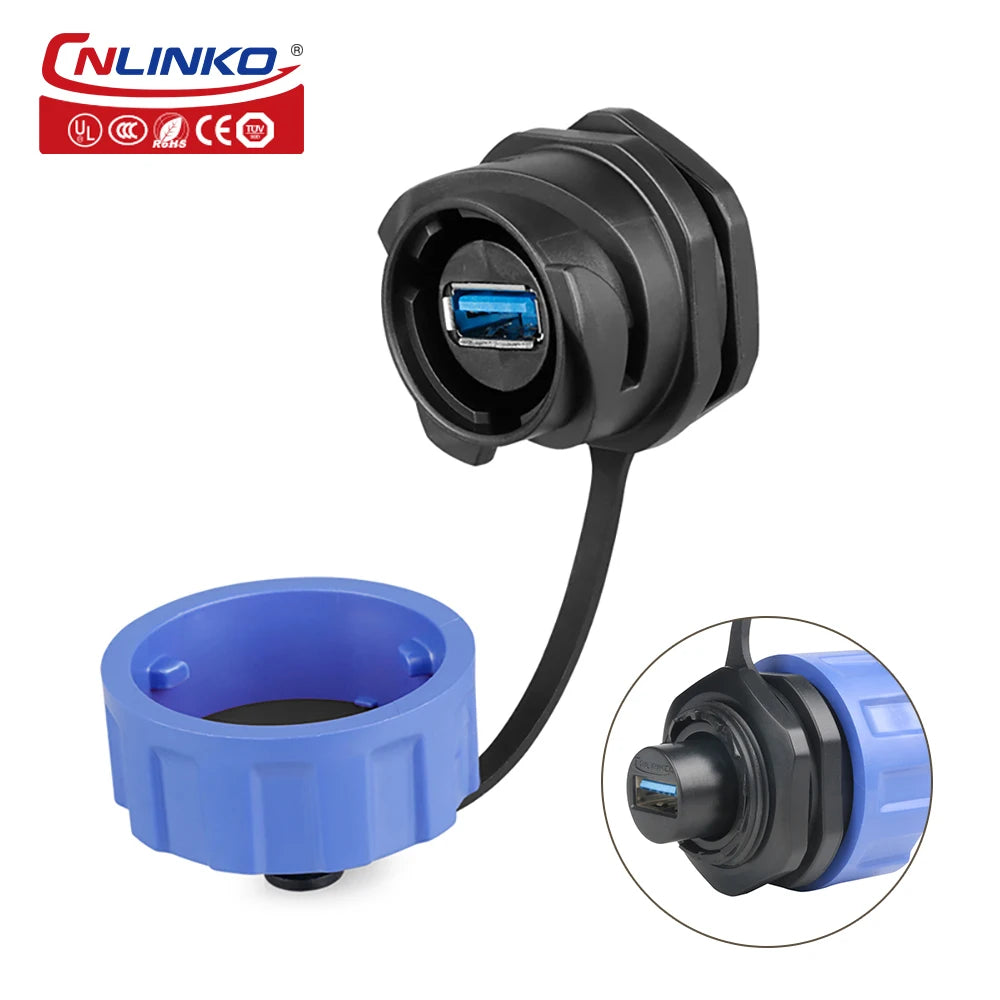

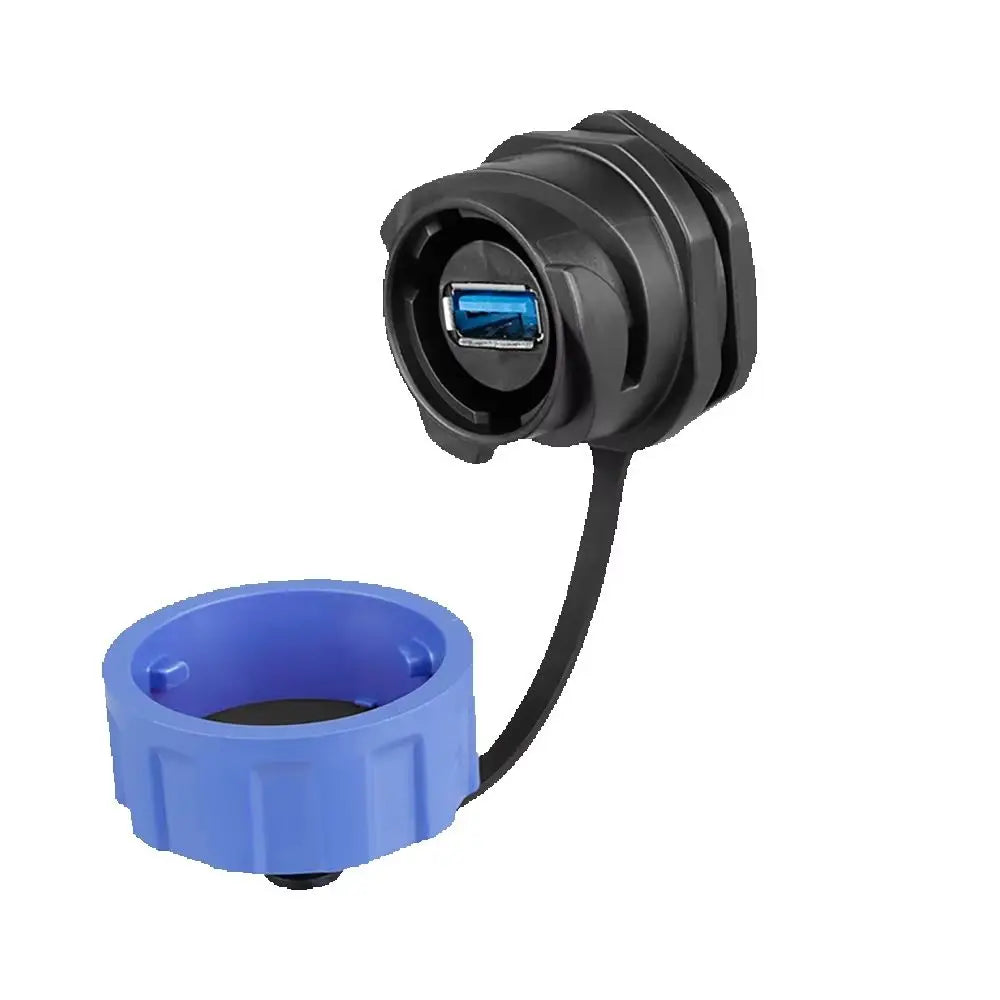

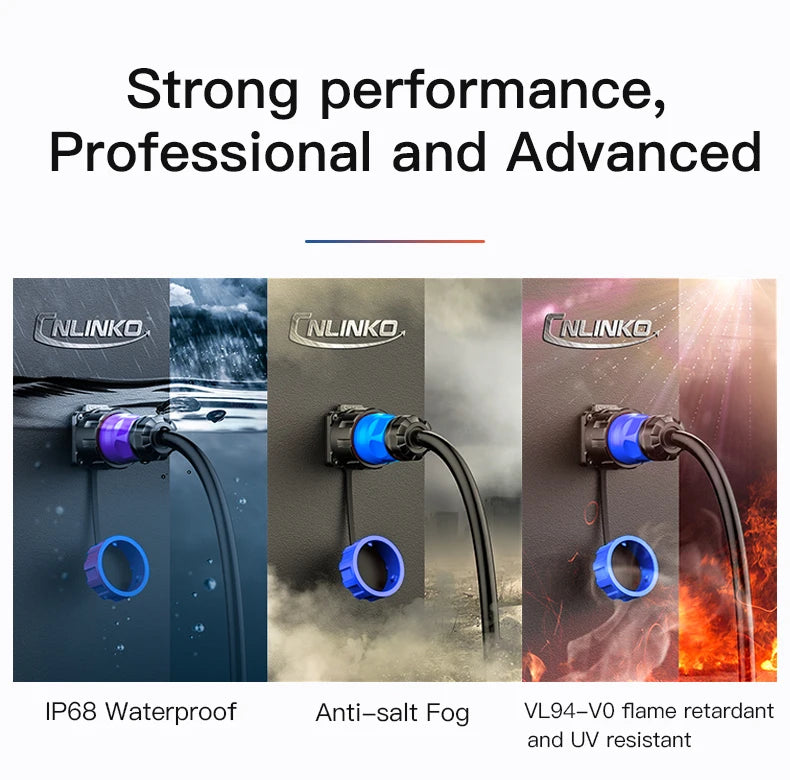

1. IP68 Waterproof & Dustproof Protection – Rated IP68, this USB 3.0 socket is fully sealed against dust and can withstand continuous immersion in water up to 2 meters deep for extended periods. Designed with precision waterproof silicone seals and a rugged outer alloy ring, it delivers reliable performance in harsh outdoor, marine, and industrial environments where moisture and contaminants are constant threats.

2. Ultra-Fast 5Gbps Data Transfer – Built with USB 3.0 technology, this connector supports blazing-fast data transmission speeds up to 5Gbps-. It ensures low-latency, high-bandwidth connectivity for real-time data logging, industrial automation systems, and high-definition video streaming. The gold-plated copper alloy contacts (4U thickness) maintain signal integrity with contact resistance below 30mΩ and insulation resistance above 500MΩ for stable, error-free communication.

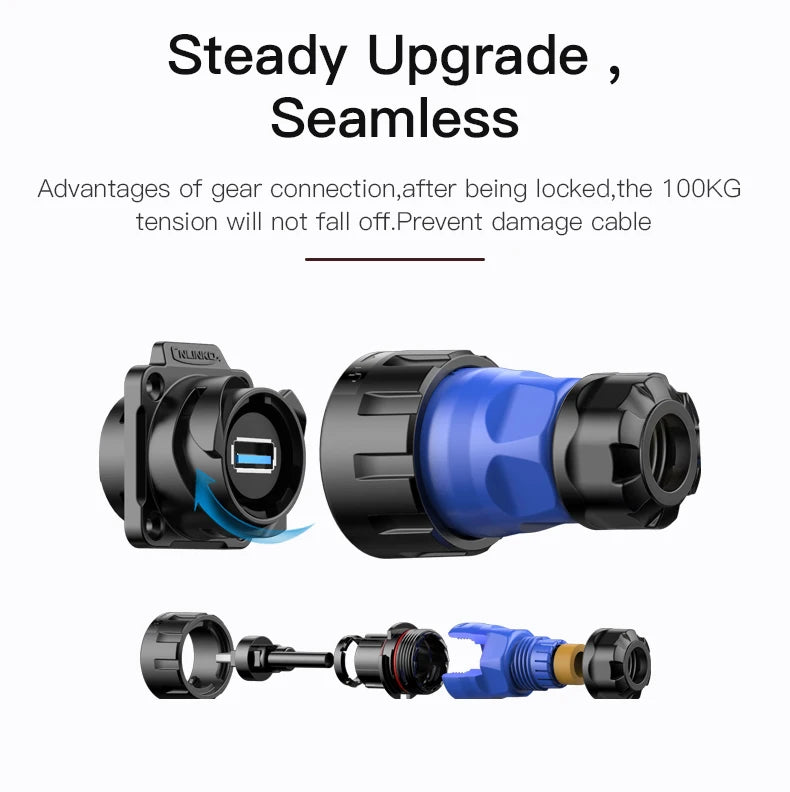

3. Secure Bayonet Lock Connection – The twist-to-lock bayonet mechanism provides a secure, vibration-resistant mating with an audible click confirmation. Three evenly spaced positioning card points ensure uniform engaging force-, preventing accidental disconnection even under shock loads or heavy machinery vibration. This tool-free design enables fast, reliable connections in demanding industrial settings where connection stability is critical.

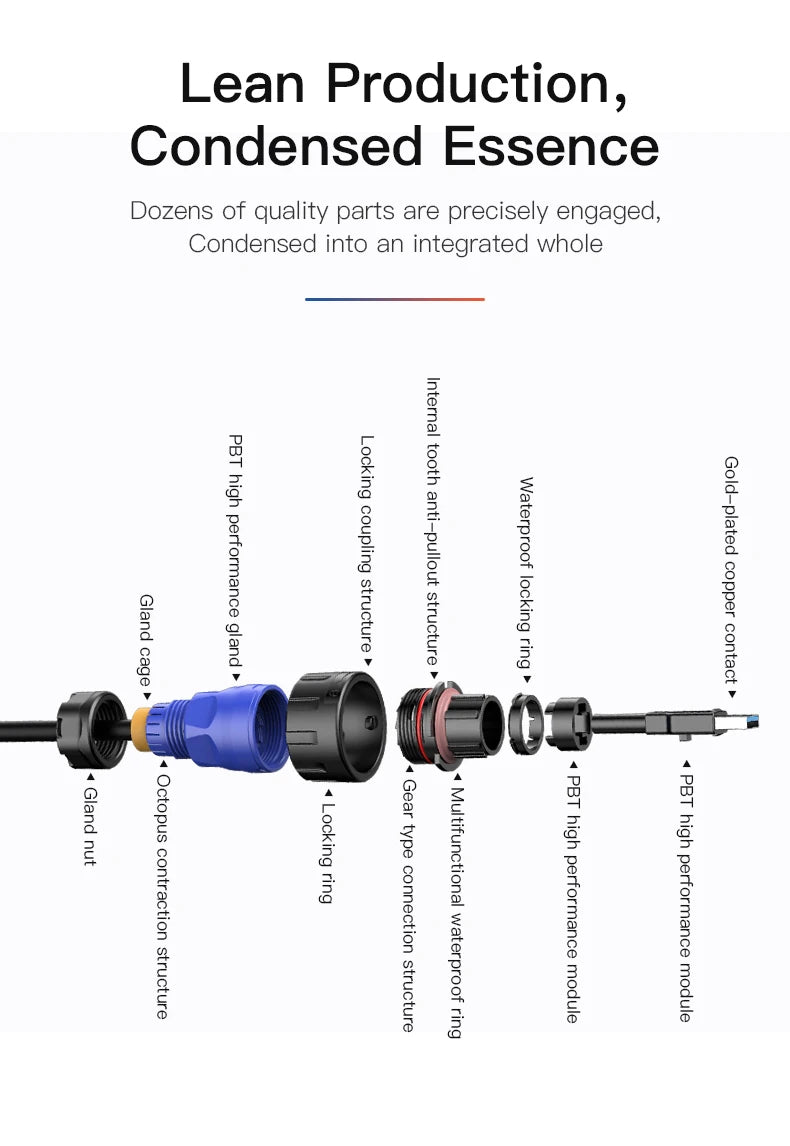

4. Durable PBT Engineering Plastic Housing – Constructed with high-strength PBT (polybutylene terephthalate) plastic, this socket offers excellent corrosion resistance, chemical stability, and electrical insulation. Rated UL94 V-0 for flame retardancy, it withstands temperatures from -25°C to +80°C and supports over 2000 mating cycles. The lightweight yet robust housing provides reliable protection without the weight and cost of metal, ideal for outdoor automation and marine use.

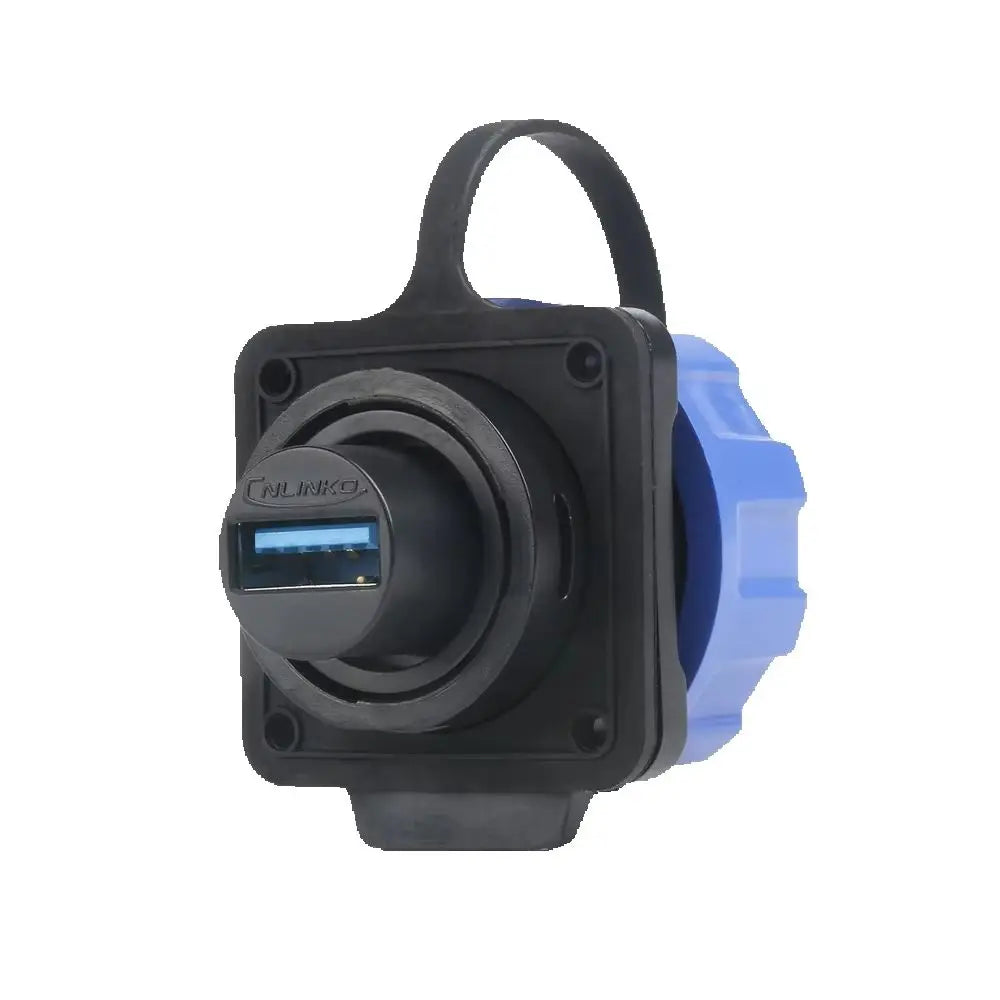

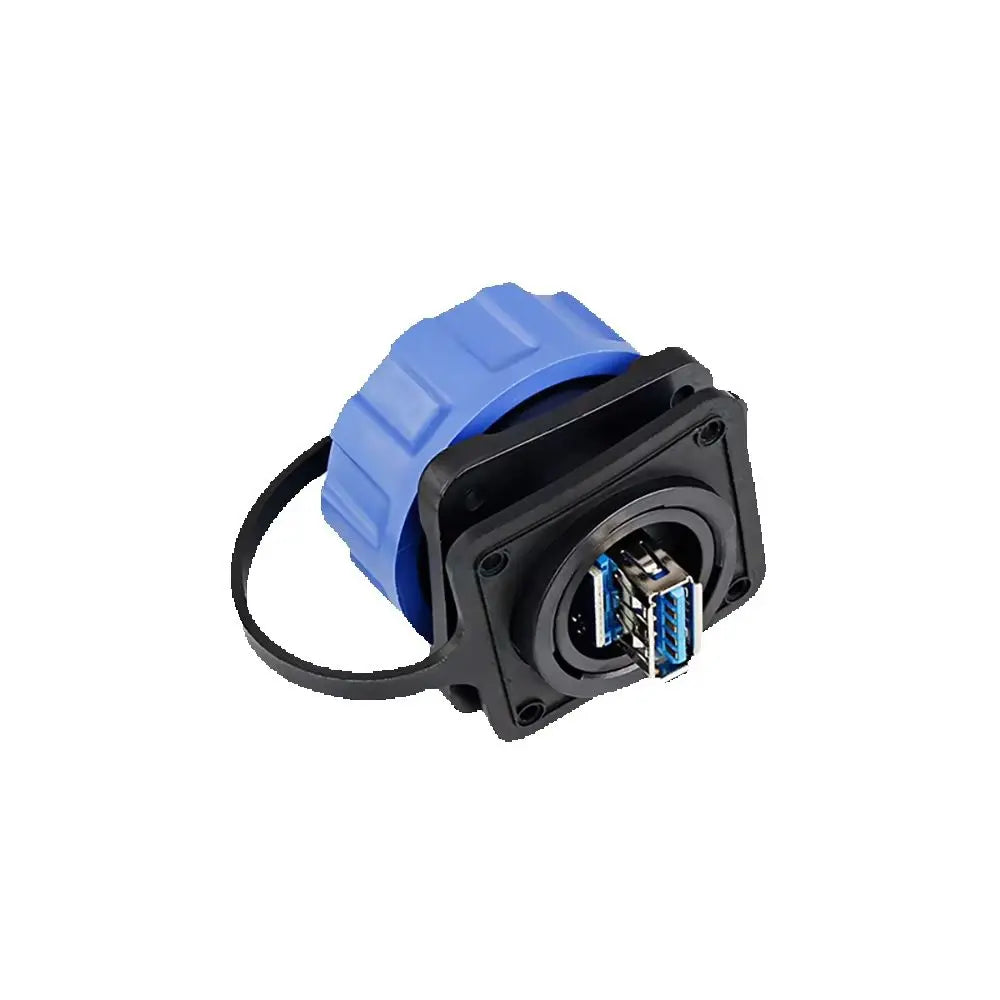

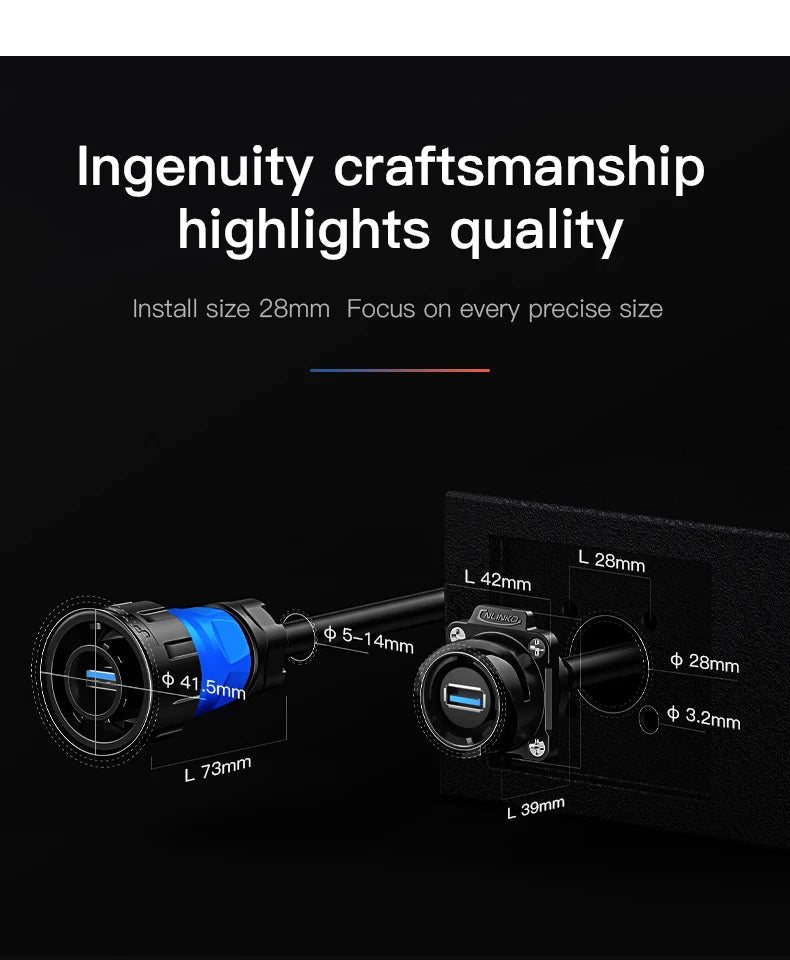

5. Reliable 1.8A Power Delivery – Rated at 1.8A current capacity, this panel-mount socket provides stable power transmission for charging and peripheral devices. The bayonet lock ensures uninterrupted power flow even in vibration-heavy applications. Withstanding voltage up to 500V AC and featuring a robust four-hole panel mount design, it delivers dependable power and data connectivity for outdoor automation, robotics, and heavy machinery.
