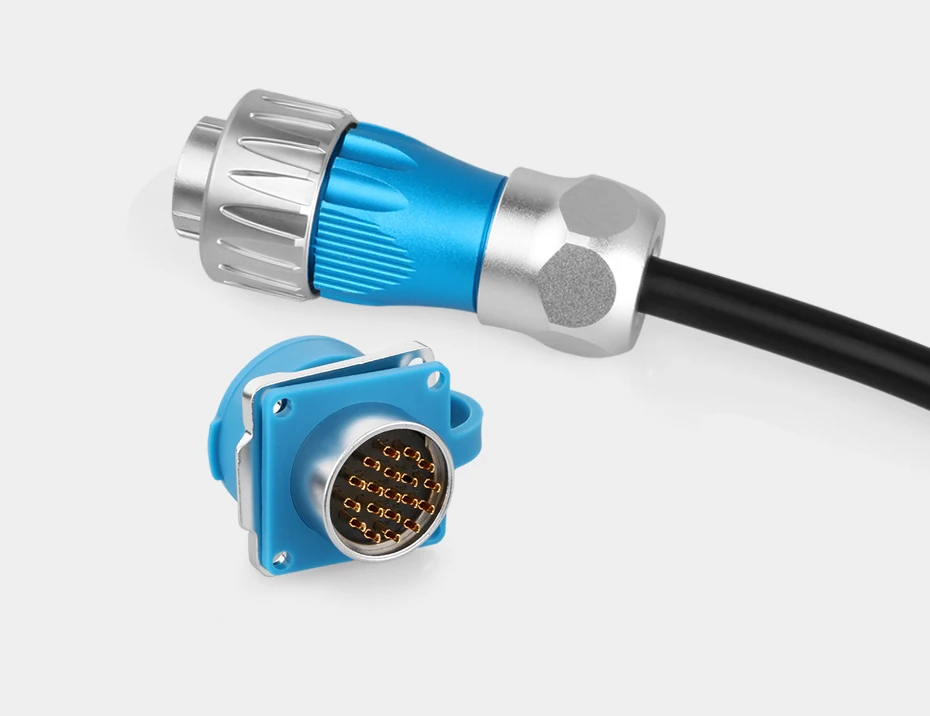

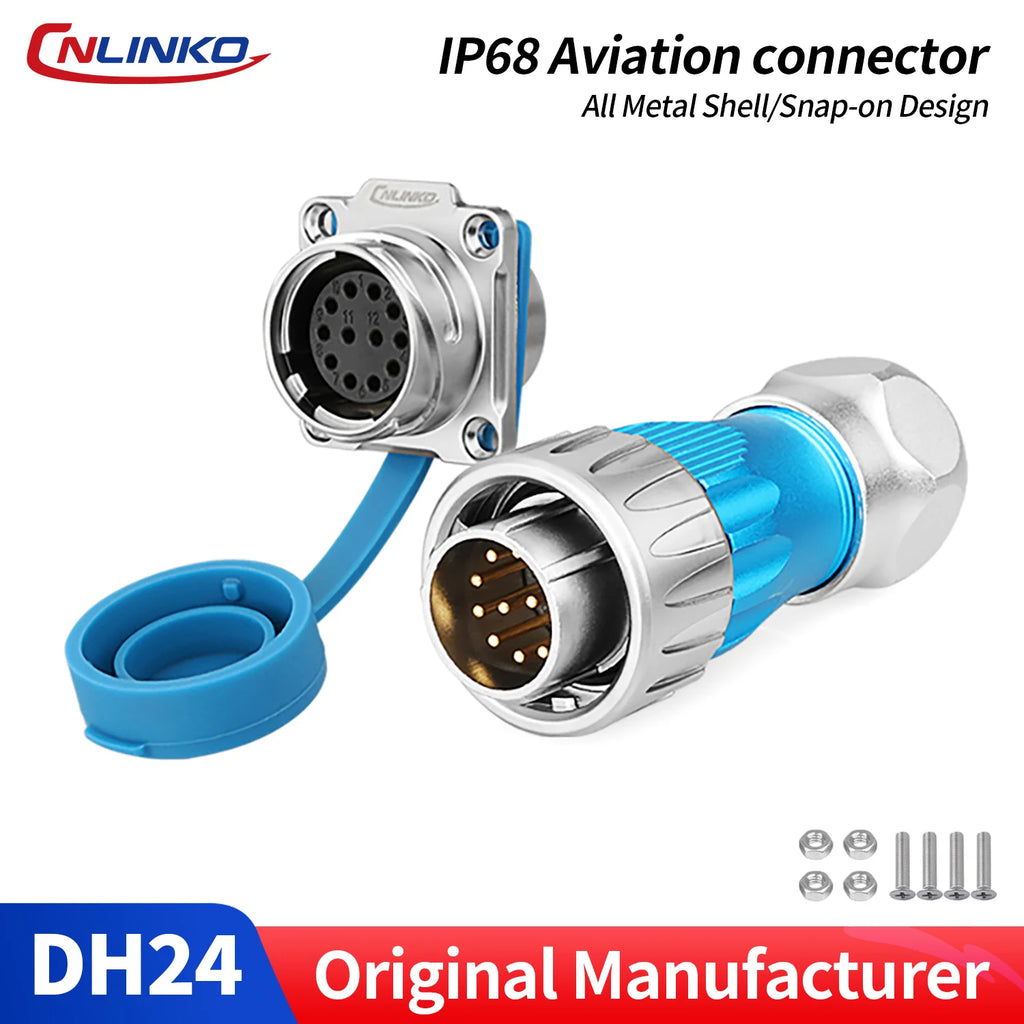

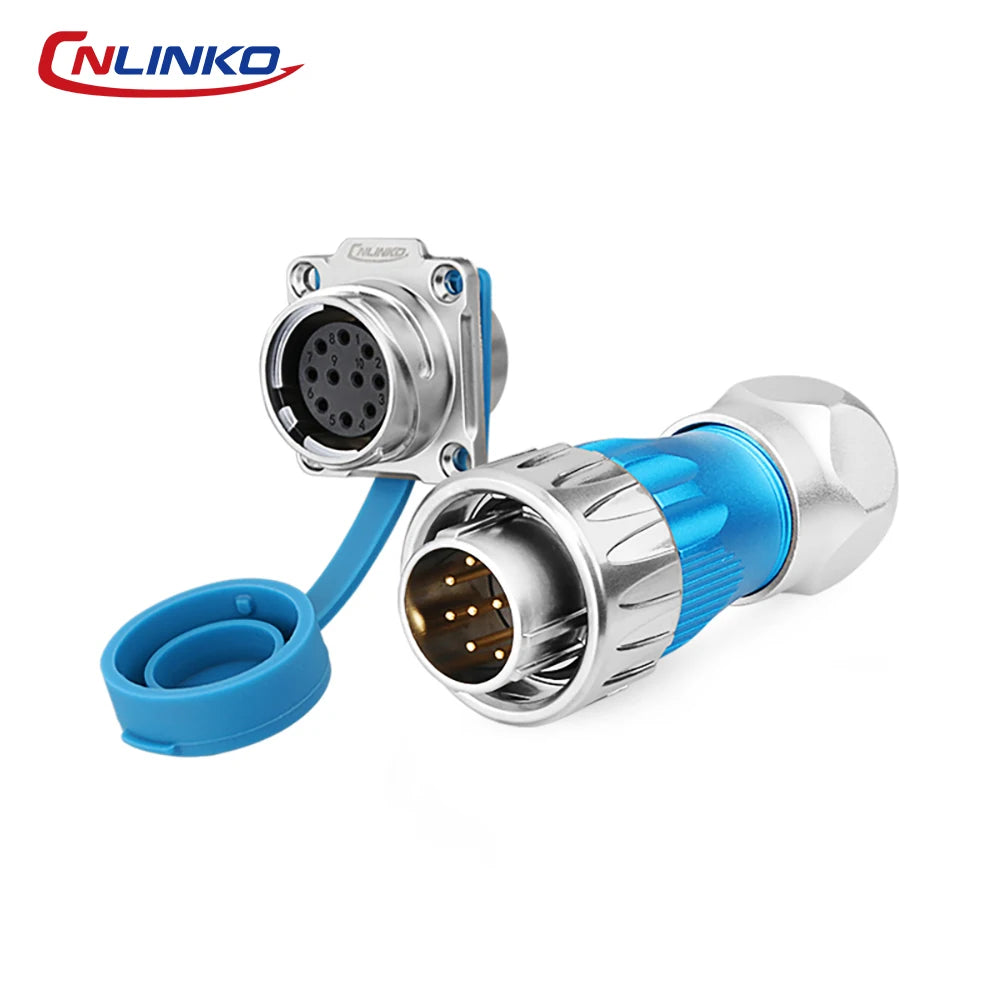

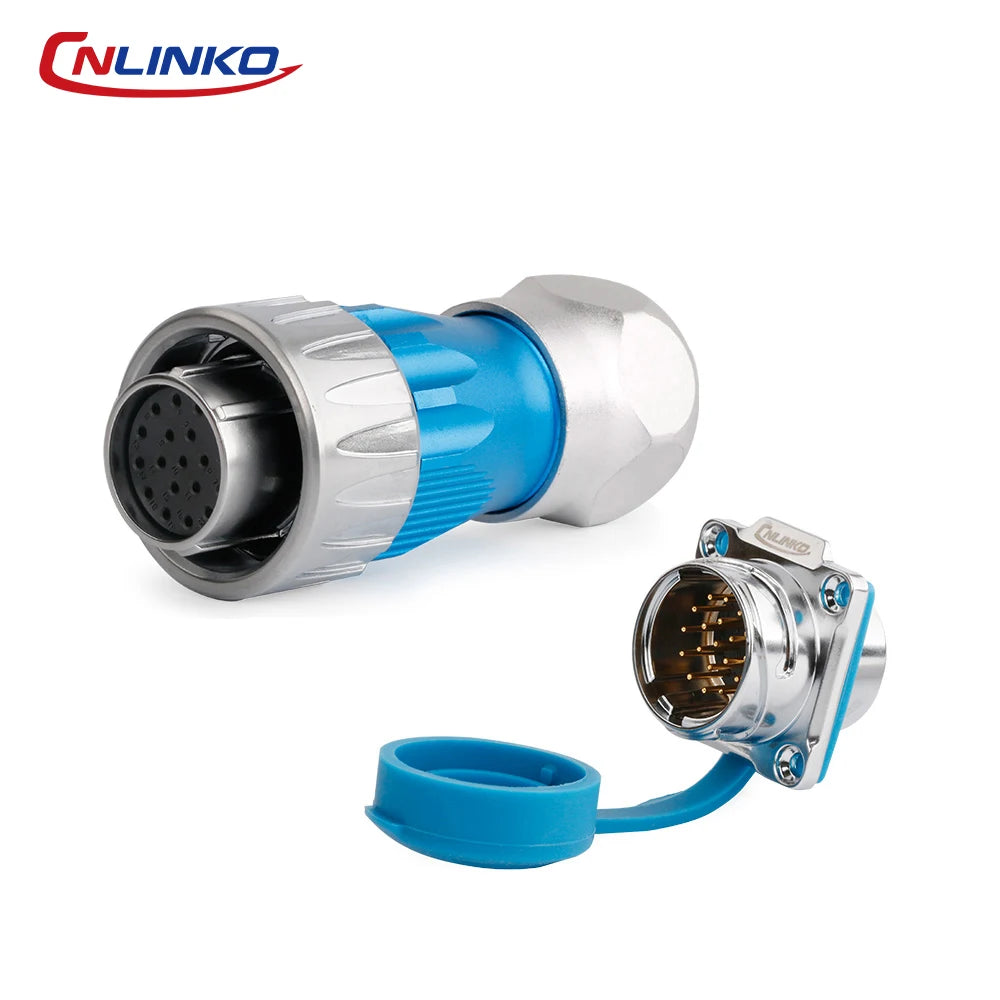

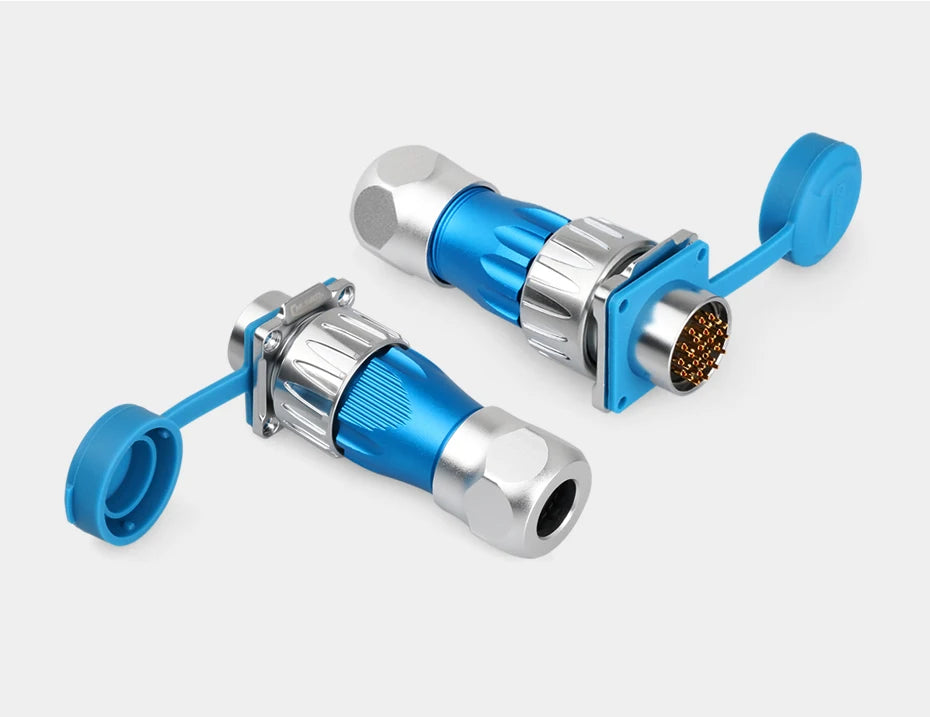

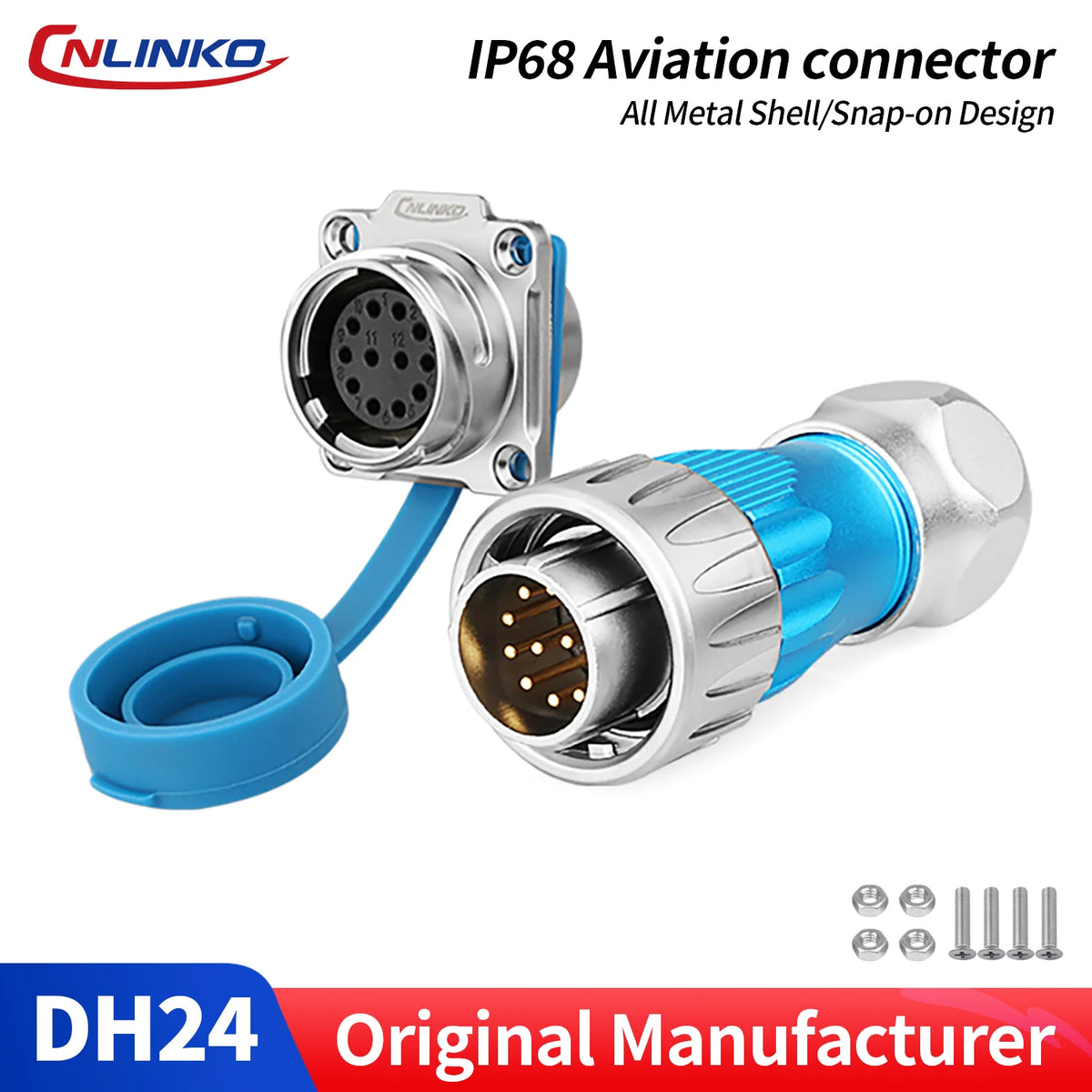

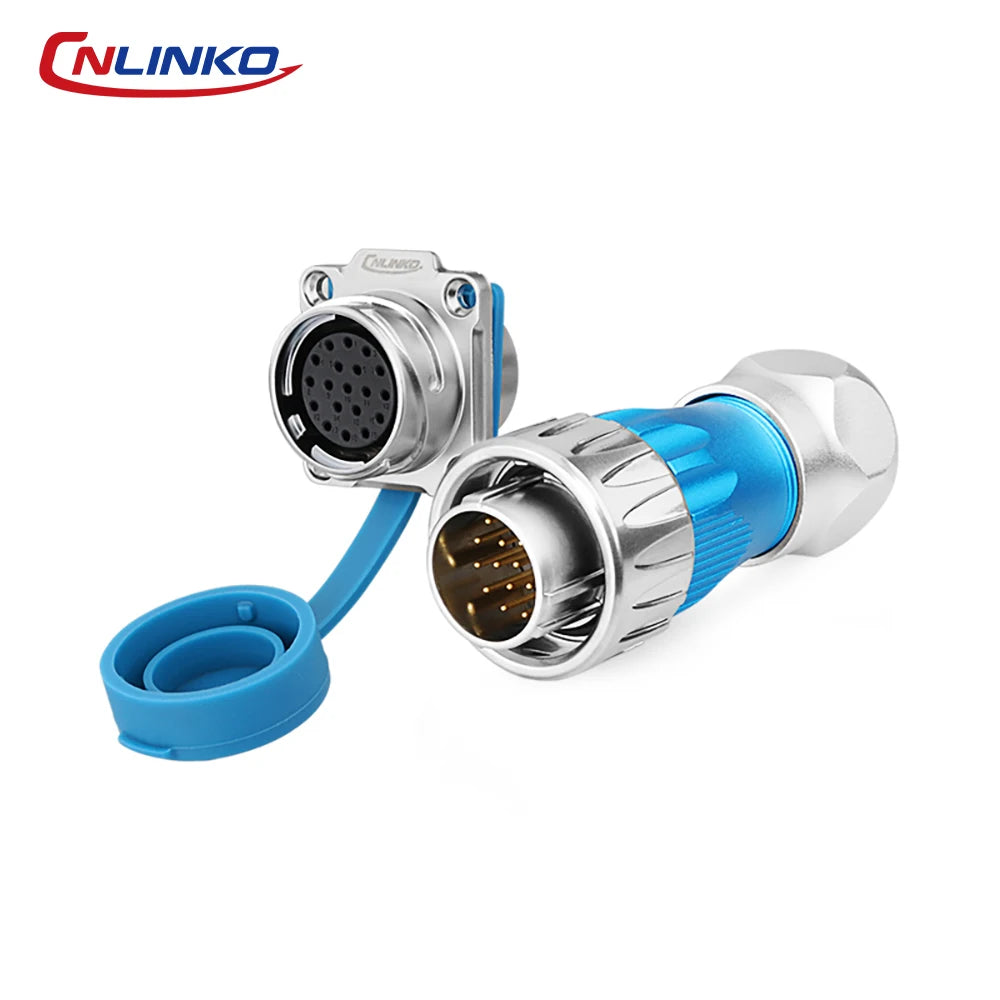

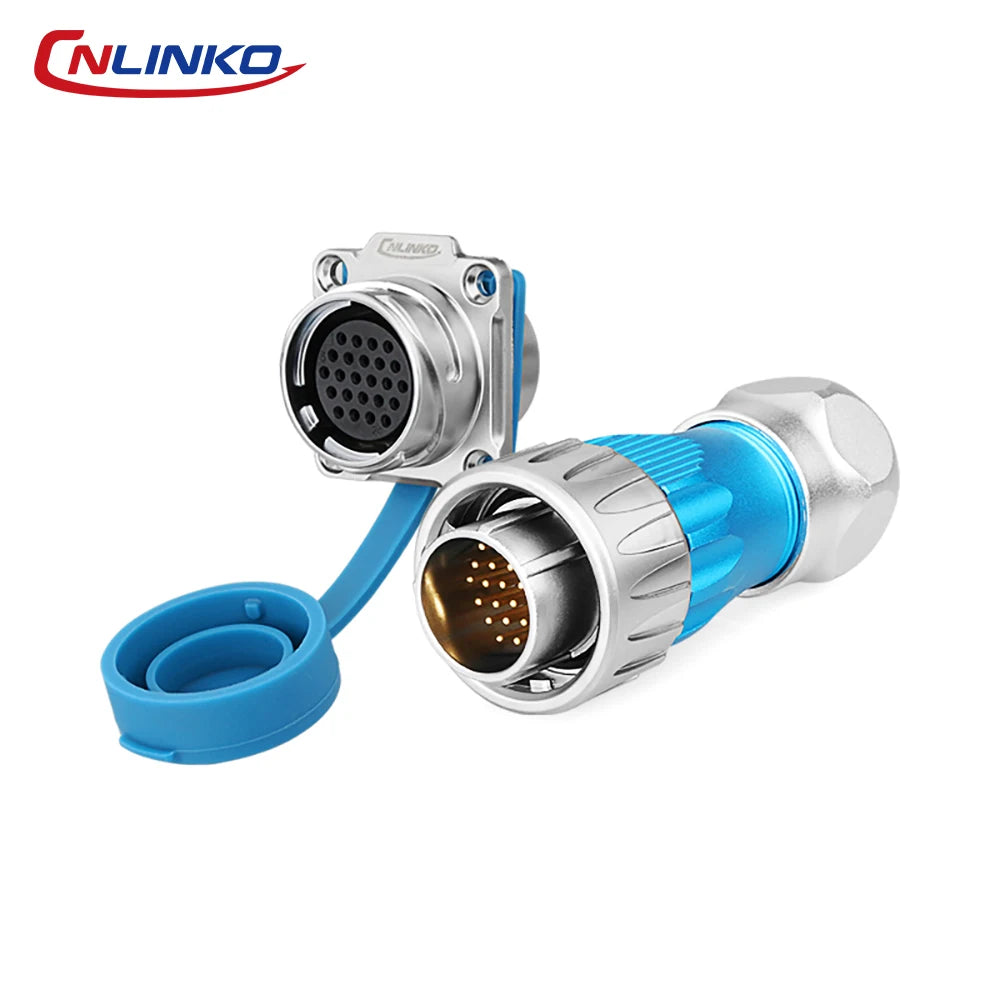

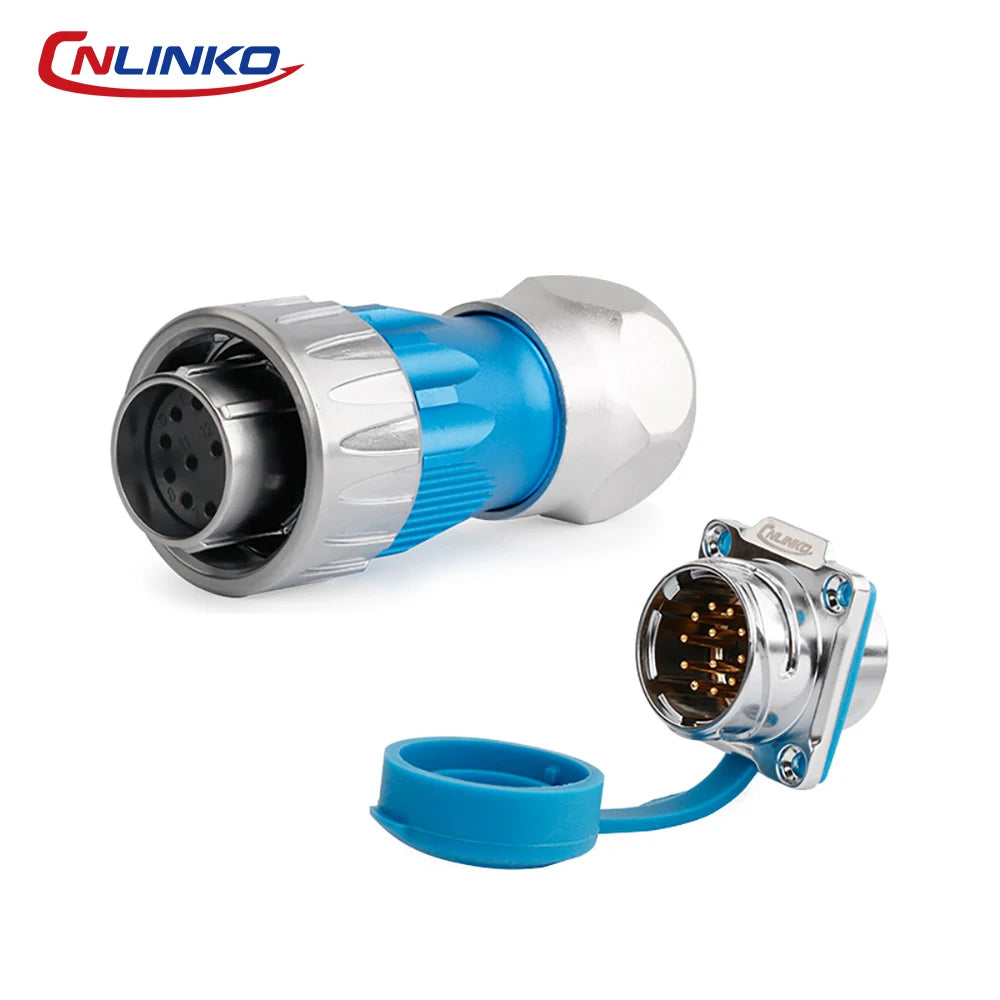

CNLINKO M24 Waterproof Circular Aviation Connector GEN3 10/12/19/24P Metal Shell Male/Female for Industrial & Medical Equipment
12Pin F Four-Hole
$124.04
Sale price
$124.04
Regular price
$0.00
Skip to product information
CNLINKO M24 Waterproof Circular Aviation Connector GEN3 10/12/19/24P Metal Shell Male/Female for Industrial & Medical Equipment
$124.04
Sale price
$124.04
Regular price
$0.00
Description

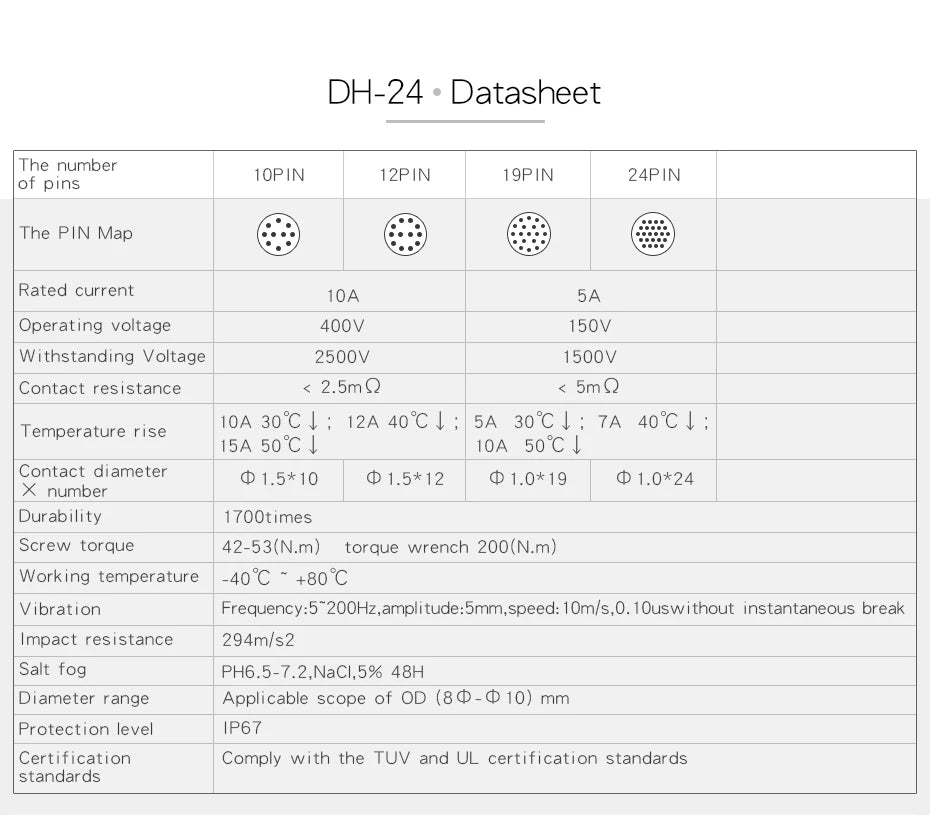

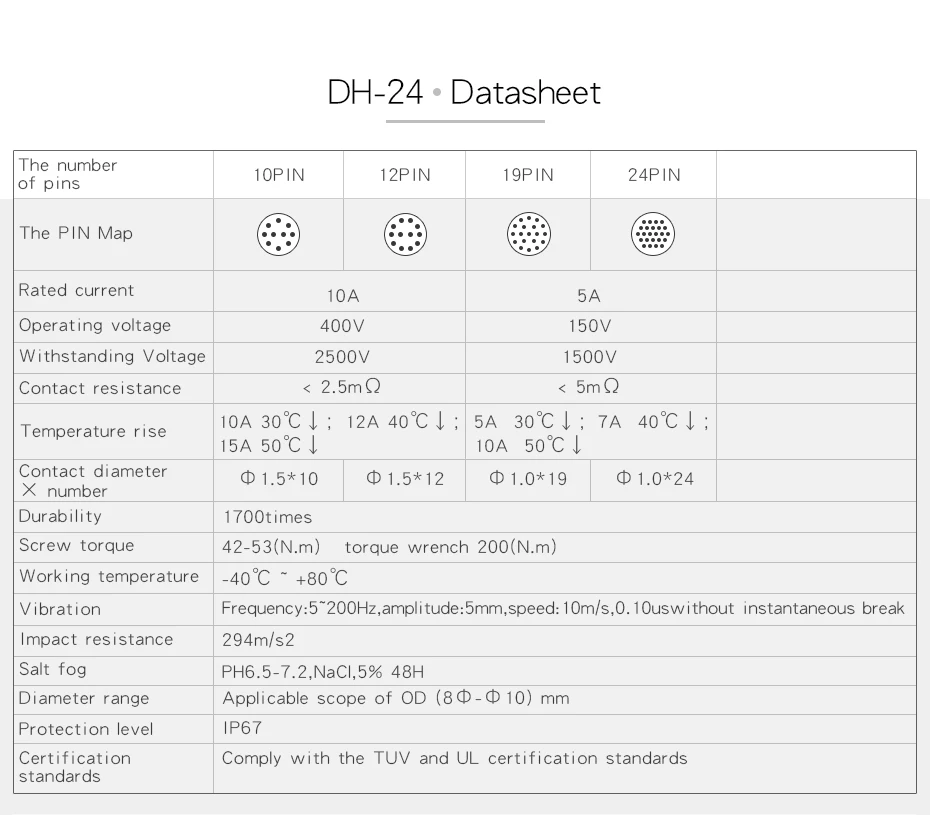

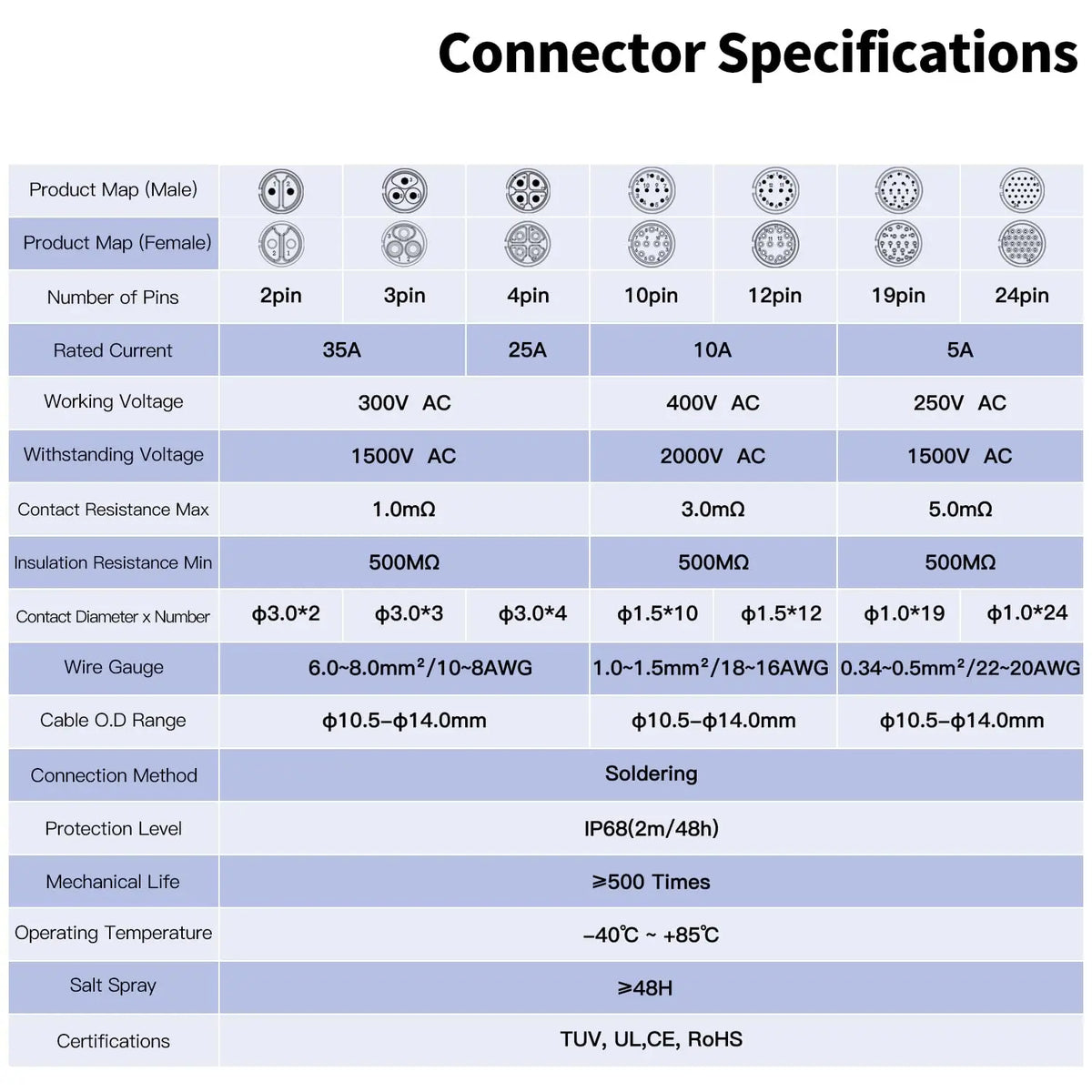

SPECIFICATIONS
Application: Audio & Video,Lighting,Power,Signal

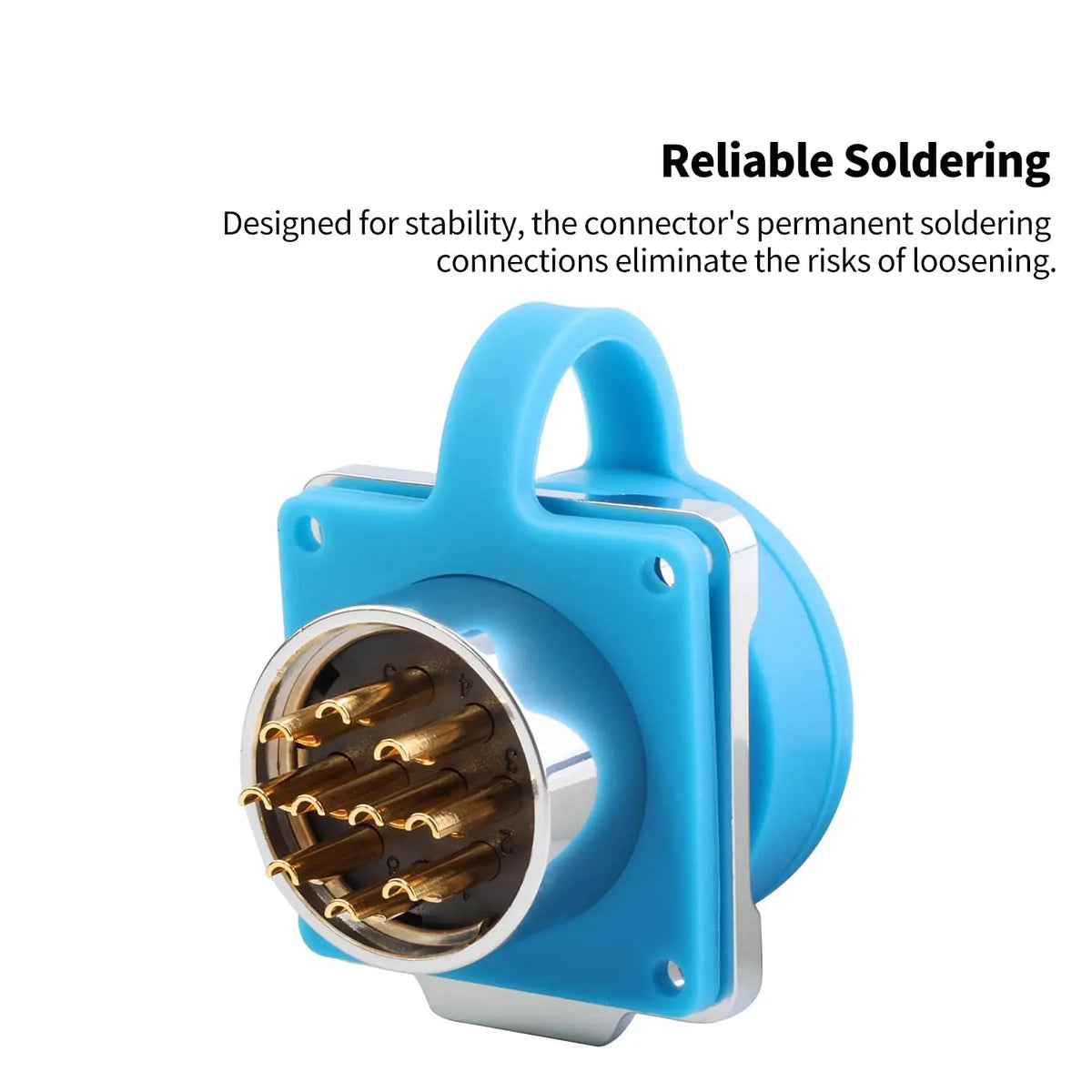

Assembly wire: Soldering
Brand Name: cnlinko
Certification: CE,RoHS,UL,weee
Contact resistance(Max.): 3~5m omega
Current rating: 5A~10A

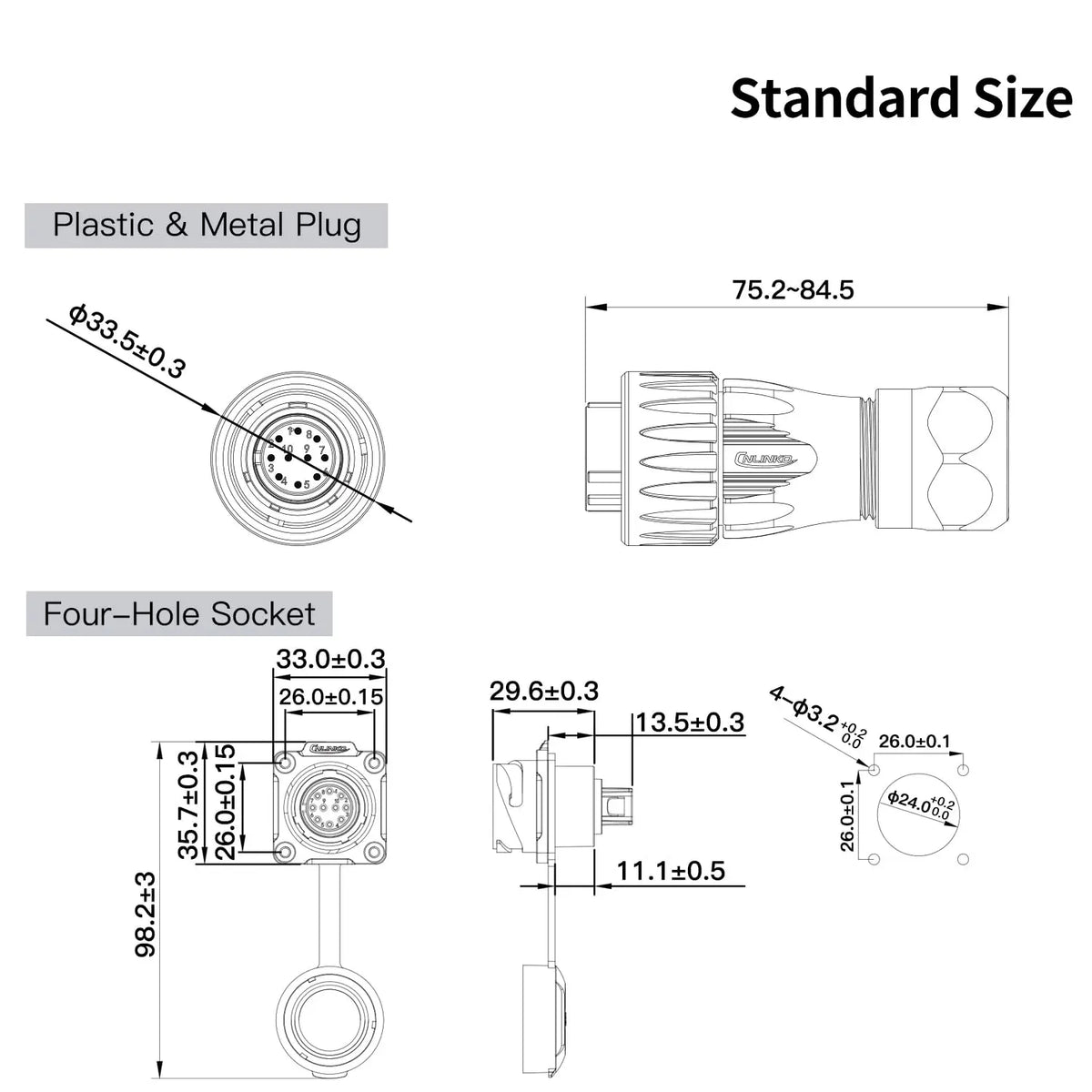

Diameter range: Tolerance 10.5mm~14mm
Diameter range(19pin): Tolerance 5.0~6.5mm
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Insulation resistance(Min.): 500m omega
Model Number: DH-24 GEN3 Rubber Core
Operating voltage (AC.V.rms): 250V~300V
Origin: Mainland China
Protection level: IP68
Type: Wire Connector
Voltage: 自定义编辑
Wire Guage(10~12pin): 1.0~1.5mm²/18~16AWG
Wire Guage(19~24pin): 0.34~0.5mm²/22~20AWG
Withstanding voltage (AC.V) 1 minute: 1000V~1500V
CNLINKO M24 Waterproof Circular Aviation Connector GEN3 10/12/19/24P Metal Shell Male/Female for Industrial & Medical Equipment
Features:
Aviation Grade Quality
Crafted for aviation standards, this connector guarantees high-quality performance and safety in critical systems.

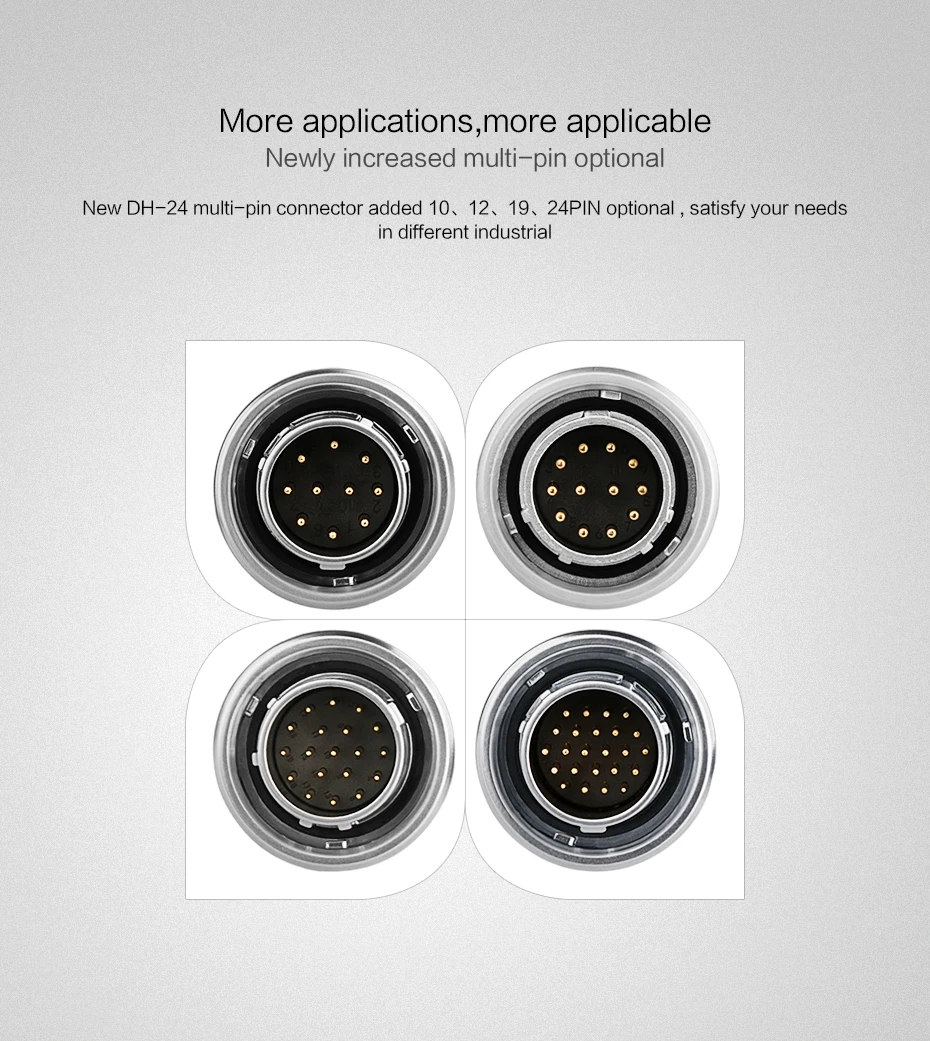

Versatile Pin Options

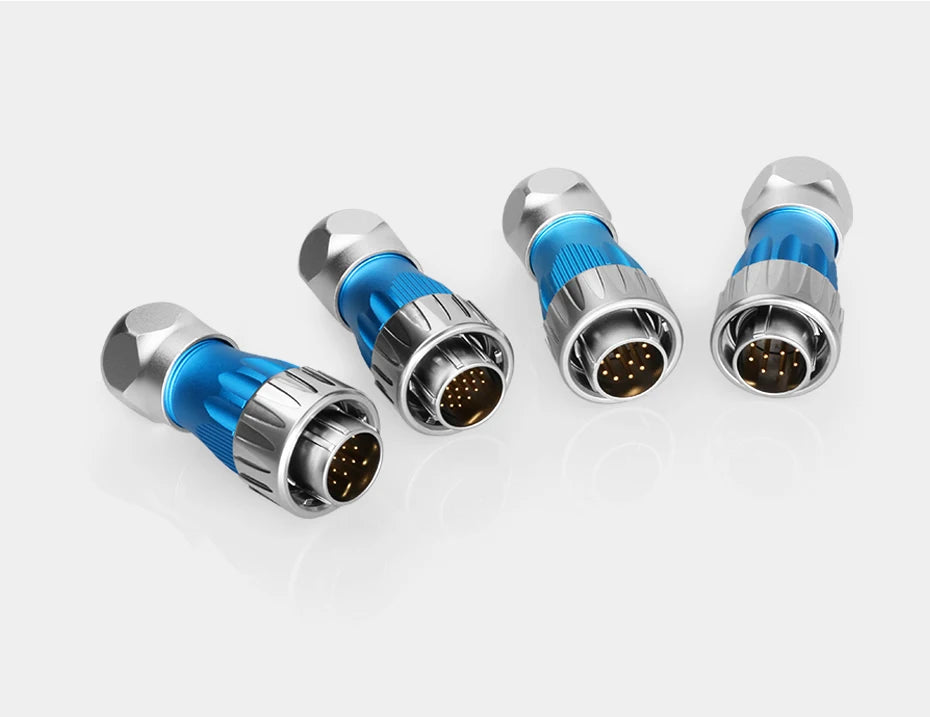

Available in 10, 12, 19, and 24 pin configurations, this connector offers flexibility for various industrial and medical equipment needs.
Easy Installation
Designed for ease of use, the CNLINKO M24 connector simplifies the installation process, saving time and effort.

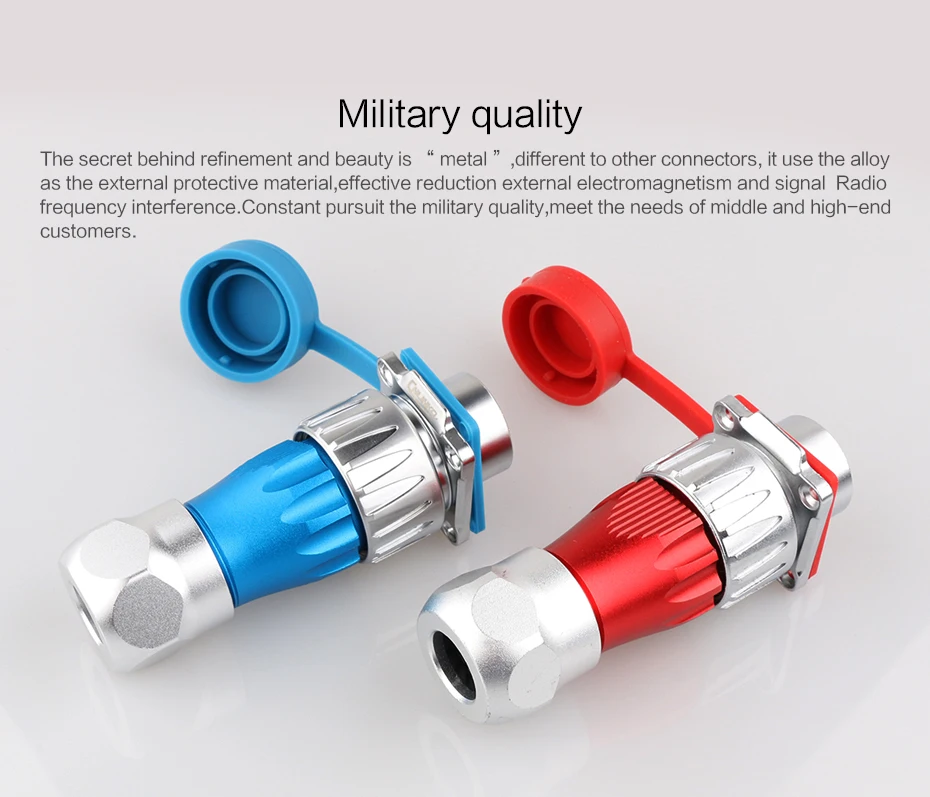

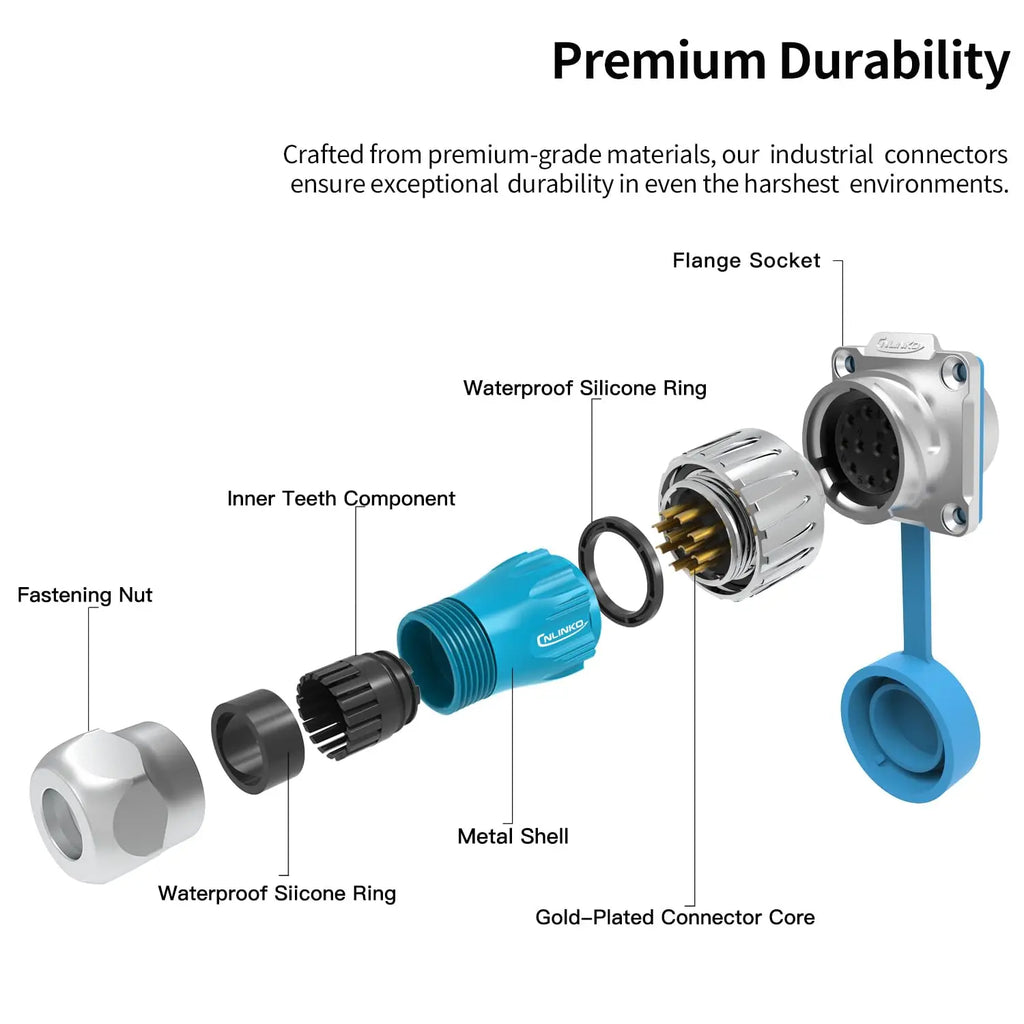

Metal Circular Design
Its metal circular design provides enhanced durability and longevity, making it ideal for demanding applications.

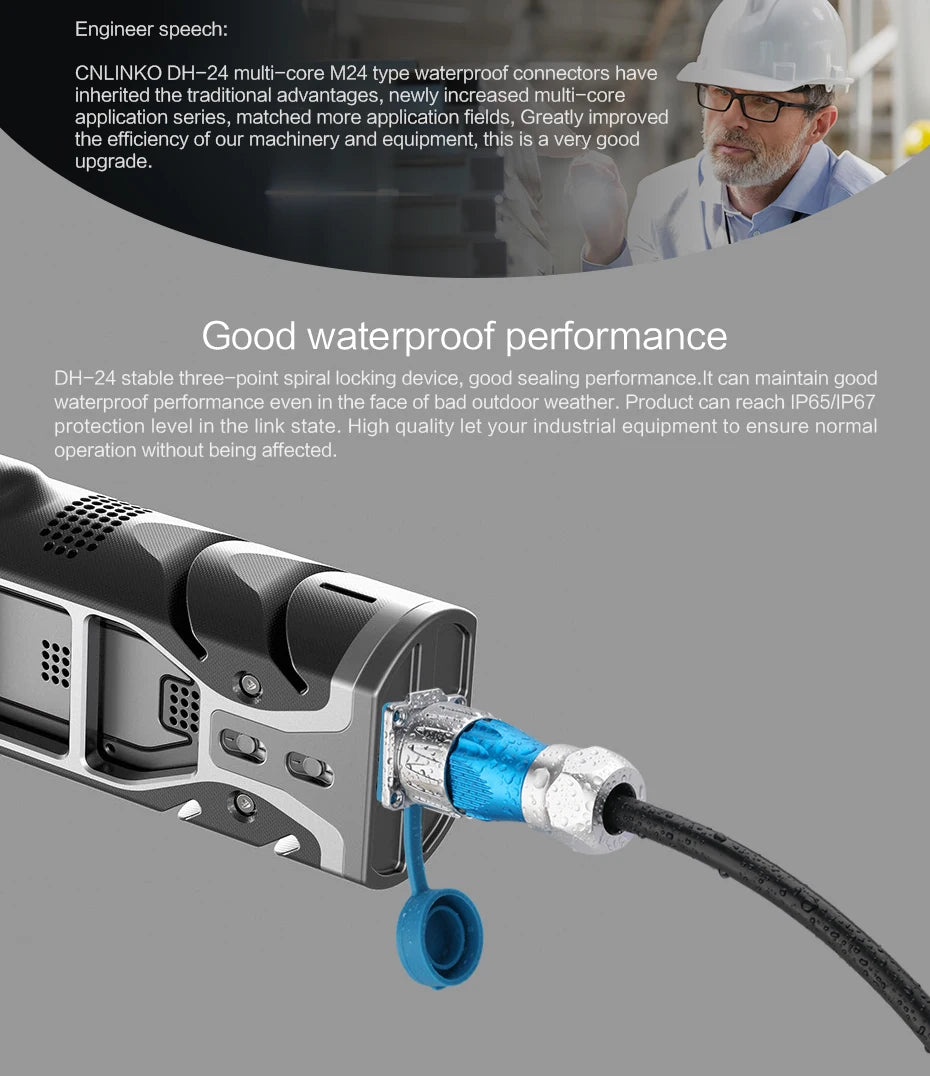

Waterproof IP68 Rating
The CNLINKO M24 connector boasts a robust IP68 waterproof rating, ensuring reliable performance in harsh environments.
Free Shipping Over $199
- Standard Shipping: Standard Shipping (12–18 Business Days)
- Express Shipping: Expedited Shipping (5–9 Business Days)
- Free Shipping: Orders over $199 qualify automatically
- Tracking: Full tracking number provided for all orders
30-Day Return Policy
- Returns: 30-day hassle-free return window
- Condition: Items must be unused and in original packaging
- Refund: Full refund processed within 3-5 business days
Why Choose Us?
- Factory Direct: ISO/TS 16949 certified manufacturer
- Quality: 100% electrical continuity tested before shipment
- Experience: 15+ years in automotive connector industry
- Support: Professional technical support available
