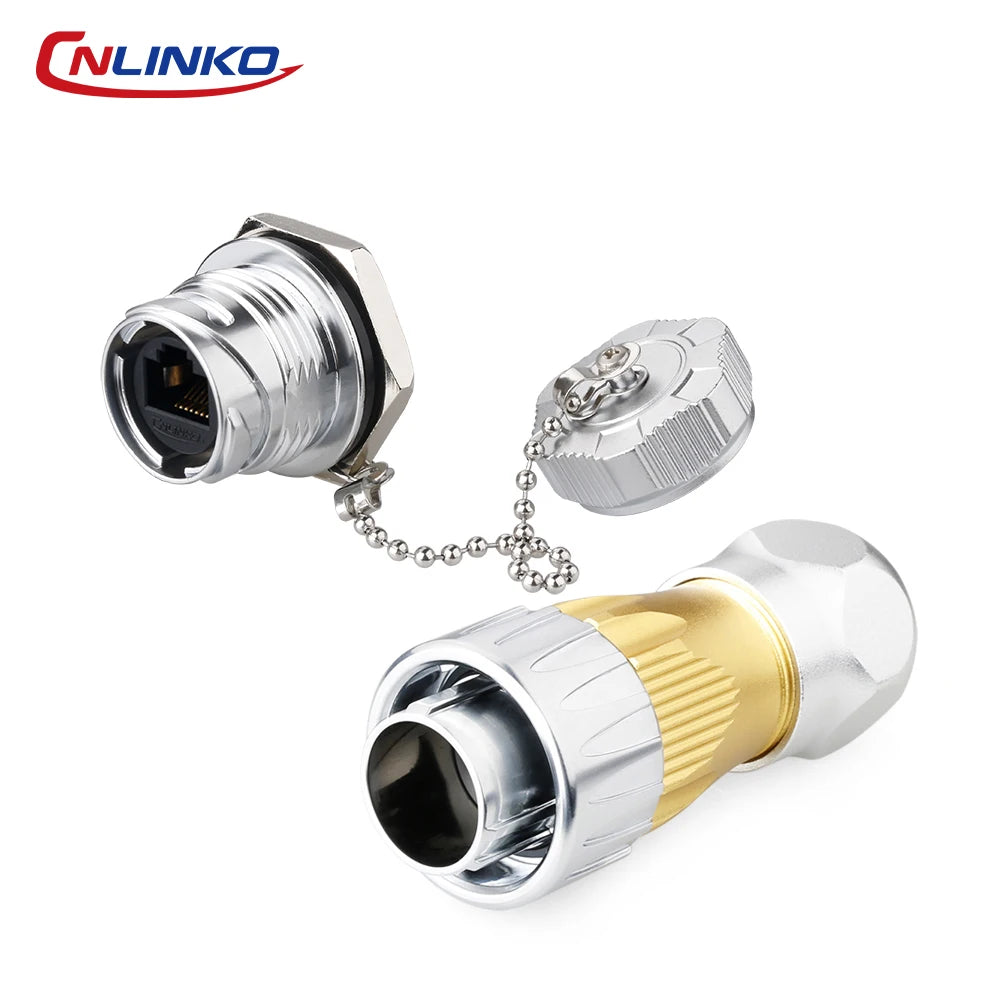

CNLINKO M24 Waterproof IP68 Circular RJ45 Male/Female Set 8P8C Metal Housing Panel Mount for Industrial Ethernet & CCTV Network

CNLINKO M24 Waterproof IP68 Circular RJ45 Male/Female Set 8P8C Metal Housing Panel Mount for Industrial Ethernet & CCTV Network

$84.20

$84.20 $0.00

Color Plug Socket B Socket(metal cover) Plug Socket(CAT6) Socket Plug Socket(CAT6) Square socket(CAT6) Plug Socket Plug Socket A

Description

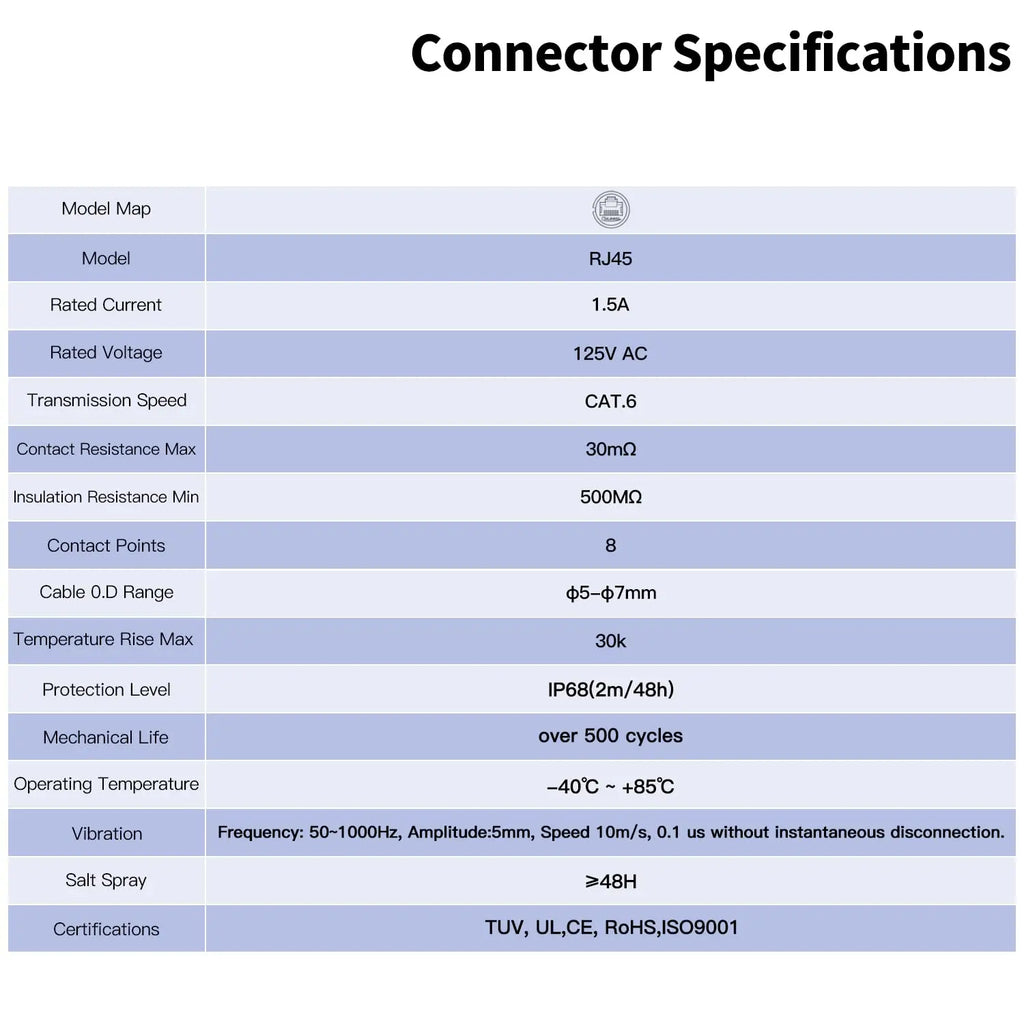

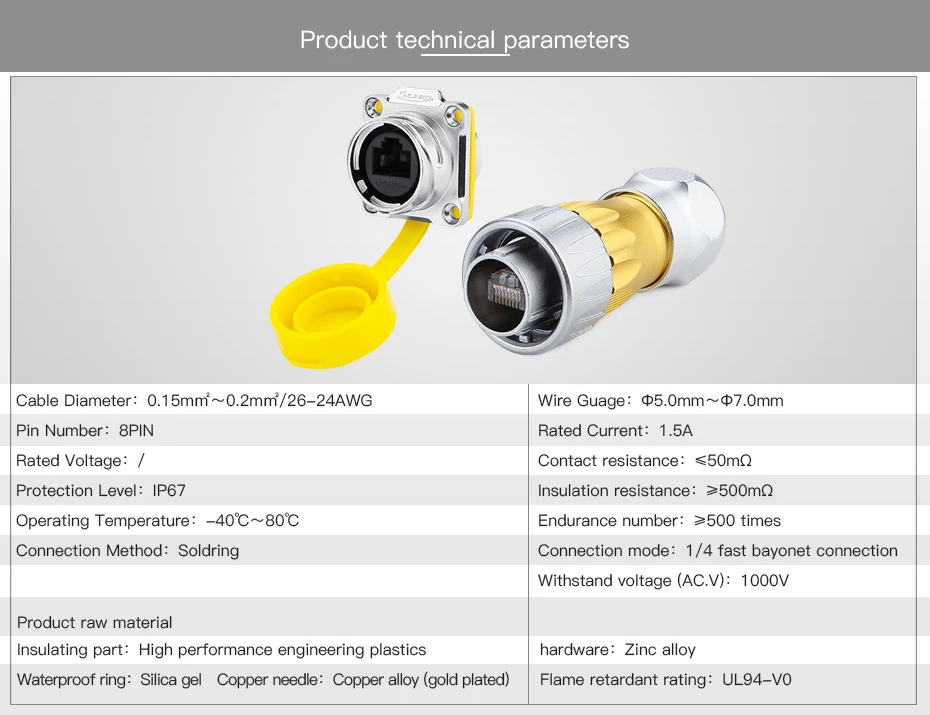

SPECIFICATIONS

Approved: UL & TUV

Brand Name: cnlinko

Cable specification: 0.15mm²~0.2mm²/26-24AWG

Certification: CE,RoHS,UL,weee

Connecting mode: Easy locking type

Current rating: 1.5A

Does it include a Battery?: No

Does it include wireless functionality?: No

Durability(Min.): 500 Times

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Flammability rating: UL94-V0

High-concerned chemical: none

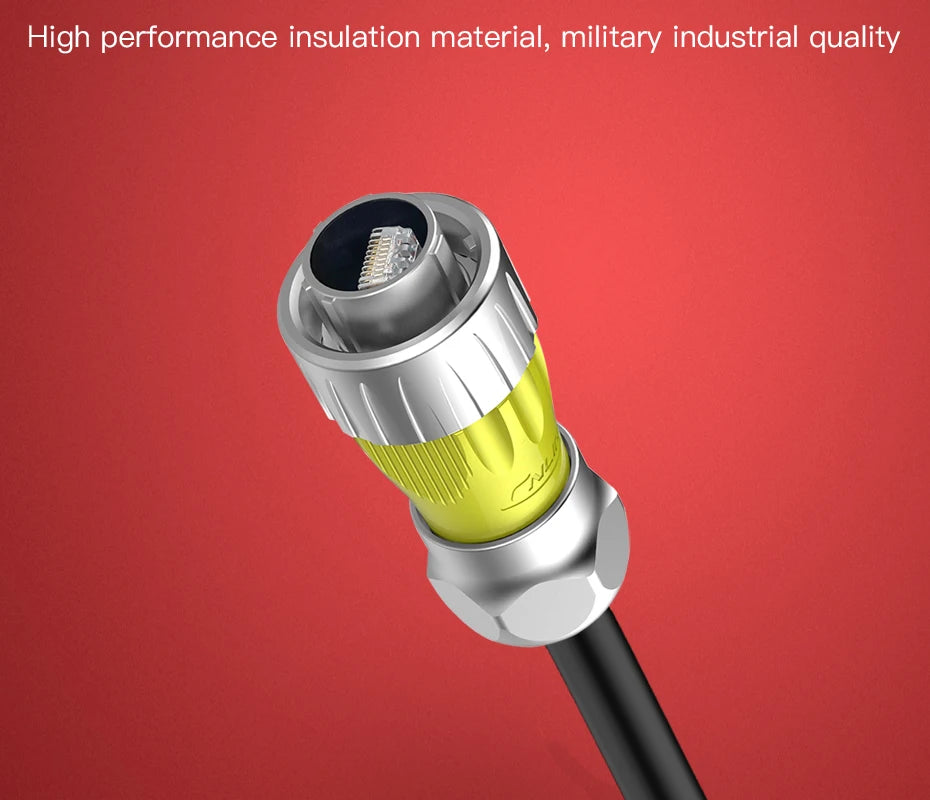

Housing&insulation parts: High-performance engineering plastics

Model Number: DH-24-RJ45

Origin: Mainland China

Pin: 8 Pin

Protection Level: IP67

Voltage: 自定义编辑

Features:

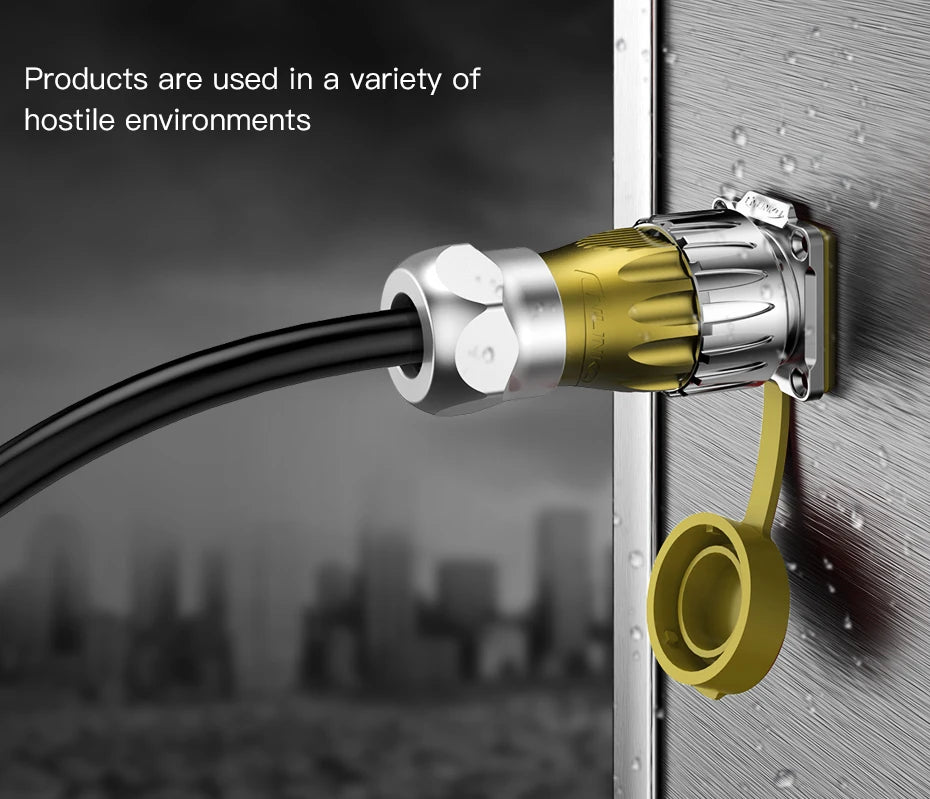

1. Robust IP68 Waterproof & Dustproof Protection – Rated IP68 when mated, this connector is completely dust-tight and withstands continuous water immersion. The robust sealing ensures reliable Ethernet connectivity in harsh industrial, outdoor, and marine environments where moisture is a constant threat.

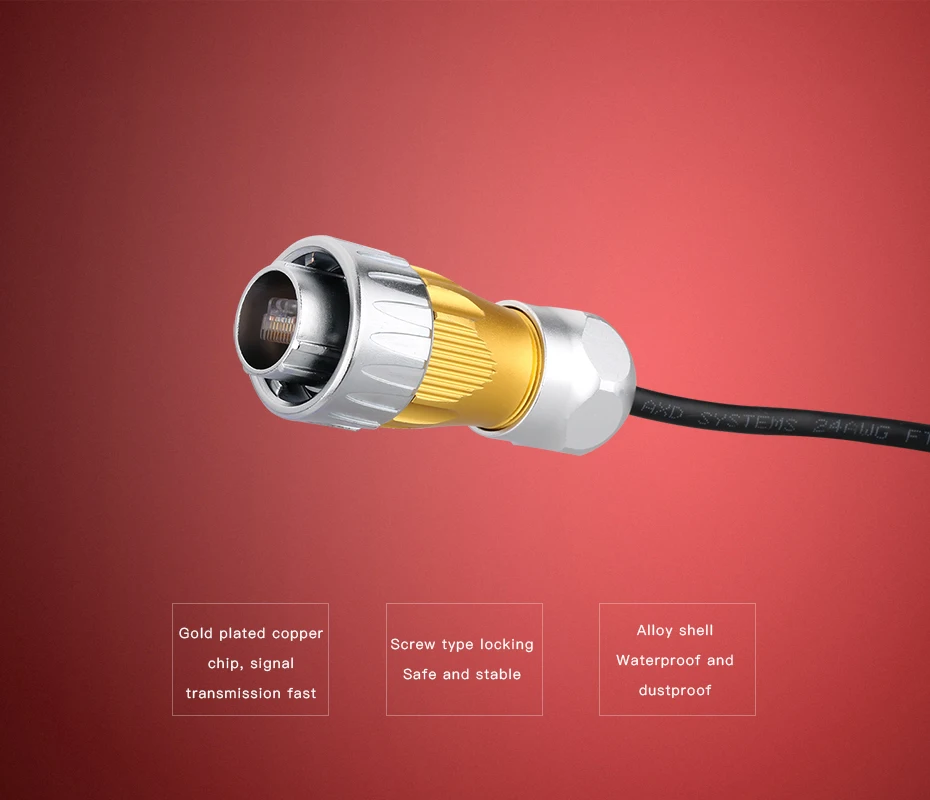

2. High‑Speed CAT6 Data Transmission – Equipped with a CAT6‑compliant interface and gold‑plated 8P8C contacts, supporting stable data transfer up to 1 Gbps (1000 Mbps). Ensures fast, low‑latency signal transmission for industrial Ethernet, CCTV, and high‑bandwidth networking applications.

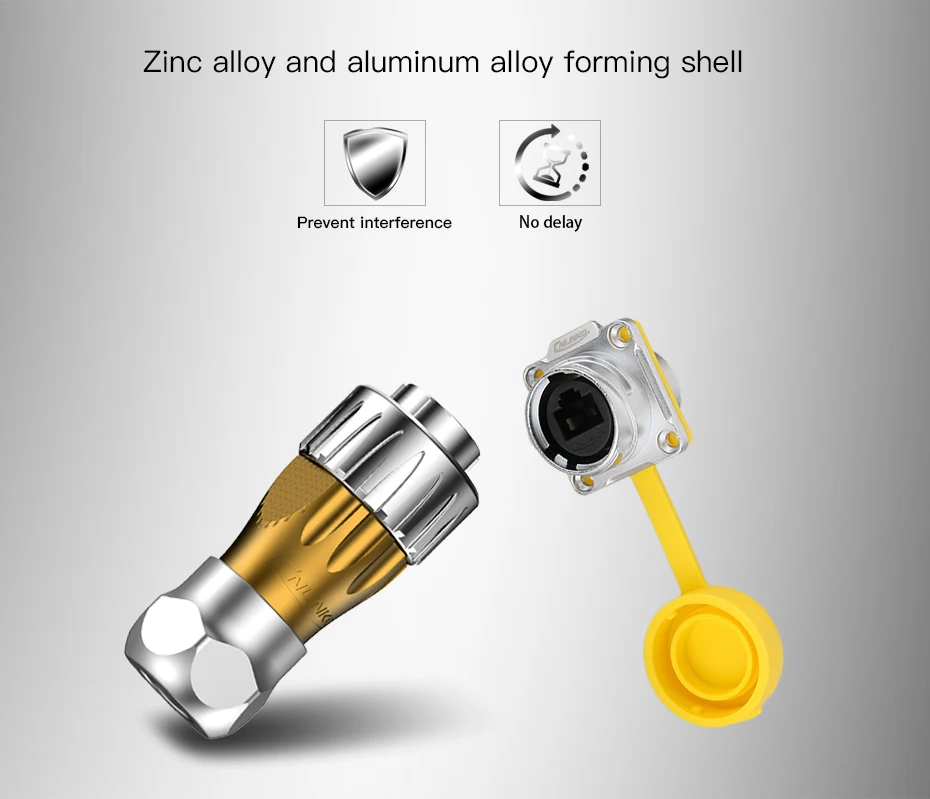

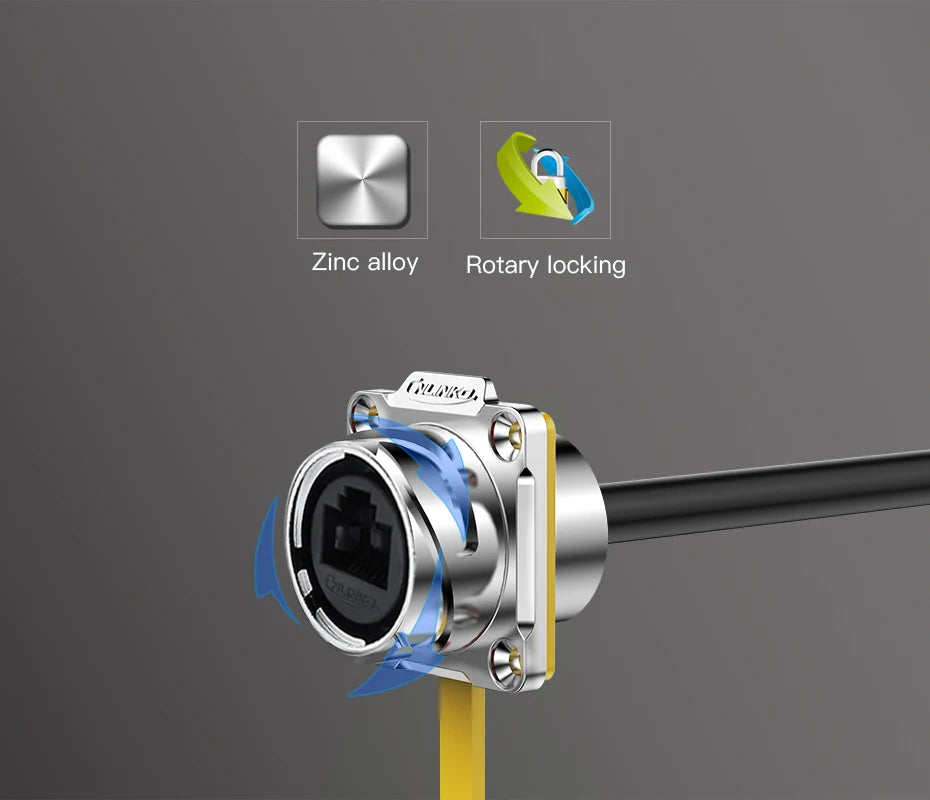

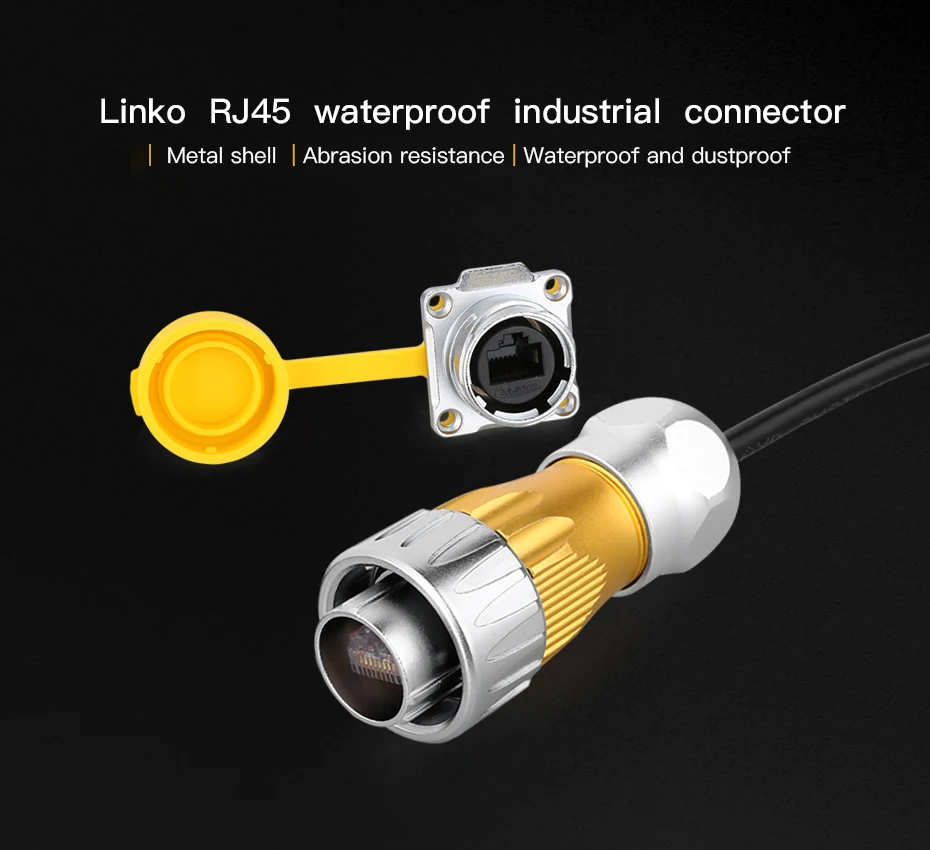

3. Durable Zinc Alloy Metal Housing – Built with a rugged zinc alloy shell (pearl hard chromium plating), offering exceptional corrosion resistance, impact protection, and mechanical strength. The metal housing provides effective electromagnetic interference shielding for stable signal transmission in demanding environments.

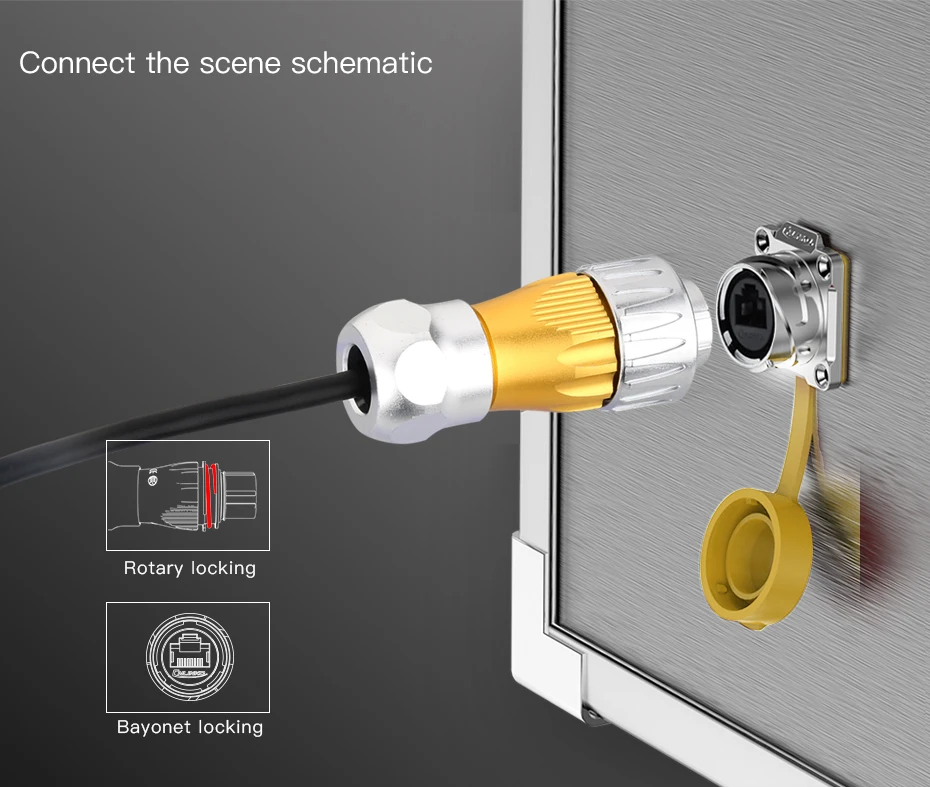

4. Secure 1/4 Bayonet Lock for Vibration‑Resistant Connection – Features a quick 1/4 bayonet locking mechanism that ensures a tight, vibration‑resistant connection. Prevents accidental disconnection due to shock or cable strain, guaranteeing stable signal transmission in dynamic industrial and outdoor applications.

5. Wide Temperature Range & Long Service Life – Operates reliably from -40°C to +85°C and supports ≥500 mating cycles. Rated 1.5A/125V with contact resistance <30mΩ. Ideal for industrial automation, outdoor CCTV, marine systems, LED displays, and communication devices.
