Description

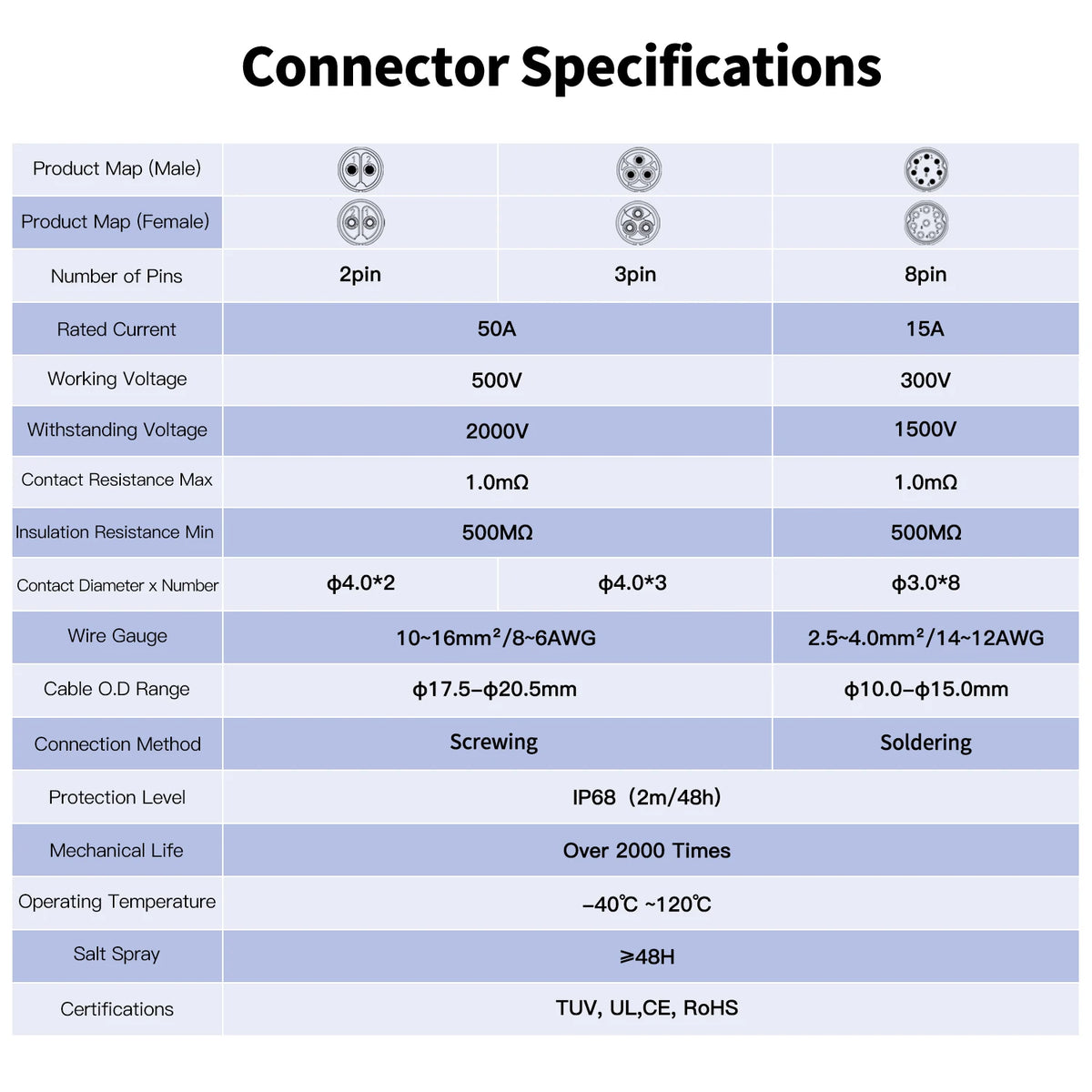

SPECIFICATIONS

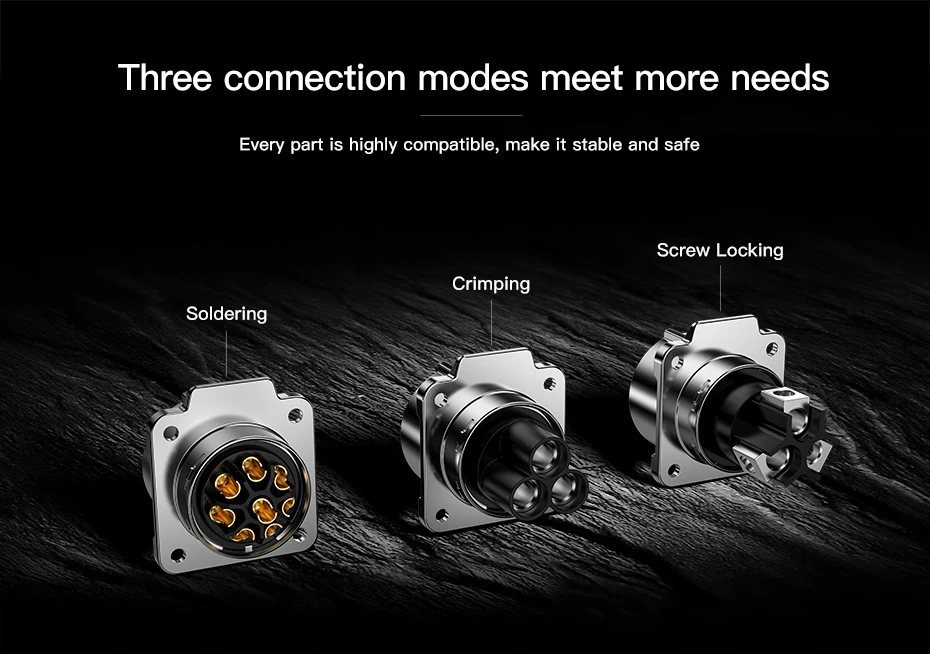

Assembly Cable: Soldering

Brand Name: cnlinko

Cable O.D Range: 10.0-15.0mm

Certification: CE,RoHS,UL,weee

Contact Material: Copper Alloy(Gold-plated)

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

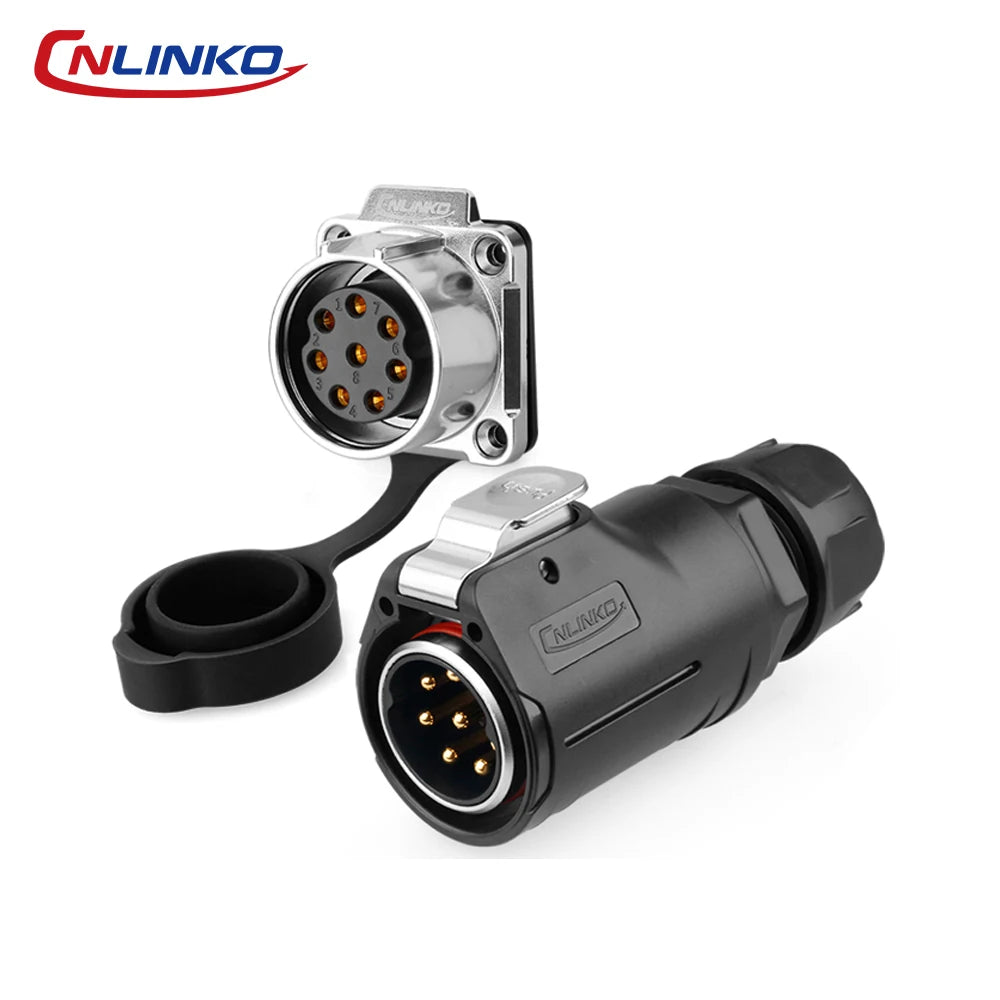

Gender: Male+Female

Hardware Metal: Zinc alloy

High-concerned chemical: none

Mechanical Life Min.: 2000 Cycles

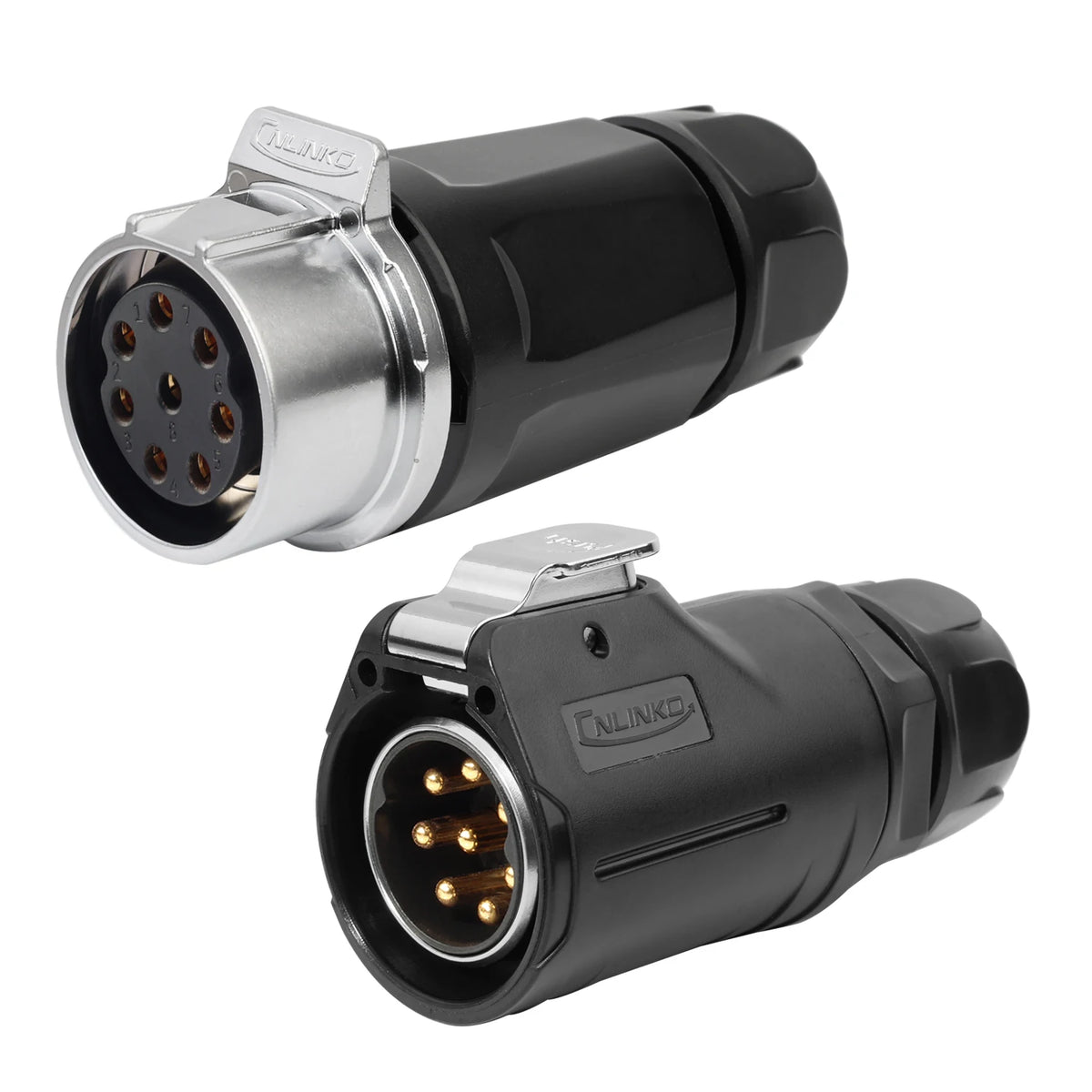

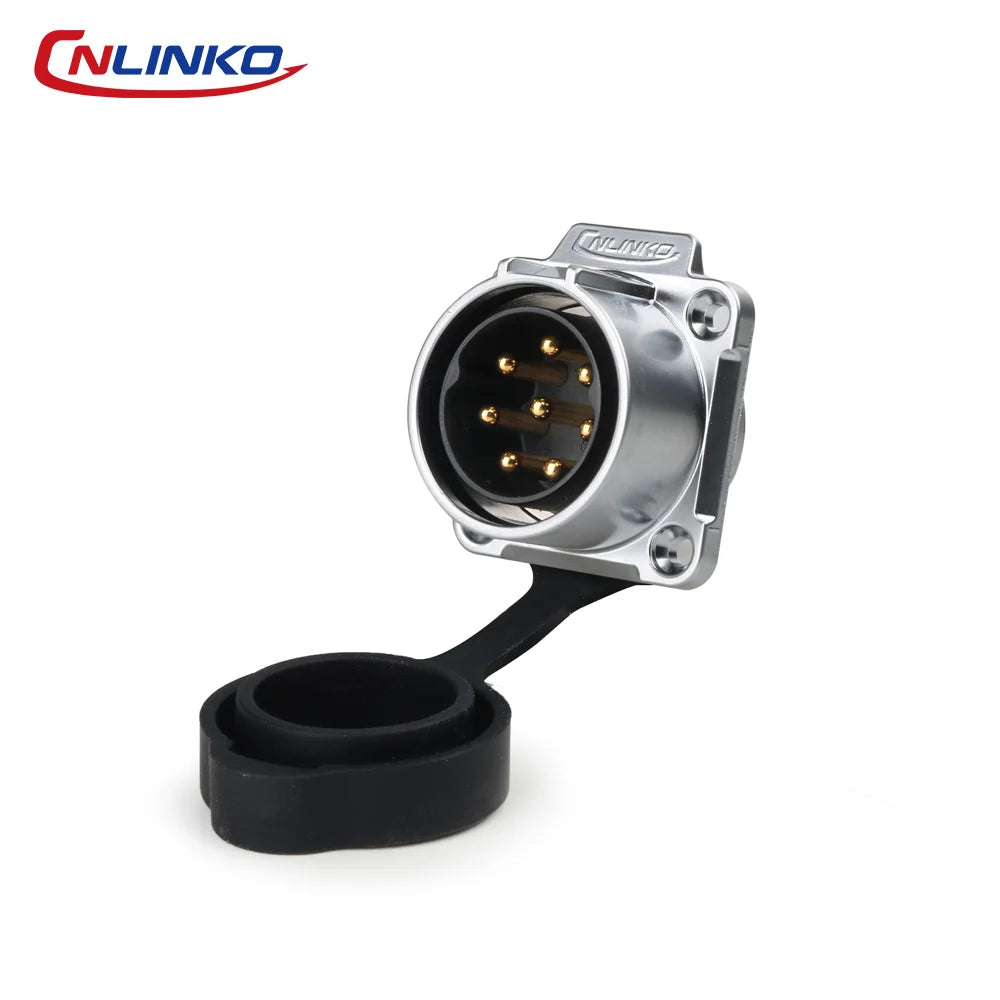

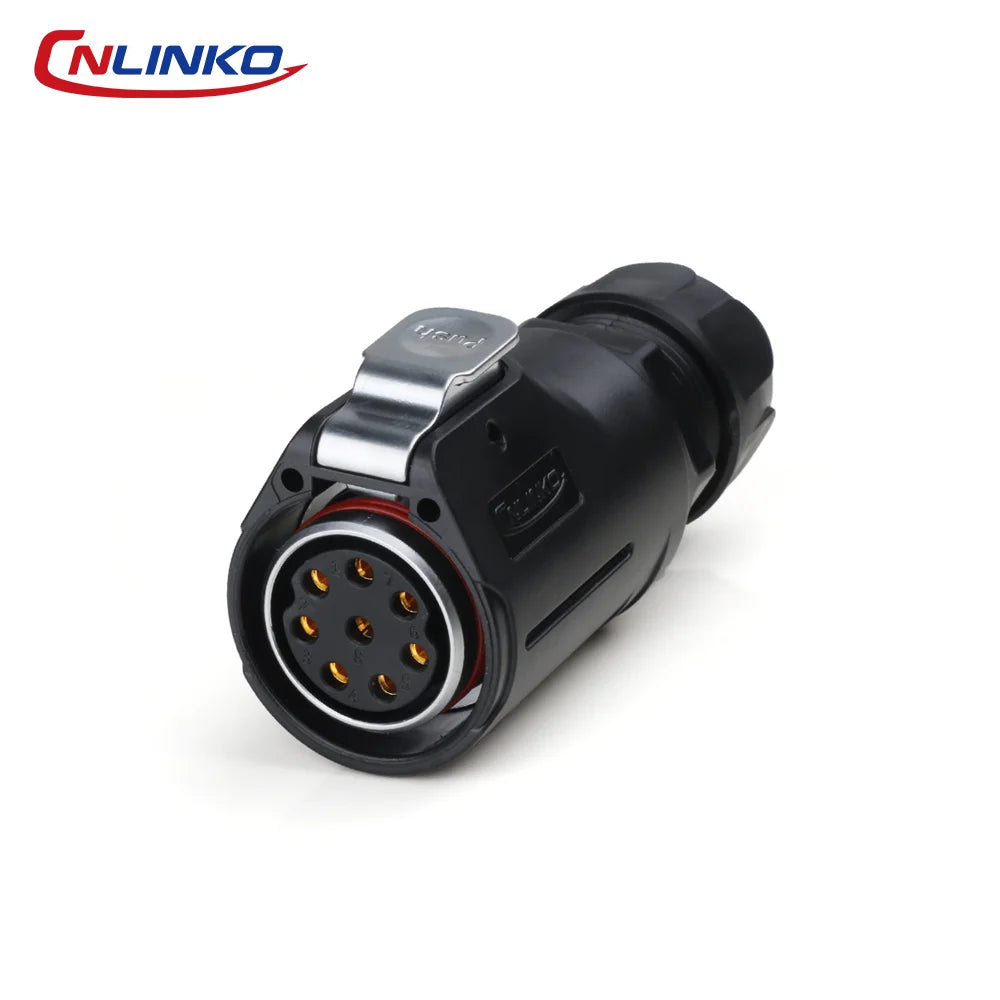

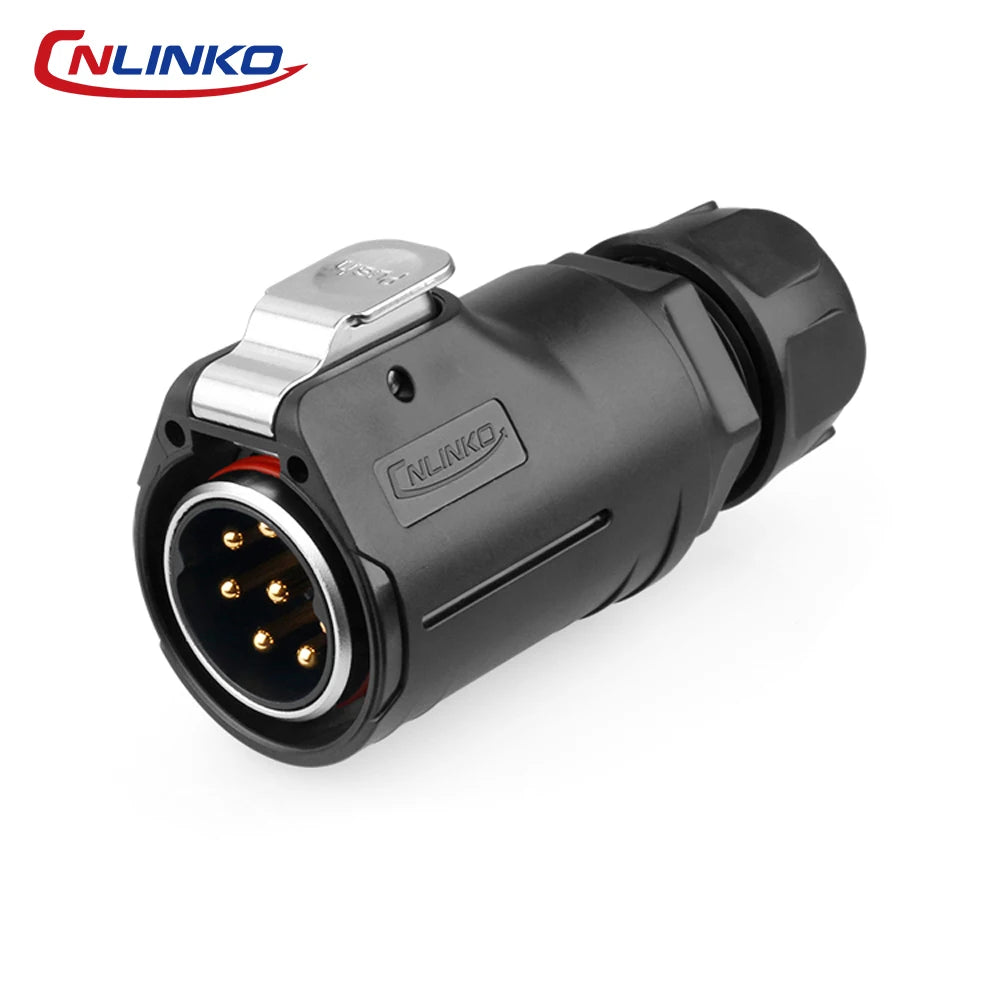

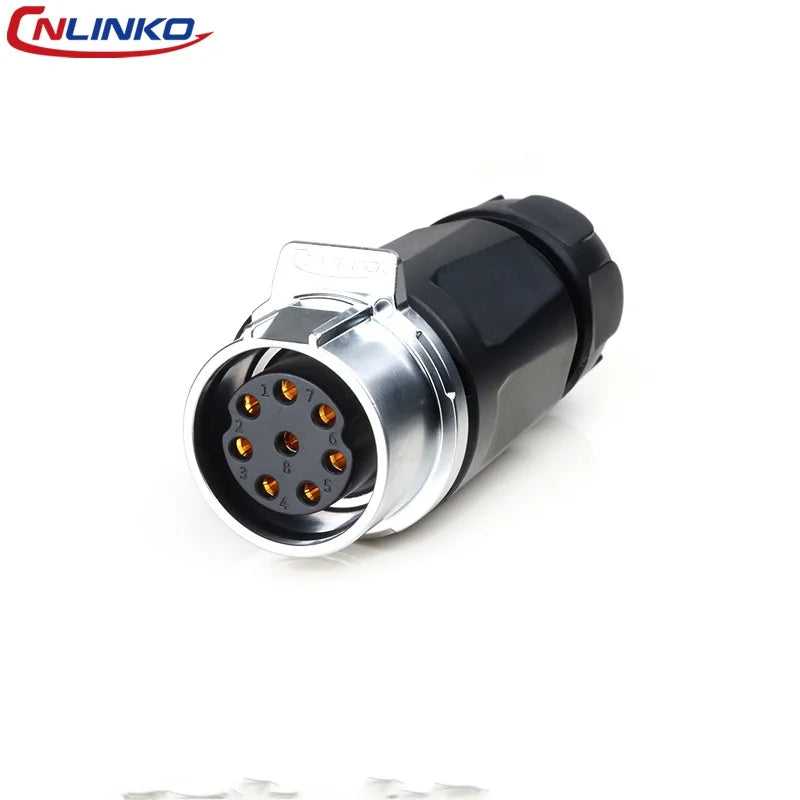

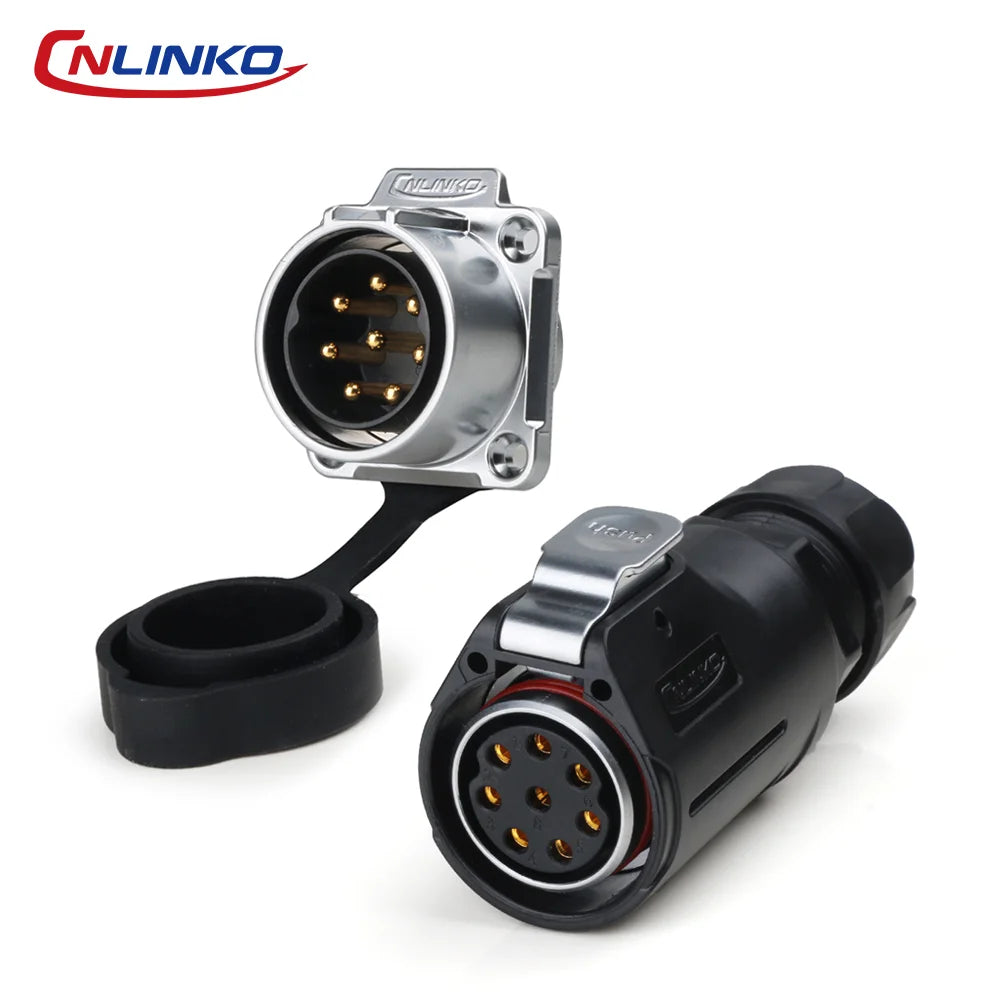

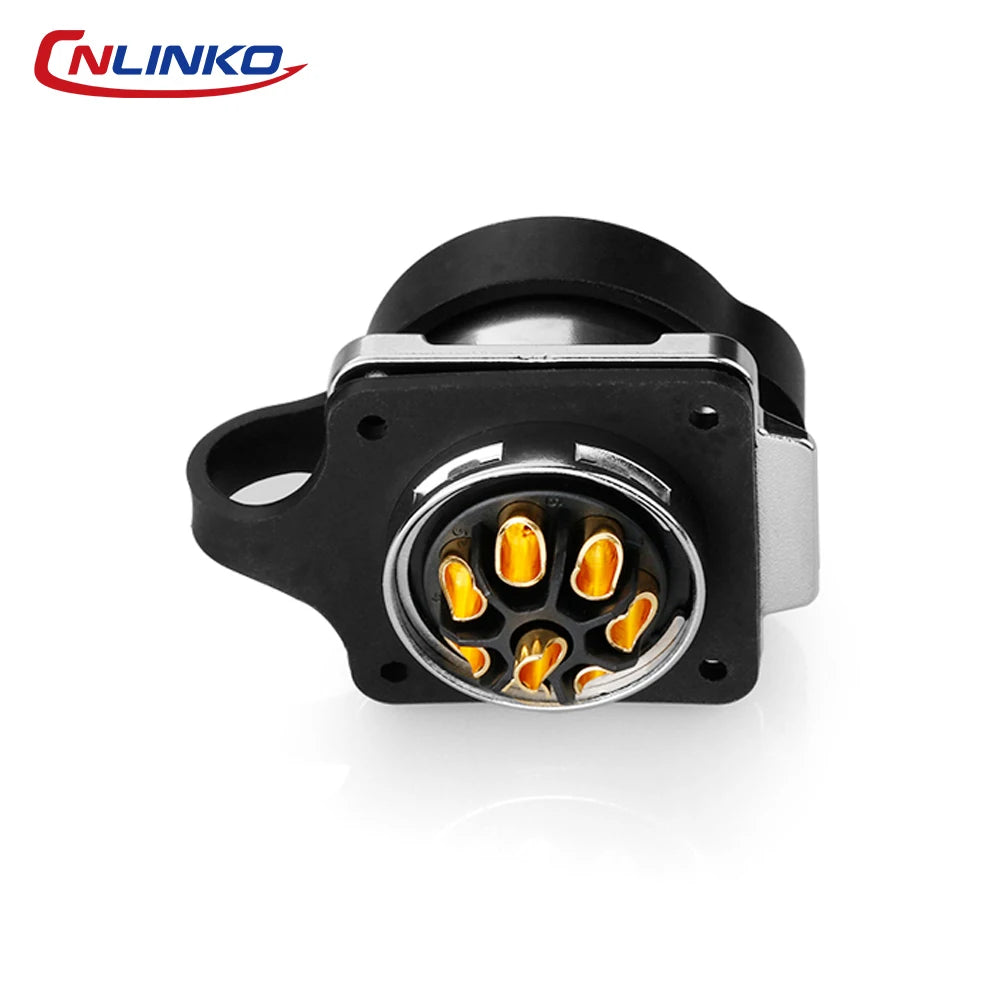

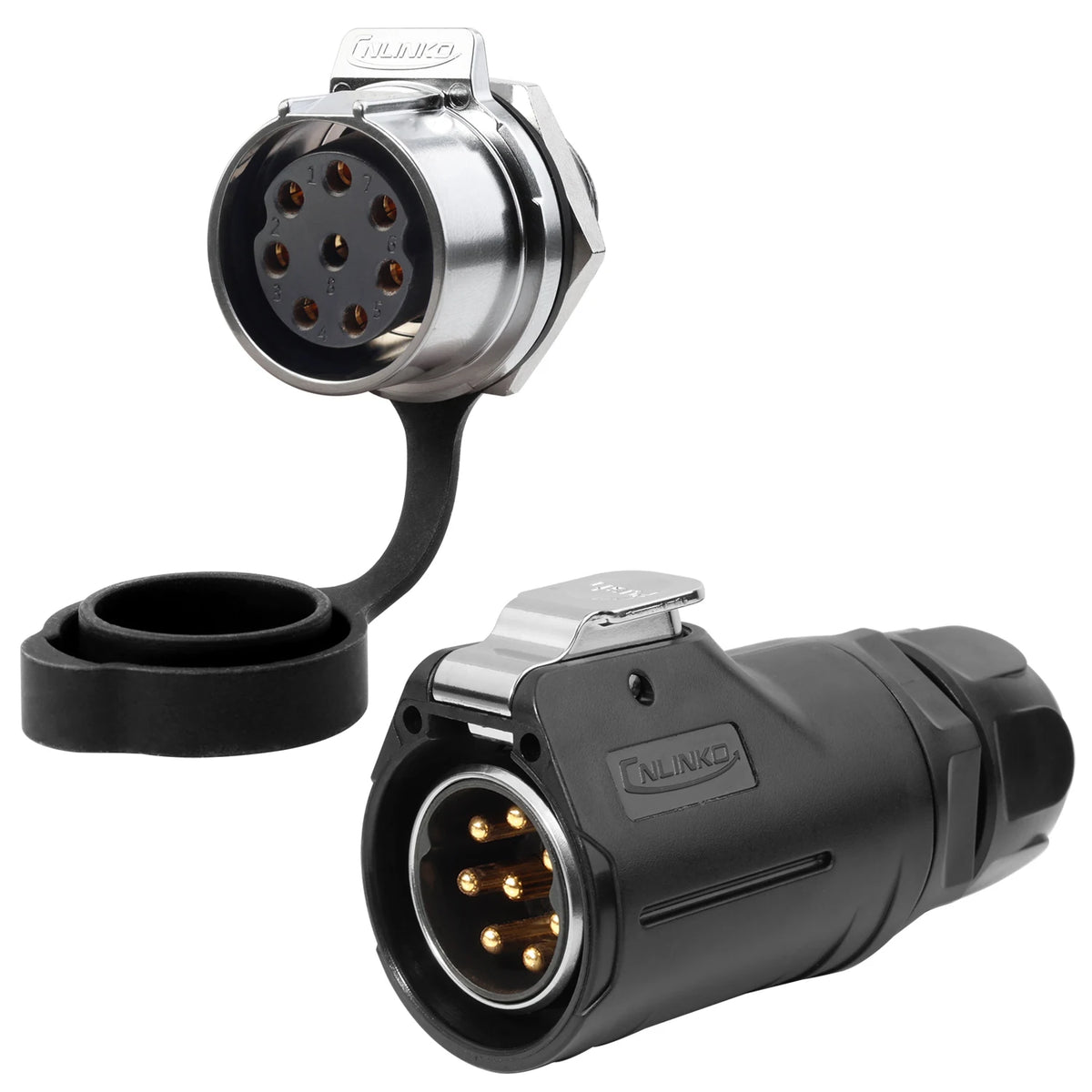

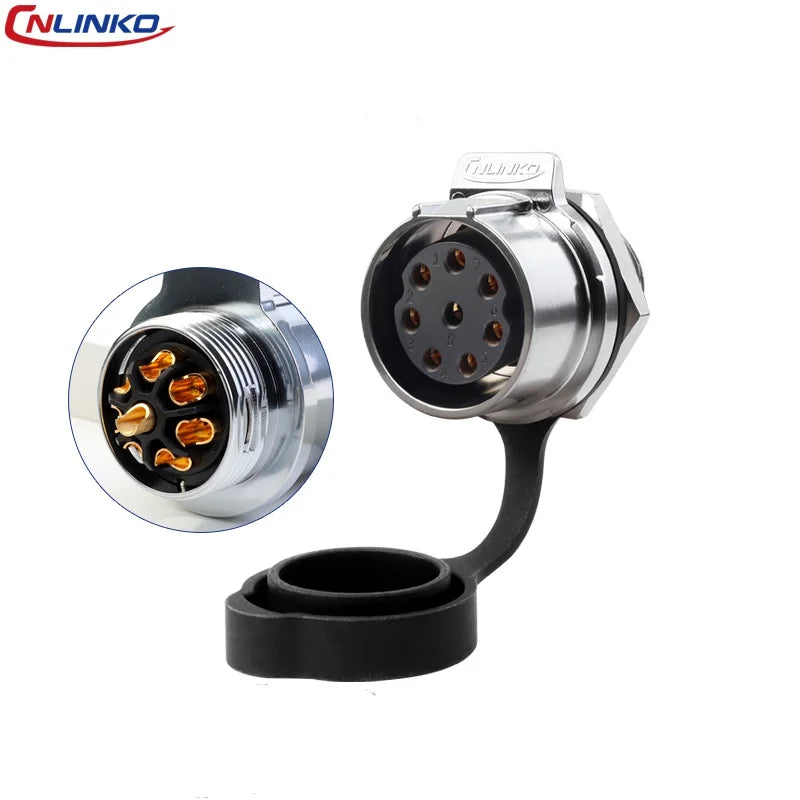

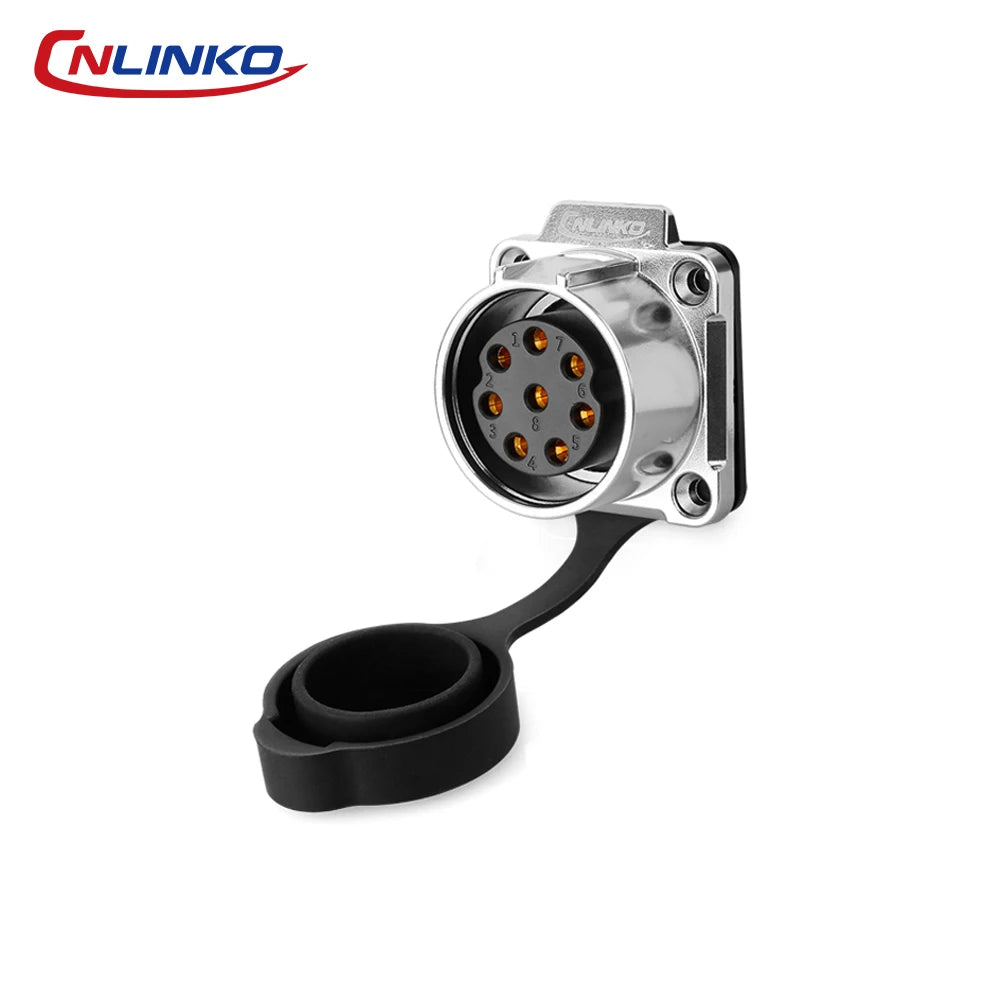

Model Number: LP-28 8 Pin Solder Connector

Operating Temperature: -40℃~+120℃

Operating Voltage: 300V AC

Origin: Mainland China

Rated Current: 15A

Salt Spray: 48H

Shell & Insulated Parts: Zinc alloy/PBT

Voltage: 自定义编辑

Waterproof Level: IP68(2m/48h)

Wire Guage: 2.5~4.0mm²/14~12AWG

Withstanding Voltage: 1500V AC

电压: 1V 2V 4V 5V 12V 12V 等或自定义

Features:

1. Robust IP68/IPX9K Waterproof & Dustproof Protection – Rated IP68 when mated for continuous water immersion, with IPX9K available for high‑pressure, high‑temperature water jets. Completely dust‑tight and sealed against moisture, ensuring reliable performance in harsh industrial and outdoor environments-.

2. Reliable 15A/300V Electrical Performance – Rated for 15A continuous current and 300V AC operating voltage, with a withstand voltage of 1500V. Contact resistance as low as 1.0mΩ ensures stable, low‑loss power transmission for demanding control systems.

3. 8‑Pin Configuration for Versatile Signal Transmission – Designed with 8 pins to suit diverse signal and low‑power needs. The partitioned pin design provides enhanced foolproofing and prevents misconnections, making it ideal for industrial control systems and communication equipment.

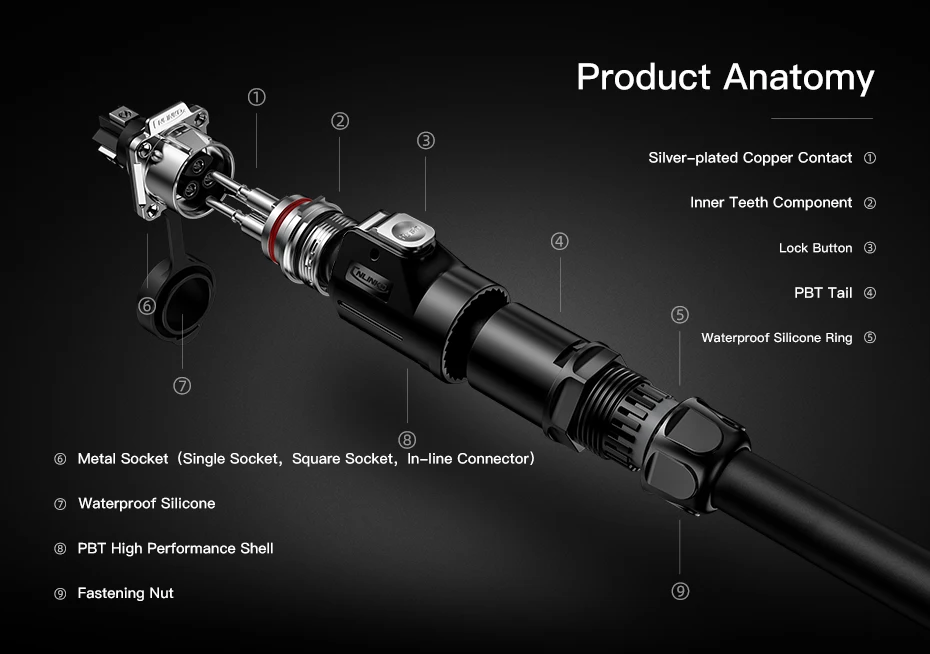

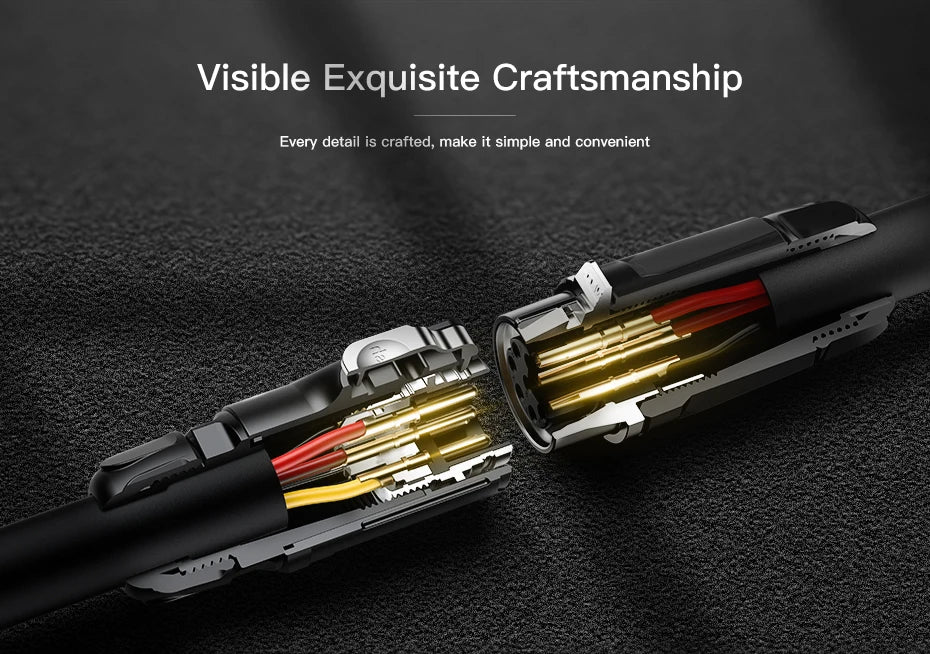

4. Durable PBT + Metal Hybrid Construction – Features a high‑performance PBT plastic shell combined with metal components and gold‑plated copper alloy contacts. Offers excellent corrosion resistance, thermal stability, and mechanical strength. Supports ≥2,000 mating cycles from -40°C to +120°C.

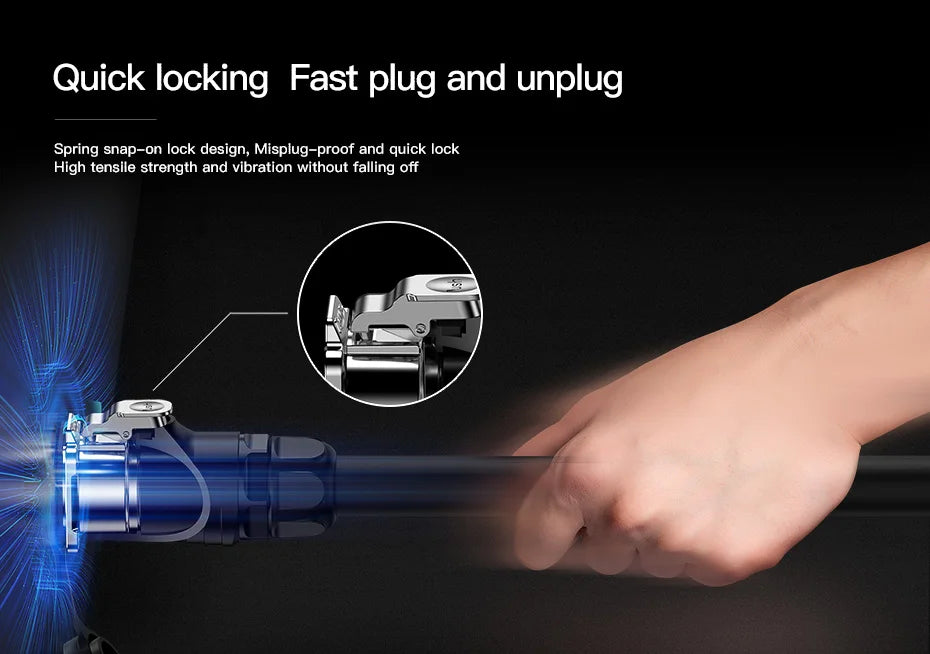

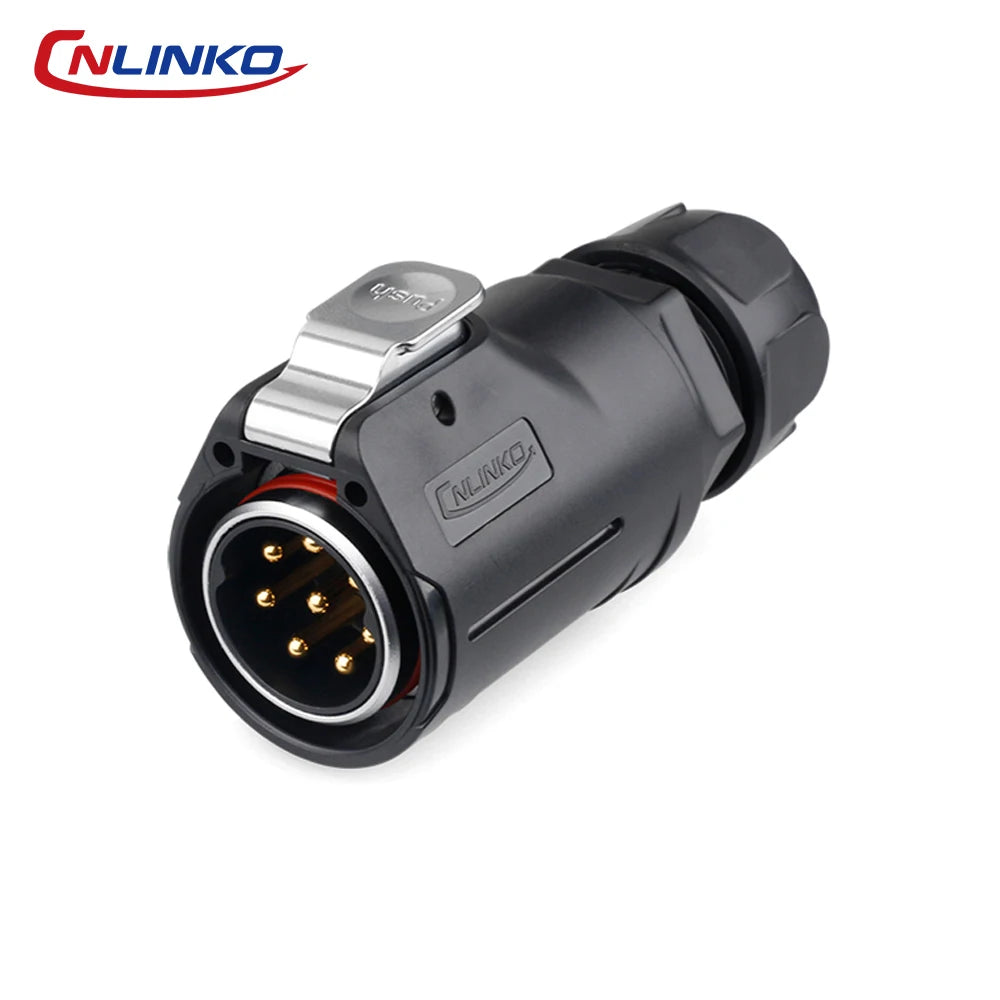

5. Snap‑Button Quick Lock & Solder‑Type Termination – Features a one‑touch snap‑button (push‑lock) design for fast, tool‑free mating with audible click confirmation. Solder‑type terminals ensure permanent, vibration‑resistant connections. Compatible with 2.5‑4.0mm² / 14‑12 AWG cables. Ideal for industrial control systems, power equipment, and communication devices.
