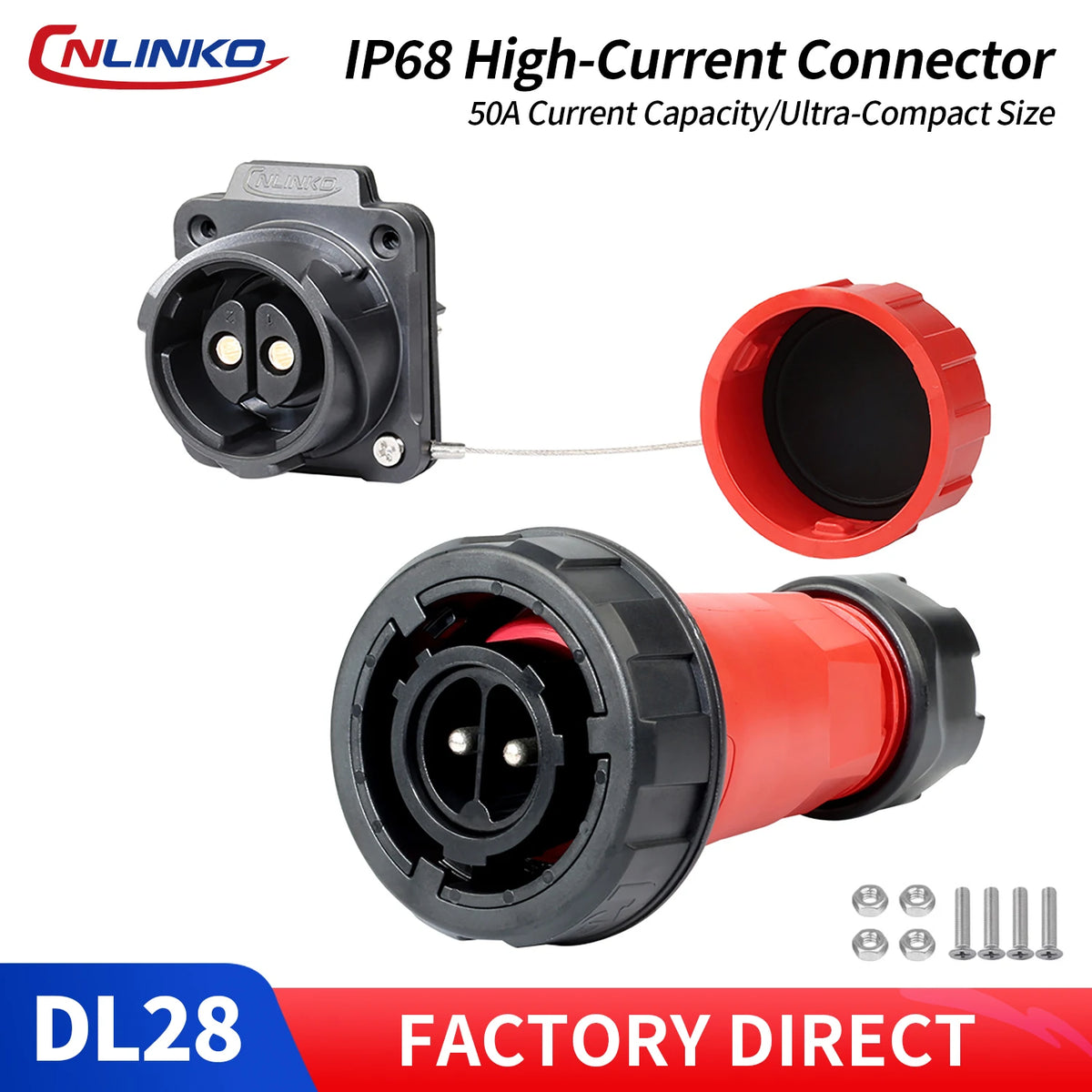

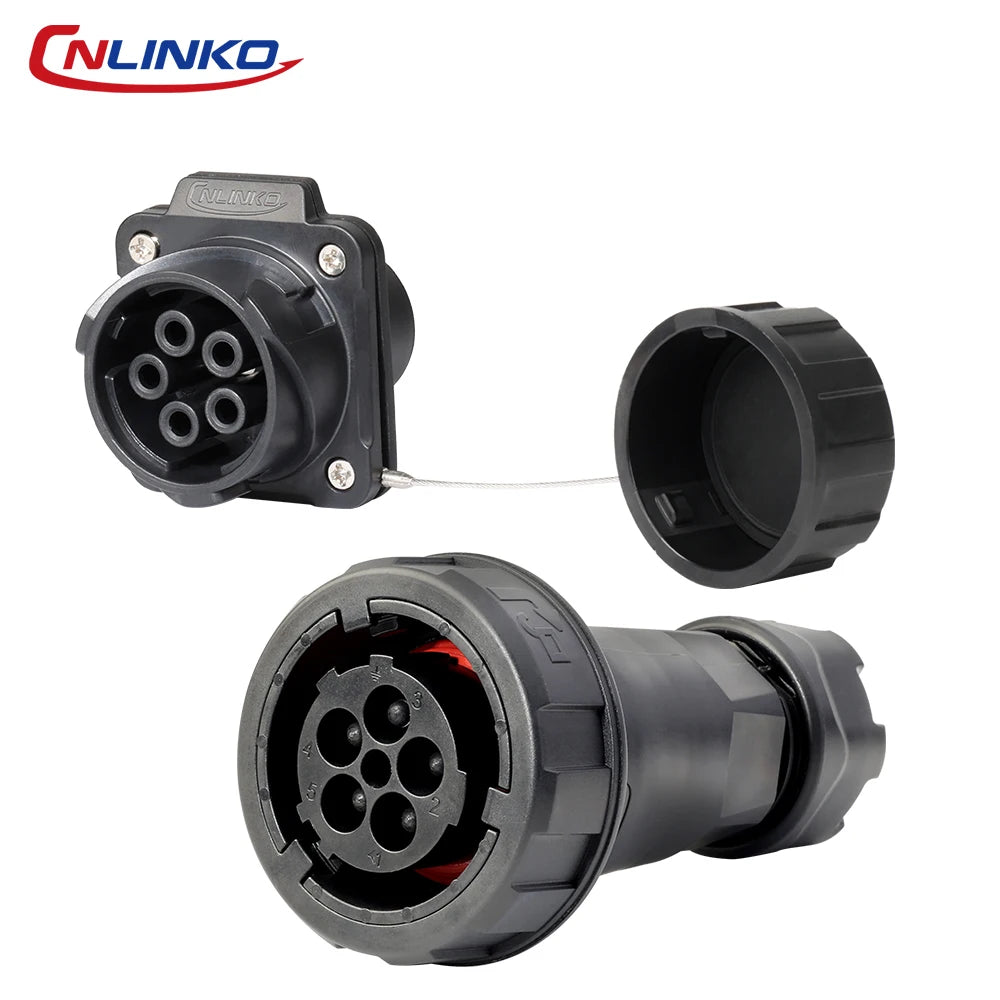

CNLINKO M28 IP68 Circular 35/50A Power Connector Male/Female 2/3/5Pin Quick Lock Set for Industrial Automation Marine & Outdoor
3pin docking set
$101.40
Sale price
$101.40
Regular price
$0.00
Skip to product information
CNLINKO M28 IP68 Circular 35/50A Power Connector Male/Female 2/3/5Pin Quick Lock Set for Industrial Automation Marine & Outdoor
$101.40
Sale price
$101.40
Regular price
$0.00
Description
SPECIFICATIONS
Assembly Cable(2/3pin): Screwing
Assembly Cable(5pin): Plug(Screwing),Socket(Crimping)
Brand Name: cnlinko
Cable O.D Range: 17.5-20.5mm
Certification: CE,RoHS,UL,weee
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: DL-28
Origin: Mainland China
Rated Current(2/3pin): 50A
Rated Current(5pin): 35A
Rated Voltage(2/3pin): 500V AC
Rated Voltage(5pin): 690V AC
Shell & Insulated Parts: PBT
Temperature Rating: -25℃~+85℃
Voltage: 自定义编辑
Wire Guage(2/3pin): 10.0-16.0mm²/8-6AWG
Wire Guage(5pin): 10.0mm²/8AWG
Withstanding Voltage(2/3pin): 2000V
Withstanding Voltage(5pin): 3000V AC
CNLINKO M28 IP68 Circular 35/50A Power Connector Male/Female 2/3/5Pin Quick Lock Set for Industrial Automation Marine & Outdoor
Feature：

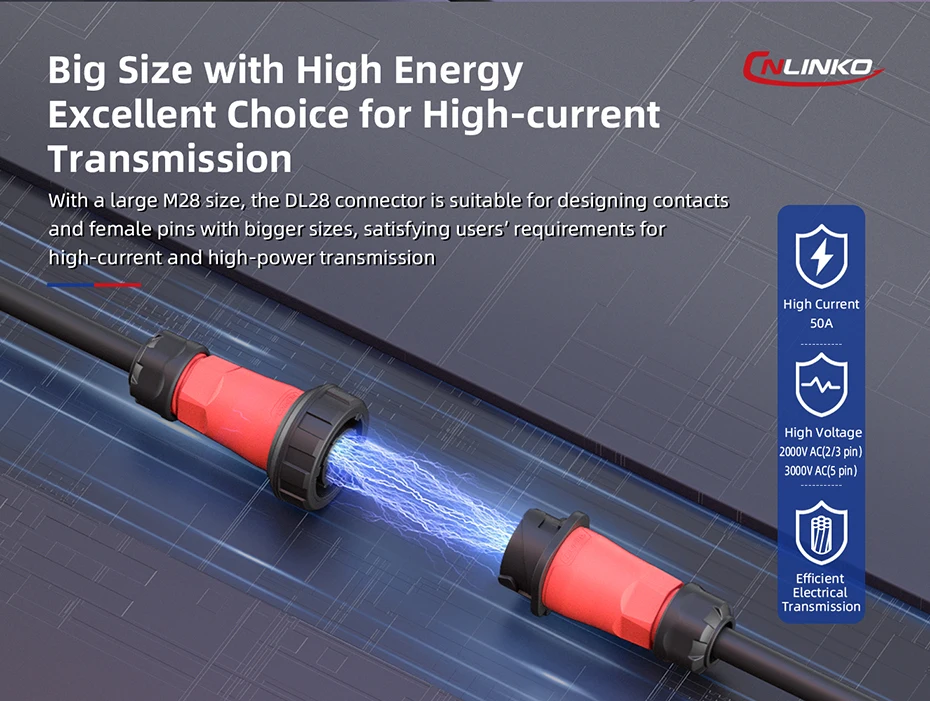

High Current Capacity
With a high current capacity of 35/50A, this connector is designed to handle heavy loads, making it ideal for industrial automation applications.
Durable Construction
Constructed for durability, the CNLINKO M28 connector withstands rigorous use, ensuring long-lasting performance in demanding environments.

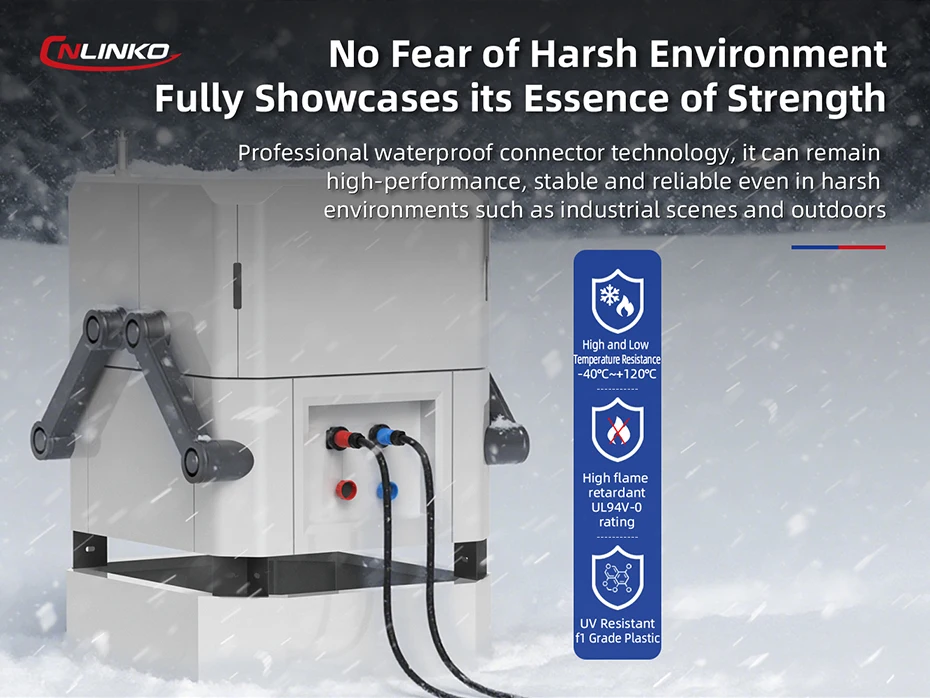

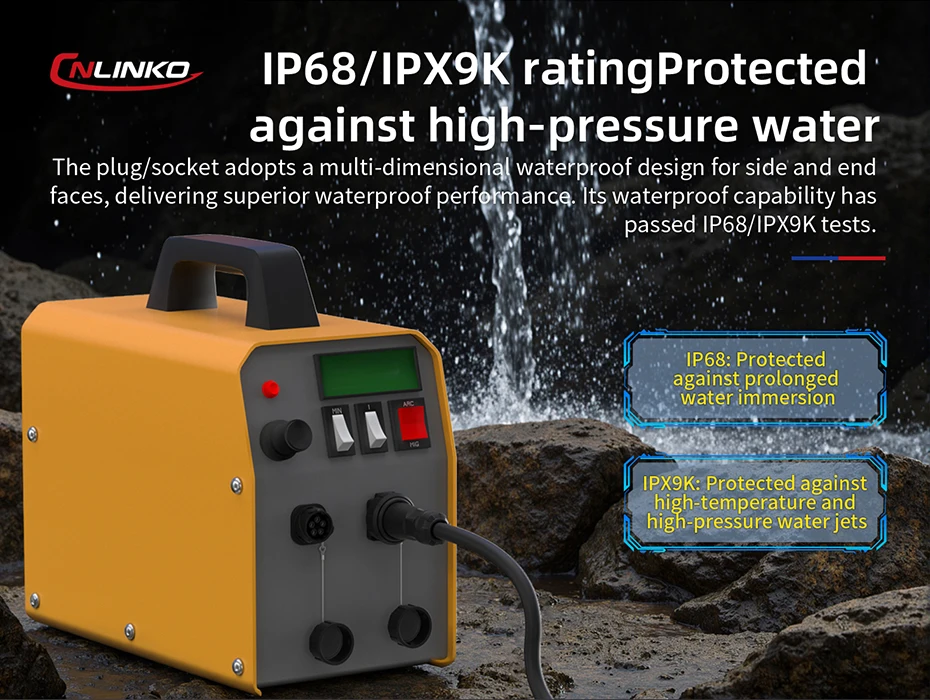

IP68 Waterproof Rating
The CNLINKO M28 IP68 Waterproof Power Connector ensures reliable performance in harsh environments, offering superior protection against dust and water.

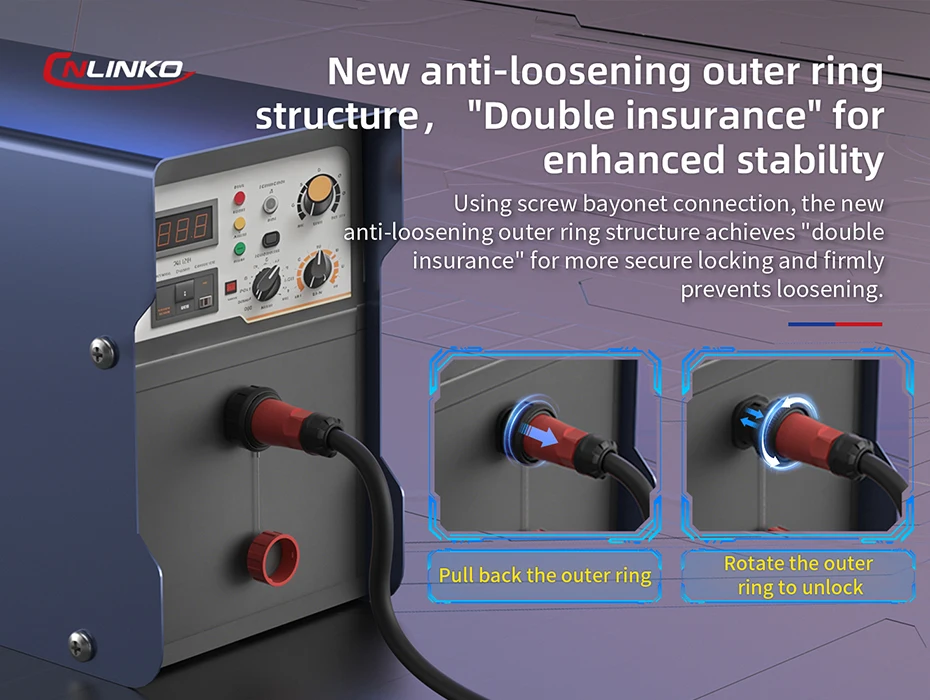

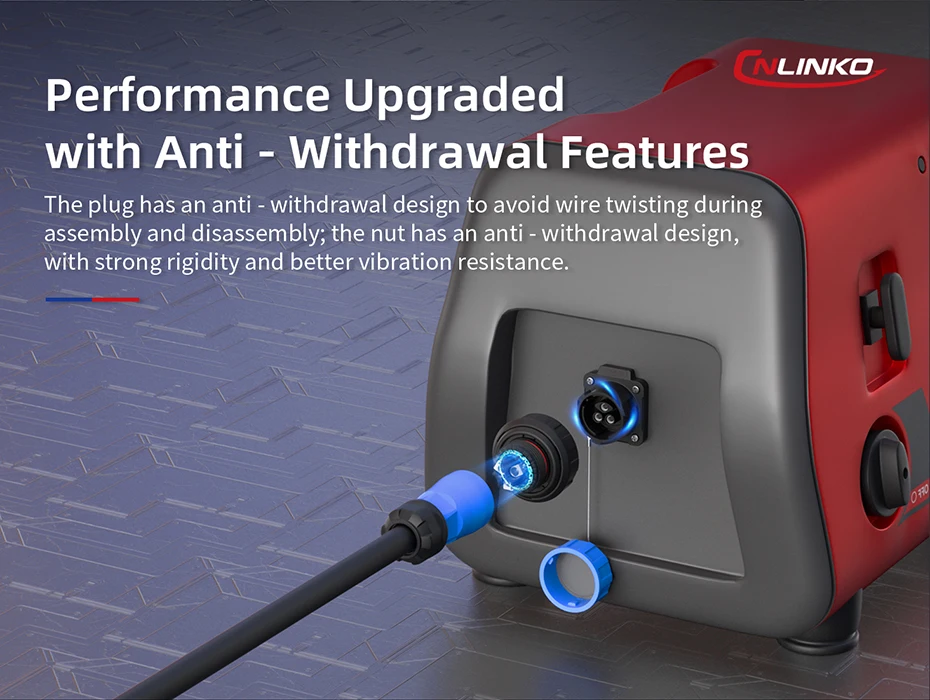

Quick Lock Mechanism
Featuring a quick lock mechanism, the connector ensures fast and secure connections, enhancing efficiency and reducing downtime.

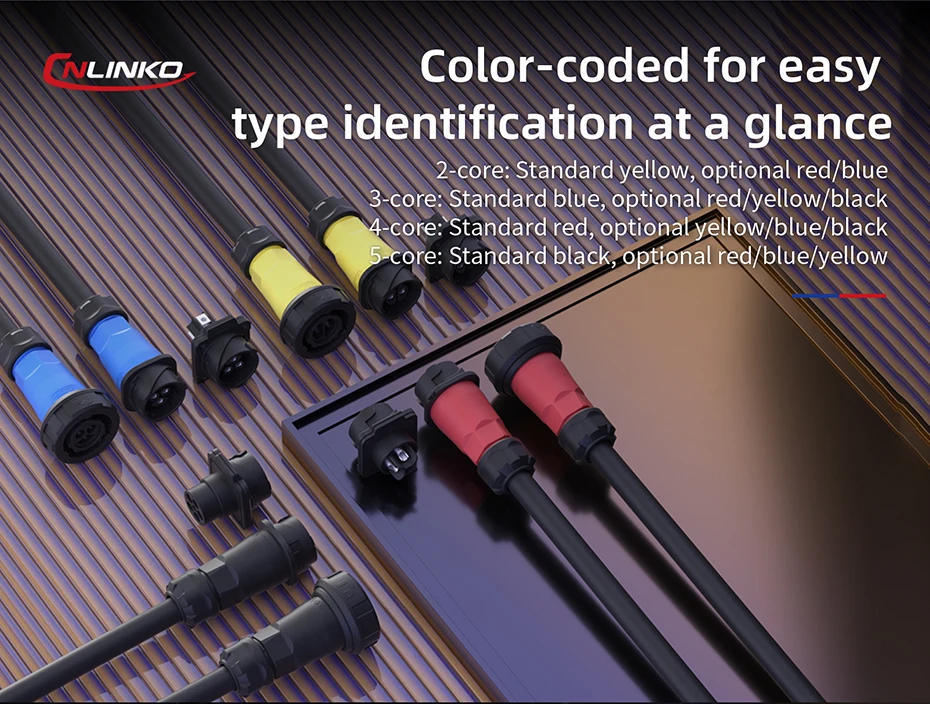

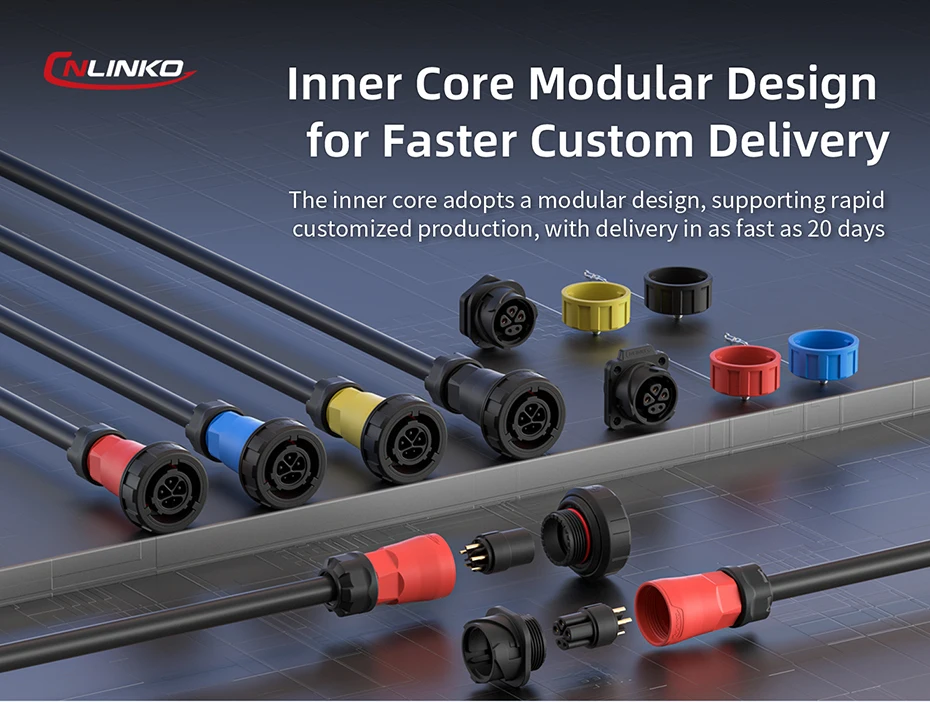

Versatile Pin Configuration
Available in 2/3/5 pin options, this connector provides flexibility to suit various industrial needs and applications.
