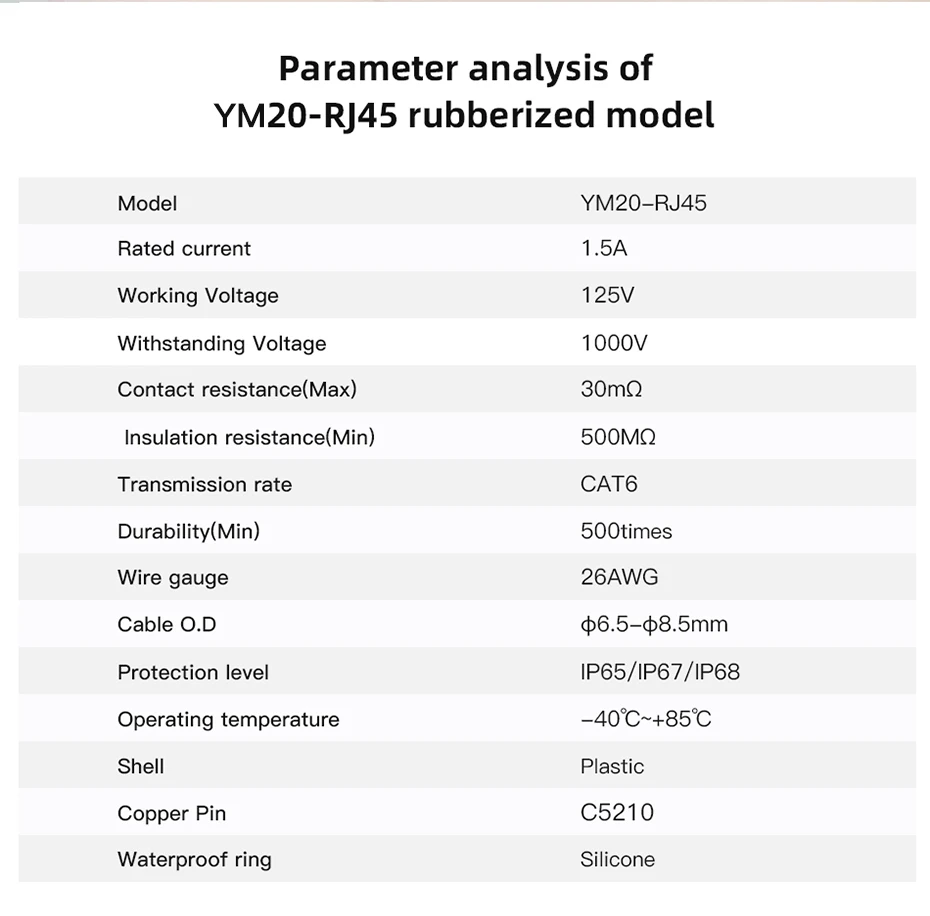

SPECIFICATIONS

Brand Name: cnlinko

Cable O.D Range: 6.5-8.5mm

Certification: CE,RoHS,UL,weee

Contact Material: Gold-plated Copper Alloy

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Gender: Male+Female

High-concerned chemical: none

Insulation Resistance Min.: 500MΩ

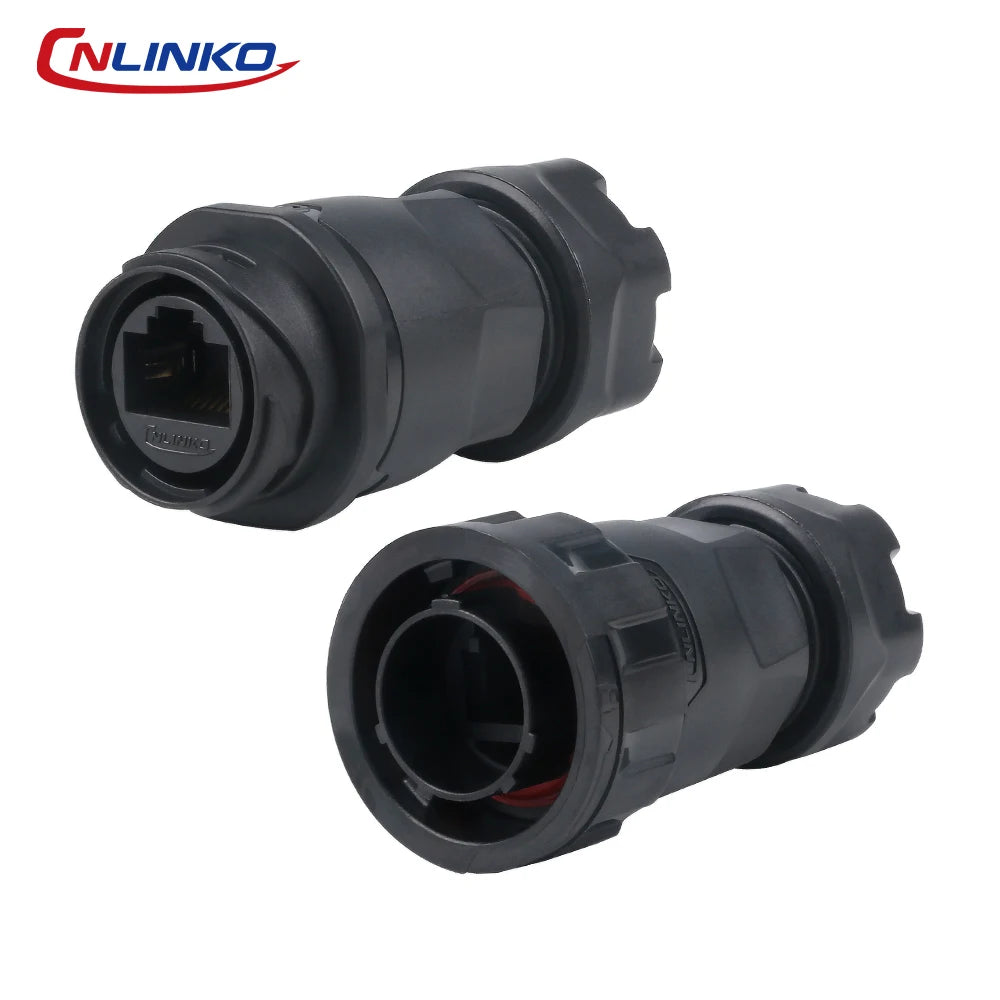

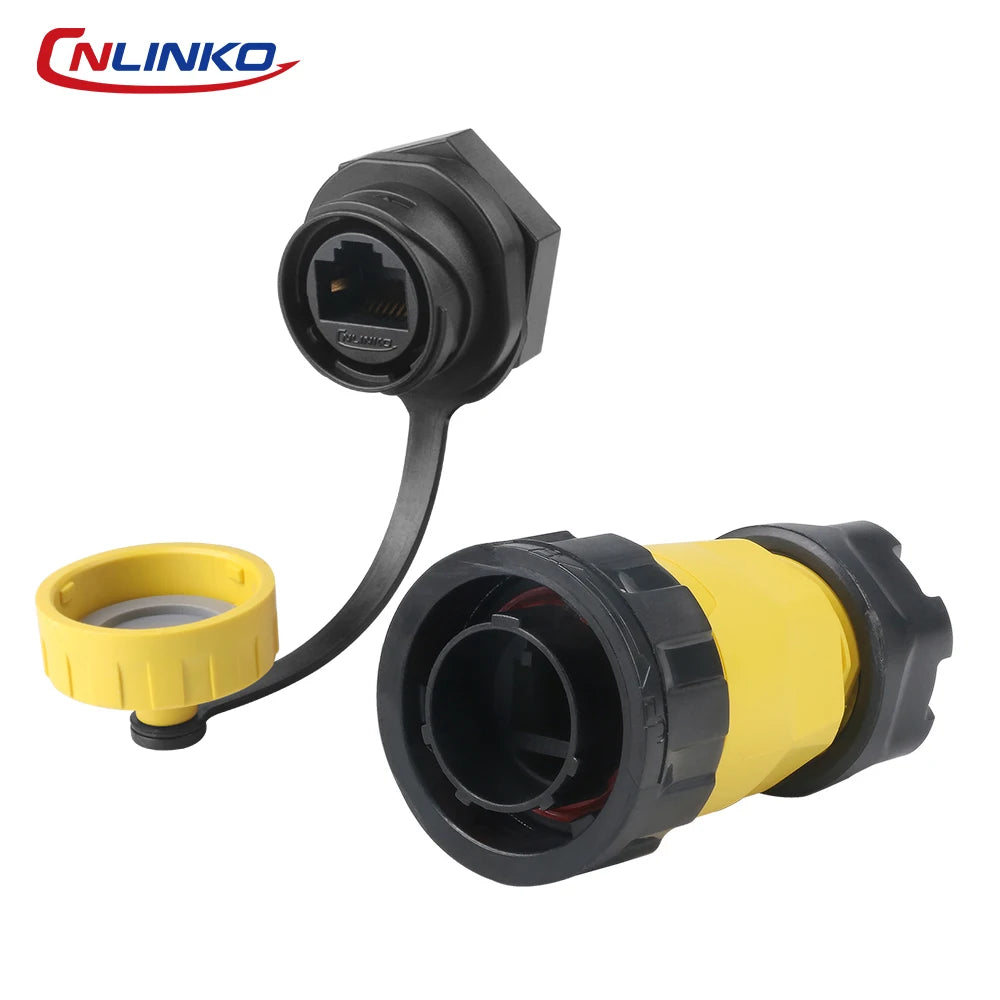

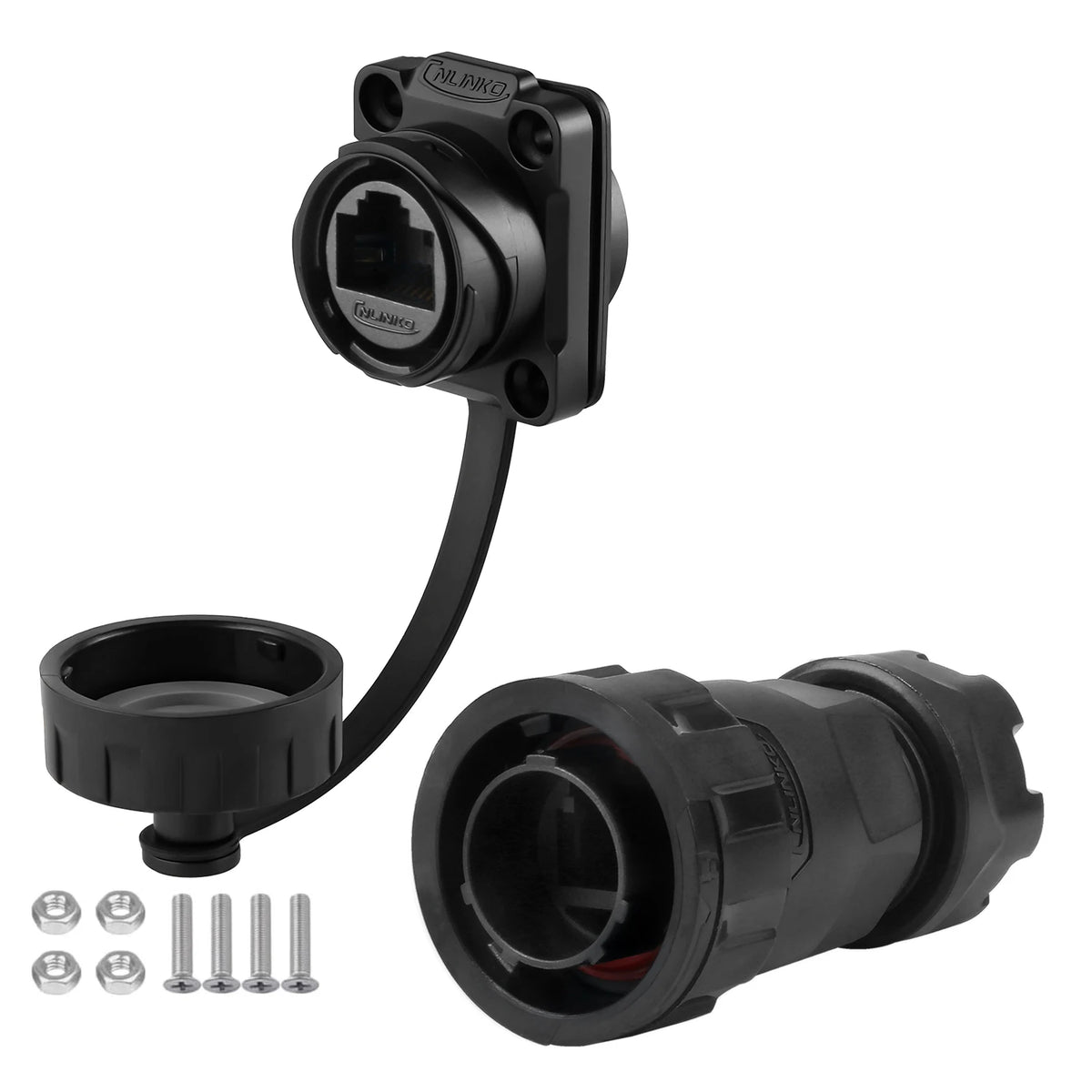

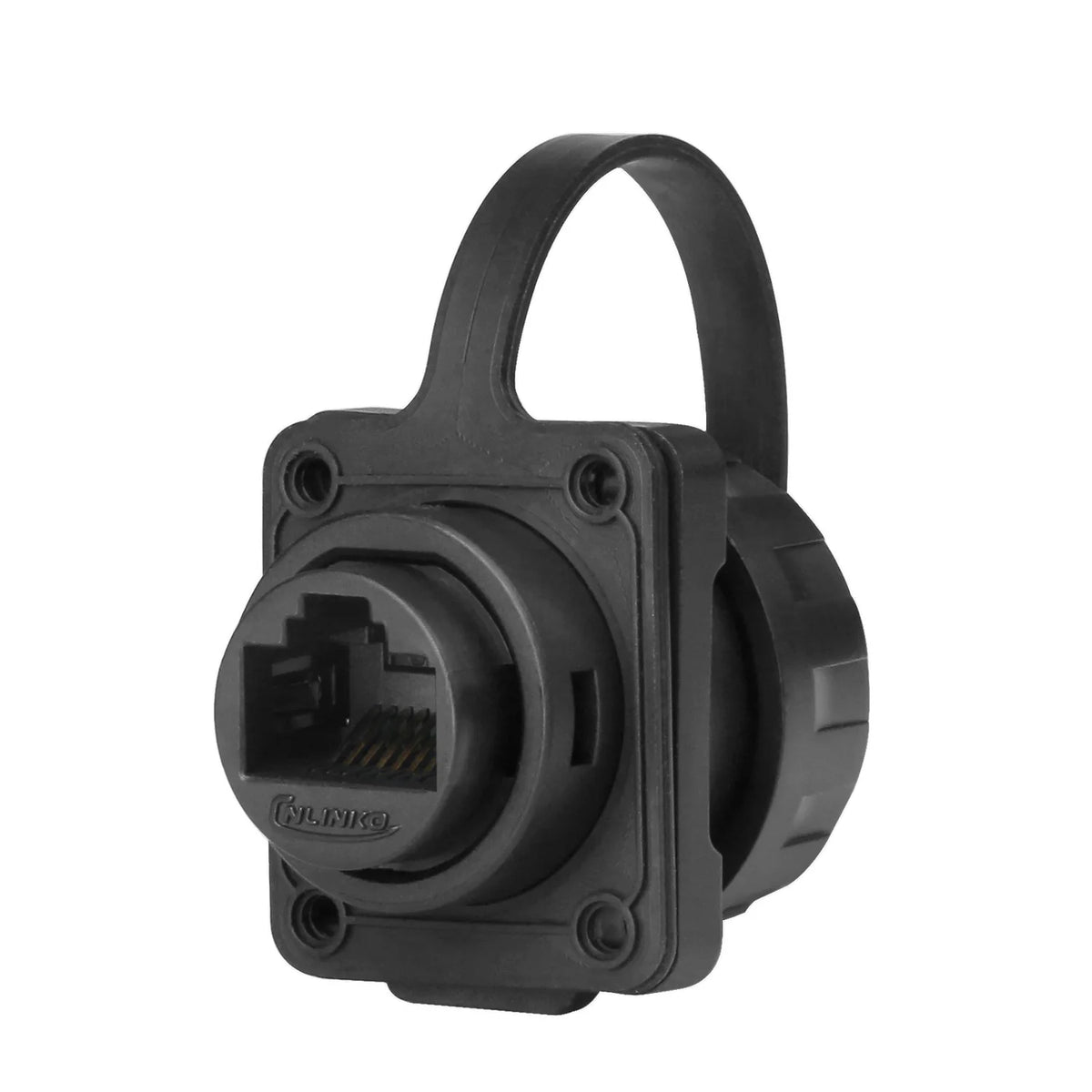

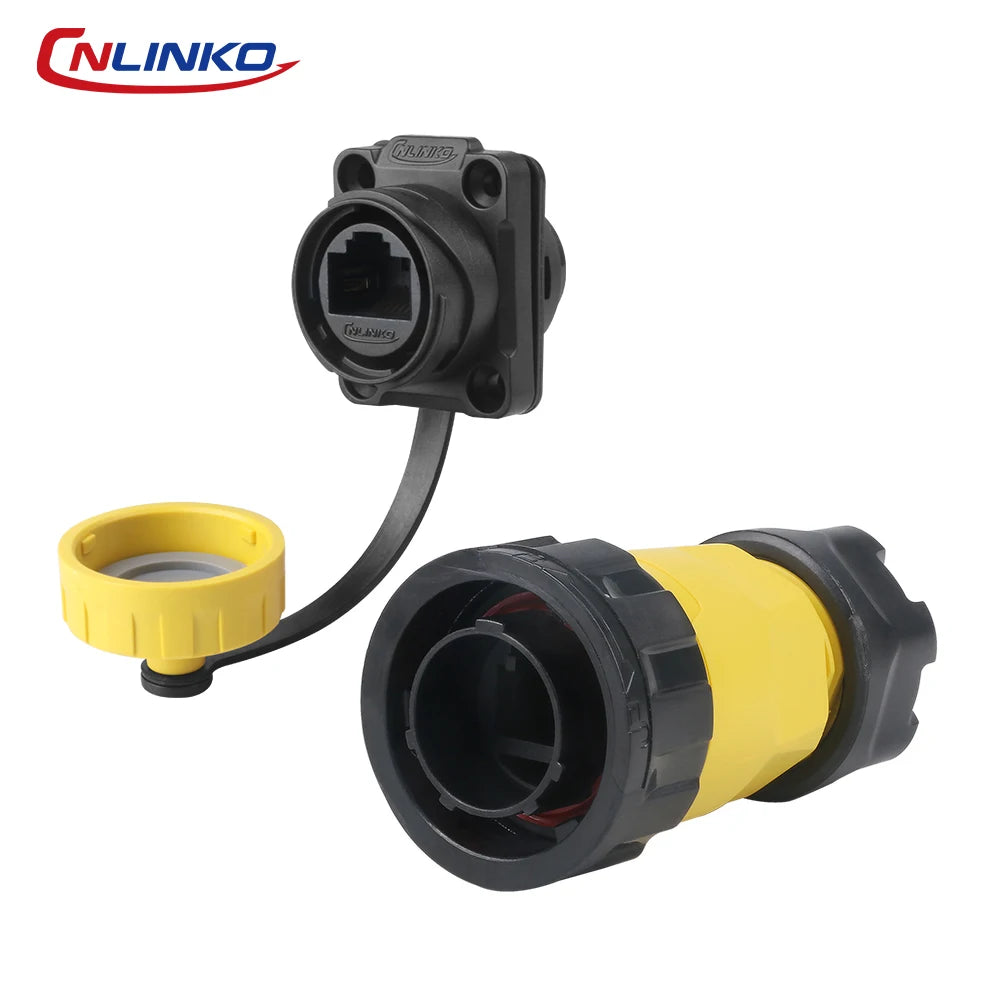

Item Type: Male Plug+Female Socket

Machanical Life Min.: 500 Cycles

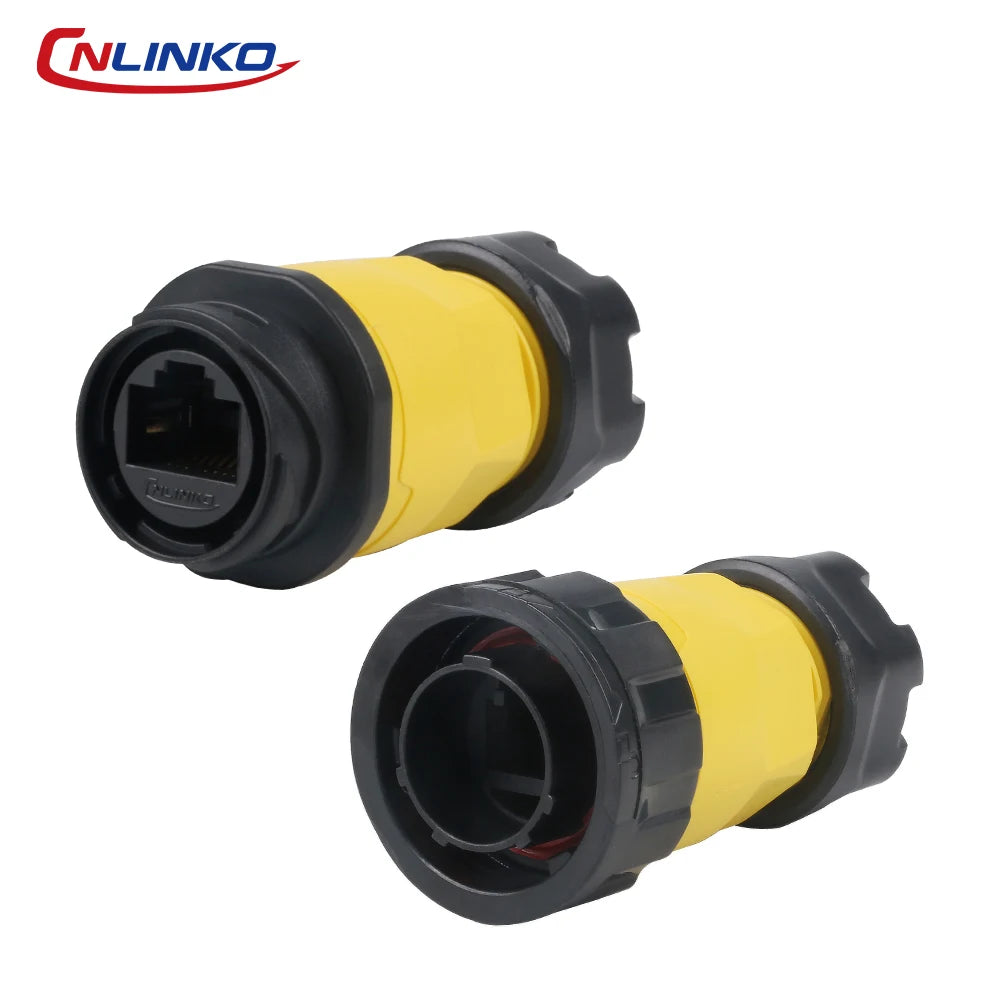

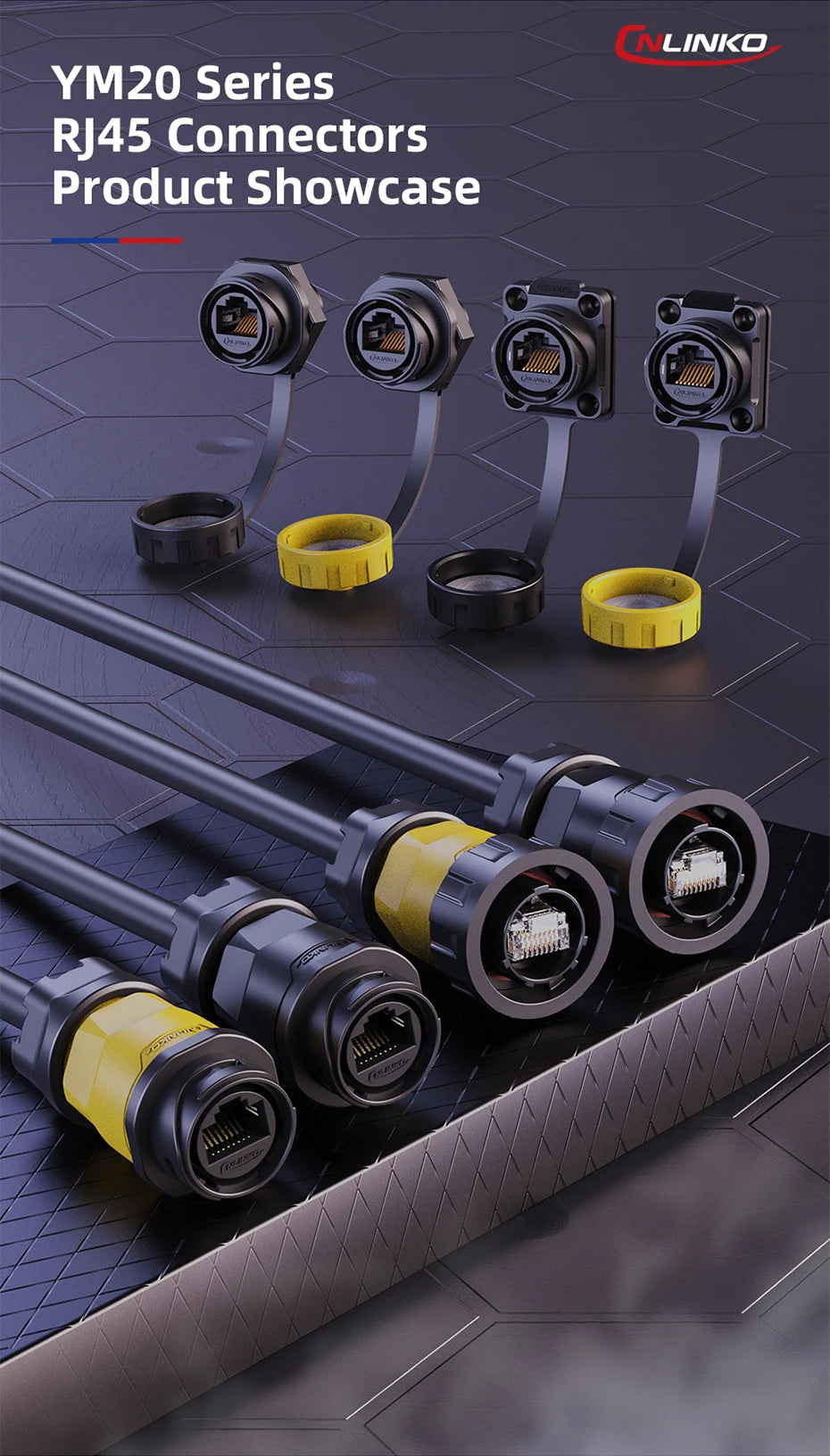

Model Number: YM20 PBT RJ45 Connector

Operating Temperature: -40℃~+85℃

Origin: Mainland China

Protection Level: IP68(2m/48h)

Rated Current: 1.5A

Rated Voltage: 125V AC

Salt Spray Min.: 48H

Shell Material: PBT Plastic

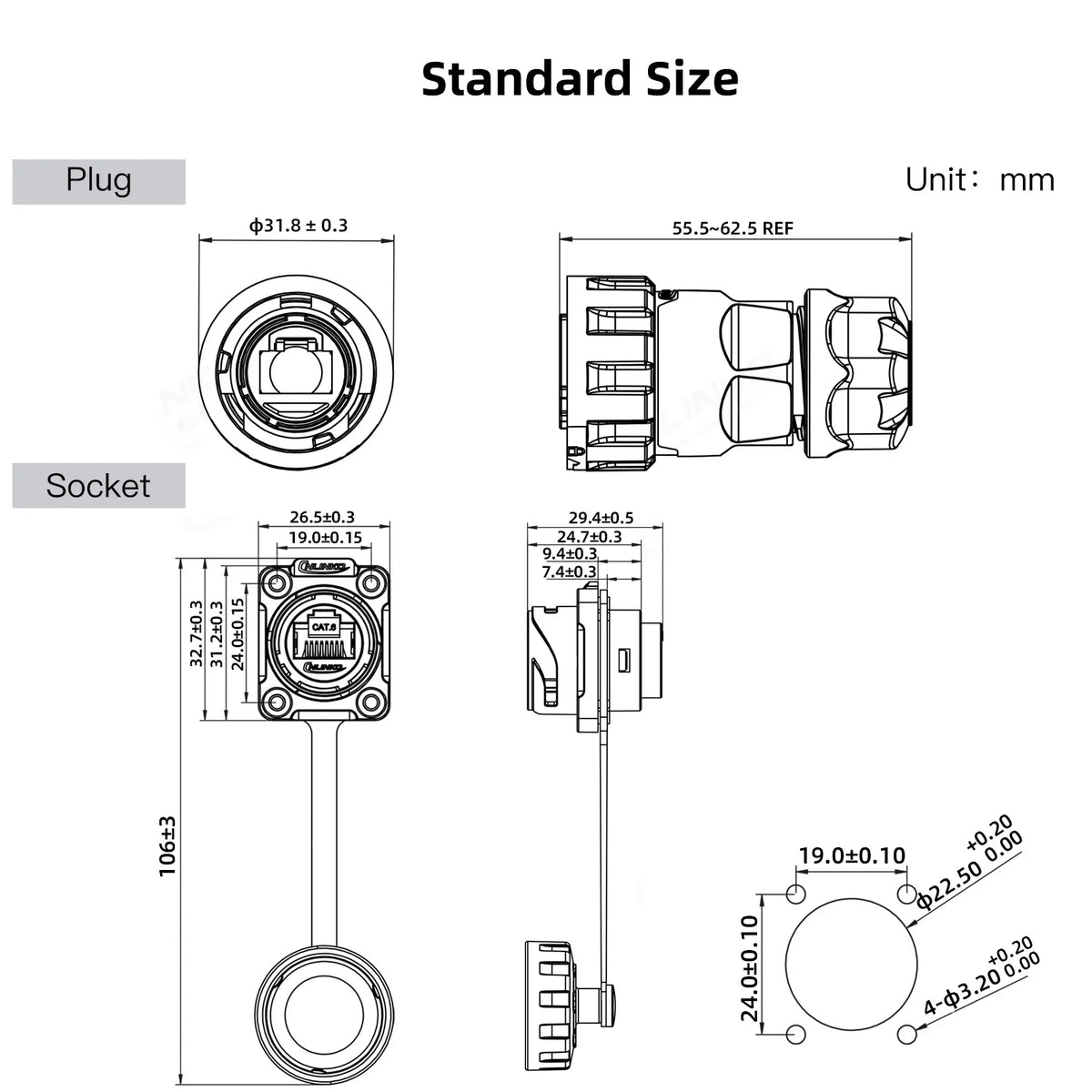

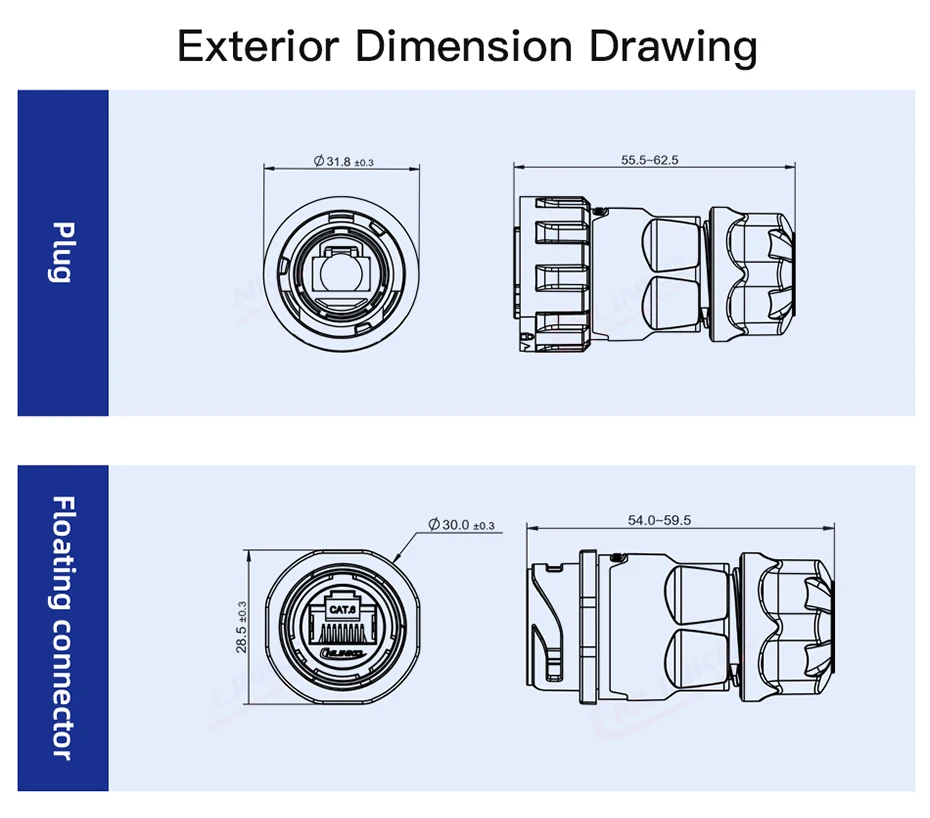

Size: M20

Transimission Rate: CAT.6

Voltage: 自定义编辑

Withstanding Voltage: 1000V AC

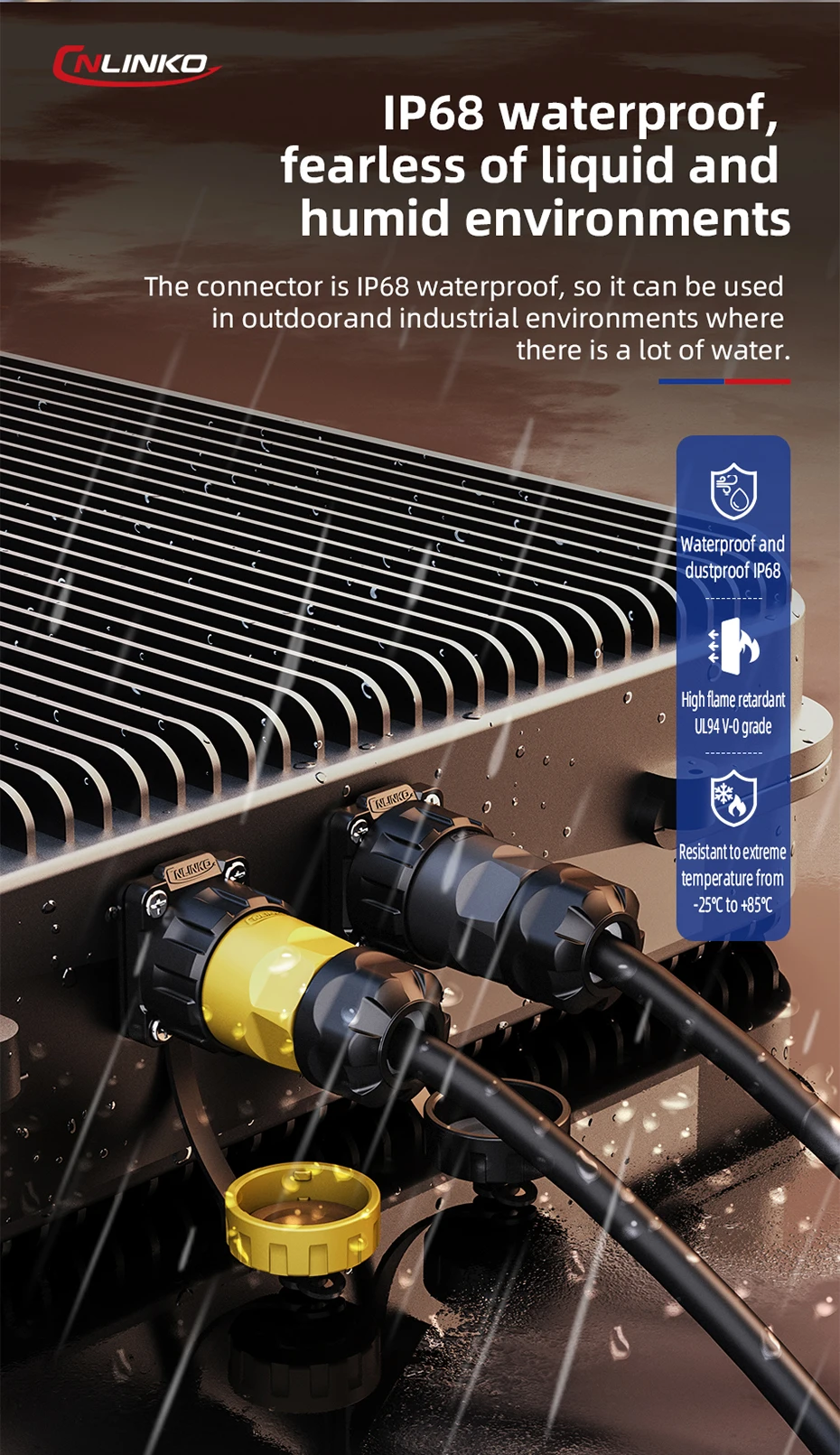

1. Superior IP68 Waterproof & Dustproof Protection – Rated IP68 when mated, this connector is completely dust‑tight and withstands continuous water immersion. The robust PBT housing ensures reliable Ethernet connectivity in outdoor, indoor, and harsh industrial environments where moisture is a constant threat.

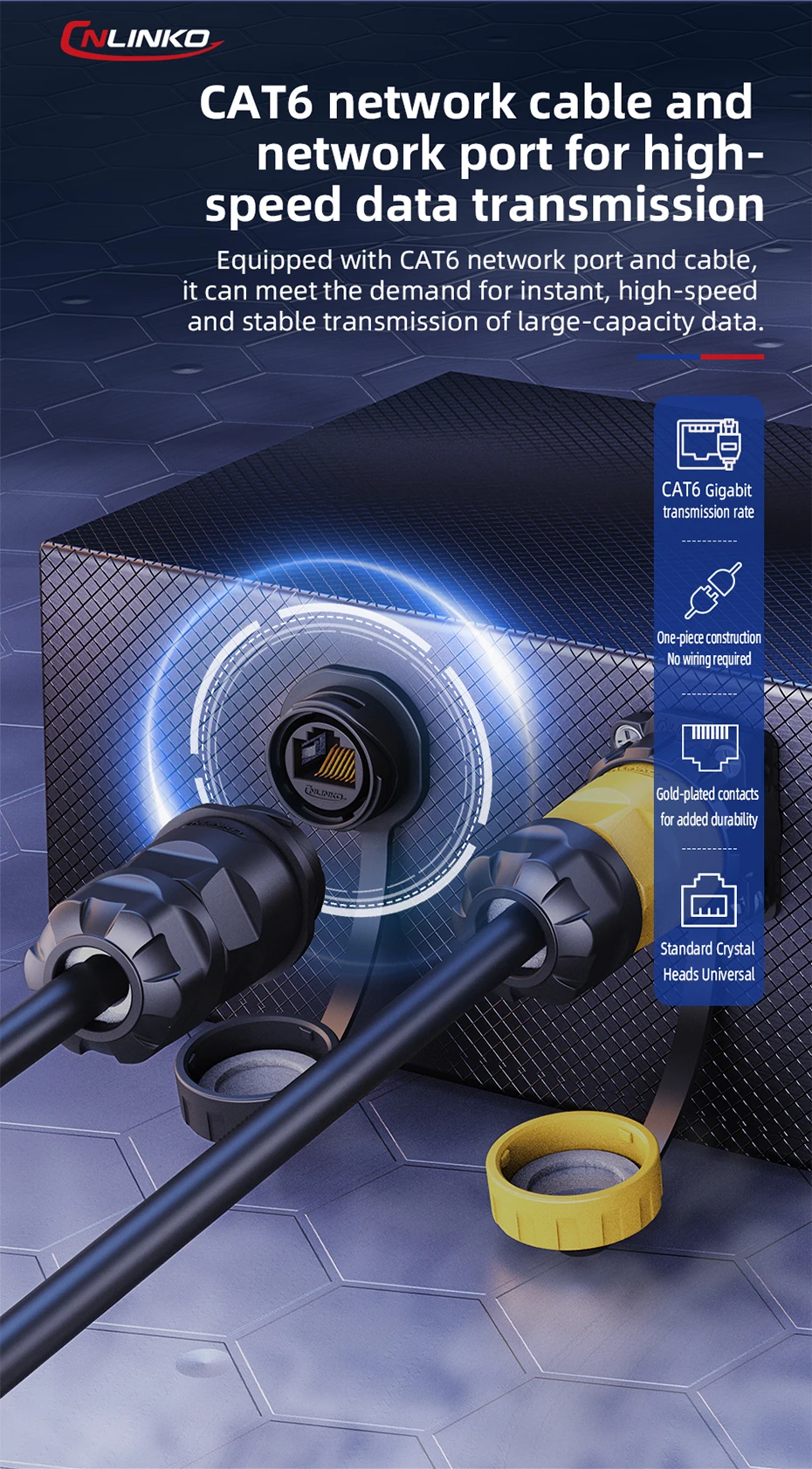

2. High‑Speed CAT6 Gigabit Data Transmission – Equipped with a CAT6‑compliant interface and gold‑plated 8P8C contacts, supporting data transfer rates up to 1000 Mbps. Ensures fast, low‑latency signal transmission for CCTV, industrial Ethernet, and high‑bandwidth networking applications.

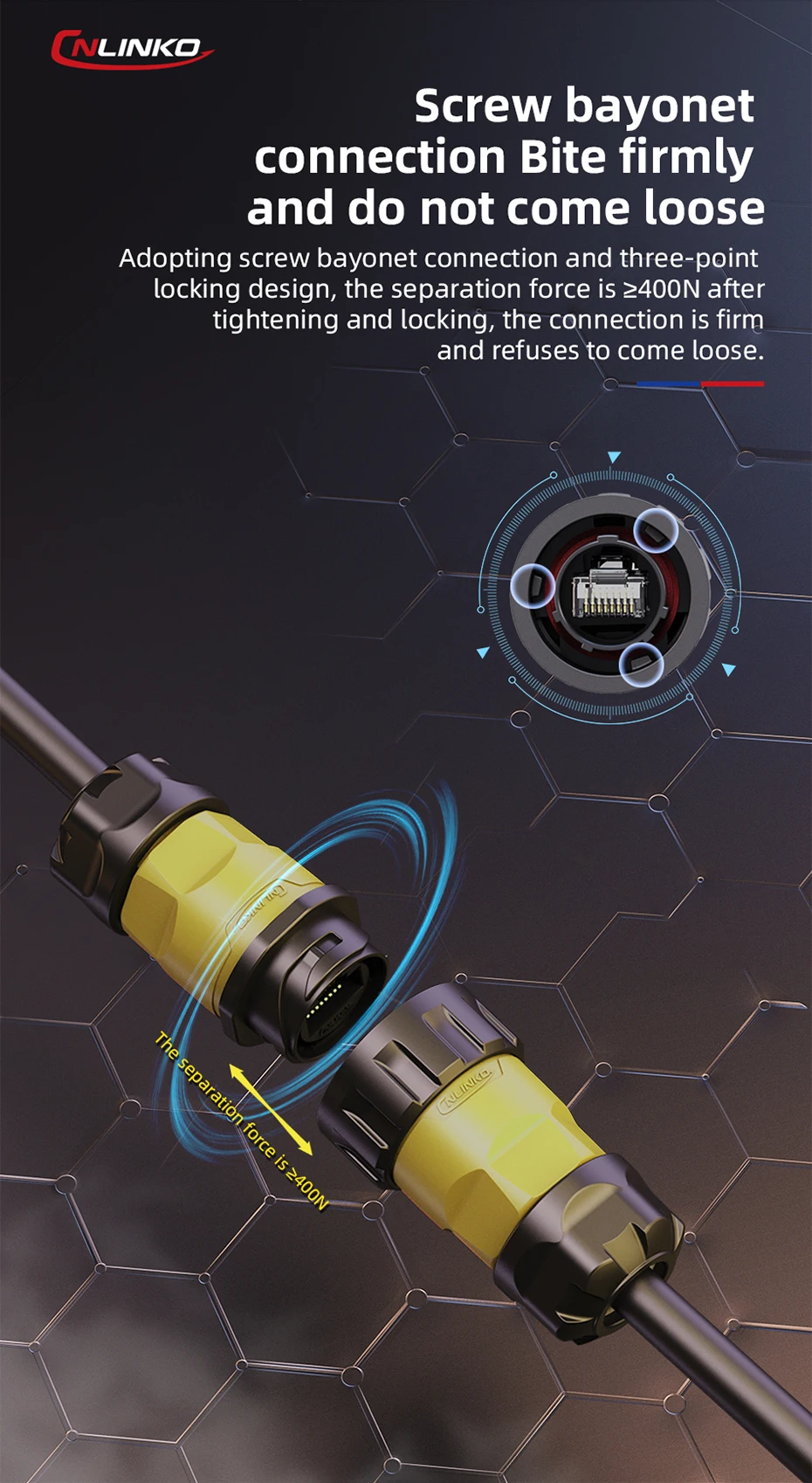

3. Secure Bayonet Lock for Vibration‑Resistant Connection – Features a quick bayonet (gear‑type) locking mechanism that withstands up to 100kg pull force without disengagement. Prevents accidental disconnection due to vibration, ensuring stable signal transmission in demanding field applications.

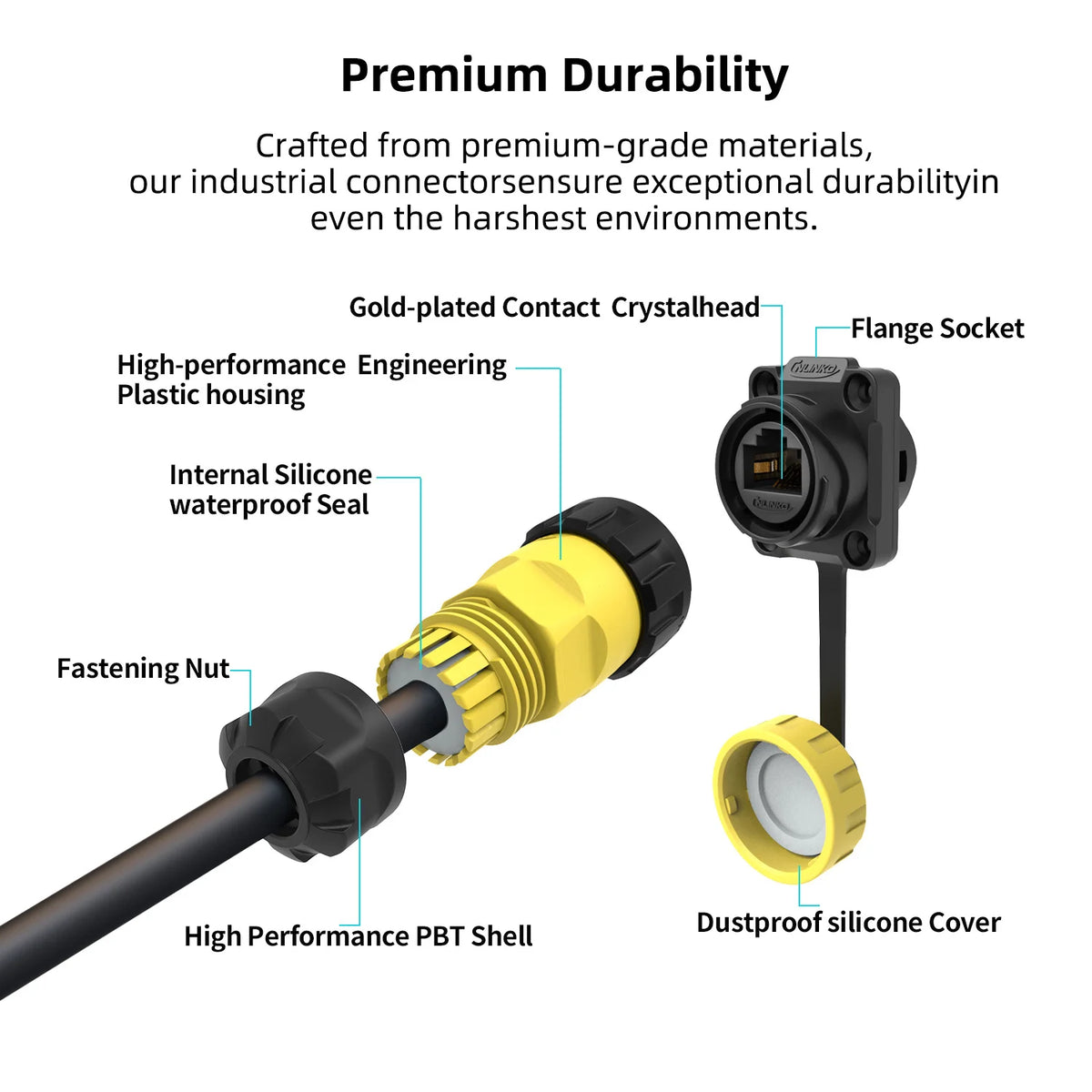

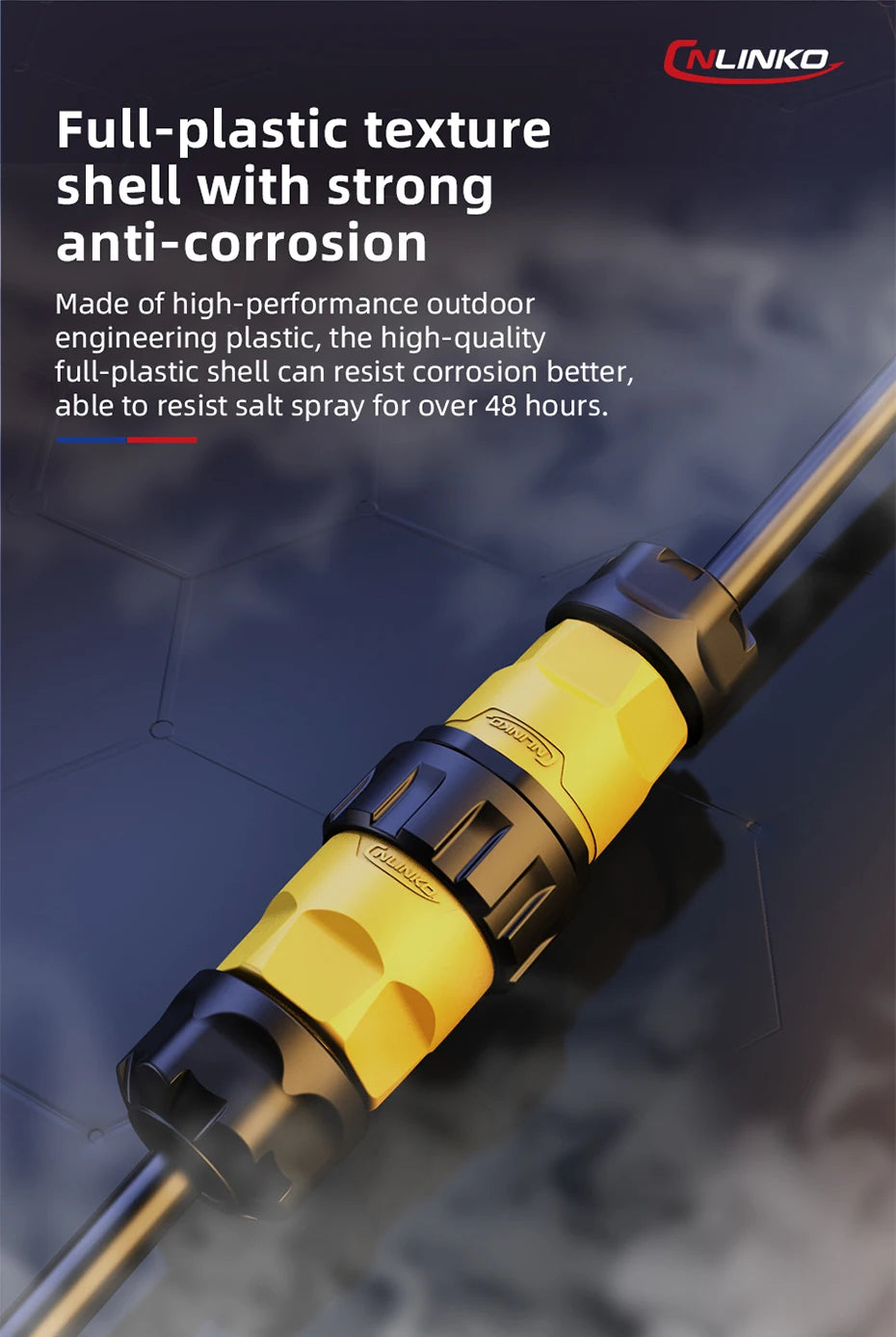

4. Durable PBT Housing with Gold‑Plated Contacts – Constructed with high‑performance PBT engineering plastic offering excellent corrosion resistance, UV protection, and flame retardancy. Gold‑plated copper alloy contacts ensure superior conductivity and oxidation resistance for long‑term reliability.

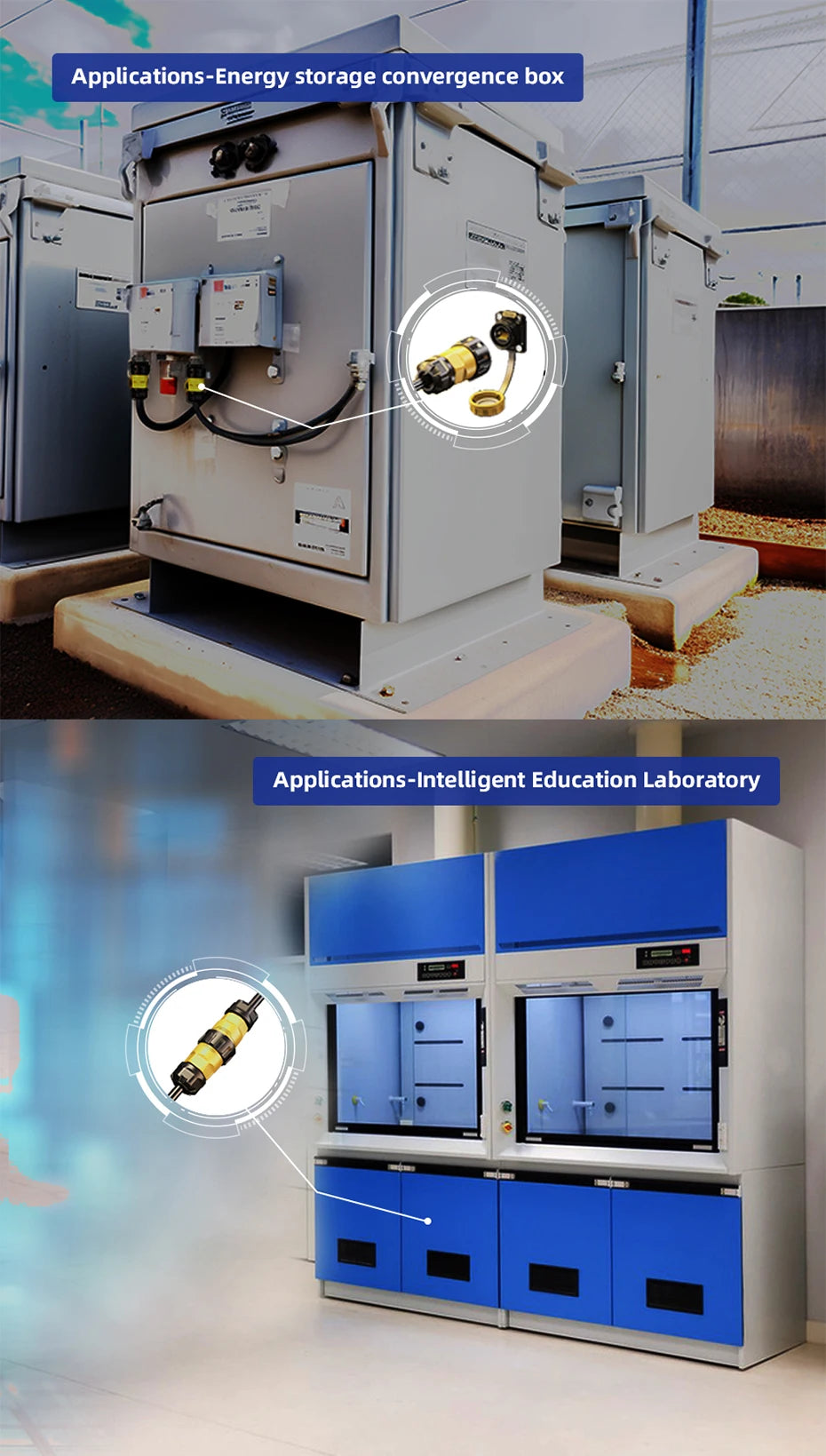

5. Wide Temperature Range & Long Service Life – Operates reliably from -40°C to +85°C and supports ≥500 mating cycles. Rated 1.5A/125V with contact resistance <30mΩ. Ideal for industrial automation, outdoor CCTV, marine systems, LED displays, and communication devices
