SPECIFICATIONS

Brand Name: NONE

Dimensions: 3.5cm*4cm*1.15cm

Model Number: C4-4308HNR

Origin: Mainland China

Weight: 160g

is_customized: No

Basic Product Information

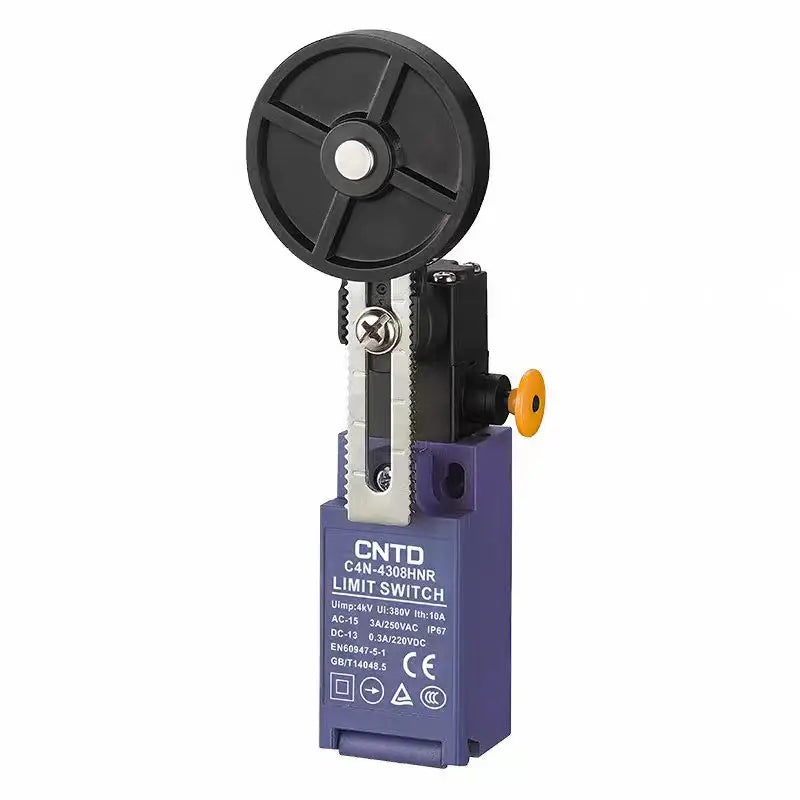

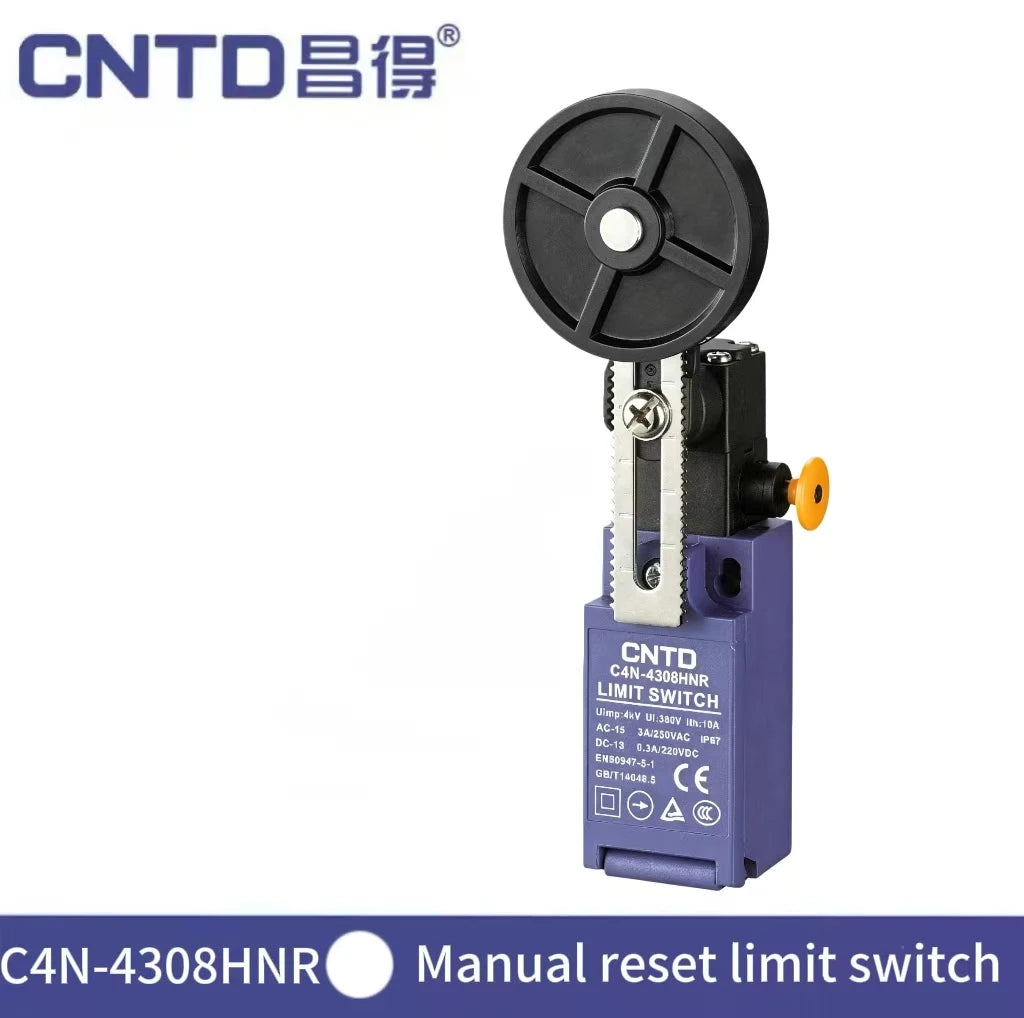

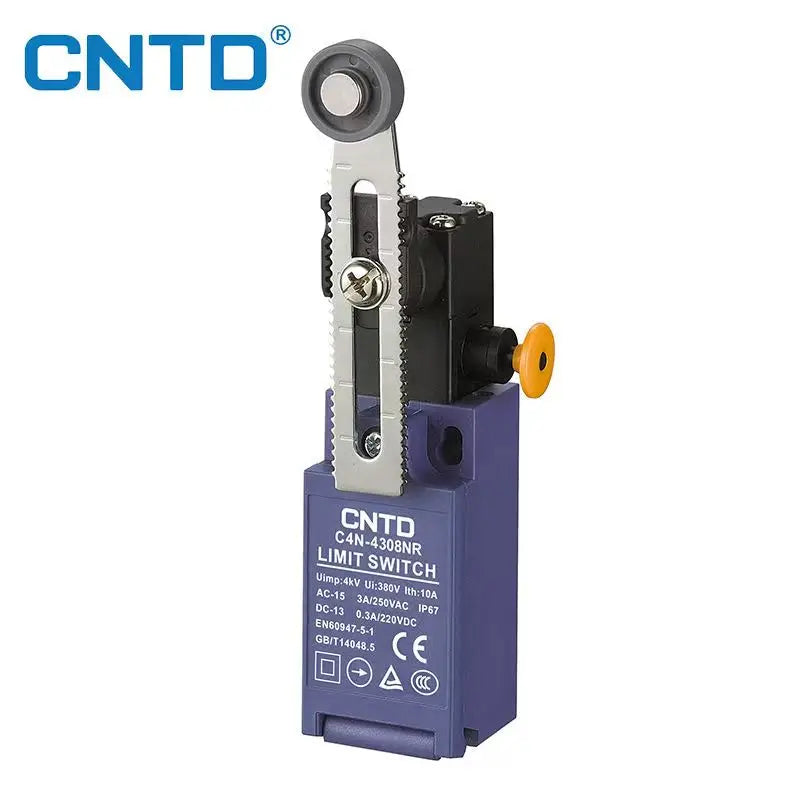

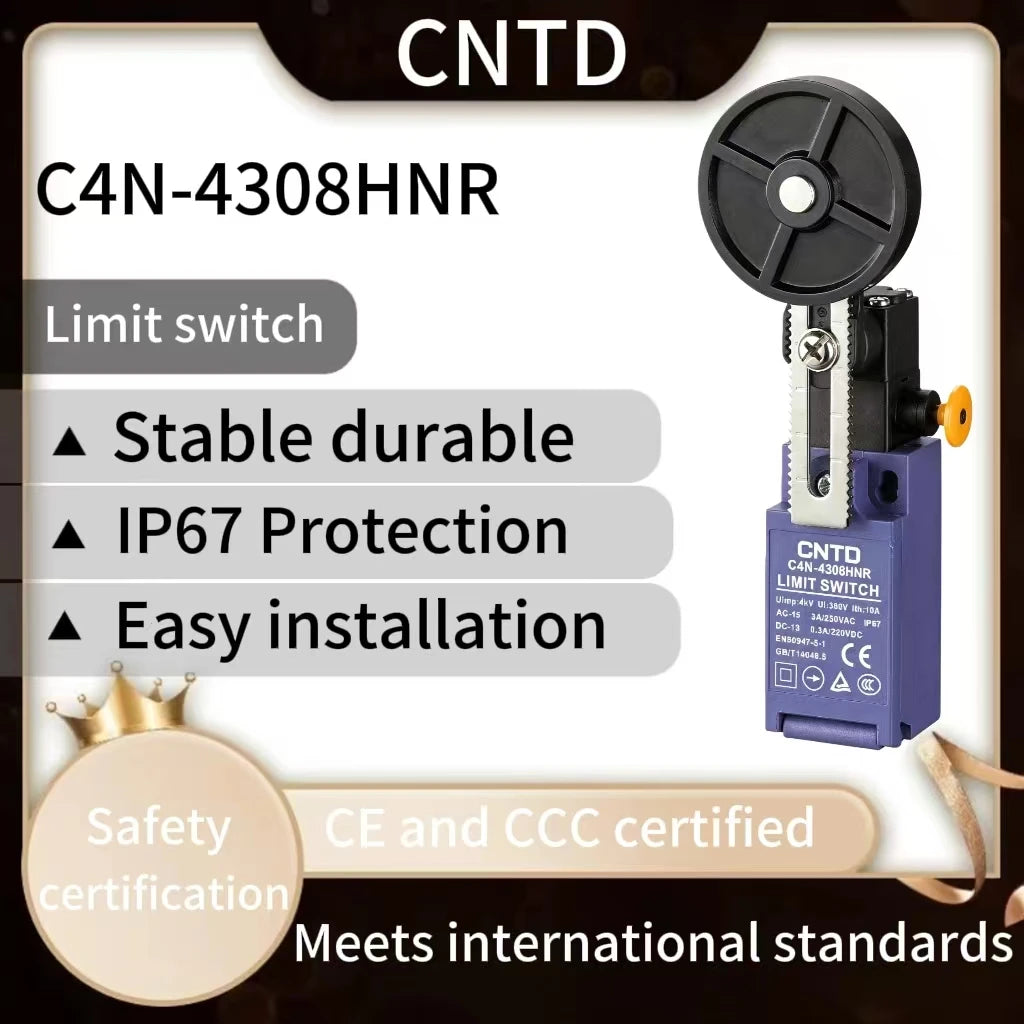

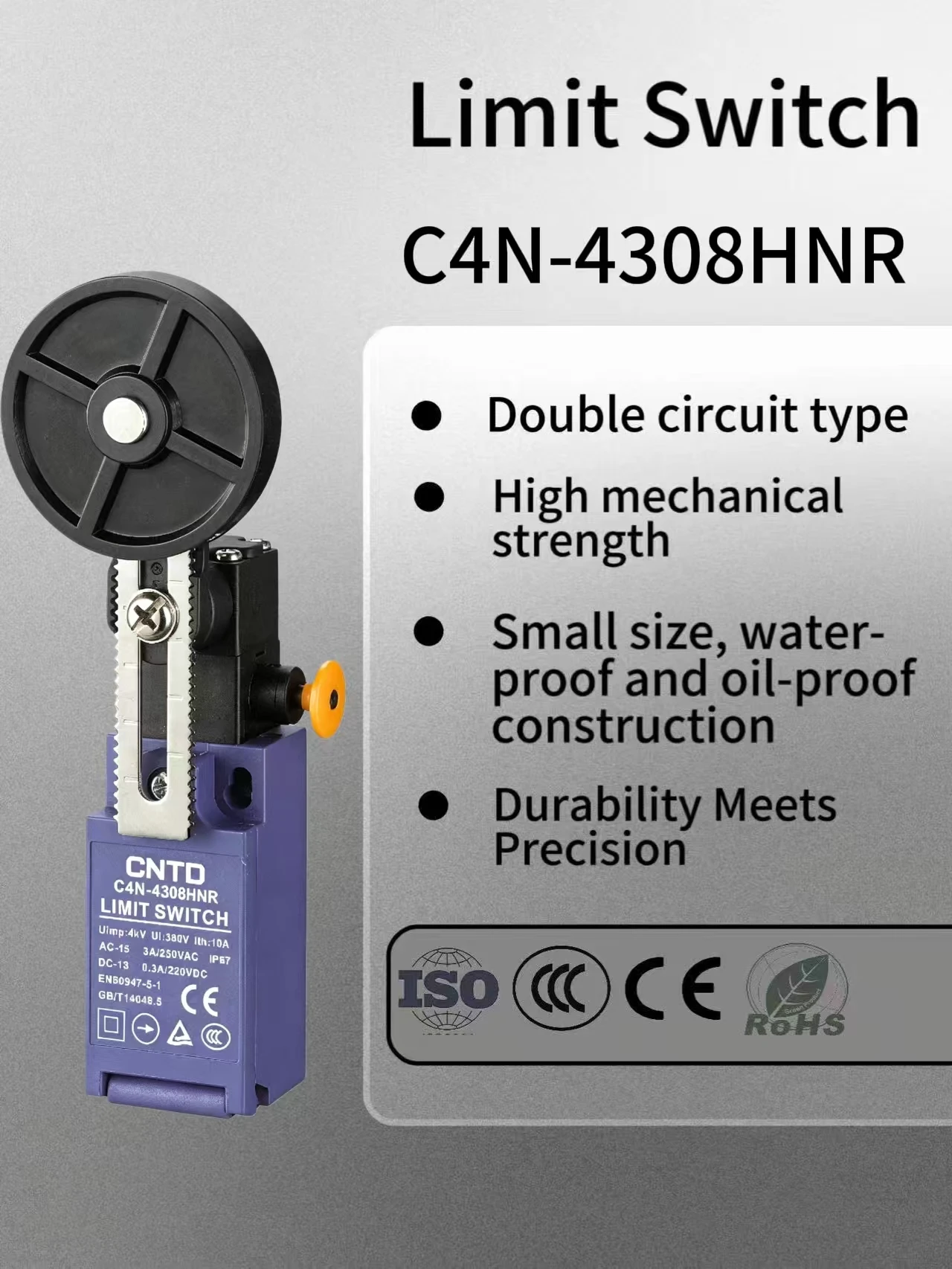

• Model: C4N-4308HNR

• Brand: CNTD

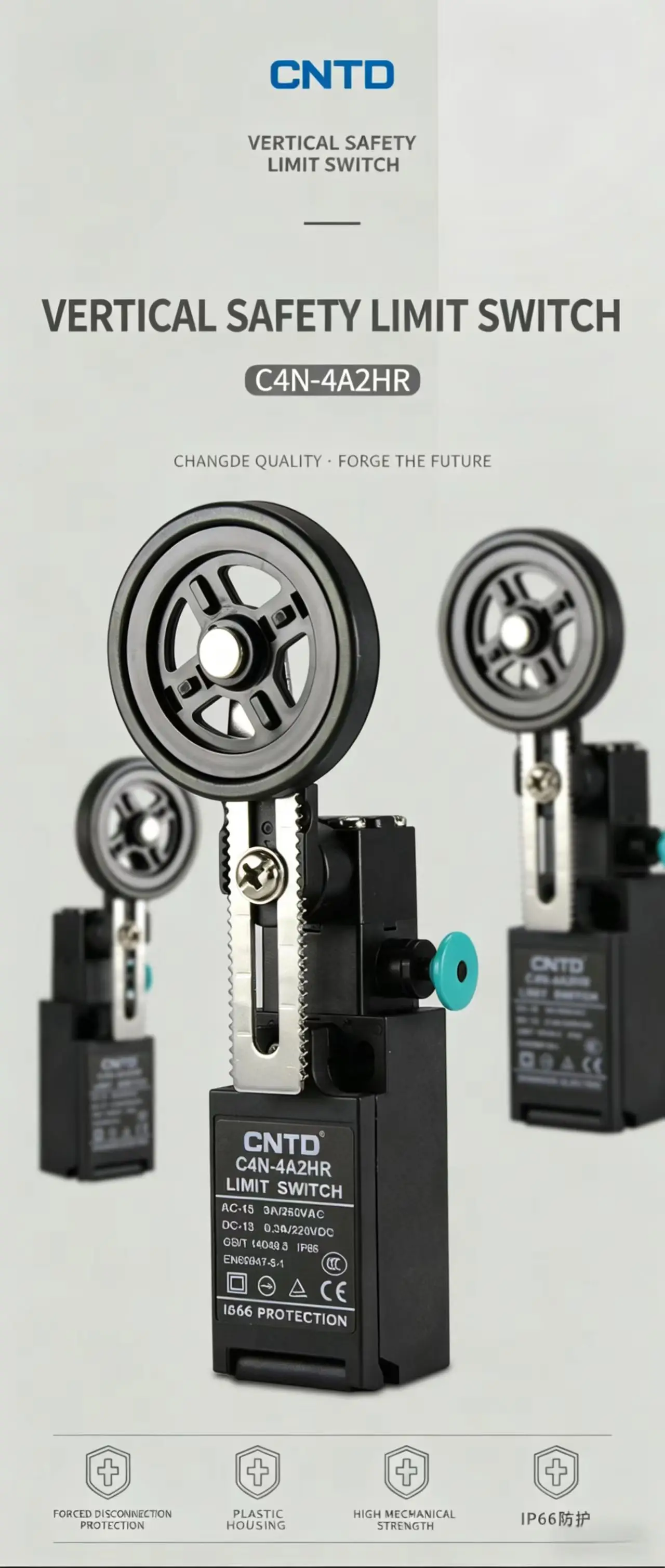

• Product Type: Vertical Manual Reset Safety Limit Switch

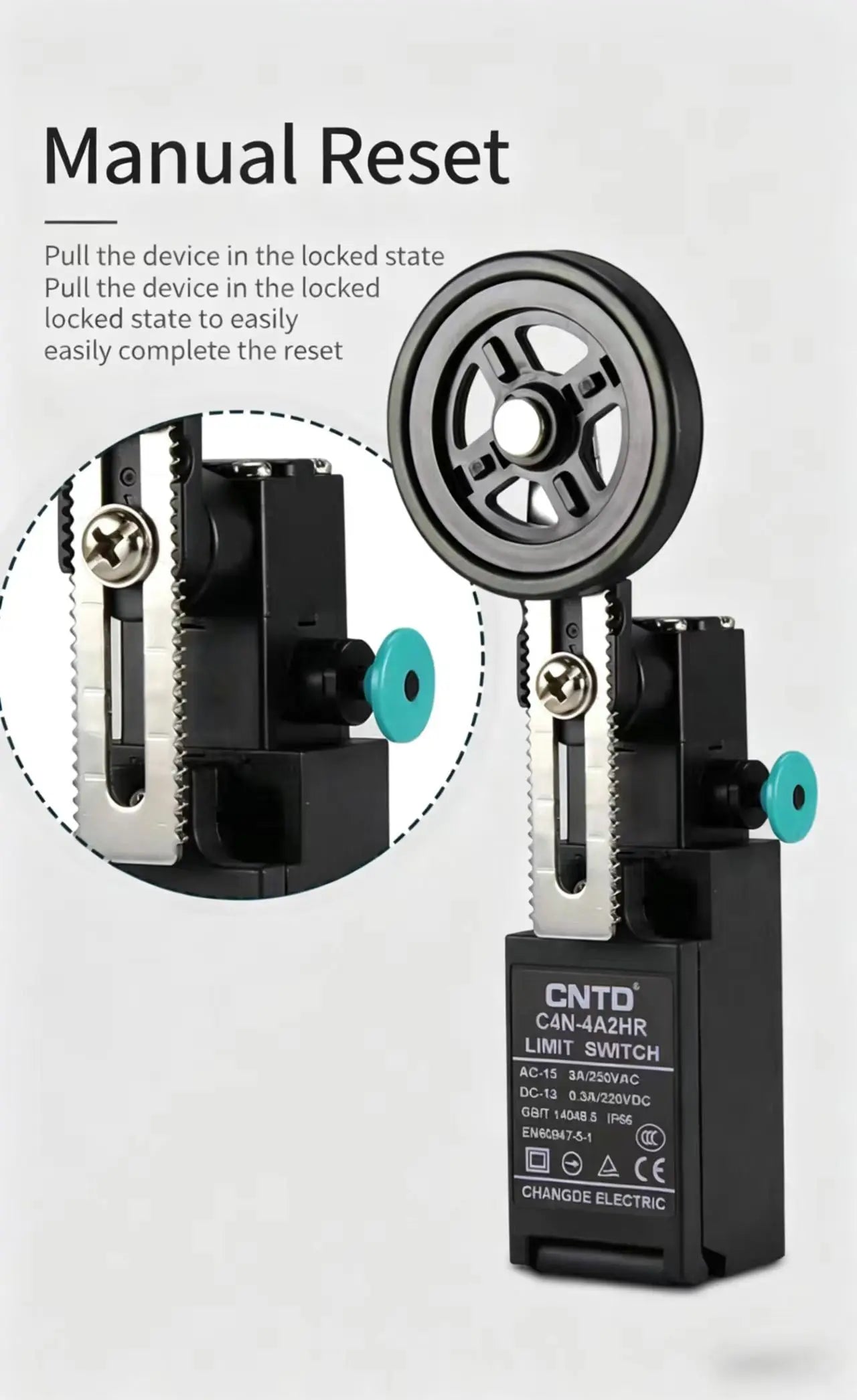

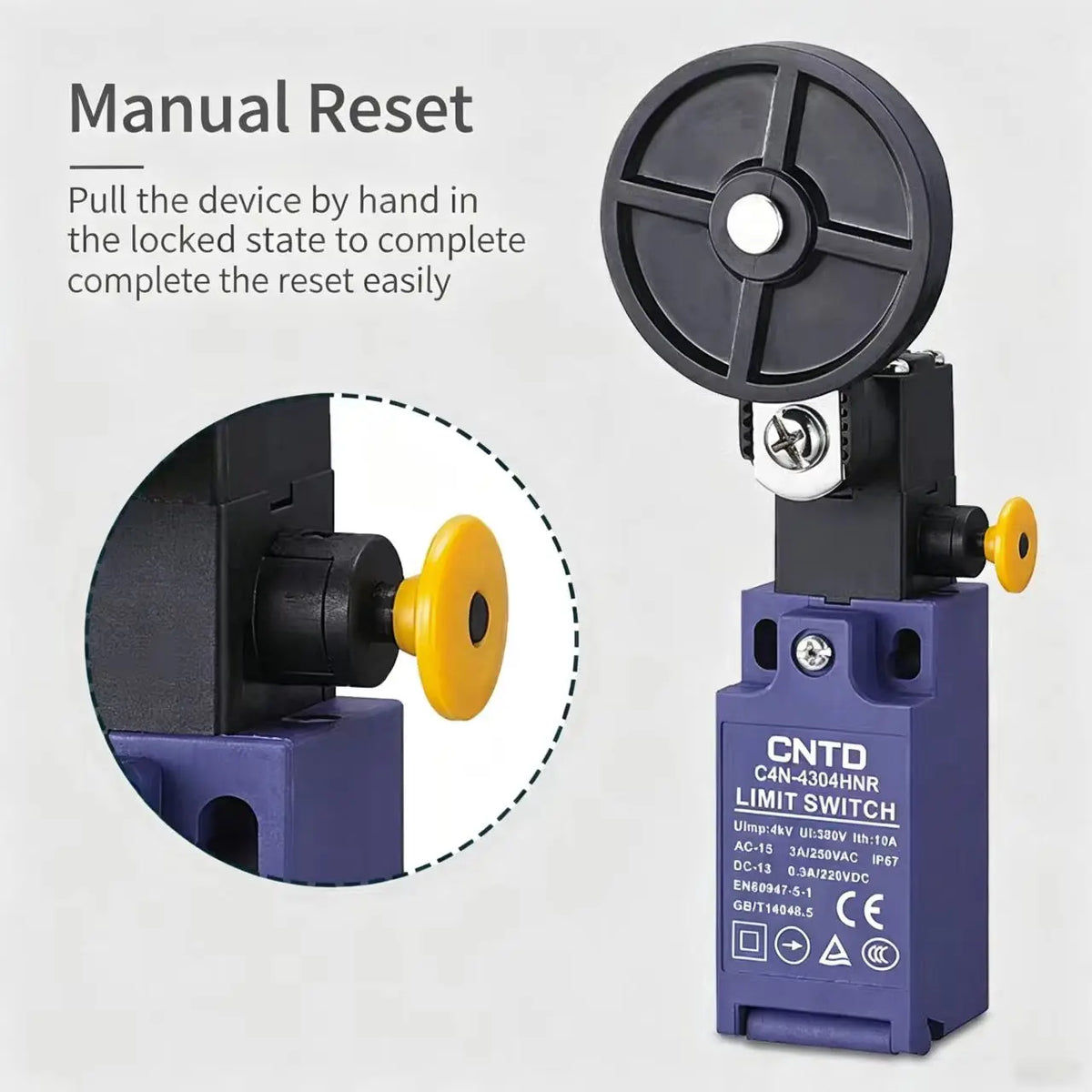

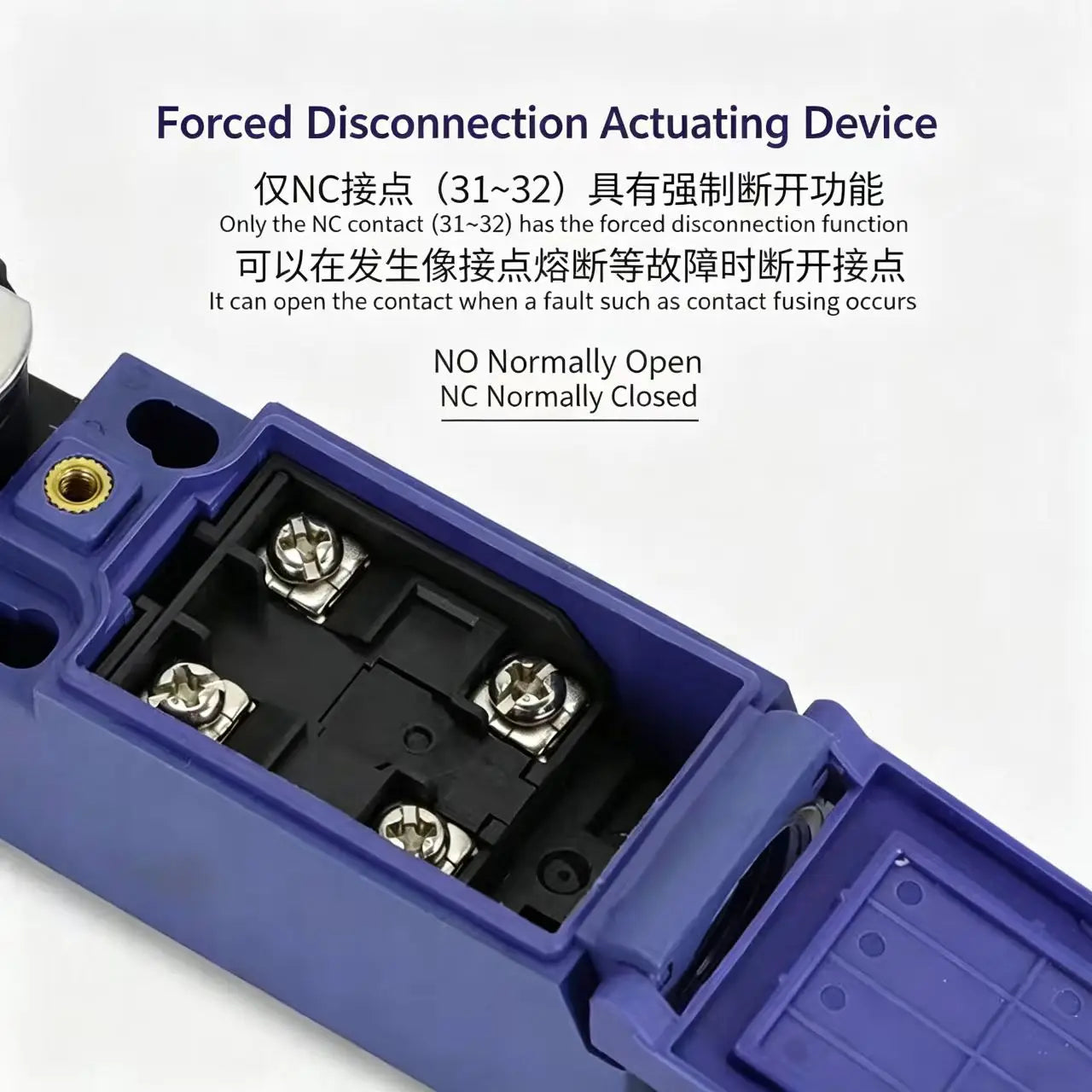

• Operation Mode: Manual reset (forced break structure)

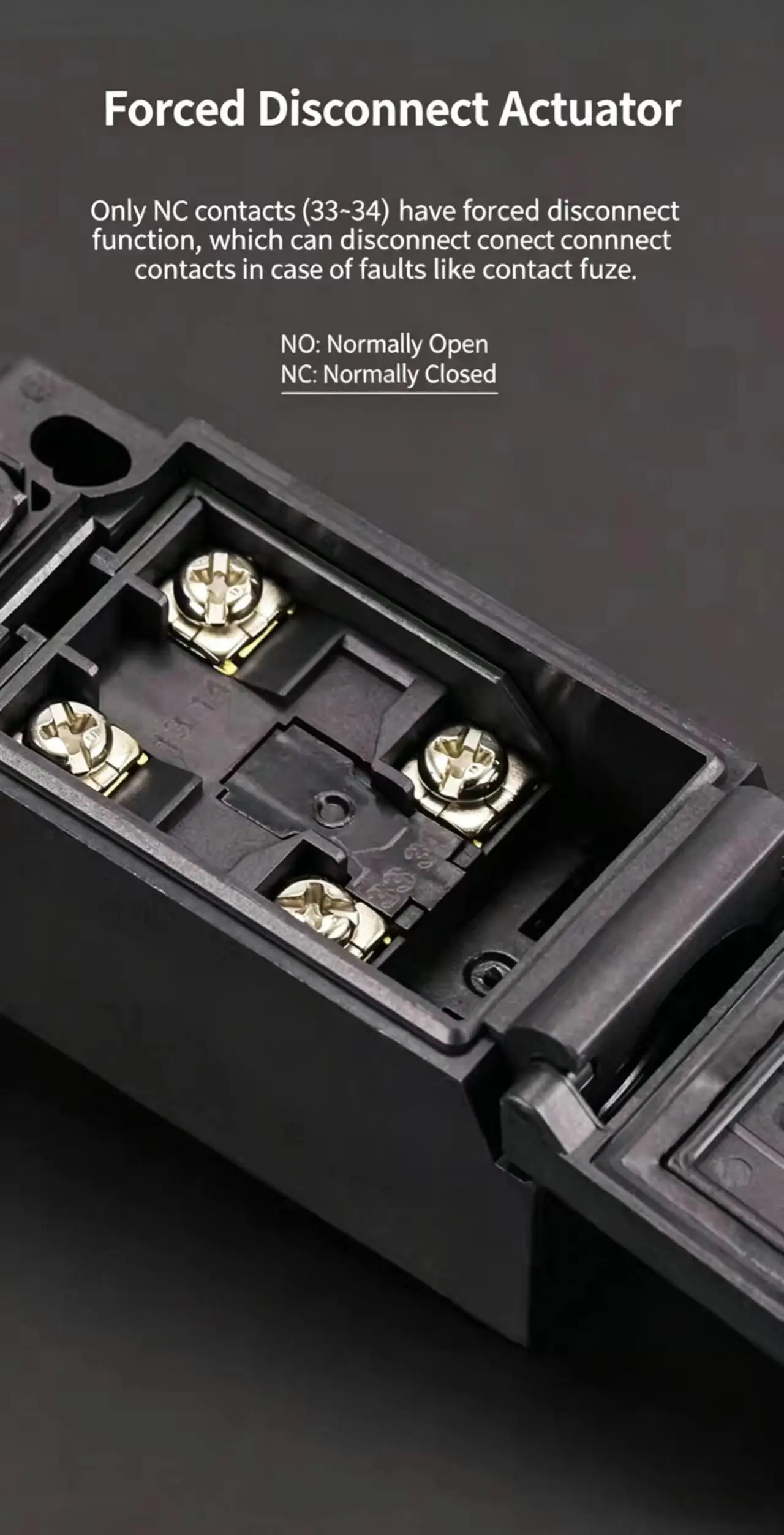

• Action Structure: Slow action, forced break (NC contact only)

• Protection Degree: IP66

• Certification: Compliant with EN60947-5-1, CE certified

Core Electrical Parameters

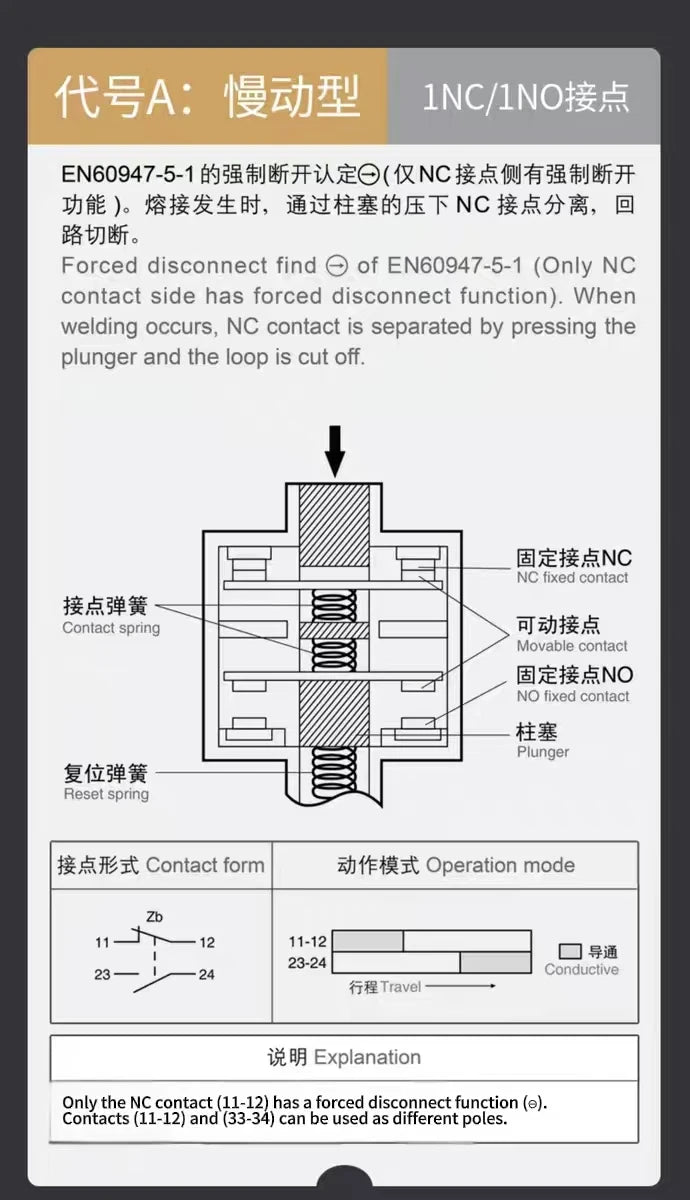

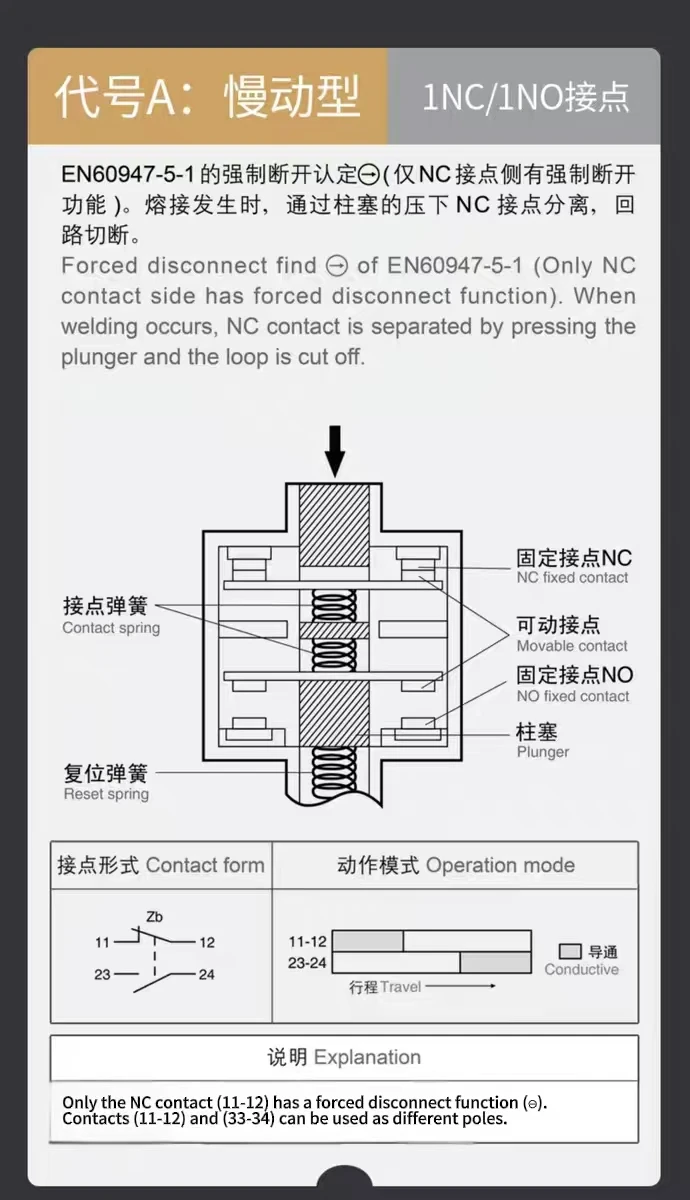

• Contact Configuration: 1NC/1NO (slow action, forced break on NC side)

• Rated Voltage: AC250V, DC300V

• Rated Current: 3A (AC250V, resistive load); 10A (AC250V, resistive load)

• Contact Resistance: ≤25mΩ

• Insulation Resistance: ≥100MΩ

• Dielectric Strength: 2000VAC (between different poles)

Mechanical Properties

• Mechanical Life: ≥1,000,000 cycles

• Electrical Life: ≥500,000 cycles (AC250V 3A); ≥300,000 cycles (AC250V 10A)

• Operating Speed: 1mm/s～0.5m/s

• Operating Frequency: Max. 30 times/min

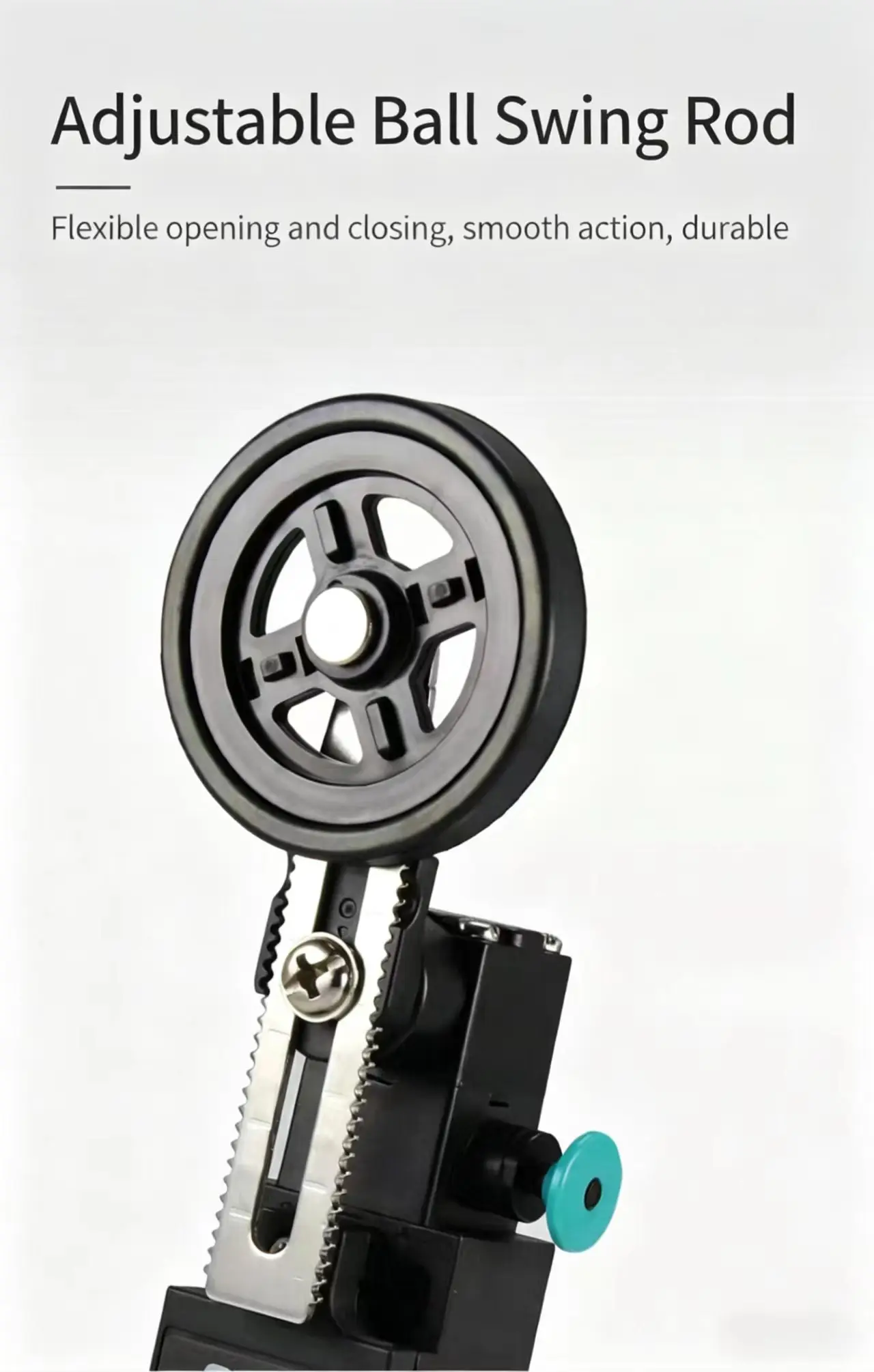

• Head Material: Metal lever + metal ball (type H)

• Housing Material: Reinforced engineering plastic (flame retardant, impact resistant)

• Operating Temperature: -20℃～+70℃ (no icing)

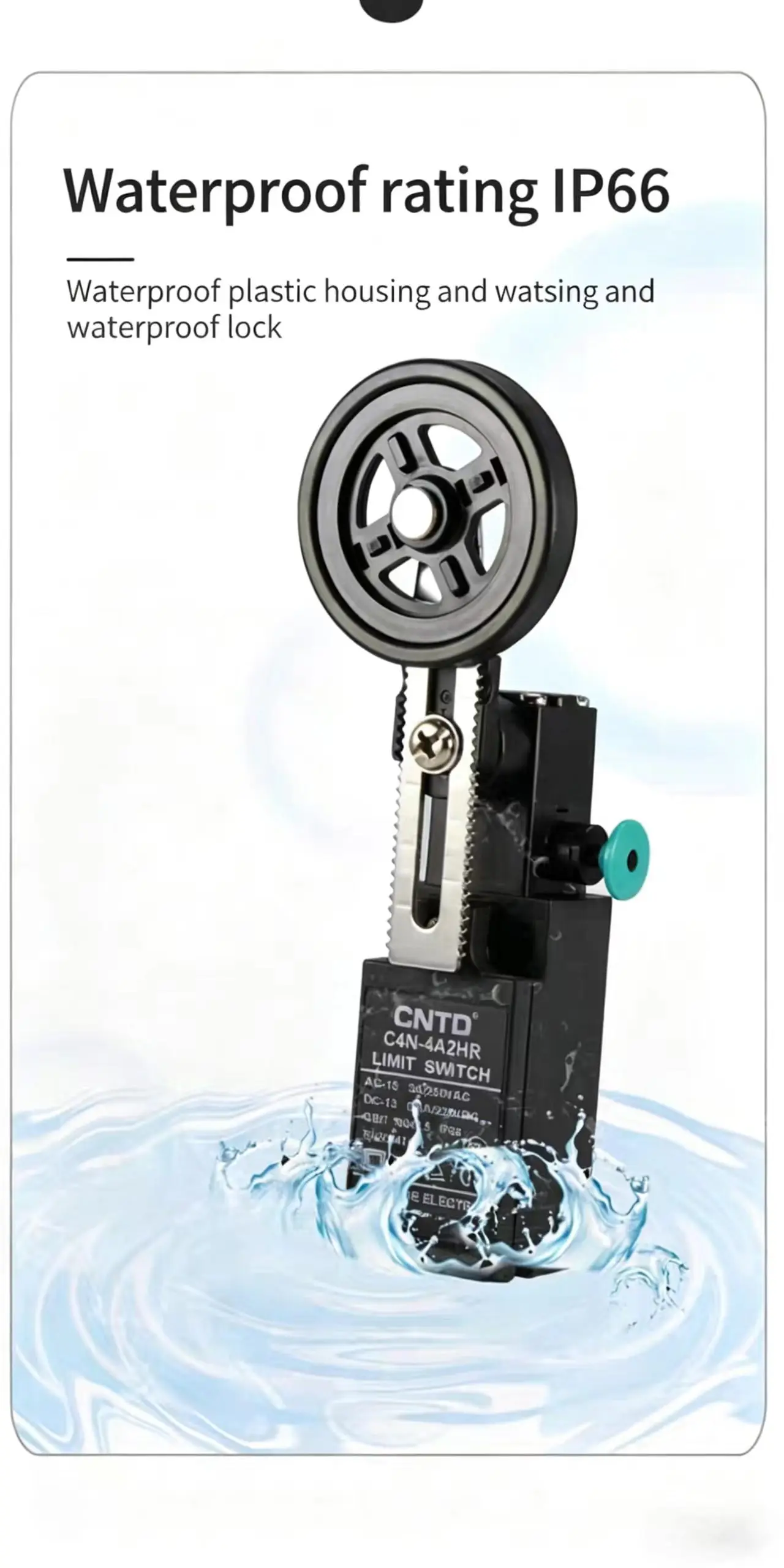

• Protection Performance: Dustproof, splash-proof, oil-proof (IP66)

Application Scope

• Position detection and travel control for industrial automation equipment, machine tools, assembly lines, hoisting machinery, etc.

• Forced break scenarios in safety circuits (e.g. door interlock, limit protection)

• Use in harsh environments (dust, oil, humidity)

General parameters

Parameters above are for reference only and subject to the actual product.
