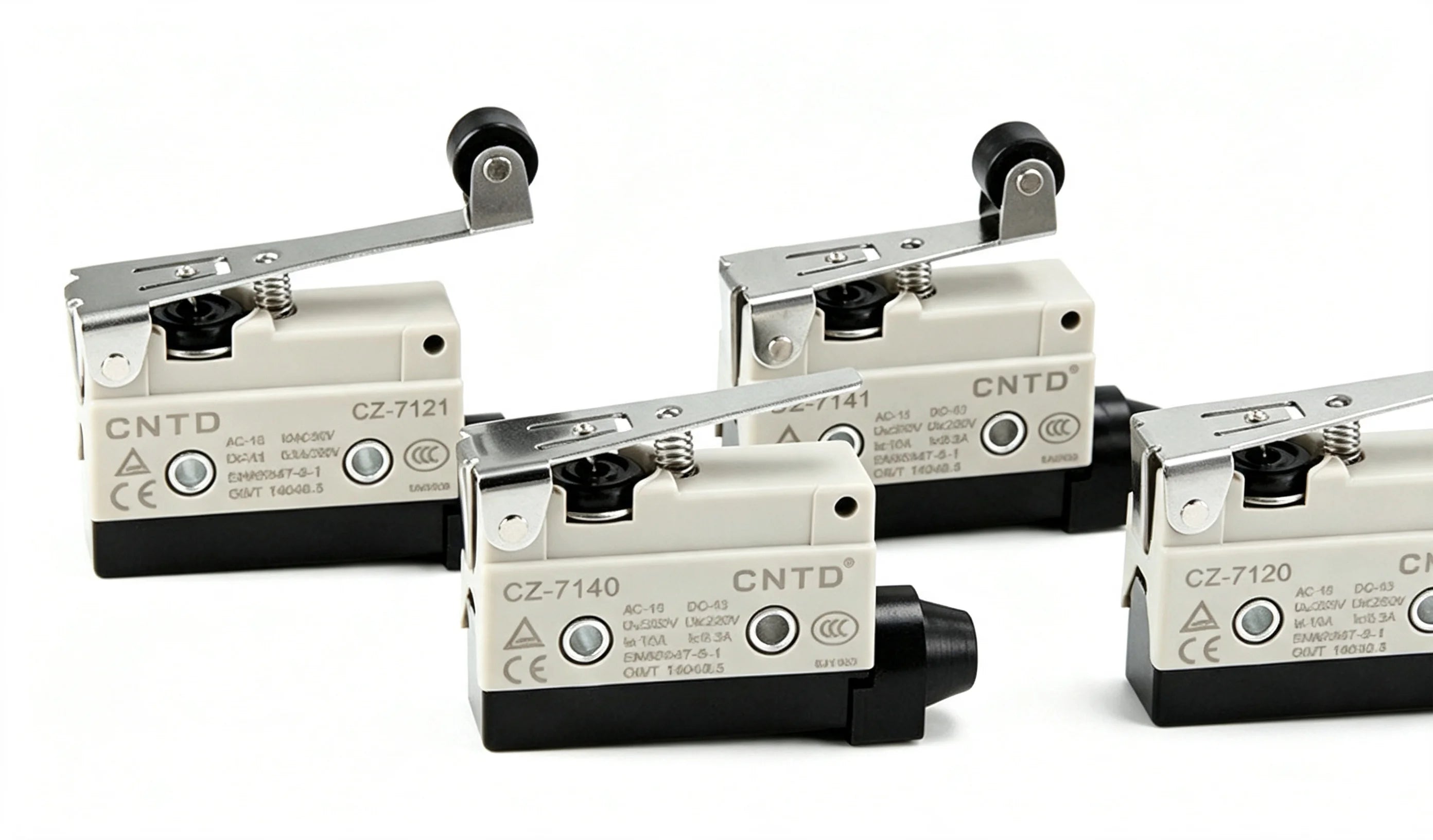

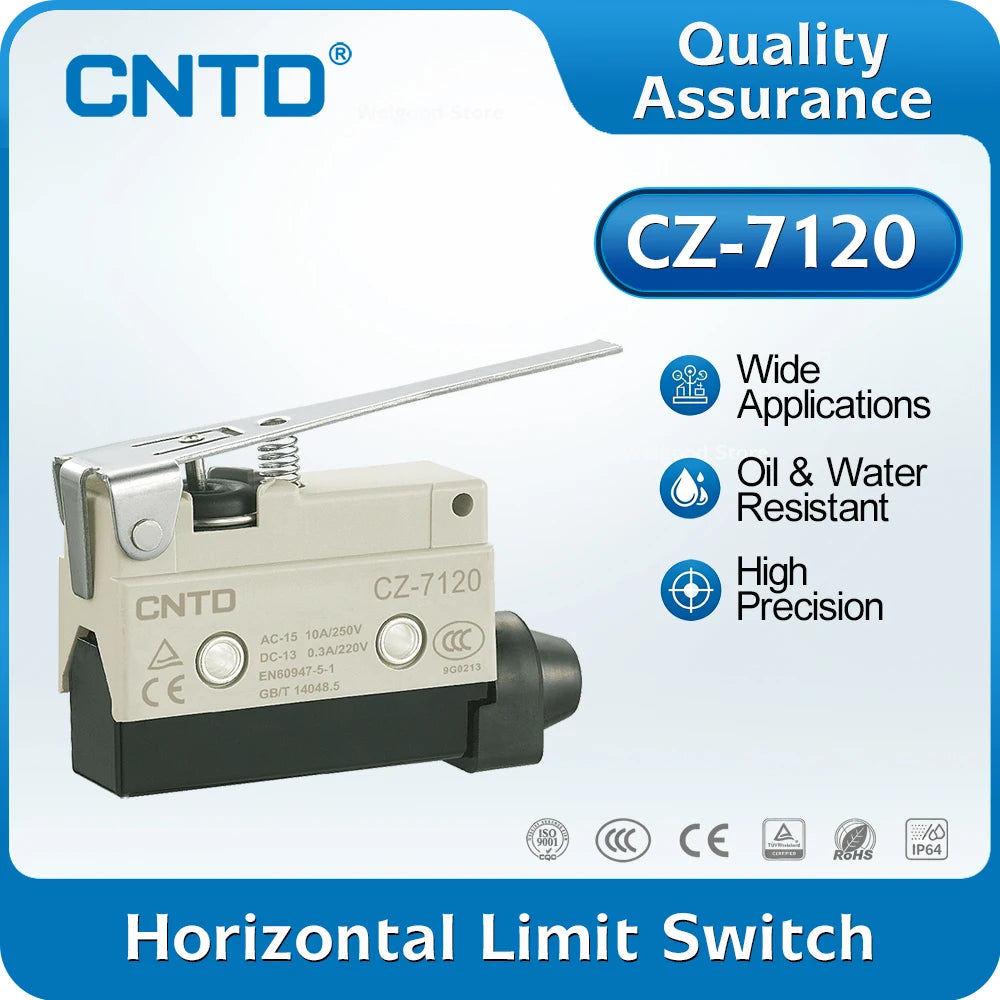

CNTD CZ‑7120 Limit Micro Switch TZ AZ‑7120 Equivalent High Roller Short Lever 10A 250V 1NO 1NC IP64 Snap Action 100% GENUINE

CNTD CZ‑7120 Limit Micro Switch TZ AZ‑7120 Equivalent High Roller Short Lever 10A 250V 1NO 1NC IP64 Snap Action 100% GENUINE

$18.32

$18.32 $0.00

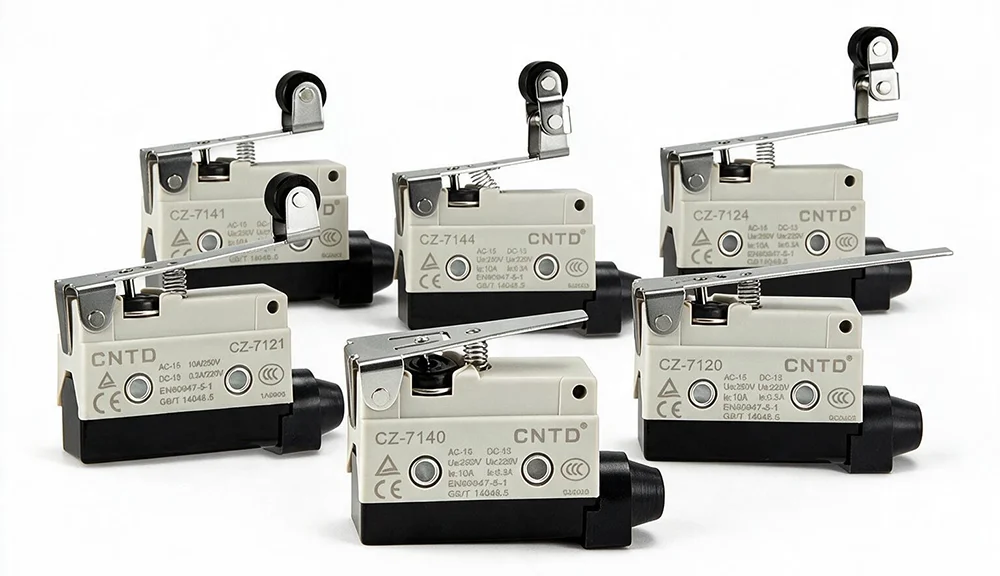

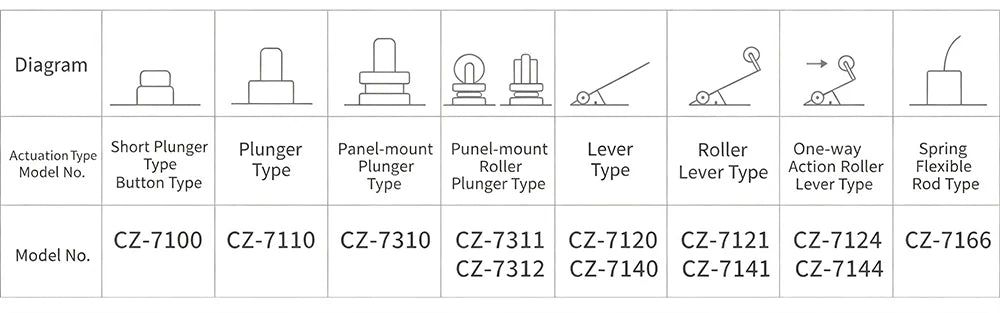

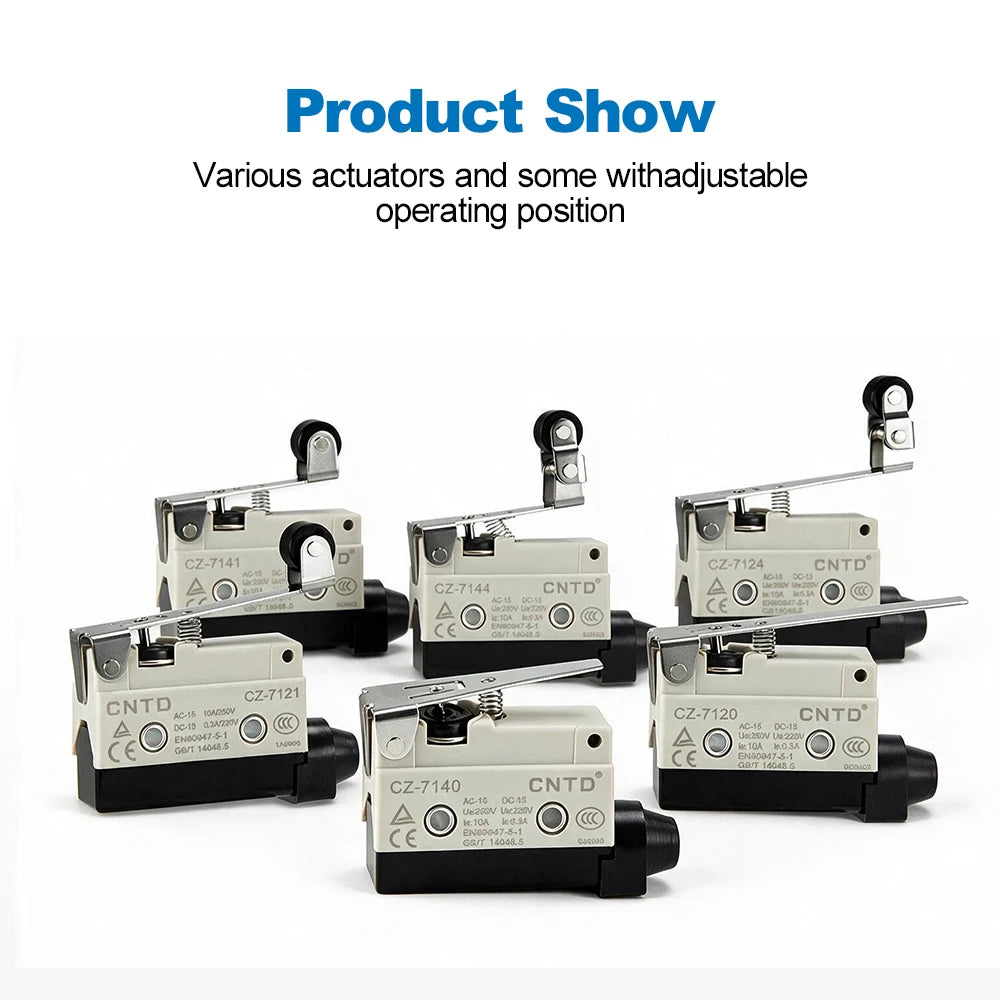

Color CZ-7120 CZ-7121 CZ-7124 CZ-7140 CZ-7141 CZ-7144

Description

SPECIFICATIONS

Brand Name: NONE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Material: Plastic

Model Number: CZ-7120

Origin: Mainland China

Special Requirements: Customizable on request. Bulk pricing available.

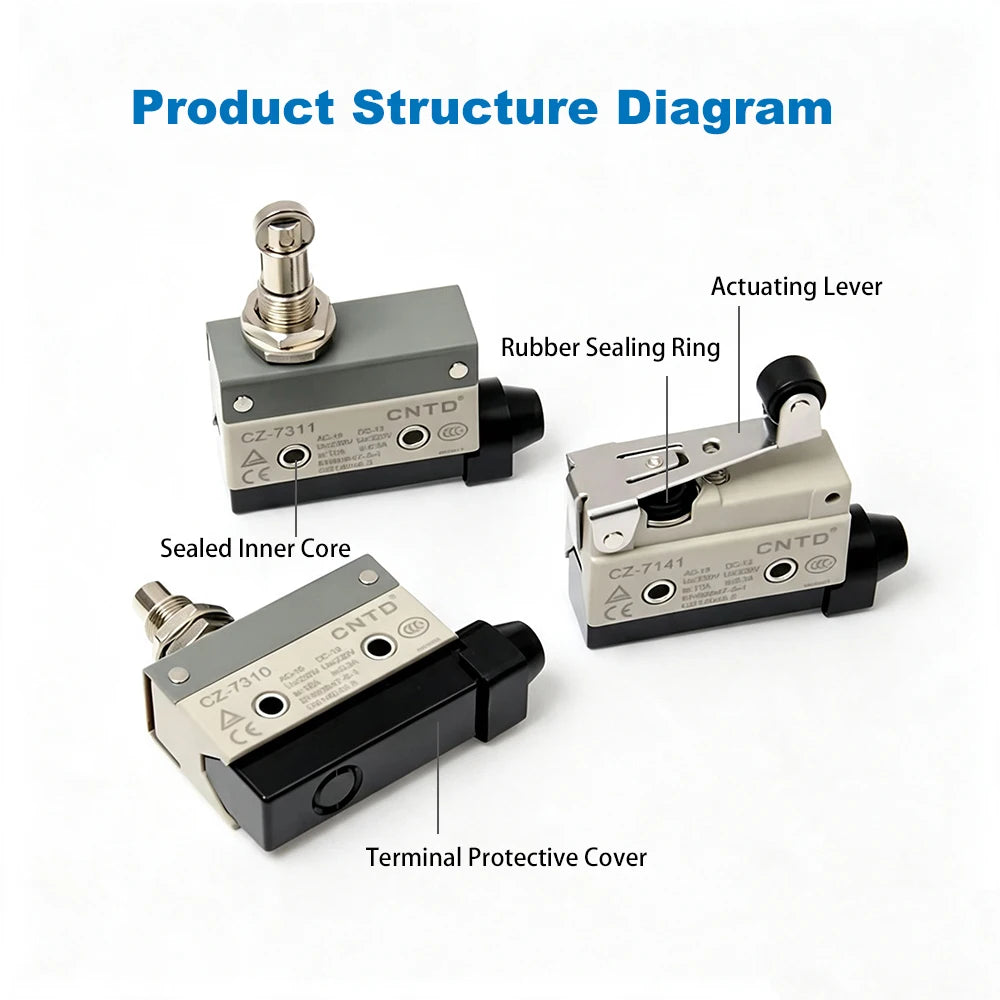

1.Features

Oil & water resistant — covered with water-proof and oil-proof plastic
High precision sensing with adjustable motion position mode
Reinforced plastic outer case for improved durability
AShell intensive cover for full-body protection
Clear logo marking, suitable for a range of industrial applications

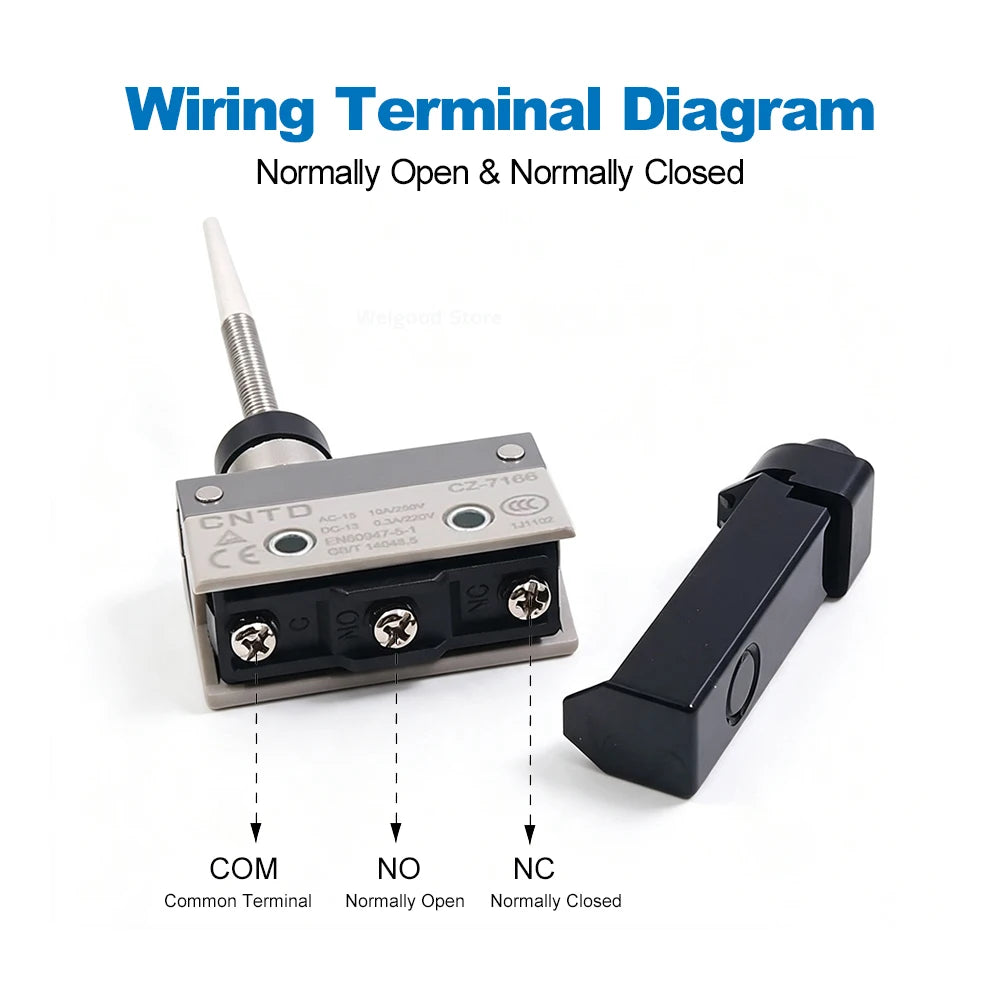

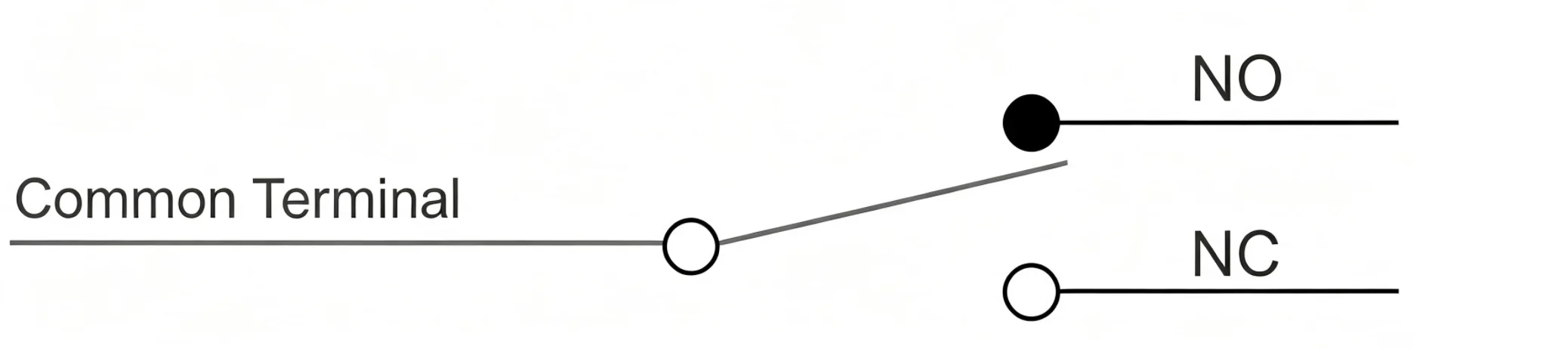

2.Contact Form

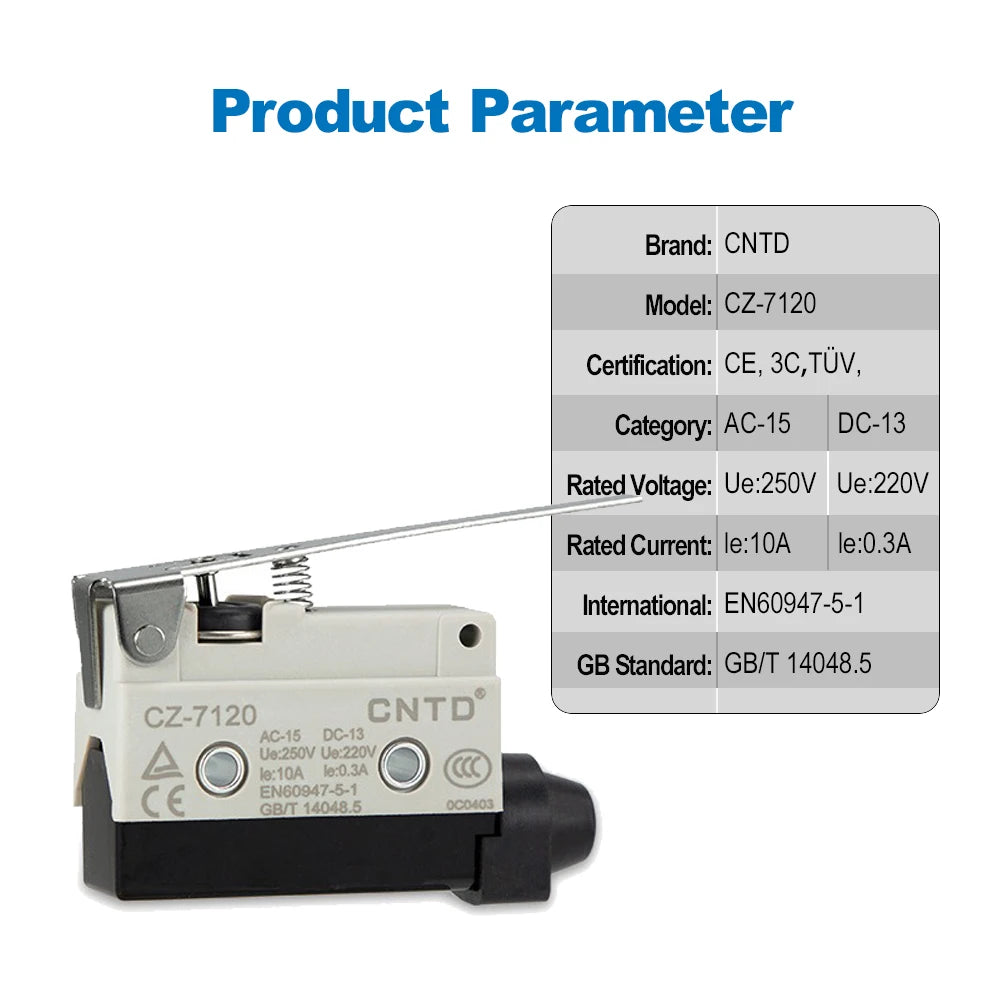

3.Key attributes

Parameter 1	Value 1	Parameter 2	Value 2
Max. Voltage	250VAC	Max. Current	10A
IP level	IP64	Operating Temperature	-20~+70℃(With no icing)
Contact Arrangement	SPDT	Termination Type	Screw
Material	Metal, plastic	Application	Industry Equipment, Industrial Switch
Whether The Smart	No	Model Number	CZ-7120,CZ-7121,CZ-7124,CZ-7140,CZ-7141,CZ-7144
Place of Origin	Zhejiang, China	Brand Name	CNTD
Name	Limit Switch	Feature	Water-proof and oil-proof construction
Operating Speed	0.05mm-0.5m/s	Operating Frequency	Electical: 20 operations/min
Contact Resistance	25mΩ max.(initial value)	Insulation Resistance	100mΩ above(at 500VDC)
Ambient temperature	Using: -20~+70℃ (With no icing)	Humidity	<95% RH
Electrical Life	500,000 operations above	Certification	TUV, ISO9001, CCC, CE

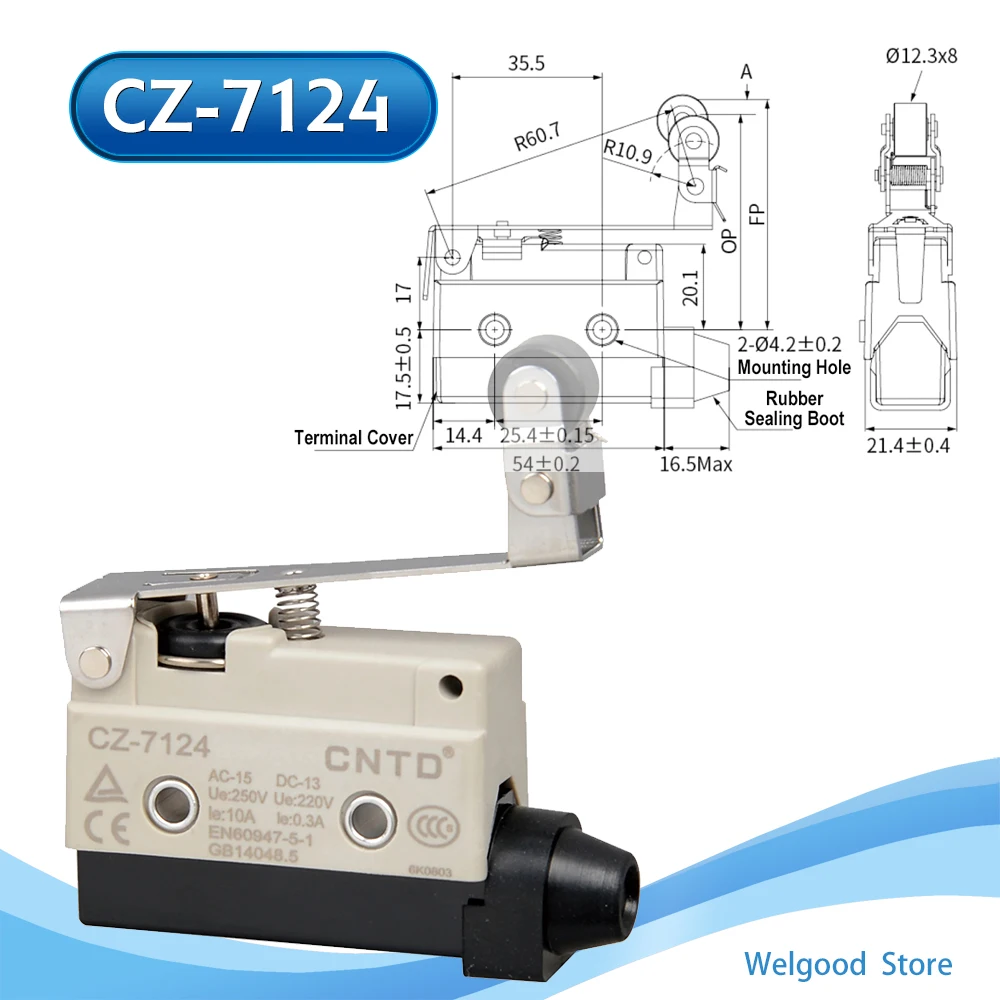

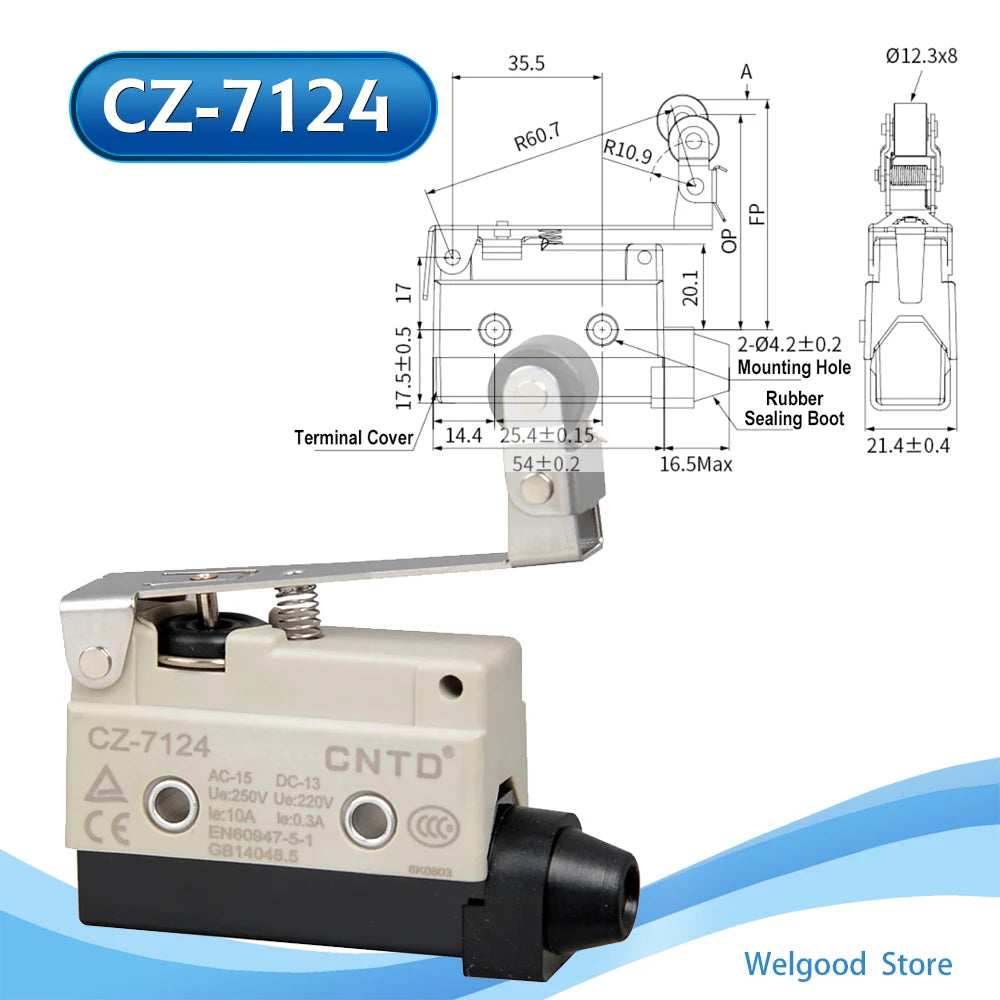

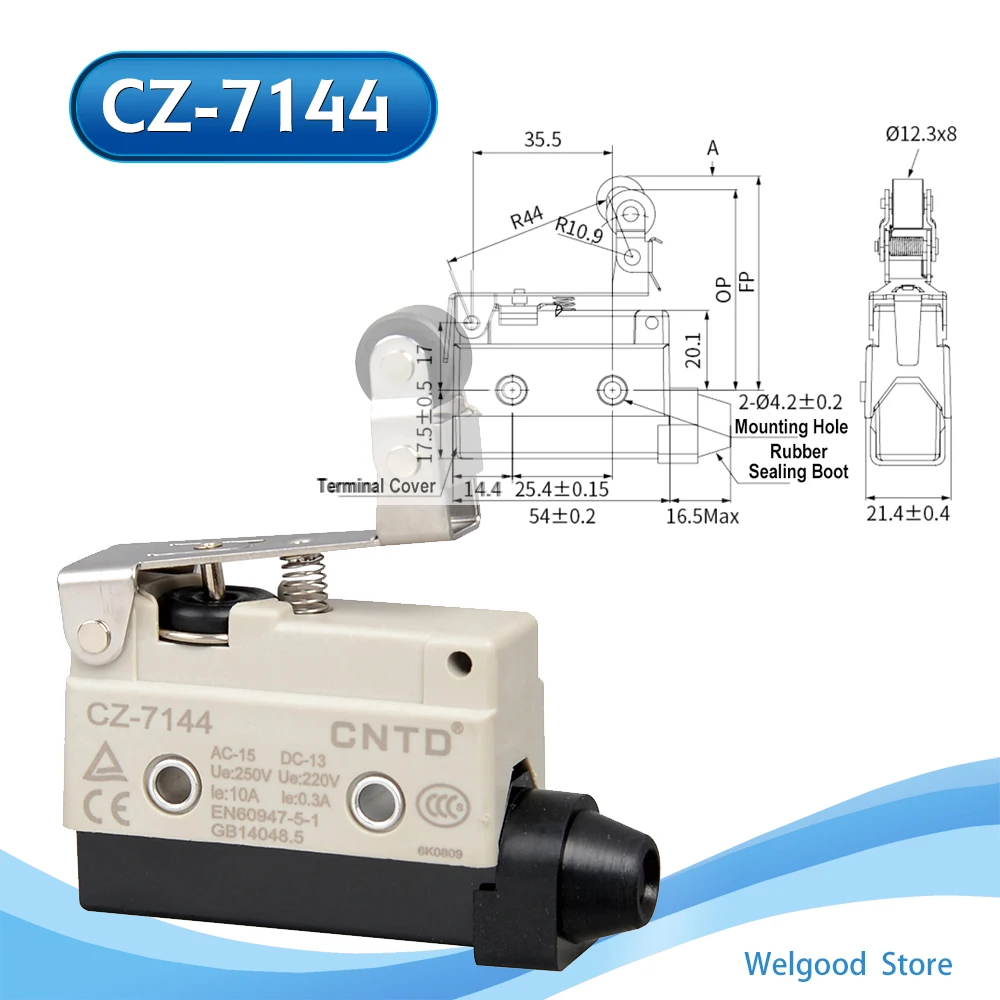

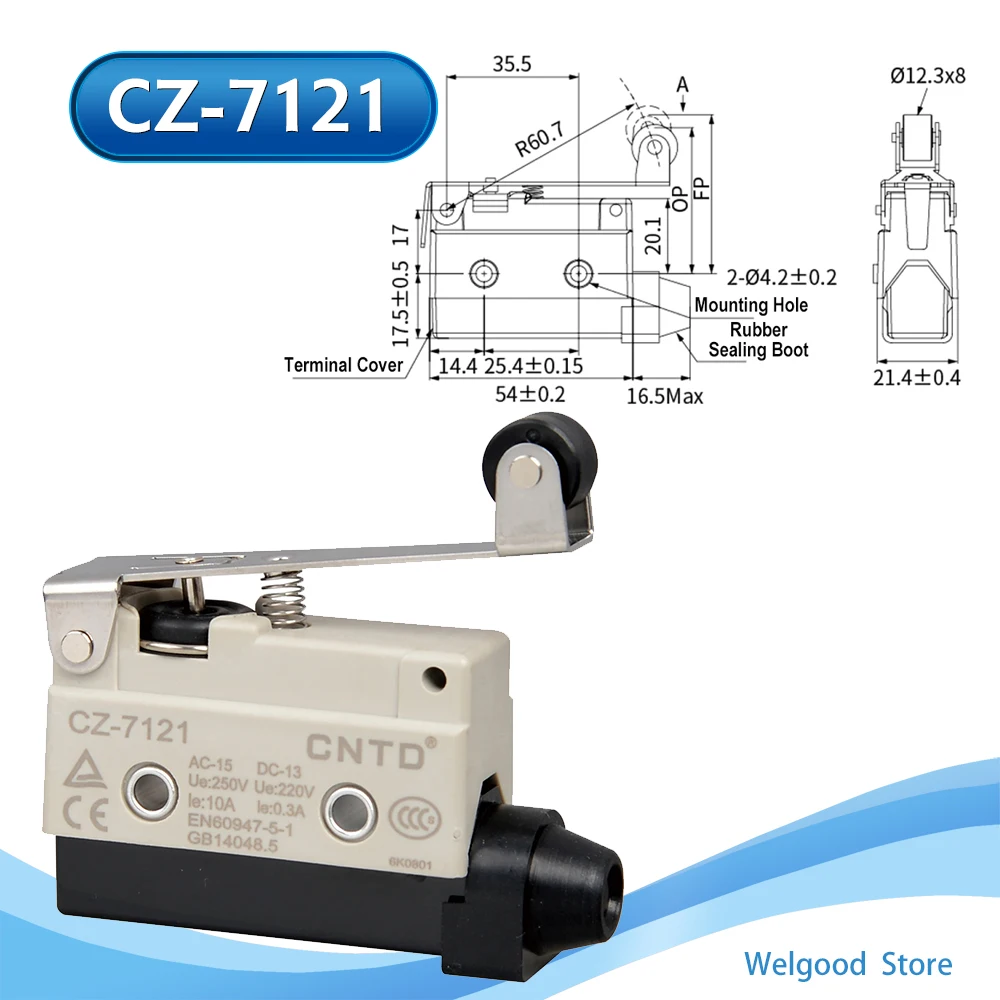

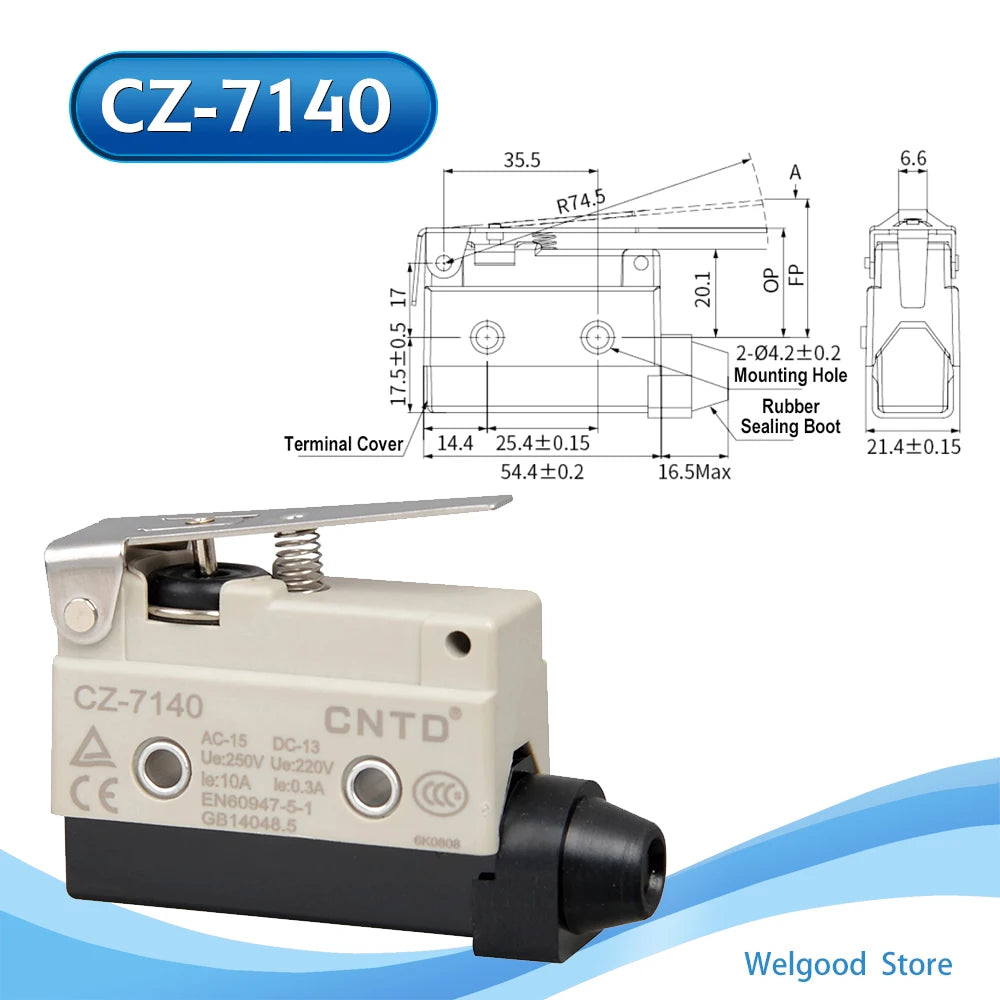

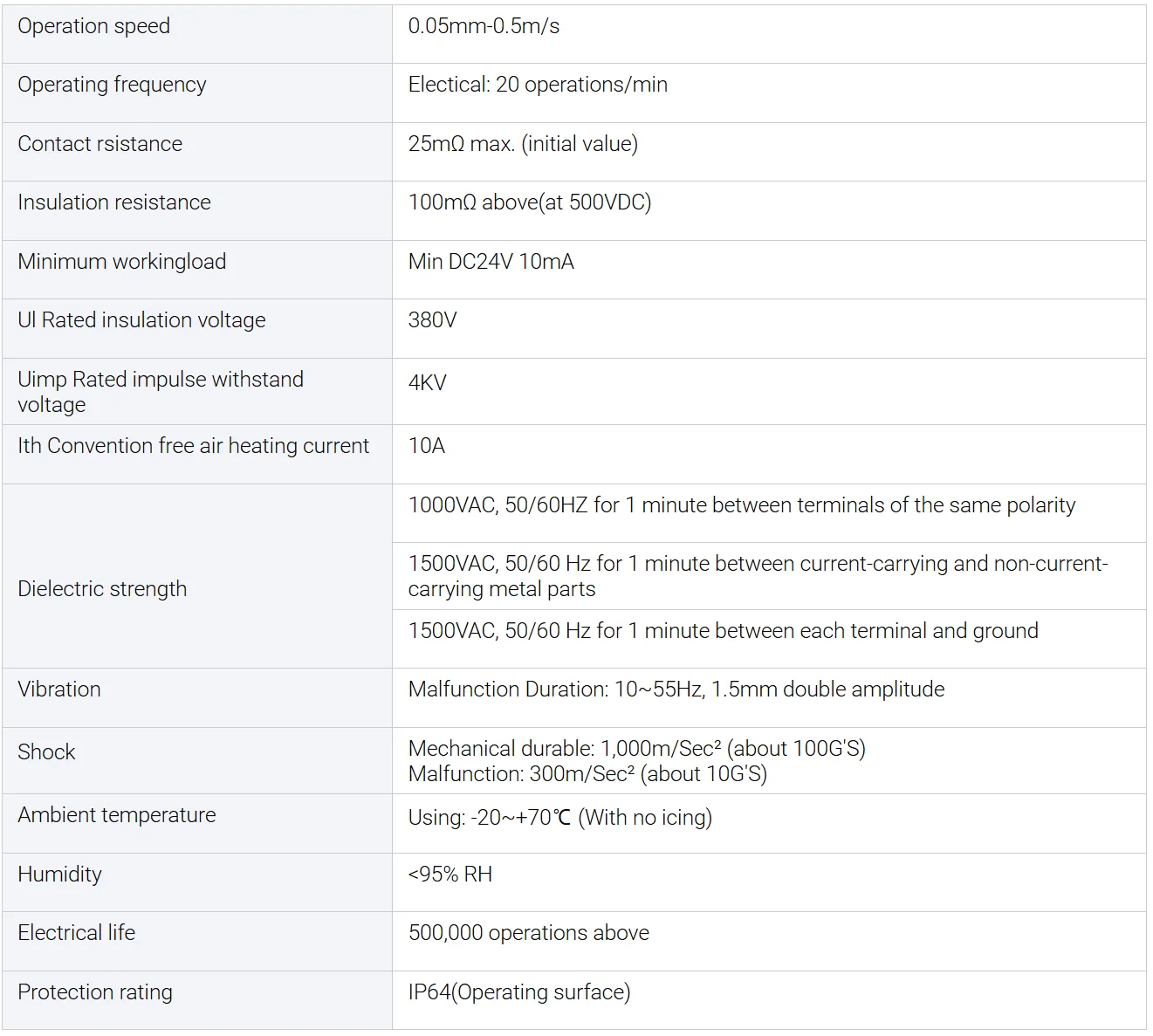

4.Specifications

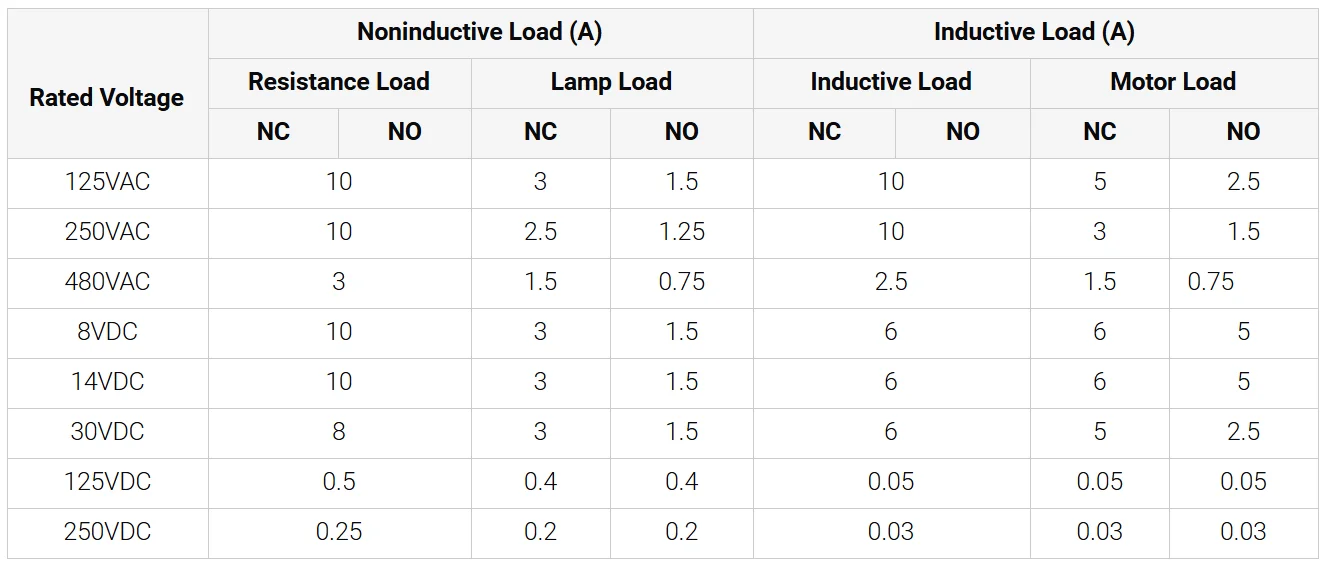

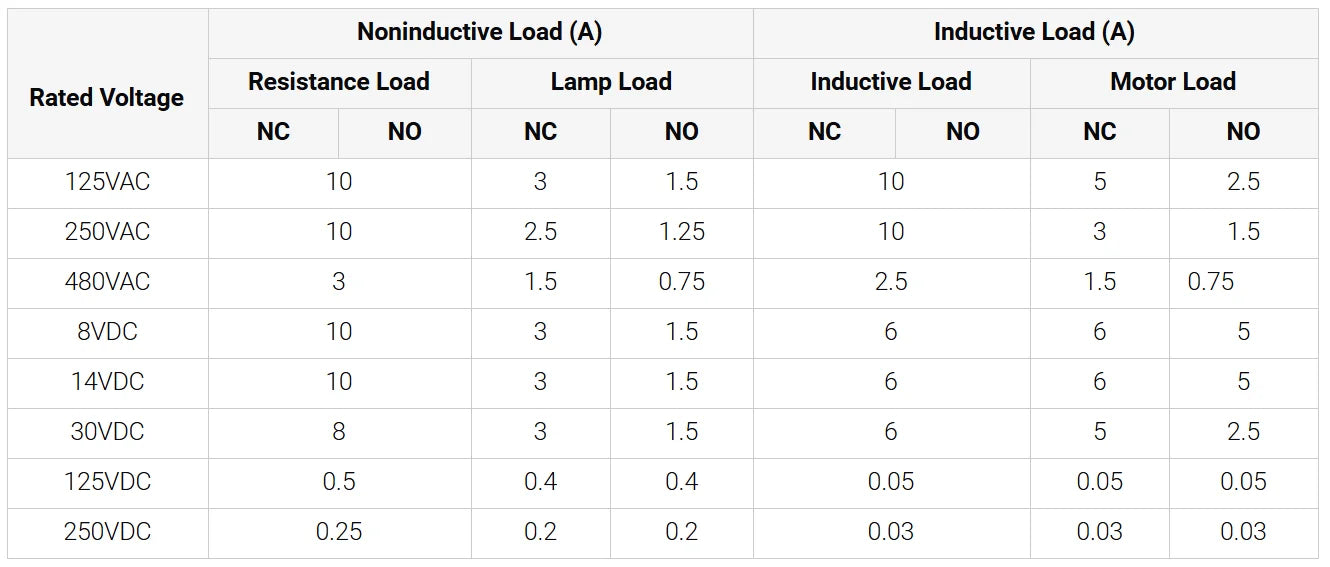

5.Ratings

NOTES:

1.Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 msec. max. (DC).

 2.Lamp load has an inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.
 3.Product with spring, its usable range of operating part is within one third of whole spring length from the front end of spring.
