SPECIFICATIONS

1.SpringRodActuator-OmnidirectionalTrigger

Flexible coil springrodbends and triggers from anyapproachdirection.

Adapts toirregular cam shapes andnon-uniformmovingparts where arigidlevercannot.

Returns to original shape after eachactuation-nofixedoperatingpositionrequired.

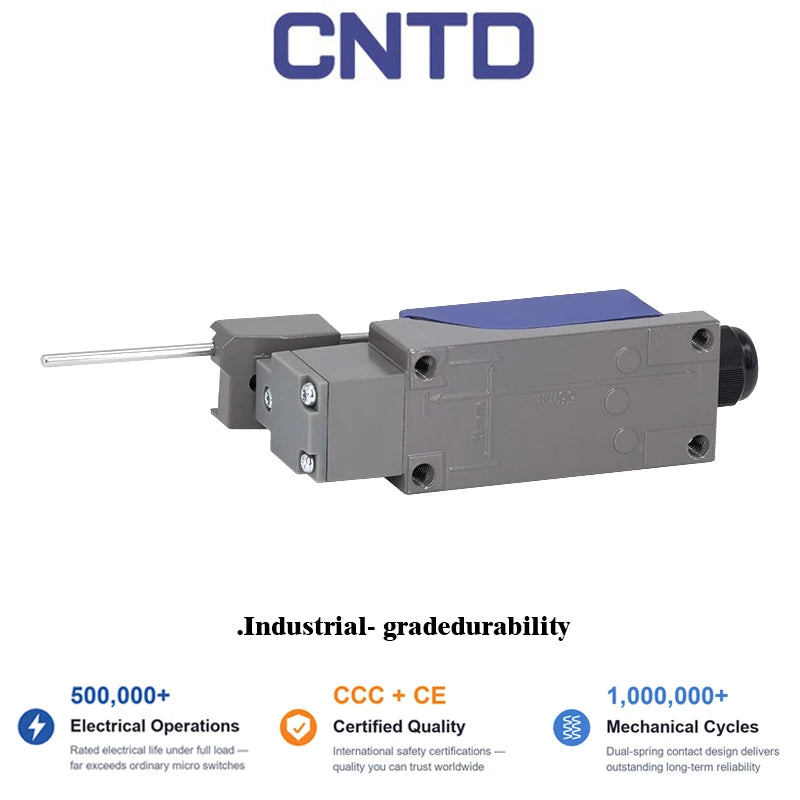

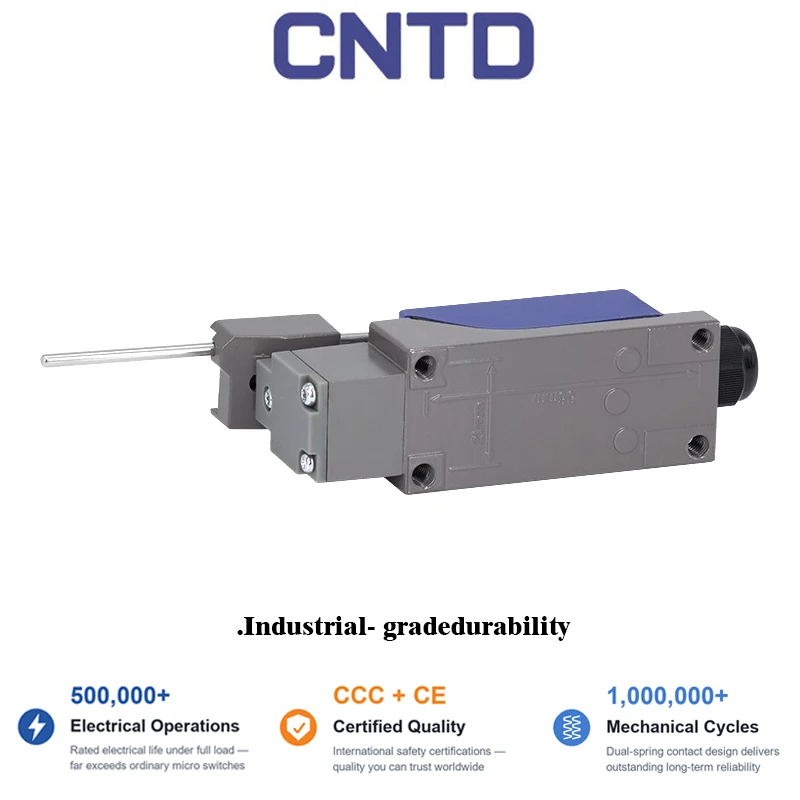

2.Industrial-GradeDurability

Electricallife>=500,000 operations(fullload).

Mechanicallife>=10,000,000 operations.

Double-spring contact design for stableactuation.

Silver-alloy contacts-high conductivity, oxidationresistant.

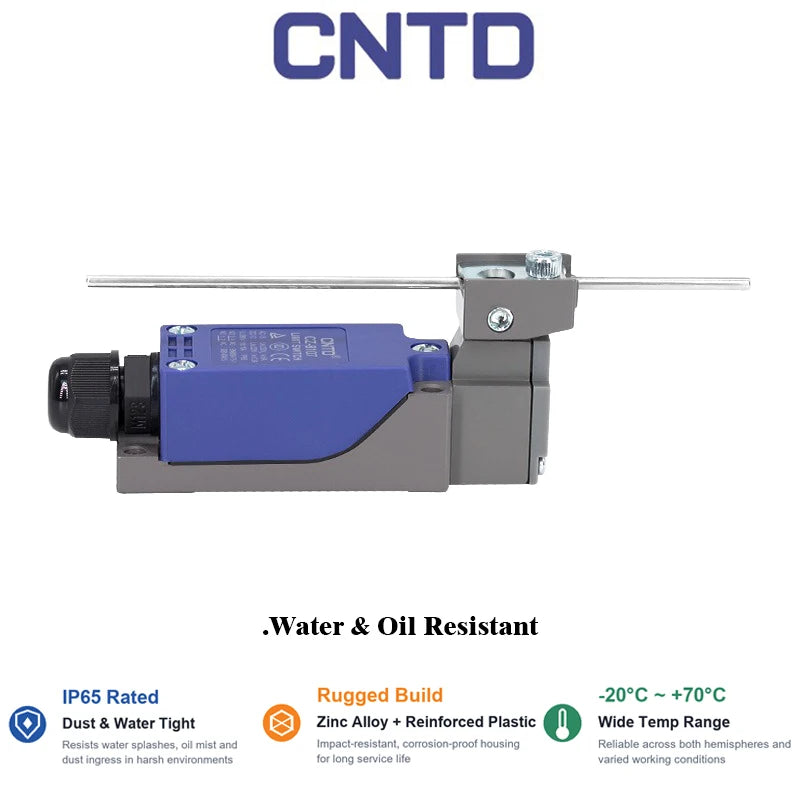

3.IP65WaterproofandDustproof

IP65rating- dust-tight andprotected against waterjets from anydirection.

Zinc-alloy die-casthousing+reinforcedplastic-impactresistant, oil-mistresistant.

Operating temperature(-20 to+70 C).

PG11.5 cable gland at the tail-bettersealing thantheTZ-8series.

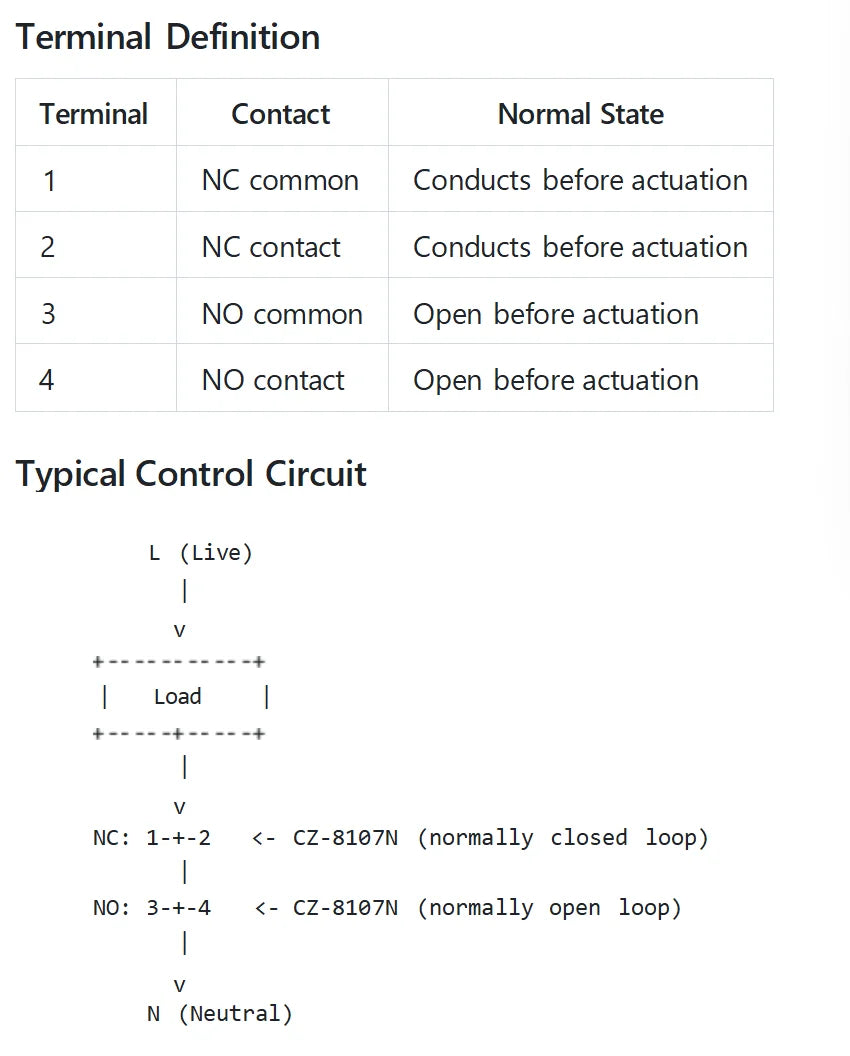

4.DualIndependentCircuits

SPDT contact form:1Normally Open(NO:3-4)+1Normally Closed(NC:1-2).

Outputsboth"arrived" and"departed" signals simultaneously.

Rated5A at 250VAC, covering8V-250VDC widerange.

5.FullCertifications-GlobalCompliance

CCC(China Compulsory Certification).

CE(EU Conformity).

ISO 9001 QualityManagementSystem.

Ready to export toEU,Russia, SouthAmerica,etc.

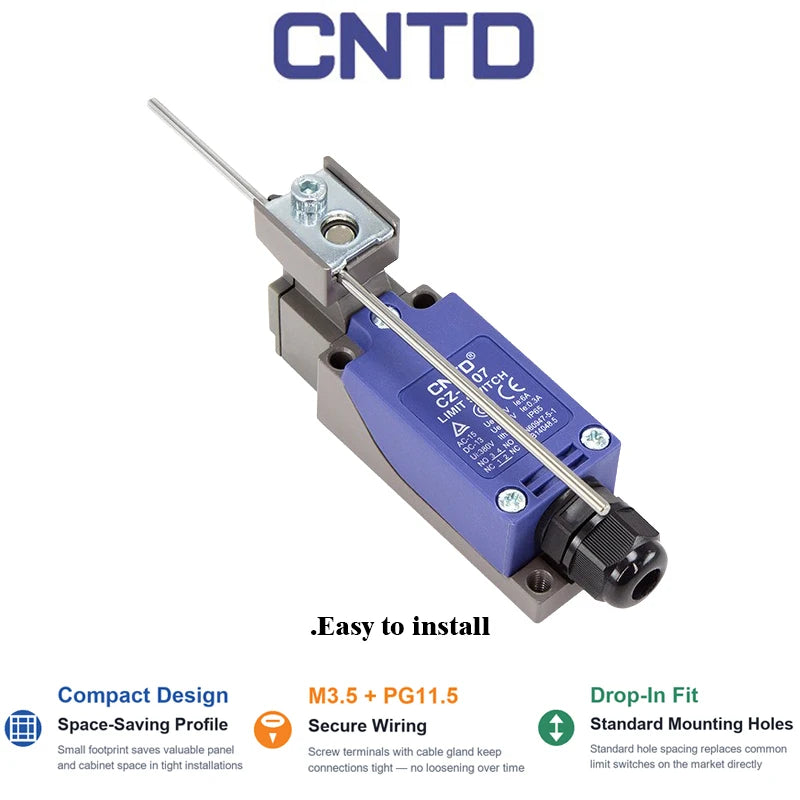

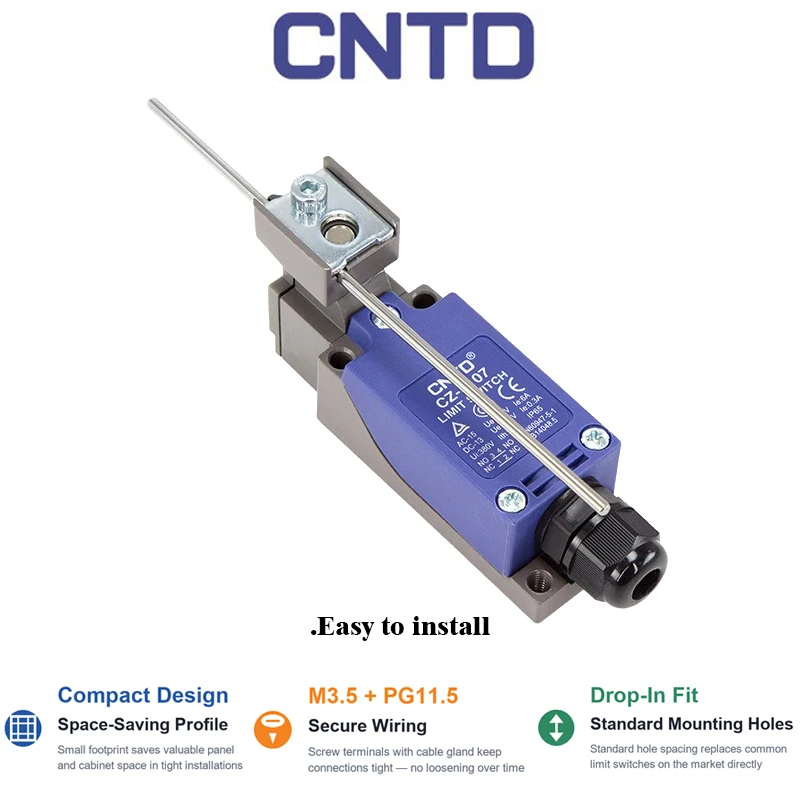

6.EasyInstallationandDrop-inReplacement

4xM5mountingholes, standardpitch56x21mm.

Directreplacement for Omron WLCA /Honeywell and otherinternationalbrands with samefootprint.

M3.5 terminal screws- secure,non-loosening wiring.

Compactbody: 49mmheight x 30mm width.

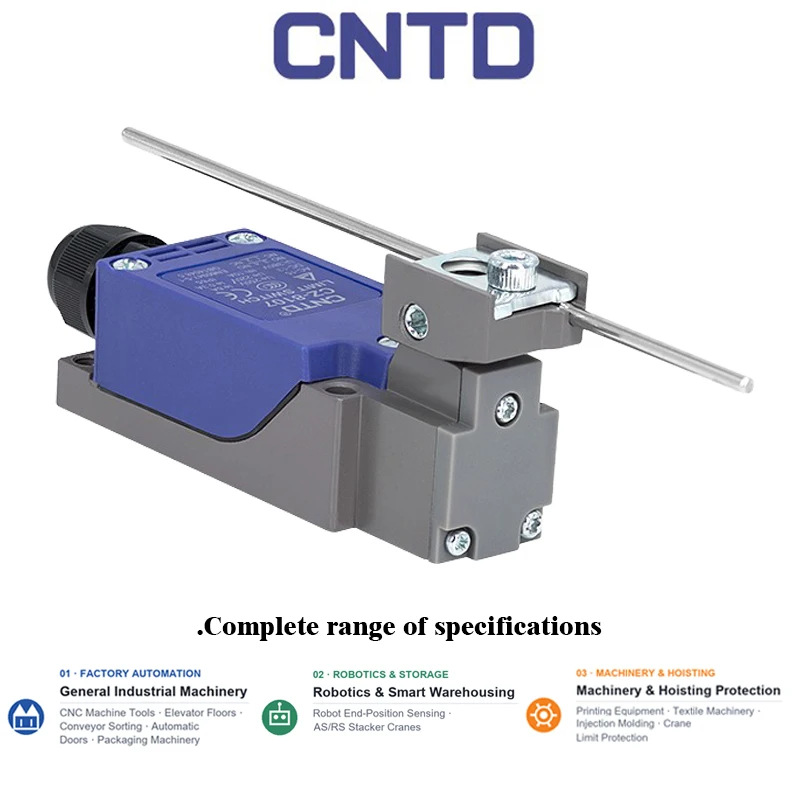

7.WideApplications-IndustrialEssential

Irregular cam detection on textile andpackagingmachinery.

Any-directionposition detection on conveyors andhandling equipment.

CNCmachine tool axis travellimits.

Elevator floorpositioning, safety door detection.

Automatic door,roller shutter open/closelimits.

Crane anti-collisionlimits androbotic end-effector feedback.

2.ProductDescription

EnglishDescription

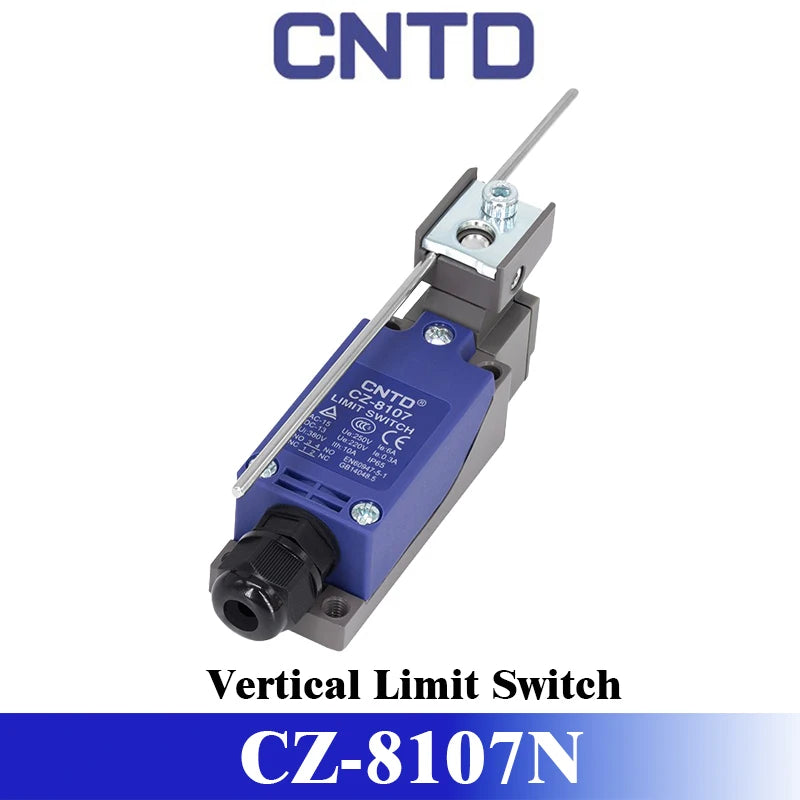

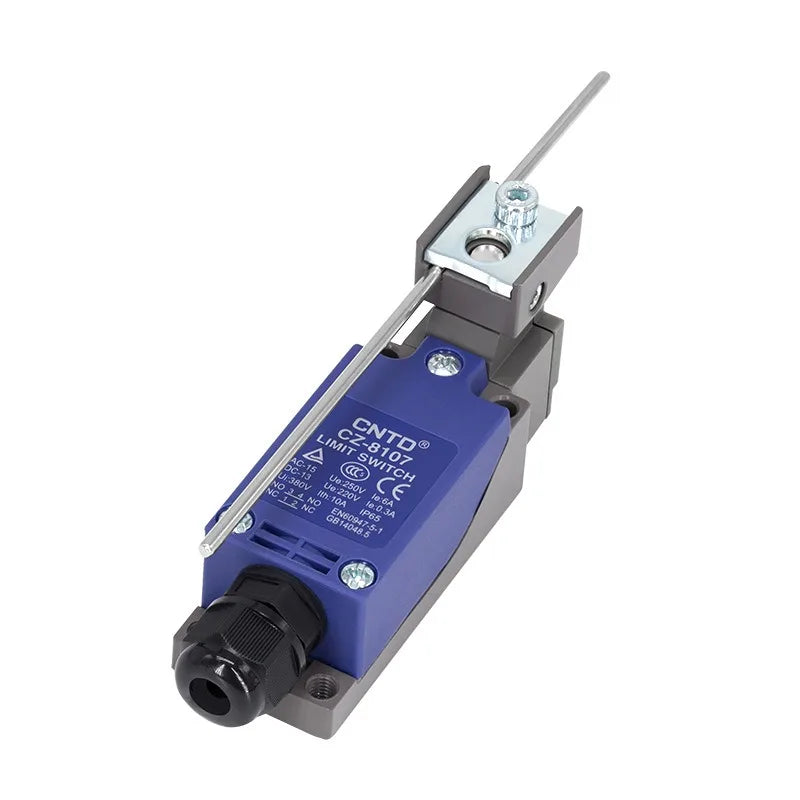

CNTD CZ-8107N VerticalLimit Switch- SpringRod Actuator forOmnidirectional Trigger

The CNTD CZ-8107Nis a verticallimit switch featuringaflexiblecoilspringrodactuator,

engineered for applications where the detection target approaches fromvaryingornon-fixeddirections, or where the contact surfaceisirregular.Unlike arigidrollerlever,thespringrod

bends on contact andreturns to shape,makingitidealforcamsofunevenshapeandforpartsthatmove along curved orunpredictablepaths.

KeyFeatures:

Springrod actuator- triggers from any direction, adaptstoirregularcams

SPDT dual-circuit contacts(1Normally Open+1Normally Closed)

IP65protection- dust-tight andprotected against waterjets

5Arated current at250VAC(resistiveload)

Wide voltagerange: AC125/250V,DC 8V-250V

Electricallife>=500,000 ops,Mechanicallife>=10,000,000 ops

4xM5mountingholes at standard56x21mm spacing

CCC+ CE certified forglobalindustrialmarkets

Typical Applications:Irregular cam detection on textile andpackagingmachinery,any-directionposition detection on conveyors, CNCmachine tool travellimits,elevatorfloorpositioning,

automatic door open/closelimits, crane anti-collisionprotection, androboticend-effectorfeedback.

PackageIncludes:

1x CZ-8107Nlimitswitch

1xPG11.5 cable gland(pre-installed)

1xEnglishusermanual

1x Wiring diagramcard

Certifications:ISO 9001:2015| CCC(China Compulsory Certification)| CE(EUConformity)

3.FullSpecifications

A.GeneralSpecifications

B.ElectricalRatings

C.OperatingCharacteristics

D.Dimensions

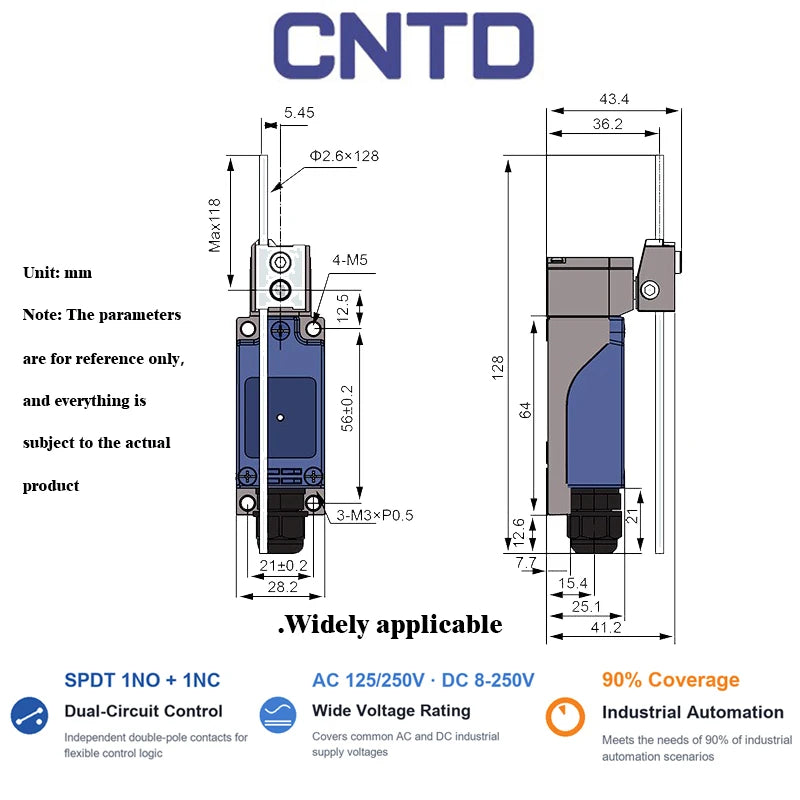

4.DimensionsandInstallation

MountingDiagram(ASCII)

Spring Rod (coil)

/\/\

/ \

+---------+---------+

| CNTD CZ-8107N |

| Blue Zinc Housing |

| |

| 4xM5 Holes |

| O O | <- 56mm pitch (long edge)

| O O |

| | <- 21mm pitch (short edge)

+---------+---------+

PG11.5

Cable Gland
