SPECIFICATIONS

Brand Name: NONE

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Material: Alloy

Model Number: CZ-8112N

Origin: Mainland China

Switch Type: Limit switch

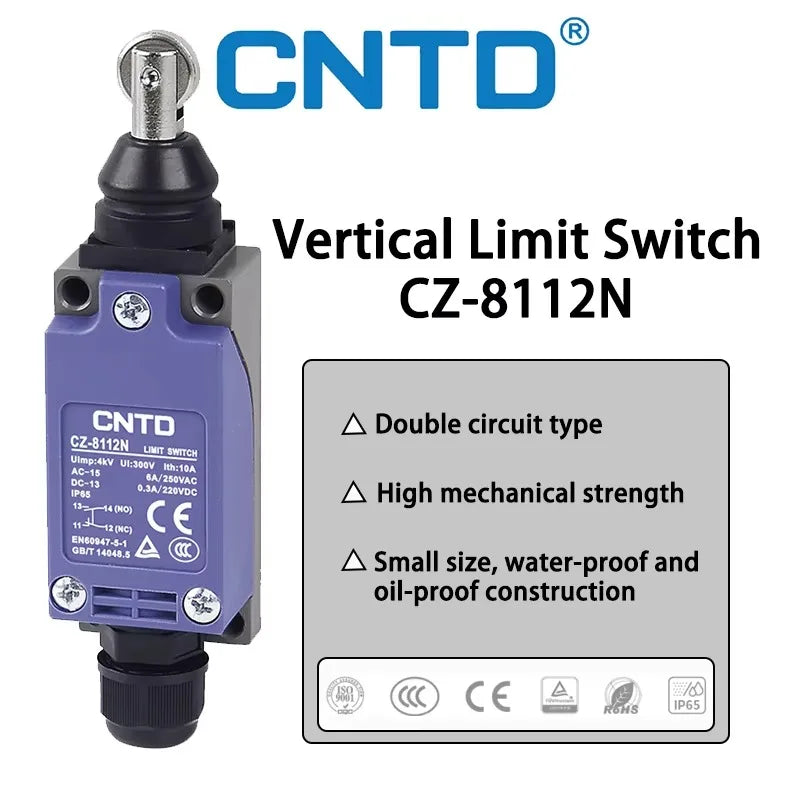

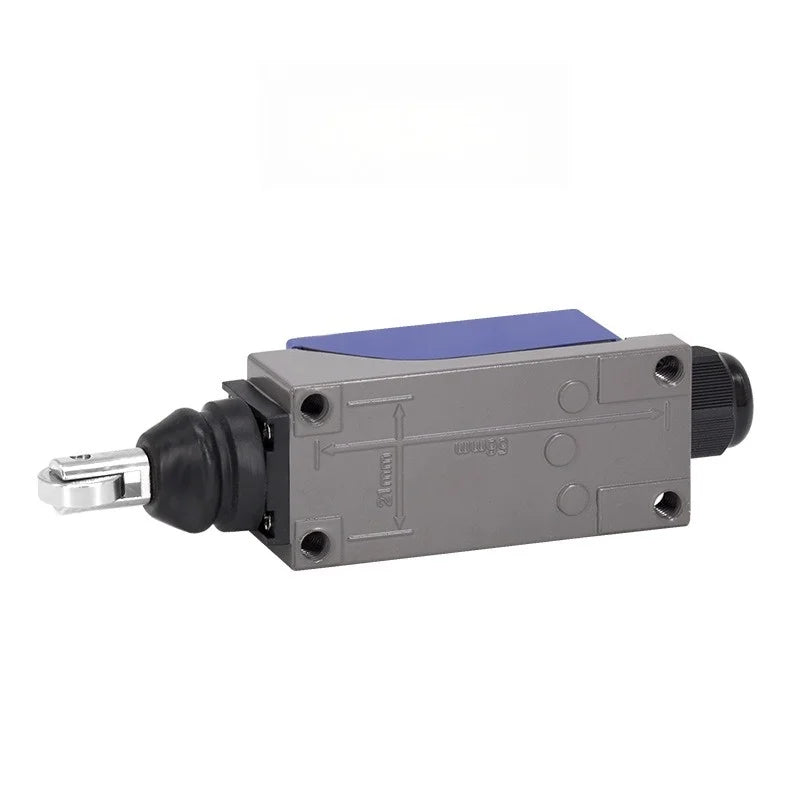

The CNTD CZ-8112N is a high-precision roller plunger type limit switch of the CZ series industrial position control switches. Adopting vertical roller plunger actuation structure, this switch features low friction triggering, smooth stroke operation and high positioning repeatability, perfectly suitable for vertical reciprocating stroke limiting and precision mechanical position detection. Built with high-strength zinc alloy die-cast housing and fully sealed structure, it owns IP65 dustproof, waterproof and oil-proof performance. Equipped with a built-in double-spring microswitch mechanism, it delivers stable signal output, excellent vibration resistance and ultra-long service life. It is widely used in industrial automation lines, CNC machine tools, lifting machinery, packaging equipment and other mechanical stroke limit and overtravel protection systems.

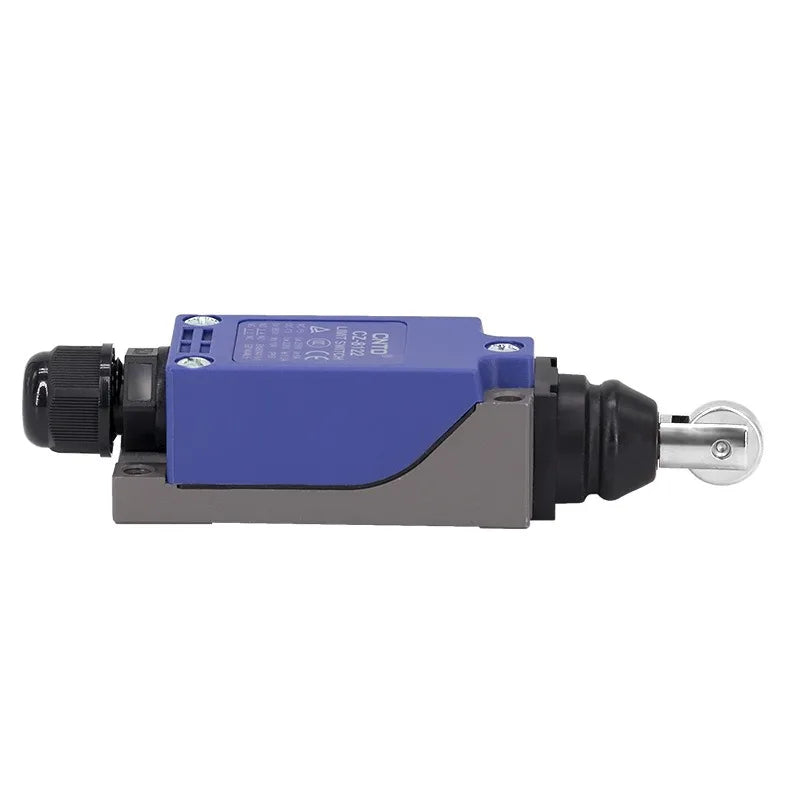

- Roller Plunger Structure: Vertical roller plunger design effectively reduces triggering friction, ensures smooth and jamming-free actuation, ideal for frequent vertical reciprocating motion and precision limit control scenarios.

- Heavy-Duty Industrial Housing: High-strength zinc alloy die-cast shell with anti-collision, anti-wear and anti-deformation performance, stable for long-term operation in harsh industrial environments.

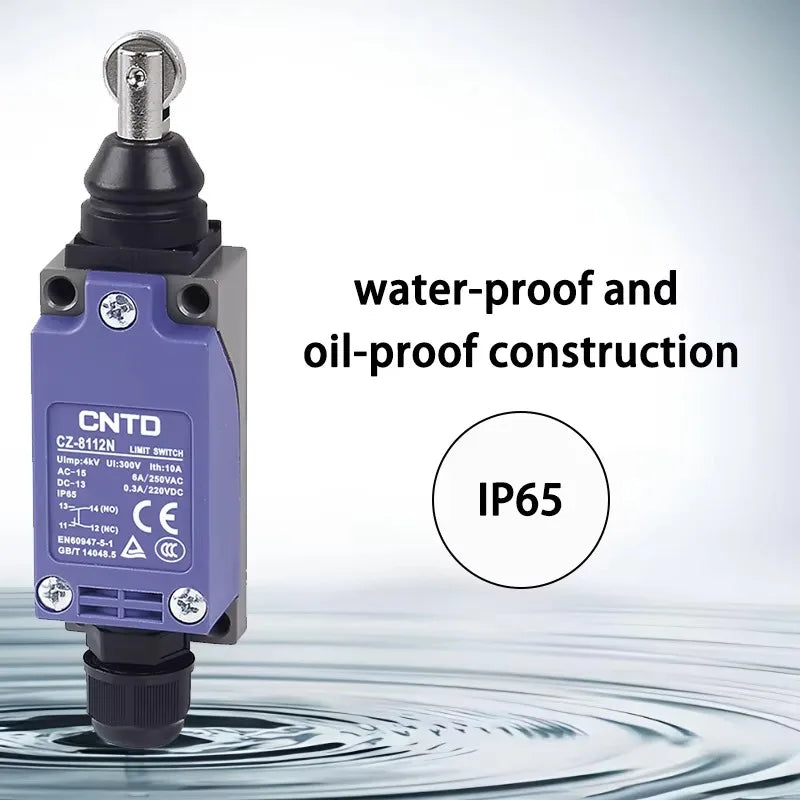

- IP65 Full Protection: Integrated sealing structure effectively resists industrial dust, water splash, lubricating oil and humid air, ensuring stable operation in oily and dusty workshops.

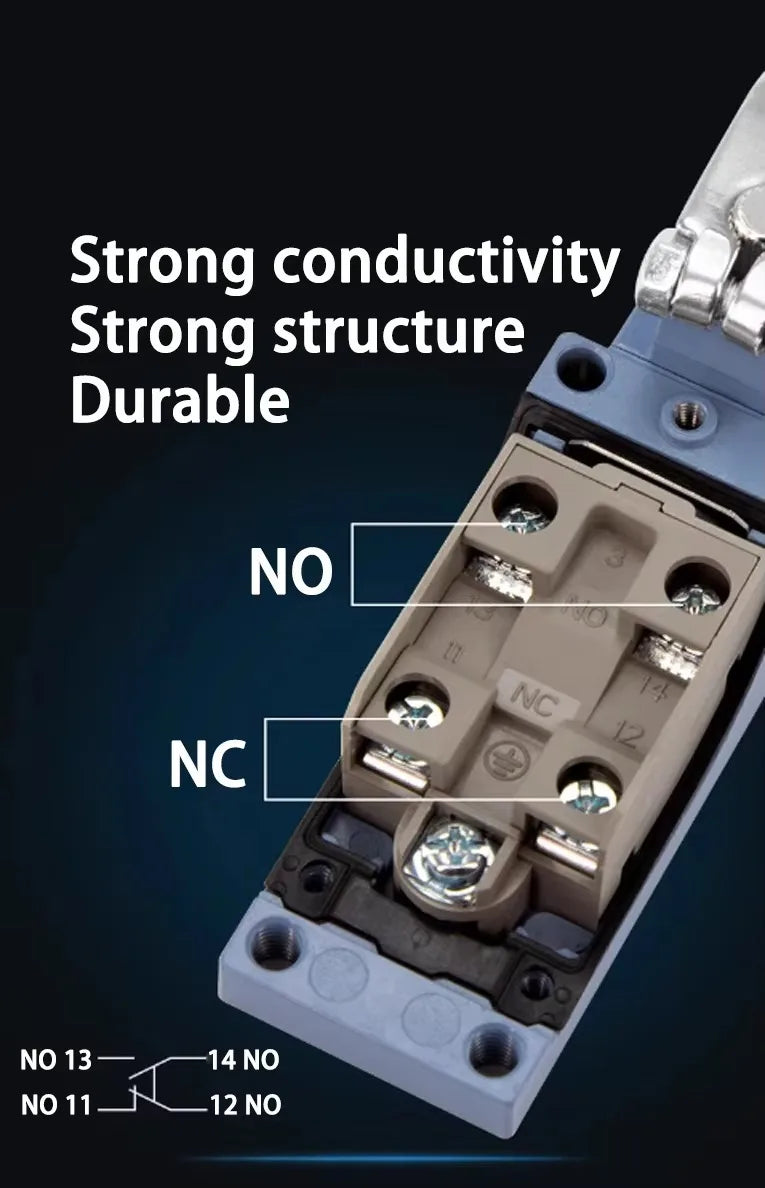

- Stable Contact Performance: High-precision double-spring reset mechanism ensures instant switching of NO/NC contacts, no delay or virtual connection during high-frequency cyclic operation.

- Ultra-Long Service Life: Optimized mechanical transmission structure, mechanical life up to 10 million times and electrical life over 500,000 times.

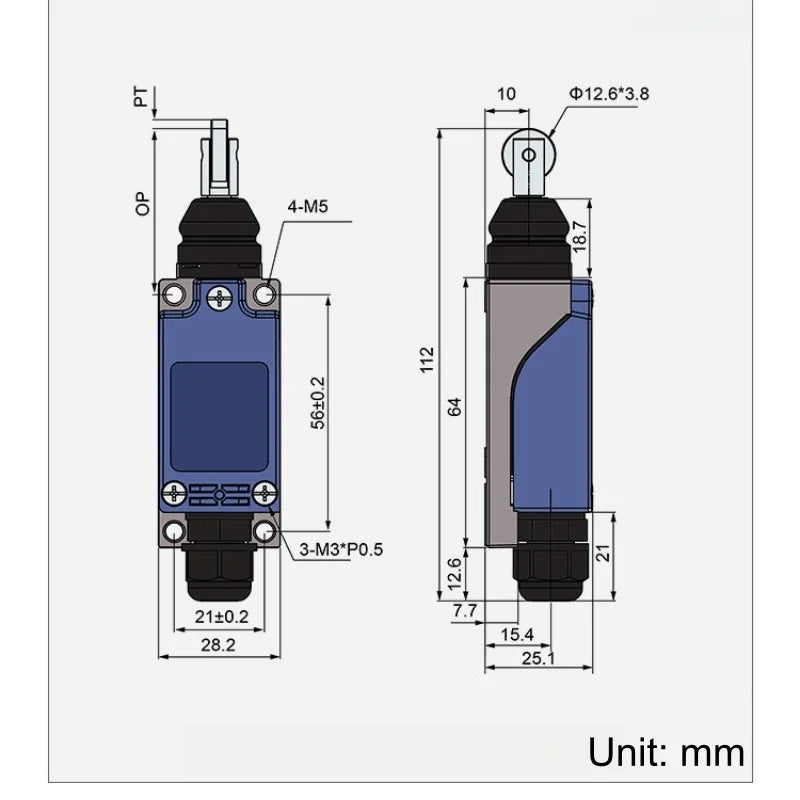

- Universal Standard Installation: Consistent mounting hole size and spacing with CZ/TZ series, compatible with most industrial equipment brackets, easy installation and wiring.

- Strong Environmental Adaptability: Excellent anti-vibration and anti-impact capability, maintaining stable triggering accuracy under dynamic working conditions.

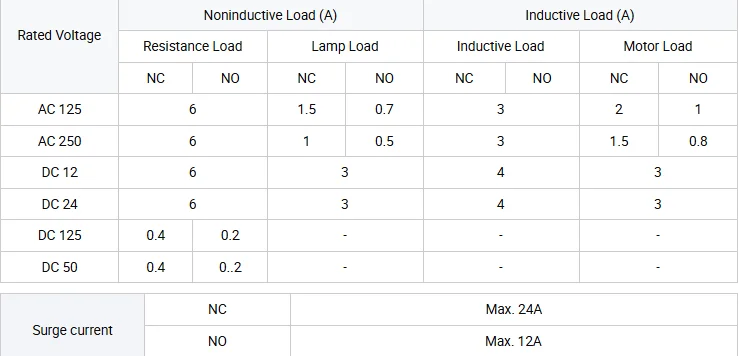

Operation Speed	5mm-0.5m/s
Operating Frequency	Electrical: 30 operations/min
Contact Resistance	25mΩ max. (initial value)
Insulation Resistance	100mΩ min. (below 500VDC)
Dielectric Strength	1000VAC,50/60Hz for 1 minute between terminals of the same polarity
	1500VAC,50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC,50/60Hz for 1 minute between each terminal and ground
Vibration	10-55Hz, 1.5mm double ampliude
Shock	Mechanical durable: 1,000m/Sec² (about 100G'S) Malfunction: 300m/Sec² (about 30G'S)
Ambient Temperature	Using: -20~+70℃ (With no icing)
Humidity	<95% RH
Electrical Life	500,000 operations above
Degree of Protection	IP65
Minimum working load	Min DC24V 10mA
Rated insulation voltage	300V
Rated impulse withstand voltage	4KV
Convention free air heating current	10A
