SPECIFICATIONS

Application Scenarios: Industrial Grade

Battery Included: no

Brand Name: CERTEON

DIY Supplies: Electrical

High-concerned chemical: none

Model Number: QT-10

Operating Environment: -10°C~+50°C, 0%RH~95%RH (non-condensing)

Optional Ranges: 0-2000ppm, 0-10000ppm

Origin: Mainland China

PCBincluded: No

Power Consumption: 0.3W (24VDC)

Power Supply: 10~30VDC (Average Current < 85mA)

Range: 0~5000ppm

Semi-finishedproduct: No

1. NOTE

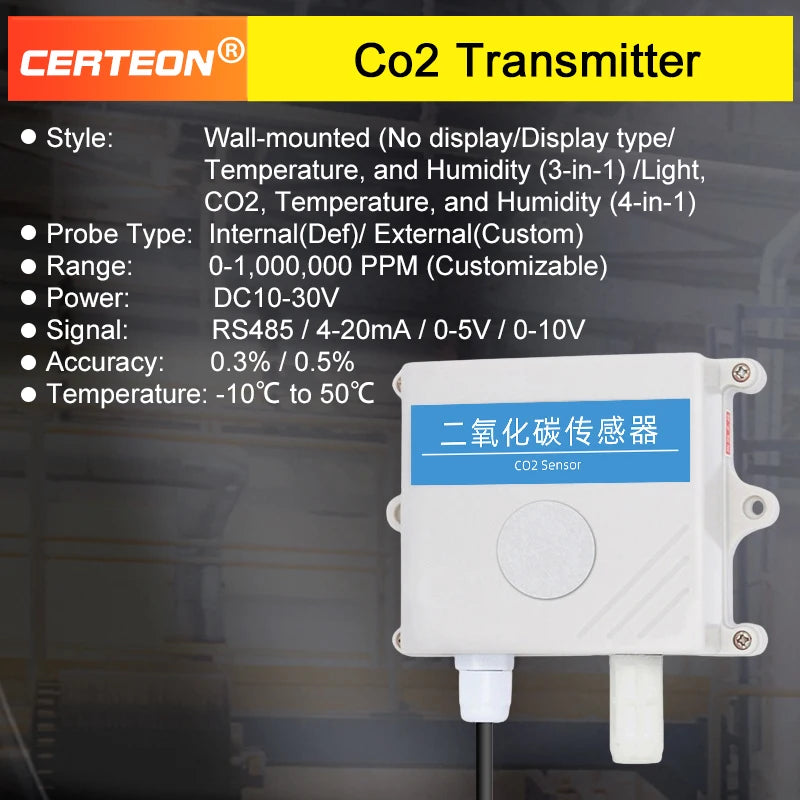

Default Configuration:

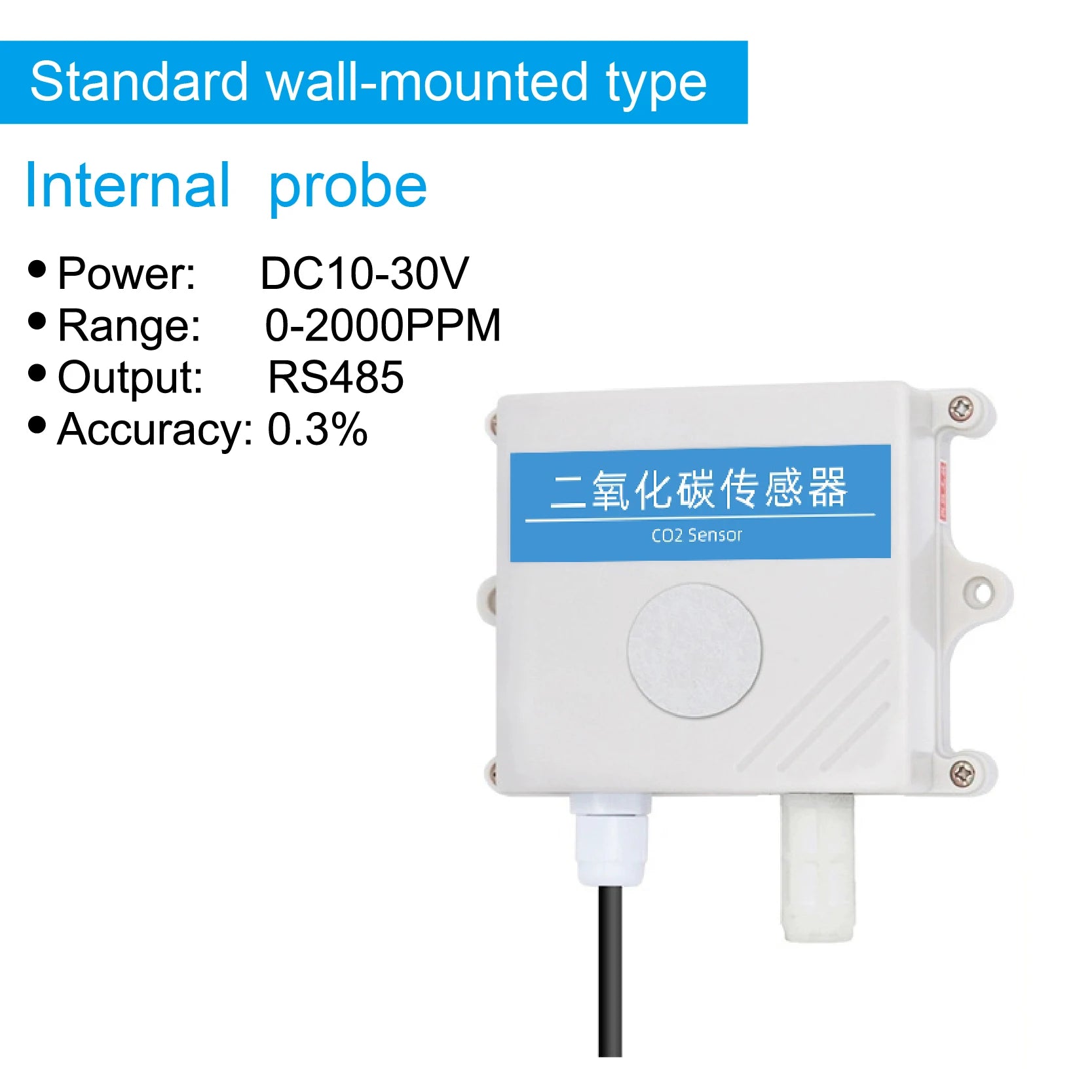

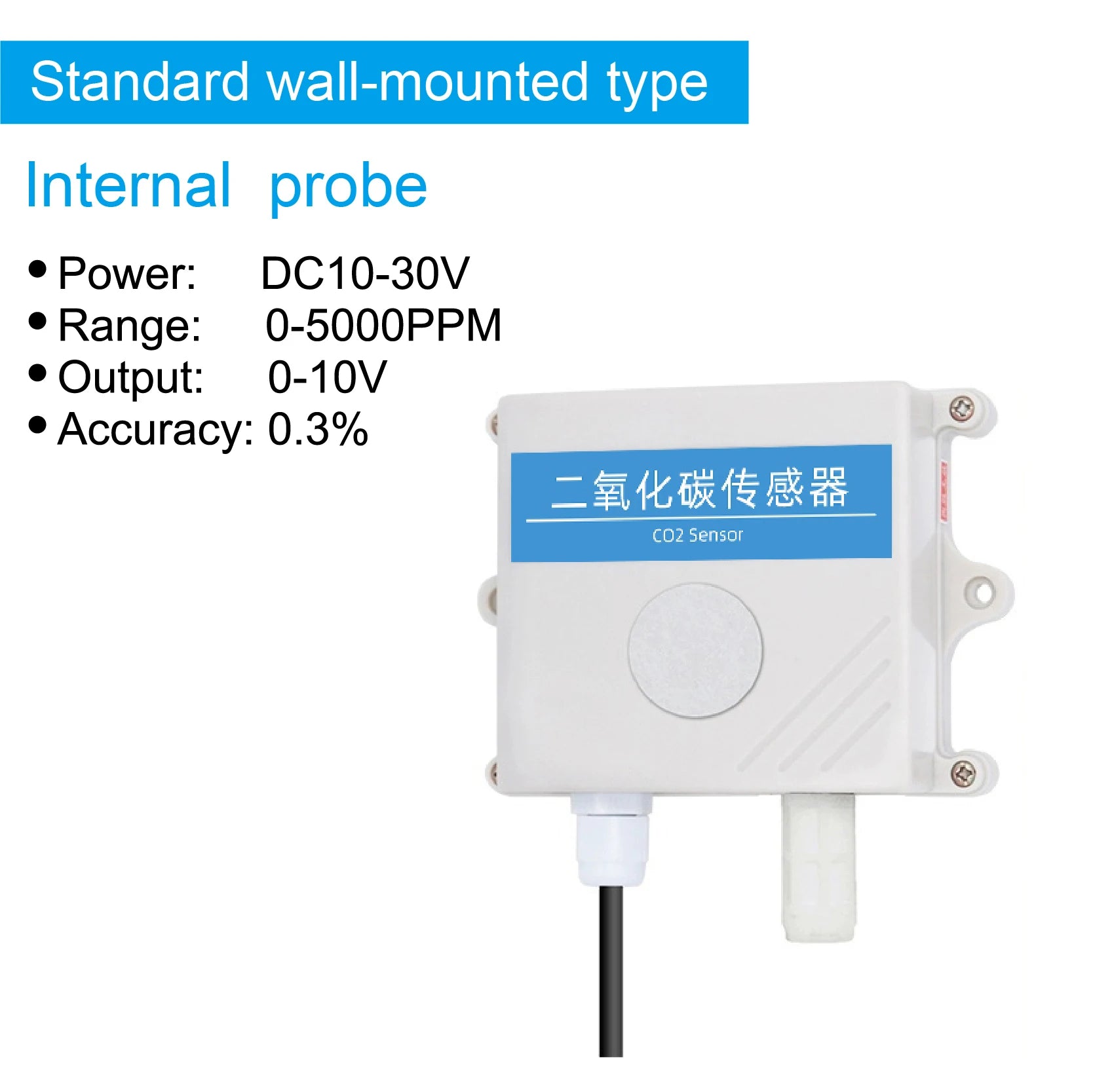

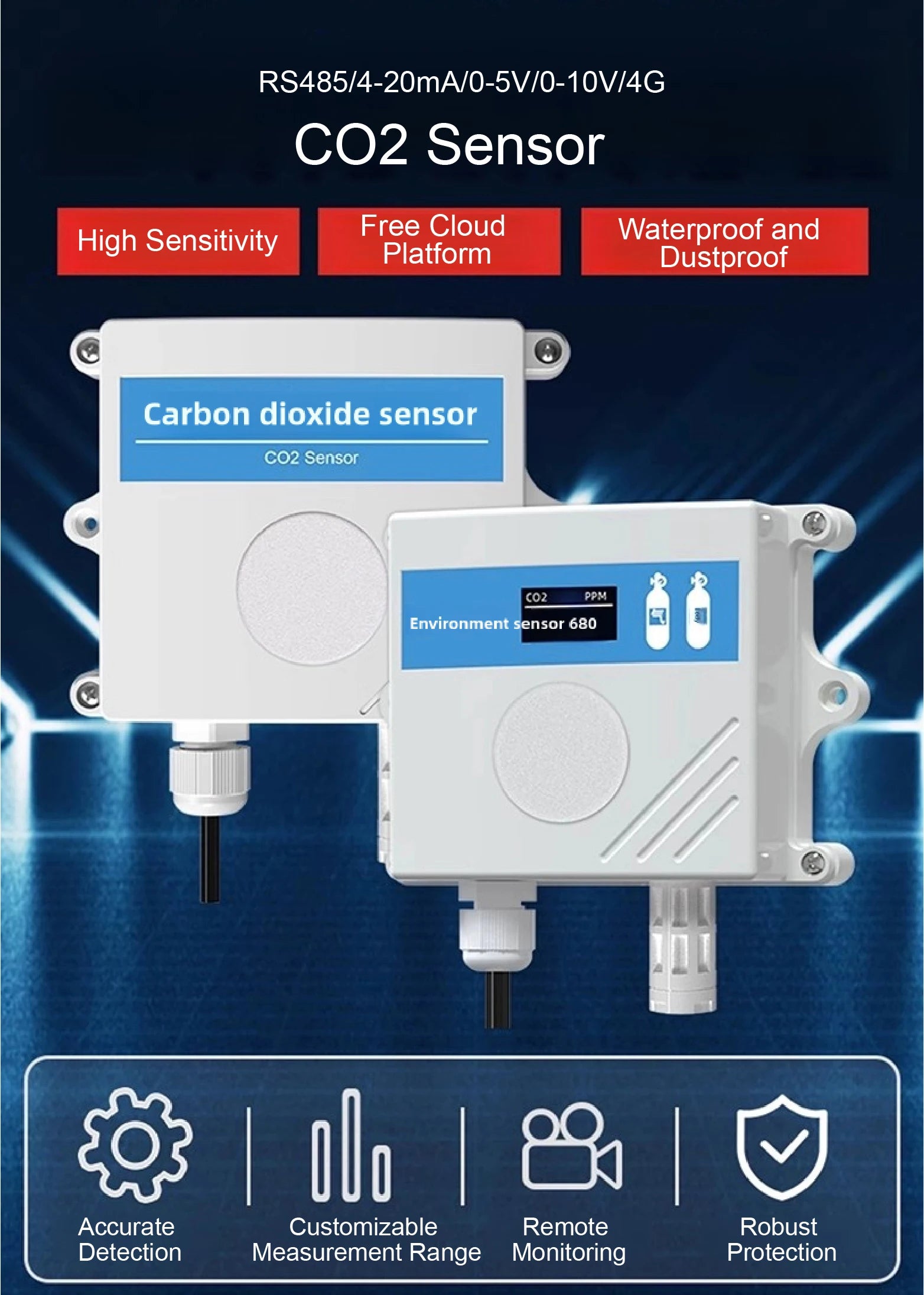

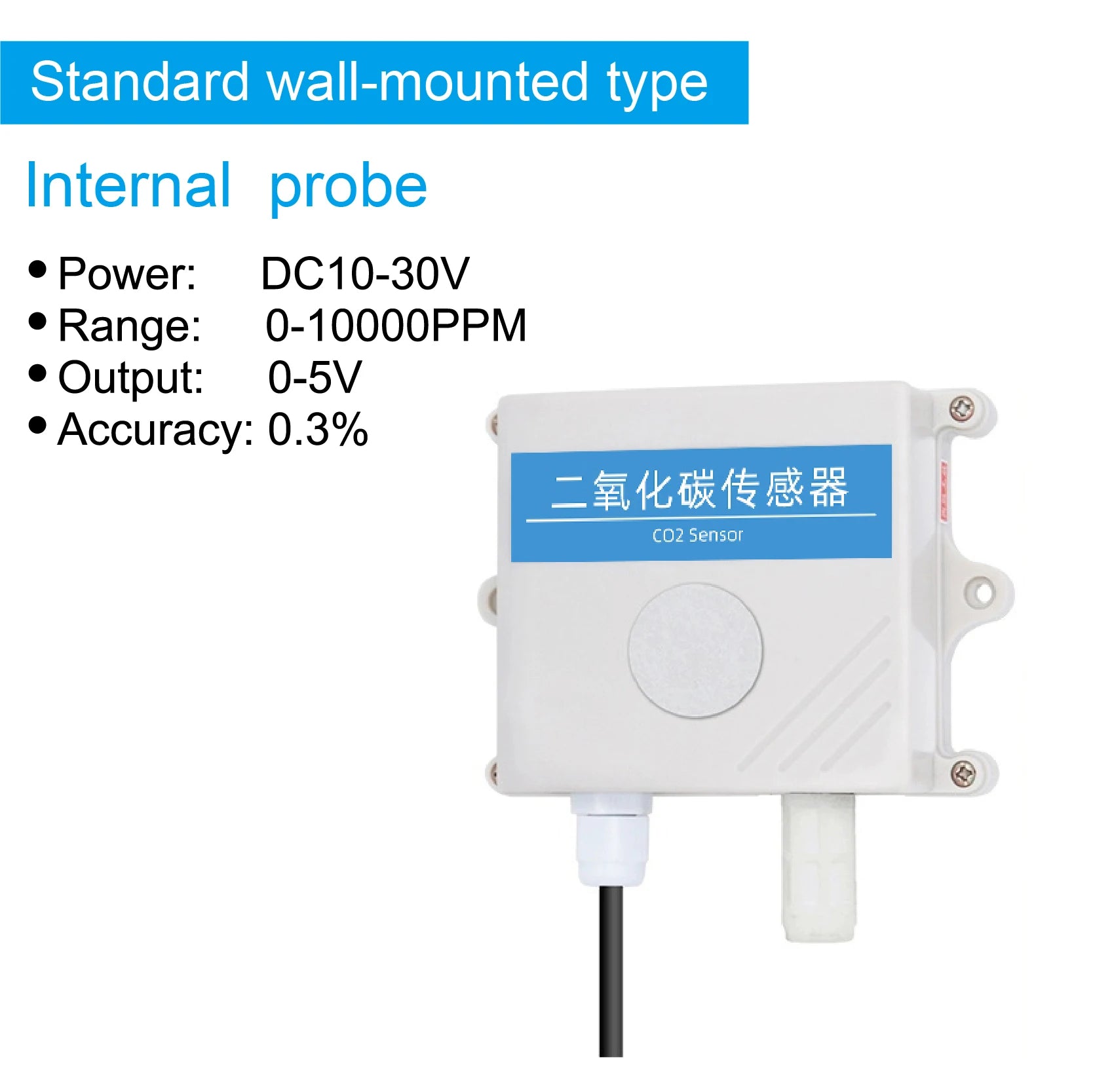

· Style: Wall-mounted, non-display type, built-in probe

· Measurement Range: 0-2000ppm，0-5000ppm，0-10000ppm，0-500000ppm

· Output Modes: RS485/4-20mA/0-5V/0-10V

· Power Supply: 10~30V DC

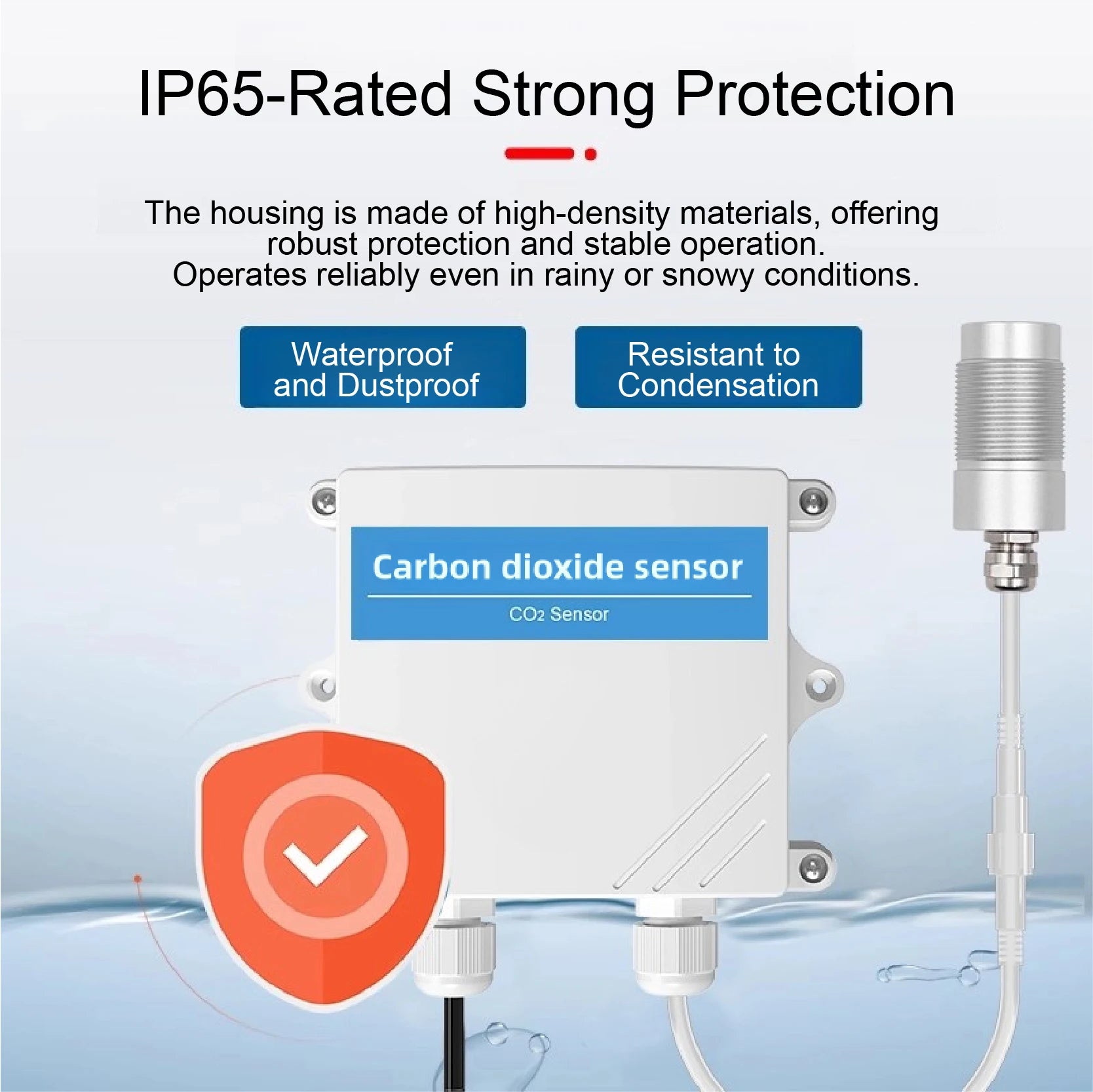

· Housing: IP65 waterproof, dustproof, and anti-corrosion

Due to page limitations, some specifications may not be listed. Please contact us for specific customization needs.

Customizable Options:

· Measurement Range: 0~500000 ppm

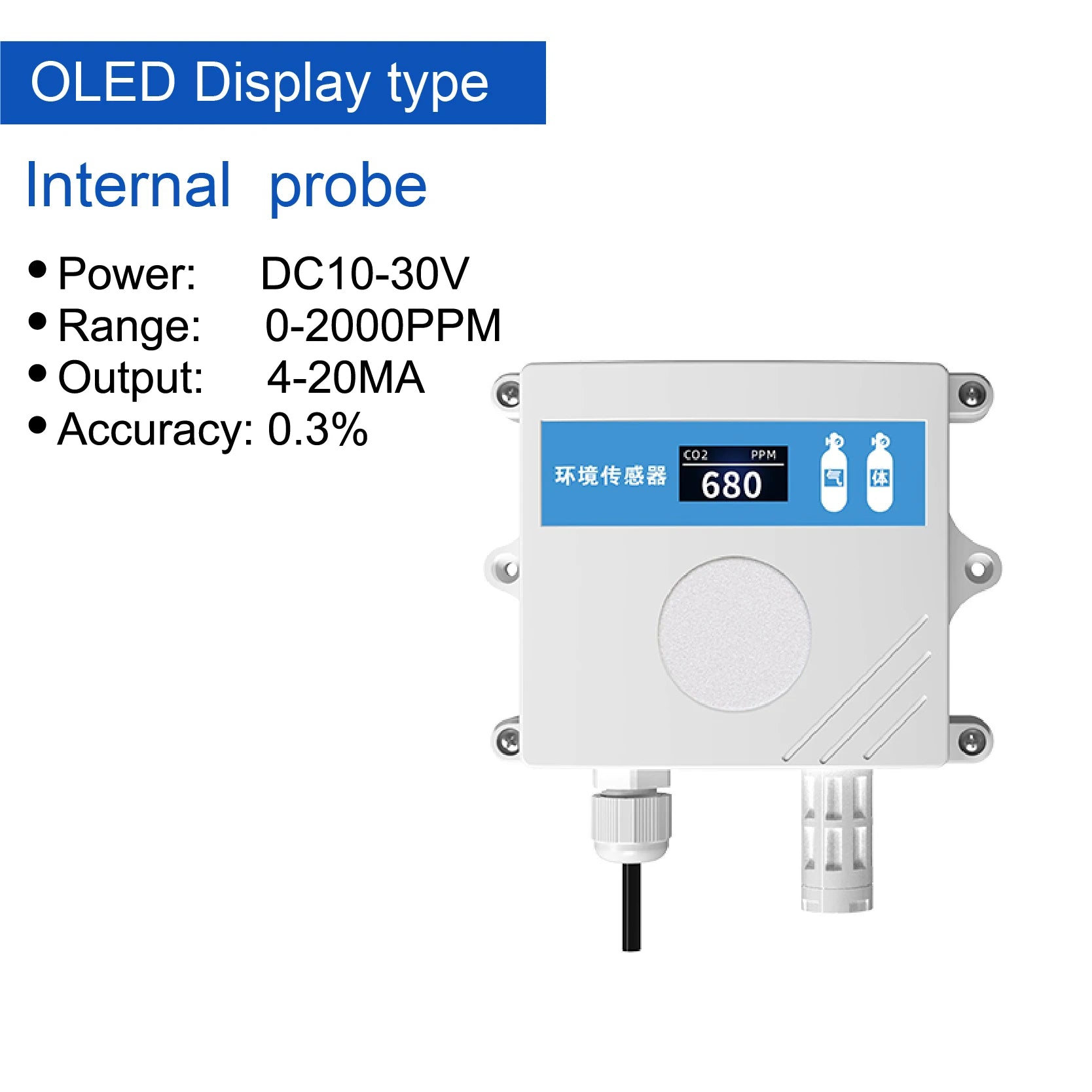

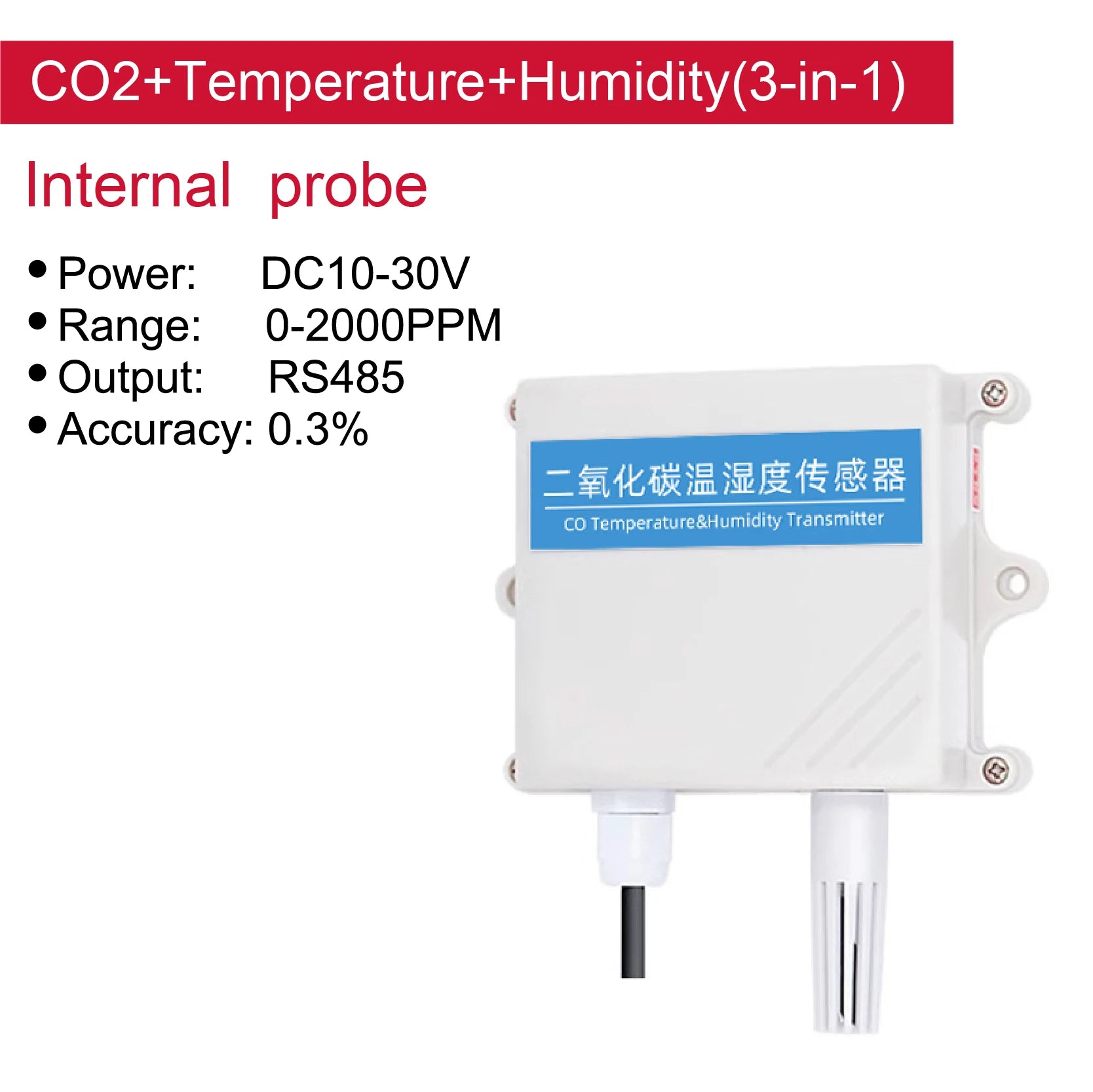

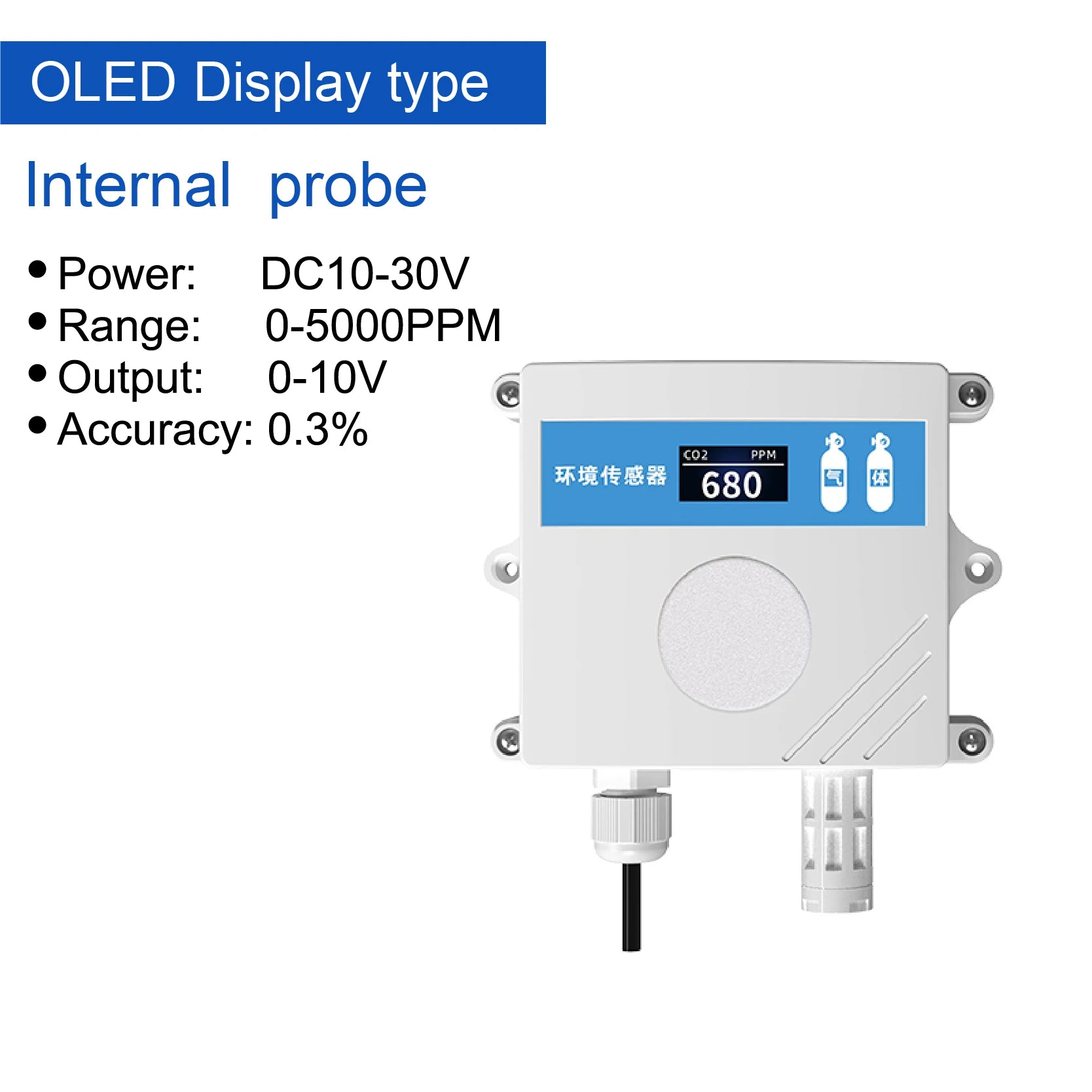

· Style: Wall-mounted (display type), CO2 temperature and humidity 3-in-1 type

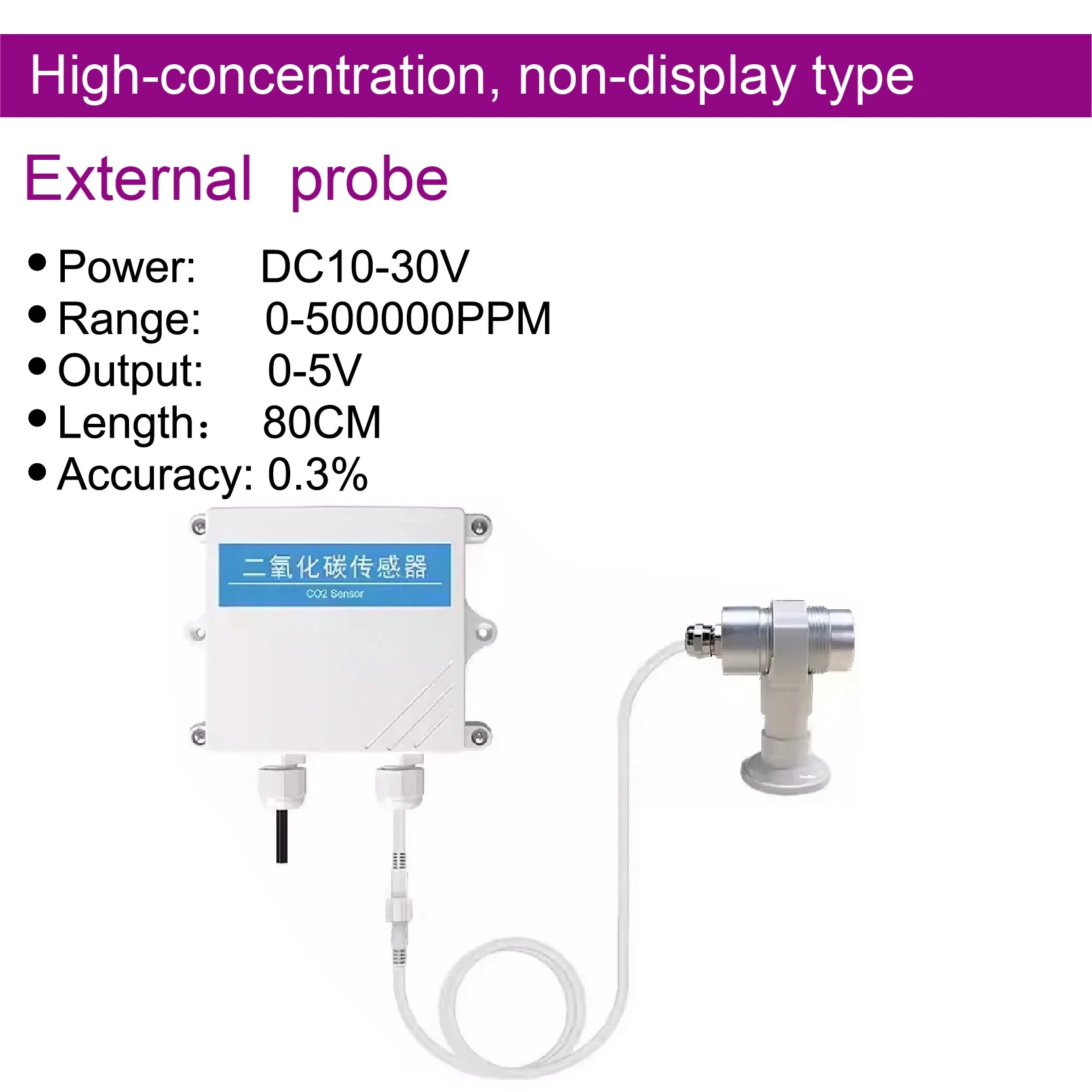

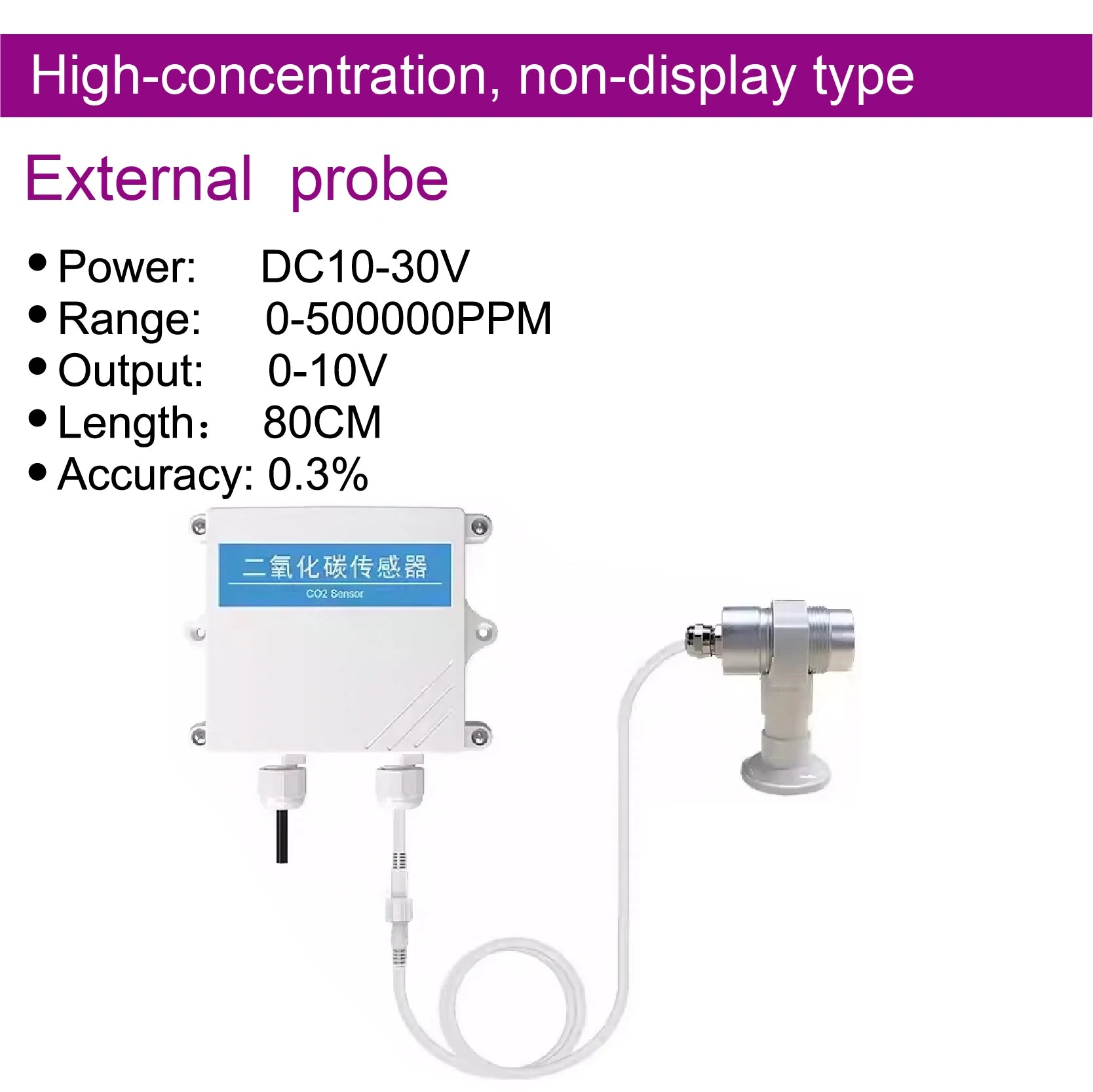

· Probe Type: External (customizable)

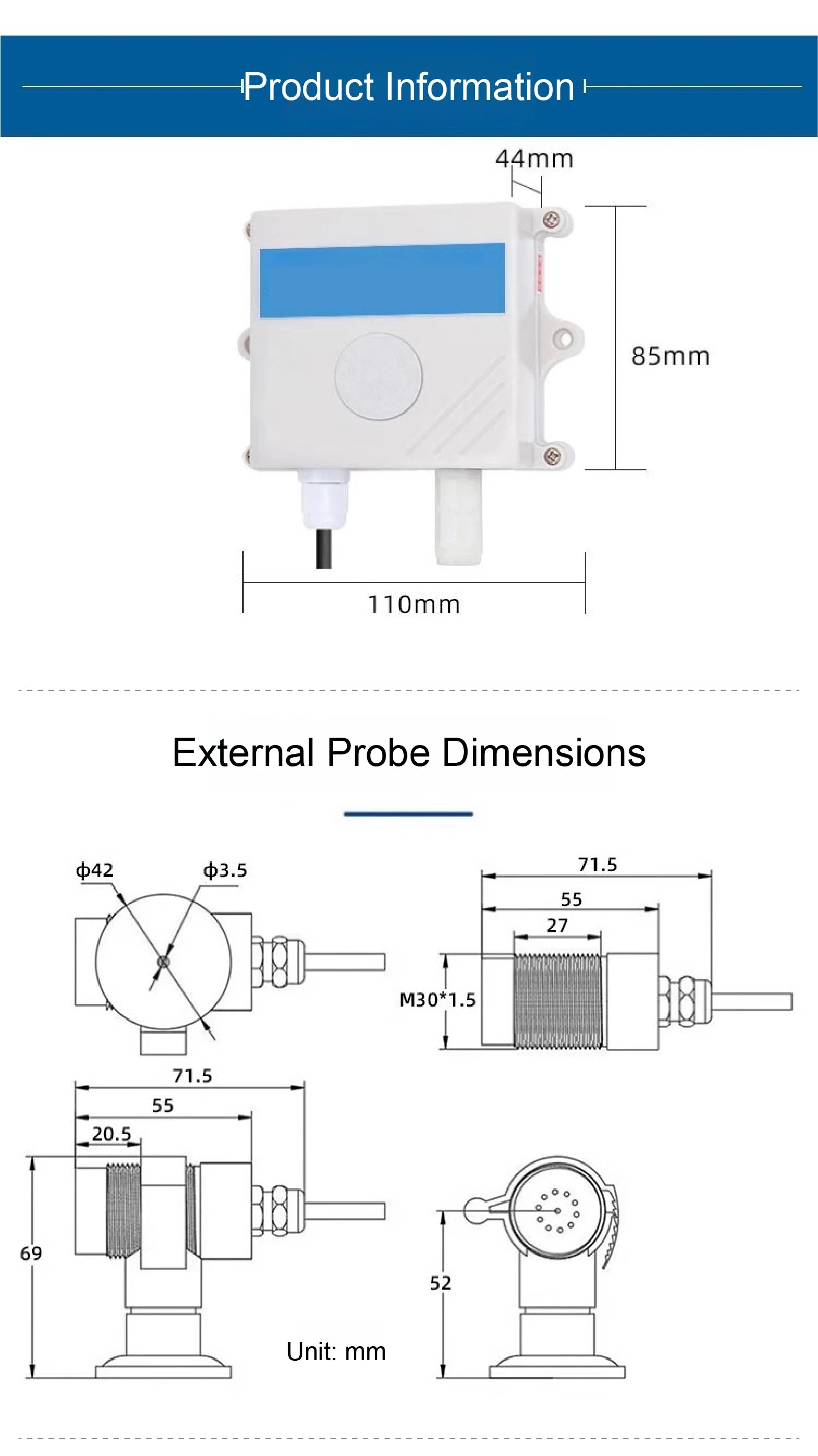

· External probe length:80cm def (Maximum customizable length: 10M）

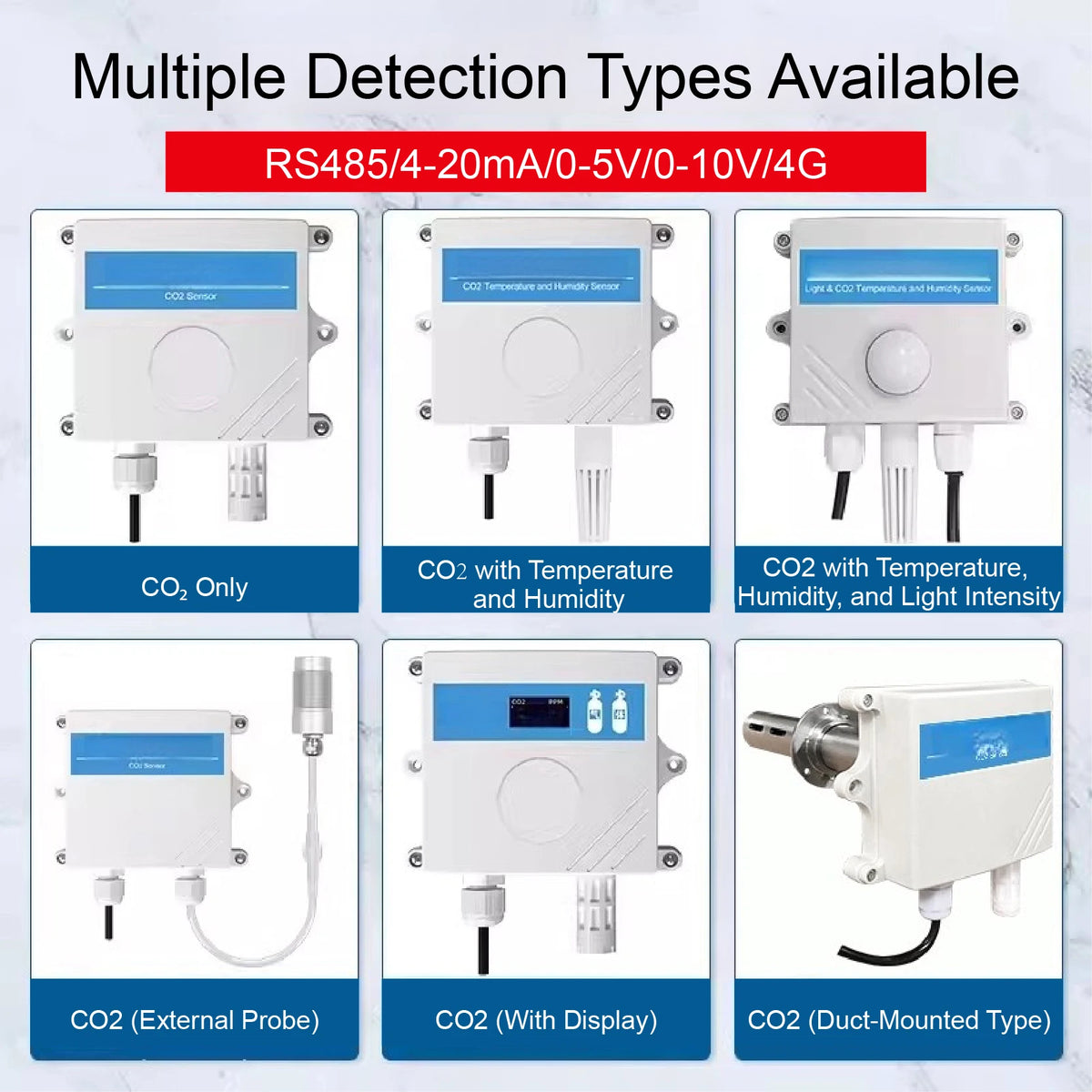

· Exterior Design: Portable, ceiling-mounted, pipeline-mounted, or louvered enclosure

· Output Modes: RS485/4-20mA/0-5V/0-10V

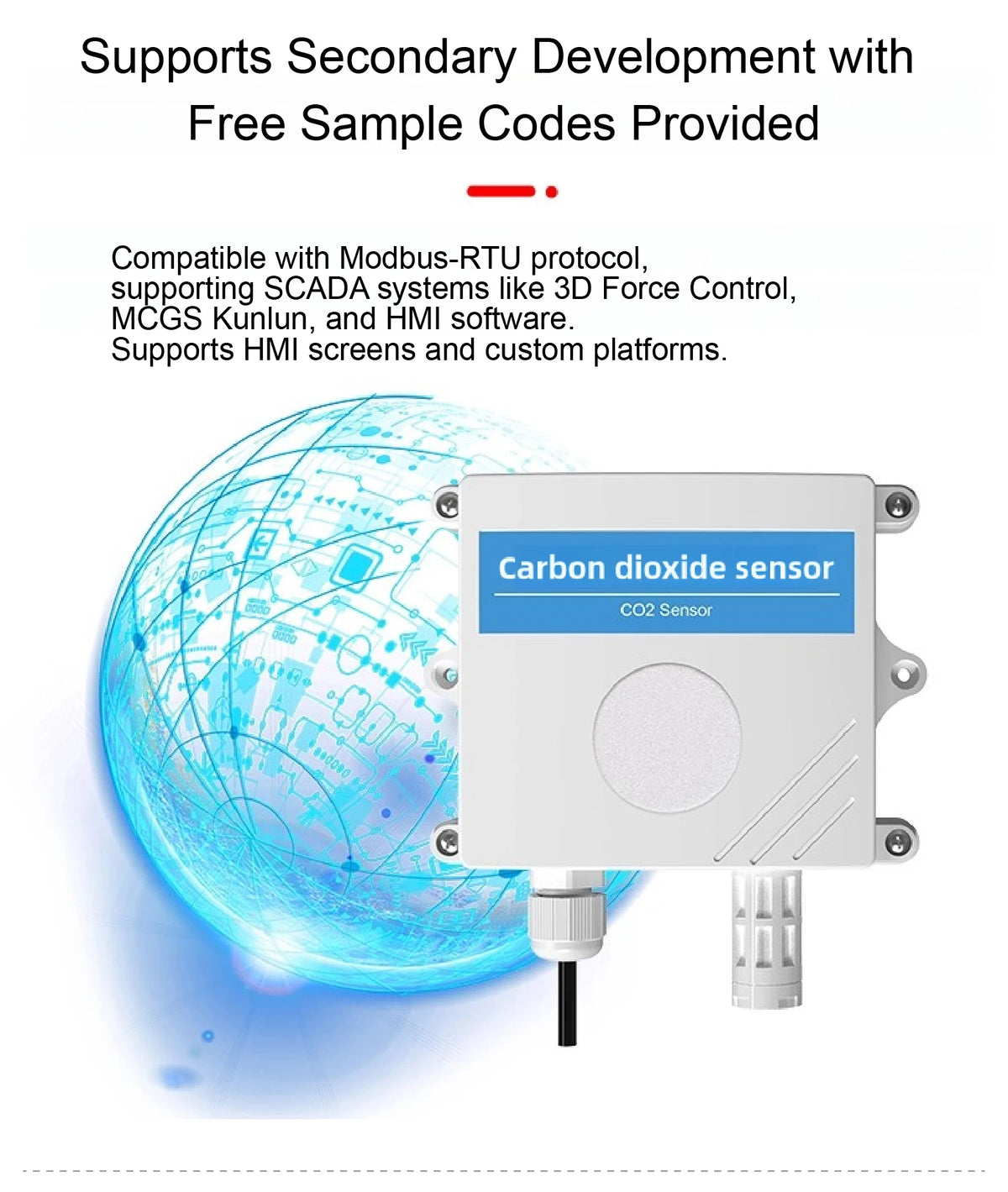

· Adjustable Parameters: Address (1-255), Baud Rate (1200-115200)

Please confirm your required specifications and output modes before placing an order. For tailored solutions, feel free to contact us to meet your specific requirements.

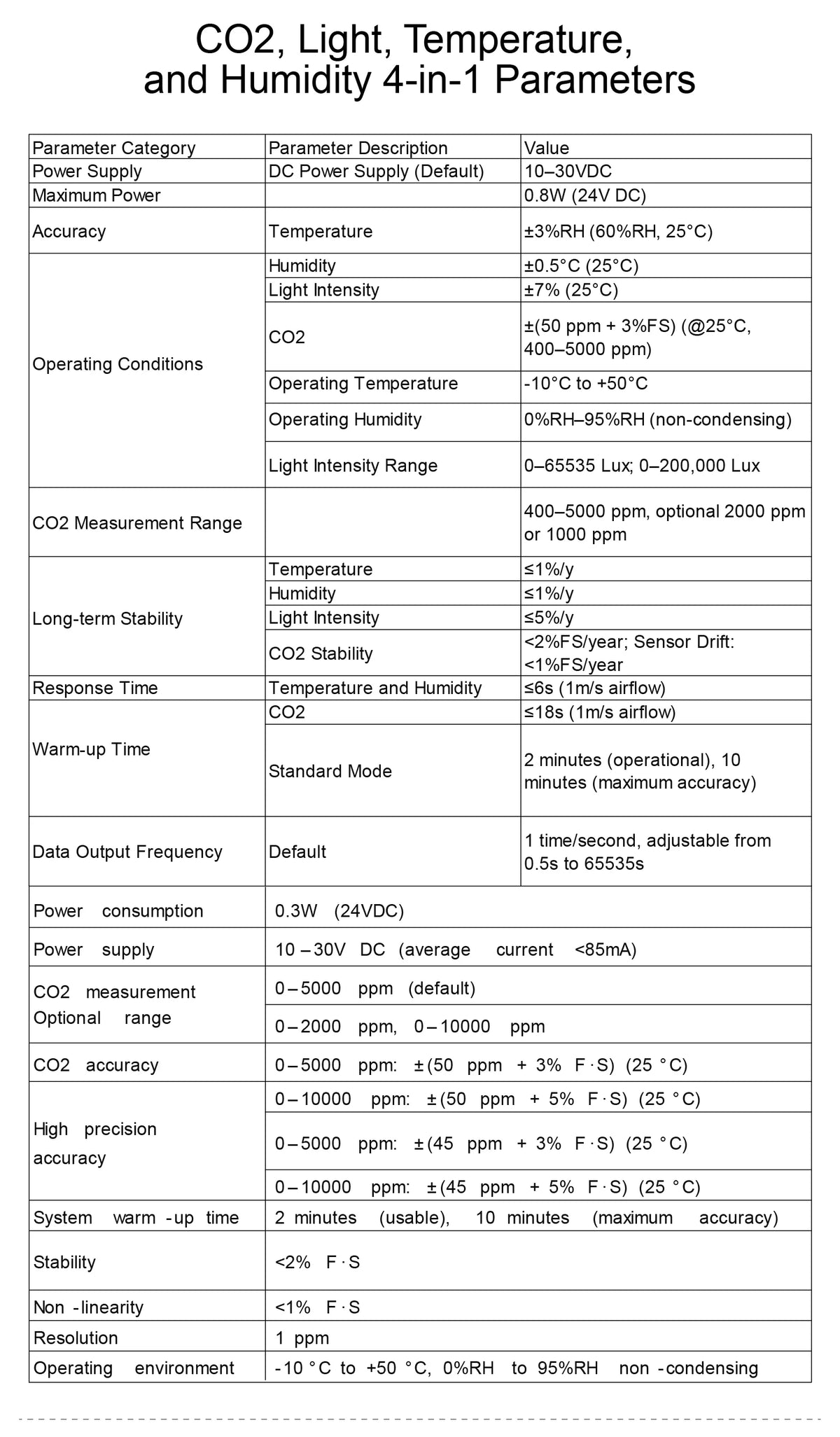

2. PARAMETERS

3. APPLICATION

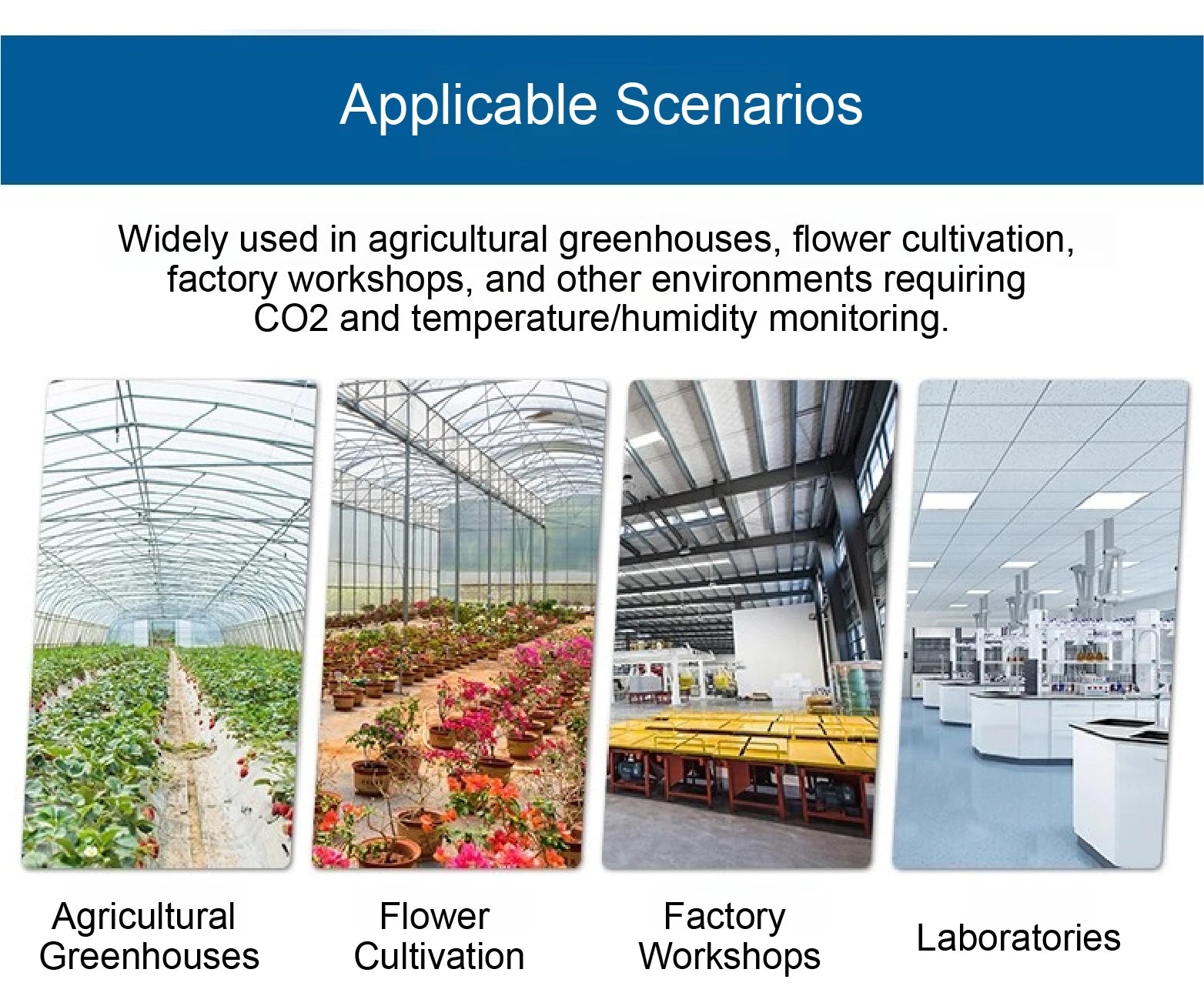

Applications:

Ideal for agricultural greenhouses and flower cultivation.

Suitable for factory workshops.

Designed for scenarios requiring CO2, temperature, and humidity monitoring.

4. FEATURES

Product Features:

Precise Measurement: High accuracy with built-in six-point calibration.

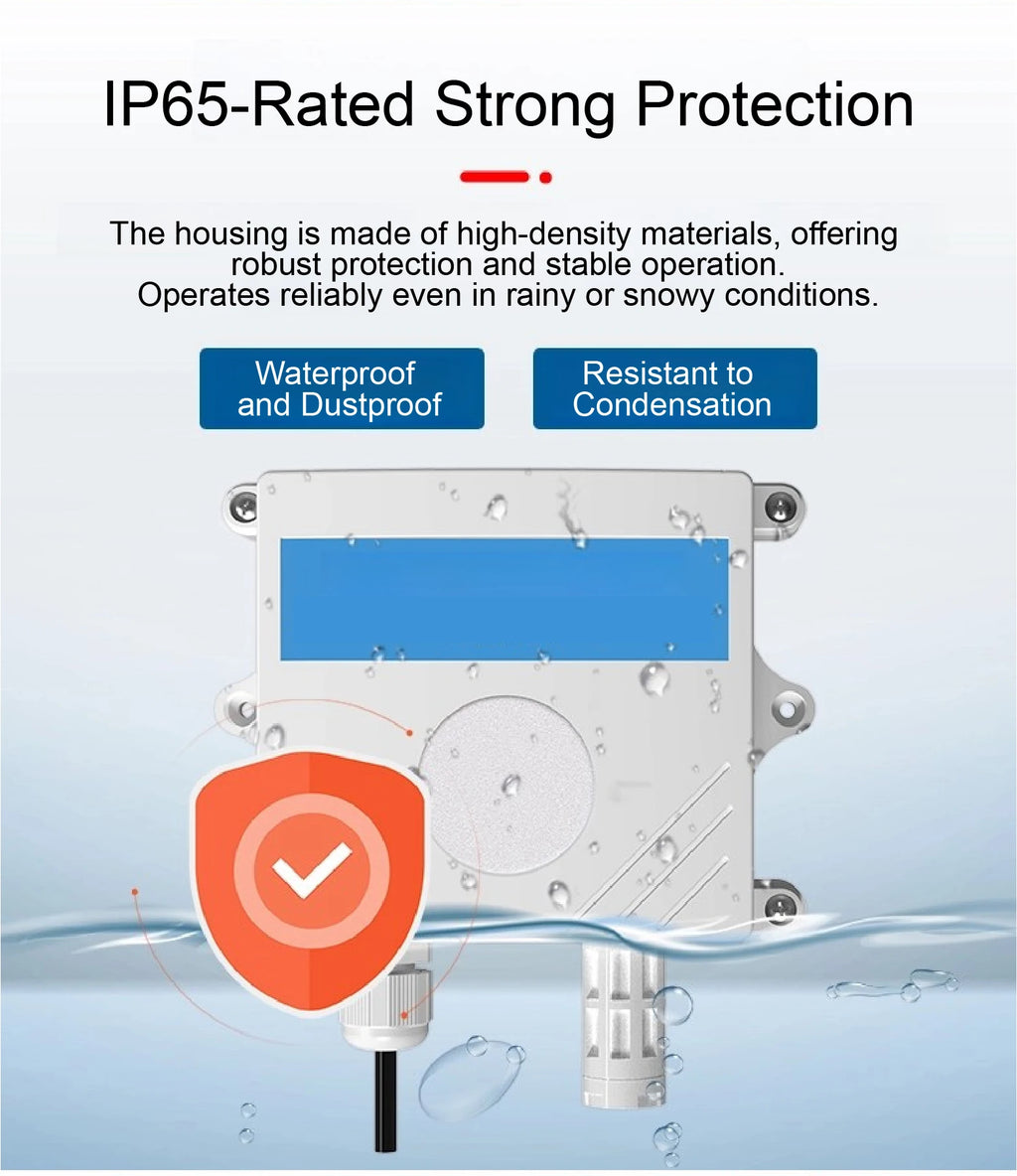

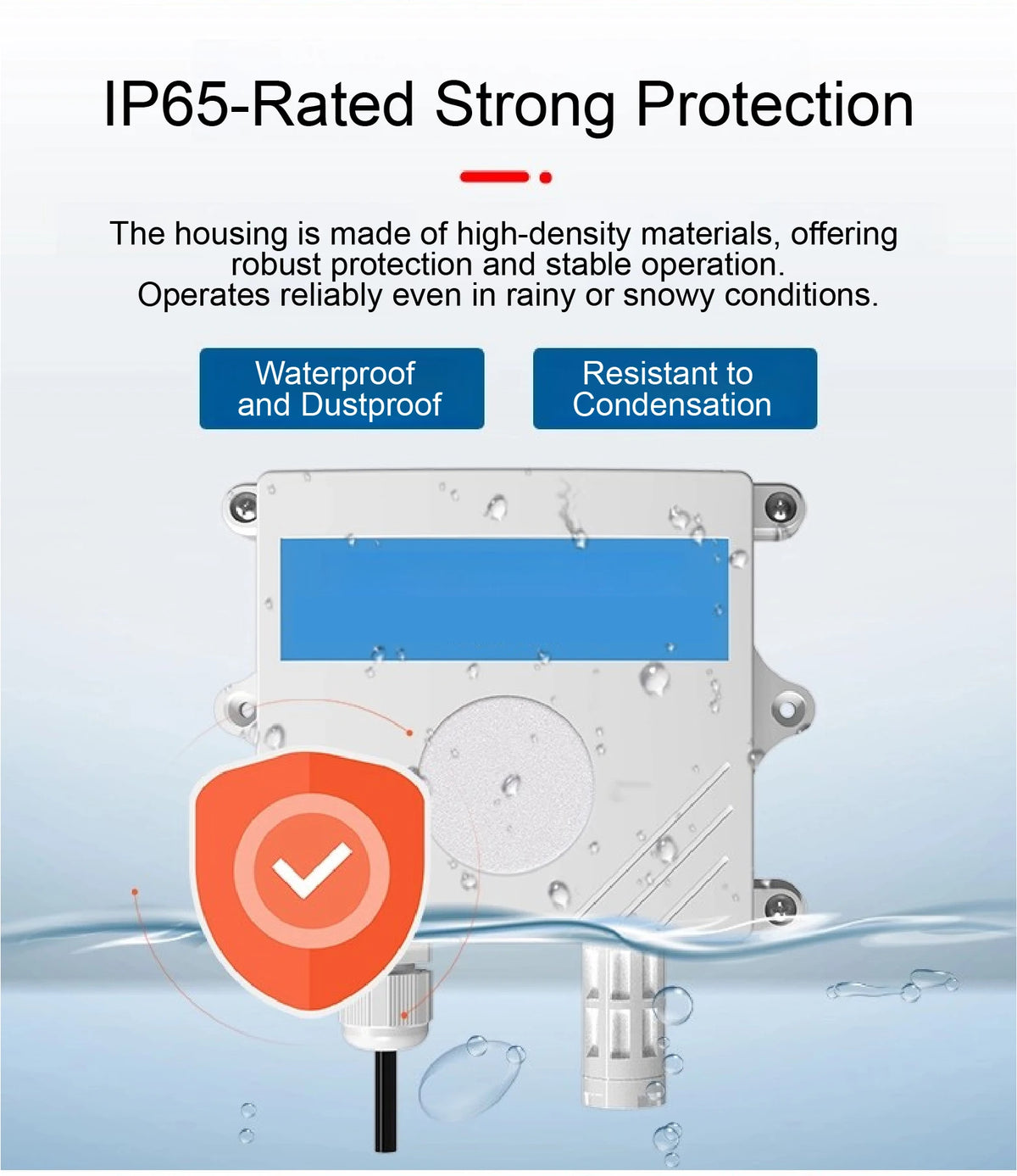

Sturdy Design: IP65 protection, waterproof, dustproof, and suitable for outdoor use.

Efficient Sensor: High-sensitivity sensor with strong anti-interference ability.

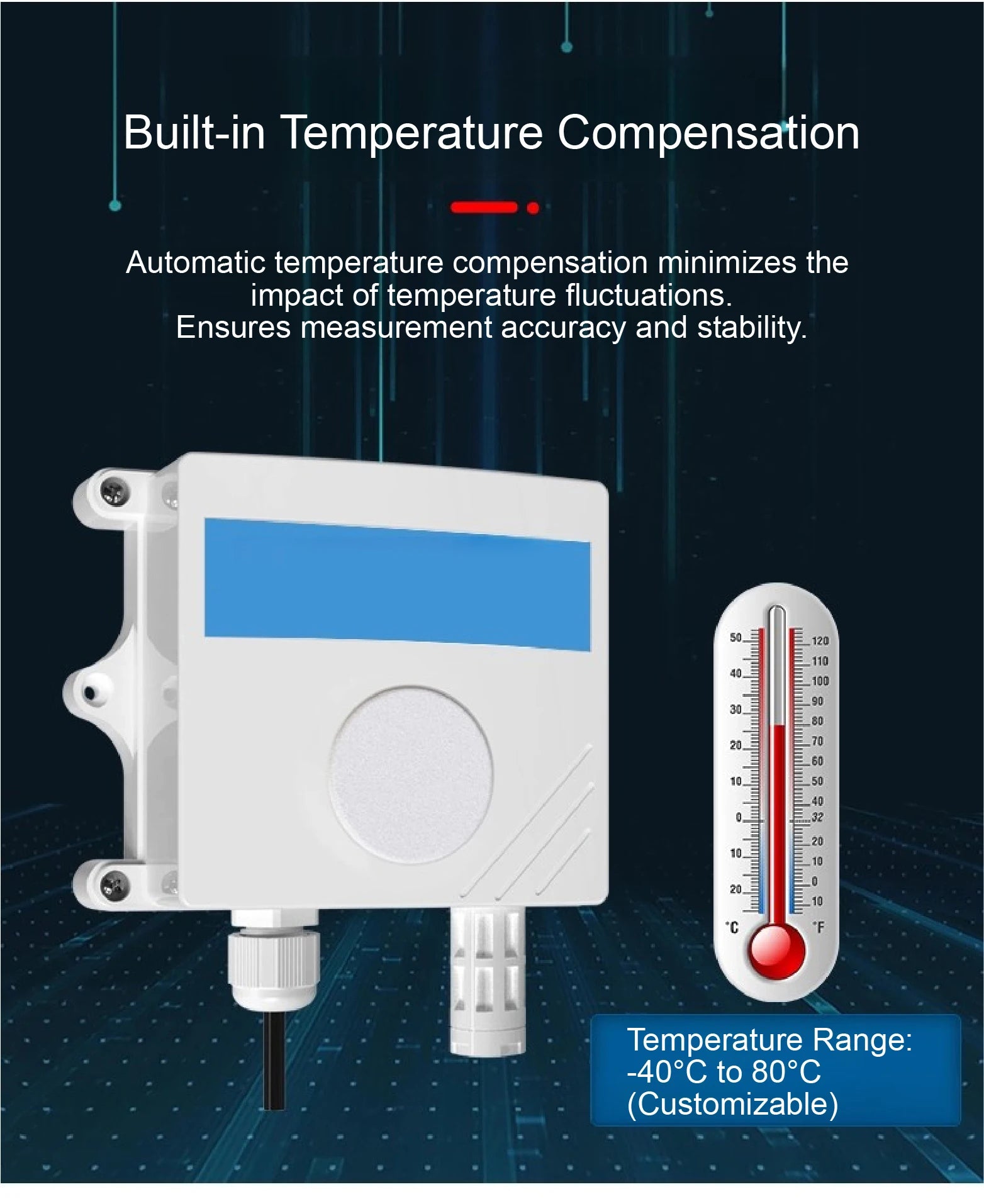

Smart Compensation: Automatic temperature compensation ensures stability.

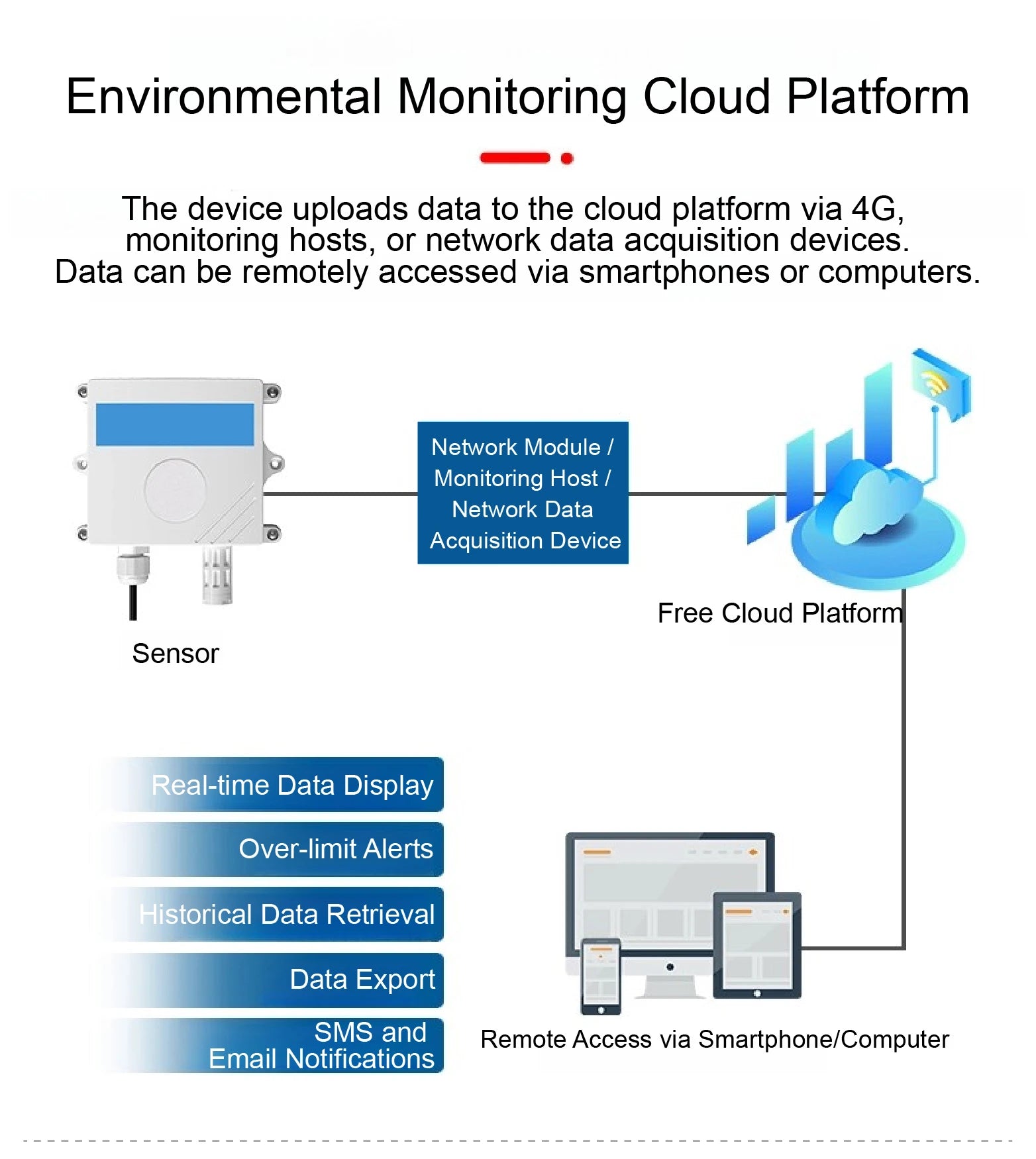

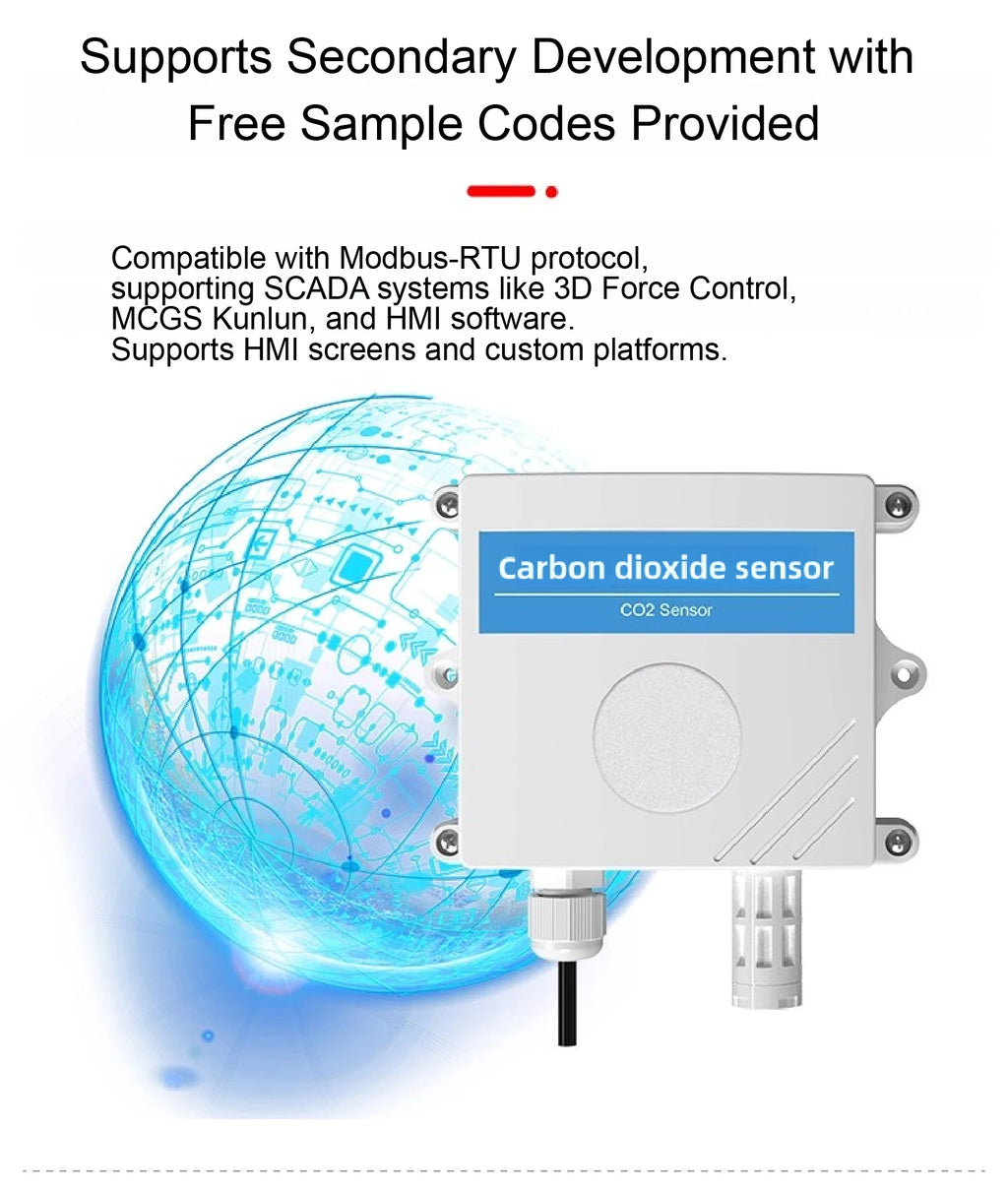

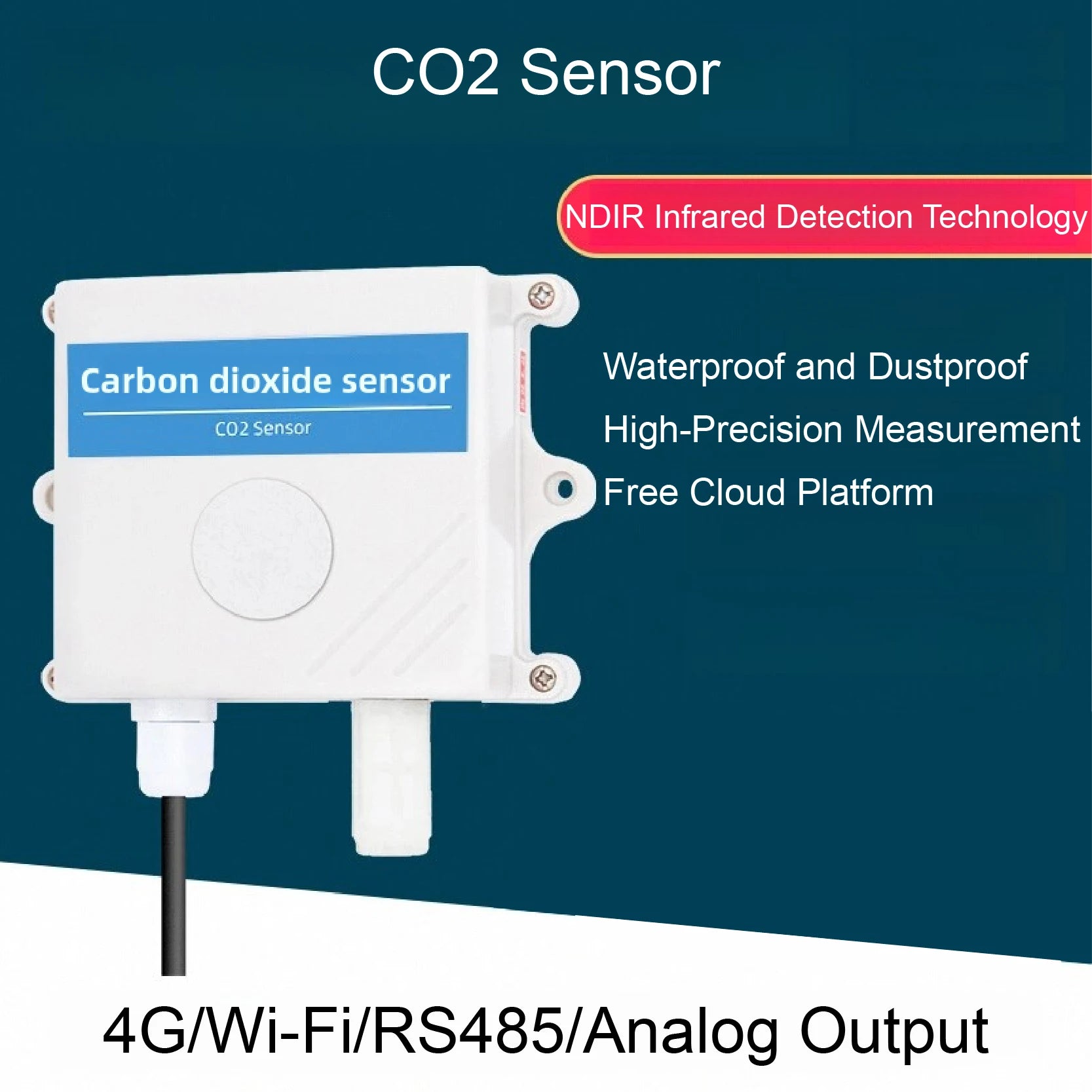

Flexible Monitoring: Real-time data transmission via RS485, USB, or 4G cloud platform.

5. FAQ

Q1：Can this device work in high humidity environments?
A1：Yes, the IP65-rated housing ensures protection in humid and condensing conditions.

Q2：How is the device calibrated?
A2：Each sensor is factory-calibrated with six-point standard gas calibration for maximum precision.

Q3：What is the power supply requirement?
A3：The device requires 10-30VDC for operation.
