SPECIFICATIONS

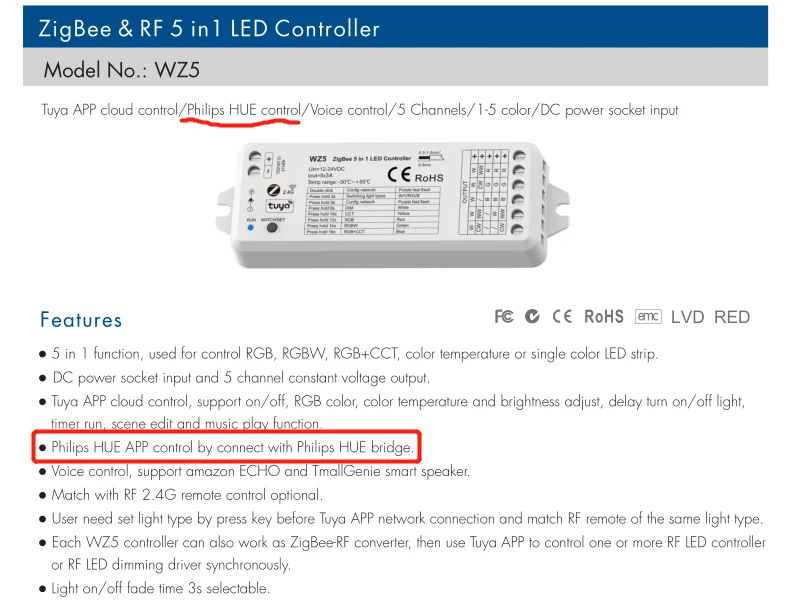

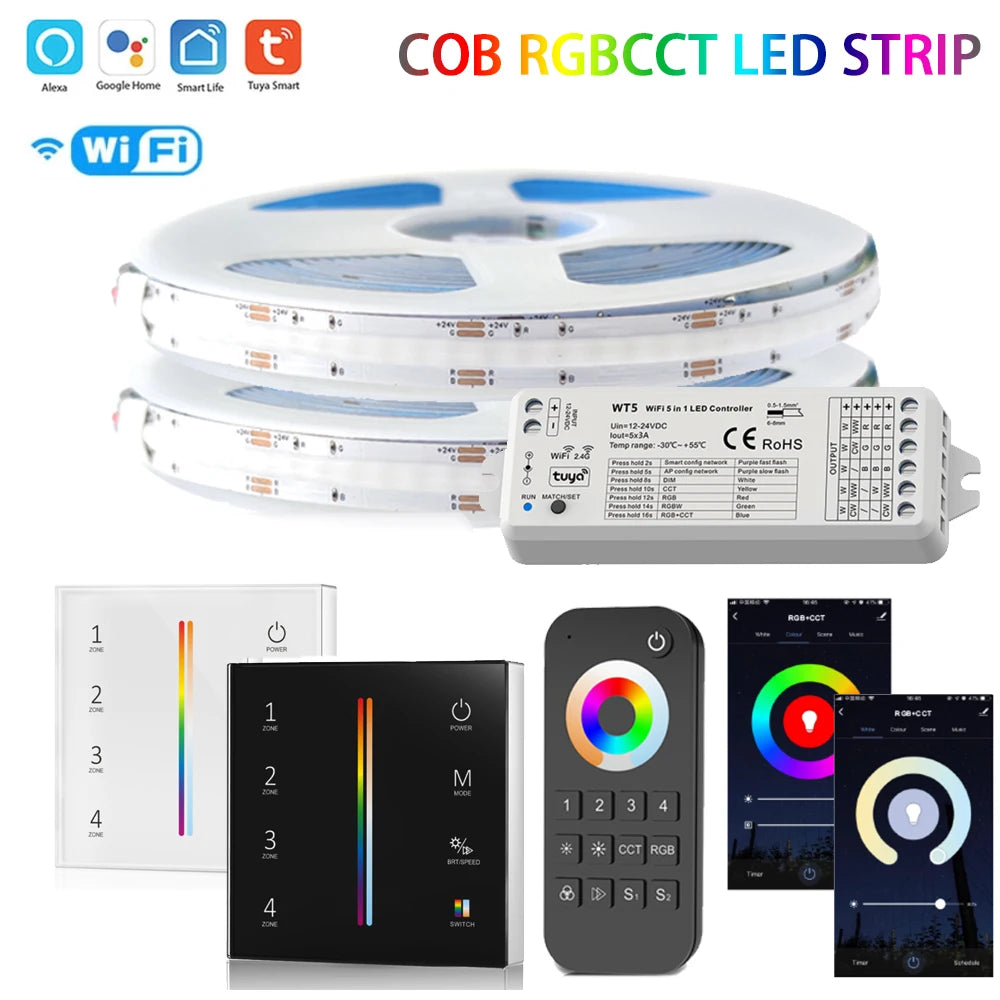

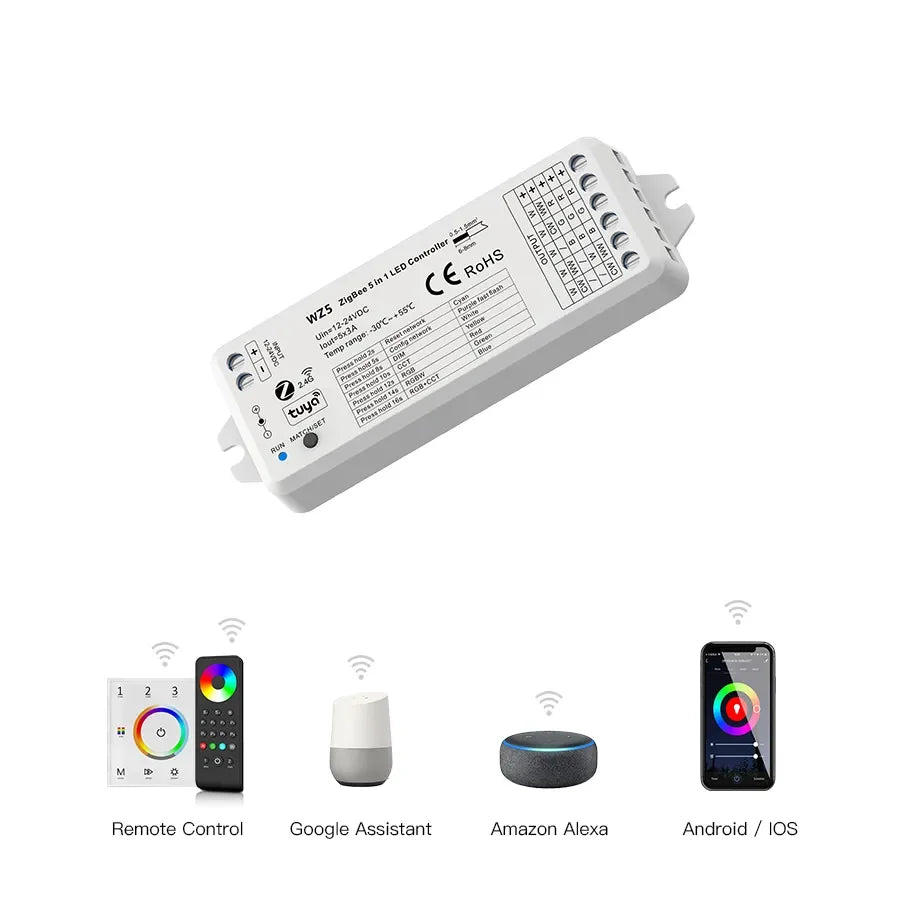

COB RGBCCT LED Strip 6Pin 840leds/m DC24V Light WT5 Wifi  WZ5 Zigbee 5 in 1 LED Controller 2.4G RF Remote Work With Alexa Google

Note:
1. No need gateway,connect wifi directly.

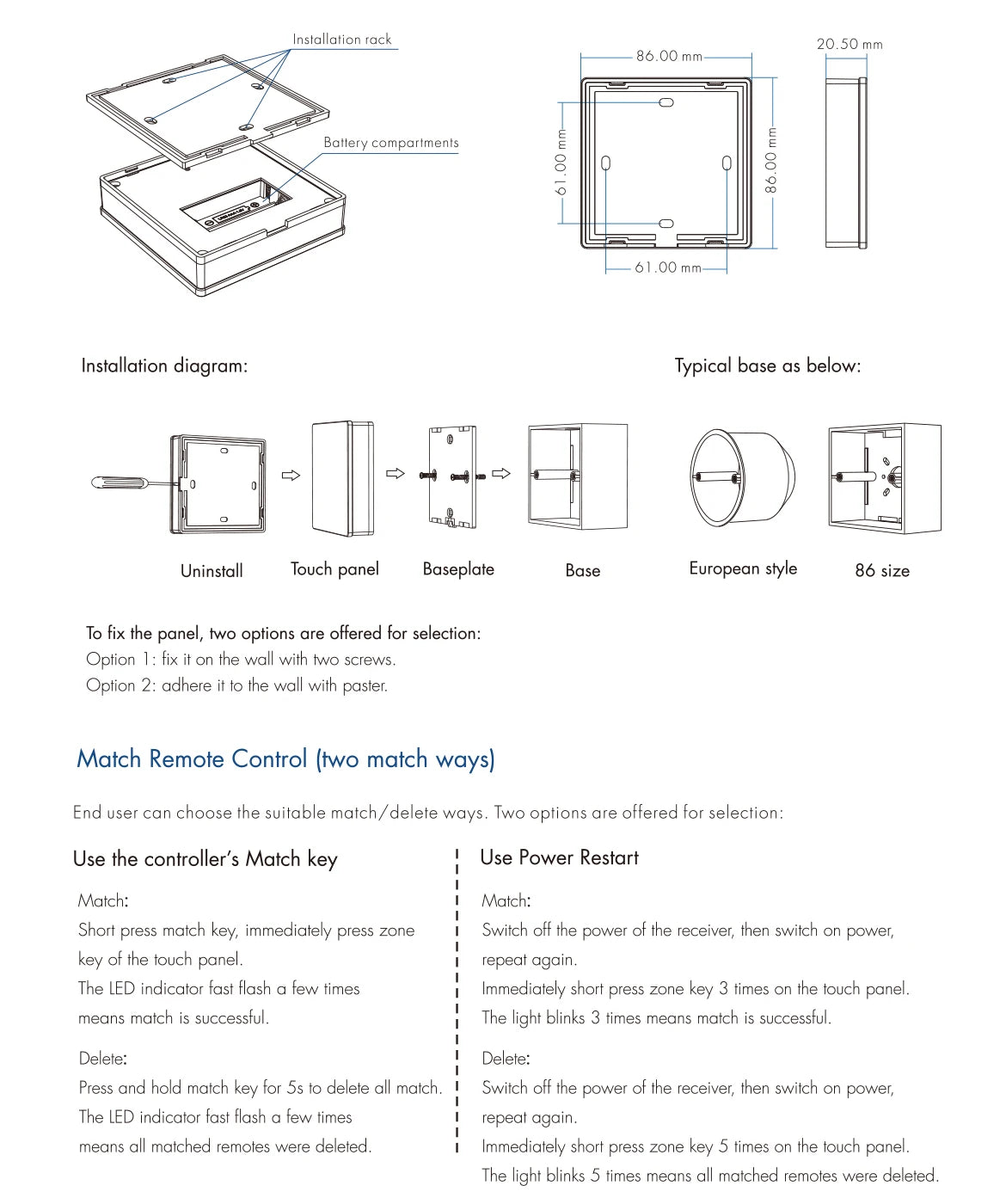

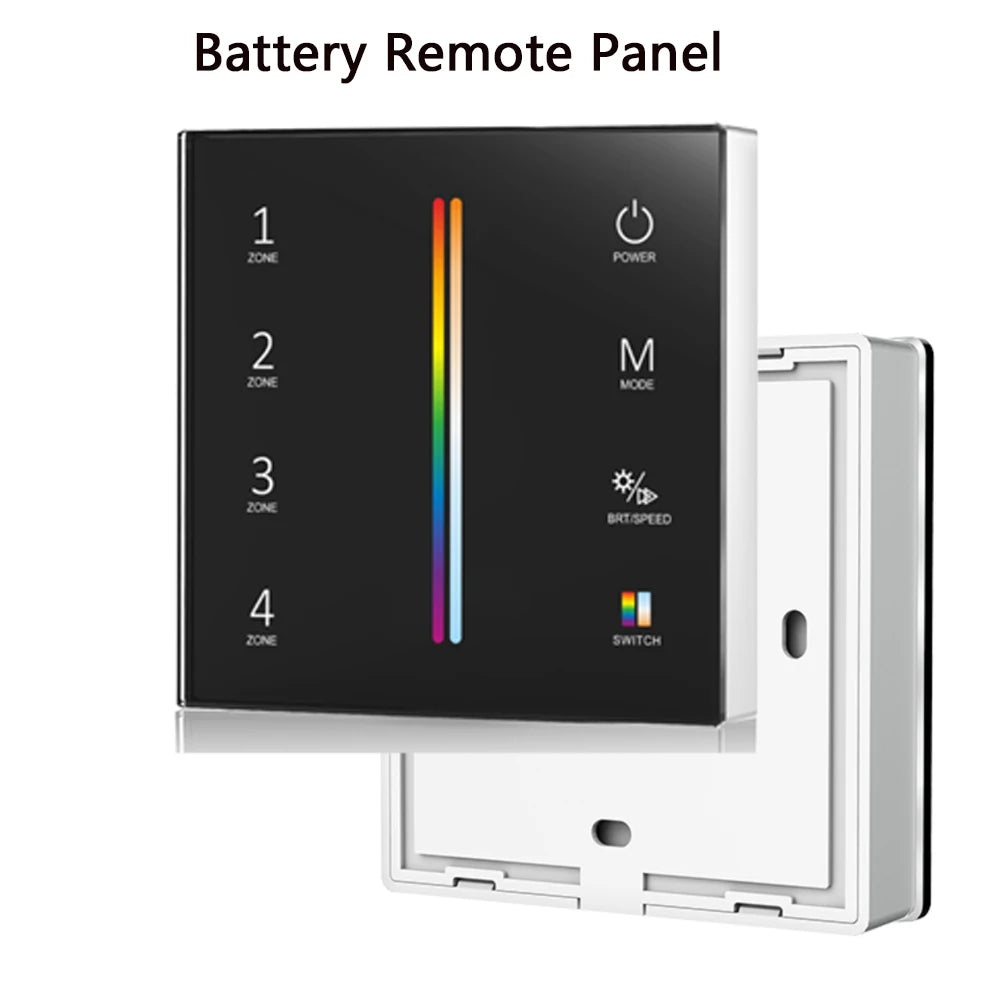

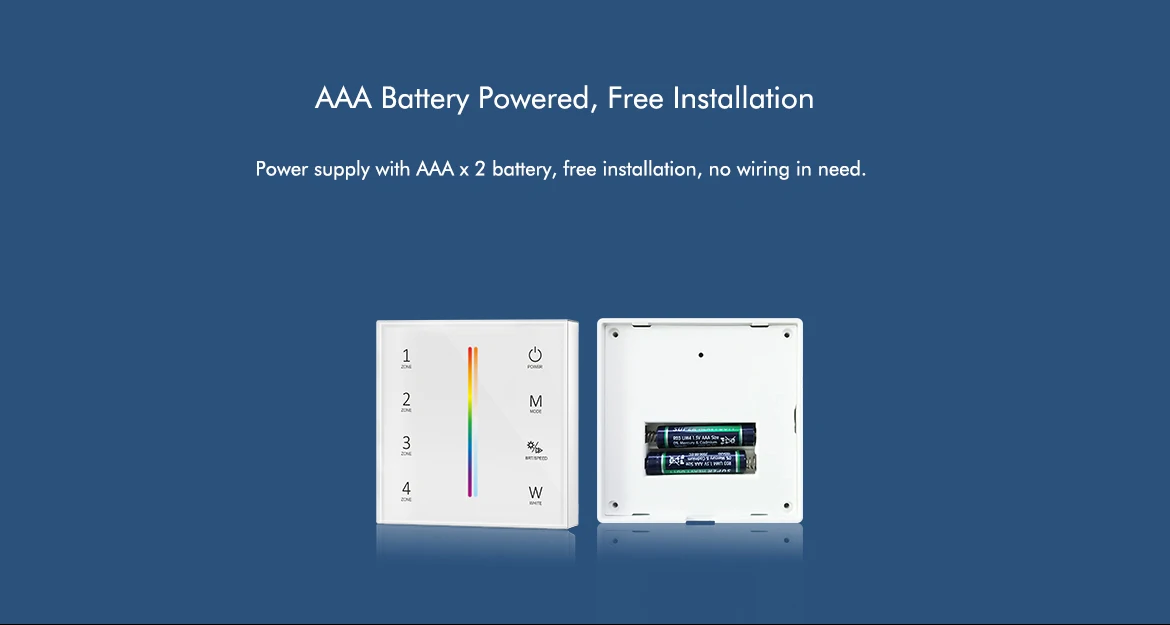

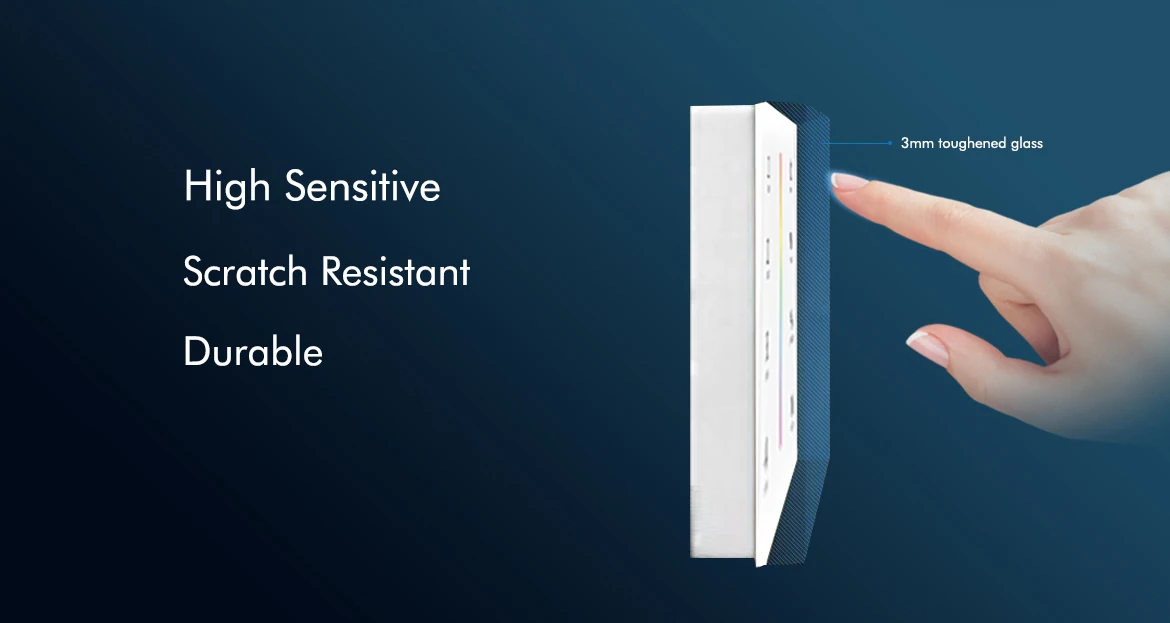

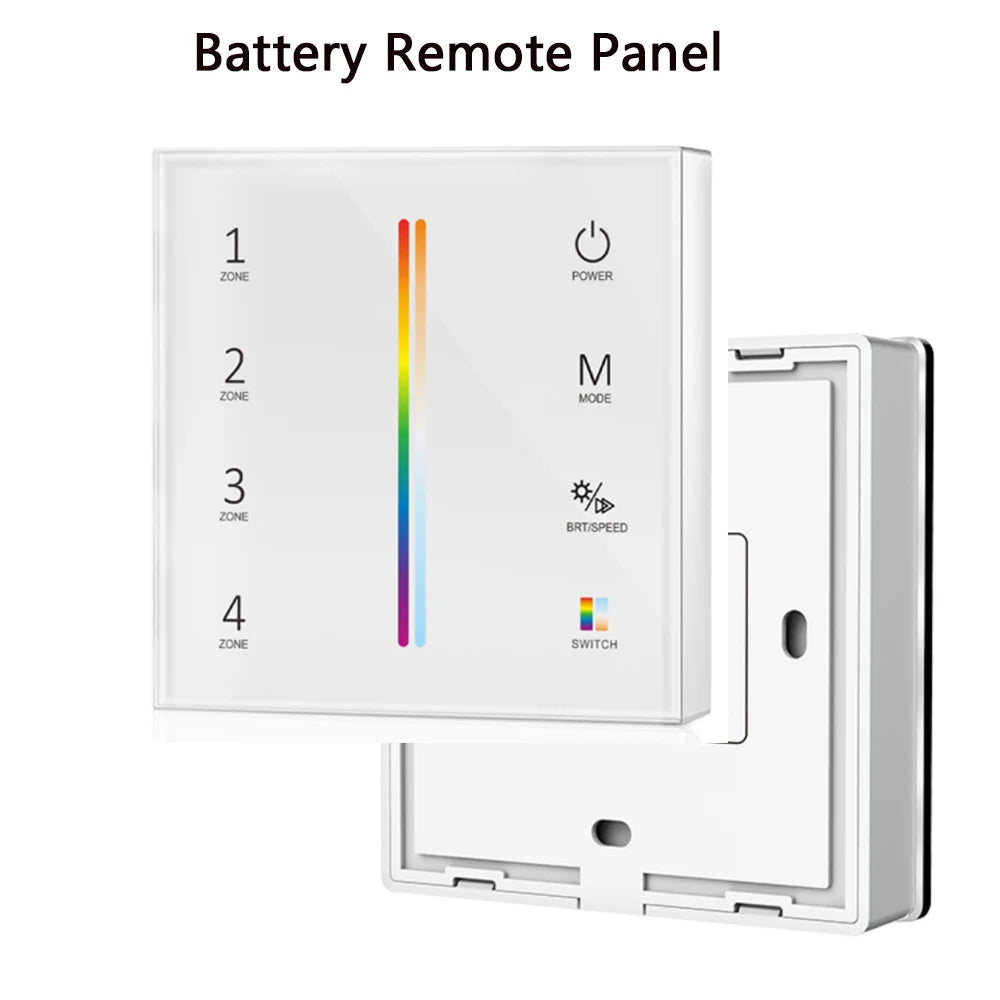

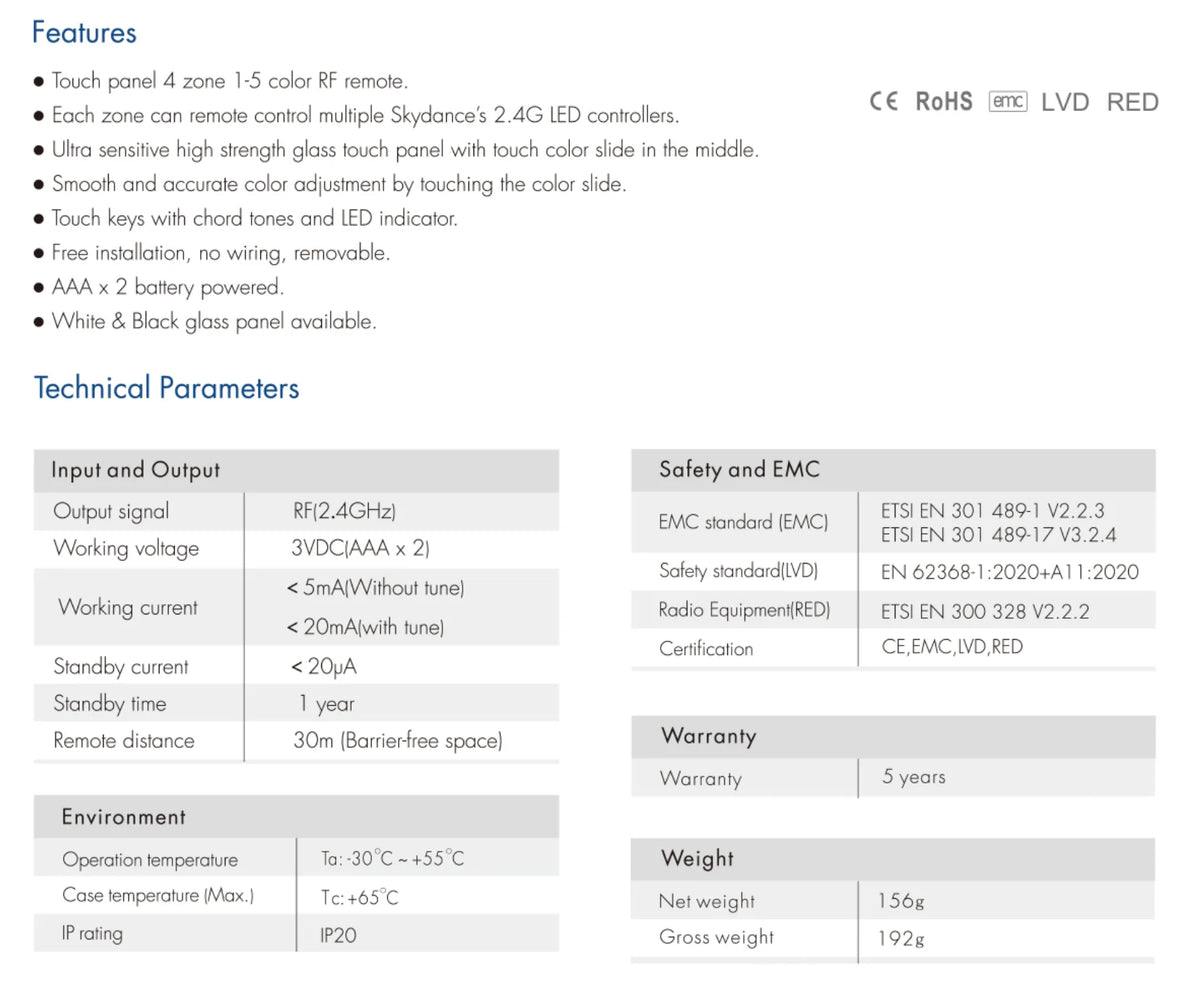

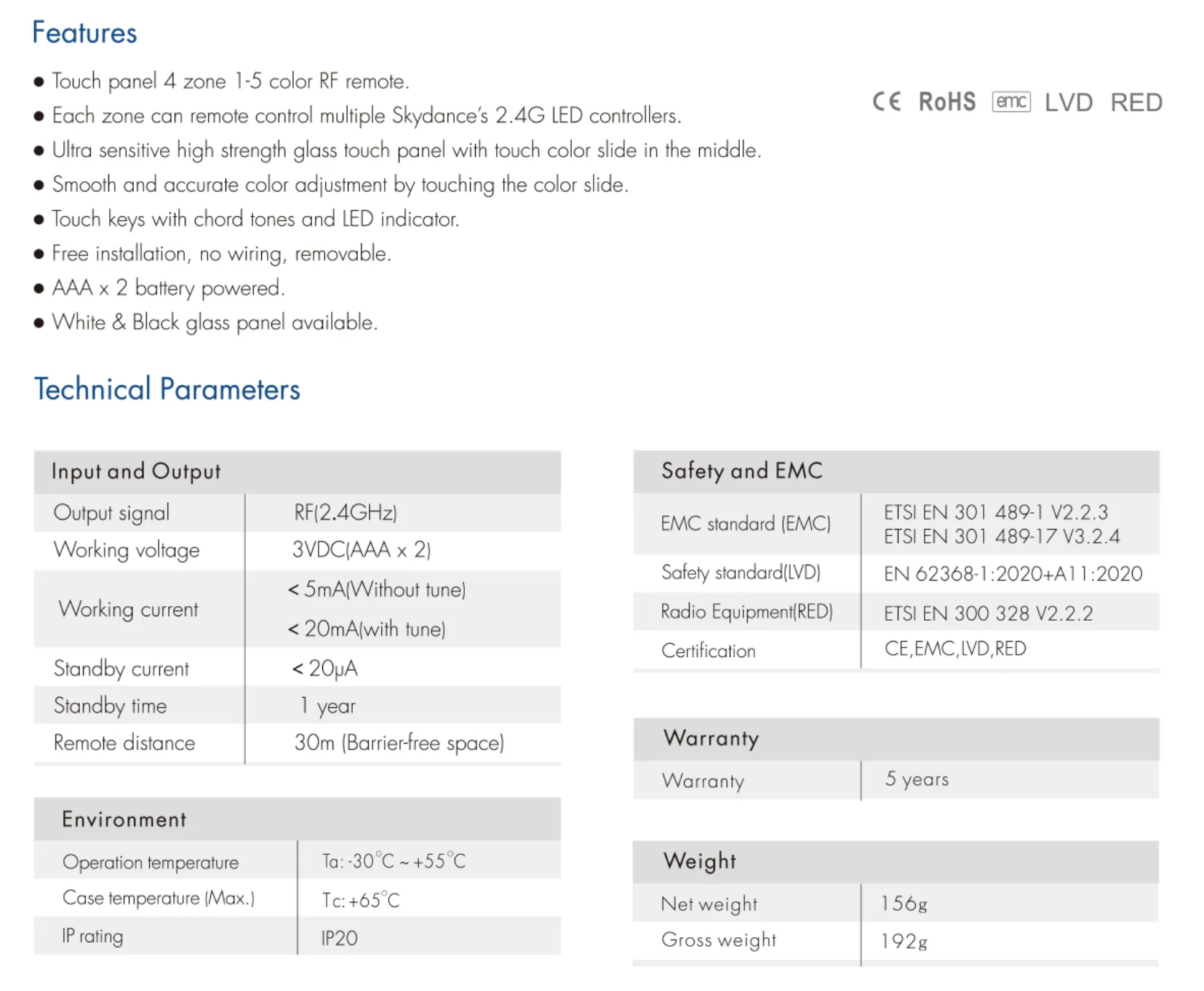

2. Wall touch Panel is battery powered,need pair with wt5 to use.

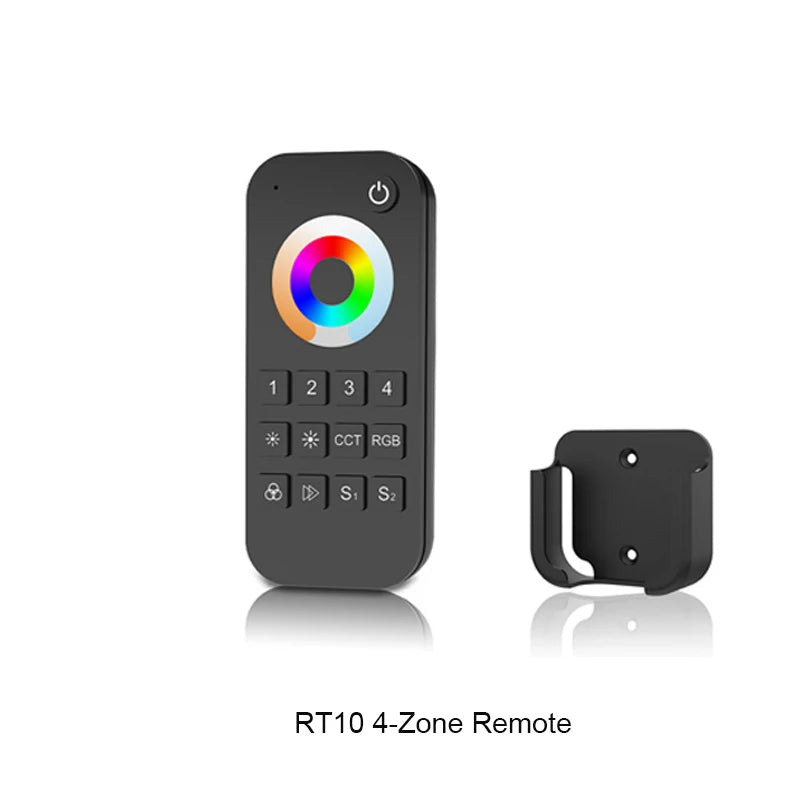

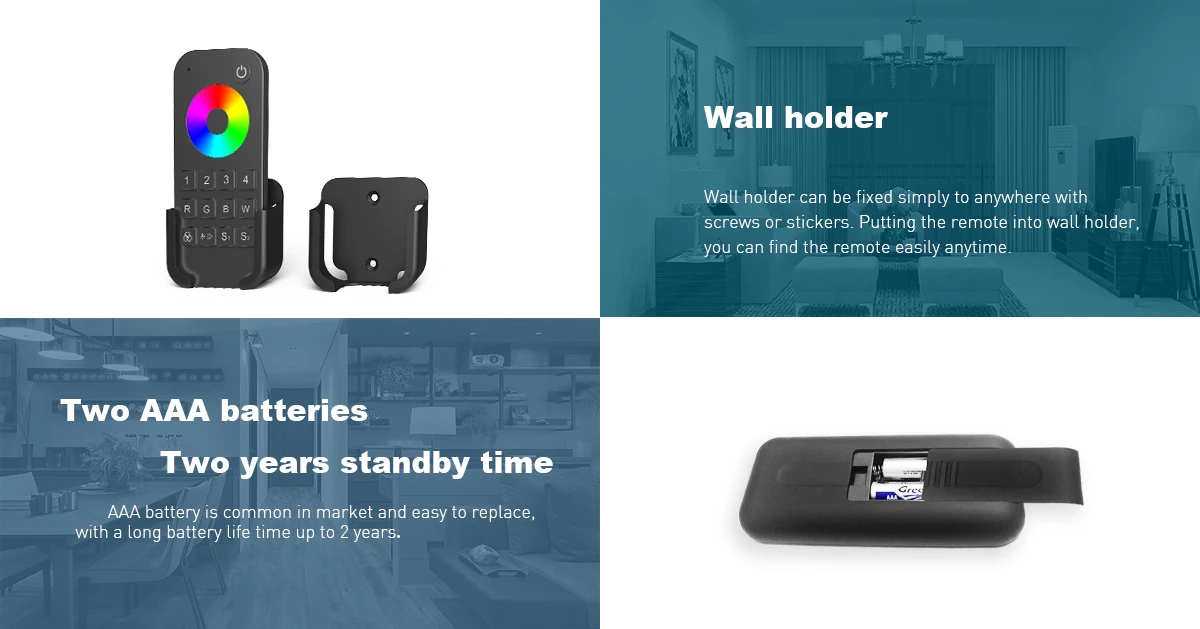

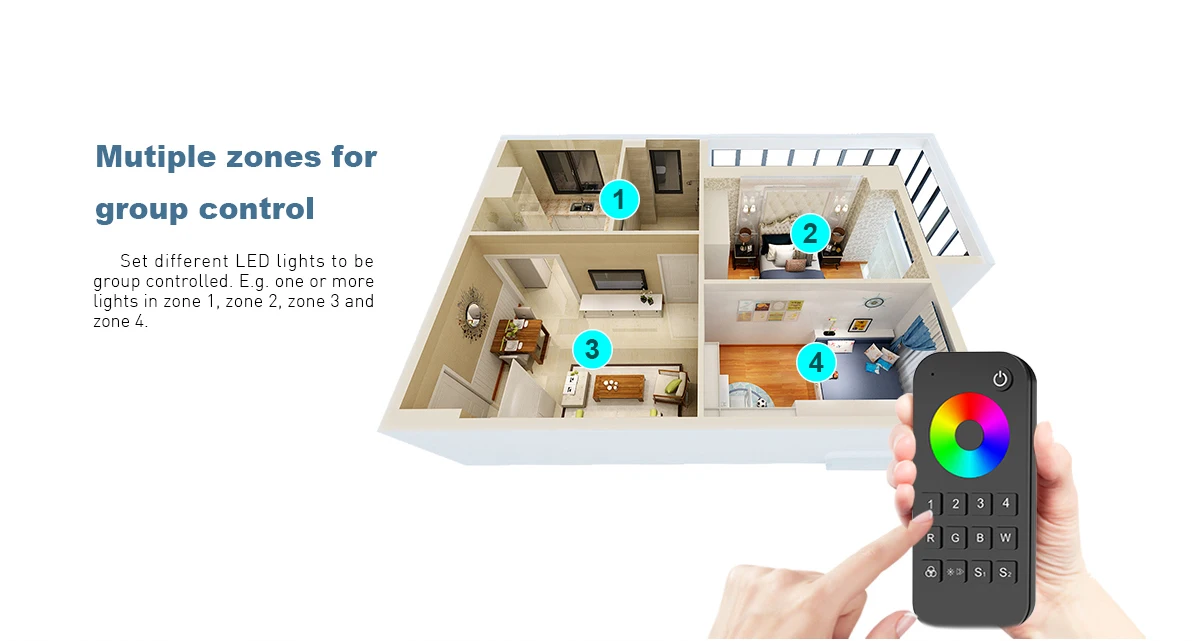

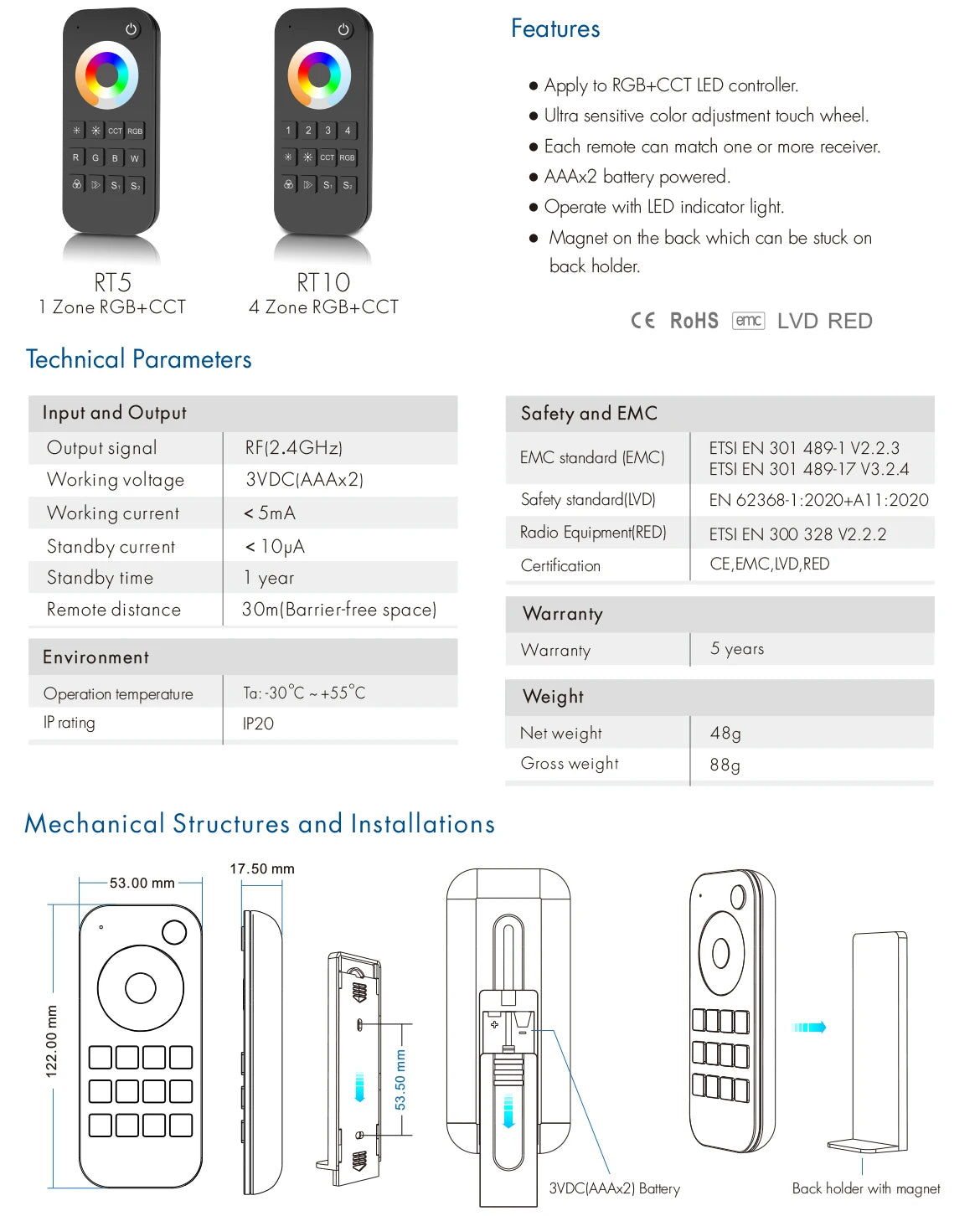

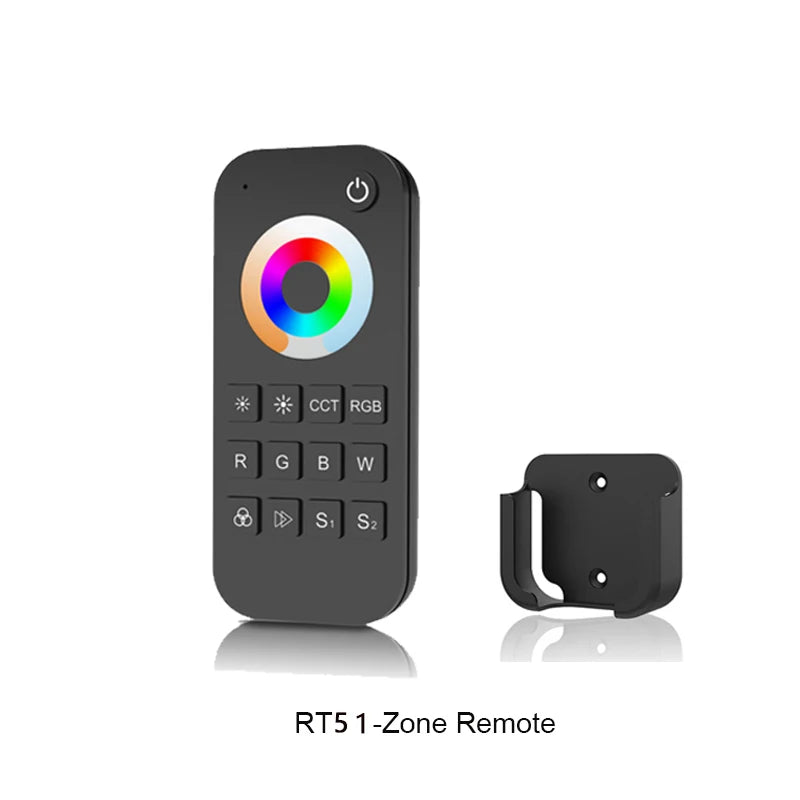

4. RT5 is 1-zone remote,control one wt5 controller,RT10 is 4-zone,you can control 4pcs wt5.
5. Choice the controller,remote,power and led strip according your need.

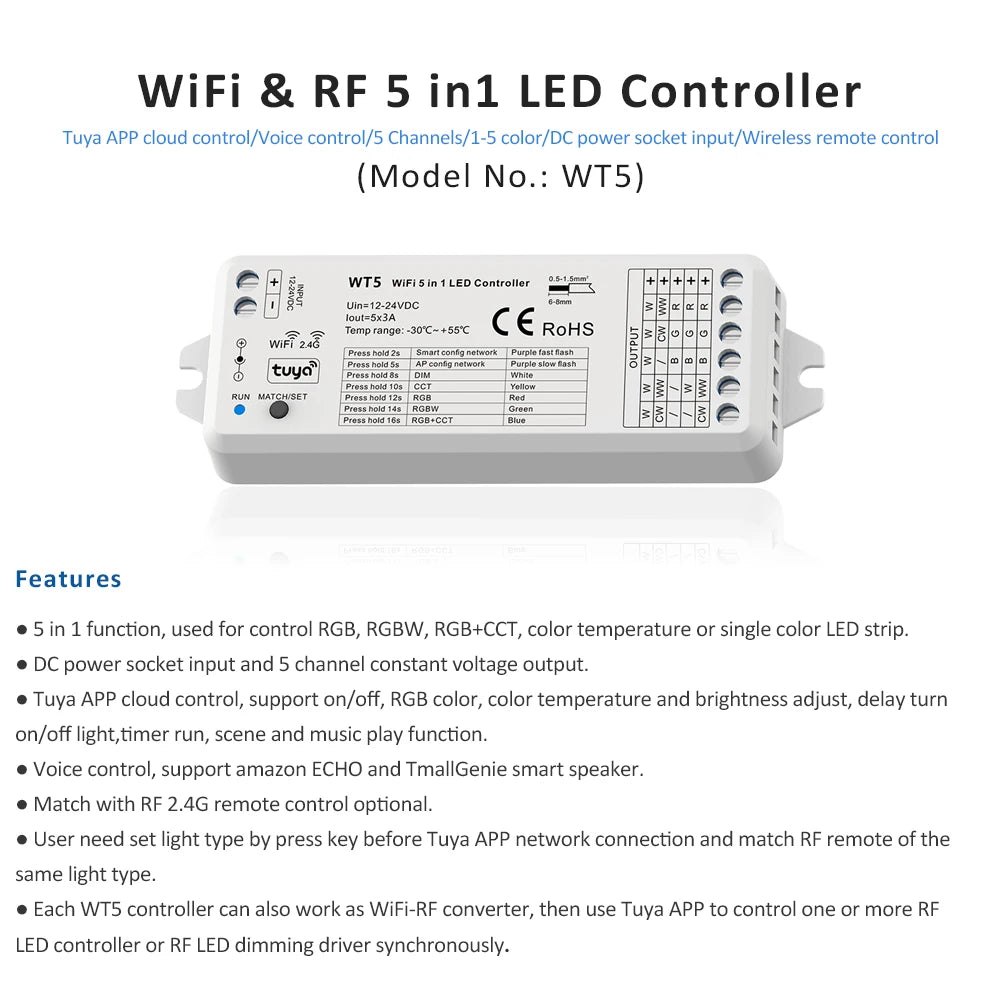

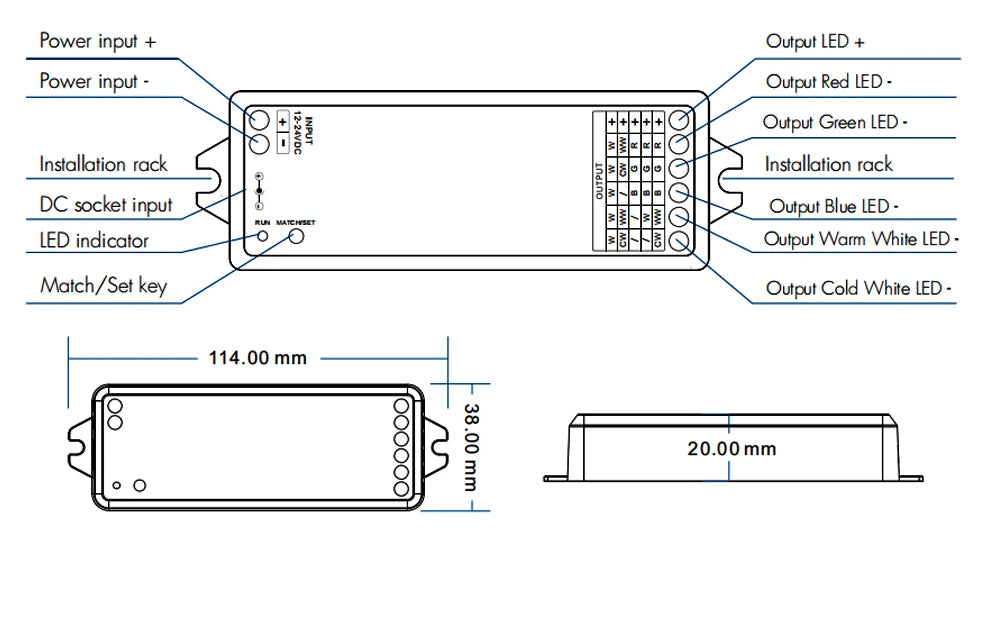

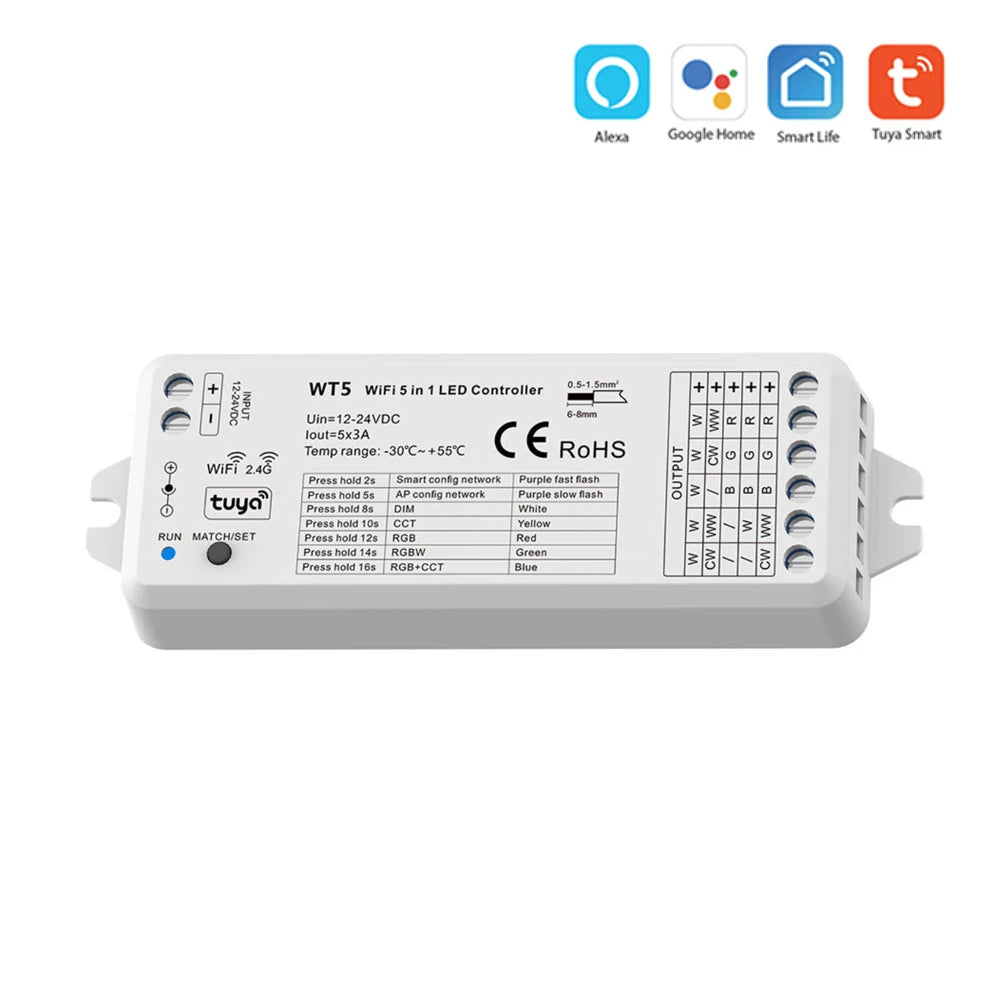

WT5 Specification:

● 5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.
● DC power socket input and 5 channel constant voltage output.

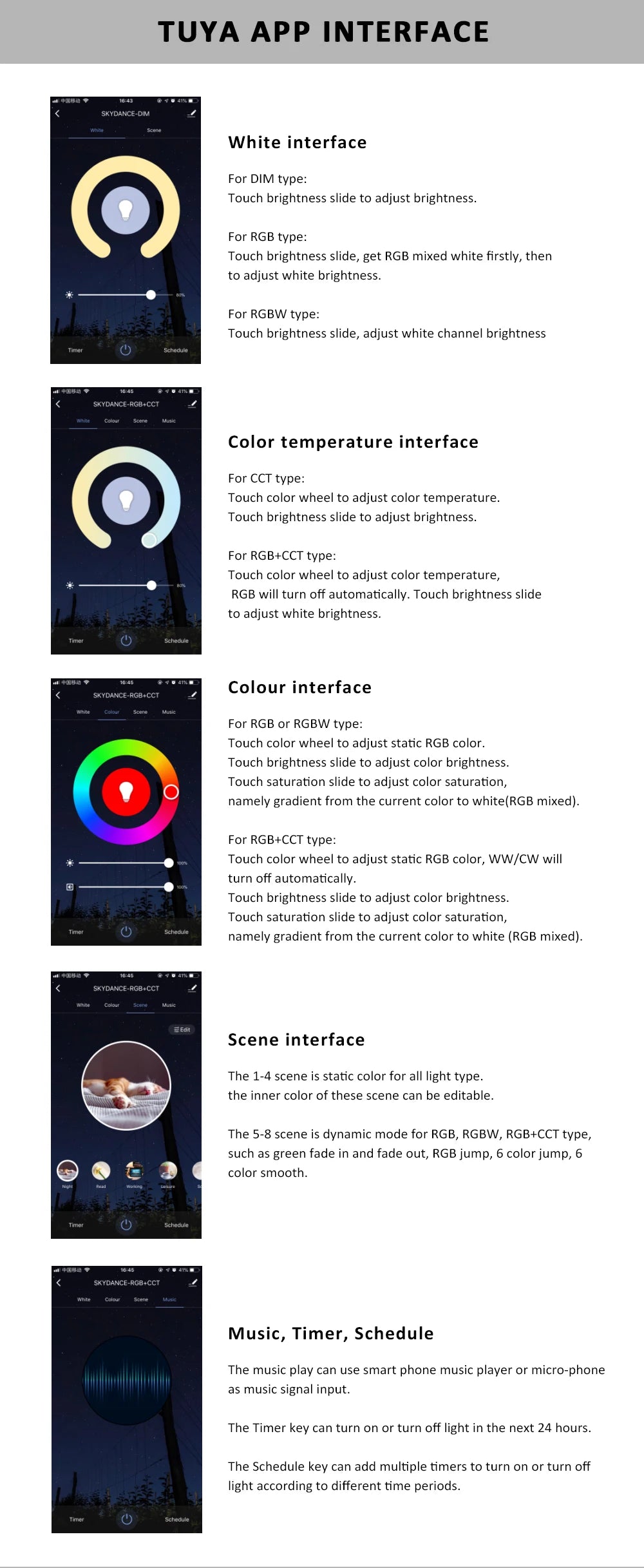

● Tuya APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay turn on/off light,timer run, scene and music play function.
● Voice control, support amazon ECHO and TmallGenie smart speaker.
● Match with RF 2.4G remote control optional.
● User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.

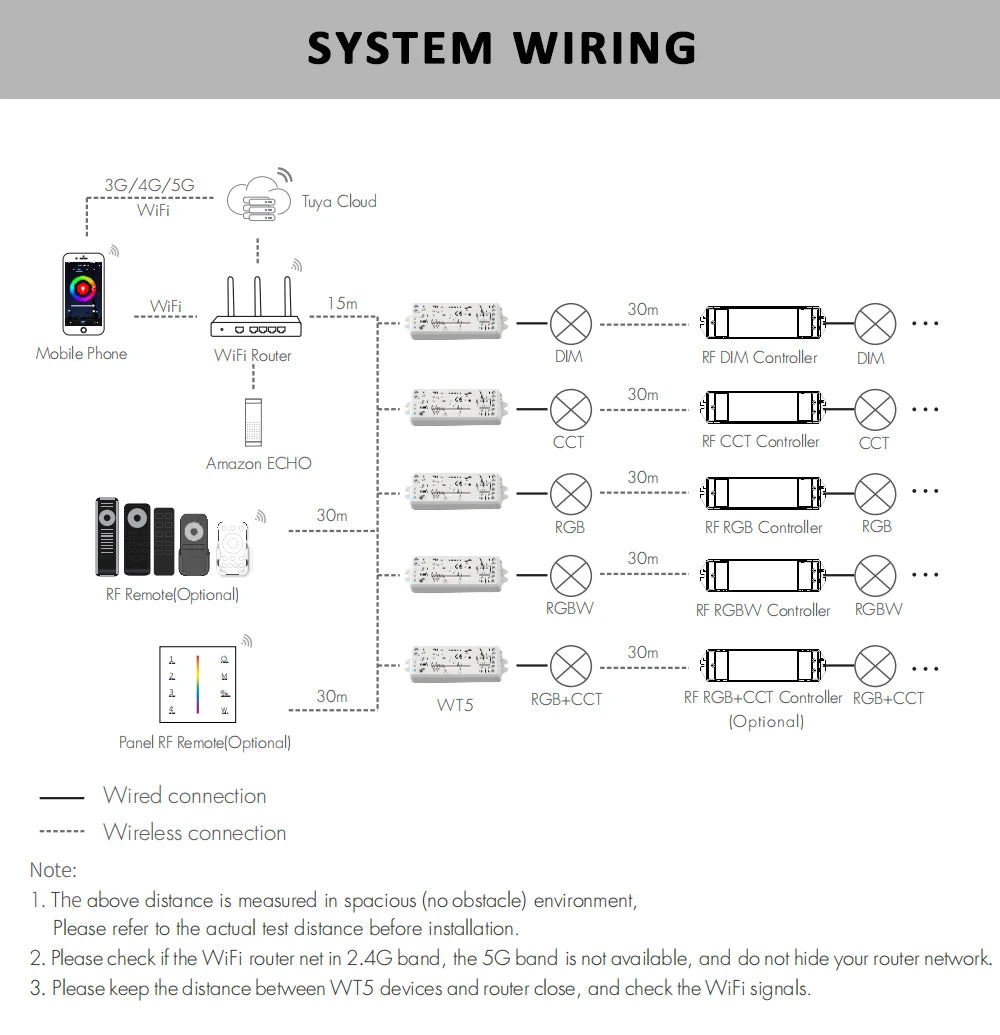

● Each WT5 controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously

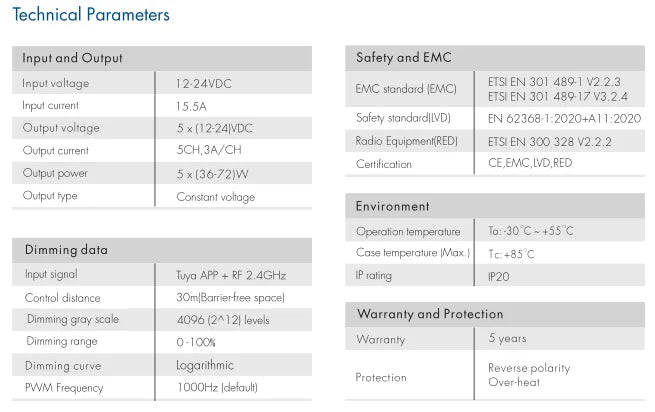

Main Parameters:

Input voltage: 12-24V DC
Output voltage:  12-24V DC
Output current: 5CH,3A/CH
Input signal: Tuya APP + RF 2.4GHz
Dimming range:0 -100%
Dimming range scale: 4096 (2^12) levels
PWM Frequency:500Hz (default)
Protection:Reverse polarity Over-heat

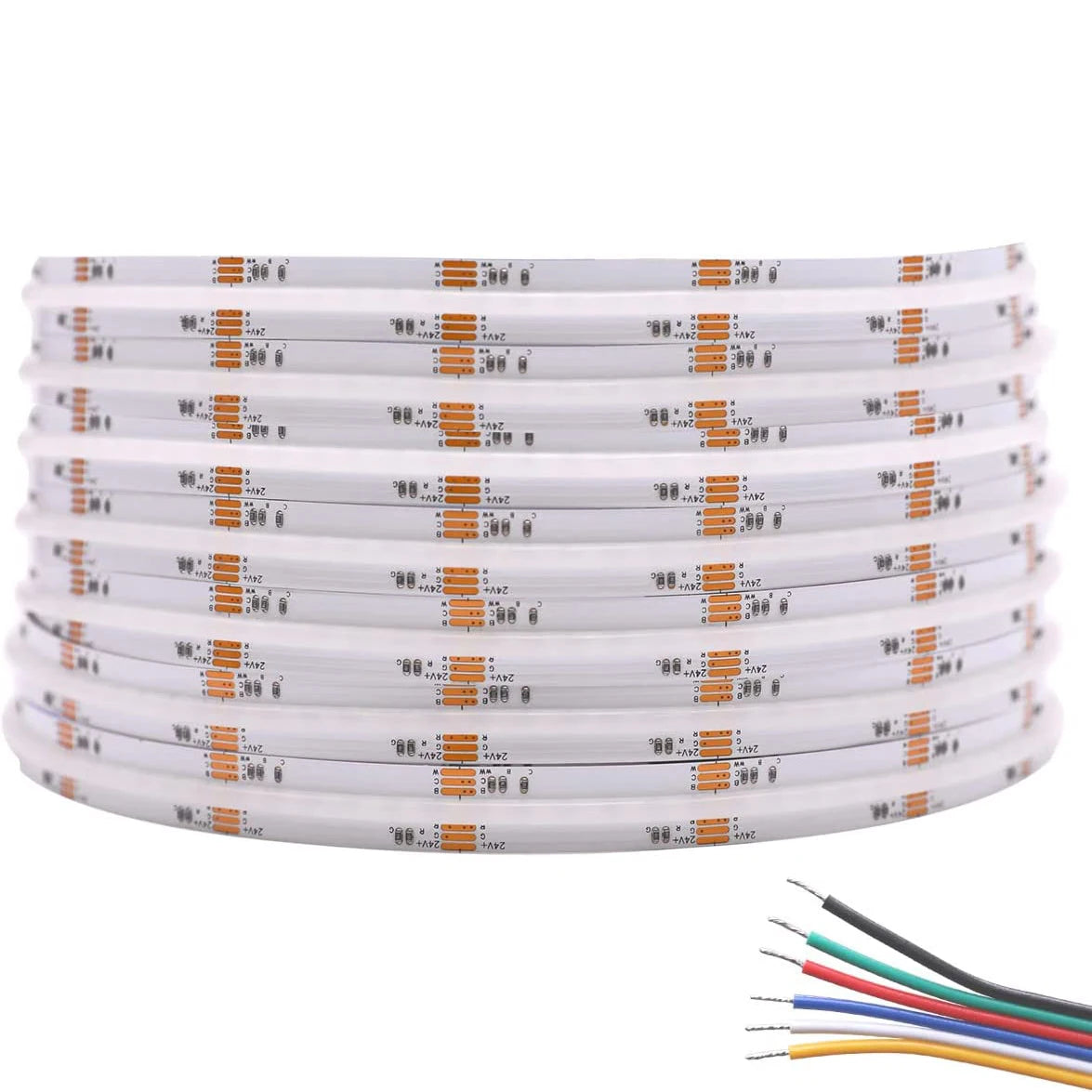

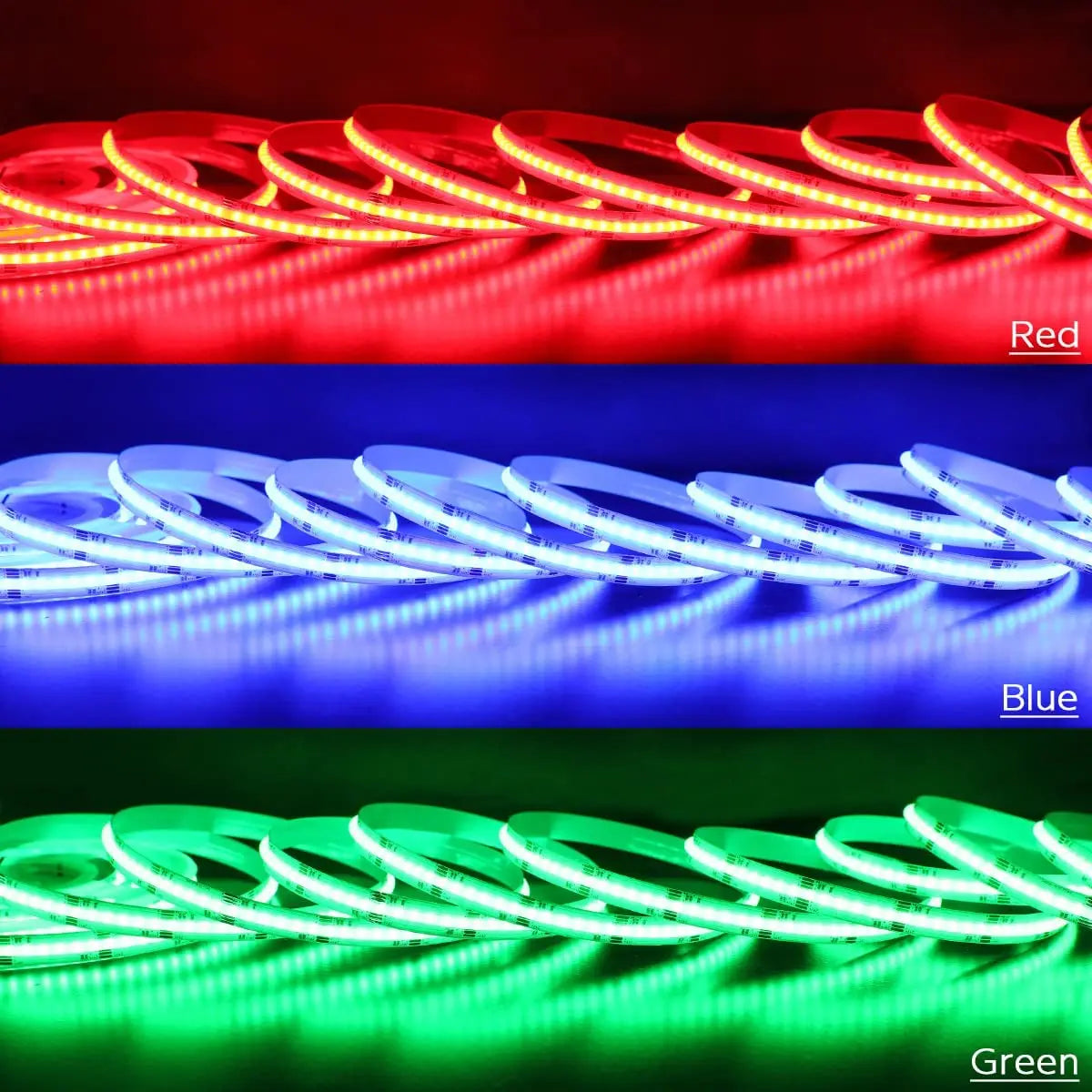

LED Light Specification:

Lamp bead: cob

Specification: 12mm

Brightness: 8-10lm

Chip: gold wire copper support

Color temperature: RGBCCT(RGB+White+Warmwhite)

Power: 17w/m

Packaging: reel + electrostatic bag packaging

Number of LEDs: 840led / M

Voltage: low voltage 24V

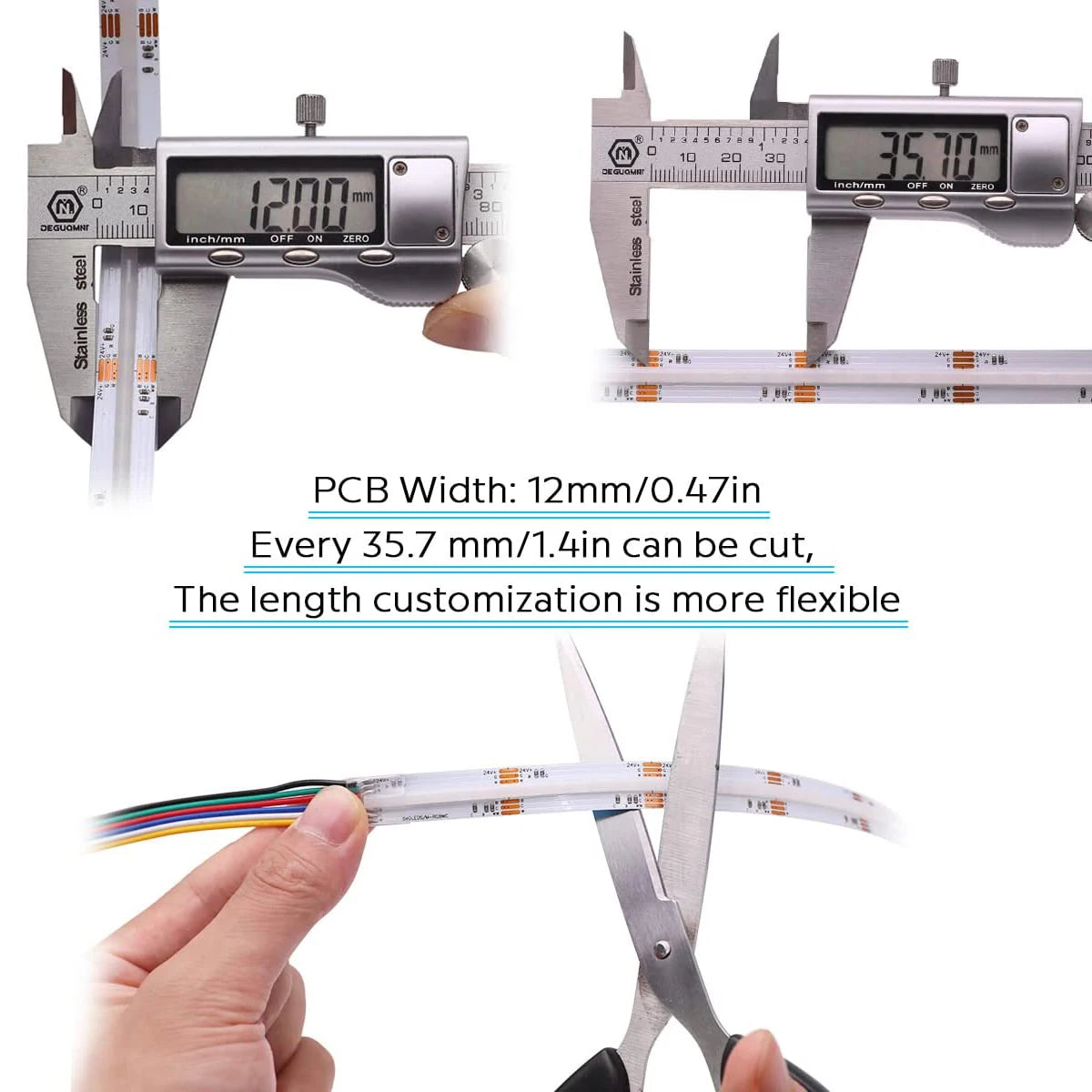

Width: 12mm

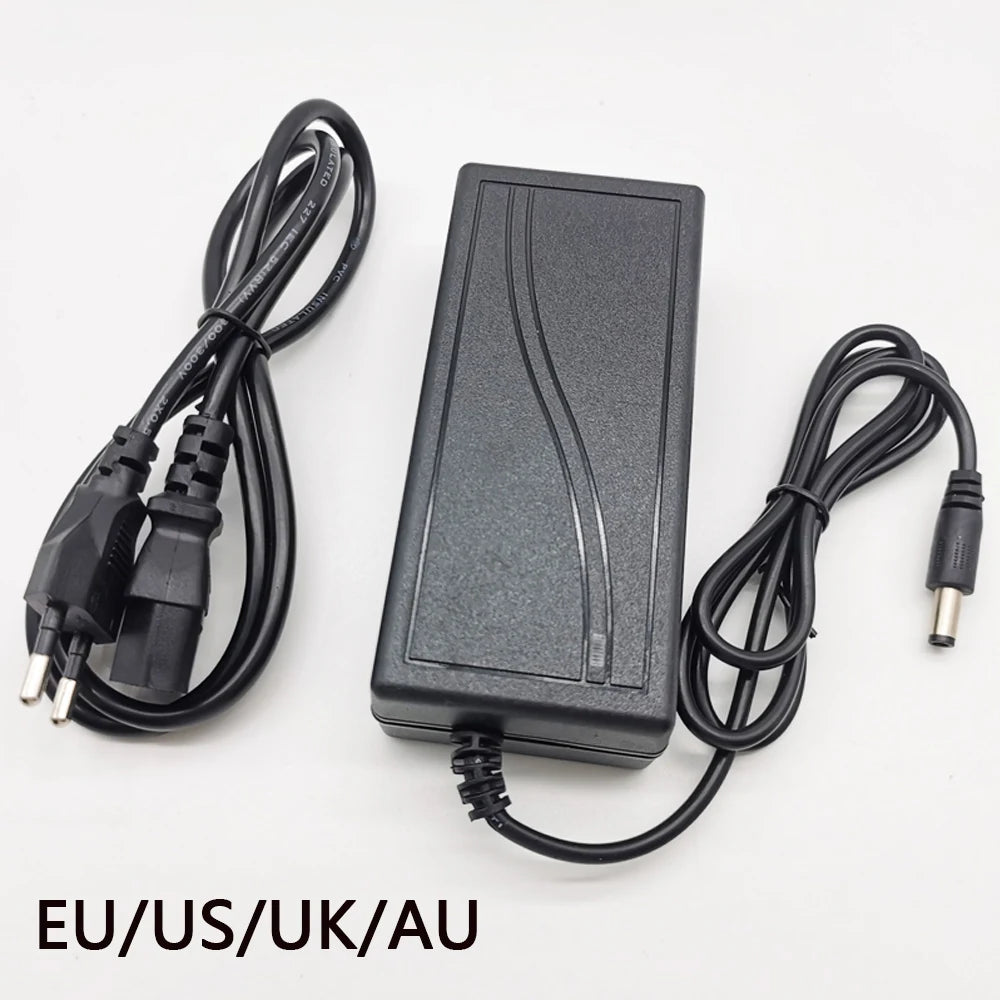

Power Plug we have EU US UK AU,send according your address.
