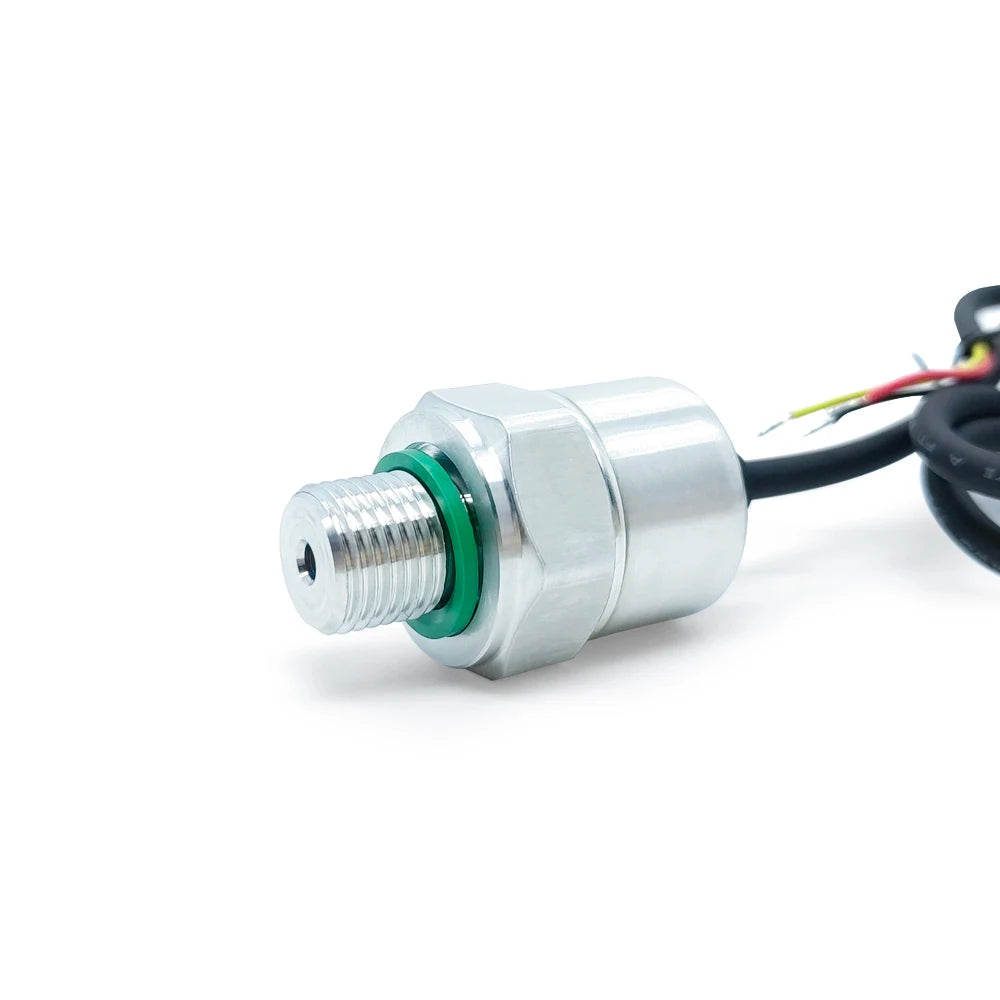

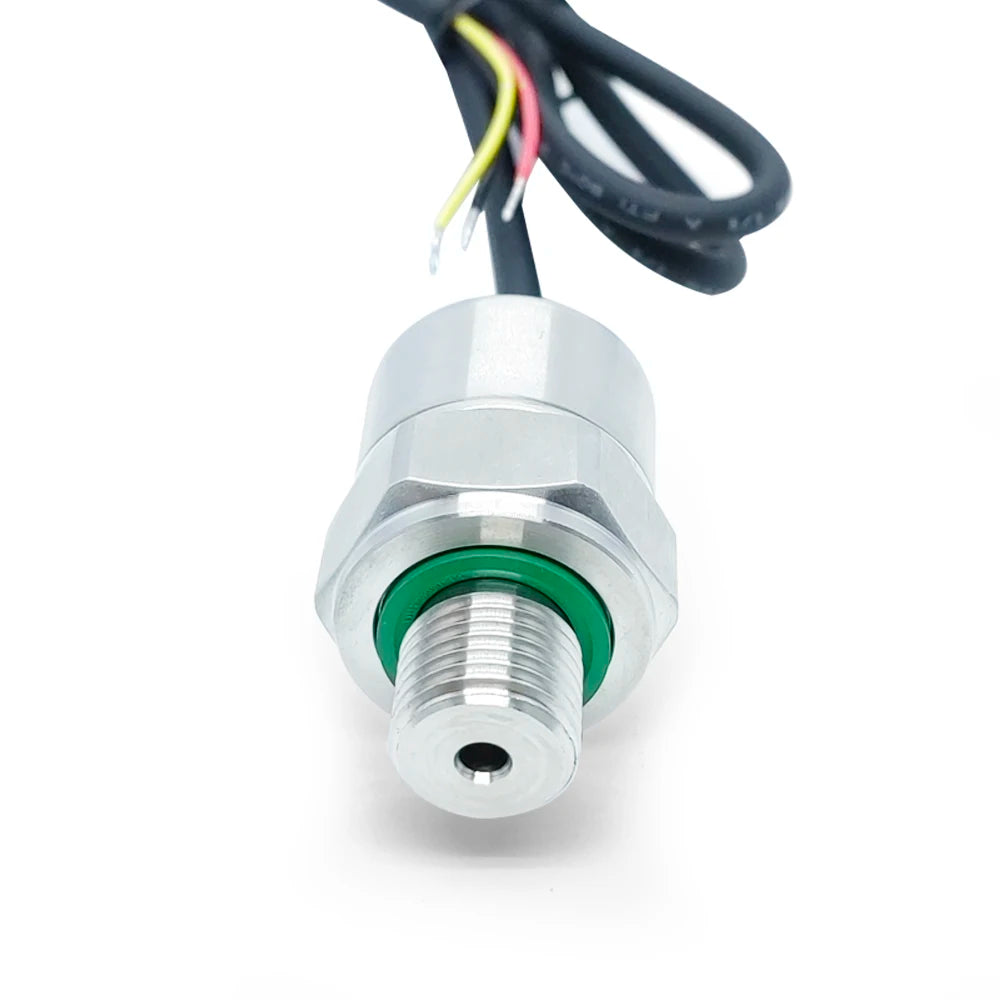

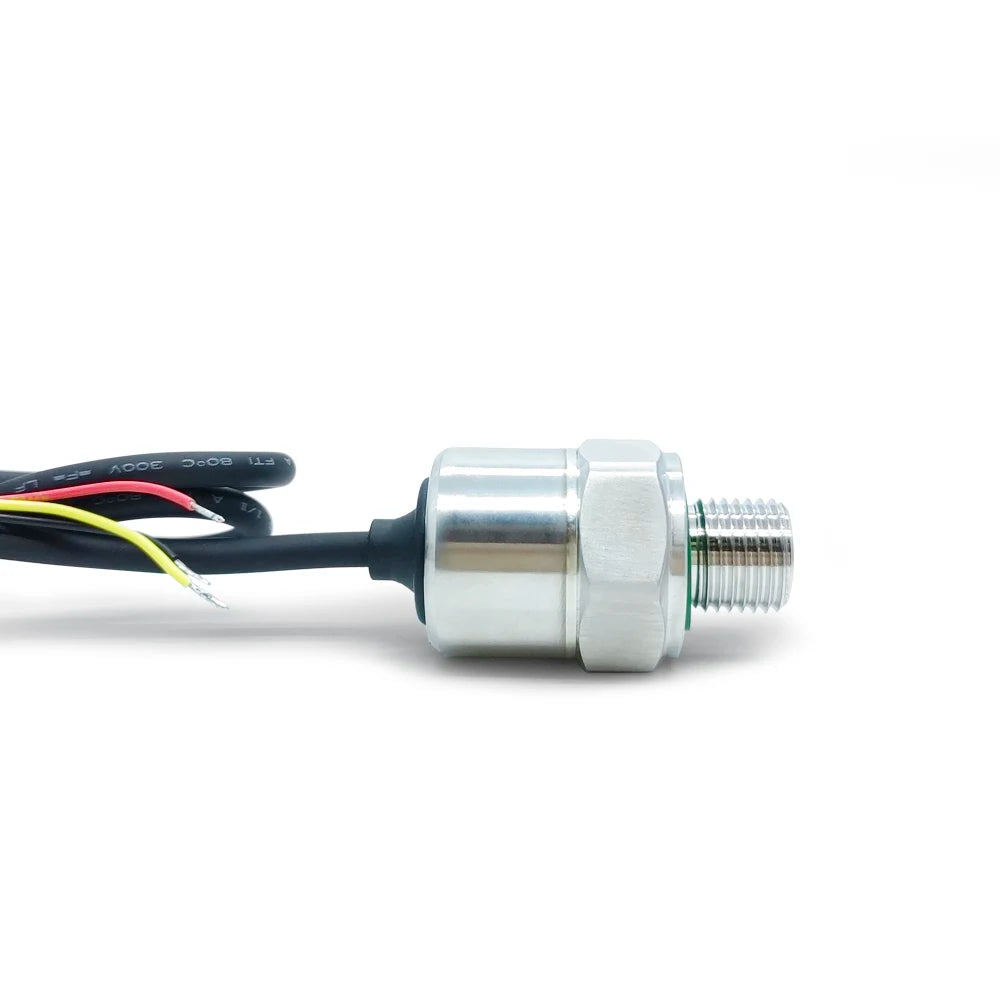

Coffee Machine Use Pressure Transmitter 5-12V 0.5-4.5V SS316L G1/4 Steam Pressure Transducer Sensor for Arduino and STM32

3.3V OUT 0.4-2.4V / China Mainland / 0-1Mpa

$157.37

Sale price $157.37 Regular price $0.00

Skip to product information

Coffee Machine Use Pressure Transmitter 5-12V 0.5-4.5V SS316L G1/4 Steam Pressure Transducer Sensor for Arduino and STM32

Coffee Machine Use Pressure Transmitter 5-12V 0.5-4.5V SS316L G1/4 Steam Pressure Transducer Sensor for Arduino and STM32

$157.37

Sale price $157.37 Regular price $0.00

Color 3.3V OUT 0.4-2.4V 12V OUT 1-5V 12V OUT 0-5V 5V OUT 0.5-4.5V 12V OUT 0.5-4.5V SUP 3.3V OUT I2C 12V OUT 0.4-2.4V

Ships FromChina Mainland

Measuring Range 0-1Mpa 0-1.2Mpa 0-0.6Mpa 0-0.8Mpa 0-2.5Mpa 0-3Mpa 0-1.6Mpa 0-2Mpa 0-4Mpa 0-0.4Mpa 0-0.5Mpa 0-0.2Mpa 0-3.5Mpa Other

Description

SPECIFICATIONS

Accuracy: ±1%FS

Battery Included: no

Brand Name: XIDIBEI

Burst pressure: 300%FS

Certification: CE,RoHS

Compensation temperature: -20-80℃

Cycle life: 500,000 times

Electrical connection: Direct cable

Explosion-proof class: ExiaIICT6

High-concerned chemical: none

Housing material: SS316L thread & hex bolts for corrosive media

Long-term stability: ≤±0.2%FS/year

Max Measuring Range: 59 Bar & Under

Measuring range: -1~0~40bar

Model Number: XDB401Pro-G1-W7

Operating current: ≤3mA

Operating temperature: -40-105℃

Origin: Mainland China

Output signal: 0.5-4.5V by default

Overload pressure: 150%FS

Paired cable: 0.5m default

Pressure connection: G1/4

Pressure medium: Corrosive liquid or gas for SS316L

Protection class: IP65

Response time: ≤3ms

Supply voltage: 5-12VDC

Temperature drift (zero & sensitivity): ≤±0.03%FS/℃

Weight: 0.1kg

Description

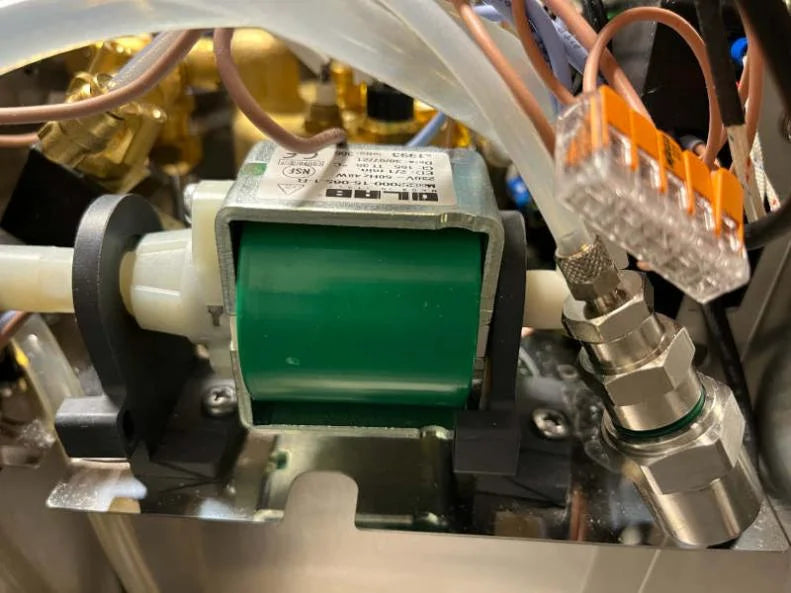

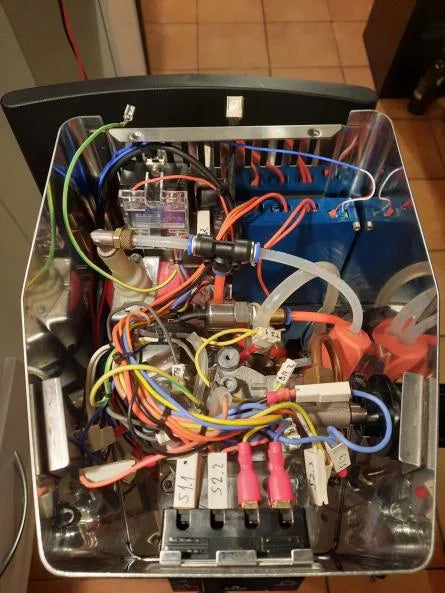

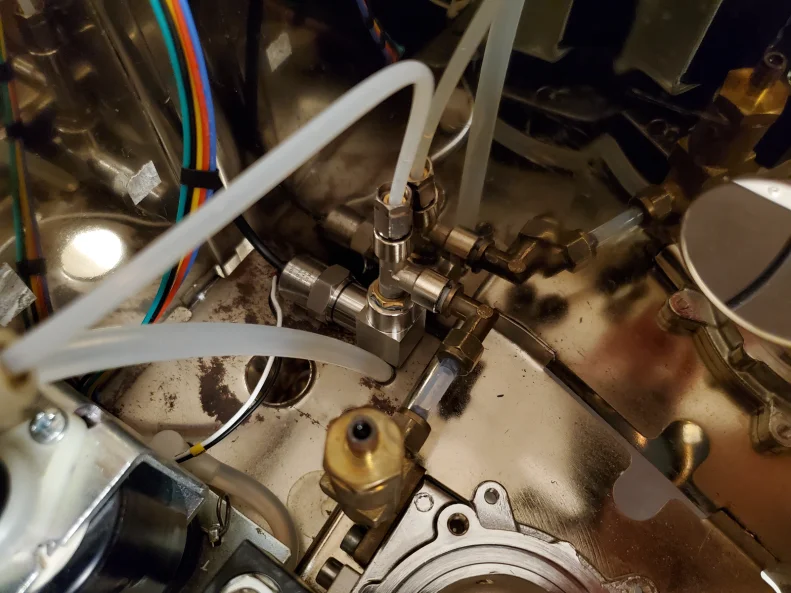

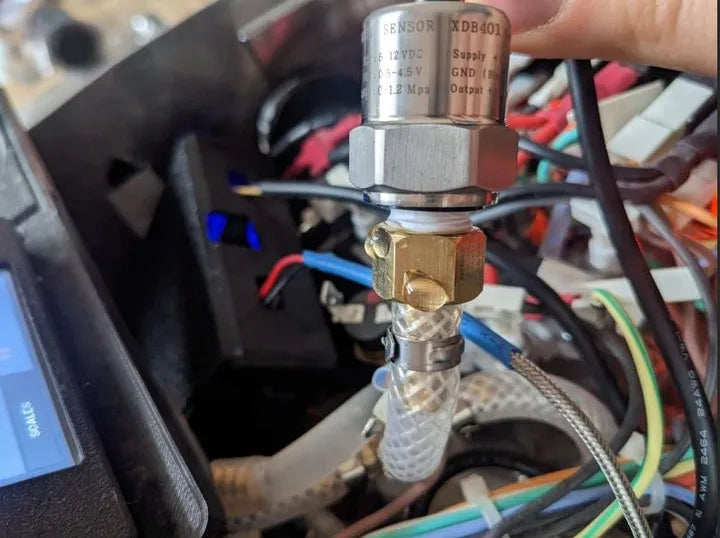

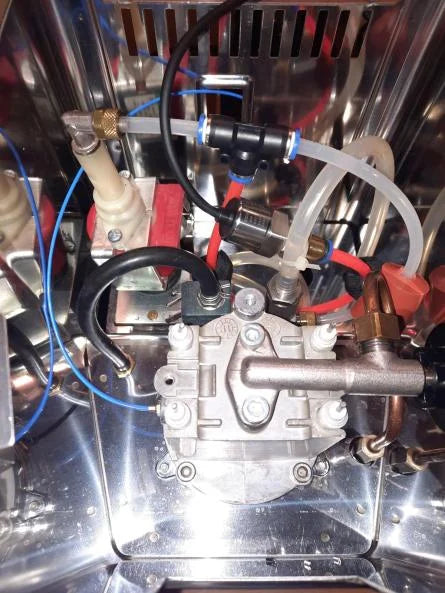

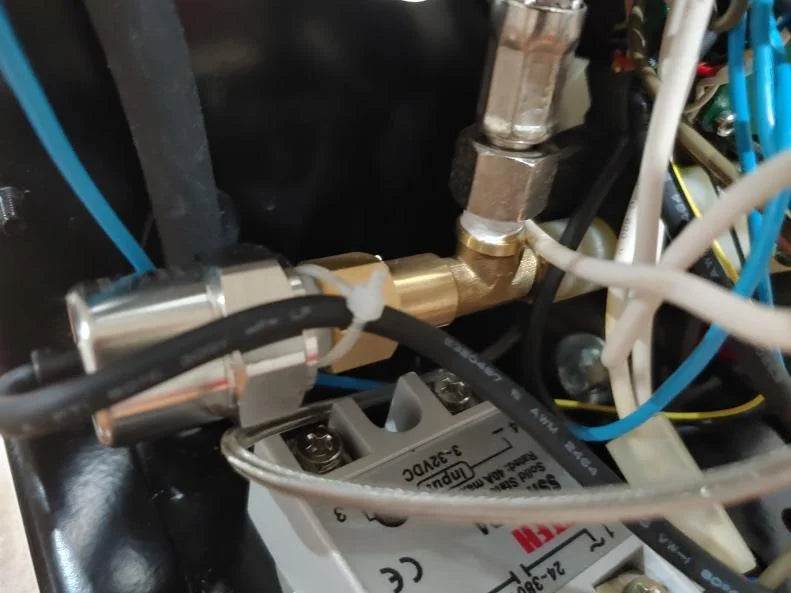

XDB401-G1-W7 is a pressure sensor specifically designed for coffee machines, which can detect, regulate, and monitor pressure, and convert its perceived physical data into electronic signals. Generally, remind user to supply water when at a low level, preventing the machine from dry burning and sudden lack of water during coffee making, or detect a high level alarm, mainly to prevent water overflowing. Its 316L material is more compatible with food and so it will make a perfect espresso through accurate pressure and temperature.

Features

◆ High accuracy

◆ Compact, small size

◆ Cost-efficient, low consumption

◆ Long-term stability and reliability

◆ SS316L thread and hexagon part, suitable for food industry

Applications

◆ Support water pressure detection of tanks;

◆ Support liquid level detection in special situation detection in specified liquid;

◆ Support water pressure detection of the outdoor environments, such as rivers, lakes, and the sea;

◆ Support water pressure detection of living environmental water systems, such as houses, gardens, and farms;

Parameters

Measuring range	-1~0~40Bar (optional)
Accuracy	±1%FS
Output signal	0.5-4.5V by default
Supply voltage	5-12VDC \| 3.3VDC for(I2C or 0.4-2.4V)
Operating temperature	-40 - 105℃
Compensation temperature	-20 - 80℃
Operating current	≤3mA
Temperature drift (zero & sensitivity)	≤±0.03%FS/℃
Long-term stability	≤±0.2%FS/year
Response time	≤3ms
Overload pressure	150%FS
Burst pressure	300%FS
Cycle life	500,000 times
Pressure connection	G1/4
Electrical connection	Direct cable 0.5m
Housing material	SS316L thread & hex bolts for corrosive media
Protection class	IP65
Explosion-proof class	ExiaⅡCT6
Weight	≈0.08kg
Pressure medium	Corrosive liquid or gas suitable for SS316L
