SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

Dissipation Power: 100W

High-concerned chemical: none

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: AC 95-265V

Type: Voltage Regulator

is_customized: Yes

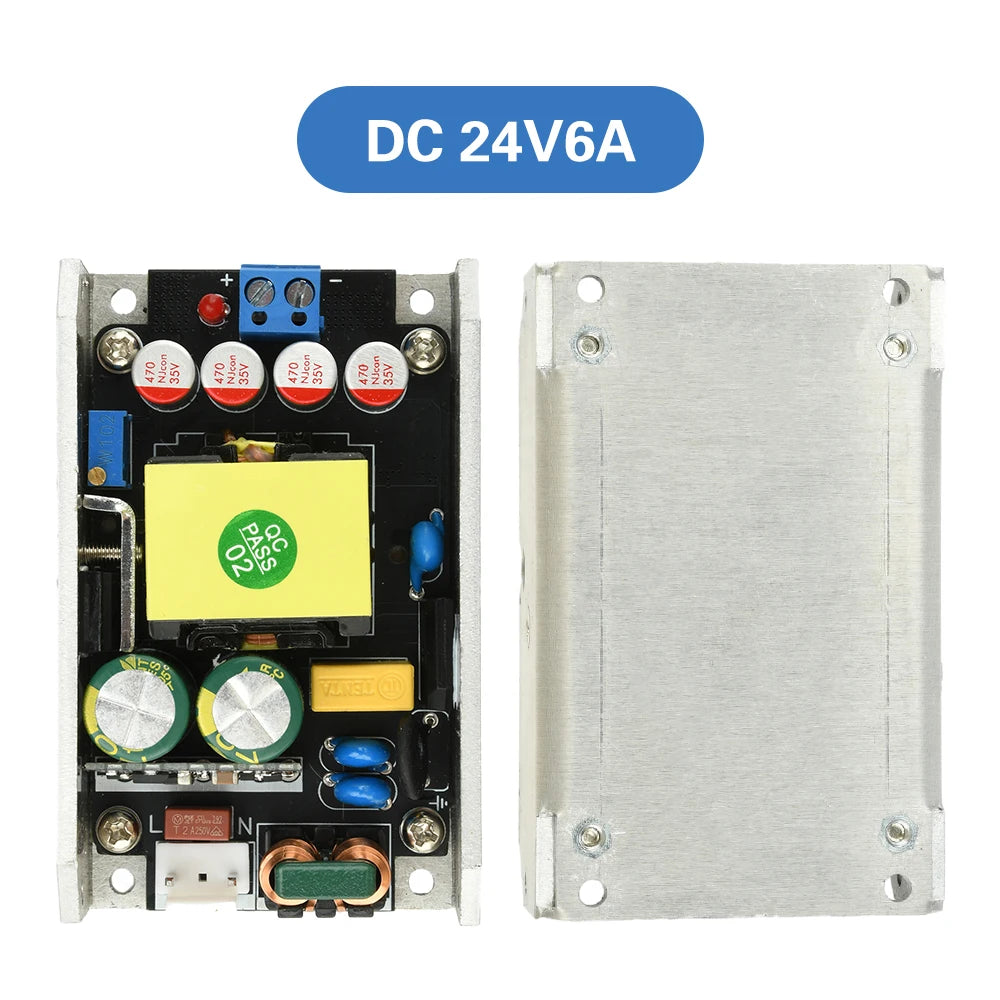

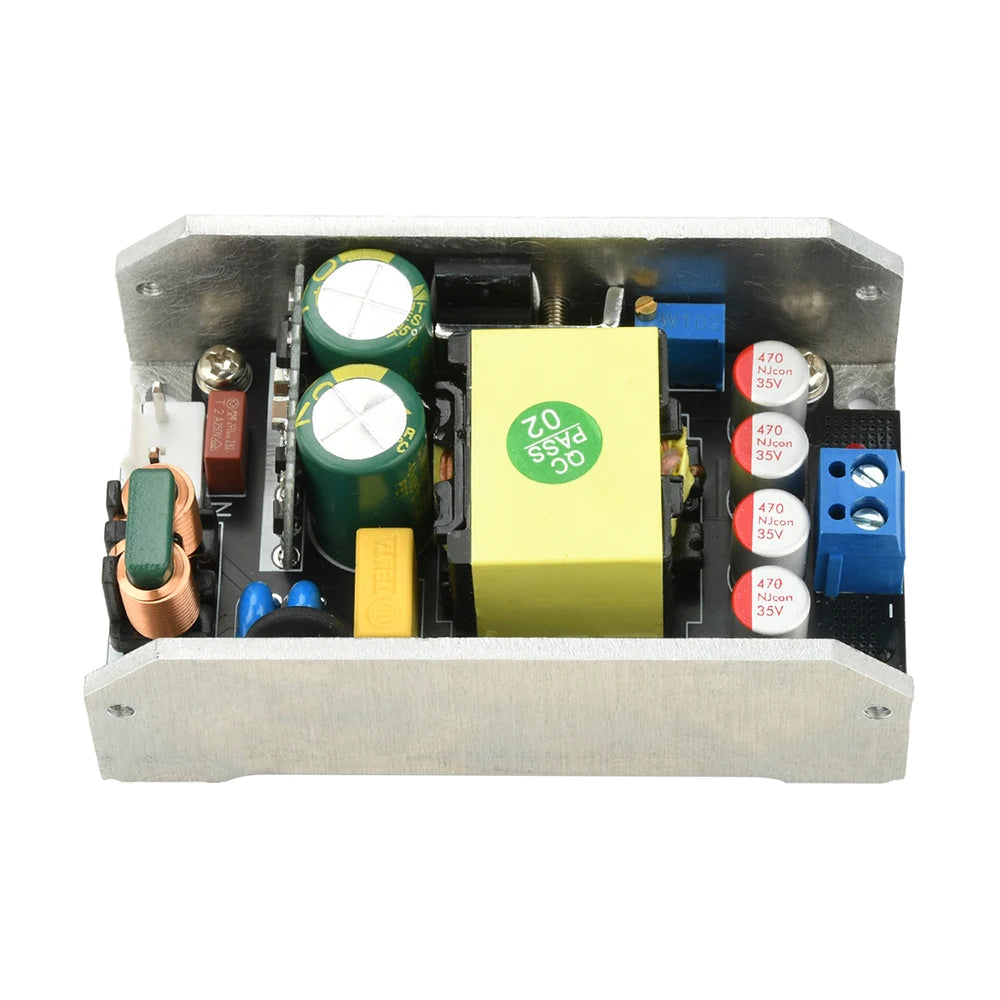

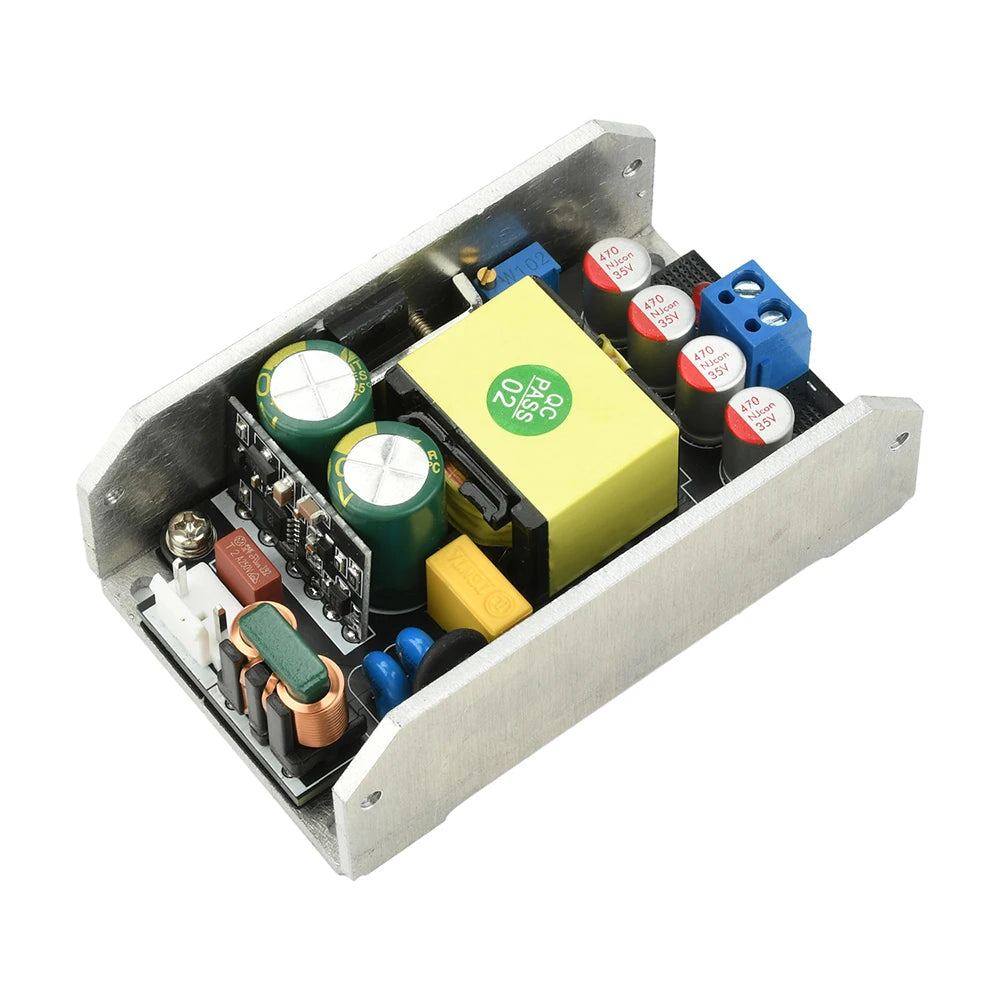

150W High-Power Switching Power Supply

Parameter

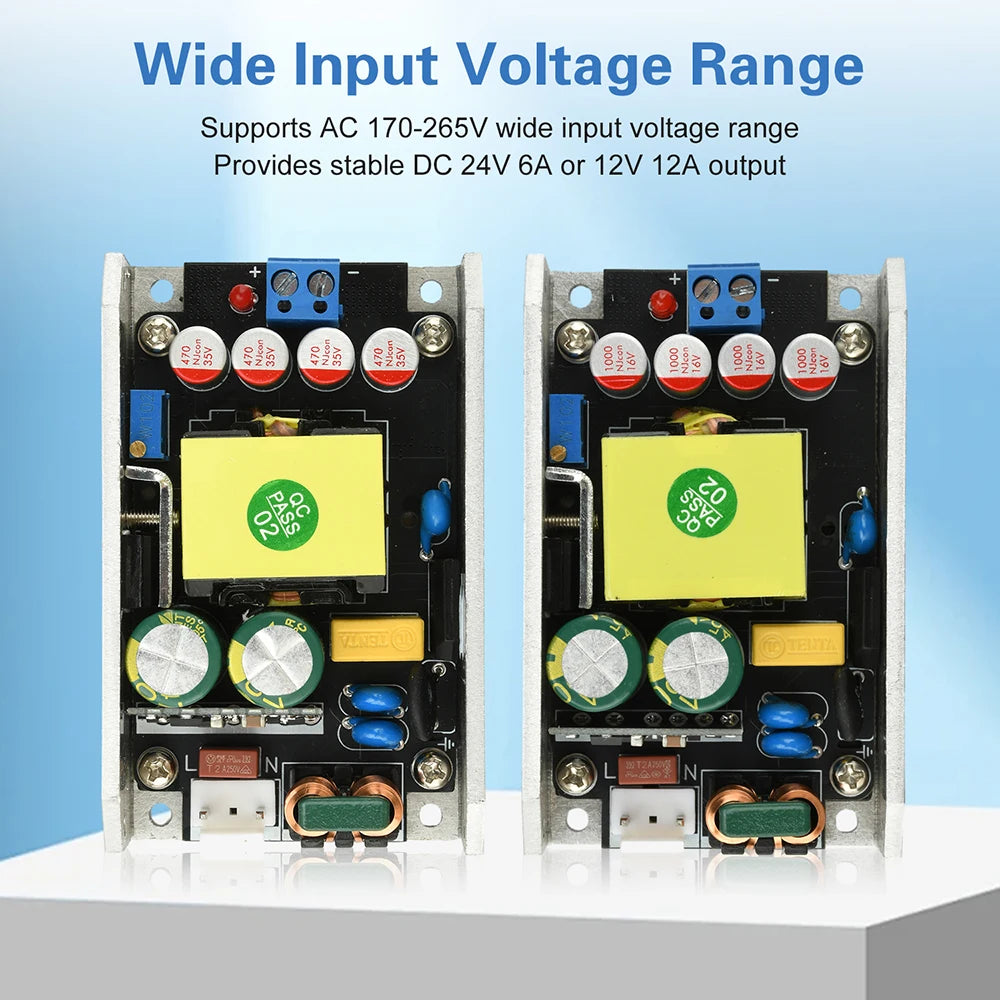

Input Voltage: AC 170-265V
Standby Power Consumption: <190mW
Continuous Output Power: 150W
Voltage Regulation: ≤1%
Load Regulation: ≤1%
Overcurrent Protection Threshold: Above 120%
Surge Voltage Withstand: 300V for 5 seconds
Rise Time: Output voltage from 0V to 90% of rated value ≤10ms
Hold Time: After input interruption, output voltage maintains ≥90% of rated value for ≥100ms

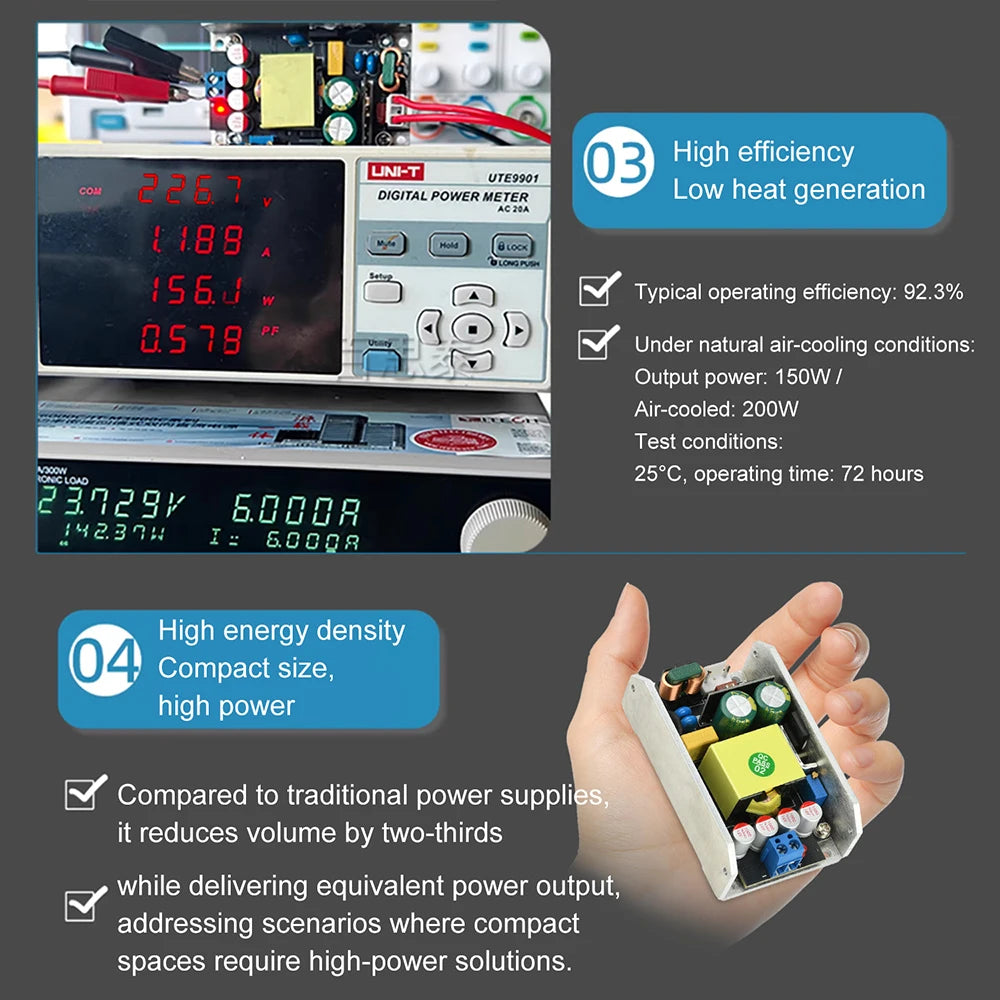

Efficiency: 92% at rated input voltage and full load output

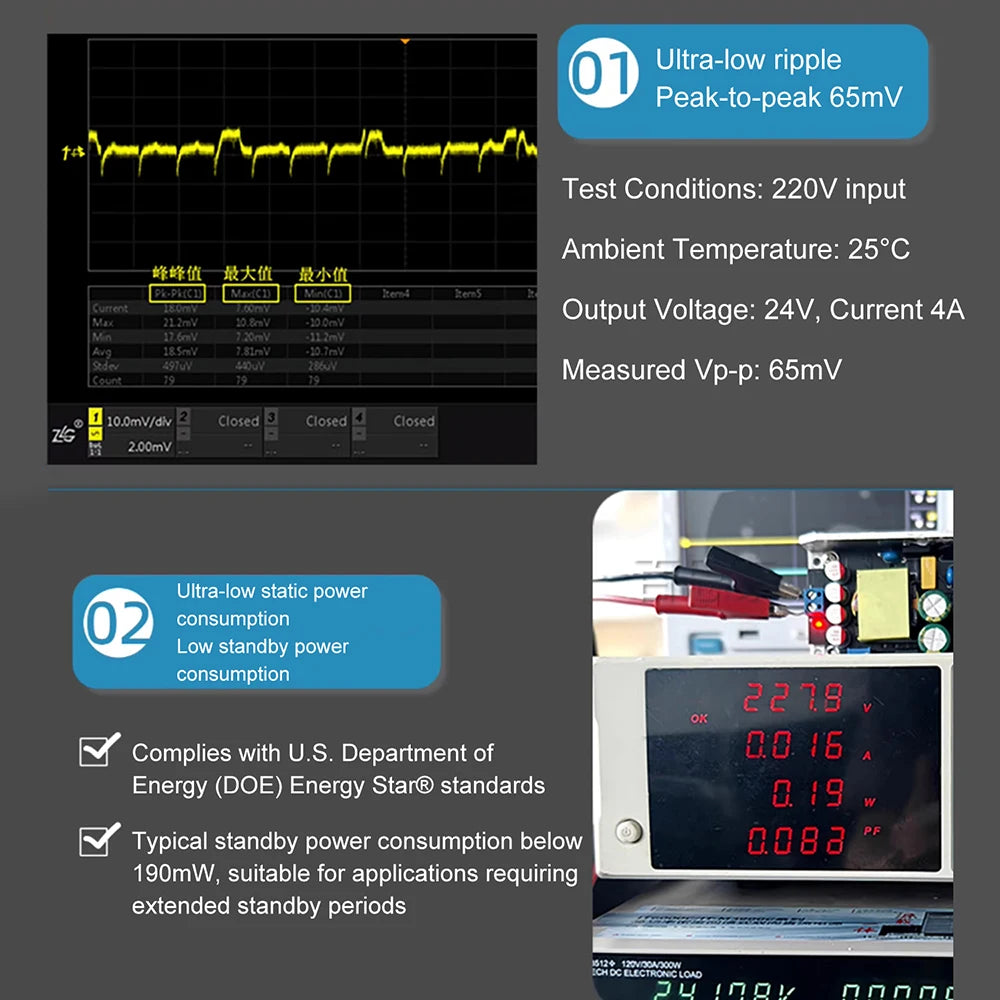

Ripple and Noise: Ripple voltage ≤65mV at rated output voltage and full load output
Reliability: Utilizes high-quality components, rigorously screened and aged-tested. Mean Time Between Failures (MTBF) ≥ 30,000 hours under normal operation
Electromagnetic Compatibility: Complies with EN55032 standards for low environmental electromagnetic interference. Features excellent interference resistance, suitable for complex electromagnetic environments

Package include
Module*1 (Model optional)

100W High-Power Switching Power Supply

Features

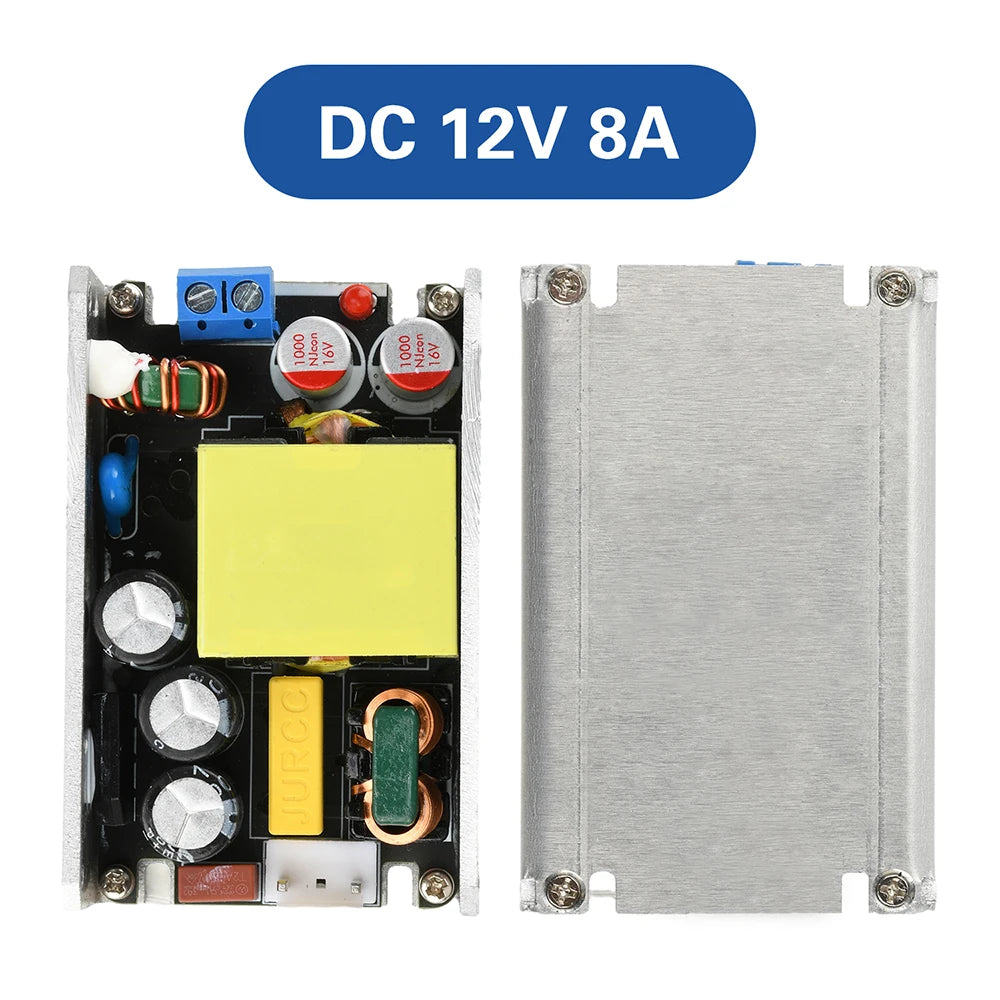

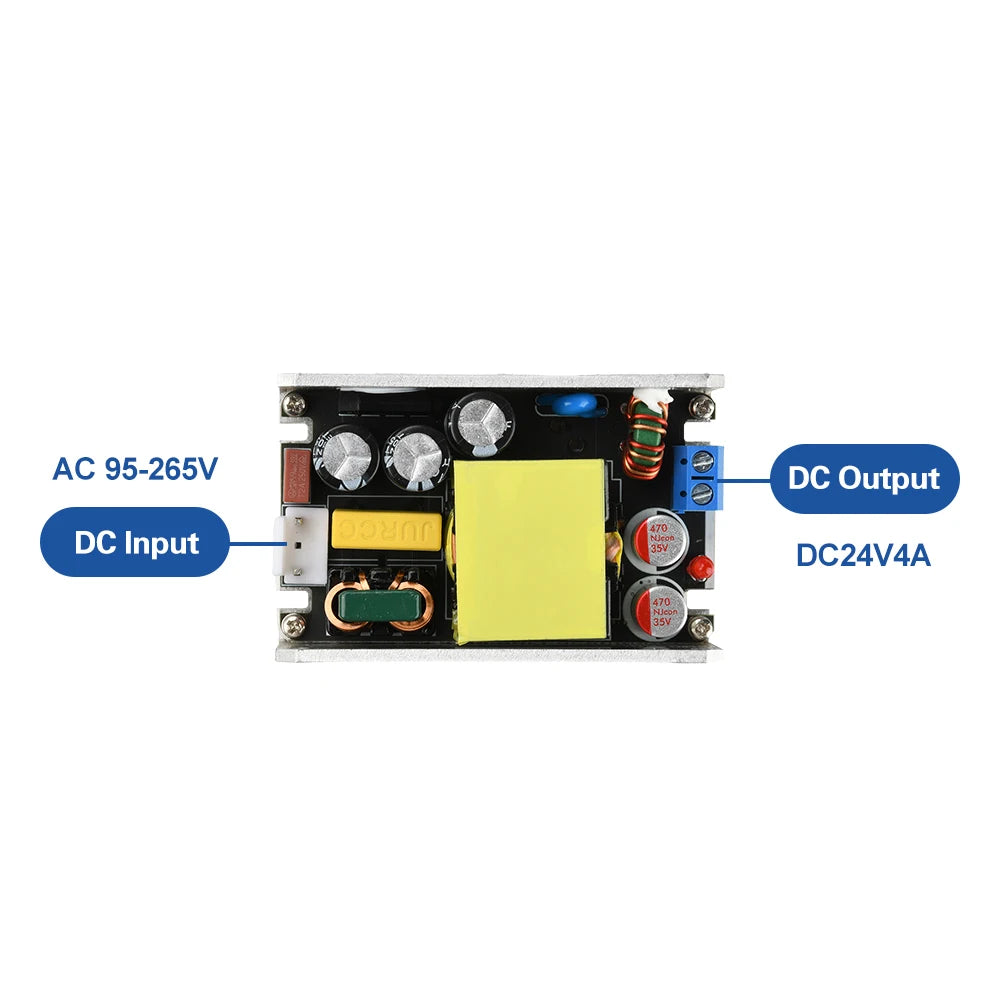

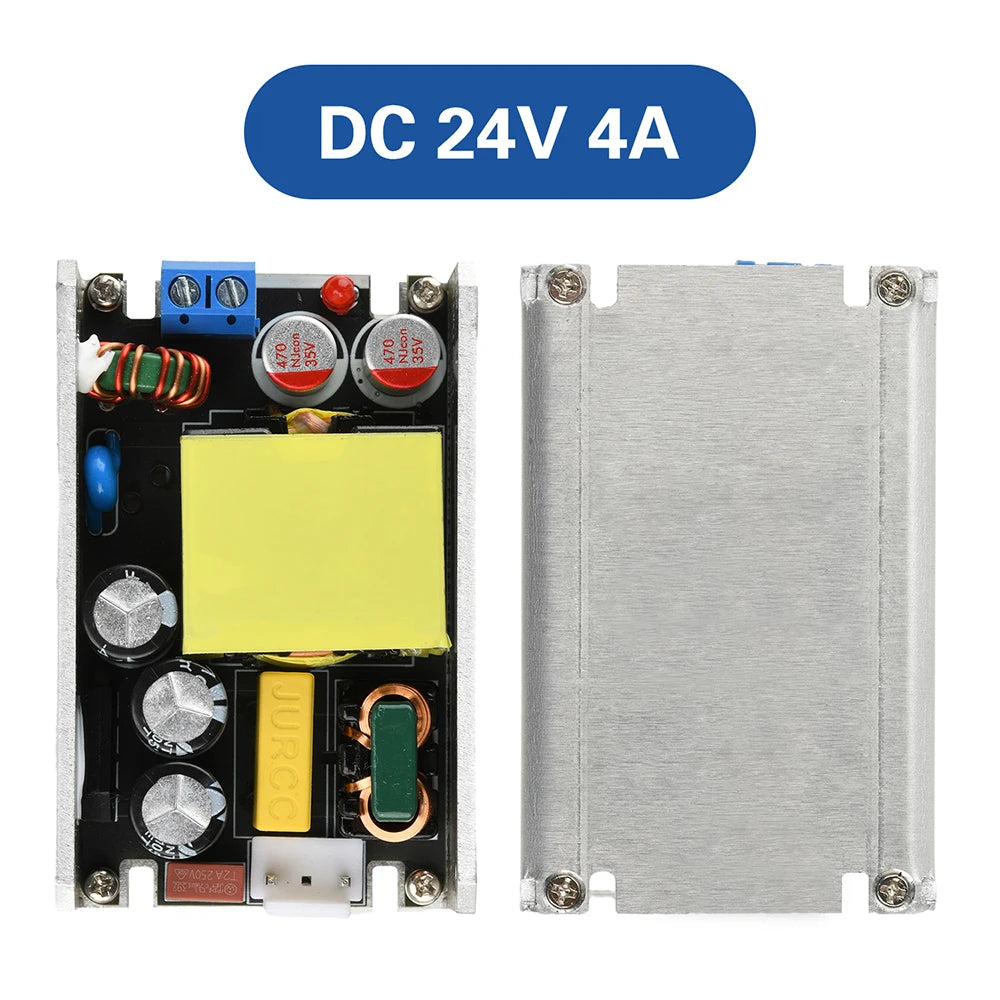

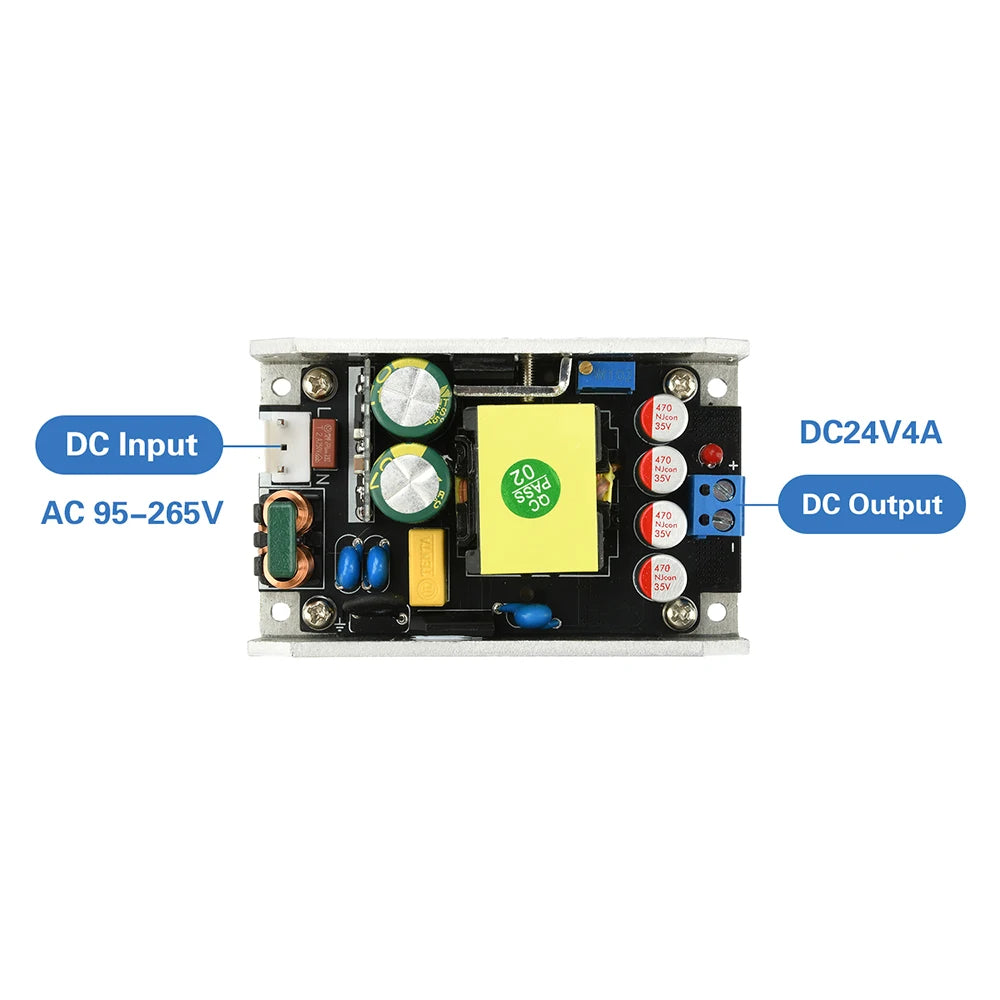

1. Supports wide AC input range of 95-265V, delivering stable DC 24V 4A or 12V 8A output

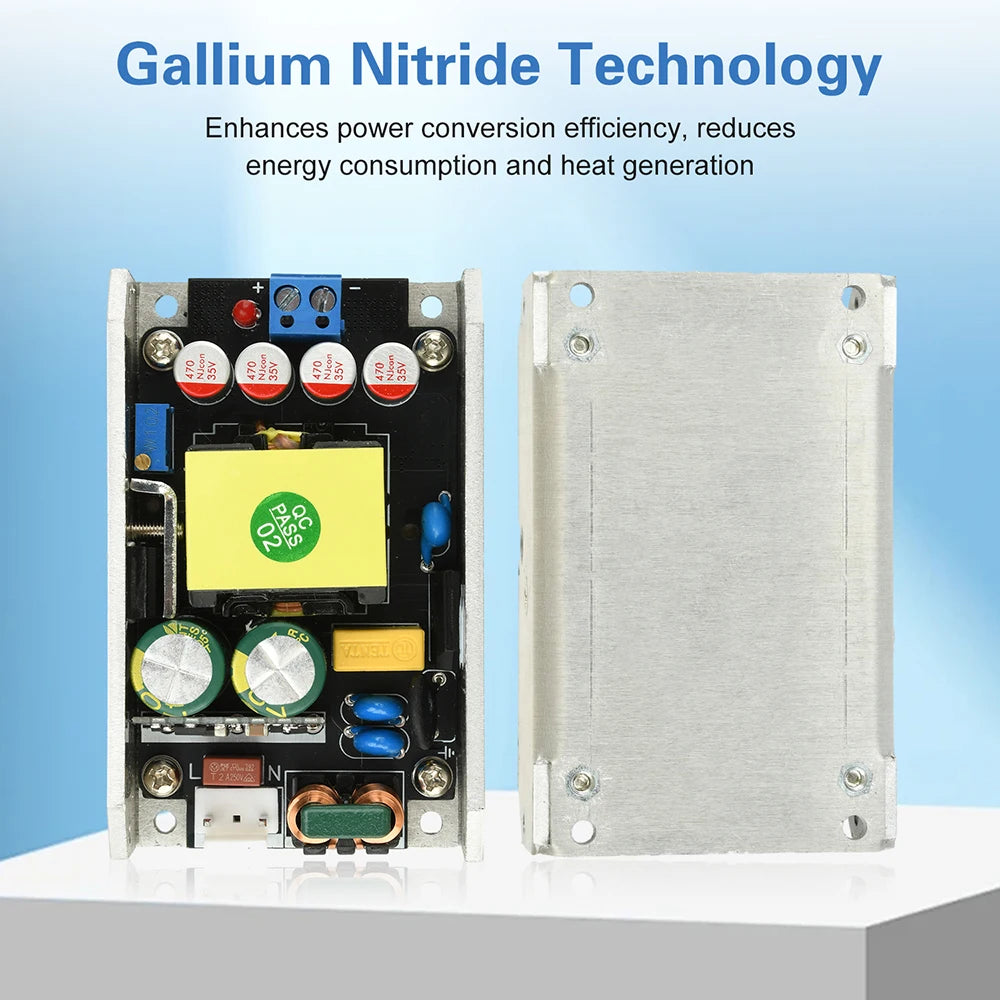

2. Utilizes advanced GaN technology to enhance power conversion efficiency, reduce energy consumption and heat generation

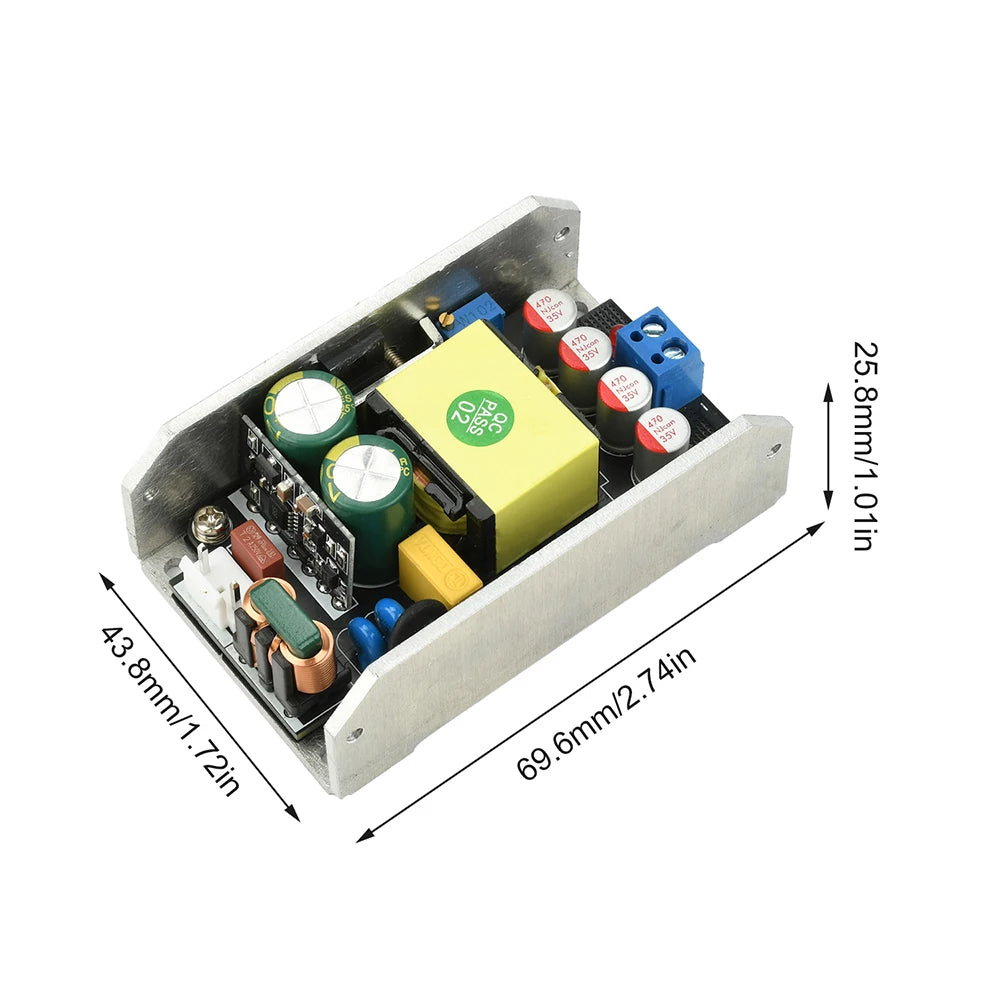

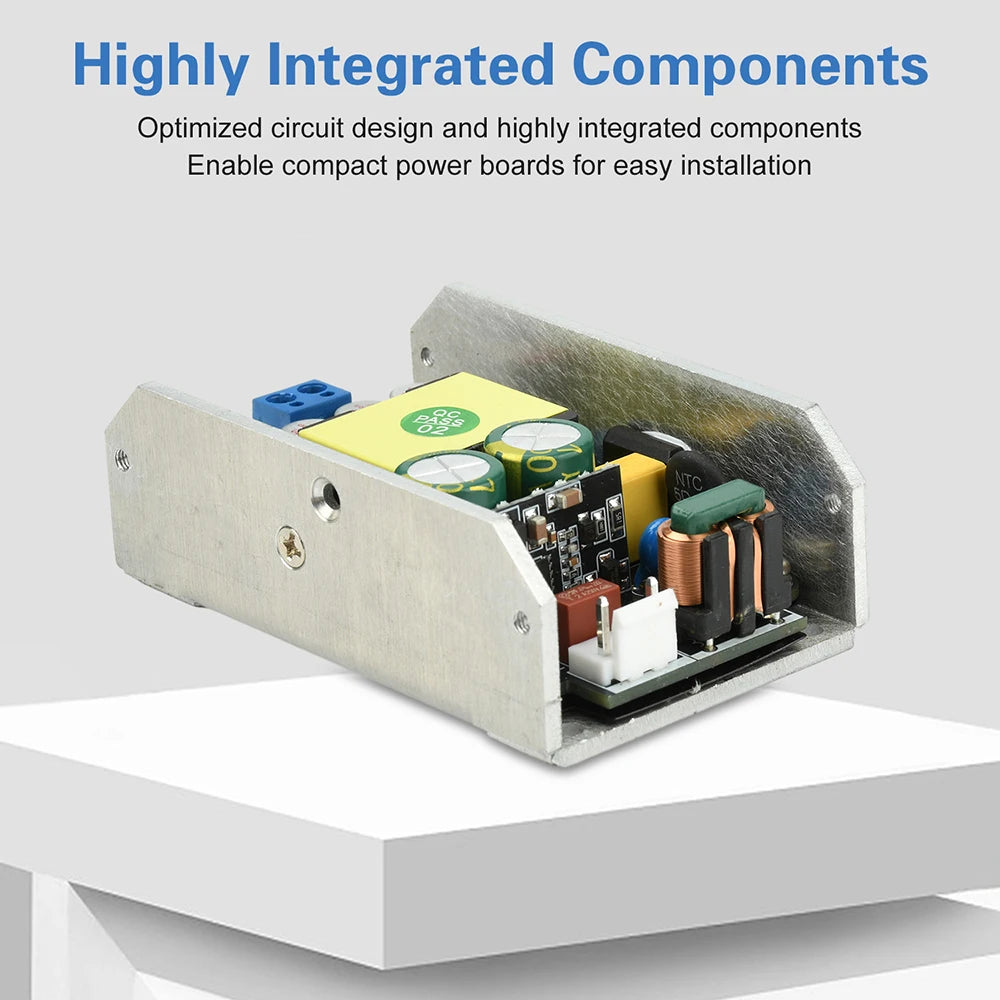

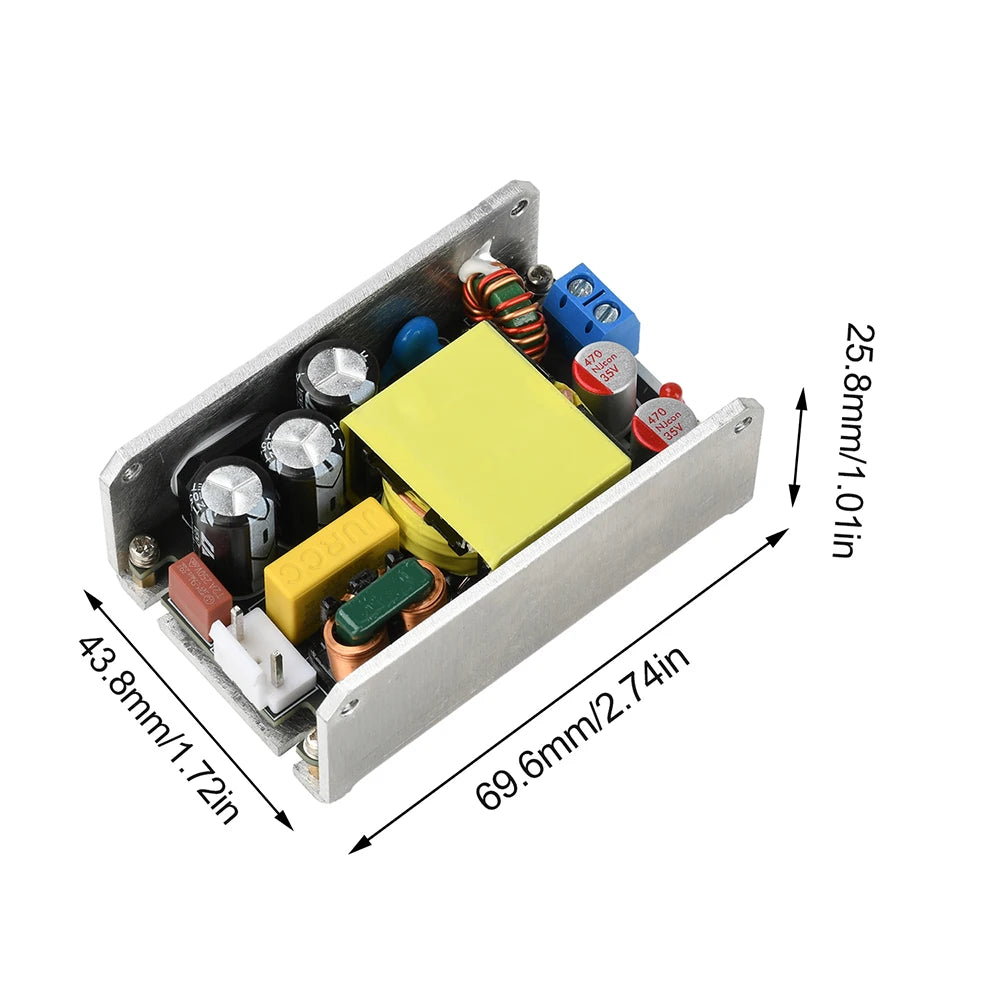

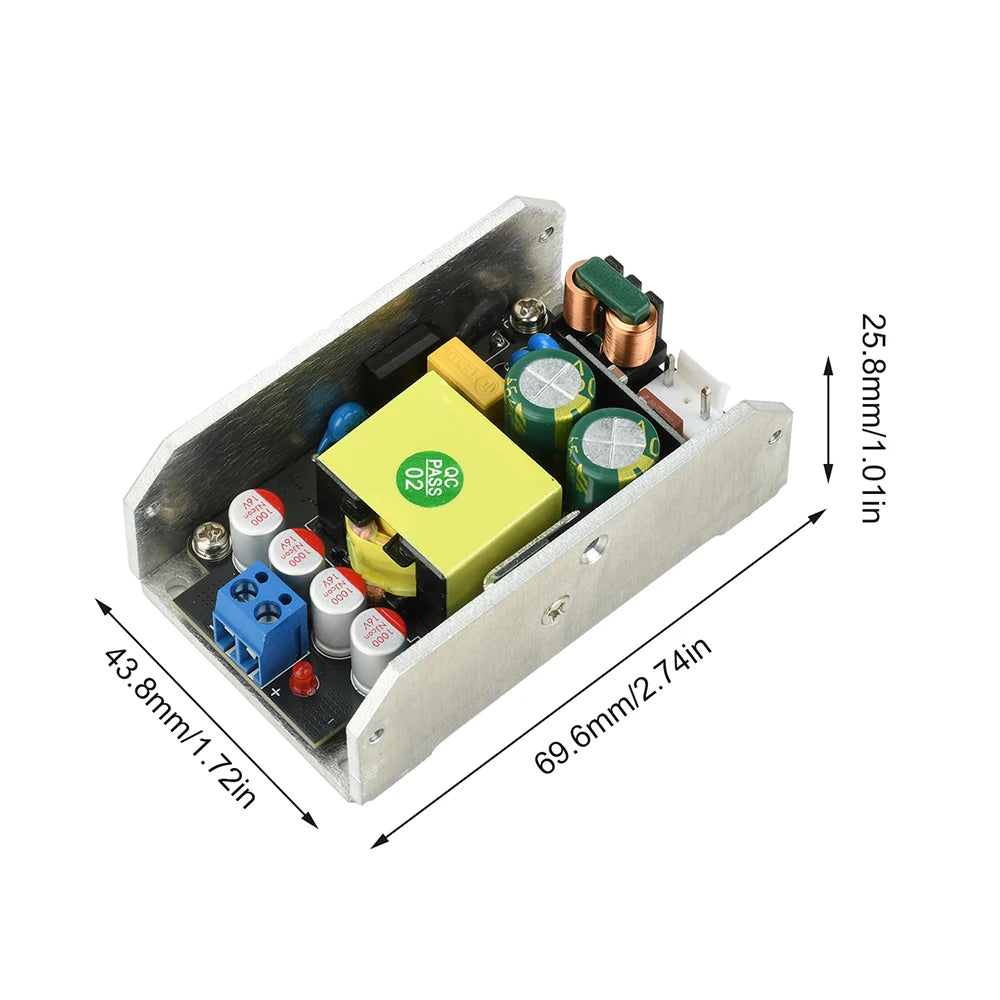

3. Optimized circuit design and highly integrated components enable compact power board size for easy installation

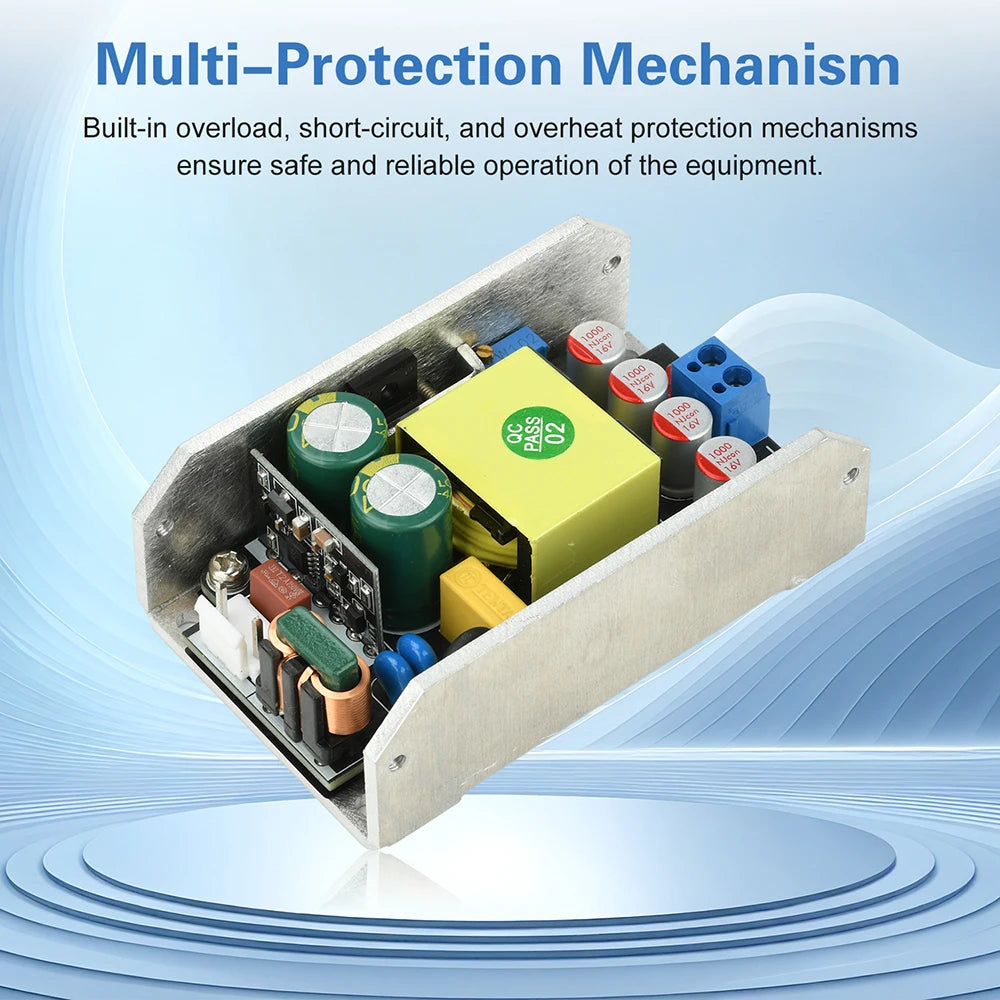

4. Built-in overload, short-circuit, and overheat protection mechanisms ensure safe and reliable operation

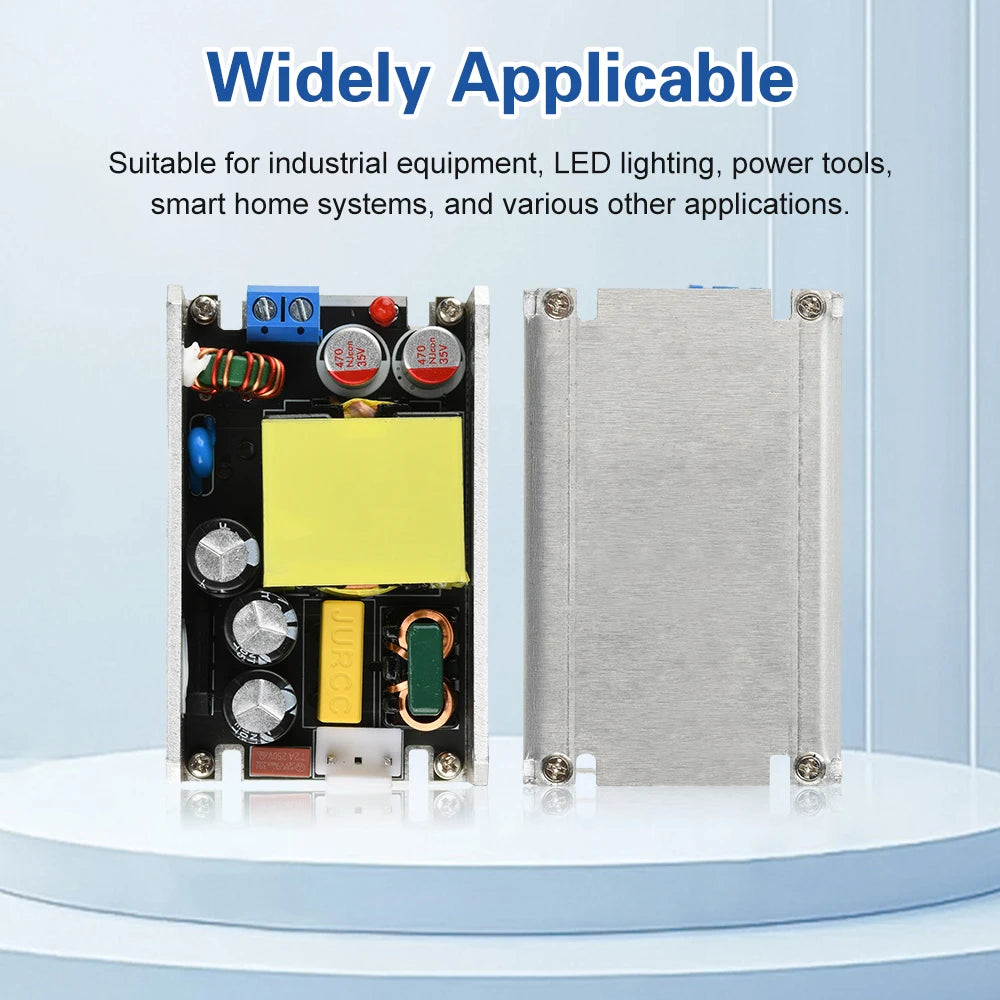

5. Suitable for diverse applications including industrial equipment, LED lighting, power tools, and smart home systems

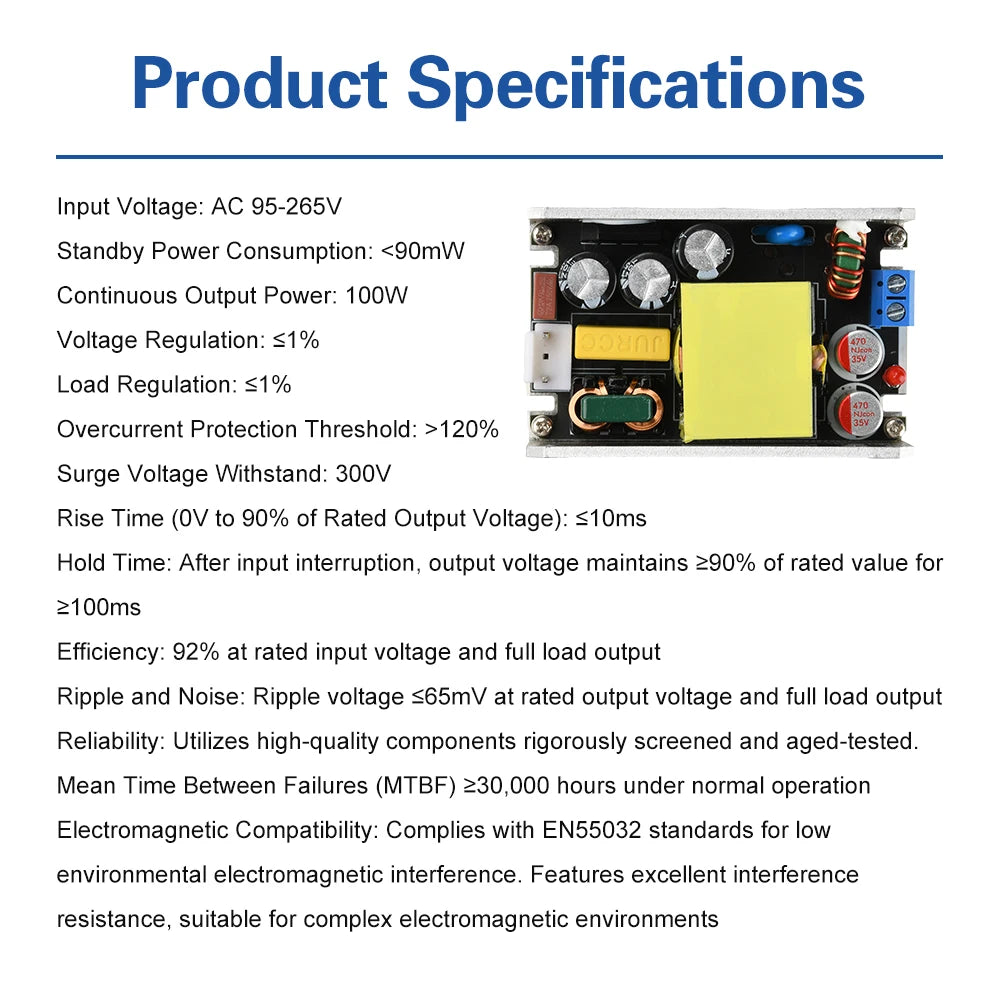

Parameter
Input Voltage: AC 95-265V
Standby Power Consumption: <90mW
Continuous Output Power: 100W
Voltage Regulation: ≤1%
Load Regulation: ≤1%
Overcurrent Protection Threshold: >120%
Surge Voltage Withstand: 300V
Rise Time at 5 Seconds: Output voltage from 0V to 90% of rated value ≤10ms
Hold Time: Output voltage maintains ≥90% of rated value for ≥100ms after input interruption

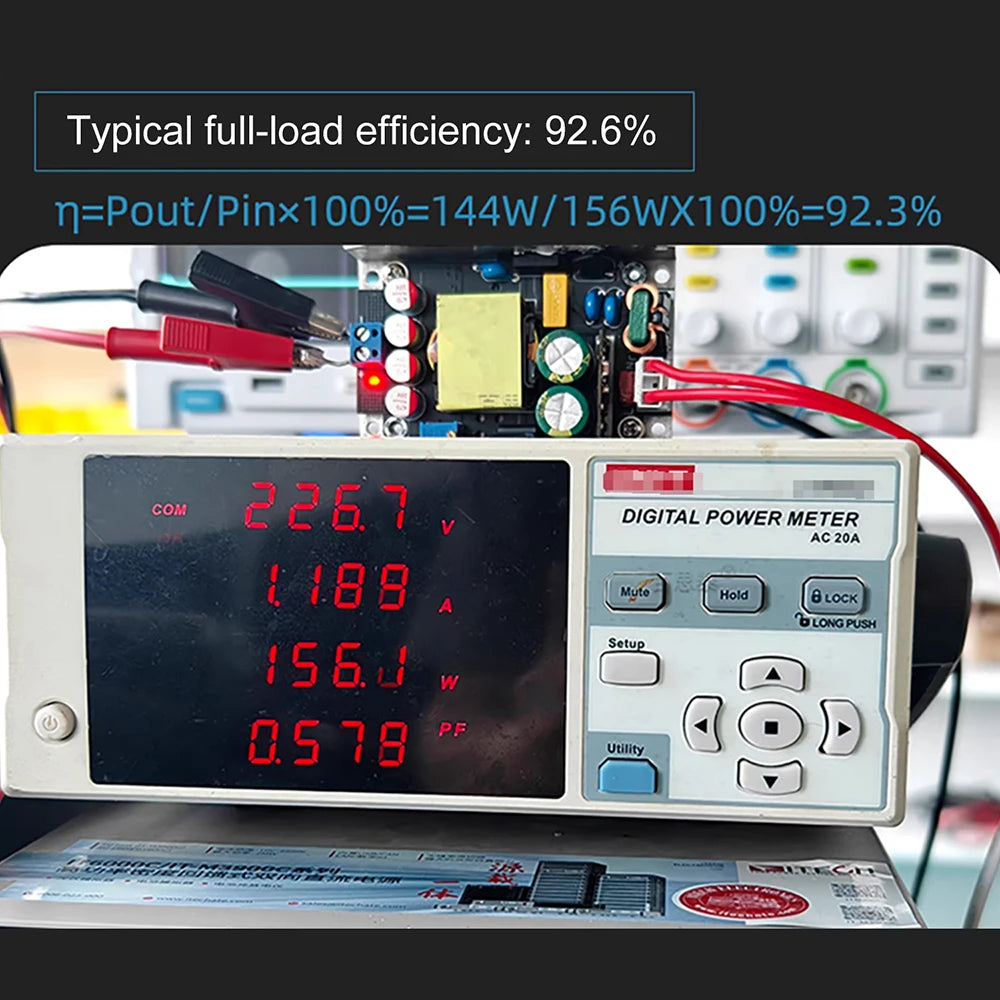

Efficiency: 92% at rated input voltage and full load output
Ripple and Noise: Ripple voltage ≤65mV at rated output voltage and full load output
Reliability: Utilizes high-quality components, rigorously screened and aged-tested. Mean Time Between Failures (MTBF) ≥30,000 hours under normal operation

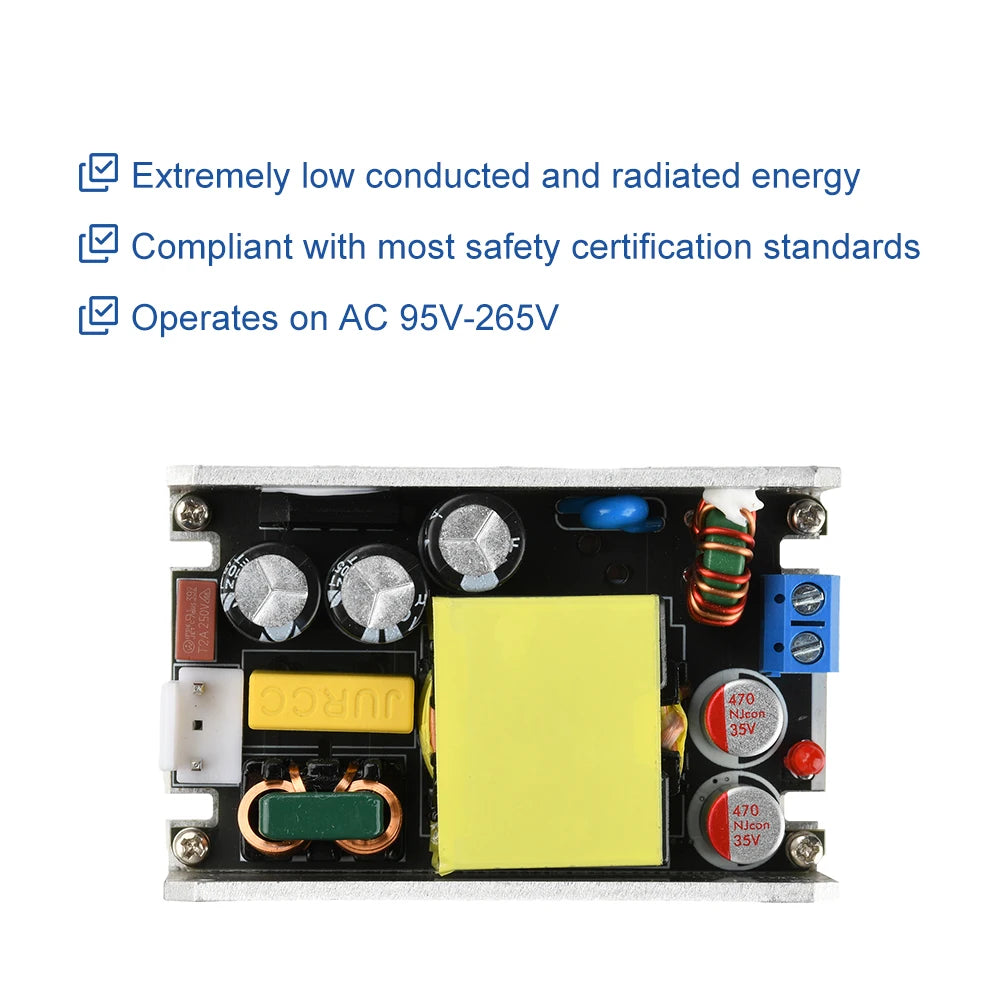

Electromagnetic Compatibility: Low environmental electromagnetic interference per EN55032 standard, with excellent interference resistance for complex electromagnetic environments

Package include
Power Supply ×1
