SPECIFICATIONS

Assembly Required: no

Brand Name: BETTCONN

Certification: CE,RoHS,UL

High-concerned chemical: none

Model Number: CBL-FTDI-RS485-RJ45

Origin: Mainland China

Package: Yes

Type: USB Adapter

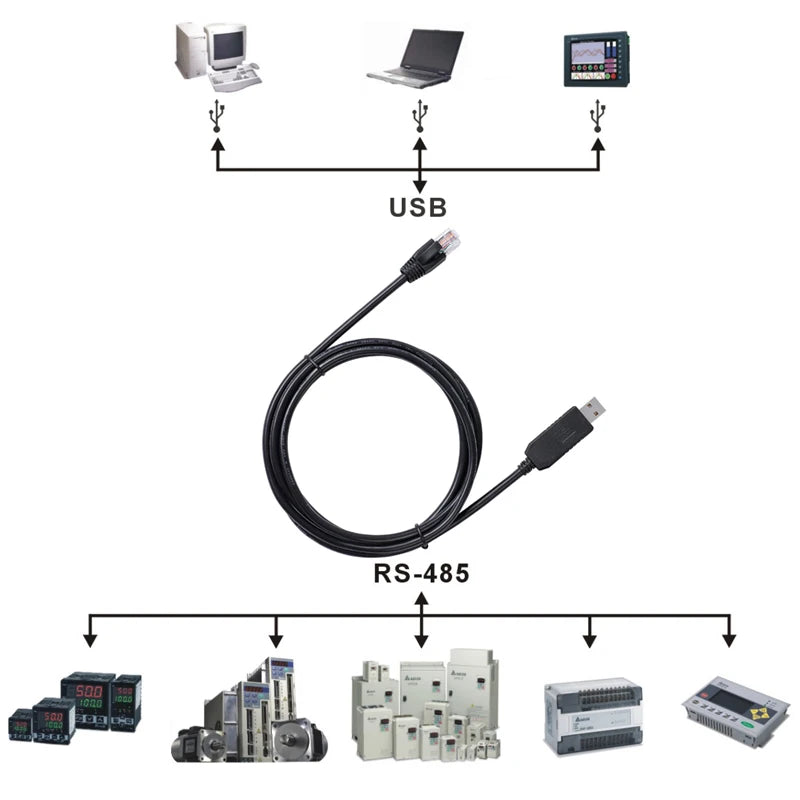

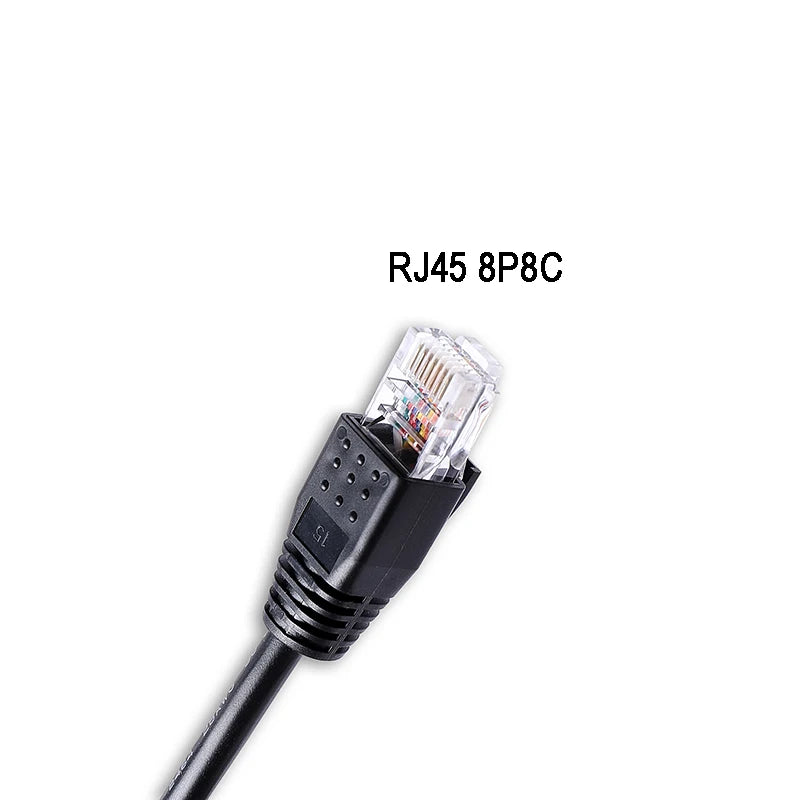

Compatible Delta IFD6500 RS485 to USB Converter Adapter FTDI USB to RJ45 RS485 Communication Cable for Delta IABU PLC

Converts a USB port to RS485 serial ports.

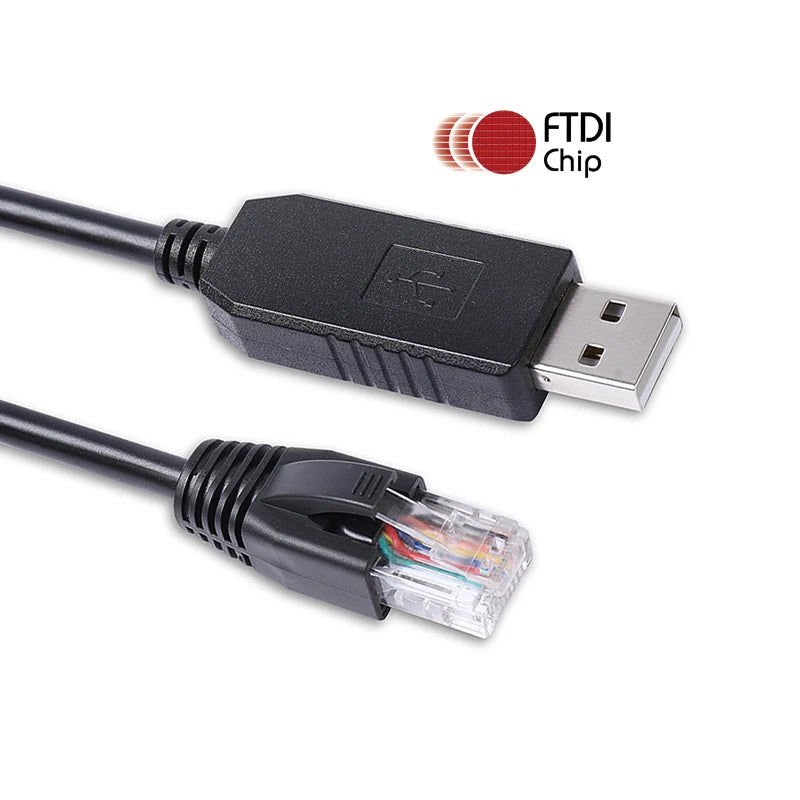

Designed with original FTDI FT232RL chipset.

With black USB housing.

The product works with the royalty free FTDI drivers for Windows, MAC OSX, Linux, Android.

Operating temperature range -40oC to +85oC.

Application: Compatible Delta IFD6500 RS485 to USB Converter Adapter

About FTDI FT232RL

The FT232RL is a USB to serial UART interfac with the following advanced features:

Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
Fully integrated USB termination resistors.
Fully integrated clock genertion with no external crystal required plus optional clcok output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3Mbaud (RS422, RS485, RS232) at TTL levels.
128 byte receive buffer and 256 byte transmite buffer utilising buffer smoothing technology to allow for high data throughput.
FTDI's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
Unique USB FTDIChip-ID feature.
Configurable CBUS I/O pins.
Transmit and receive LED drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
FIFO receives and transmits buffers for high data throughput.
Synchronous and asynchronous bit bang interface options iwth RD# and WR# strobes.
Device supplied pre-programmed with unique USB serial number.
Supports bus powered, self-powered and high-power bus powered USB configuratios.
Integrated +3.3V level converter for USB I/O.
Integrated level converter on UART and CBUS for interfacing to between +1.8V and +5V logic.
True 5V/3.3V/2.8V/1.8V CMOS drive output and TTL input.
Configurable I/O pin output drive strength.
Integrated power-on-reset circuit.
Fully integrated AVCC supply filtering - no external filtering required.
UART signal inversion option.
+3.3V (using external oscillator) to +5.25V (internal oscillator) Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI/OHCI/EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Available in compact Pb-free 28 Pin SSOP and QFN-32 packages (both RoHS compliant)
