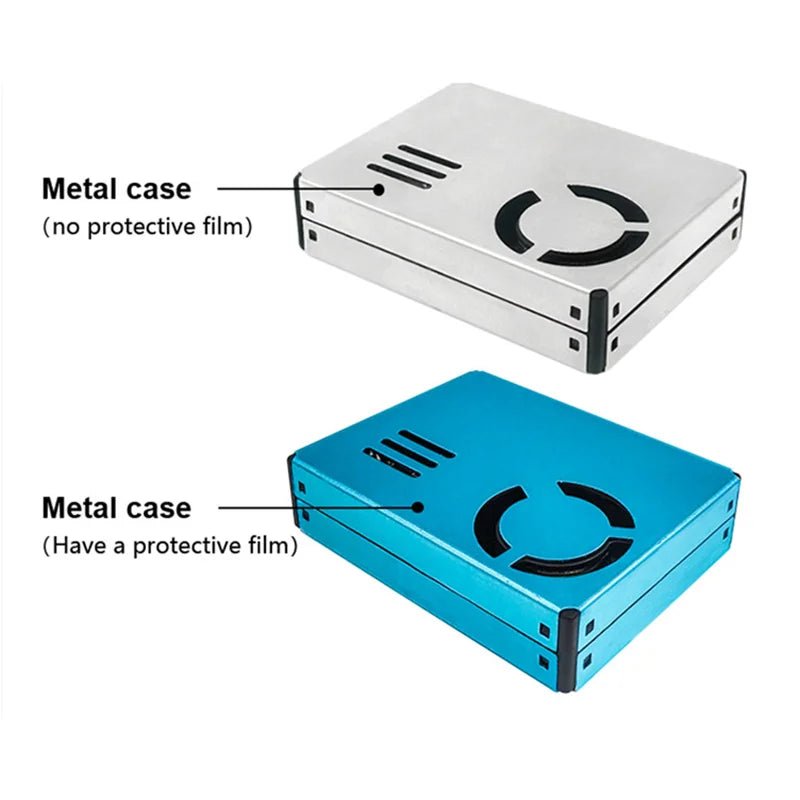

Material: Metal

Origin: Mainland China

Product Description :

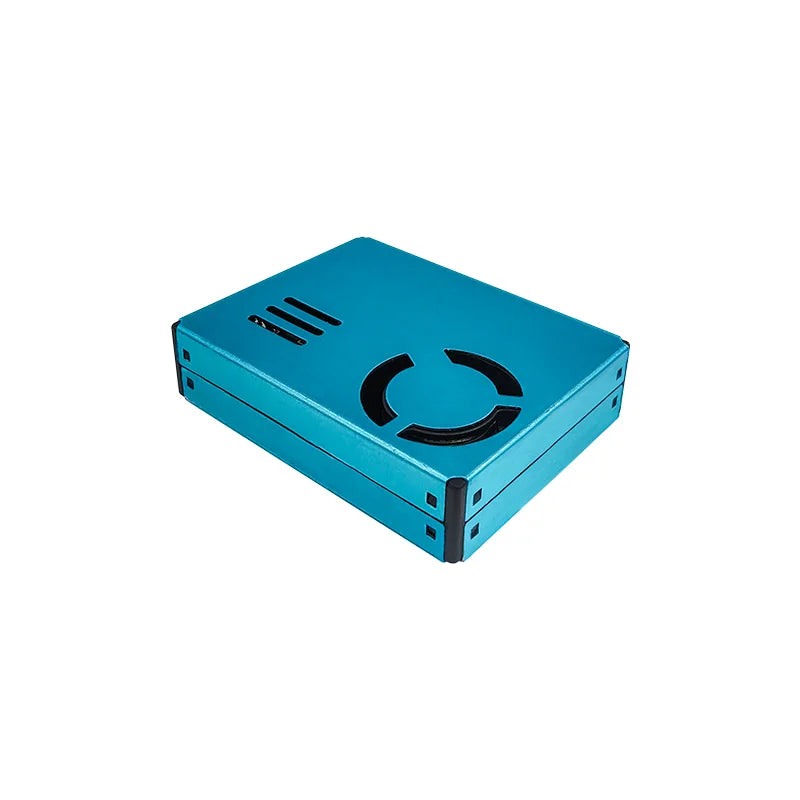

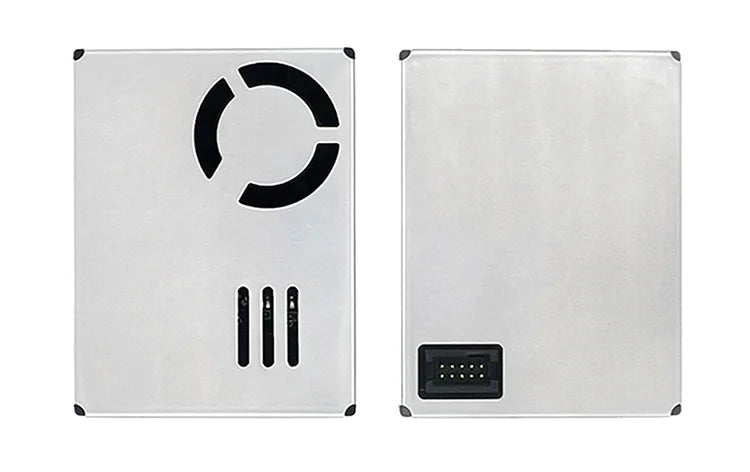

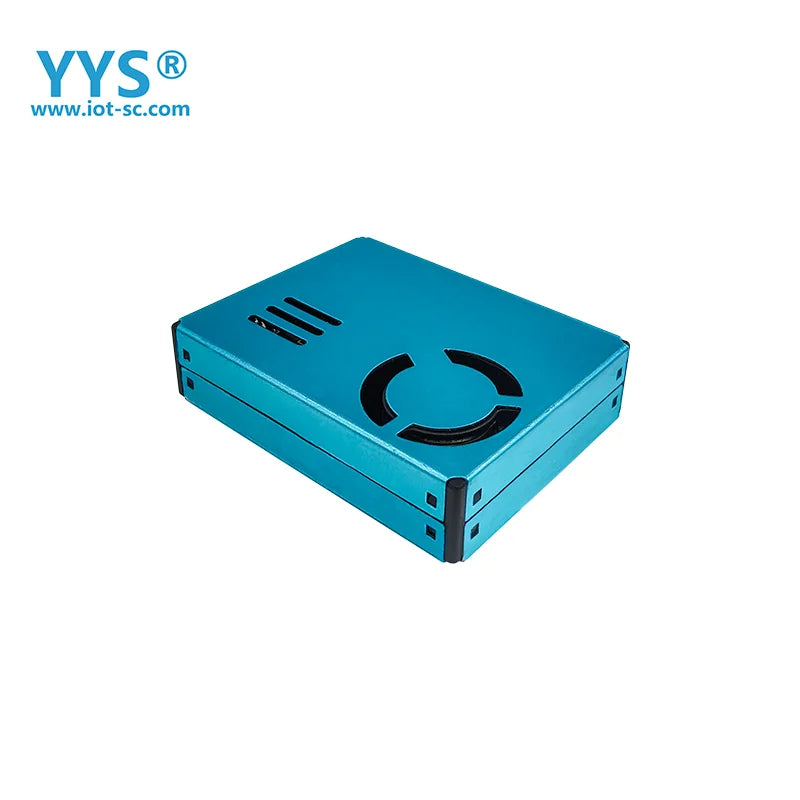

D7 Dust Sensor is one type of laser particle sensor module. It can measure the quantity of different size of dust and it can be converted to μg/m3 according to the mathematical algorithm and output μg/m3 directly. The range of particle can be measured from 0.3 to 10μm. It can provide two types of optional signal output and has a unique start-up self-calibration function.

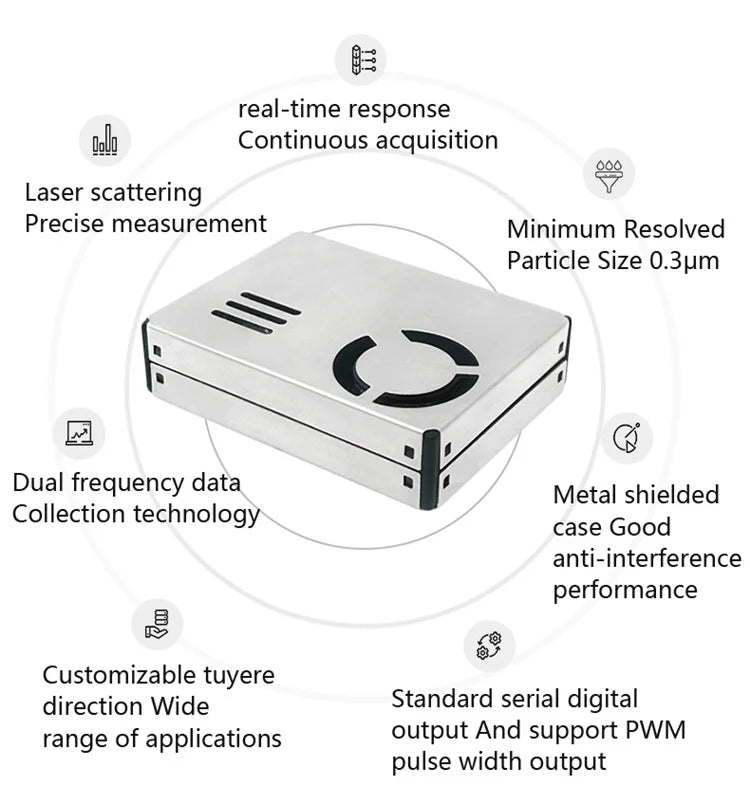

FEATURES

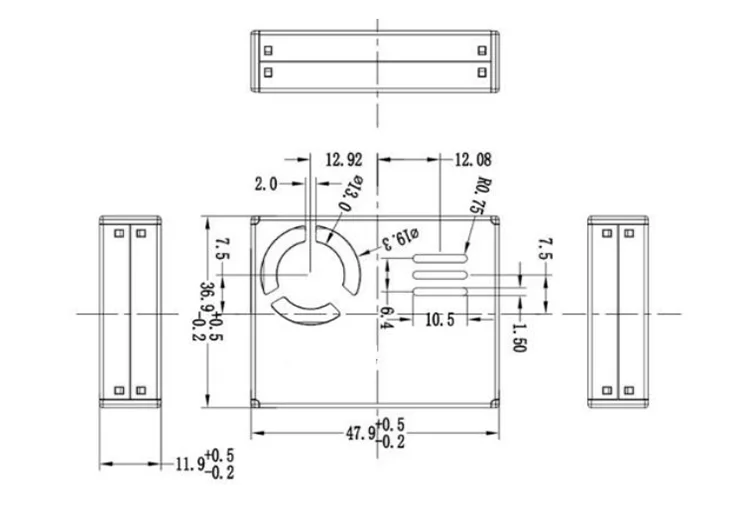

* Size: 47*37*12mm

* High accuracy, digital display prioritized

* Smallest size of available measurement : 0.3μm

* Use the dual-frequency data acquisition technology

* Unique laser calibration technology

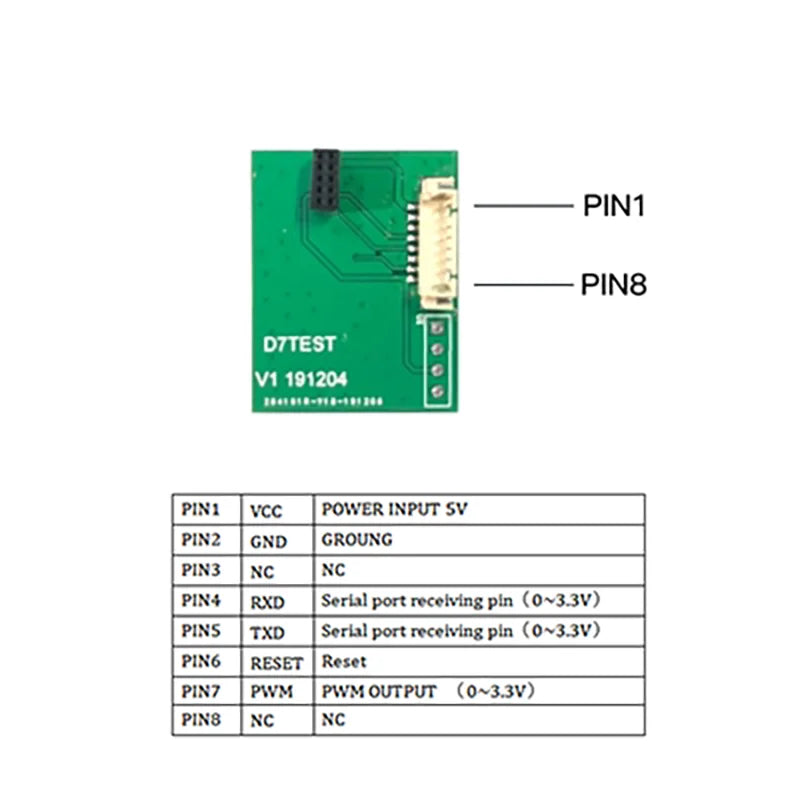

* Two types of optional signal output: UART-TTL; PWM

* High sensitive ,quick response and provide continuous acquisition

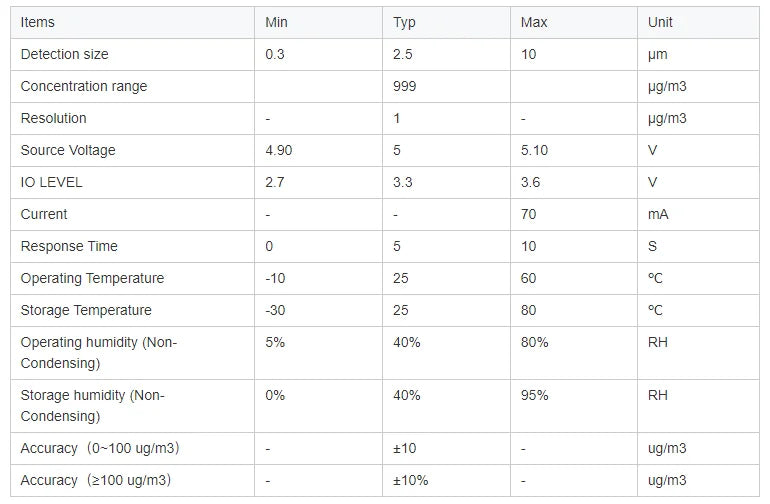

Parameter:

Application :

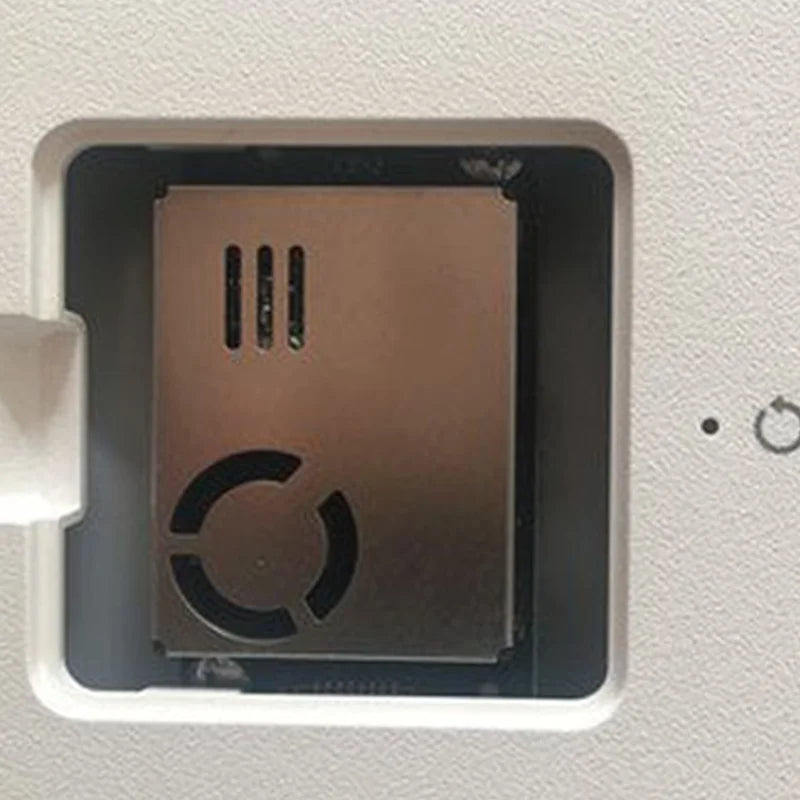

It's widely used in air purifiers, ventilation systems, portable instrument, air quality monitoring equipment, air conditioner, and smart home equipment.

Shenzhen Shenchen Technology Co., Ltd Is a One-stop sensor manufacturer Support OEM and ODM .For more products and datasheets,please contact us
