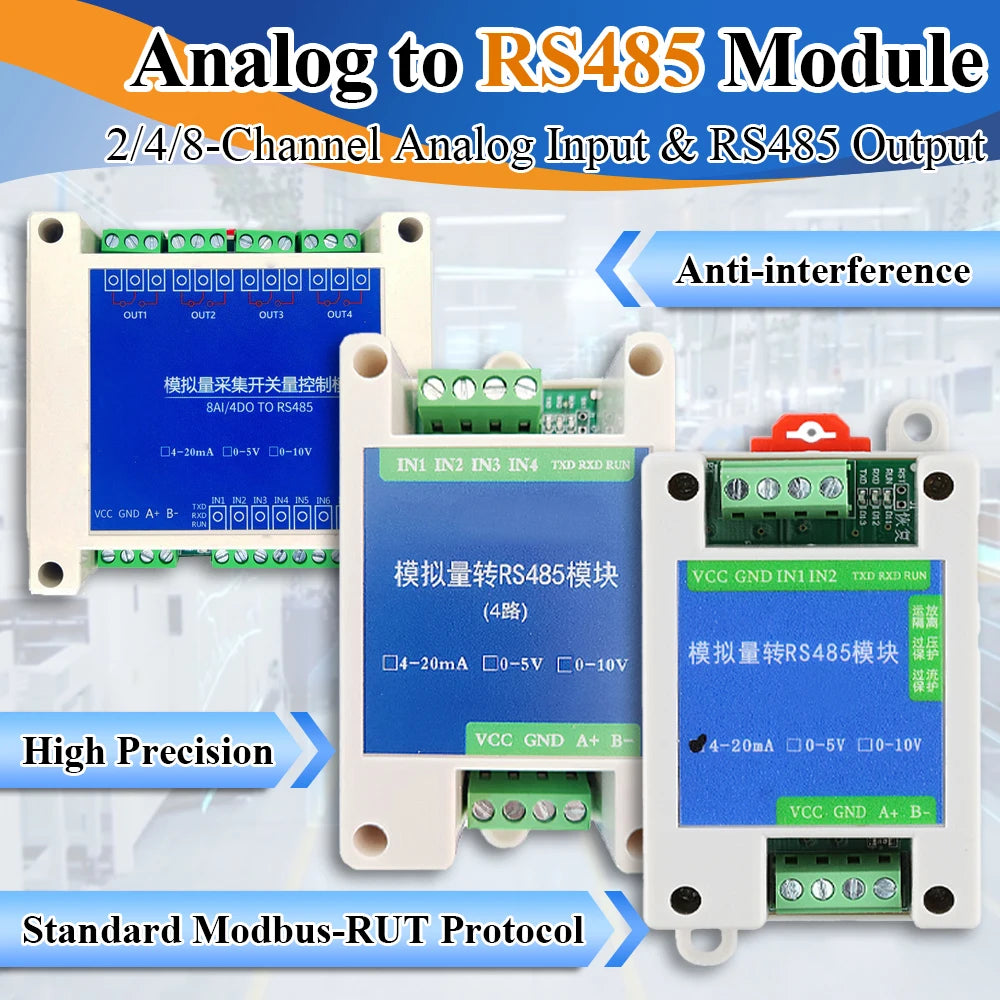

Conversion Module Analog 4-20mA 0-5V 0-10V to RS485 Modbus RTU Protocol 2 4 8 Channel Digital RS485 Transform Modules

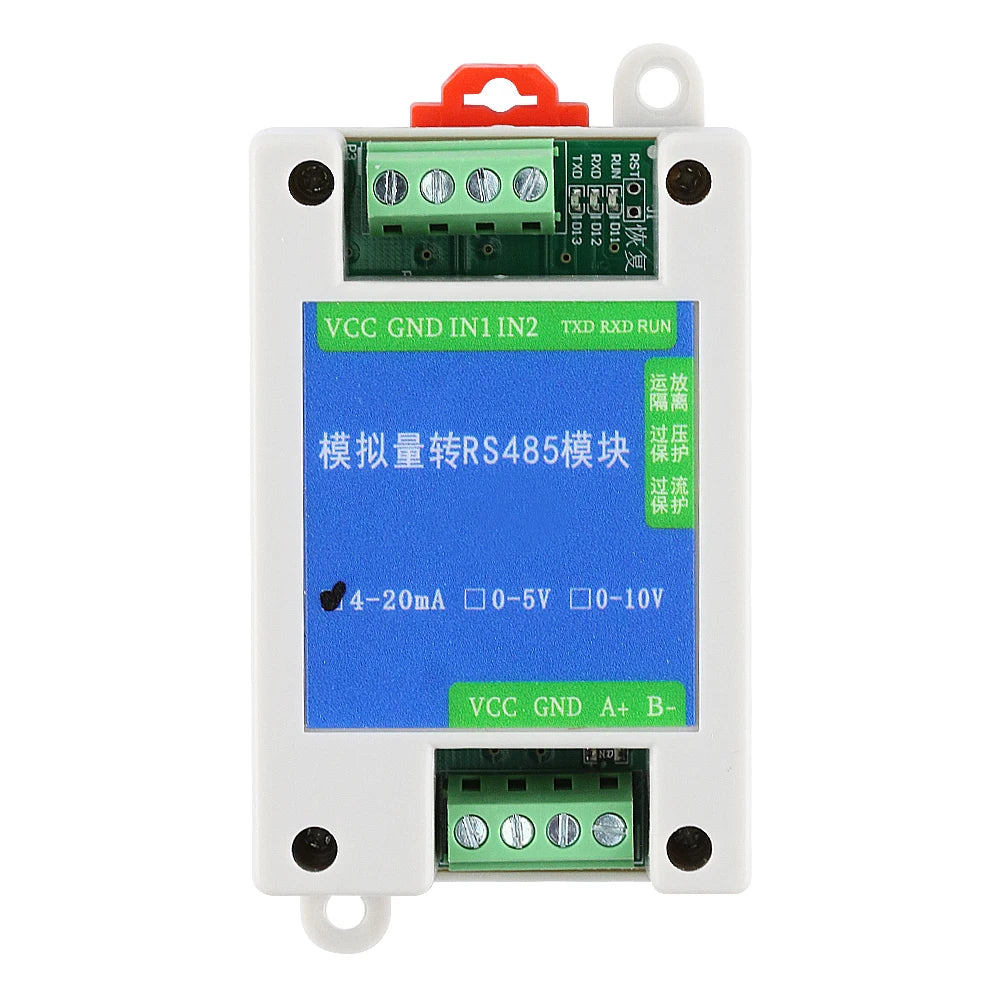

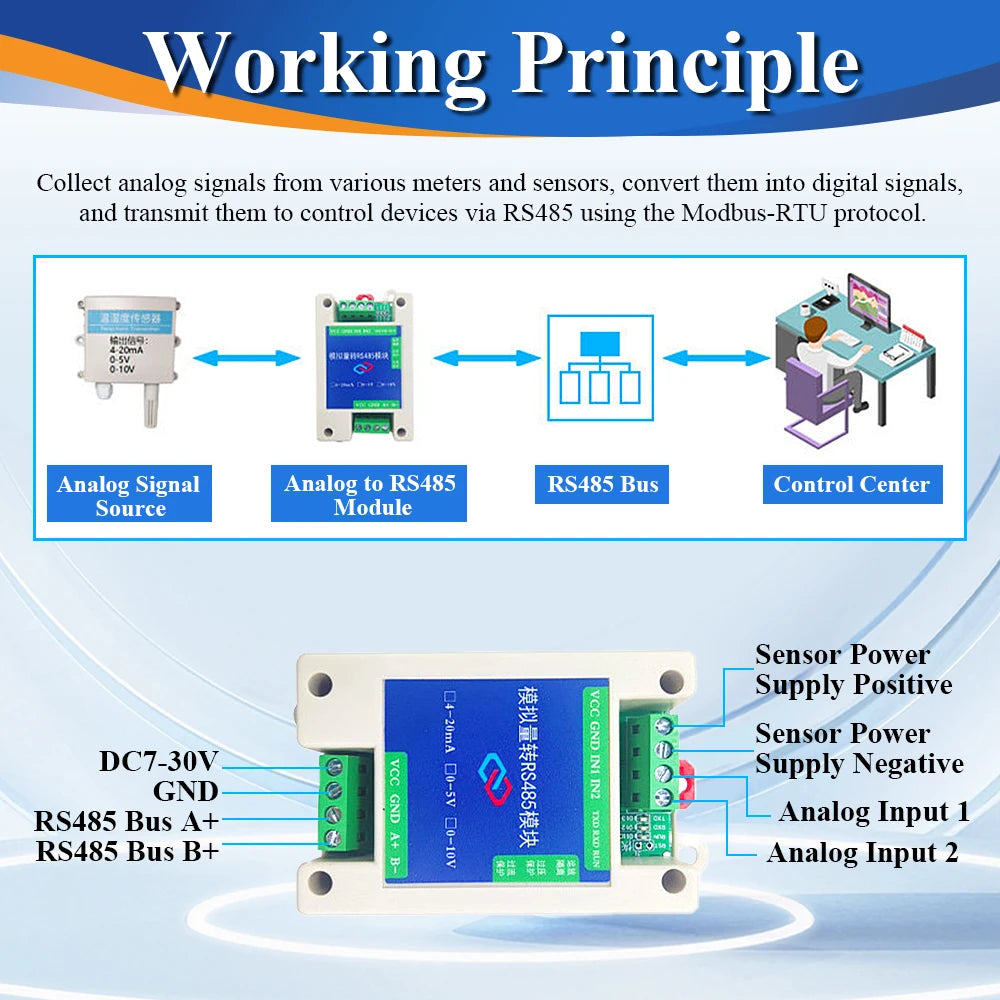

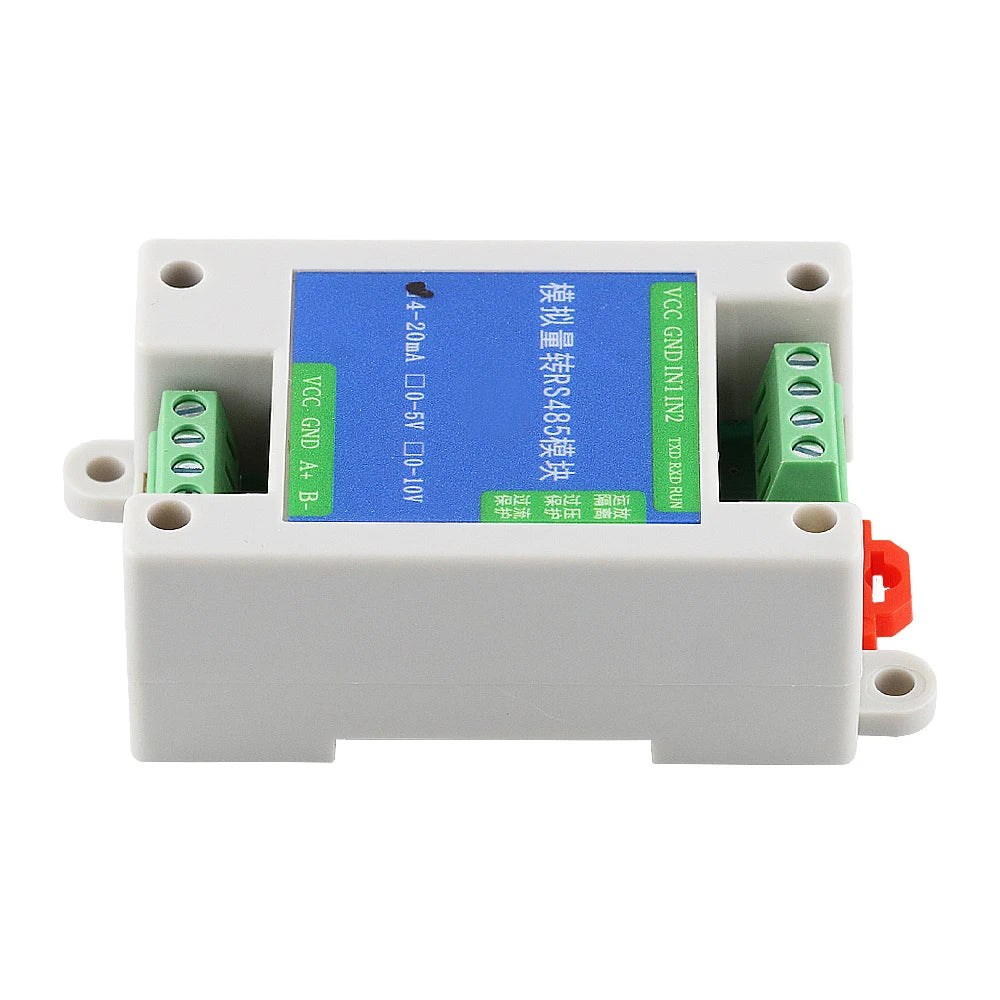

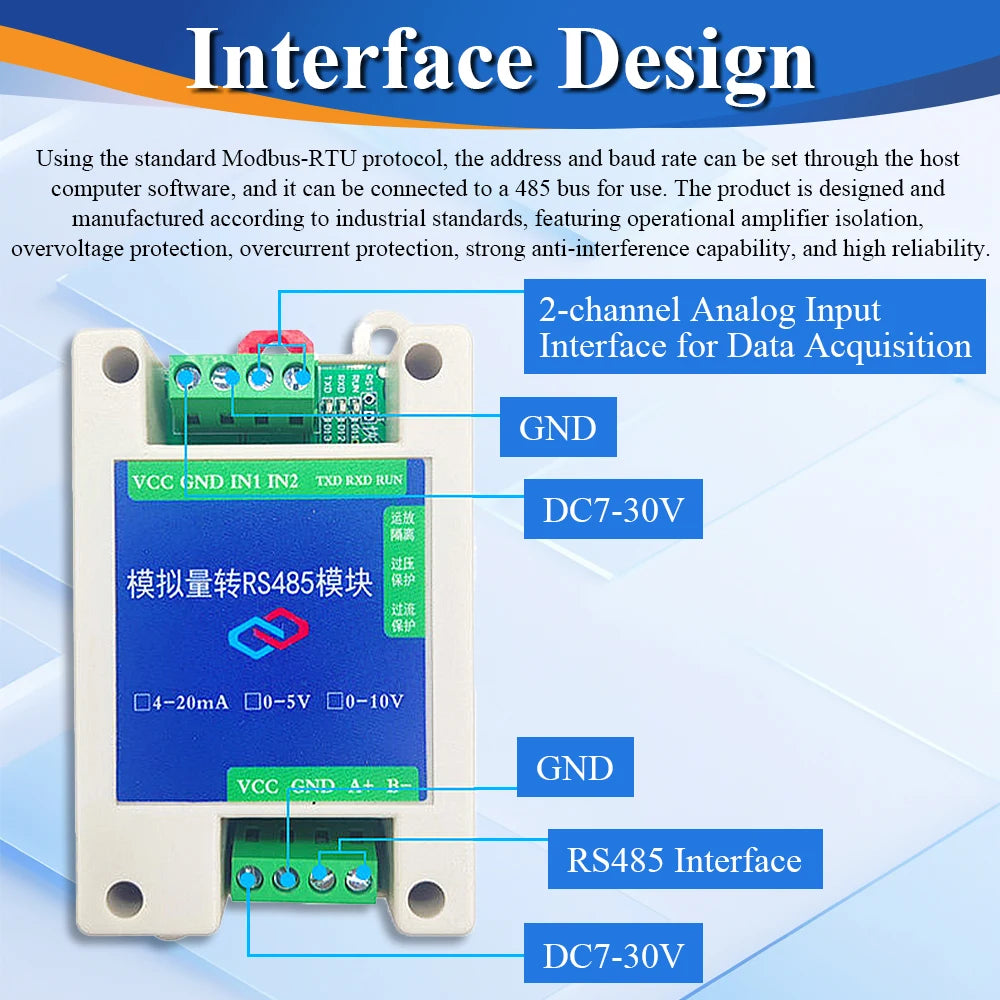

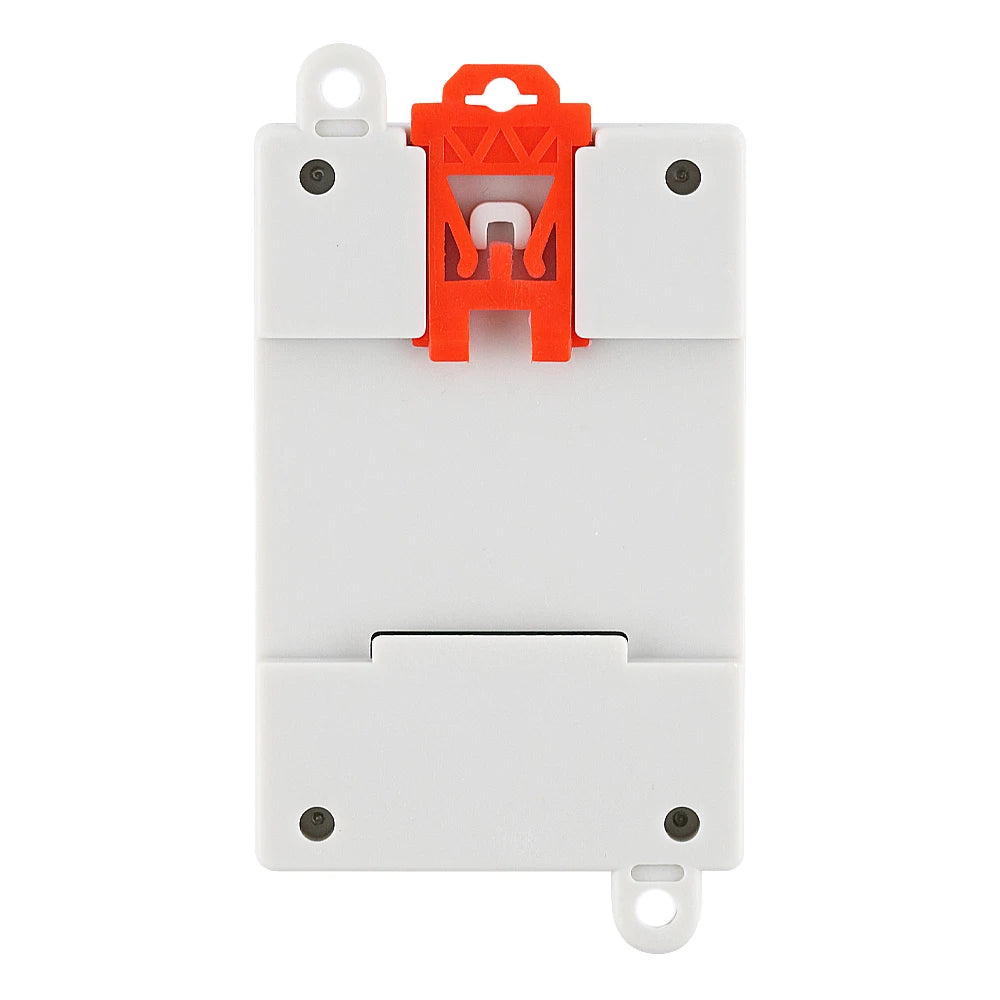

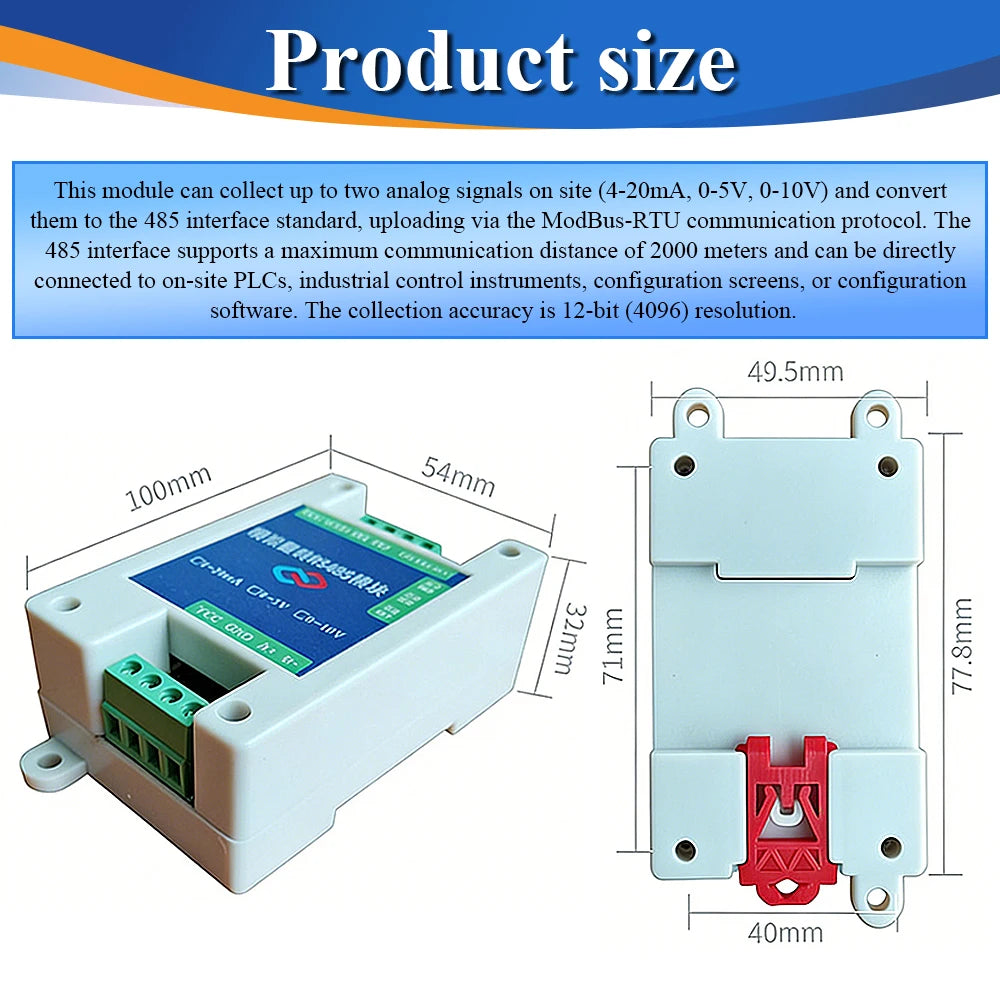

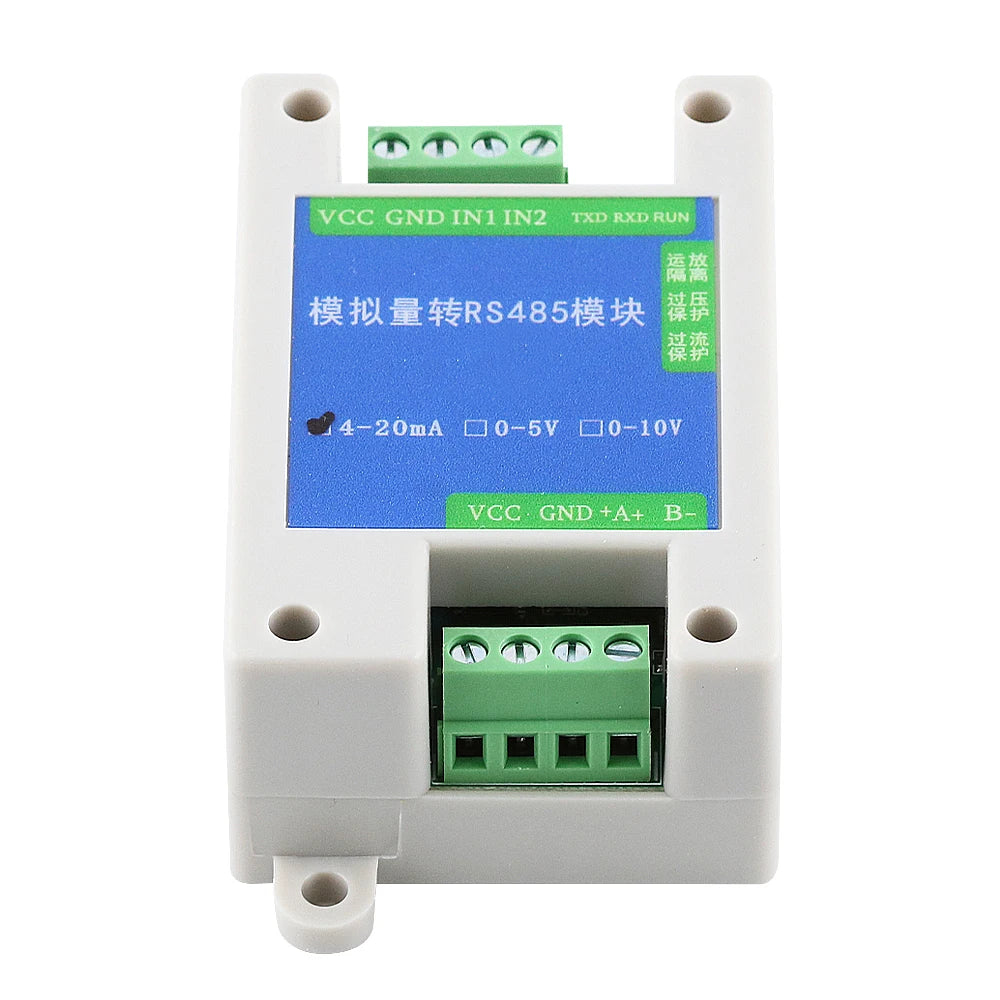

2 Channels, Analog to RS485

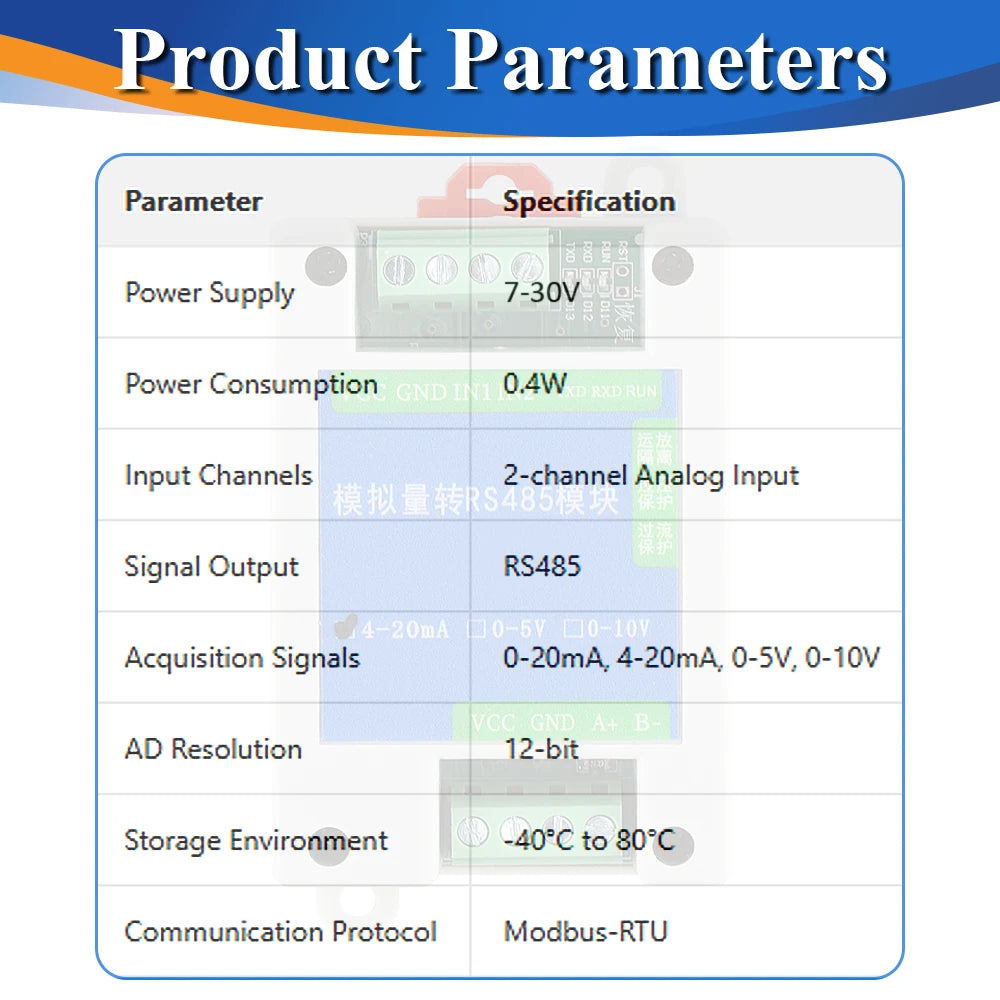

Power supply: 7-30V DC Power consumption: 0.4W

Number of input channels: 2

AD conversion resolution: 12 bits

Collected signals: 4~20mA(compatible with 0~ 20mA), 0~5V, and 0~10V are optional

Storage environment: -40℃ to 60℃

Communication interface: RS485

Communication protocol: ModBus-RTU protocol

Acquisition accuracy: ±1%

Address range: Factory default 0x01, set the range 0x01-0xFE

Serial port parameters: Factory default baud rate 9600 N 8 1

Acquisition frequency: At a baud rate of 115,200, the fastest is 50HZ

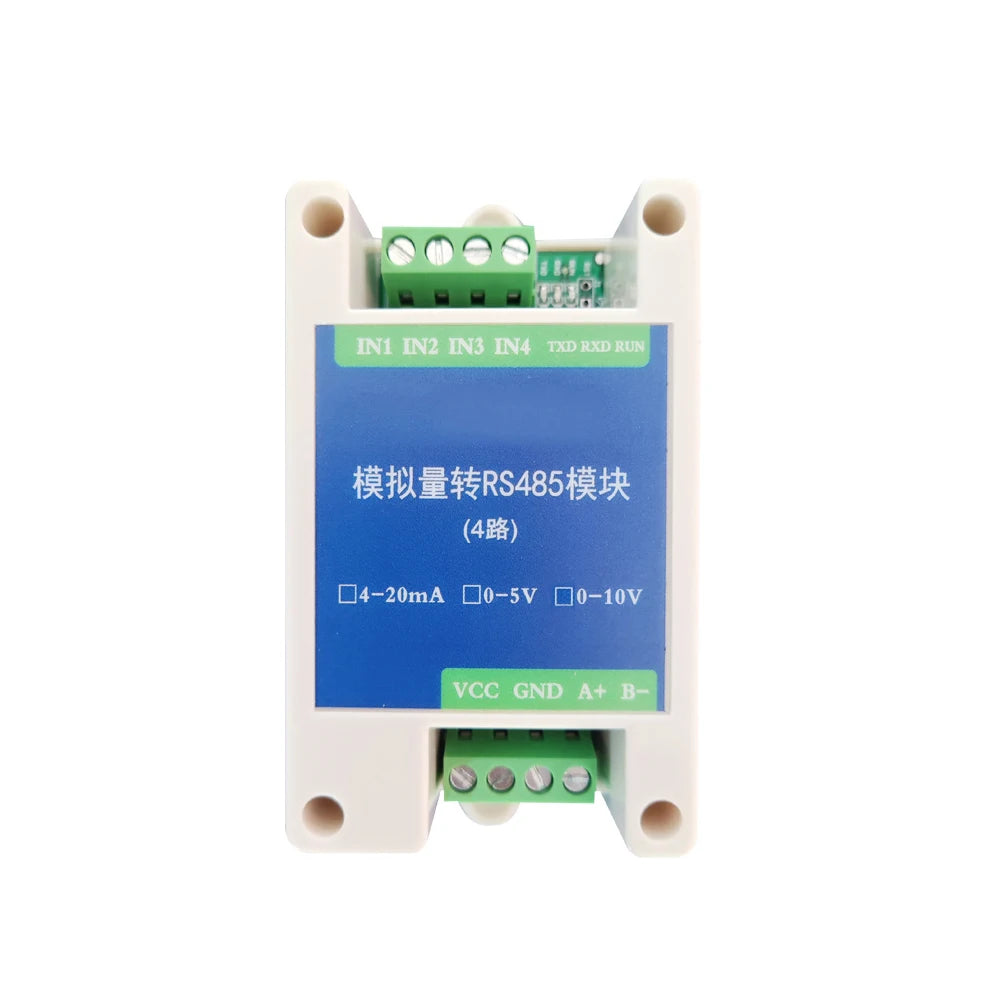

4 channels, Analog to RS485

Power supply: 5-30V DC (12VDC is recommended)

Power consumption: 0.3W

Number of input channels: 4

AD conversion resolution: 12 bits

Collected signals: 4~20mA(compatible with 0~ 20mA), 0~5V, and 0~10V are optional

Storage environment: -40℃ to 60℃

Communication interface: RS485

Communication protocol: ModBus-RTU protocol

Collection accuracy: ±0.1%

Address range: Factory default 0x01, set the range 0x01-0xFD

Serial port parameters: 1200-115200 BPS can be set, and the factory default baud rate is 9600 N 8 1

Acquisition frequency: 115,200 baud rate, maximum 100HZ(100 times per second)

The baud rate of 9600 is as fast as 20HZ (20 times per second)

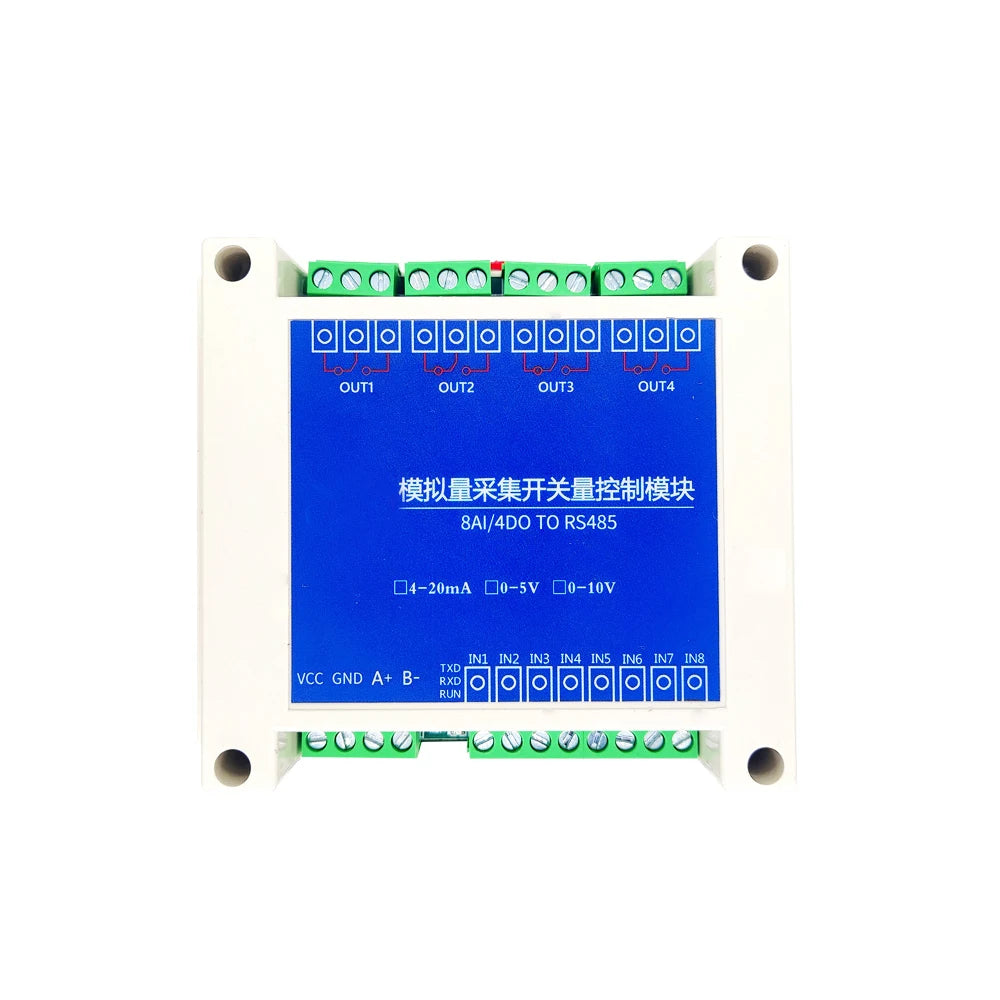

8 channels, Analog to RS485

Power supply: 7-30V DC (12VDC is recommended)

Power consumption: Powered by DC12V, with 4 relays engaged to 2W. DC12V, when the 4-channel relay is disconnected, it is 0.3W.

Input channel number: 8 analog quantity acquisition channels

Output channel number: 4 relay switch quantities

AD conversion resolution: 12 bits

Collected signals: 4~20mA(compatible with 0~ 20mA), 0~5V, and 0~10V are optional

Storage environment: -40℃ to 60℃

Communication interface: RS485

Communication protocol: ModBus-RTU protocol

Collection accuracy: ±0.1%

Address range: Factory default 0x01, set the range 0x01-0xFD

Serial port parameters: 1200-115200 BPS can be set, and the factory default baud rate is 9600 N 8 1

Acquisition frequency: 115,200 baud rate, maximum 100HZ(100 times per second)

The baud rate of 9600 is as fast as 20HZ (20 times per second)
