SPECIFICATIONS

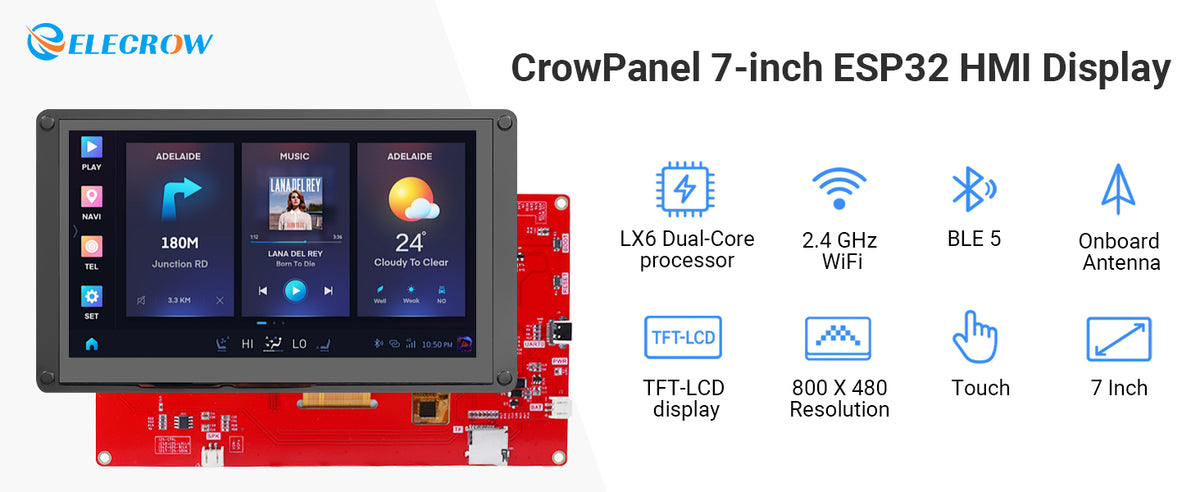

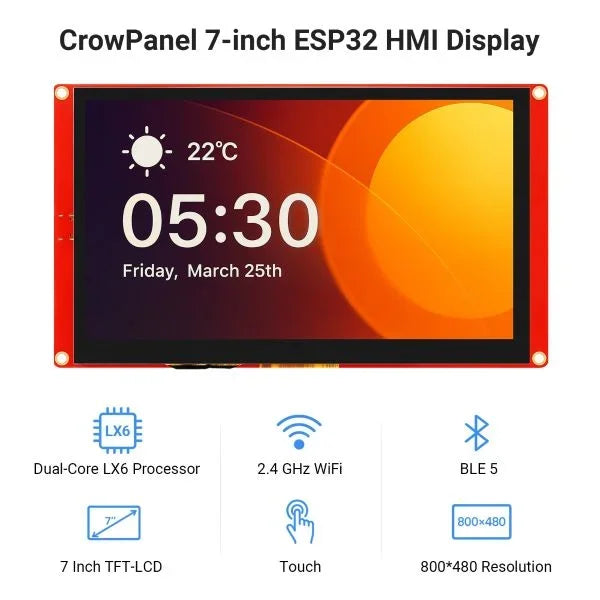

CrowPanel ESP32 Display 7.0-inch module is a powerful HMI touch screen with an 800*480 resolution LCD. It uses the ESP32-S3-WROOM-1-N4R8 module as the main control processor, with a dual-core 32-bit LX7 microprocessor, integrated WiFi and Bluetooth-compatible wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenes.

The module includes a 7.0-inch LCD display and a driver board. The display screen uses a capacitive touch technology, and the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library, supporting openHASP.  Additionally, it provides 16 learning tutorials and a wealth of open-source learning materials. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.

The CrowPanel ESP32 Display 7.0-inch module is suitable for a wide range of scenes such as automotive HMI, medical equipment, smart home, industrial control, power, civil electronics, home automation, new energy, and IoT application devices. Its various interfaces and expansion functions enable it to meet the needs of different fields, providing users with a more comprehensive solution.

Support multiple development environments.

It supports a variety of development environments such as Arduino IDE, Espressif IDF, PlatformIO, and Micro Python, to meet the needs of different developers and make every project possible.

Support open-source Graphics Library-LVGL

It supports the LVGL graphics library. You can design a variety of UIs.

Human-Machine Interface

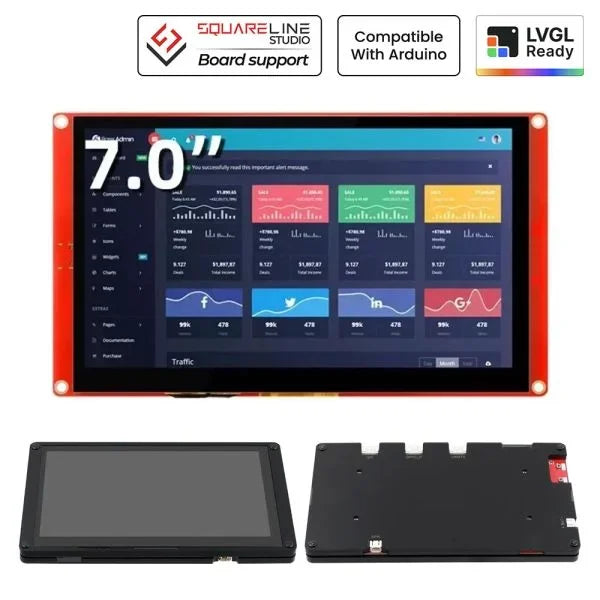

With Human-Machine interface, you can use SquareLine Studios to design and implement your own LVGL UI and export ready-to-use projects with one click.

Application Scenario

It is suitable for various scenes such as automotive HMI, medical equipment, smart home, home automation, industrial control, civil electronics,  and IoT application devices.

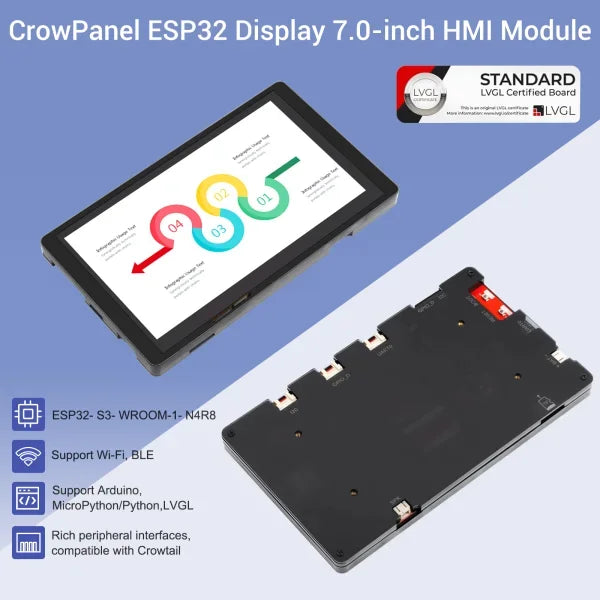

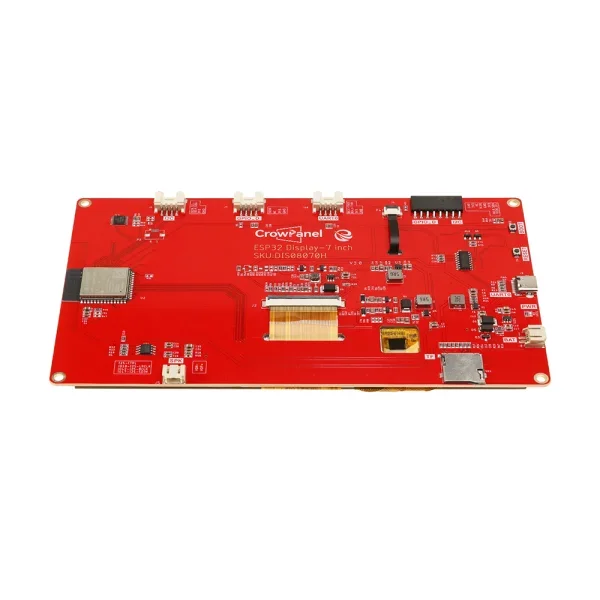

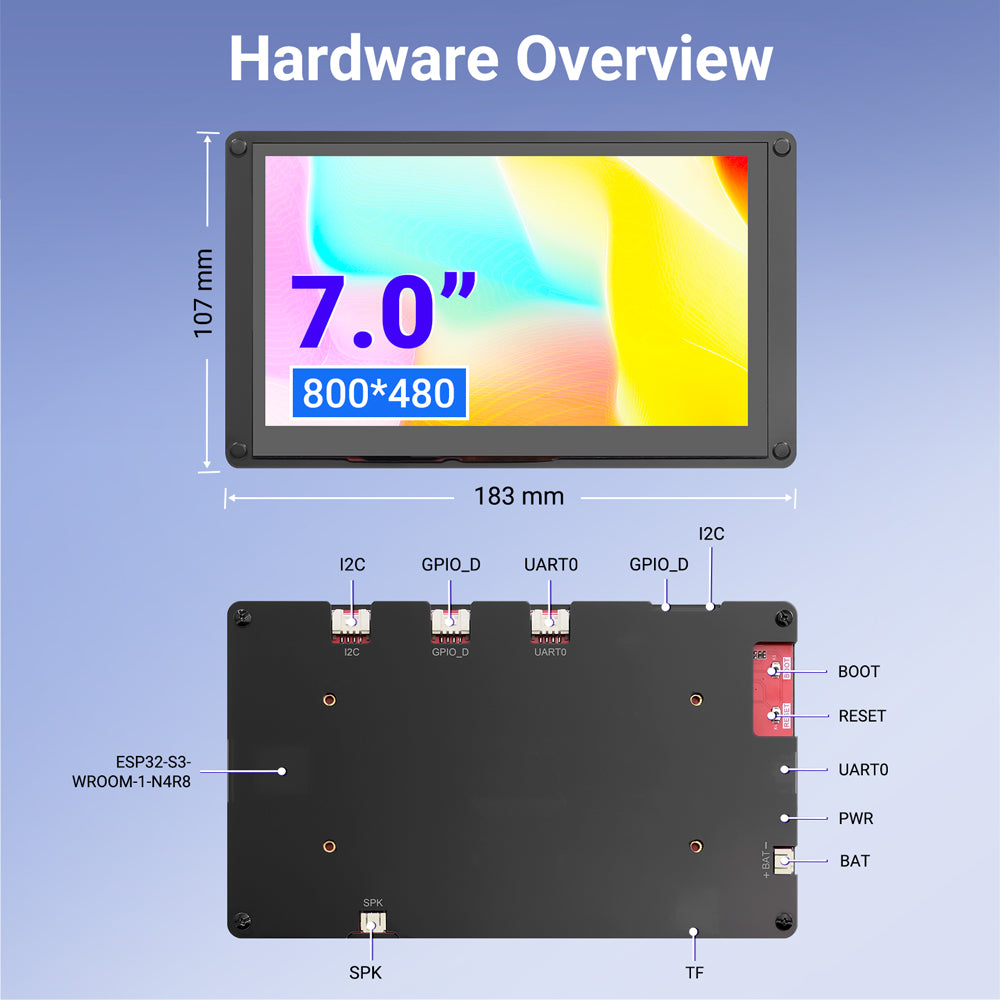

Hardware Overview

Feature

• Integrated ESP32-S3 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;

• Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro Python and compatible with LVGL graphics library;

• Built-in LVGL demo interface and Arduino example, plug and play;

• LCD 800*480 7.0 inches Capacitive TFT-LCD with driver IC EK9716BD3 + EK73002ACGB;

• Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.

Specification

• Model: 7.0 inch -CrowPanel ESP32 display

• Main Processor: ESP32-S3-WROOM-1-N4R8

• Resolution: 800*480

• Flash: 4MB

• PSRAM:8MB

• Touch Type: Capacitive Touch Screen

• Display Type: TN Panel

• Screen: TFT-LCD Screen

• Display driver: EK9716BD3 & EK73002ACGB

• External power supply: DC5V-2A

• Battery voltage: 3.7-4.2V

• Interface: 2*UART0,2*GPIO,2*I2C,1*Battery

• Button: BOOT Button and Reset Button

• Active Area: 153.84*85.63mm(W*H)

• Working Temperature: -20℃～70℃

• Storage Temperature: -30℃～80℃

Pin Specification

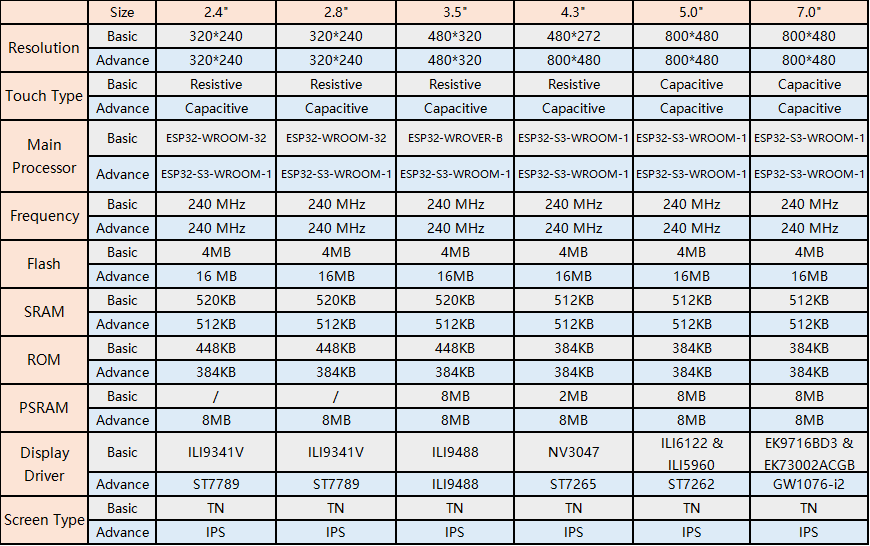

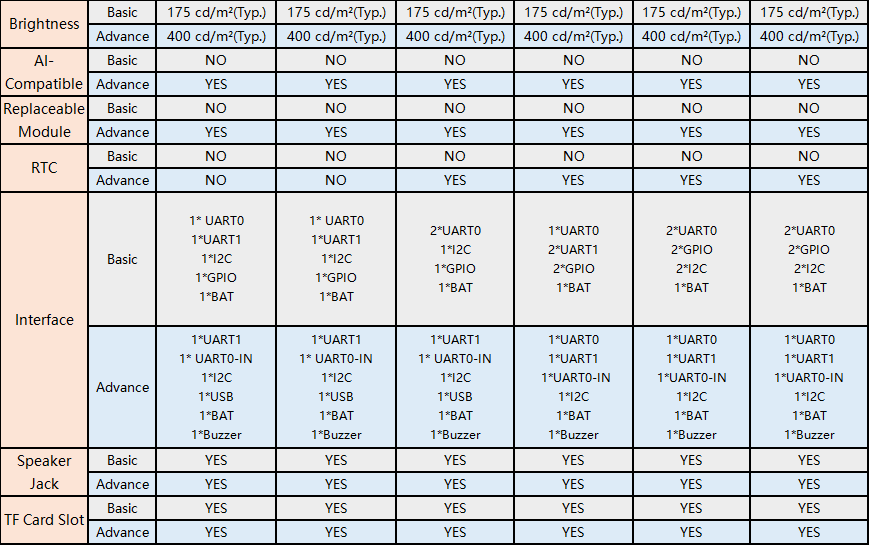

What's the difference between the CrowPanel Basic Series and Advanced?

Why Choose us?

As an industry-leading equipment manufacturer, we rely on our independently developed core technology and the production strength of our factories to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.

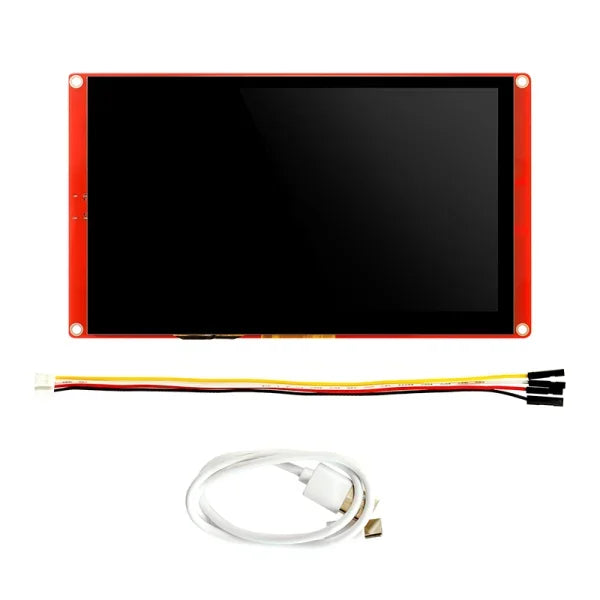

Package List

• 1x CrowPanel ESP32 Display 7.0 Inch Display

• 1x USB-A to Type-C Cable

• 1x Crowtail/Grove to 4pin DuPont cable
