SPECIFICATIONS

Brand Name: VENGIM

Certification: CE

Contact Load: Low Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: VG541T

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Theory: Time Relay

Use: General Purpose

Voltage: 220V

is_customized: Yes

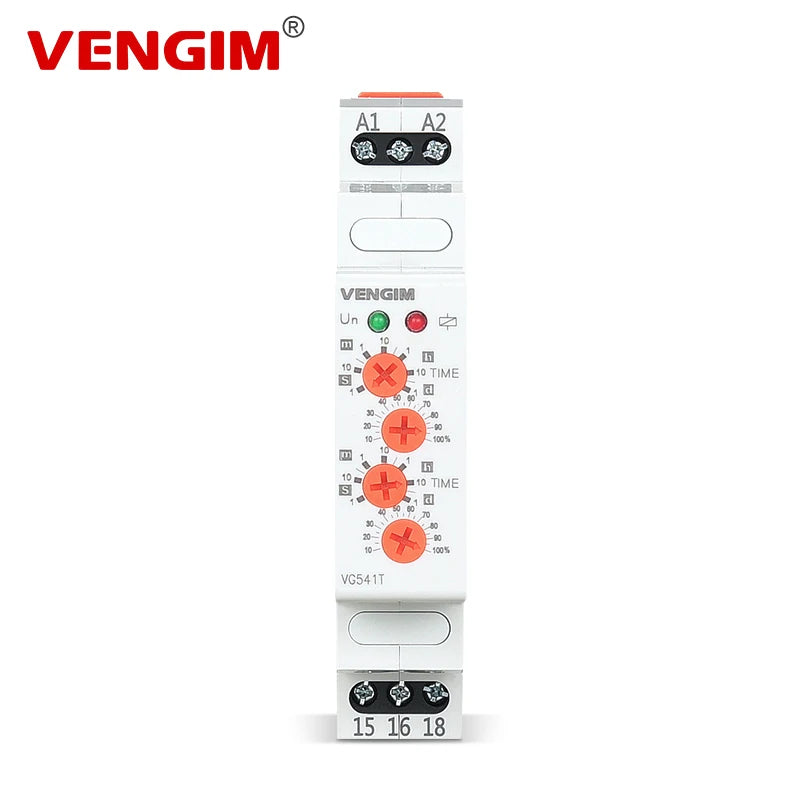

Description

The VG541T is a recycle time relay with asymmetrical timings. It provides a pulse generator (recycling unequal times)function with 8 time ranges from 0.1 seconds to 1 day. This time relay operates with a rated control supply voltage of 220V AC & 12-240V AC/DC and has a 1 C/O(SPDT) output rated at 5A.

Function

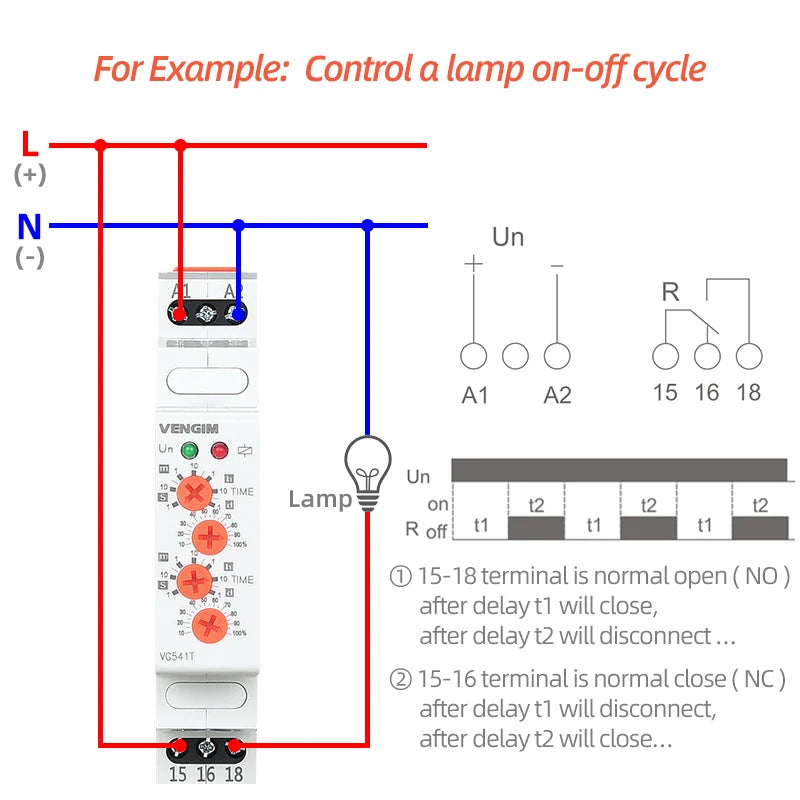

Apply power(Un) to the relay, the output contacts(R) will cycle between ON and OFF for as long as power is applied. The ON (t2) and OFF (t1) times are independently adjustable.

Technical data

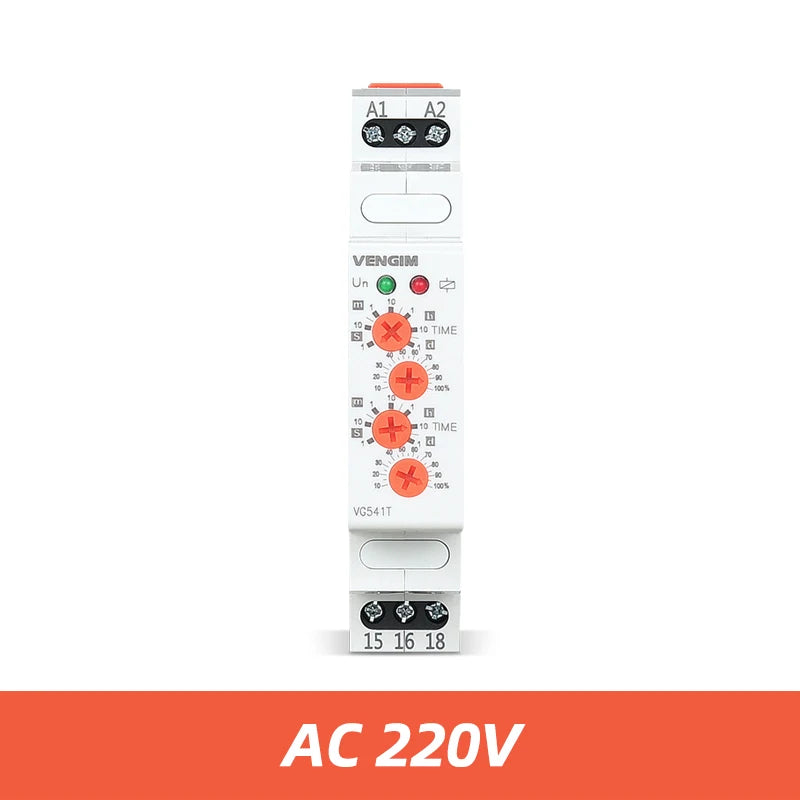

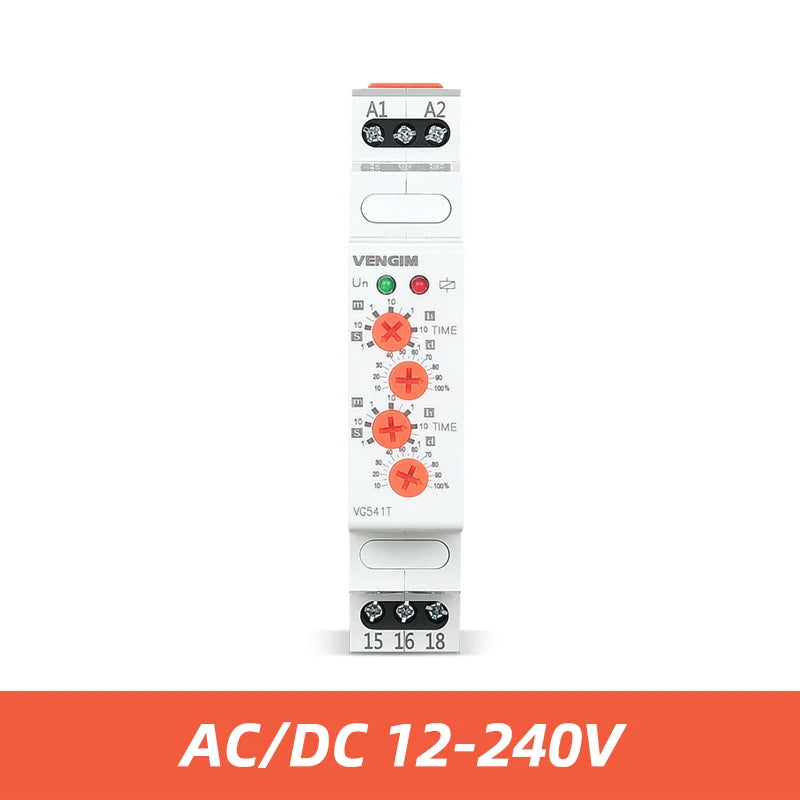

– Rated supply voltage：220 V AC or 12-240 V AC/DC

– Rated frequency： 50/60 Hz

– On time range：0.1 second - 1 day

– Off time range：0.1 second - 1 day

– Operating temperature：-20℃~+55℃

– Storage temperature：-30℃~+70℃

– Setting accuracy-full range：±5%

– Contacts type：1 C/O (SPDT)

– Rated current：5A/240 VAC,24 VDC (Resistive Load)

– Discrete Output Type：Relay

– Dimension：18mm × 65mm × 90mm

Applications

Automatic door and gate openers, building automation, cranes, pump control panels and pumping units, automated awnings, blinds, shutters, elevators, control systems, timers, and lighting controls.

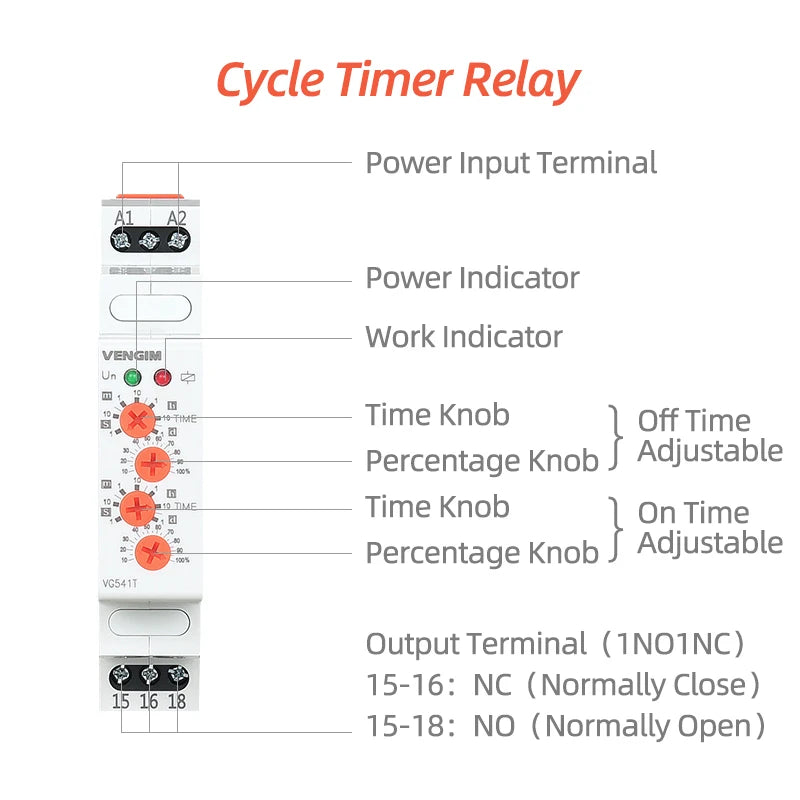

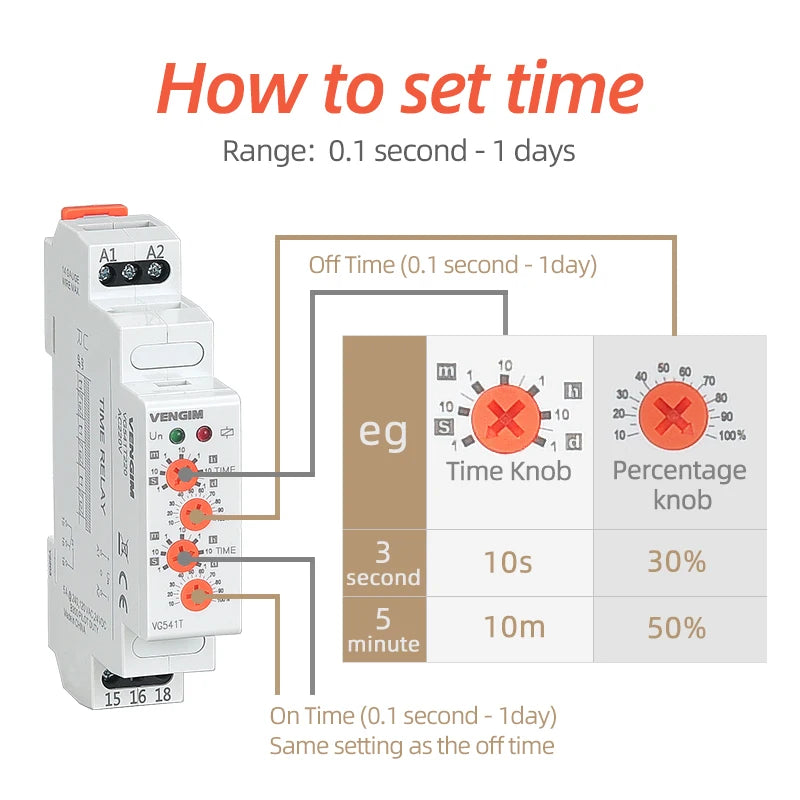

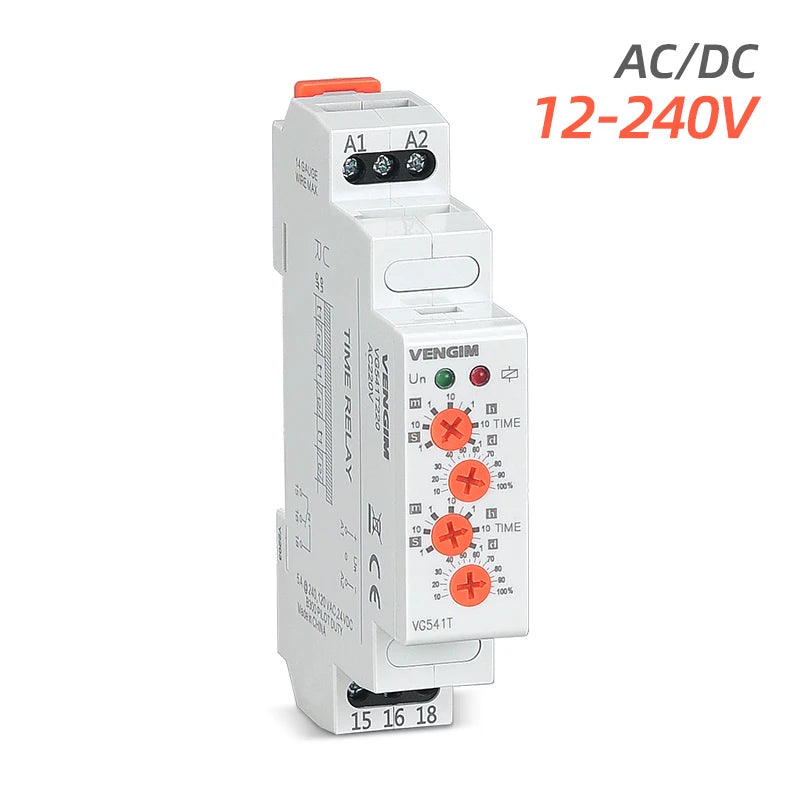

– Delay time adjustable on the front by rotary switch: 10...100%

– Green LED indicator for power on

– Red LED indicator for relay state; flashing for delay and steady when relay energized

– "Blade + cross" both flat blade and crosshead screwdrivers can be used on rotary selectors and terminals

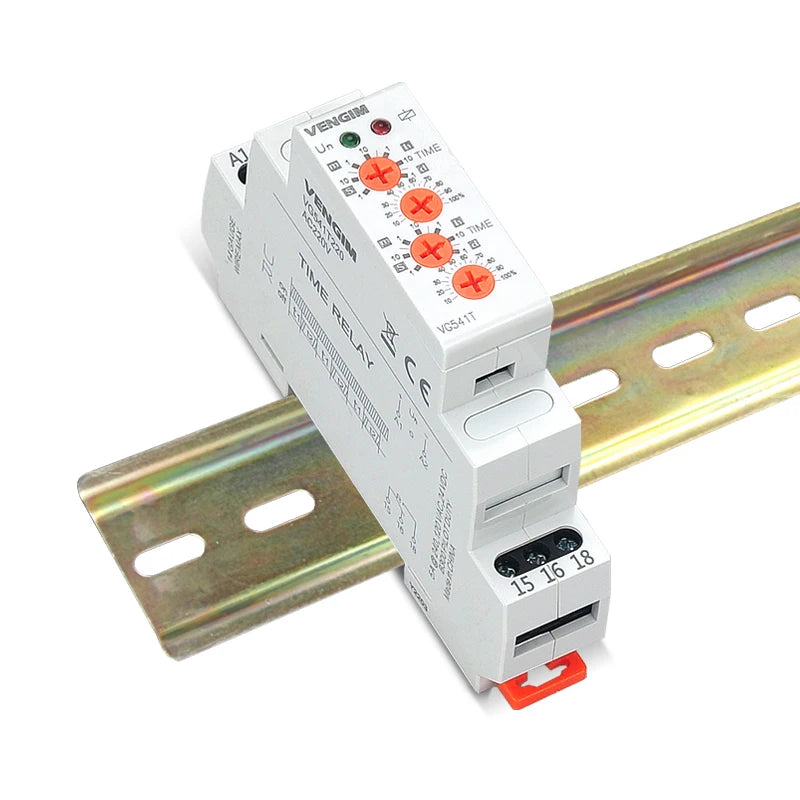

– 35 mm Din rail mount
