SPECIFICATIONS

Assembly Required: no

Brand Name: PremierCable

Certification: RoHS

Choice: yes

D-Type RJ45 Socket Network Connector CAT6 Female Sockets Ethernet Connector: RJ45 Cat6 Socket

High-concerned chemical: none

Industrial Panel Mount Bulkhead Female/Female Feed Thru Coupler: XLR Panel/D-Type Panel Mount rj45 adapter

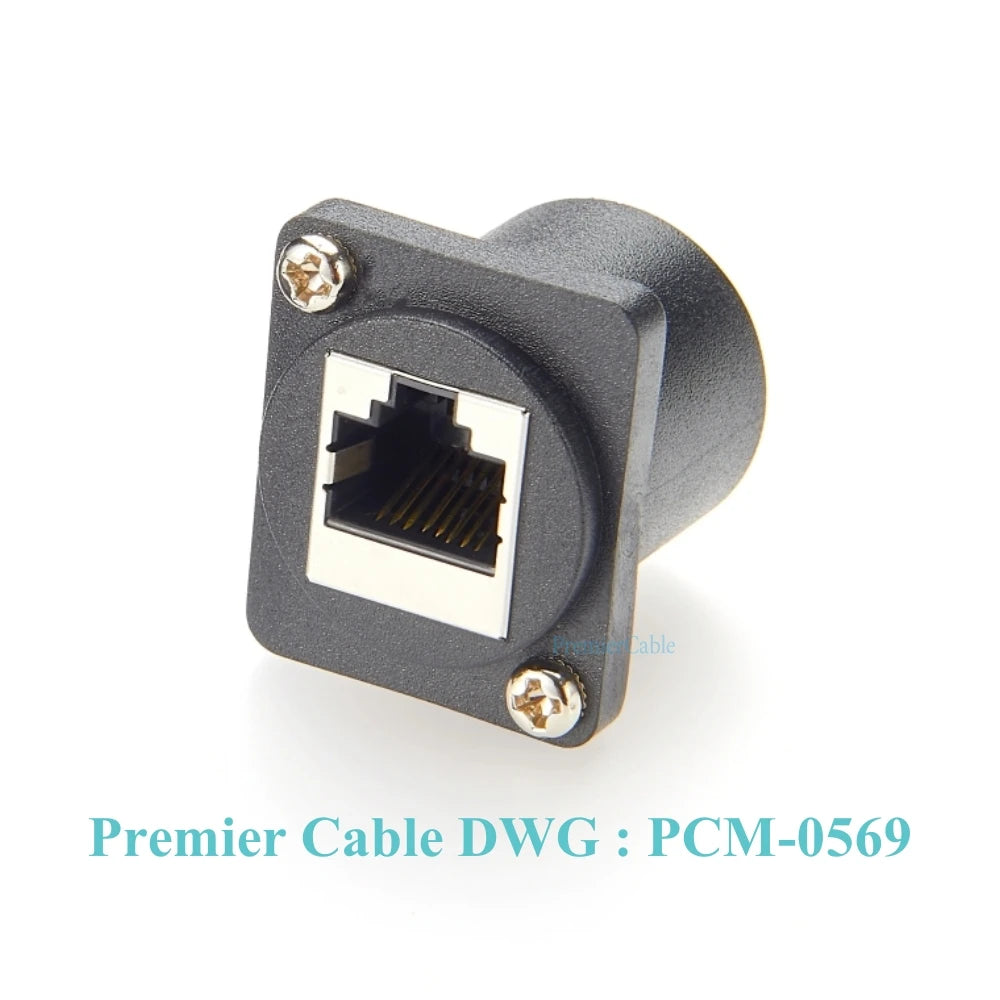

Model Number: PCM-0569

Origin: Mainland China

Package: Yes

Type: Cable Adapter

semi_Choice: yes

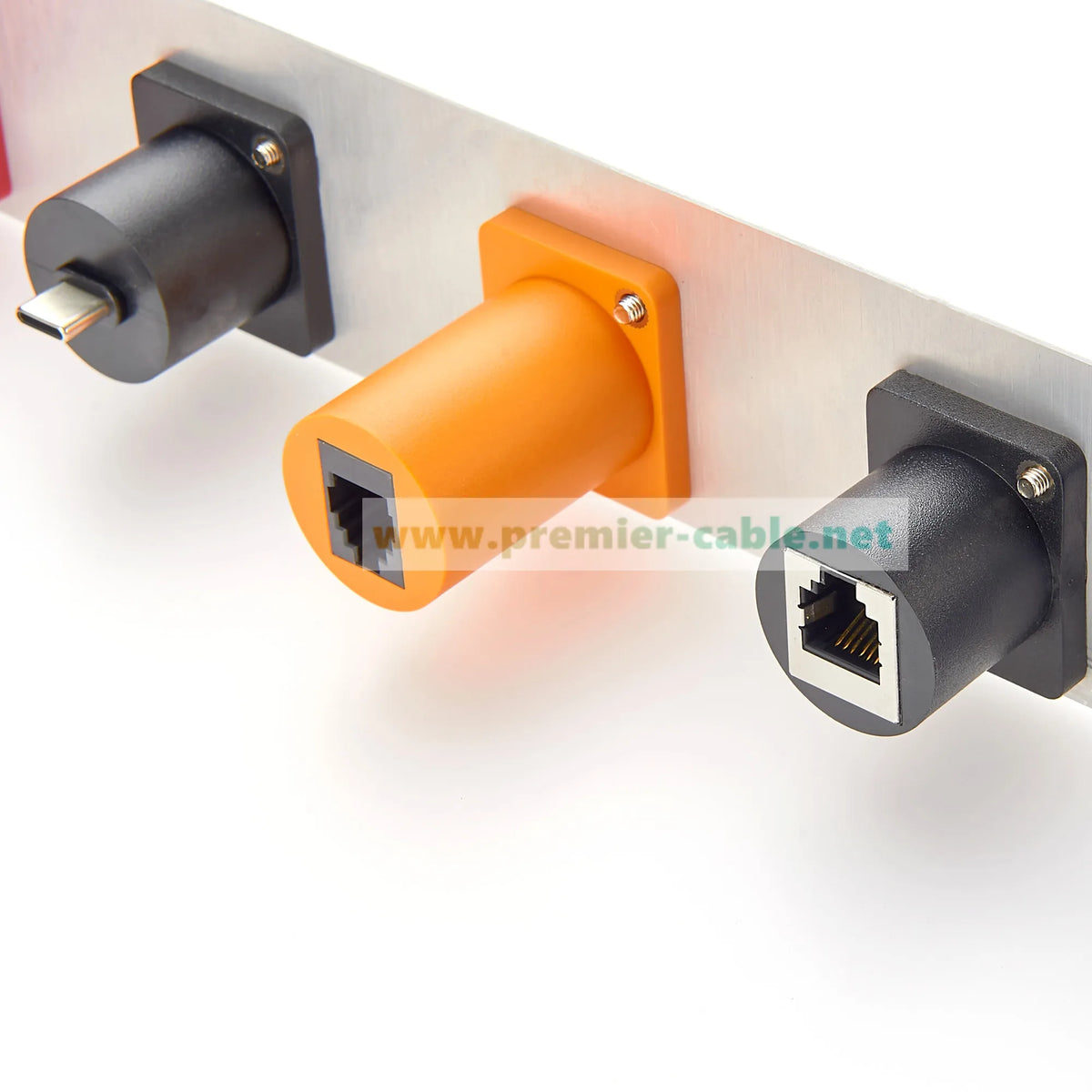

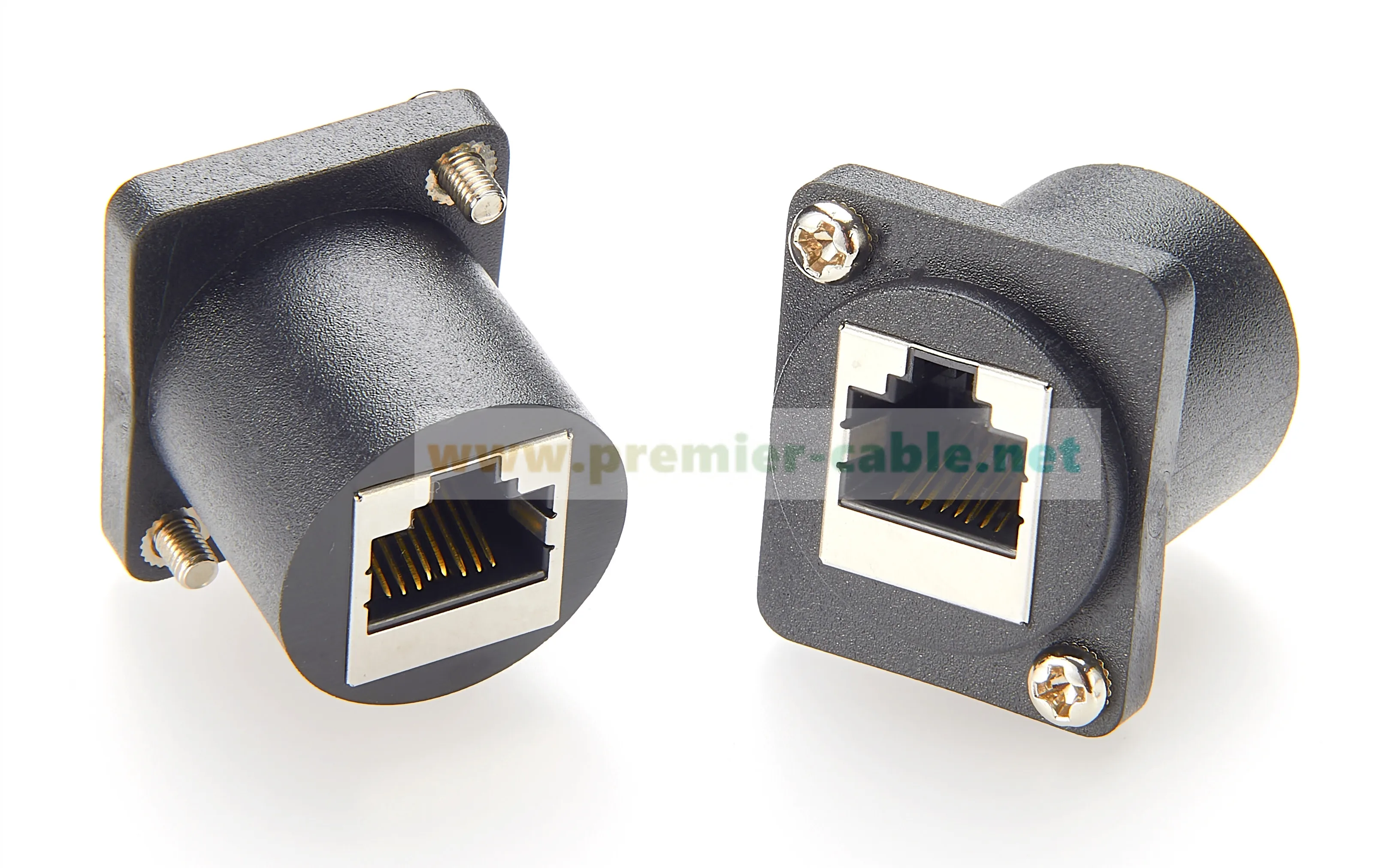

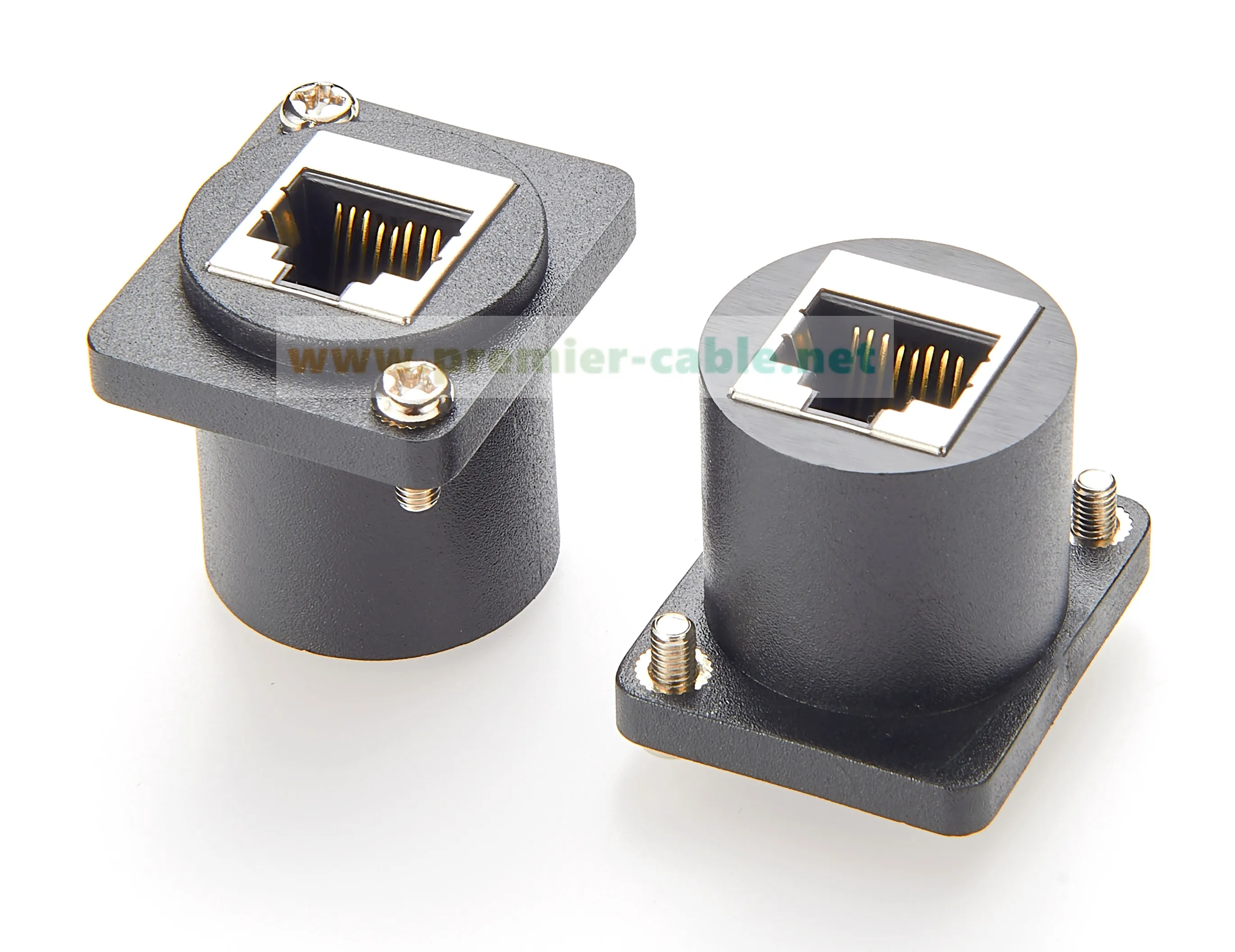

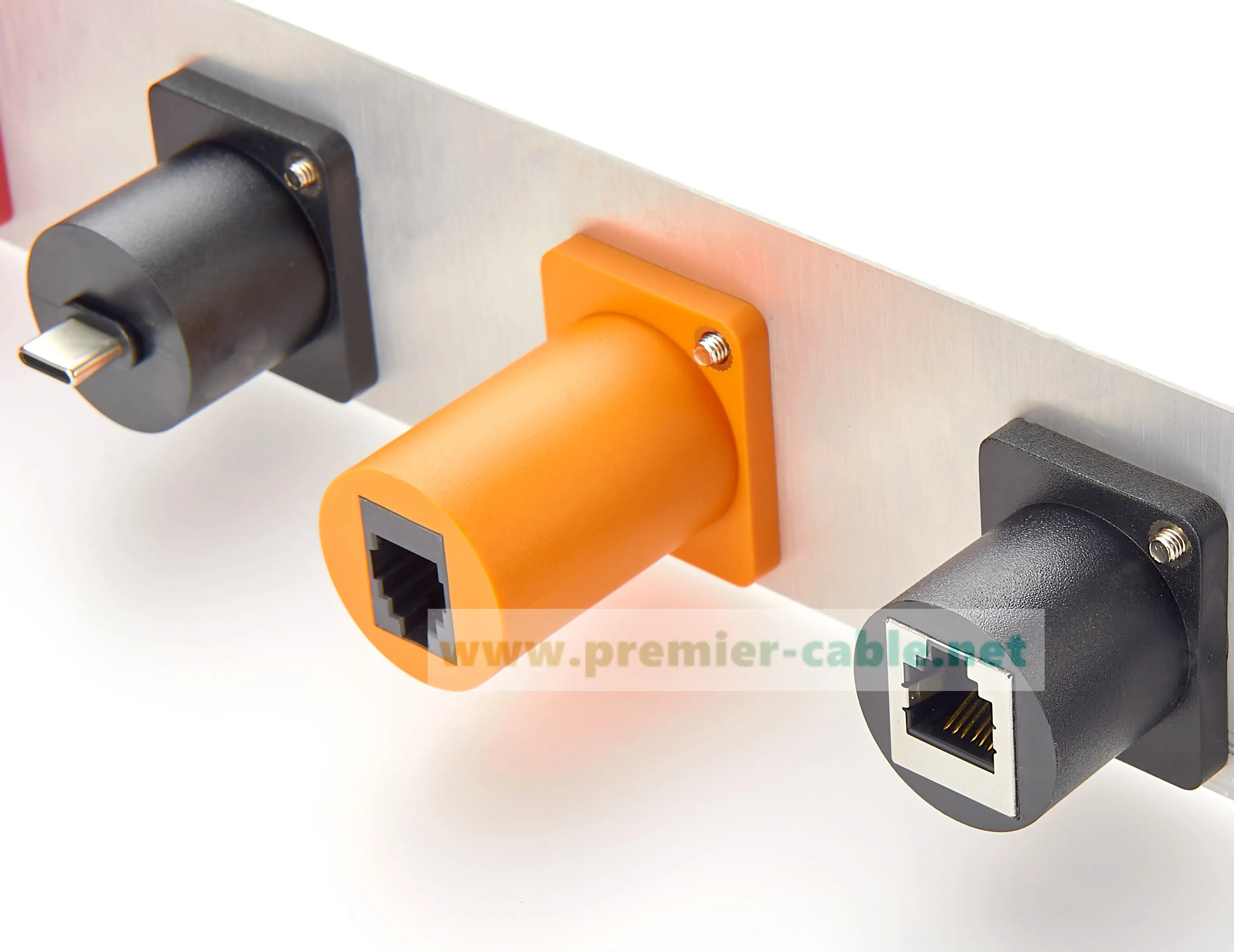

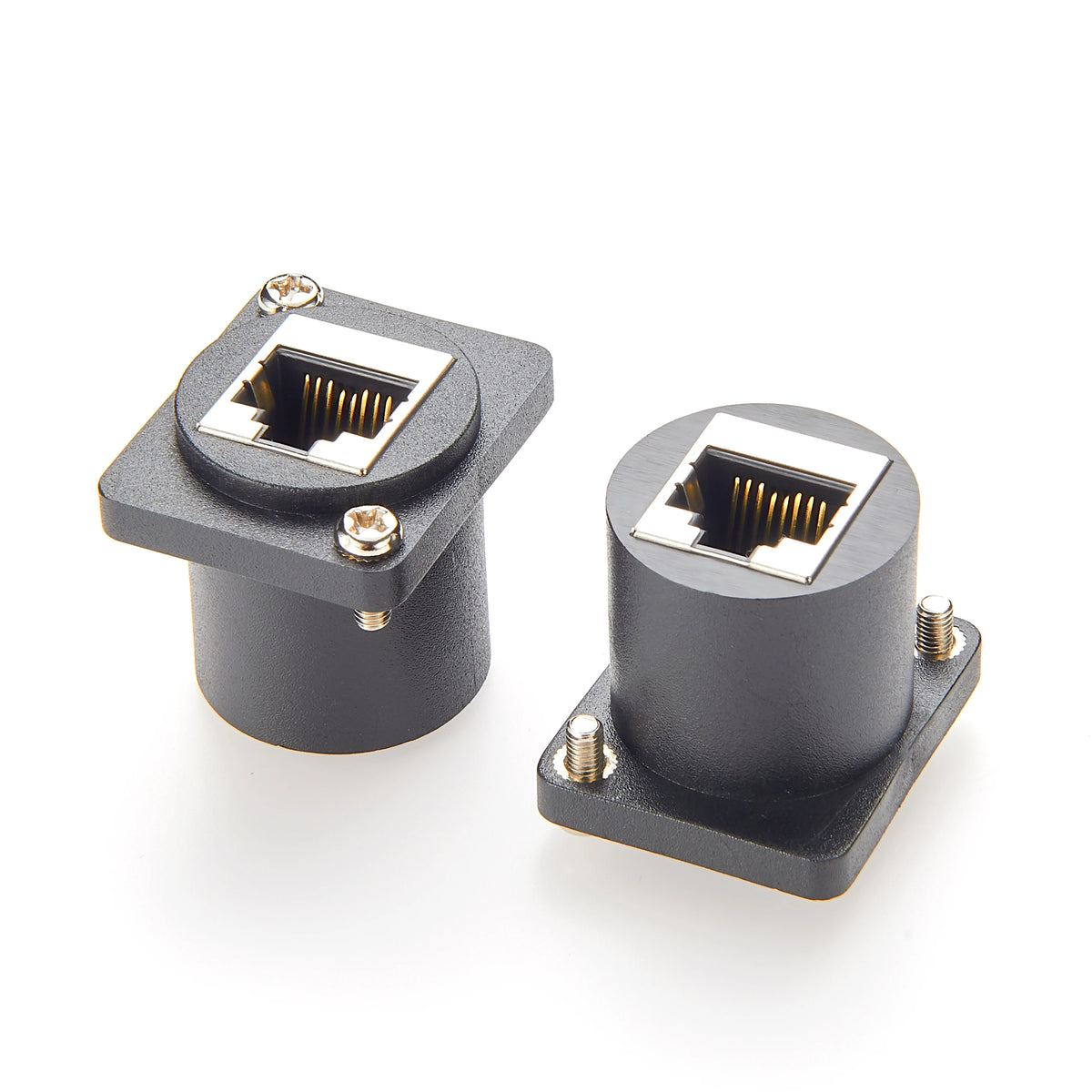

The RJ45 socket panel mounting adapter is a connector used to integrate the RJ45 interface into a standard D-type panel opening. This adapter has a wide range of applications in network cabling, device connection and panel installation, and is particularly suitable for environments requiring stable and reliable network connections.

D-Type RJ45 Socket:RJ45 panel mount connector, featuring a secure locking system, compatible with cat5/5e/6 gigabit network, for special external RJ45 ports, it can also be used for 2-cable extension, cat5/5e/6 ethernet connection in home or industrial environments.

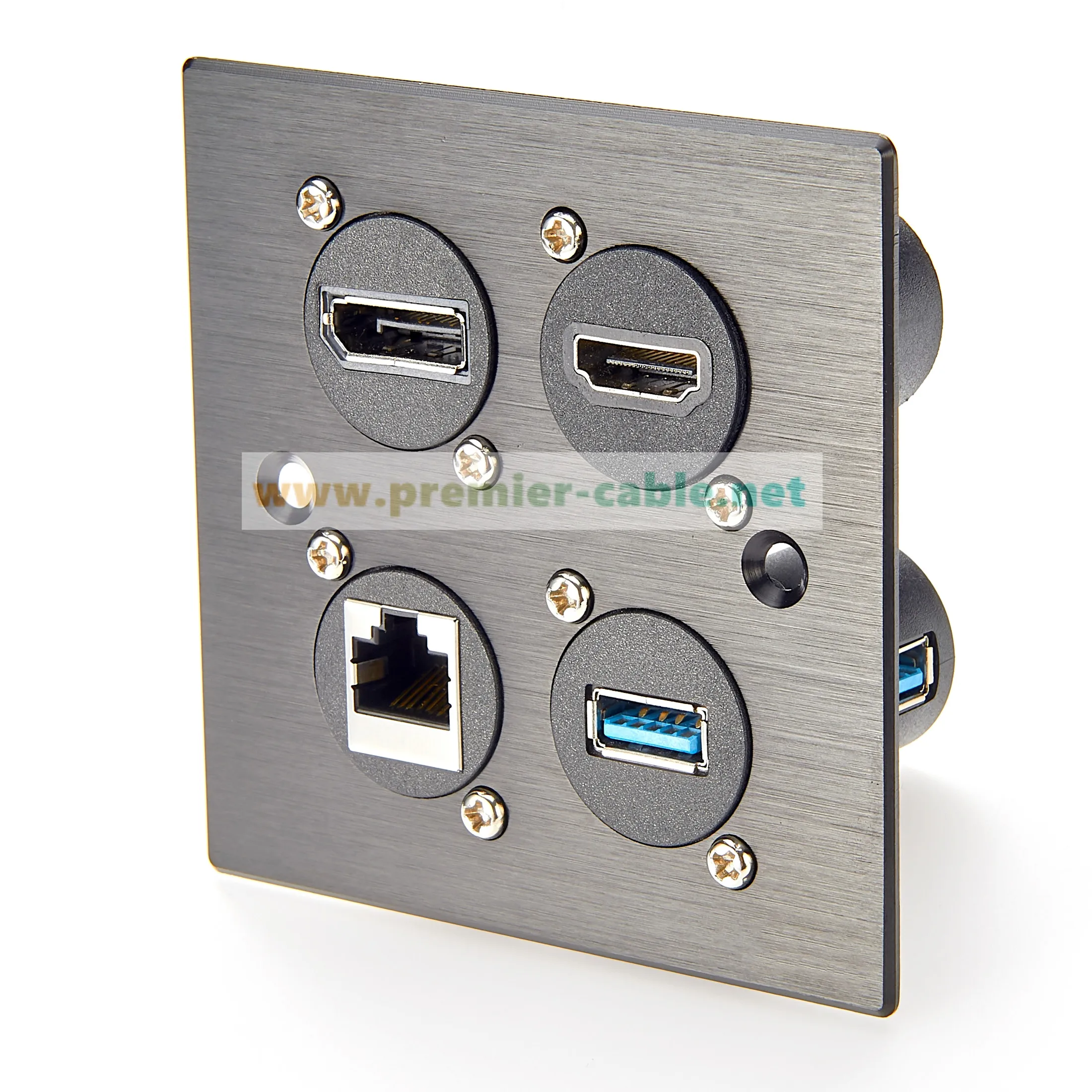

Wide Application:RJ45 Cat6 female to female through socket, for RJ45 ports desktop, computers, TV boxes, tablets, electronic etc Others require an external, can be installed on the ground socket,desktop socket,86 panel,used automation, medical and smart home applications, provides cat5/5e/6 ethernet connection.

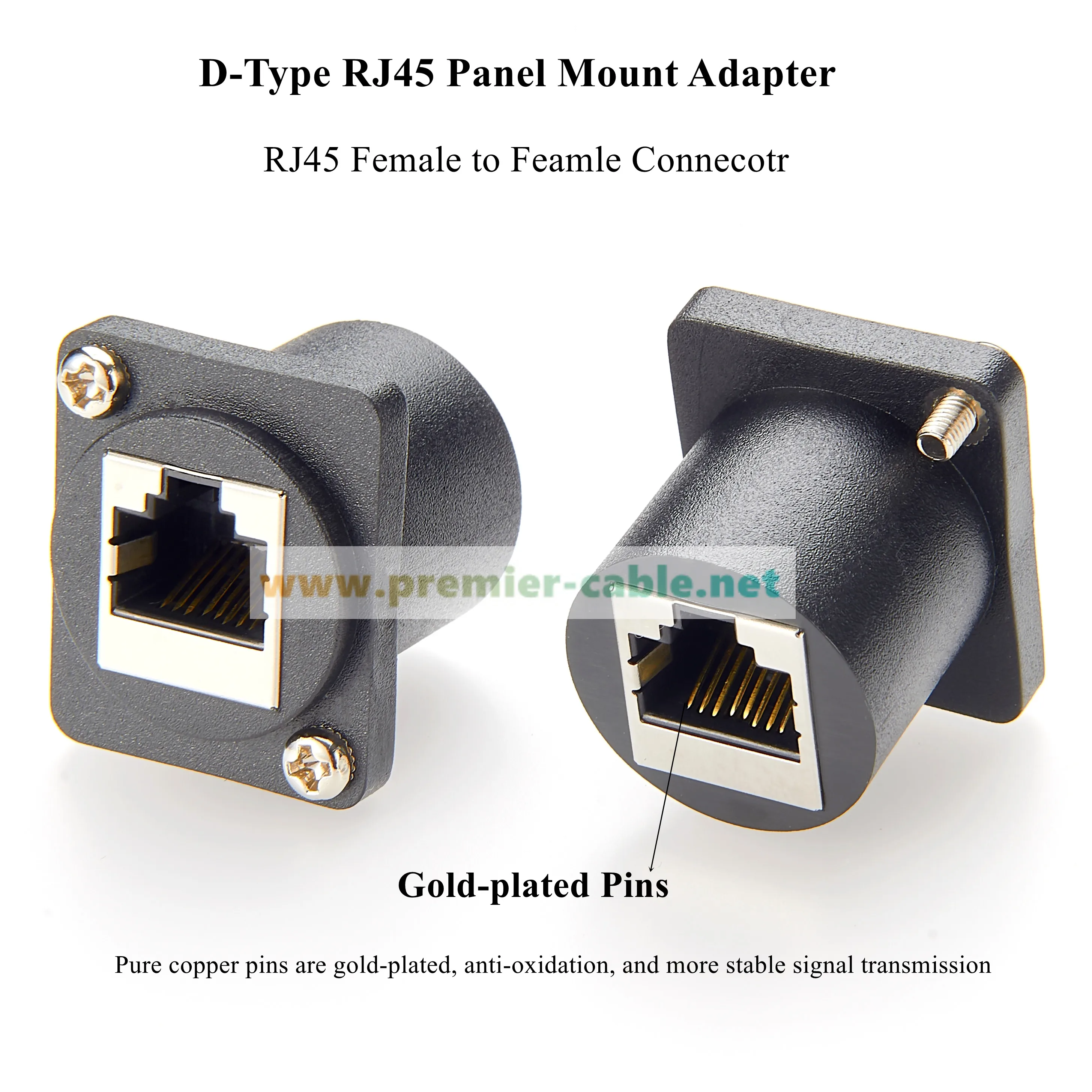

Durable Material:RJ45 fixed Pass through module, copper needles uses brass solid terminals and the surface is gold-plated, high quality PVC material, durable,adapt to a variety of harsh environments, service life is long.

Anti Interference:RJ45 network ethernet extension coupler, inner pins is copper with gold-plated with high frequency noise immunity and electromagnetic interference protection,making the transmission faster and more stable.

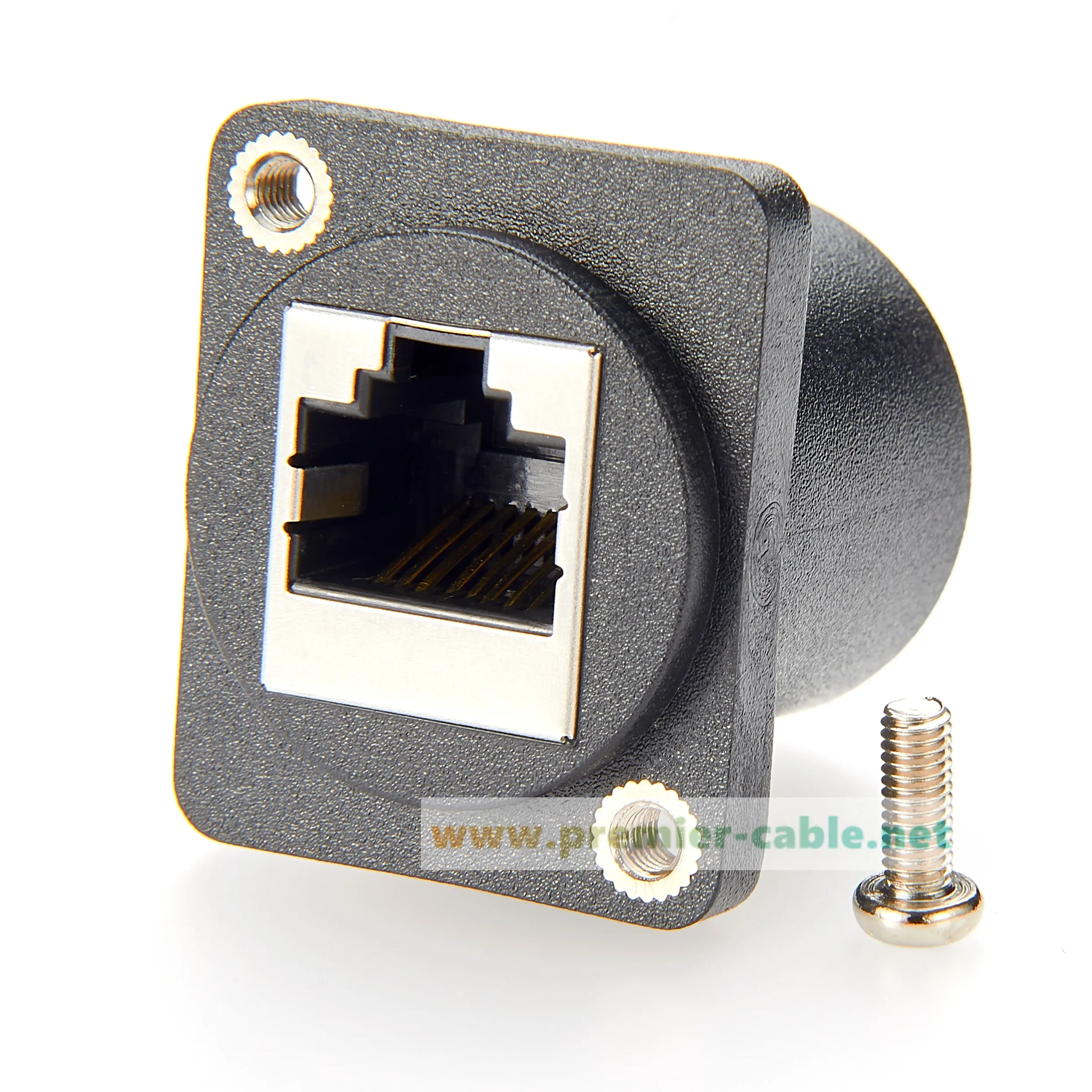

Easy Installation:RJ45 extension Interface coupler, no soldering, no installation tools, use the fixing screw that comes with the product and screw it on.
Features：

Connector1:RJ45 8P8C Female

Connector2:RJ45 8P8C Female

Mounting Type:D-typePanel Mount

Cat.5e specification

Housing material: High Qulity PVC

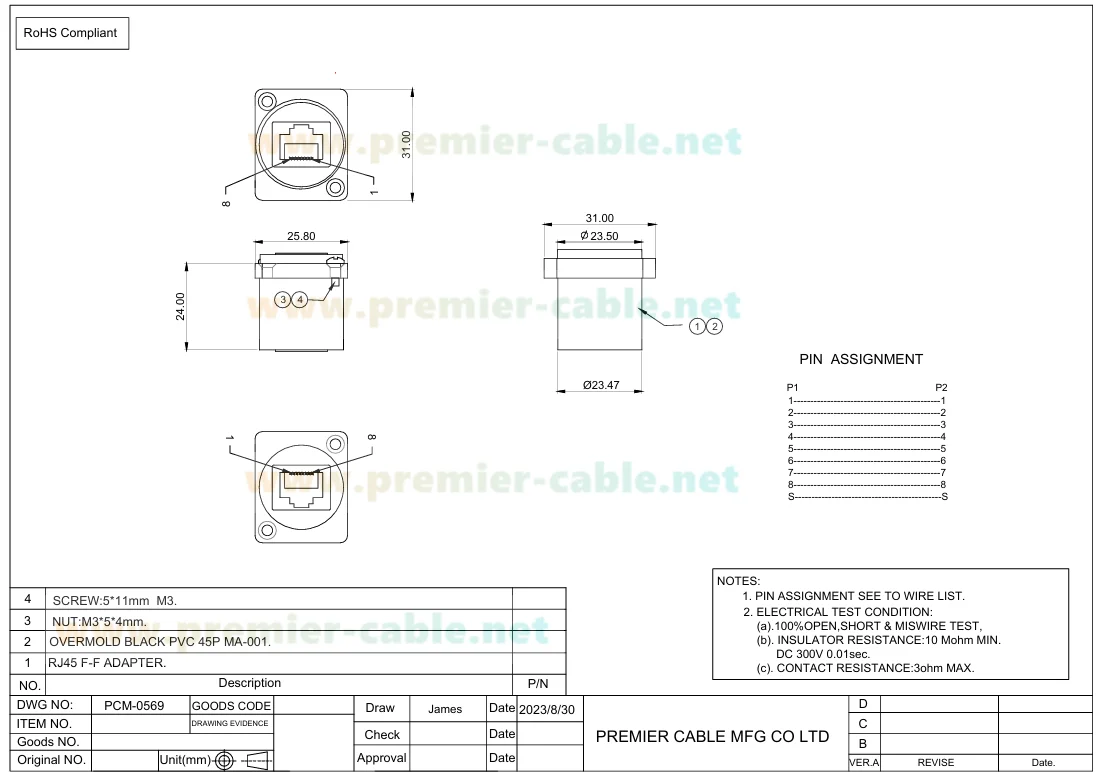

Contact Pin: Pure Copper(Gold-Plated)Please refer to the drawings below for dimensions
